USER MANUAL DO9262G DOMO

I PRODUCTSPECIFIEKE WAARSCHUWINGEN

I AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

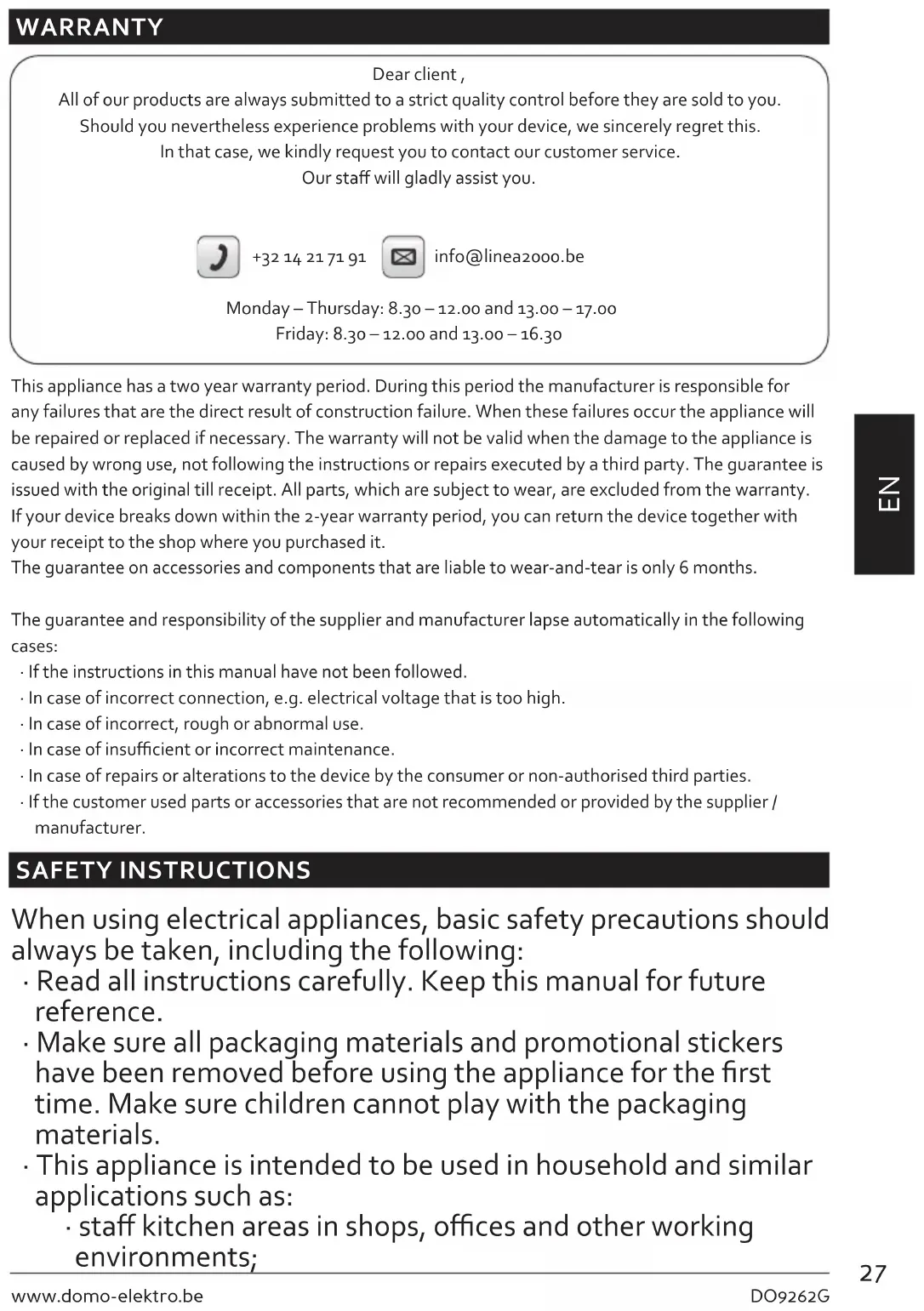

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. [phone] [e-mail] Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g. electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer. SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;28 DO9262G

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

I ELECTRICAL WARNINGS

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and o by the utility.

• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking o parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “0” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

• The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.29 DO9262G www.domo-elektro.be

• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

• Keep the power cord away from hot parts and don’t cover the appliance.

• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself. I INSTALLATION

• Do not place near ammable materials, gases or explosives.

• Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance. I USE

• Do not use this appliance for other than intended use.

• Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries. Only use the utensils delivered with the appliance.

I CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Failure to maintain this appliance in a clean condition could adversely aect the life of the appliance and possibly result in a hazardous situation.30 DO9262G

The appliance can become hot during use. Keep the power cord away from hot parts and don’t cover the appliance.

• Make sure that the air can circulate freely around the appliance.

• Make sure that the appliance does not come into contact with ammable materials.

• Only use the appliance indoors and be careful with hot areas and materials such as curtains, tablecloths, etc.

• Preferably use a heat resistant mat underneath the appliance base is at and level.

• Allow the appliance to cool o completely before cleaning or storing it.

• Never touch any hot parts while the appliance is switched on and being used.

• Make sure nothing can touch the heating element.

• Do not move the appliance when it is warm or hot.

• Clean the appliance directly after use because it has been in contact with foodstus.

• Keep the appliance free of oil on its parts. Oil is very inammable.

• Never use any sharp objects such as knives or forks on the dierent parts, always use wooden spoons/spatulas.

• Do not use a metal scouring pad to clean the appliance. Metal fragments can break o and come into contact with the electrical components of the appliance, causing a short circuit.

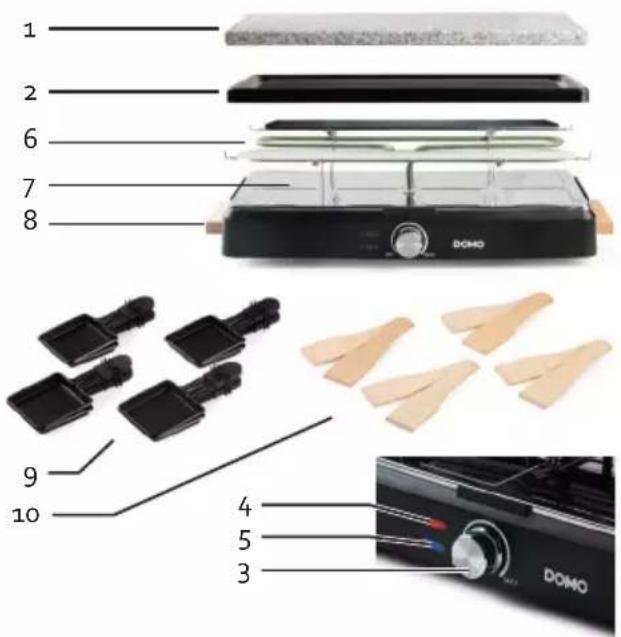

1. Polished natural stone

2. Grill plate with non-stick coating

5. Indicator light for heating

8. Base with wooden handles

• Remove all packing materials and carefully clean the appliance, the stone, the grill plate and the mini pans before the rst use. (See “Cleaning and maintenance”.)

• Use a thin layer of vegetable oil in the mini pans and on the grill plate and apply a ne layer of salt to the stone plate. This will prevent sticking and cleaning after use will be easier.

• When using the appliance for the rst time a small amount of smoke may be released from the heating element. This is completely normal and harmless. For this reason allow the appliance 10-30 minutes to preheat before using for the rst time in order to burn any possible remaining residues.

• Place the unit preferably on a surface that is easy to clean. The surface should also be heat-resistant. Do not place the appliance on an untreated wooden surface.

• Make sure that there is enough ventilation around the grill. IMPORTANT REMARKS

• The stone is a natural product. Small rips can become visible during use. This is a normal phenomenon and is not covered by the warranty. The stone can also change colour and become darker. This does not aect the performance of the appliance.

• Never use marinades or sauces on the stone that contain acids (lemon juice, vinegar, ketchup, etc.).

• If the stone plate has been stored in a humid surrounding, make sure to put it in a regular environment at room temperature 2 days in advance.

• Avoid shocks when moving the stone plate. Also avoid strong temperature changes.

• Do not put food on the hot stone that is too large, too cold or frozen.

• Never sprinkle cold water on a hot stone, the stone plate might crack.

• Never move a stone that is still hot, to avoid burns and cracks in the stone.

• Only place food onto the stone. Never place any heavy objects on top of the stone.

• If you use meat that is marinated, know that the spices will be absorbed by the stone. This may cause colour change of the stone and may give a special taste to the grilled meat.32 DO9262G

1. Place the appliance in the middle of the table. Make sure that the space around the appliance is

properly ventilated.

2. Carefully place the stone or griddle in the top of the holders. Make sure it is positioned rmly and

straight, and that the unit itself is level and stable.

3. Make sure that the grill is switched o (position MIN). Plug into an earthed socket.

4. Use a thin layer of vegetable oil in the raclette pans and on the grill plate. This will prevent sticking

and cleaning after use will be easier.

5. Let the appliance preheat for at least 10 minutes until the grill is hot enough for cooking. When the

set temperature is reached, the blue light will turn o. NOTE: The stone needs more time to reach the operating temperature. Let it heat up for at least 20 minutes.

6. Cut meat into small squares to shorten cooking time. The thickness of the food determines the

cooking time. Turn the food often to ensure even cooking.

7. Only use wooden or plastic utensils so you do not damage the anti-stick coating of the grill plate or

• You can set the temperature of the appliance as required. The temperature ranges from minimum (MIN) to maximum (MAX). A mid-way temperature is recommended.

• This switch is also the ‘on’ switch, and MIN is the o position.

• Turn the temperature dial to the desired position. The red indicator light will light up once the unit is plugged in, and will stay on as long as the unit is receiving power. The blue indicator light will light up to show that the unit is heating up, and will turn o later to indicate that the unit has reached the operating temperature. When the temperature of the griddle drops, the blue light will automatically turn back on to show that the unit is heating up again. STONE GRILLING

• Place the stone with its shiny side and overow edges upwards.

• Never place a cold stone on a preheated appliance.

• Apply a very thin layer of salt to the stone to prevent sticking. Caution: do not use any oil on the stone.

• Never place frozen food on the stone, always defrost them beforehand.

• Do not place sour food (gherkins, pearl onions) on the stone.

• Never touch the hot stone with your bare hands. GRILLING

• Apply a thin layer of vegetable oil to the grill plate and mini pans.

• Only use wooden or plastic utensils so you do not damage the stone or the anti-stick coating of the grill plate or mini pans. RACLETTE

• Use a thin layer of vegetable oil on the raclette pans. This will prevent sticking and cleaning after use will be easier.

• For raclettes use approximately 200-250 g special raclette cheese per person. Cut the cheese into thin slices of 2 mm.33 DO9262G www.domo-elektro.be

Lay the cheese in the raclette raclette pans and place the mini pans on the appliance in the specially designed slots. The cheese will be ready in about 3-4 minutes. Do not overll the pans.

• The above can be prepared with a combination of onions, gherkins, lettuce, baguettes or potatoes.

• The raclette mini pans are also suitable for frying eggs or new potatoes (small) and even meat.

• Do not touch the pans with bare hands; use the handles.

• Do not allow heat the empty raclette pans. Empty pans are best placed outside the unit.

CLEANING AND MAINTENANCE

• Clean the appliance after every use.

• Switch o and unplug the appliance before cleaning it. Wait until the appliance has completely cooled down.

• It is recommended that all food residues be removed with a wooden spatula or a heat-resistant plastic utensil while the appliance is still hot. If the residues dry up, they will be harder to remove.

• All external surfaces can be cleaned with a damp cloth or sponge.

• Clean the grill plate and raclette pans with water and some mild detergent.

• Do not use sharp objects. Only use a wooden scraper.

• Make sure that water can not get into the appliance.

• Never immerse the appliance in water. Never pour cold water over a hot stone.

• Never use any aggressive or abrasive cleaning agents. These could cause damage to the special layer on the stone and the non-stick surface layer on the grill plate and pans.

• Do not immerse the appliance in water and never clean it in a dishwasher.

• The mini pans can be immersed in water and are dishwasher-safe.

• Be careful while cleaning, the natural stone is fragile!

PROBLEM AND SOLUTION

PROBLEM SOLUTION The grill does not heat up · Make sure the appliance is connected to a working power outlet. Check that the red light is on (the appliance is correctly connected). Then turn the thermostat knob far enough and check to see if the blue light is on (the appliance is heating up).

• Give the grill enough time to heat up, this takes longer with the natural stone. Food sticks to the grill. · Make sure the grill is hot enough (the blue light turns o) when you put the meat on the grill.

• Give the pans and grill a thin coat of oil that can withstand heat well (vegetable, groundnut, etc.) or give the stone a thin coat of salt.34 DO9262G

ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.35 DO9262G www.domo-elektro.be
