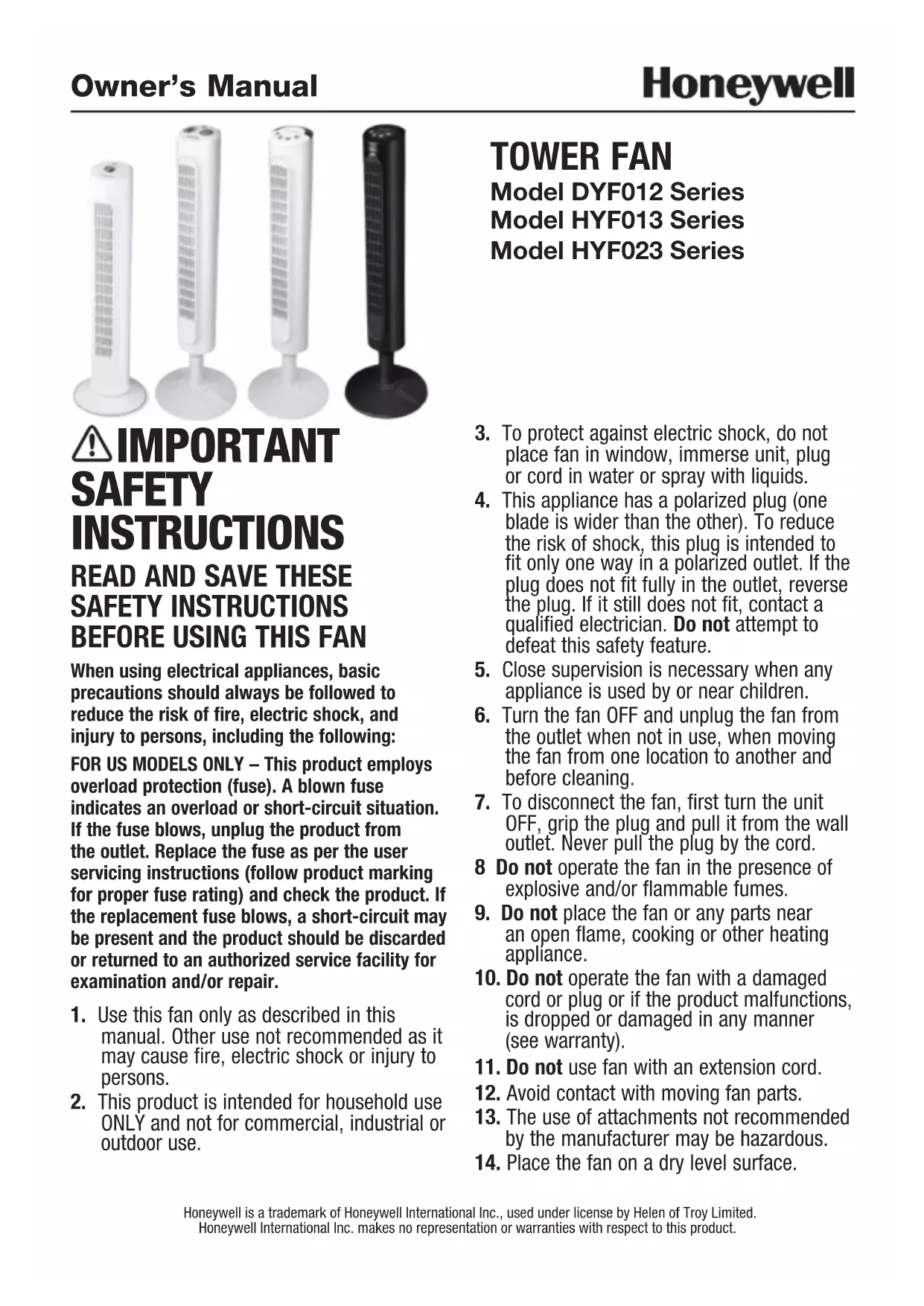

TOWER FAN Model DYF012 Series Model HYF013 Series Model HYF023 Series Honeywell is a trademark of Honeywell International Inc., used under license by Helen of Troy Limited. Honeywell International Inc. makes no representation or warranties with respect to this product. IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:FOR US MODELS ONLY – This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the product. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.1. Use this fan only as described in this manual. Other use not recommended as it may cause fire, electric shock or injury to persons.2. This product is intended for household use ONLY and not for commercial, industrial or outdoor use.3. To protect against electric shock, do not place fan in window, immerse unit, plug or cord in water or spray with liquids.4. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.5. Close supervision is necessary when any appliance is used by or near children.6. Turn the fan OFF and unplug the fan from the outlet when not in use, when moving the fan from one location to another and before cleaning.7. To disconnect the fan, first turn the unit OFF, grip the plug and pull it from the wall outlet. Never pull the plug by the cord.8 Do not operate the fan in the presence of explosive and/or flammable fumes.9. Do not place the fan or any parts near an open flame, cooking or other heating appliance.10. Do not operate the fan with a damaged cord or plug or if the product malfunctions, is dropped or damaged in any manner (see warranty).11. Do not use fan with an extension cord.12. Avoid contact with moving fan parts.13. The use of attachments not recommended by the manufacturer may be hazardous.14. Place the fan on a dry level surface. Owner’s Manual2 3 NOTE: Remove all contents from the box being careful not to discard the manual and hardware needed for assembly. A phillips head screw driver ( ) is required for assembly and is not included with the fan purchase. A. Base Assembly

• Gently turn the fan upside down.

• Place the power cord through the recessed channel located in the center of the rear base assembly (Fig. 1).

• Align the rear and front base assembly and firmly snap together by pushing the 4 round extrusion into the adjacent circles of the connecting pieces (Fig. 2). B. Securing the Tower Fan to the Base

• Using the 3 (M5 x 12) screws and phillips head screw driver ( ) secure the base into the bottom portion of the fan housing by aligning the 3 screw holes on the base with the 3 screw holes on the bottom of the fan housing (Fig. 3).

• Gently pull any slack out of the power cord and place the cord securely in the power cord holding bracket (Fig. 4).

• Place the fan right side up. Your fan is now ready for use.

DYF012 SERIES ASSEMBLY INSTRUCTIONS

• Place the fan on a level and dry surface.

• Plug the power cord into a polarized 120 Volt AC wall outlet.

• To operate, press the appropriate speed control option: High (

• If your fan loses power and you suspect that the fuse on your fan has blown, grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord.

• Slide fuse cover, located on the top of the plug, towards the prongs of the plug. (Fig. 1)

• Carefully remove the blown fuse and snap a new fuse into place. To reduce the risk of fire, replace fuse only with 2.5 Amp, 125 volt fuse. Fully close the fuse door by sliding back into place. (Fig. 2) Discard the blown fuse. The plug should now be ready for normal use.

• To reduce the risk of fire, do not replace attached plug. Contains a safety device (fuse) that should not be removed. Discard product if the attached plug is damaged.

• If you need further information on how or when to replace the fuse in the safety plug, please contact Kaz Consumer Relations Department by visiting our website at www.honeywellpluggedin.com/fans or calling 1-800-477-0457. This fan features a fused safety plug which is designed to cut off electric current to the fan if an electrical fault occurs. Please see below for more information on how to properly use your fan and replace the safety plug fuse, if needed. FUSED SAFETY PLUG – FOR US MODELS ONLY

16. Do not operate if the fan housing is

17. A loose fit between the AC outlet

(receptacle) and plug may cause over heating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.

18. Do not operate any fan with a damaged

cord or plug. Discard any damaged fan, return the fan to the retailer where the fan was purchased, or request a return authorization to return to Kaz USA, Inc. for examination and/or repair.

19. Do not run fan cord under carpeting. Do

not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic areas and where it will not be tripped over.

WARNING: To Reduce The Risk of Fire or

• Place the fan on a level and dry surface.

• Plug the power cord into a polarized 120 Volt AC wall outlet.

• Operate the automatic shut-off timer feature by turning the timer knob to the desired setting of 10 to 120 minutes (Fig. 15).

• To turn on the fan after automatic shut-off, turn the knob counterclockwise to the ON position

• Place the fan on a level and dry surface.

• Plug the power cord into a polarized 120 Volt AC wall outlet.

• To turn the fan on, press the Power button ( ) located on the left side of the control panel.

• To select fan speed, press Speed Control button ( ) until the desired speed is selected: High ( ), Medium ( ), or Low ( ) (Fig. 16).

• To activate or disengage the fan oscillation, press the oscillation button ( ). Press the Oscillation button again to turn the Oscillation feature off (Fig. 17). Fig. 16 Fig. 17 NOTE: Remove all contents from the box being careful not to discard the manual and hardware needed for assembly. A phillips head screw driver ( ) is required for assembly and is not included with the fan purchase. A. Pedestal Assembly

• Place the power cord through the center of the front and rear pedestal assemblies with the screw hole openings facing towards the fan.

• Align the front and rear pedestal assembly and firmly snap together (Fig. 7). B. Securing the Tower Fan to the Pedestal

• Gently turn fan upside down.

• Line up the 3 screw holes on the pedestal with the 3 screw holes on the bottom of the fan housing. Use the 3 (M5 x 12) screws included in the box and a phillips head screw driver

) to secure the pedestal to the fan housing (Fig. 8). C. Base Assembly

• With the fan in the upside down position, pass the power cord through the recessed slot located in the center of the rear base assembly (Fig. 9).

• Align the rear and front base assembly and firmly snap together by pushing the 4 round extrusion into the adjacent circles of the connecting pieces (Fig. 10). D. Securing the Tower Fan to the Base

• Align the 3 screw holes in the bottom of the pedestal with the 3 screw holes located on the base. Using the 3 (M5 x 12) screws and phillips head screw driver

), secure the base into the bottom portion of the fan housing (Fig. 11).

• Place the power cord through the cut out on the bottom of the base. Gently pull any slack out of the power cord and place the cord securely in the power cord holding bracket (Fig. 12).

• Place the fan right side up. Your fan is now ready for use.

HYF013, HYF023 SERIES ASSEMBLY INSTRUCTIONS

Fig. 10 Fig. 11 Fig. 12 Fig. 9 Fig. 7 Fig. 8 Fig. 14 Fig. 15 Fig. 136 7 CONSUMER RELATIONS Mail questions or comments to: Kaz USA, Inc. Consumer Relations Dept. 250 Turnpike Road Southborough, MA 01772 THIS DEVICE (HYF023 SERIES ONLY) COMPLIES WITH PART 15 OF THE FCC RULES NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help. Please note that changes or modifications of this product is not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Call us toll-free at: 1-800-477-0457 E-mail: [e-mail] Or visit our website at: www.honeywellpluggedin.com/fans Please be sure to specify a model number. NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE.

USER SERVICING INSTRUCTIONS

CLEANING AND STORAGE

• Unplug the fan before cleaning.

• Use only a soft, damp cloth to gently wipe the outside surface of the fan.

• DO NOT immerse the fan in water and never allow water to drip into the motor housing.

• DO NOT use gasoline, paint thinner or other chemicals to clean the fan.

• Gently wipe the grilles with a cloth. To clean between the grilles we recommend using a pipe cleaner, flexible dustwand, vacuum cleaner or compressed air to gently remove dust. DO NOT IMMERSE THE FAN IN WATER AND NEVER ALLOW WATER TO DRIP INTO THE MOTOR HOUSING. DO NOT USE GASOLINE, PAINT THINNER, OR OTHER CHEMICALS TO CLEAN THE FAN.

• For storage, clean the fan carefully as instructed. Store the fan in the original packaging or cover the product to protect it from dust. Store the fan in a cool, dry place. Fig. 18 HYF023 SERIES OPERATION INSTRUCTIONS (CONTINUED)

• Activate the Timer feature by pressing the Timer button (

(Fig. 18). Choose from 1, 2, 4 and 8 hour settings by performing the following functions:

• 1 hour: Press the Timer button once.

• 2 hour: Press the Timer button twice.

• 4 hour: Press the Timer button a third time.

• 8 hour: Press the Timer button a fourth time. Press the Timer button a fifth time to turn the Timer feature off.

OF ANY NATURE. ANY IMPLIED WARRANTY

OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE ON THIS PRODUCT IS

LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase. B. At its option, Kaz USA, Inc. will repair or replace this product if it is found to be defective in material or workmanship. C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual. D. Return defective product to Kaz USA, Inc. with a brief description of the problem. Include proof of purchase and a $10 US/$15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. We suggest having tracking or delivery confirmation. Send to: In U.S.: Attn: Returns Department 1 Helen Of Troy Plaza El Paso, TX 79912 USA In Canada: Kaz Canada, Inc. Attn: Returns Department 510 Bronte Street South Milton, ON L9T 2X6 Canada Please go to www.honeywellpluggedin.com/register and register your product under the Customer Care Center and receive product information updates and new promotional offers.
