Brand Metabo
Model AS 36-18 L 20 PC CC
Category Vacuum cleaner
Vacuum type Industrial, cordless (battery)
Dust class L (suitable for slightly toxic dust)
Battery voltage 36 V (Li-Ion)
Recommended battery capacity 8.0 Ah and above
Collection tank volume 20 L (model L 20)
Max. vacuum (at hose) Consult manual (page 3)
Max. airflow (at hose) Consult manual (page 3)
Suction hose diameter Consult manual (page 3)
Suction hose length Consult manual (page 3)
Weight (with smallest battery) Consult manual (page 3)
Sound pressure level LpA May exceed 80 dB(A)
Operating ambient temperature -20 °C to 50 °C
Storage ambient temperature 0 °C to 30 °C
Protection type IP (information in manual)
Main functions Dry dust, non-flammable liquids, wood chips; manual mode, automatic (CordlessControl), PressClean (filter cleaning)

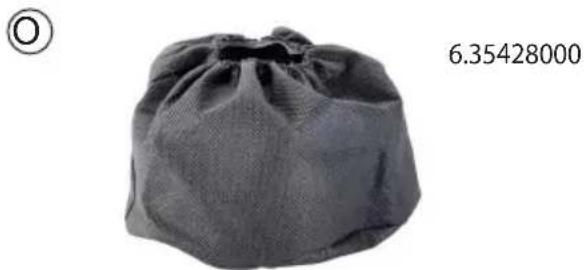

Filtration system Filter (33), non-woven filter bag, PE bag, H class bag (depending on equipment)
Battery capacity indicator Yes (6, 7, 20, 21)
Airflow control indicator Only M and H classes (12)

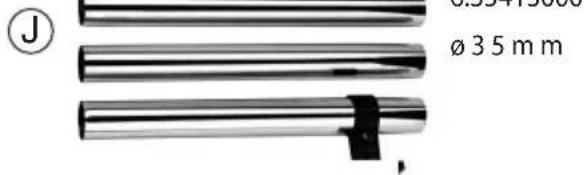

Nozzle/accessory type Nozzle, hose, tube, accessory storage compartments
Maintenance and cleaning Clean collection tank with water, upper part with damp cloth; clean filter via PressClean or rinse with water; check float
Safety Overflow float, toxic dust protection (class M/H), recommended dust mask, do not vacuum asbestos/flammables
Spare parts and repairability Use original Metabo parts; repairs by qualified electrician; parts list at www.metabo.com
General information Professional use (crafts, construction, workshop); complies with EN 60335-2-69; recyclable

Frequently Asked Questions - AS 36-18 L 20 PC CC METABO

What is the collection tank capacity?
The AS 36-18 L 20 PC CC model has a 20-liter collection tank.
Can I vacuum liquids with this vacuum cleaner?
Yes, it is suitable for non-flammable liquids. Do not use without filter and check the float.
What type of battery does this vacuum use?
It uses a 36 V Li-Ion battery (recommended capacity 8.0 Ah or higher) from the CAS (Cordless Alliance System).
How do I clean the filter?

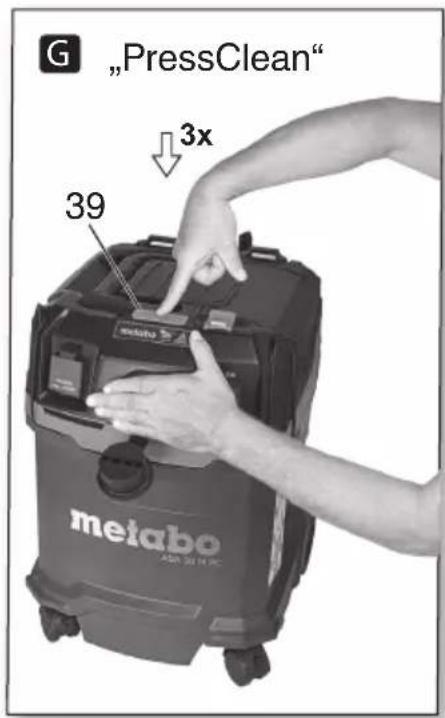

Use the PressClean function: press button (39) 3 times while the vacuum is running, blocking the suction opening.
What should I do if suction power decreases?
Clean the filter with PressClean, empty the collection tank or replace the filter bag, and check that nozzles/hoses are not clogged.
Can I use the vacuum without a filter bag?
No, a filter bag (non-woven, PE, or H class depending on application) must always be installed, even for liquids.
Is the vacuum suitable for hazardous dust?
Class L is suitable for slightly toxic dust (limit value > 1 mg/m³). For more hazardous dust, use M or H versions.
How do I safely empty the collection tank?
Remove battery, wear a dust mask, open the locking clamps, remove the tank, and empty it. For M/H classes, follow special instructions.
What does the flashing red light on some models mean?
It is the airflow control indicator (M/H classes). It flashes if airflow exceeds 20 m/s or if the tank is full.
Where can I find spare parts?
Use only original Metabo parts. Lists are available at www.metabo.com. For repairs, contact an authorized center.
