USER MANUAL H45MR HiKOKI

Demolition Hammer Hammer Marteau de demolition Demolitore Hakhamer Martillo Martelo

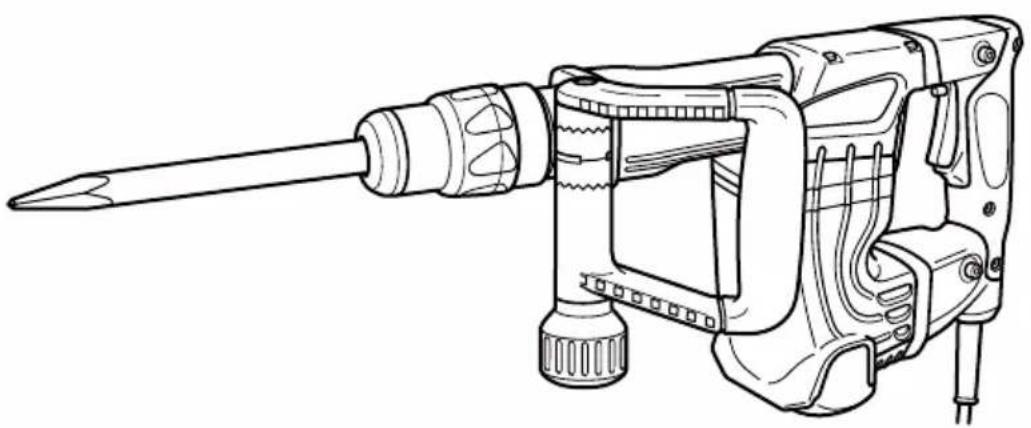

H 45MR

Line drawing of a handheld electric drill press tool (no text or symbols)

Read through carefully and understand these instructions before use. Diese Anleitung vor Benutzung des Werkzeugs sorgfältig durchlesen und verstehen. Lire soigneusement et bien assimiler ces instructions avant usage. Prima dell'uso leggere attentamente e comprendere queste istruzioni. Deze gebruiksaanwijzing s.v.p. voor gebruik zorgvuldig doorlezen. Leer cuidadosamente y comprender estas instrucciones antes del uso. Antes de usar, leia com cuidado para assimilar estas instruções.

Handling instructions Bedienungsanleitung Mode d'emploi Istruzioni per l'uso Gebruiksaanwijzing Instrucciones de manejo Instruções de uso

1

Technical diagram showing hands operating a tool with numbered annotations indicating different states or components.

2

Diagram showing a hand using a tool to adjust or install a mechanical component, with labeled parts ⑤ and an arrow indicating direction.

3

Diagram of a mechanical assembly with numbered parts and directional arrows indicating motion or movement.

4 ⑦ ⑤ ⑥

5

Technical line drawing of a precision tool with labeled component (8), no text or symbols present

6 17 mm a ⑨ ⑩a ⑪43 6 mm ⑫73 7 mm

	English Deutsch	Français Italiano
1	Tool shank	Werkzeugschaft	Queue d’outil	Gambo dell’utensile
2	Front cap	Frontkappe	Capuchon avant	Tappo anteriore
3	Grip (A)	Griff (A)	Poignée (A)	Impugnatura (A)
4	Grip (B)	Griff (B)	Poignée (B)	Impugnatura (B)
5	Grip (C)	Griff (C)	Poignée (C)	Impugnatura (C)
6	Side handle	Seitengriff	Poignée latérale	Maniglia laterale
7	Handle	Handgriff	Poignée	Maniglia
8	Crank cover	Kurbeldeckel	Couvercle de manivelle	Coperchio dell’incastellatura
9	Wear limit	Verschleißgrenze	Limite d’usure	Limite d’usura
10	No. of carbon brush	Nr. der kohlebürste	No. de balai en carbone	Numero delle spazzole di carbone
11	Usual carbon brush	Gewöhnliche Kohlebürste	Balai en carbone ordinaire	Spazzola di carbonecomune
12	Auto-stop carbon brush	Auto-Stop Kohlebürest	Balai en carbone à arrêt automatique	Spazzola di carbone ad arresto automatico

	Nederlands Español	Português
1	Boorschacht	Barrena	Haste da ferramenta
2	Voorkap	Tapa frontal	Tampa frontal
3	Greep (A)	Empuñadura (A)	Cabo (A)
4	Greep (B)	Empuñadura (B)	Cabo (B)
5	Greep (C)	Empuñadura (C)	Cabo (C)
6	Zijgreep	Mango lateral	Empunhadura lateral
7	Handgreep	Mango	Empunhadura
8	Bedekking	Cubierta del motor	Proteção da manivela
9	Slijtage-limiet	Límite de desgaste	Limite de desgaste
10	Nr. van koolborstel	No. de contacto de carbón	N° de escova de carvão
11	Normale koolborstel	Escobilla de carbón usual	Escova de carvão comum
12	Auto-stop koolborstel	Escobilla de carbón de parada automática	Escova de carvão de parada automática

	Symbols⚠ WARNINGThe following show symbols used for the machine. Be sure that you understand their meaning before use.	Symbole⚠ WARNUNGDie folgenden Symbole werden für diese Maschine verwendet. Achten Sie darauf, diese vor der Verwendung zu verstehen.	Symboles⚠ AVERTISSEMENTLes symboles suivants sont utilisés pour l’outil. Bien se familiariser avec leur signification avant d’utiliser l’outil.	Simboli⚠ AVVERTENZADi seguito mostriamo i simboli usati per la macchina. Assicurarsi di comprenderne il significato prima dell’uso.
	Read all safety warnings and all instructions.Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.	Lesen Sie sämtliche Sicherheitshinweise und Anweisungen durch.Wenn die Warnungen und Anweisungen nicht befolgt werden, kann es zu Stromschlag, Brand und/oder ernsthaftenVerletzungen kommen.	Lire tous les avertissements de sécurité et toutes les instructions.Tout manquement à observer ces avertissements et instructions peut engendrer des chocs électriques, des incendies et/ou des blessures graves.	Leggere tutti gli avvertimenti di sicurezza e tutte le istruzioni.La mancata osservanza degli avvertimenti e delle istruzioni potrebbe essere causa di scosse elettriche, incendi e/o gravi lesioni.
	Only for EU countriesDo not dispose of electric tools together with household waste material!In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.	Nur für EU-LänderWerfen Sie Elektrowerkzeuge nicht in den Hausmüll!Gemäss Europäischer Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte und Umsetzung in nationales Recht müssen verbrauchte Elektrowerkzeuge getrennt gesammelt und einer umweltgerechtenWiederververitung zugeführt werden.	Pour les pays européens uniquementNe pas jeter les appareils électriques dans les ordures ménagères!Conformément à la directive européenne 2002/96/EG relative aux déchets d’équipements électriques ou électroniques (DEEE), et à sa transposition dans la législation nationale, les appareils électriques doivent être collectés à part et être soumis à un recyclage respectueux de l’environnement.	Solo per Paesi UENon gettare le apparecchiature elettriche tra i rifiuti domestici.Secondo la Direttiva Europea 2002/96/CE sui rifiuti di apparecchiature elettriche ed elettroniche e la sua attuazione in conformità alle norme nazionali, le apparecchiature elettriche esauste devono essere raccolte separatamente, al fine di essere reimpiegate in modo eco-compatibile.
	Symbolen⚠ WAARSCHUWINGHieronder staan symbolen afgebeeld die van toepassing zijn op deze machine. U moet de betekenis hiervan begrijpen voor gebruik.	Símbolos⚠ ADVERTENCIAA continuación se muestran los símbolos usados para la máquina. Asegúrese de comprender su significado antes del uso.	Símbolos⚠ AVISOA seguir aparecem os símbolos utilizados pela máquina. Assimile bem seus significados antes do uso.
	Lees alle waarschuwingen en instructies aandachtig door.Nalating om de waarschuwingen en instructies op te volgen kan in een elektrische schok, brand en/of ernstig letsel resulteren.	Lea todas las instrucciones y advertencias de seguridad.Si no se siguen las advertencias e instrucciones, podría producirse una descarga eléctrica, un incendio y/o daños graves.	Leia todas as instruções e avisos de segurança.Se não seguir todas as instruções e os avisos, pode provocar um choque eléctrico, incêndio e/ou ferimentos graves.
	Alleen voor EU-landen Geef elektrisch gereedschap niet met het huisvuil mee!Volgens de Europese richtlijn 2002/96/EG inzake oude elektrische en elektronische apparaten en de toepassing daarvan binnen de nationale wetgeving, dient gebruikt elektrisch gereedschap gescheiden te worden ingezameld en te worden afgevoerd naar een recycle bedrijf dat voldoet aan de geldende milieu-eisen.	Sólo para países de la Unión Europea¡No deseche los aparatos eléctricos junto con los residuos domésticos!De conformidad con la Directiva Europea 2002/96/CE sobre residuos de aparatos eléctricos y electrónicos y su aplicación de acuerdo con la legislación nacional, las herramientas eléctricas cuya vida útil haya llegado a su fin se deberán recoger por separado y trasladar a una planta de reciclaje que cumpla con las exigencias ecológicas.	Apenas para países da UENão deite ferramentas eléctricas no lixo doméstico!De acordo com a directiva europeia 2002/96/CE sobre ferramentas eléctricas e electrónicas usadas e a transposição para as leis nacionais, as ferramentas eléctricas usadas devem ser recolhidas em separado e encaminhadas a uma instalação de reciclagem dos materiais ecológica.

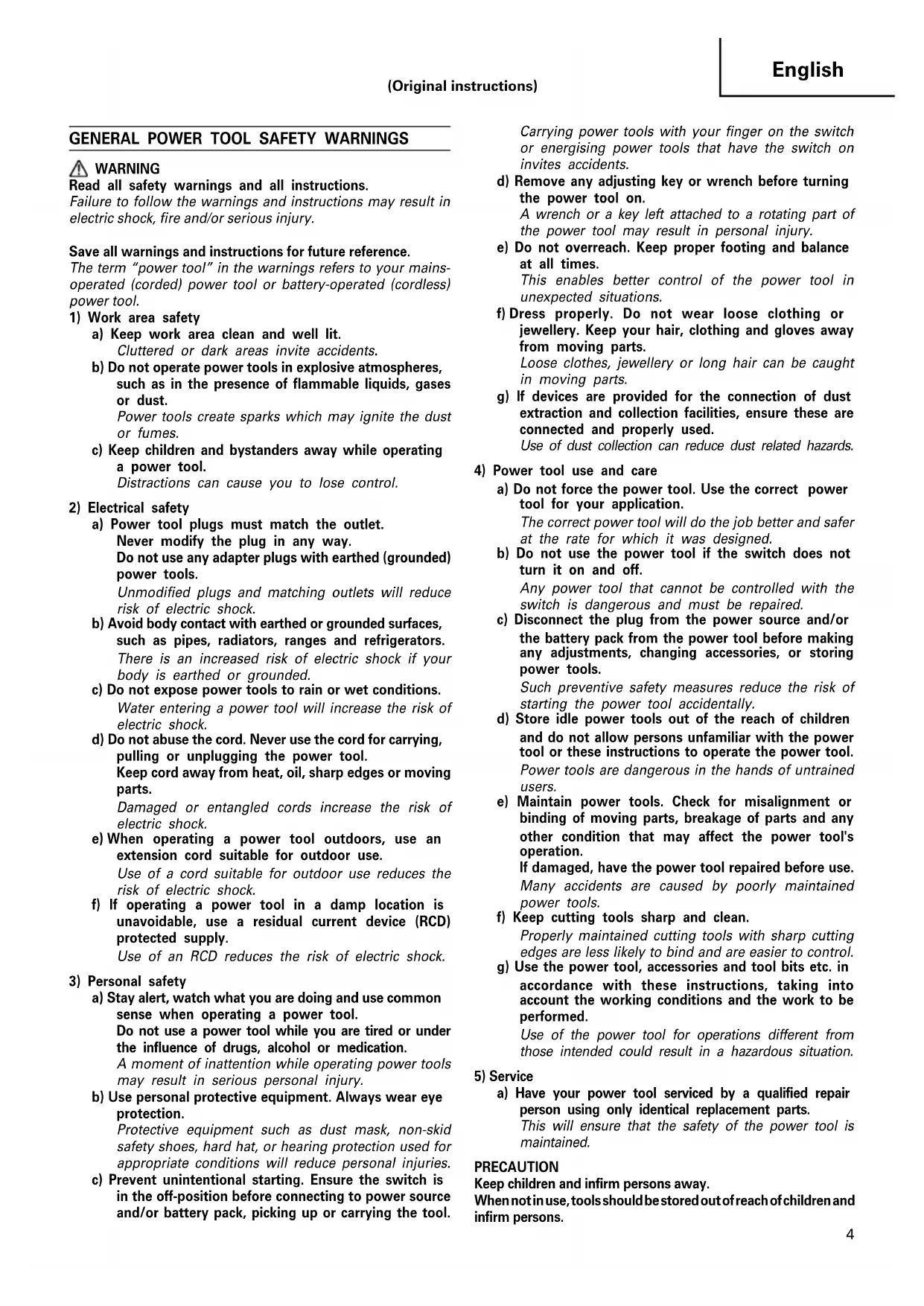

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infirm persons away.

When not in use, tools should be stored out of reach of children and infirm persons.

DEMOLITION HAMMER SAFETY WARNINGS

1. Wear ear protectors

Exposure to noise can cause hearing loss.

1. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

1. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.

Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

1. Do not touch the bit during or immediately after operation. The bit becomes very hot during operation and could cause serious burns.

2. Even when the switch is on, the motor is running and the tool head is pressed to the demolition surface, the hammer sometimes does not start operating. In these instances, turn the switch off, press the tool head against the demolition surface again, and turn the switch on and off. This should start the demolition hammer operating. Repeat this procedure for several minutes, and the demolition hammer will heat, after which it will operate when switched to ON-LOCK.

SPECIFICATIONS

Voltage (by areas)* (110V, 120V, 127V, 220V, 230V, 240V)	~
Power Input 950W*
Full-load Impact Rate 3000min	-1
Weight (without cord, side handle) 5.9 kg

* Be sure to check the nameplate on product as it is subject to change by areas.

STANDARD ACCESSORIES

(1) Case 1
(2) Bull Point (SDS-max shank) 1
(3) Side Handle 1

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES (sold separately)

○Crushing

(1) Bull Point

Overall Length: 280, 400 mm

○Asphalt Cutting

(1) Cutter

○Surface Roughing

(1) Bushing Tool

(2) Shank

○Tamping

Technical line drawing of a mechanical component with a flanged shaft and a square housing (no text or symbols)

(1) Rammer

(2) Shank

○Groove digging and edging

(1) Cold chisel

Overall length: 280, 400 mm

○Scooping Work

(1) Scoop

○Hammer Grease A

500 g (in a can)

70 g (in a tube)

30 g (in a tube)

Optional accessories are subject to change without notice.

APPLICATIONS

Breaking concrete, chipping off concrete, grooving, bar cutting, and driving piles.

Application examples:

Installation of piping and wiring, sanitary facility installation, machinery installation, water supply and drainage work, interior jobs, harbor facilities and other civil engineering work.

PRIOR TO OPERATION

1. Power source

Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.

2. Power switch

Ensure that the power switch is in the OFF position. If the plug is connected to a receptacle while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.

3. Extension cord

When the work area is removed from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

4. Installing Tools

CAUTION:

Be sure to switch power OFF and disconnect the plug from the receptacle to avoid serious trouble.

NOTE:

When using tools such as bull points, cutters, etc., make sure to use the genuine parts designated by our company.

(1) Clean the shank portion of the tool.

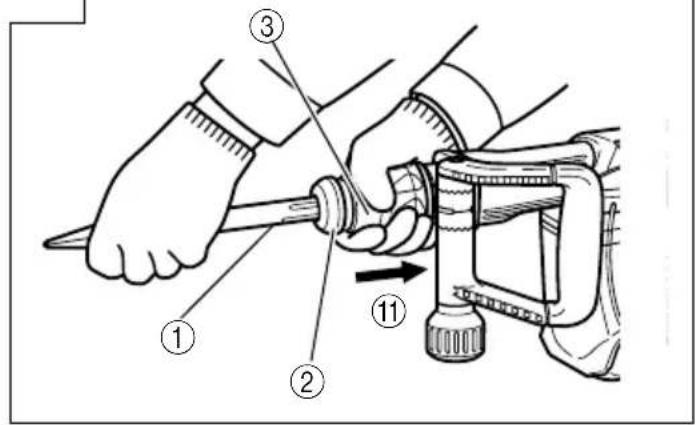

(2) As shown in Fig. 1, pull grip (A) in the direction of Ⓐ, and insert the tool into a hole of the front cap.

(3) Adjust the groove position while turning the tool, and furthermore insert it until it hits the end of the hole.

(4) Return grip (A) to its original position, pull the tool and make sure it is locked completely. (Fig. 2)

5. Deciding Working Position of Tool

The tool can be turned every 30 degrees and can be fixed at the position of 12 steps.

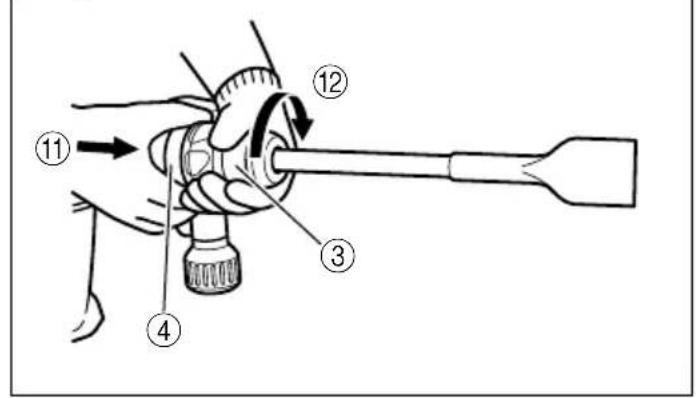

(1) As shown in Fig. 3, if the grip (A) is turned in the direction of Ⓑ in a state where the grip (B) is pushed in the direction of Ⓐ, the blade angle can be changed freely to any desired position.

(2) Release grip (B) and turn the tool, and make sure that it is locked completely.

6. Removing Tool

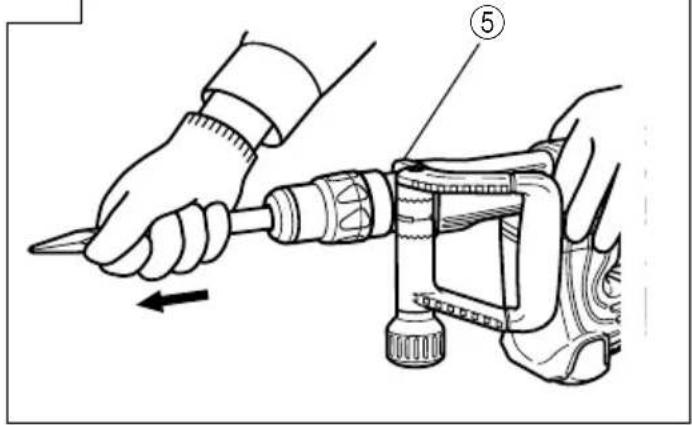

As shown in Fig. 1, pull grip (A), and pull out the tool.

CAUTION:

Be sure to grip the handle and side handle or grip (C) portion during work. Do not hold by the grip (A) during work. If you pull it by mistake, the bull point could jump out.

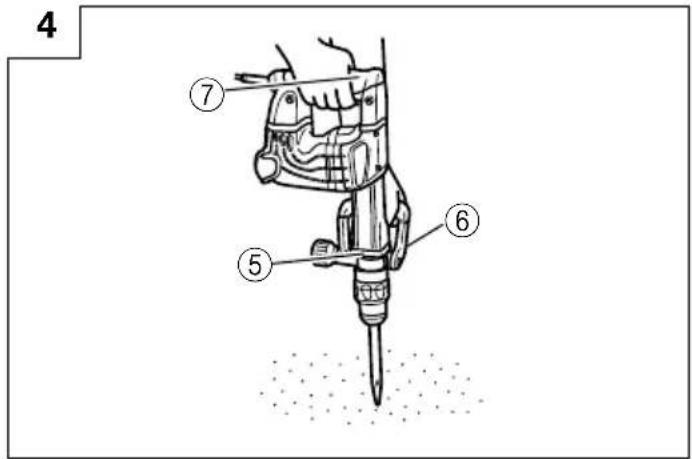

HOW TO USE THE DEMOLITION HAMMER (Fig. 4)

1. After placing the tip of the tool on concrete surface, switch ON.
2. By utilizing the weight of the machine and by firmly holding the hammer with both hands, one can effectively control the subsequent recoil motion. Proceed at a moderate work-rate, the use of too much force will impair efficiency.

CAUTION:

After long time of use, the cylinder case becomes hot. Therefore, be careful not to burn your hands.

GREASE REPLACEMENT

This machine is of full air-tight construction to protect against dust and to prevent lubricant leakage. This machine can be used without grease supplement for an extended period of time. However, perform the grease replacement to maintain the service life. Replace the grease as described below.

1. Grease Replacement Period

You should look at the grease when you change the carbon brush. (See item 4 in the section MAINTENANCE AND INSPECTION.) Ask for grease replacement at the nearest authorized HiKOKI Service Center.

In the case that you are forced to change the grease by yourself, please follow the following points.

2. How to replace grease

CAUTION:

Before replacing the grease, turn the power off and pull out the plug from the receptacle.

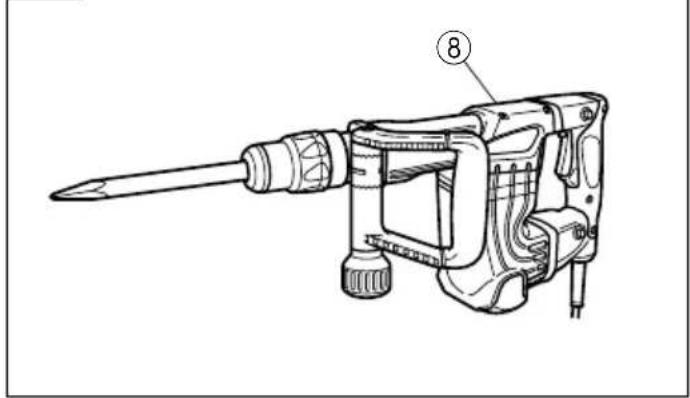

(1) Remove the crank cover and wipe off the old grease inside. (Fig. 5)

(2) Supply 40 g (the standard volume to cover the connecting rod) of HiKOKI Electric Hammer Grease A to the crank case.

(3) After replacing the grease, install the crank cover securely.

NOTE:

The HiKOKI Electric Hammer Grease A is of the low viscosity type. When the grease is consumed, purchase from an authorized HiKOKI Service Center.

MAINTENANCE AND INSPECTION

1. Inspecting the tool

Since use of a dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

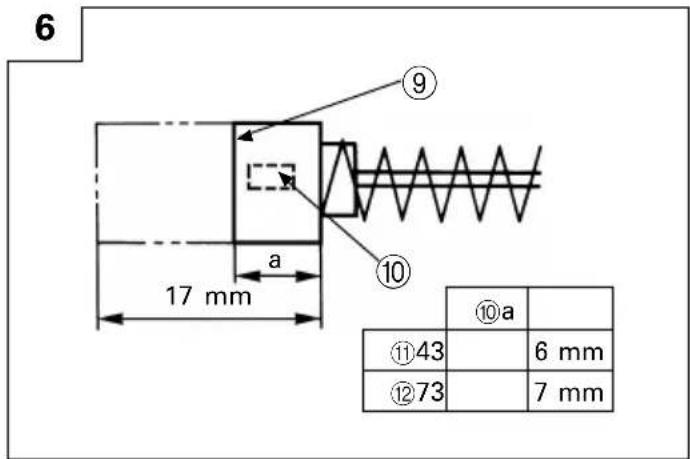

4. Inspecting the carbon brushes (Fig. 6)

The Motor employs carbon brushes which are consumable parts. When they become worn to or near the "wear limit", it could result in motor trouble. When an auto-stop carbon brush is equipped, the motor will stop automatically. At that time, replace both carbon brushes with new ones which have the same carbon brush Numbers shown in the figure. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders.

5. Replacing carbon brushes:

Loosen the set screw and remove the tail cover. Remove the brush caps and carbon brushes. After replacing the carbon brushes, do not forget to tighten the brush caps securely and to install the tail cover.

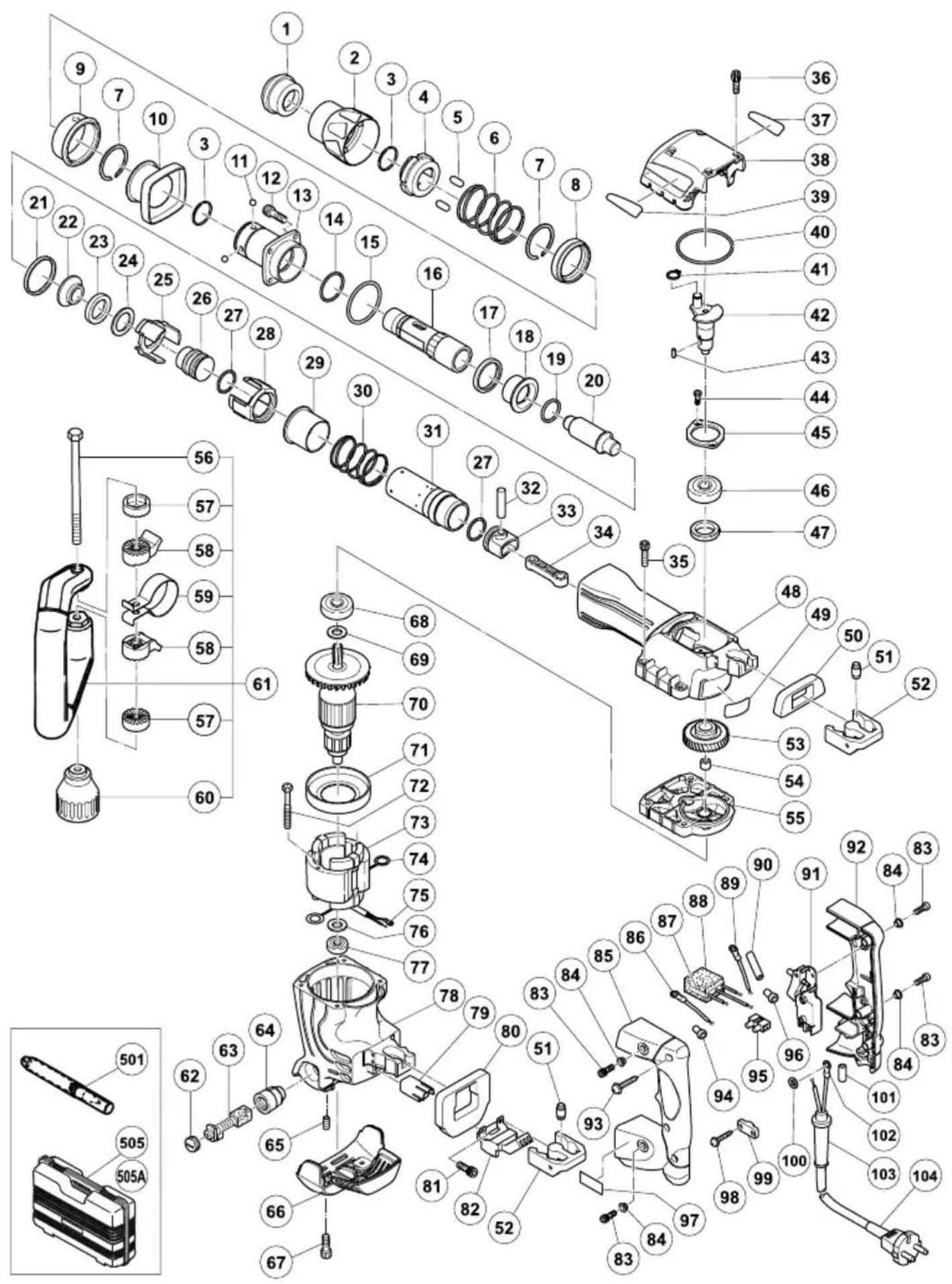

6. Service parts list

A: Item No.
B: Code No.
C: No. Used
D: Remarks

CAUTION:

Repair, modification and inspection of HiKOKI Power Tools must be carried out by an HiKOKI Authorized Service Center.

This Parts List will be helpful if presented with the tool to the HiKOKI Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

HiKOKI Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

GUARANTEE

We guarantee HiKOKI Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center.

NOTE:

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

IMPORTANT:

Correct connection of the plug

The wires of the main lead are coloured in accordance with the following code:

Blue: — Neutral

Brown: — Live

As the colours of the wires in the main lead of this tool may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire coloured blue must be connected to the terminal marked with the letter N or coloured black. The wire coloured brown must be connected to the terminal marked with the letter L or coloured red. Neither core must be connected to the each terminal.

NOTE:

This requirement is provided according to BRITISH STANDARD 2769: 1984.

Therefore, the letter code and colour code may not be applicable to other markets except The United Kingdom.

Information concerning vibration

The measured values were determined according to EN60745.

Vibration total values (triax vector sum) determined according to EN60745.

Chiselling:

Vibration emission value ah, Cheq = 12.4 m/s²

Uncertainty K = 2.2 m/s ^4

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another.

It may also be used in a preliminary assessment of exposure.

WARNING

○The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used.

○Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Technical line drawing of a mechanical tool with two views: one showing a zigzag component and the other a conical tool (no text or symbols)

(1) Stockerplatten

(2) Schaft

○Stampfen

Technical line drawing of a mechanical component with a flanged shaft and circular housing (no text or symbols)

(1) Stampferplatten

(2) Schaft

○Nuten und Kanten

(1) Kaltmeißel

Largo total: 280 400 mm

Technical line drawing of a mechanical component with two views: one showing a zigzag edge and the other a conical tool (no text or symbols)

(1) Ferramenta de embuchamento (2) Haste

○Embuchar

Technical line drawing of a mechanical component with a flanged base and a plus sign (no text or symbols)

(1) Soquete (2) Haste

○Escavar e fresar sulcos

(1) Talhadeira

Comprimento total: 280, 400 mm

Line drawing of a quill pen with inkwell (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts and exploded views for identification.

A	B	C	D
1 315-529	1
2 320-802	1
3 320-803	2
4 320-804	1
5 313-421	2 D8×20
6 320-806	1
7 317-088	2 D42
8 320-810	1
9 320-807	1
10 320-808	1
11 959-150	4 D6.35
12 981-942	4 M6×26
13 320-809	1
14 980-879	1 S-34
15 990-067	1 1AS-50
16 320-805	1
17 320-812	1
18 320-811	1
19 319-572	1 S-25
20 320-813	1
21 320-817	1
22 320-814	1
23 320-815	1
24 320-835	1
25 320-816	1
26 320-822	1
27 320-823	2
28 320-818	1
29 320-820	1
30 320-821	1
31 320-819	1
32 320-826	1
33 320-824	1
34 320-825	1
35 986-940	4 M6×45
36 983-162	4 M4×12
37 — — — —	1
38 320-831	1
39 — — — —	1
40 956-996	1 1AS-60
41 939-540	1
42 320-829	1
43 930-511	1 4×4×10
44 980-760	2
45 980-761	1
46 620-3DD	1 6203DDCMPS2L
47 310-119	1
48 320-828	1
49 — — — —	1
50 320-837	1
51 310-124	8
52 310-123	2
53 320-830	1
54 939-299	1 M661
55 320-841	1 "54"
56 317-107	1 M8
57 317-106	2
58 317-105	2
59 320-635	1
60 317-108	1

A	B	C	D
61	317-103	1 "56-60"
62	935-829	2
63	999-073	2
64	971-001	2
65	938-477	2 M5×8
66	320-834	1
67	877-839	2 M5×10
68	620-1DD	1 6201DDCMPS2L
69	302-429	1
70	1 360-571C	1 110V
70	2 360-571U	1 120V "68, 69, 76, 77"
70	3 360-471E	1 220V-230V
70	4 360-751F	1 240V
71	320-832	1
72	953-174	2 D5×55
73	1 340-519C	1 110V "74"
73	2 340-519G	1 120V "74,75"
73	3 340-519E	1 220V-230V "74"
73	4 340-519F	1 240V "74"
74	930-703	2
75	930-804	1 M4
76	982-631	1
77	608-VVM	1 608VVC2PS2L
78	320-833	1 "64, 65"
79	320-836	1
80	320-838	1
81	984-509	2 M5×14
82	1 980-754	1
82	2 310-424	1
83	991-690	4 M5×12
84	991-711	4
85	320-839	1
86	990-861	1
87	994-273	1
88	317-492	1
89	981-974	1
90	— — — —	2
91	306-143	1
92	320-840	1
93	307-028	3 D4×25
94	959-140	1
95	938-307	1
96	959-141	1
97	— — — —	1
98	984-750	2 D4×16
99	1 960-266	1
99	2 981-987Z	1 "SUI"
100	949-423	1
101	981-373	2
102	1 980-063	1
102	2 992-810	1 "GBR(230V)"
103	1 953-327	1 D8.8
103	2 938-051	1 D10.1
104	— — — —	1
501	313-471	1 280L
505	320-842	1
505A	323-370	1 "AUS, GBR, EUROPE,NOR, SWE, DEN, FIN, SUI"

Line drawing of a quill pen with inkwell (no text or symbols)

English Nederlands
GUARANTEE CERTIFICATE1Model No.2Serial No.3Date of Purchase4Customer Name and Address5Dealer Name and Address(Please stamp dealer name and address)		GARANTIEBEWIJS1Modelnummer2Serienummer3Datum van aankoop4Naam en adres van de gebruiker5Naam en adres van de handelaar(Stempel a.u.b. naam en adres vande de handelaar)
Deutsch	GARANTIESCHEIN1Modell-Nr.2Serien-Nr.3Kaufdaturn4Name und Anschrift des Kunden5Name und Anschrift des Händlers(Bitte mit Namen und Anschrift des Handlers abstempeln)	Español	CERTIFICADO DE GARANTIA1Número de modelo2Número de serie3Fecha de adquisición4Nombre y dirección del cliente5Nombre y dirección del distribudor(Se ruega poner el sellú del distribudor con su nombre y dirección)
Français Português
CERTIFICAT DE GARANTIE1No. de modèle2No de série3Date d'achat4Nom et adresse du client5Nom et adresse du revendeur(Cachet portant le nom et l'adresse du revendeur)		CERTIFICADO DE GARANTIA1Número do modelo2Número do série3Data de compra4Nome e morada do cliente5Nome e morada do distribuidor(Por favor, carímbe o nome e morada do distribuidor)
Italiano	CERTIFICATO DI GARANZIA1Modello2N° di serie3Data di acquisto4Nome e indirizzo dell'acquirente5Nome e indirizzo del rivenditore(Si prega di apporre il timbro con questi dati)

HiKOKI

1
2
3
4
5

Siemensring 34, 47877 willich, Germany

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.de

Hikoki Power Tools Netherlands B.V.

Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.nl

Hikoki Power Tools (U.K.) Ltd.

Precedent Drive, Rooksley, Milton Keynes, MK 13, 8PJ,

United Kingdom

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.uk

Hikoki Power Tools France S.A.S.

Hikoki Power Tools Belgium N.V./S.A.

Koningin Astridlaan 51, B-1780 Wemmel, Belgium

Tel: [phone]

Fax: [phone]

URL http://www.hikoki-powertools.be

Hikoki Power Tools Italia S.p.A

Via Piave 35, 36077, Altavilla Vicentina (VI), Italy

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.it

Hikoki Power Tools Ibérica, S.A.

C/ Puigbarral, 26-28, Pol. Ind. Can Petit, 08227 Terrassa

(Barcelona), Spain

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.es
