Product Type	Demolition Hammer
Brand	HiKOKI
Model	H50
Voltage	110 V, 115 V, 120 V, 127 V, 220 V, 230 V, 240 V (by area)
Power Input	1140 W
Full-Load Impact Rate	2100/min
Weight (without cord)	8 kg
Standard Accessories	Case, Bull Point (320 mm), Side Handle, Oil Feeder, Hexagon Bar Wrench, Wrench
Optional Accessories	Bull Point (450 mm), Cutter (for asphalt), Cold Chisel, Rammer, Bushing Hammer, Shank, Scoop, Electric Hammer Oil
Applications	Crushing concrete, chipping, digging, squaring; installation of piping/wiring, sanitary facilities, machinery, water supply/drainage, interior jobs, harbor facilities
Safety Features	Grounded plug, auxiliary handle, ear protectors, protective glasses, dust mask, protective shoes, stop lever
Oil Feeding	Built-in oil chamber; use provided oil feeder or HiKOKI Demolition Hammer oil (or Shell ROTELLA #40)
Maintenance	Inspect tools and mounting screws regularly; replace carbon brushes when worn; auto-stop carbon brush mechanism
Power Source	Corded electric; three-conductor cord with grounding plug
Switch	Trigger switch; ensure OFF before connecting

Frequently Asked Questions - H50 HiKOKI

What voltage does the HiKOKI H50 demolition hammer require?

The H50 is available in multiple voltage versions: 110 V, 115 V, 120 V, 127 V, 220 V, 230 V, or 240 V depending on the region. Always check the nameplate on your tool.

What is the power input and impact rate of the H50?

The power input is 1140 W and the full-load impact rate is 2100 impacts per minute.

How much does the HiKOKI H50 weigh?

The tool weighs 8 kg without the power cord.

What standard accessories come with the H50?

Standard accessories include a carrying case, bull point (320 mm), side handle, oil feeder, hexagon bar wrench, and a wrench.

What optional accessories are available for the H50?

Optional accessories include longer bull point (450 mm), cutter for asphalt, cold chisel, rammer, bushing hammer, shank, scoop, and HiKOKI electric hammer oil (1 liter).

How do I lubricate the H50 hammer?

The hammer has a built-in oil chamber. Before use, remove the oil gauge and fill with the provided oil or HiKOKI Demolition Hammer oil (or Shell ROTELLA #40). Check the oil level daily via the oil gauge window.

What safety equipment should I use with the H50?

Always wear ear protectors, protective glasses, and a dust mask. Use the side handle and protective shoes. Ensure the stop lever is properly set.

How do I change the carbon brushes on the H50?

Remove the tail cover and brush caps. Replace both carbon brushes when they reach the wear limit or if the motor stops automatically (auto-stop mechanism). Use identical brush numbers as shown in the manual.

Can I use an extension cord with the H50?

Yes, use an extension cord of sufficient thickness and rated capacity. Keep it as short as possible to avoid voltage drop.

What is the correct way to mount a tool in the H50?

Turn the stop lever in the arrow direction, insert the tool shank into the hexagon hole on the front cover, then return the stop lever to grip the tool firmly. Reverse steps for removal.

USER MANUAL H50 HiKOKI

Line drawing of a manual soldering iron with a pointed tip, enclosed in a circle (no text or symbols)

Read through carefully and understand these instructions before use.

使用前務請詳加閱讀

2

Line drawing of hands using a soldering iron to adjust or install a tool (no text or symbols present)

3

Line drawing of a sewing machine needle stitching a hole, with no text or symbols present

4

5

5

6

	7	a
8	44	6
9	73	7

Read all instructions

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

SAVE THESE INSTRUCTIONS

1) Work area

a) Keep work area clean and well lit.

Cluttered and dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite the dust of fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodifi ed plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use safety equipment. Always wear eye protection.

Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Avoid accidental starting. Ensure the switch is in the off position before plugging in.

Carrying power tools with your fi nger on the switch or plugging in power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of these devices can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools' operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infi rm persons away.

When not in use, tools should be stored out of reach of children and infi rm persons.

DEMOLITION HAMMER SAFETY WARNINGS

1. Wear ear protectors.
   Exposure to noise can cause hearing loss.
2. Use auxiliary handles supplied with the tool.
   Loss of control can cause personal injury.
3. Wear protective glasses to protect your eyes.
4. Wear a mask when turning your head upward.
5. Properly set the stop lever.

SPECIFICATIONS

1. Since the bit becomes very hot during operation, exercise extremes very hot.
2. Safe operation depends on one's stable posture.
3. At the start of work, confirm the oil supply and screw tightening.
4. When working at a highly elevated location, pay attention to articles and persons below.
5. Before starting breaking or chipping a wall, floor, or ceiling, thoroughly confi rm that no items such as an electric cable or conduit are buried inside.
6. Wear protective shoes to protect your feet.

Voltage (by areas)* (110 V, 115 V, 120 V, 127 V, 220 V, 230 V, 240 V)	~
Power Input 1140 W*
Full-load impact rate 2100/min
Weight (without cord) 8 kg

* Be sure to check the nameplate on product as it is subject to change by areas.

STANDARD ACCESSORIES

(1) Case 1
(2) Bull Point (Total Length 320 mm)....1
(3) Side Handle ....1
(4) Oil Feeder 1
(5) Hexagon Bar Wrench ....1
(6) Wrench ....1
Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES (sold separately)

○ Bull Point (for crushing)

Total length	450 mm
Code No.	955623

○ Cutter (for crushing asphalt)

(Code No. 955629)

○ Cold Chisel

(for grooving and squaring)

Total length	320 mm	450 mm
Code No.	955614	955624

○ Rammer

(for tamping sand and gravel)

(Code No. 955181)

○ Bushing Hammer

(for roughing concrete and stone surfaces)

(Code No. 955183)

○ Shank (for rammer and bushing hammer)

(Code No. 955625)

• Bushing Hammer + Shank

- Rammer + Shank

○ Scoop

(for digging ground in various foundation work)

Black and white image of a single elongated tool or plow with a tapered tip, no visible text or symbols.

(Code No. 980034)

○ Electric Hammer Oil (one liter)

(Code No. 955009)

Optional accessories are subject to change without notice.

APPLICATIONS

Crushing concrete, chipping, digging, and squaring.

Application examples:

Installation of piping and wiring, sanitary facility installation, machinery installation, water supply and drainage work, interior jobs, harbor facilities and other civil engineering works.

PRIOR TO OPERATION

1. Power source

Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.

2. Grounding

This tool should be grounded while in use to protect the operator from electric shock. The tool is equipped with a three conductor cord and grounding type plug to fit the proper grounding type receptacle. The green (or green and yellow) conductor in the cord is the grounding wire. Never connect the green (or green and yellow) wire to a live terminal.

3. Power switch

Ensure that the power switch is in the OFF position. If the plug is connected to a receptacle while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.

4. Extension cord

When the work area is removed from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

5. Feeding oil (refer to the paragraph on oil feeding)

Prior to using the power tool, remove the oil gauge and do not fail the oil tank with the provided oil. (Although the oil tank is built in, it contains only a small volume of oil when shipped from the HiKOKI Works.)

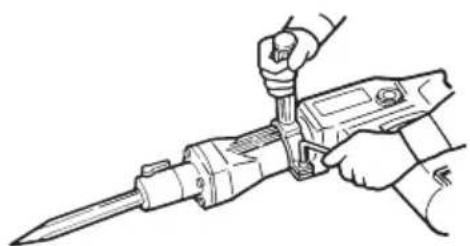

6. Mounting a tool

NOTE

When handling bull point, cold chisel and other accessories, HiKOKI standard tools are recommended for better operation.

(1) Turn the stop lever in the arrow direction, insert the tool shank into the hexagon hole on the front cover.

(2) Replace the stop lever to grip the tool fi rmly.

NOTE

When removing the tool, follow the above procedures in reverse.

7. Set the side handle

When the M8 bolt is loosened with hexagon bar wrench, the side handle becomes freely movable. Set the side handle to a position conforming to the job, and then securely clamp the bolt.

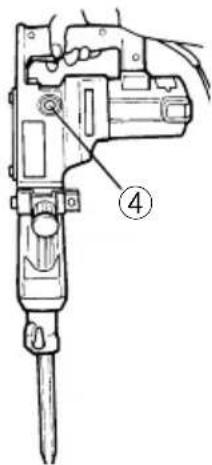

HOW TO USE THE DEMOLITION HAMMER (Fig. 3)

1. Pull the trigger switch after applying the tip of the bit to the crushing position.

2. Operate the tool by utilizing its empty weight. The performance will not be better even if the tool is pressed or thrust forcibly against the work surface. Hold the tool with a force just sufficient to counteract the reaction.

OIL FEEDING

CAUTION

Prior to oil feeding, always disconnect the plug from the receptacle.

Since an oil chamber is built in this Demolition Hammer, it can be used for approximately 20 days without replenishing lubricating oil, assuming that the Hammer is used continuously 3 – 4 hours daily.

Feed oil into the oil tank as described below before using this Hammer. (see Fig. 4 and 5)

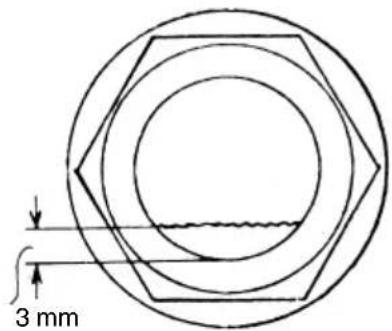

1. Just before no oil is visible in the oil gauge window when the power tool is held upright, feed oil without fail.

2. Before feeding oil, use the provided wrench to remove the oil gauge.

Be careful not to lose the rubber packing attached below the oil gauge.

1. Check the oil level once a day, confirming that oil is filled.

2. After feeding oil, securely clamp the oil gauge.

NOTE

As an optional accessory, oil for the HiKOKI Demolition Hammer (one liter) is sold separately. Use this oil when oil in the tank is depleted. Shell Oil Co. ROTELLA #40 (engine oil) can also be used. This oil is sold as Shell gasoline stations most anywhere.

MAINTENANCE AND INSPECTION

CAUTION

Be sure to swith OFF and disconnect the attachment plug from the receptacle to avoid a serious accident.

1. Inspecting the tool

Since use of a dull tool will cause motor malfunctioning and degraded efficiently, whet it or replace with a new one without delay when abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspecting the carbon brushes (Fig. 6)

The Motor employs carbon brushes which are consumable parts. When they become worn to or near the “wear limit”, it could result in motor trouble. When an auto-stop carbon brush is equipped, the motor will stop automatically. At that time, replace both carbon brushes with new ones which have the same carbon brush numbers shown in the figure. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders.

5. Replacing carbon brushes

The carbon brushes can be removed by removing the tail cover, and brush caps in that order at the interior.

6. Service parts list

A: Item No.

B: Code No.

C: No. Used

D: Remarks

CAUTION

Repair, modification and inspection of HiKOKI Power Tools must be carried out by a HiKOKI Authorized Service Center.

This Parts List will be helpful if presented with the tool to the HiKOKI Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS

HiKOKI Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

一般安全規則

警告！

閱讀所有說明

Black-and-white photo of a hand tool with a pointed tip and handle (no text or symbols visible)

(代號 980034)

○ 電動鎚油（1升）

(代號 955009)

選購附件可能不預先通告而徑予更改。

用途

混凝土破碎、鑿平、挖掘、切屑。

應用例：

Black and white image of a hand tool with a pointed tip and handle (no text or symbols visible)

Black and white image of a long-handled tool or plow (no text or symbols visible)

(980034 رقم الرمز)

Code No. C99014334 N

Printed in Japan
