IMPORTANT SAFETY INFORMATION

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.

Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.

NEVER use this power tool in a manner that has not been specifically recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING:

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents

b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Wear ear protectors.

Exposure to noise can cause hearing loss.

1. Use auxiliary handles, if supplied with the tool. Loss of control can cause personal injury.

2. Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

3. NEVER touch the tool bit with bare hands after operation.

4. NEVER wear gloves made from materials likely to roll up such as cotton, wool, cloth or string, etc.

5. ALWAYS attach the side handle and securely grip the Rotary Hammer.

6. NEVER touch moving parts.

NEVER place your hands, fingers or other body parts near the tool's moving parts.

1. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

1. Use right tool.

Don't force small tool or attachment to do the job of a heavy-duty tool.

Don't use tool for purpose not intended —for example— don't use circular saw for cutting tree limbs or logs.

1. NEVER use a power tool for applications other than those specified.

NEVER use a power tool for applications other than those specified in the Instruction Manual.

1. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

1. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

1. Do not use power tools if the plastic housing or handle is cracked.

Cracks in the tool's housing or handle can lead to electric shock. Such tools should not be used until repaired.

1. Blades and accessories must be securely mounted to the tool.

Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

1. Keep motor air vent clean.

The tool's motor air vent must be kept clean so that air can freely flow at all times. Check for dust build-up frequently.

1. Operate power tools at the rated voltage.

Operate the power tool at voltages specified on its nameplate.

If using the power tool at a higher voltage than the rated voltage, it will result in abnormally fast motor revolution and may damage the unit and the motor may burn out.

1. NEVER use a tool which is defective or operating abnormally.

If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

1. NEVER leave tool running unattended. Turn power off.

Don't leave tool until it comes to a complete stop.

1. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

1. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents.

Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

1. ALWAYS

wear eye protection that meets the requirement of the latest revision of ANSI Standard Z87.1.

1. ALWAYS be careful with buried object such as an underground wiring. Touching live wiring or electric cable with this tool may result in electric shock.

Confirm before use whether hidden objects are present, such as electric cables within the wall, floor or ceiling.

1. Defi nitions for symbols used on this tool

V.....volts

Hz......hertz

A.....amperes

no .....no load speed

W.....watt

☐ ......Class II Construction

---/min......revolutions per minute

\~ ......Alternating current

To ensure safer operation of this power tool, metabo HPT has adopted a double insulation design. "Double insulation" means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Therefore, either the symbol "☐" or the words "Double insulation" appear on the power tool or on the nameplate.

Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments.

To keep the double insulation system effective, follow these precautions:

☐ Only metabo HPT AUTHORIZED SERVICE CENTER should disassemble or assemble this power tool, and only genuine metabo HPT replacement parts should be installed.
○ Clean the exterior of the power tool only with a soft cloth moistened with soapy water, and dry thoroughly.

Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve.

SAVE THESE INSTRUCTIONS

AND

MAKE THEM AVAILABLE TO OTHER USERS

AND

OWNERS OF THIS TOOL!

FUNCTIONAL DESCRIPTION

NOTE:

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.

NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

NAME OF PARTS

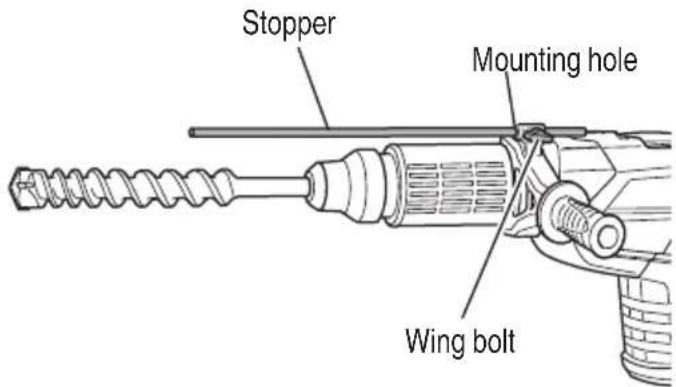

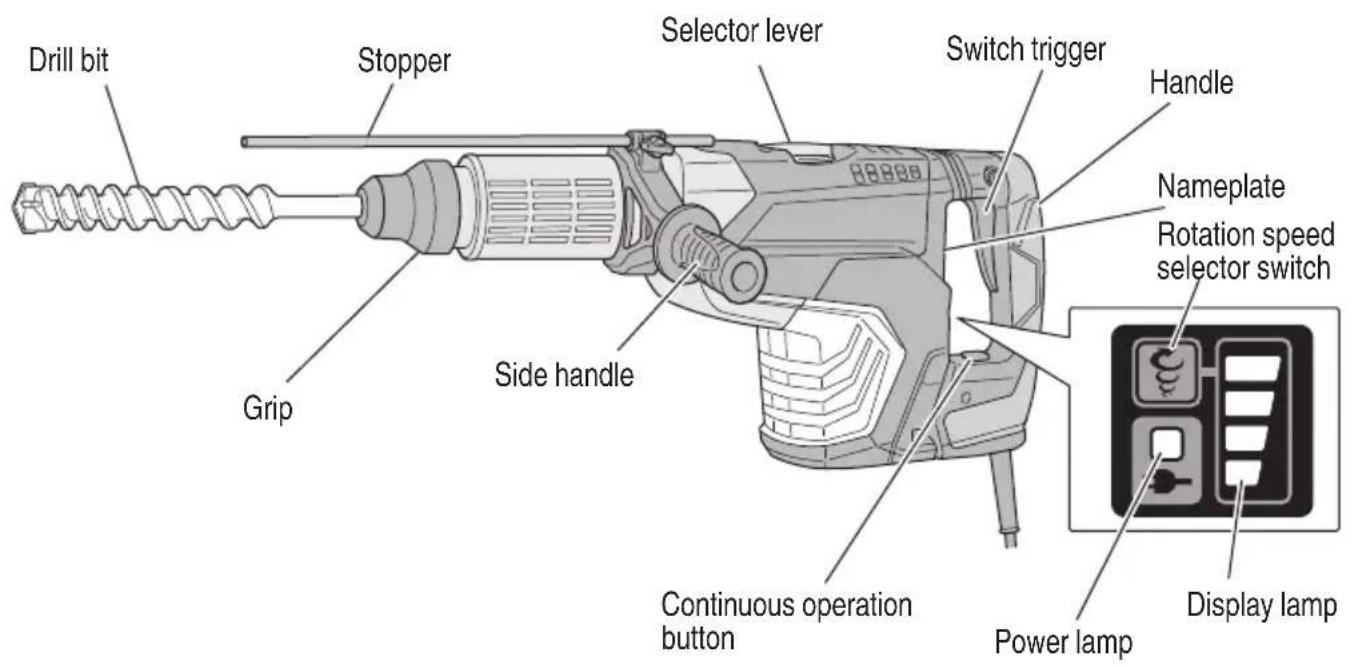

Drill bit Stopper Selector lever Switch trigger Handle Nameplate Rotation speed selector switch Side handle Grip Continuous operation button Power lamp Display lamp

Fig. 1

SPECIFICATIONS

Model	DH52ME	DH52MEY
Motor	Brushless motor
Power Source	Single-Phase, 120 V 60 Hz
Capacity	Drill Bit: 2-1/16" (52 mm)Core Bit: 6-1/4" (160 mm)
No-Load Speed	110 – 260/min
Full-load Blow	1,000 – 2,200/min
Weight	24.2 lbs (11.0 kg)	25.3 lbs (11.5 kg)

ASSEMBLY AND OPERATION

APPLICATIONS

Rotation and hammering function

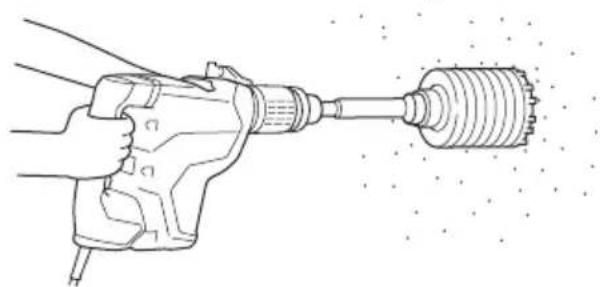

○ Drilling anchor holes

○ Drilling holes in concrete

Hammering function only

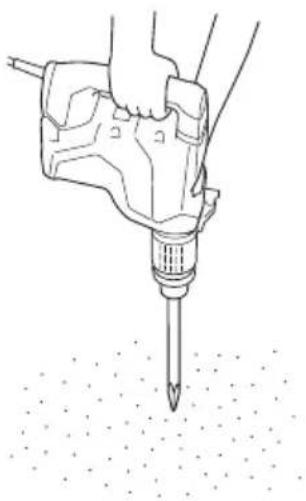

○ Crushing concrete, chipping, digging, and squaring (by applying optional accessories)

PRIOR TO OPERATION

1. Power source

Ensure that the power source to be utilized conforms to the power source requirements specified on the product nameplate.

1. Power switch

Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.

1. Extension cord

When the work area is far away from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

⚠ WARNING:

Damaged cord must be replaced or repaired.

1. Check the receptacle

If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs.

If such a faulty receptacle is used, it may cause overheating, resulting in a serious hazard.

1. Confirming condition of the environment: Confirm that the work site is placed under appropriate conditions conforming to prescribed precautions.

2. How to install tool

CAUTION:

For tools such as a drill bit and a bull point, use only metabo HPT genuine parts.

(1) Clean, then smear the tool shank with the grease provided in the green tube.

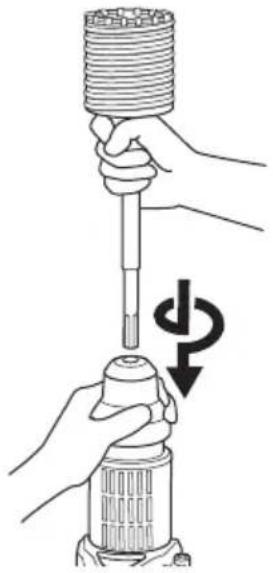

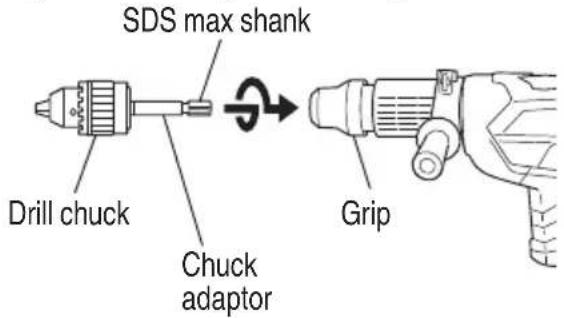

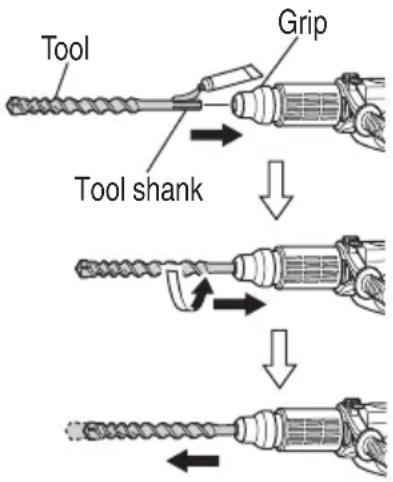

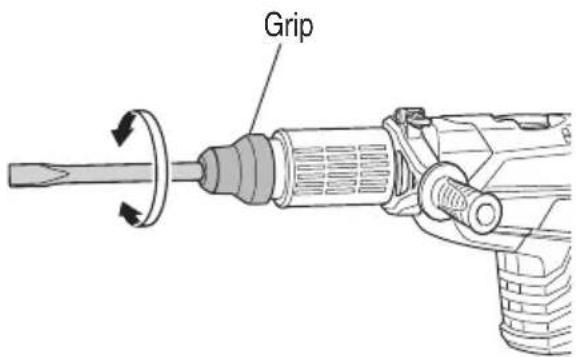

(2) To attach the tool (SDS max shank), insert it into the hole until it contacts the innermost end of the hole as illustrated in Fig. 2.

If you continue to turn the tool with slight pressure, you can feel a spot where there is a hitch. At that spot, pull the grip to the direction of an arrow mark and insert the tool all the way until it hits the innermost end.

Releasing the grip reverts the grip and secures the tool in place.

Tool Grip Tool shank

Fig. 2

(3) Pull the tool to make sure it is locked completely.
(4) To remove the tool, fully pull the grip in the direction of the arrow and pull out the tool.

7. Power lamp

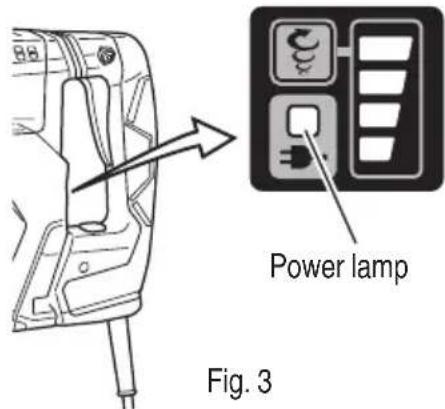

The power lamp lights up when the power cord is plugged into an electrical outlet. (Fig. 3)

Power lamp Fig. 3

8. Regulating the number of rotations and hammering (Fig. 4)

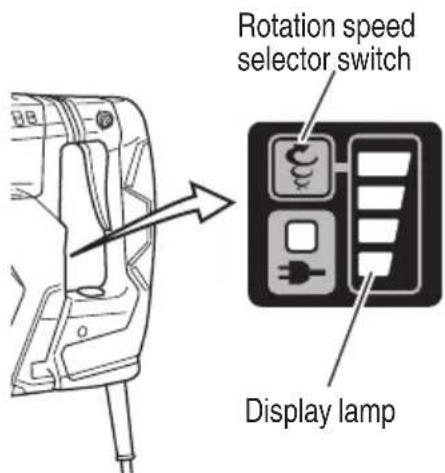

This Rotary Hammer is equipped with a built-in electronic control circuit that can adjust and regulate the number of rotations and times of hammering. This Rotary Hammer can be used by adjusting the rotation speed selector switch, depending upon the contents of operation, such as boring holes into fragile materials, chipping, centering, etc.

Rotation speed selector switch Display lamp

Fig. 4

Pressing the rotation speed selector switch switches rotation speeds as shown in Table 1.

Table 1

Display lamp sequence
Full-load speed	110 160	210		260
Impacts per Minute	1,000 1,400	1,800	2,200

NOTE:

The rotation speed cannot be changed by pressing the rotation speed selector switch while the motor is rotating. To change speeds, switch off the tool first.

9. About the protection function

This tool has a built-in protection circuit for preventing damage to the unit in the event of an abnormality.

Depending on the nature of the abnormality, the display lamp will flash as shown in Table 2 and the unit will cease to operate. In such cases, verify the problem indicated by the flashing and take whatever steps are necessary to correct the problem.

Table 2

Display lamp fl ashing	Cause	Solution
Flashor	The tool's temperature increase protection function gradually reduced the rotation speed as the internal temperature of the tool approached the specifi ed temperature range for automatic shutdown. (Power regulation function)* The power regulation function will not activate if only one or two of the display lamp bars are lighting.	The tool will return to normal power once the temperature is lowered by reducing its load. Continued operation may result in automatic shutdown by the tool's temperature increase protection function. (See row below)
Flash	Internal temperature has risen beyond the unit's specifi ed temperature (Temperature increase protection function)	Turn off the unit and allow it to cool down for about 15 to 30 minutes. When the temperature goes down, press the rotation speed selector switch to recover.
Flash	Excessive pressure applied to the tool has resulted in an overload. (Overload protection function)	Press the rotation speed selector switch to recover. Try to avoid tasks that will apply excess pressure to the unit.
Flash	1 Tool fails to startup or has shut down due to the unit being connected to a power source whose voltage is either too high or too low.2 Tool has shut down due to a voltage signal read error that occurred from the unit's power cord being plugged in and out at short intervals.(Circuit protection function)	1 Connect the unit to a power supply matching the input voltage specified on the nameplate. Press the rotation speed selector switch to recover.2 Allow for an interval of 3 seconds or more when plugging the power cord in and out. Press the rotation speed selector switch to recover.
Flash	Sensor signal read error.(Control monitoring function)	Press the rotation speed selector switch to recover. Repair may be required if this error continuously occurs.

NOTE:

Repair may be required if the display lamp continues

to fl ash after taking all necessary steps to correct the problem. If the problem persists, please arrange for repairs.

HOW TO USE

1. How to drill holes (Fig. 5)
   (1) Pull the switch trigger after applying the drill bit tip to the drilling position.
   (2) It is unnecessary to forcibly press the Rotary Hammer main body. It is sufficient to slightly press the rotary hammer to an extent that clips are freely discharged.

Line drawing of a hand holding a drill bit with a screwdriver, emitting exhaust smoke (no text or symbols)

Fig. 5

CAUTION:

Although this machine is equipped with a slip clutch, if the drill bit becomes bound in concrete or other material, the resultant stoppage of the drill bit could cause the machine body to turn in reaction. Ensure that the main handle and side handle are gripped firmly during operation.

1. How to chisel or demolish (Fig. 6)

By applying the tool tip to the chiseling or demolishing position, operate the rotary hammer by utilizing its empty weight. Forcible pressing or thrusting is unnecessary.

Line drawing of a hand using a power drill to shoot material (no text or symbols)

Fig. 6

1. When drilling at "rotation + hammering"

CAUTION:

If you switch the selector lever during motor rotation, the tool can start to rotate abruptly, resulting in unexpected accidents. Be sure to switch the selector lever when the motor is at a complete stop.

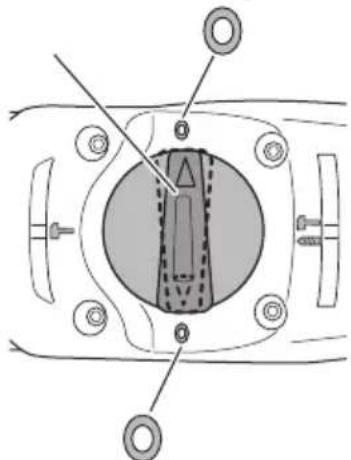

(1) Switching to "rotation + hammering"

(a) Turn the selector lever.
(b) Align ▲ of the selector lever and of the crank cover as illustrated in Fig. 7.

Selector lever

Fig. 7

NOTE:

Turn the selector lever to check if it is completely locked and make sure that it does not turn.

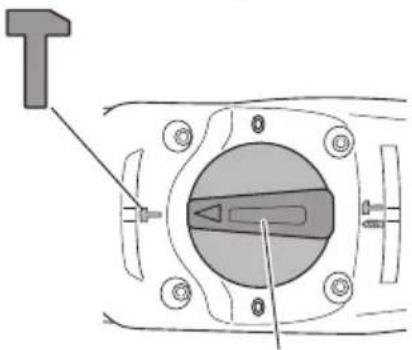

1. When chipping and shredding at "hammering"

CAUTION:

☐ If the selector lever is switched during motor rotation, the tool can start to rotate abruptly, resulting in unexpected accidents. Make sure to switch the selector lever when the motor is at a complete stop.

☐ If the bull point or cold chisel is used at the position of "rotation + hammering", the tool can start to rotate, resulting in unexpected accidents. Make sure that they are used at the positon of "hammering".

(1) Switching to "hammering"

(a) Turn the selector lever.

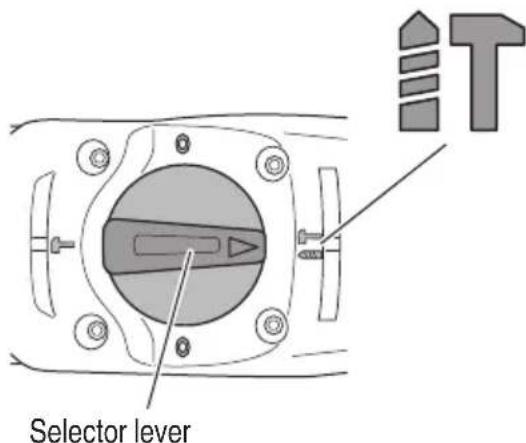

(b) Align ▲ of the selector lever and T of the crank cover as illustrated in Fig. 8.

T

Fig. 8 Selector lever

NOTE:

Turn the selector lever to check if it is completely locked and make sure that it does not turn.

(2) When fixing working positions of tools such as cold chisel, etc.,

(a) Turn the selector lever.

Align ▲ of the selector lever and Ⓞ of the crank cover as illustrated in Fig. 9.

Technical diagram of a mechanical component with labeled parts and center features

Fig. 9

(b) Turn the grip or the tool as illustrated in Fig. 10 and fix the tool to the desired working direction.

Grip

Fig. 10

(c) Switch the selector lever to "hammering" according to the procedures mentioned in the above item (1) and secure the position of the tool.

1. Install the stopper (Fig. 11)

(1) Loosen the wing bolt, and insert the stopper into the mounting hole on the side handle.

(2) Adjust the stopper position according to the depth of the hole and tighten the wing bolt securely.

Stopper Mounting hole Wing bolt

Fig. 11

1. Warming up (Fig. 12)

The grease lubrication system in this unit may require warming up in cold regions.

Position the end of the bit so makes contact with the concrete, turn on the switch and perform the warming up operation. Make sure that a hitting sound is produced and then use the unit.

Line drawing of a hand using a screwdriver to press or spread material (no text or symbols)

Fig. 12

CAUTION:

When the warming up operation is performed, hold the side handle and the main body securely with both hands to maintain a secure grip and be careful not to twist your body by the jammed drill bit.

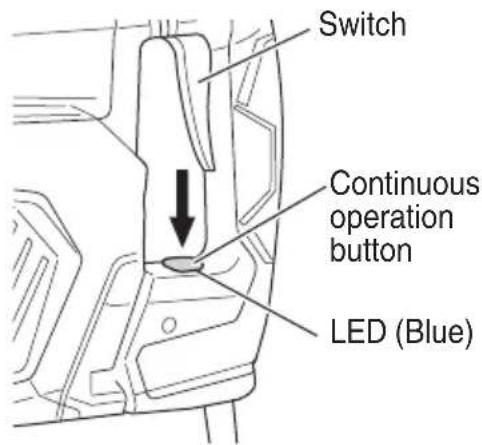

7. Using the Continuous operation button

When operating this machine in "hammering" mode, you can set it to remain ON after the switch is released by pressing the Continuous operation button.

Selector lever Operation
“hammering”	Press the Continuous operation button(Blue LED will light up)
	[To cancel Continuous operation]Press one of the following to cancel continuous operation:Press the Continuous operation buttonPress the switch
“rotation + hammering”	Continuous operation button cannot be used for this mode

Switch Continuous operation button LED (Blue)

Fig. 13

1. How to use the drill bit (taper shank) and the taper shank adaptor.

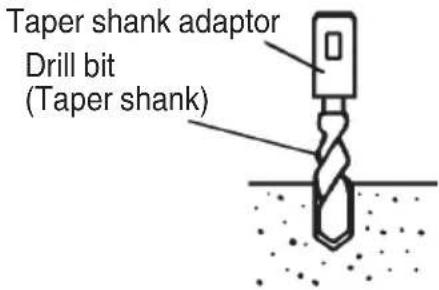

(1) Install drill bit with taper shank in the taper shank adaptor. (Fig. 14)

Taper shank adaptor Drill bit (Taper shank)

Fig. 14

(2) Turn the power on and drill a base hole.
(3) After cleaning out dust with a syringe, attach the plug to the anchor tip and drive in the anchor with a manual hammer.

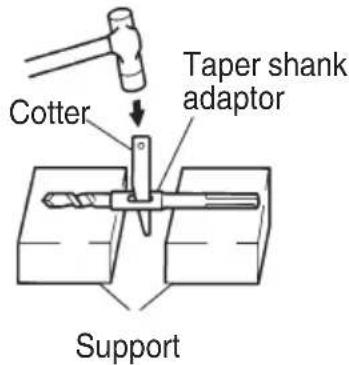

(4) To remove the drill bit with taper shank, insert a cotter into the slot of the taper shank adaptor, place supports under the Rotary Hammer and tap the cotter with a manual hammer. (Fig. 15)

Cotter Taper shank adaptor Support

Fig. 15

USING DRILL CHUCK, CHUCK ADAPTOR

Note that this machine can be used at "rotation only" if separately sold parts such as drill chuck and chuck adaptor are attached. Use it with the selector lever positioned at "rotation + hammering".

WARNING:

During operation, be sure to grip the handle and the side handle firmly to prevent your body from swaying.

(1) Switching to "rotation + hammering"
For switching to "rotation + hammering", follow the same procedures mentioned in [3. When drilling at "rotation + hammering"] in Page 9.
(2) Attaching chuck adaptor to drill chuck (Fig. 16)
(a) Attach the chuck adaptor to the drill chuck.
(b) The SDS max shank of the chuck adaptor is equivalent to the drill bit. Therefore, follow the same procedure as [6. How to install tool] in Page 7 for attaching and detaching.

SDS max shank Drill chuck Chuck adaptor Grip

Fig. 16

(3) Drilling

(a) Even if you apply more-than-required pressure to the machine body, drilling can never be performed as quickly as you expect. Applying more force or pressure to the machine body than what is needed, on the contrary, damages the drill tip, resulting in the declined working efficiency and shortened life of this machine.

(b) A drill can snap sometimes when drilling is almost finished. It is important to relax your thrusting pressure when drilling is nearing the end.

HOW TO USE THE CORE BIT

When boring penetrating large hole use the core bit. At that time use with the center pin and the core bit shank provided as optional accessories.

1. Mounting

CAUTION:

Be sure to turn power OFF and disconnect the plug from the receptacle.

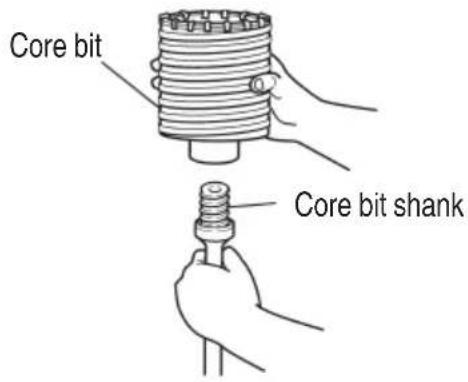

(1) Mount the core bit to the core bit shank. (Fig. 17) Lubricate the thread of the core bit shank to facilitate disassembly.

Core bit Core bit shank

Fig. 17

(2) Mount the core bit shank to the Rotary Hammer. (Fig. 18)

Illustration of hands using a screwdriver to press a cylindrical component with a dollar coin symbol (no text or labels)

Fig. 18

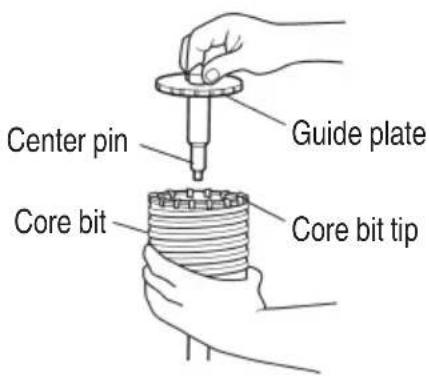

(3) Insert the center pin into the guide plate until it stops.
(4) Engage the guide plate with the core bit, and turn the guide plate to left or right so that it does not fall even if it faces downward. (Fig. 19)

Center pin Guide plate Core bit Core bit tip

Fig. 19

1. How to bore (Fig. 20)

(1) Connect the plug to the receptacle.
(2) A spring is installed in the center pin. Push it lightly to the wall or the floor straight. Connect all over the surface of the core bit tip and start operating.
(3) When boring about 3/16" (5 mm) in depth the position of the hole will establish. Bore after that removing the center pin and the guide plate from core bit.
(4) Application of excessive force will not only expedite the work, but will deteriorate the tip edge of the drill bit, resulting in reduced service life of the rotary hammer.

Line drawing of a hand using a drill bit to drive a cylindrical tool (no text or symbols present)

Fig. 20

CAUTION:

When removing the center pin and the guide plate, turn OFF the switch and disconnect the plug from the receptacle.

3. Dismounting (Fig. 21)

Remove the core bit shank from the rotary hammer and strike the head of the core bit shank strongly two or three times with a manual hammer holding the core bit, then the thread becomes loose and the core bit can be removed.

Core bit shank

Fig. 21

MAINTENANCE AND INSPECTION

WARNING:

Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection.

1. Inspecting the drill bits

Since use of a dull tool will cause motor malfunctioning and degraded efficiency, replace the drill bit with a new one or resharpening without delay when abrasion is noted.

1. Inspecting the screws

Regularly inspect all screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately.

WARNING:

Using this Rotary Hammer with loosen screws is extremely dangerous.

1. Maintenance of the motor

The motor unit is the very "heart" of the power tool. Exercise due care to ensure the motor does not become damaged and/or wet with oil or water.

1. Grease replacement

This Rotary Hammer is full air-tight construction to protect against dust and to prevent lubricant leakage.

Therefore, this Rotary Hammer can be used without lubrication for long periods. Replace the grease as described below.

○ Grease Replacement Period

After purchase, replace grease after every 6 months of usage. Ask for grease replacement at the nearest authorized Service Center.

1. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

1. Service parts list

CAUTION:

● Repair, modification and inspection of metabo HPT Power Tools must be carried out by a metabo HPT Authorized Service Center.

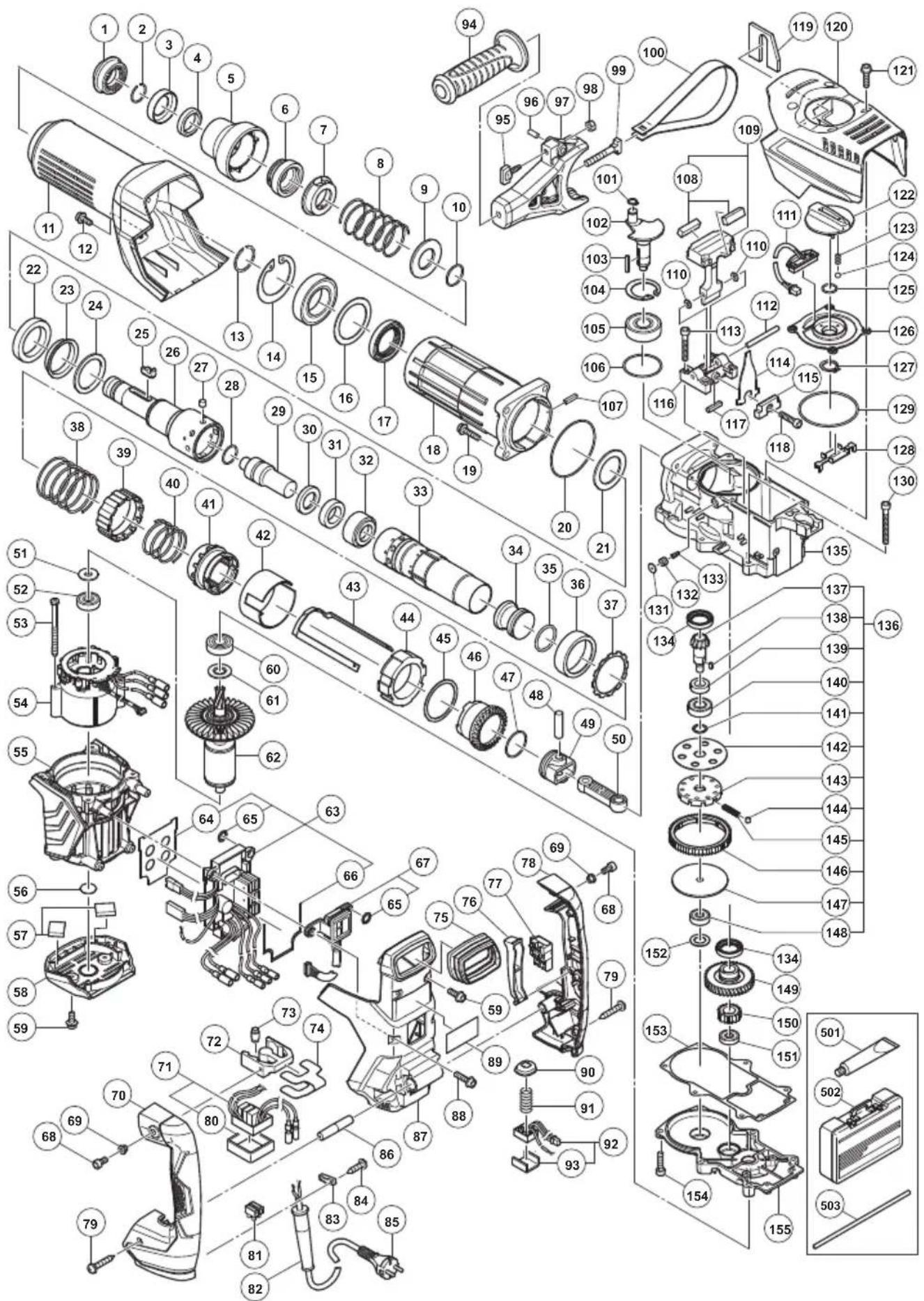

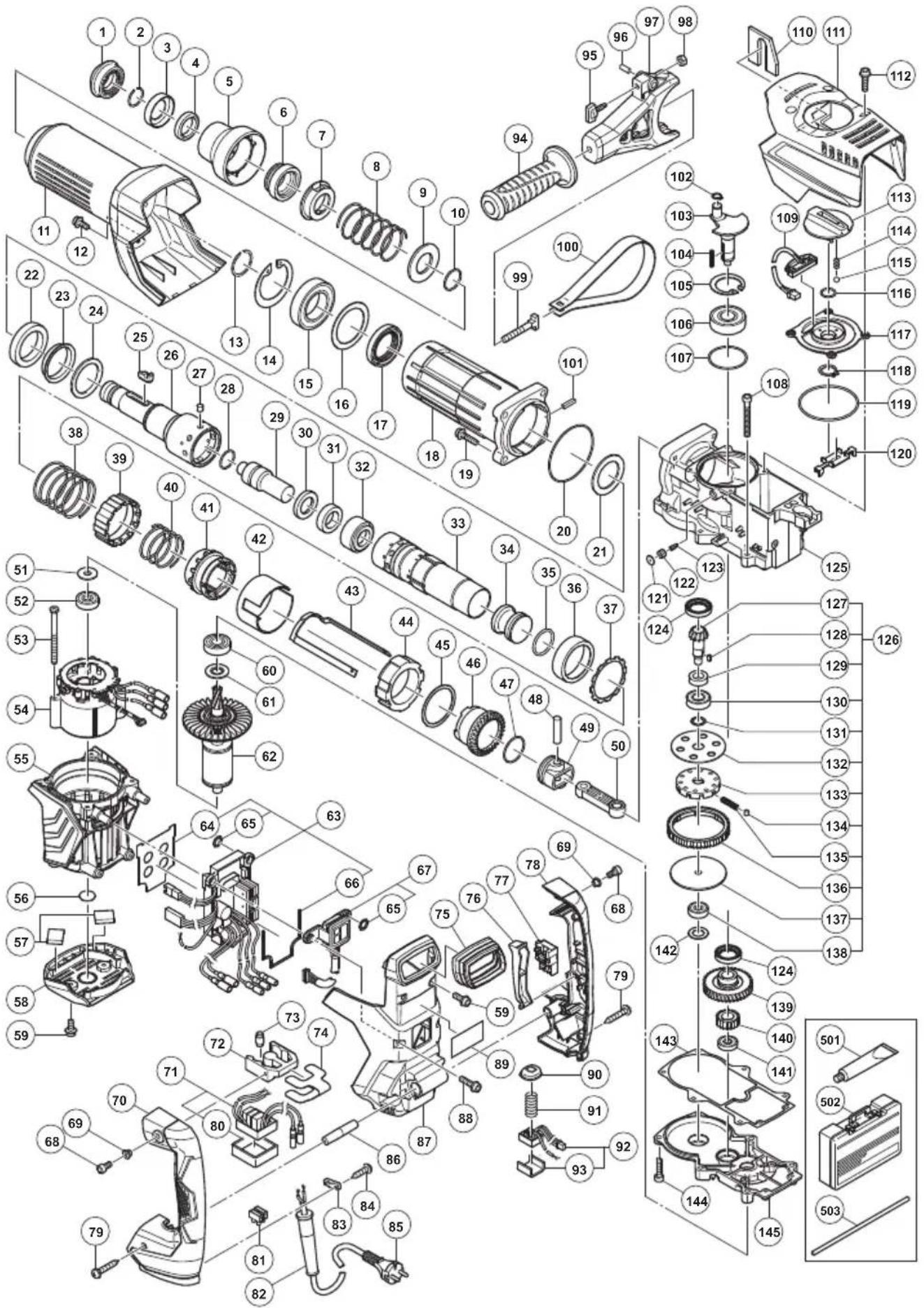

This Parts List will be helpful if presented with the tool to the metabo HPT Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

metabo HPT Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts may be changed without prior notice.

ACCESSORIES

WARNING:

ALWAYS use Only authorized metabo HPT replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool.

The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE:

Accessories are subject to change without any obligation on the part of the metabo HPT.

STANDARD ACCESSORIES

(1) Case (Molded plastic) (Code No. 339066) ........1

(2) Side Handle ........1

(3) Stopper (Code No. 971786) ........1

(4) Hammer Grease A (Code No. 981840) ........1

OPTIONAL ACCESSORIES.....sold separately

For accessories in detail please call metabo HPT AT 1-800-59-TOOLS

1. Through-hole drilling (Rotation + Hammering)

(1) Drill bit (SDS-max shank)

External dia. Overall lenght		Code No.
5/8"(16 mm)	13-3/8"(340 mm)	313448
	21-1/4"(540 mm)	313456
3/4"(19 mm)	13-3/8"(340 mm)	313449
	21-1/4"(540 mm)	313457
7/8"(22 mm)	12-5/8"(320 mm)	313450
	20-15/32"(520 mm)	313458
1"(25 mm)	12-5/8"(320 mm)	313451
	20-15/32"(520 mm)	313459
1-1/8"(28 mm)	14-9/16"(370 mm)	313452
	22-7/16"(570 mm)	313460

External dia. Overall lenght		Code No.
1-1/4”(32 mm)	14-9/16”(370 mm)	313453
	22-7/16”(570 mm)	313461
1-1/2”(38 mm)	14-9/16”(370 mm)	313454
	22-7/16”(570 mm)	313462
1-9/16”(40 mm)	14-9/16”(370 mm)	313455
	22-7/16”(570 mm)	313463

1. Anchor hole drilling (Rotation + Hammering)

Adaptor for SDS-plus shank bit

(1) Drill Bit (SDS-plus shank)

(2) Adaptor for SDS-plus shank bit (SDS max shank) Code No. 313465

1. Large-dia. hole boring (Rotation + Hammering)

Guide plate (1) Center pin (2) Core bit

(3) Core bit shank (SDS max shank)

(Guide plate)

External dia. of core bit	Code No.
2” (50 mm)	985388
4-1/8” (105 mm)	955169

(1) Center pin

Code No.

955165

(2) Core bit

External dia.	Code No.
2” (50 mm)	985380
4-1/8” (105 mm)	955159
5” (125 mm)	987013

(3) Core bit shank (SDS max shank)

Code No.

313467

Include Guide Plate

1. Drilling holes....For drilling metals and wooden materials

(1) 13mm drill chuck (13VLD-D)

Code No. 321813

(2) Chuck adaptor (SDS max shank)

Code No. 313468

(3) Chuck wrench

Code No. 930515

1. Bolt plaching operation with Chemical Anchor (Rotation + Hammering)

(Standard socket on the market)

(1) Chemical Anchor Adaptor (SDS max shank)

Square dimensions of the side of the socket installation	Code No.
1/2” (12.7 mm) 313469
3/4” (19.0 mm) 313470

1. Crushing (Hammering)

(1) Bull point

Overall length	Code No.
11” (280 mm)	313471
15-3/4” (400 mm)	313472

1. Groove digging and edging (Hammering)

(1) Cold chisel

Overall length	Code No.
11” (280 mm)	313473
15-3/4” (400 mm)	313474

1. Asphalt cutting (Hammering)

(1) Cutter

Overall length	Width	Code No.
15-3/4” (400 mm)	1-31/32” (50 mm)	313475

1. Digging

(1) Scoop

Code No. 313476

1. Surface Roughing (Hammering)

(1) Bushing Tool

Code No. 313477

(2) Shank

Overall length	Code No.
8-21/32” (220 mm)	313479

1. Tamping (Hammering)

(1) Rammer

Code No. 313478

(2) Shank

Overall length	Code No.
8-21/32” (220 mm)	313479

1. Syringe (for chip removal)

Code No. 320859

1. Hammer grease A

1.1 lbs (500 g) (in a can) Code No. 980927 0.15 lbs (70 g) (in a green tube) Code No. 308471

NOTE:

Specifications are subject to change without any obligation on the part of the metabo HPT.

INFORMATIONS IMPORTANTES DE SÉCURITÉ

Fig. 2

Line drawing of a hand holding a drill bit with a screwdriver, emitting powder (no text or symbols)

Fig. 5

PRECAUTION:

Line drawing of a hand using a power tool to dig or brush on a dotted surface (no text or symbols)

Fig. 6

Line drawing of a hand using a screwdriver to press or spread material (no text or symbols)

Fig. 12

PRECAUTIÓN:

Illustration of hands using a tool to press or install a cylindrical component, with a rotation arrow indicating the process (no text or symbols present)

Fig. 18

Line drawing of a hand operating a drill bit with a threaded shaft (no text or symbols)

Fig. 20

PRECAUTION:

1. Broyage (Percussion)

(1) Point de broyage

Longueur totale No. de code
11” (280 mm) 313471
15-3/4” (400 mm)	313472

1. Puisage (Percussion)

(1) Scoop

No. de code 313476

Line drawing of a hand using a drill bit with a screwdriver, emitting powder (no text or symbols)

Fig. 5

PRECAUCIÓN:

Line drawing of a hand using a screwdriver to apply material (no text or symbols)

Fig. 6

Palanaca selectora

Fig. 7

NOTA:

T Palanaca selectora

Fig. 8

NOTA:

Palanaca selectora

Fig. 9

Line drawing of a hand using a screwdriver to press or spread material (no text or symbols)

Fig. 12

PRECAUCIÓN:

Illustration of hands using a screwdriver to lift a cylindrical component, with a dollar coin symbol indicating rotation (no text or labels)

Fig. 18

Line drawing of a hand using a drill bit to drive a mechanical component (no text or symbols)

Fig. 20

PRECAUCIÓN:

Technical line drawing of a mechanical component with two views: one showing a zigzag edge and the other a conical tool (no text or symbols)

(1) Desbastadora

Technical line drawing of a mechanical component with a flanged shaft and circular housing (no text or symbols)

(1) Pisón

Núm. de código 313478

(2) Barrena

Line drawing of a quill pen in an inkwell with a small jar (no text or symbols)

DH52ME

Exploded view diagram of a mechanical assembly with numbered parts for identification

ITEM NO.	PART NAME Q'TY
1 FRONT CAP 1
2 STOPPER RING 1
3 RETAINER WASHER 1
4 RETAINER DAMPER (A) 1
5 GRIP 1
6 BIT LOCK HOLDER 1
7 THRUST PLATE 1
8 RETAINER SPRING 1
9 SPRING HOLDER (A) 1
10 O-RING (S-26) 1
11 CYLINDER CASE COVER 1
12	HEX. SOCKET HD. BOLT (W/FLANGE) M5X12	1
13 RETAINING RING D40 1
14 RETAINING RING D68 1
15	BALL BEARING 6008DDUCM	1
16 BEARING WASHER		1
17 OIL SEAL (NBR710)		1
18 CYLINDER CASE		1
19	HEX. SOCKET HD. BOLT (W/FLANGE) M8X35	4
20 O-RING (C)		1
21	RETAINER DAMPER HOLDER	1
22 RETAINER DAMPER (B) 1
23 DAMPER SLEEVE		1
24	RETAINER DAMPER WASHER	1
25 BIT LOCK		2
26 RETAINER SLEEVE		1
27 NEEDLE PIN D8 8
28 O-RING		1
29 SECOND HAMMER		1
30 DAMPER WASHER		1
31 DAMPER		1
32 DAMPER HOLDER		1
33 CYLINDER		1
34 STRIKER		1
35 O-RING		1
36 SPRING HOLDER (B) 1
37 LOCK SPRING WASHER		1
38 LOCK SPRING		1
39 LOCK SLEEVE		1
40 CLUTCH SPRING		1
41 CLUTCH		1
42 SLEEVE		1
43 SLIDER		1
44 METAL (A)		1
45 METAL WASHER		1
46 BEVEL GEAR		1
47 O-RING		1
48 PISTON PIN		1
49 PISTON		1
50 CONNECTING ROD		1
51 BEARING WASHER		1
52	BALL BEARING 6201VVCMPS2L	1
53	HEX. HD. TAPPING SCREW D5X60	2
54	STATOR SENSOR PCB SET 100V-127V	1
55 HOUSING		1
56 DUST SEAL		1
57 PACKING (B)		2
58 TAIL COVER		1

ITEM NO.	PART NAME Q'TY
59	HEX. SOCKET HD. BOLT (W/FLANGE) M5X14	4
60	BALL BEARING 6202DDCMPS2L	1
61 D	JUST WASHER (B)	1
62	ROTOR ASS'Y (INCLUD.51,52,60,61)	1
63	CONTROLLER ASS'Y 110V-127V (INCLUD.64-66)	1
64 R	UBBER SHEET (C)	1
65 R	UBBER SHEET (A)	4
66 R	UBBER SHEET (D)	1
67 P	ANEL ASS'Y (INCLUD.65)	1
68	SEAL LOCK HEX. SOCKET HD. BOLT M5X12	2
69 D	STANCE PIECE (B)	2
70 H	HANDLE (A)	1
71	FILTER PCB ASS'Y 100V-127V (INCLUD.80)	1
72 T	TRANSATORY UNIT	1
73 H	HANDLE DAMPER	4
74	HANDLE DAMPER HOLDER	1
75 B	ELLOWS	1
76 TR	IGGER	1
77 S	WITCH	1
78 H	HANDLE (B)	1
79	TAPPING SCREW (W/FLANGE) D4X25	5
80 F	ILTER PACKING	1
81 P	LLAR TERMINAL (A)	1
82 C	ORD ARMOR D10.7	1
83 C	ORD CLIP	1
84	TAPPING SCREW (W/FLANGE) D4X16	2
85 C	ORD	1
86 H	HANDLE SHAFT	1
87 B	ACK COVER	1
88	HEX. SOCKET HD. BOLT (W/FLANGE) M5X16	4
89 N	AME PLATE	1
90 ON	LOCK BUTTON	1
91 ON	LOCK SPRING	1
92	ON LOCK PCB (A) ASS'Y (INCLUD.93)	1
93 P	ACKING (A)	1
94 S	DE HANDLE 1
95 W	ING BOLT	1
96 R	OLL PIN D2X8	1
97 M	OUNT	1
98 N	UT M6	1
99 H	HANDLE BOLT	1
100	BAND	1
101	ROLL PIN D2X8	1
102	RETAINING RING FOR D12 SHAFT	1
103	CRANK SHAFT	1
104	FEATHER KEY 3X3X25	1
105	RETAINING RING FOR D47 HOLE	1
106	BALL BEARING 6204DDCMPS2L	1
107	O-RING (F)	1
108	SEAL LOCK HEX. SOCKET HD. BOLT M6X45	4
109	ON LOCK PCB (B)	1
110	FELT PACKING (D)	1
111	CRANK COVER	1

ITEM NO.	PART NAME Q'TY
112	HEX. SOCKET HD. BOLT (W/FLANGE) M5X18	4
113	CHANGE LEVER	1
114	LEVER SPRING	1
115	STEEL BALL D4.76	1
116	O-RING (S-18) 1
117	LEVER SHAFT HOLDER	1
118	RETAINING RING FOR D20 SHAFT	1
119	O-RING (A)	1
120	CHANGE PLATE	1
121	FELT PACKING (C)	1
122	CAP SCREW	1
123	VALVE	1
124	OIL SEAL	2
125	CRANK CASE	1
126	SLIP CLUTCH ASS'Y (INCLUD.127-138)	1
127	BEVEL PINION	1
128	FEATHER KEY 3X3X8 1
129	COLLAR	1
130	BALL BEARING 6002DDCMPS2L	1
131	WASHER	1
132	WASHER (A)	1
133	GEAR HOLDER	1
134	NEEDLE PIN D6X6	8
135	SPRING (C)	8
136	SECOND GEAR 1
137	SPACER	1
138	BALL BEARING 629VVC2PS2L	1
139	FIRST GEAR	1
140	SECOND PINION	1
141	BALL BEARING 629VVC2PS2L	1
142	BEARING WASHER (C)	1
143	SEAL PACKING	1
144	SEAL LOCK HEX. SOCKET HD. BOLT M6X22	2
145	GEAR COVER 1
501	GREASE (A) FOR HAMMER.HAMMER DRILL (30G)	1
502	CASE (PLASTIC)	1
503	STOPPER ROD	1

DH52MEY

Exploded view diagram of a mechanical assembly with numbered parts for identification

ITEM NO.	PART NAME Q'TY
1 FRONT CAP 1
2 STOPPER RING 1
3 RETAINER WASHER 1
4 RETAINER DAMPER (A) 1
5 GRIP 1
6 BIT LOCK HOLDER 1
7 THIRUST PLATE 1
8 RETAINER SPRING 1
9 SPRING HOLDER (A) 1
10 O-RING (S-26) 1
11 CYLINDER CASE COVER 1
12 HEX. SOCKET HD. BOLT (W/FLANGE) M5X12		1
13 RETAINING RING D40 1
14 RETAINING RING D68 1
15 BALL BEARING 6008DDUCM		1
16 BEARING WASHER		1
17 OIL SEAL (NBR710)		1
18 CYLINDER CASE		1
19 HEX. SOCKET HD. BOLT (W/FLANGE) M8X35		4
20 O-RING (C)		1
21 RETAINER DAMPER HOLDER		1
22 RETAINER DAMPER (B) 1
23 DAMPER SLEEVE		1
24 RETAINER DAMPER WASHER		1
25 BIT LOCK		2
26 RETAINER SLEEVE		1
27 NEEDLE PIN D8 8
28 O-RING		1
29 SECOND HAMMER		1
30 DAMPER WASHER		1
31 DAMPER		1
32 DAMPER HOLDER		1
33 CYLINDER		1
34 STRIKER		1
35 O-RING		1
36 SPRING HOLDER (B) 1
37 LOCK SPRING WASHER		1
38 LOCK SPRING		1
39 LOCK SLEEVE		1
40 CLUTCH SPRING		1
41 CLUTCH		1
42 SLEEVE		1
43 SLIDER		1
44 METAL (A)		1
45 METAL WASHER		1
46 BEVEL GEAR		1
47 O-RING		1
48 PISTON PIN		1
49 PISTON		1
50 CONNECTING ROD		1
51 BEARING WASHER		1
52 BALL BEARING 6201VVCMPS2L		1
53 HEX. HD. TAPPING SCREW D5X60		2
54 STATOR SENSOR PCB SET 100V-127V		1
55 HOUSING		1
56 DUST SEAL		1
57 PACKING (B)		2
58 TAIL COVER		1
59 HEX. SOCKET HD. BOLT (W/FLANGE) M5X14		2

ITEM NO.	PART NAME Q'TY
60	BALL BEARING 6202DDCMPS2L	1
61 D	UST WASHER (B)	1
62	ROTOR ASS'Y (INCLUD.51,52,60,61)	1
63	CONTROLLER ASS'Y 110V-127V (INCLUD.64-66)	1
64 R	UBBER SHEET (C)	1
65 R	UBBER SHEET (A)	4
66 R	UBBER SHEET (D)	1
67 P	ANEL ASS'Y (INCLUD.65)	1
68	SEAL LOCK HEX. SOCKET HD. BOLT M5X12	2
69 D	DISTANCE PIECE (B)	2
70 H	HANDLE(A)	1
71	FILTER PCB ASS'Y 100V-127V (INCLUD.80)	1
72 T	TRANSATORY UNIT	1
73 H	HANDLE DAMPER	4
74 H	HANDLE DAMPER HOLDER	1
75 B	ELLOWS	1
76 T	TRIGGER	1
77 S	SWITCH	1
78 H	HANDLE (B)	1
79	TAPPING SCREW (W/FLANGE) D4X25	5
80 F	LTER PACKING	1
81 P	LLAR TERMINAL (A) 1
82 C	ORD ARMOR D10.7	1
83 C	ORD CLIP	1
84	TAPPING SCREW (W/FLANGE) D4X16	2
85 C	ORD	1
86 H	HANDLE SHAFT	1
87 B	ACK COVER	1
88	HEX. SOCKET HD. BOLT (W/FLANGE) M5X16	4
89 N	AME PLATE	1
90 O	N LOCK BUTTON	1
91 O	N LOCK SPRING	1
92	ON LOCK PCB (A) ASS'Y (INCLUD.93)	1
93 P	ACKING (A)	1
94 S	DE HANDLE 1
95 W	ING BOLT	1
96 R	ROLL PIN D2X8	1
97 M	OUNT	1
98 N	UT M6	1
99 H	HANDLE BOLT	1
100	BAND	1
101	RETAINING RING FOR D12 SHAFT	1
102	CRANK SHAFT	1
103	FEATHER KEY 3X3X25	1
104	RETAINING RING FOR D47 HOLE	1
105	BALL BEARING 6204DDCMPS2L	1
106	O-RING (F)	1
107	ROLL PIN D2X8	1
108	WEIGHT DAMPER	2
109	WEIGHT ASS'Y (INCLUD.108)	1
110	WASHER	2
111	ON LOCK PCB (B)	1
112	WEIGHT PIN	1
113	SEAL LOCK HEX. SOCKET HD. BOLT M5X30	4
114	LEAF SPRING (B)	2

ITEM NO.	PART NAME Q'TY
115	SPRING HOLDER	2
116	BASE	1
117	WEIGHT BUMPER	2
118	SEAL LOCK HEX. SOCKET HD. BOLT M5X16	2
119	FELT PACKING (D)	1
120	CRANK COVER	1
121	HEX. SOCKET HD. BOLT (W/FLANGE) M5X18	4
122	CHANGE LEVER	1
123	LEVER SPRING	1
124	STEEL BALL D4.76	1
125	O-RING (S-18) 1
126	LEVER SHAFT HOLDER	1
127	RETAINING RING FOR D20 SHAFT	1
128	O-RING (A)	1
129	CHANGE PLATE	1
130	SEAL LOCK HEX. SOCKET HD. BOLT M6X45	4
131	FELT PACKING (C)	1
132	CAP SCREW	1
133	VALVE	1
134	OIL SEAL	2
135	CRANK CASE	1
136	SLIP CLUTCH ASS'Y (INCLUD.137-148)	1
137	BEVEL PINION	1
138	FEATHER KEY 3X3X8	1
139	COLLAR	1
140	BALL BEARING 6002DDCMPS2L	1
141	WASHER	1
142	WASHER (A)	1
143	GEAR HOLDER	1
144	NEEDLE PIN D6X6	8
145	SPRING (C)	8
146	SECOND GEAR 1
147	SPACER	1
148	BALL BEARING 629VVC2PS2L	1
149	FIRST GEAR	1
150	SECOND PINION	1
151	BALL BEARING 629VVC2PS2L	1
152	BEARING WASHER (C)	1
153	SEAL PACKING	1
154	SEAL LOCK HEX. SOCKET HD. BOLT M6X22	2
155	GEAR COVER 1
501	GREASE (A) FOR HAMMER. HAMMER DRILL (30G)	1
502	CASE (PLASTIC)	1
503	STOPPER ROD	1

Line drawing of a quill pen with inkwell (no text or symbols)

Line drawing of a quill pen with inkwell (no text or symbols)

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

AVERTISSEMENT:

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Koki Holdings America Ltd.

1111 Broadway Ave, Braselton, Georgia, 30517

Koki Holdings America Ltd. Canadian Branch

3405 American Drive, Units 9-10,

Mississauga, ON, L4V 1T6

806

Code No. C99713662 M

Printed in Malaysia
