Brand	HiKOKI
Model	DH24DVC
Product type	Cordless rotary hammer (battery-powered hammer drill)
No-load speed	0 – 1250 min⁻¹
Full-load impact rate	0 – 5600 min⁻¹
Drilling capacity (concrete)	20 mm
Drilling capacity (steel)	13 mm
Drilling capacity (wood)	27 mm
Battery type	Ni-MH 24 V, 2.0 Ah (BSH2420)
Charger	UC24SGH, charging voltage 24 V
Tool weight	3.6 kg
Charger weight	0.4 kg
Operating modes	Rotation + hammering, hammering only, rotation only
Included accessories	Side handle, depth gauge, charger, plastic case, spare battery
Safety	Hearing and eye protection recommended, auxiliary handle, overload shut-off
Maintenance	Cleaning with dry cloth, screw checking, brush inspection by HiKOKI authorized service center
Warranty	Complies with national regulations, does not cover normal wear or misuse
Noise level	Sound pressure 92 dB(A), sound power 103 dB(A)
Vibration (concrete drilling)	ah,HD = 13.2 m/s², uncertainty K = 1.5 m/s²

Frequently Asked Questions - DH24DVC HiKOKI

How to change the drill bit?

To change the bit, pull the sliding attachment completely in the direction of the arrow, then remove the bit. To insert a new bit, clean the bit shank, insert it by turning into the tool holder until it locks, and check that it is firmly fixed by pulling on it.

How to charge the battery correctly?

Plug the UC24SGH charger into a mains socket. Insert the BSH2420 battery fully into the charger. The indicator lamp lights up red during charging and flashes when charging is complete. The charging temperature must be between 0°C and 40°C to avoid overcharging.

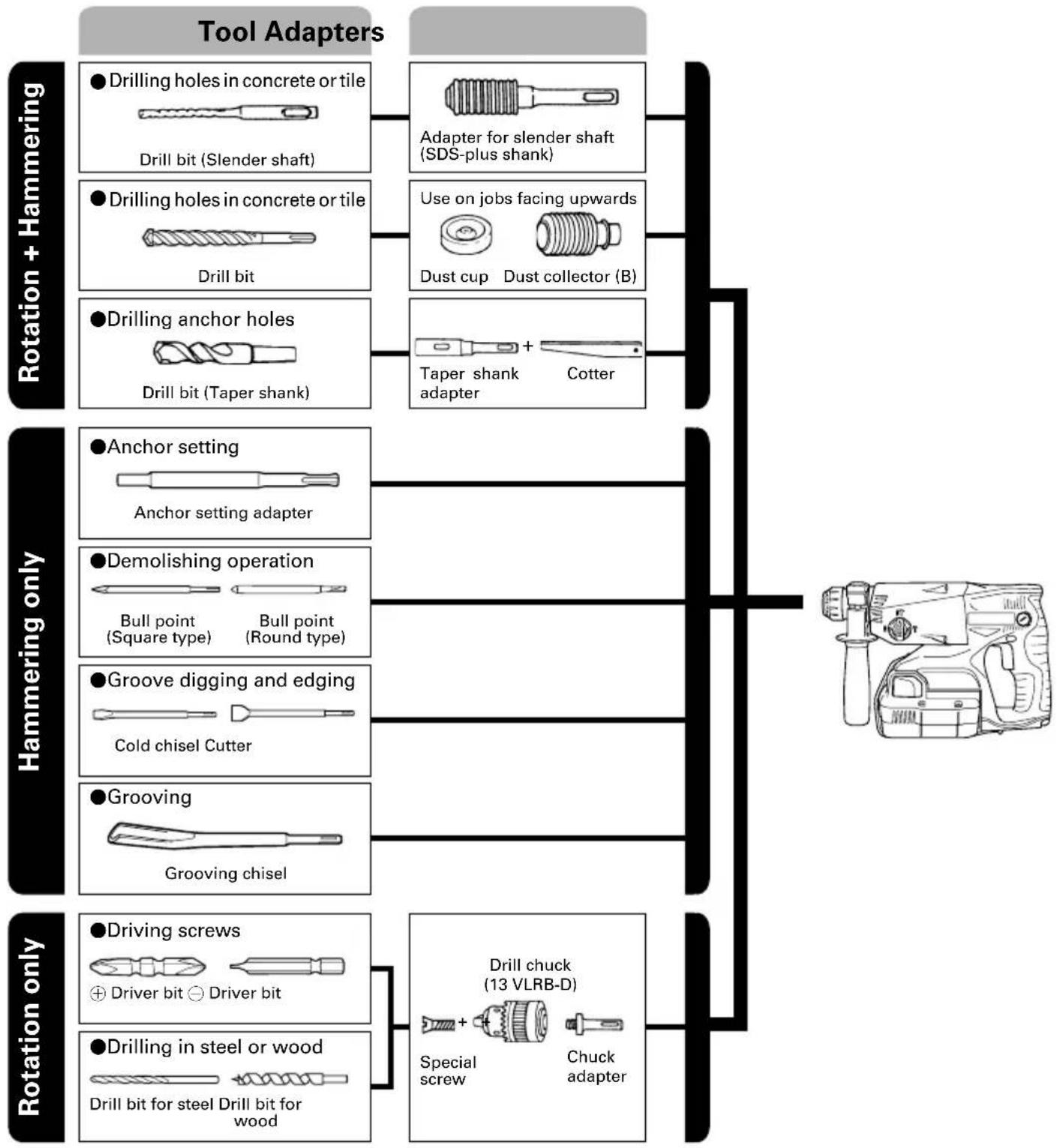

What accessories are compatible with the DH24DVC?

Compatible accessories include SDS-plus drill bits for concrete, tapered shank bits, chisels, the drill chuck (13 VLRB-D) for drilling in wood and steel, as well as the dust cap and dust collector (B). Use exclusively the accessories specified by HiKOKI.

What are the important safety instructions?

Always wear hearing protection and eye protection, use the supplied auxiliary handle, do not wear loose clothing, keep children away, and do not leave the tool unattended. Before drilling, check for any electrical cables in the wall. For the battery, do not short-circuit it and do not throw it into fire.

How to use hammer-only mode?

Turn the selector to the T mark (hammer only). Mount a grinding point or a cold chisel. Place the selector between T and T to rotate the tool and adjust the chisel position, then lock by turning the selector to ⬆. Use for light chiseling, groove cutting, or corner breaking.

How to set the drilling depth?

Use the supplied depth gauge. Loosen the button bolt on the side handle, insert the stopper into the U-shaped slot of the handle, adjust the position according to the desired depth, then tighten the bolt.

What to do if the battery overheats?

If the battery is hot (e.g., after prolonged use or exposure to the sun), the charger indicator lamp flashes by lighting 1 second and turning off 0.5 seconds. Let the battery cool before charging. The ideal charging temperature is 20-25°C.

How to maintain the tool?

Clean the exterior with a dry cloth or slightly soapy cloth. Do not use solvents. Regularly check the tightness of all screws. The carbon brushes must be inspected and replaced exclusively by a HiKOKI authorized service center. Lubricate the tool with the specified grease to prevent seizing.

Where to get the tool repaired?

Entrust repairs, modifications, and inspections to a HiKOKI authorized service center. Address in France: Parc de l'Eglantier, 22 rue des Cerisiers, Lisses-C.E. 1541, 91015 EVRY CEDEX. Tel. [phone]. Always use genuine replacement parts.

What are the maximum drilling capacities?

The DH24DVC can drill up to 20 mm diameter in concrete (with SDS-plus bit), 13 mm in steel, and 27 mm in wood. For wood screws, drive screws up to 6.2 mm diameter and 40 mm length. These values are given for suitable bits.

USER MANUAL DH24DVC HiKOKI

Line drawing of a mechanical device with no visible text or symbols

Read through carefully and understand these instructions before use. Diese Anleitung vor Benutzung des Werkzeugs sorgfältig durchlesen und verstehen. Lire soigneusement et bien assimiler ces instructions avant usage. Prima dell'uso leggere attentamente e comprendere queste instruzioni. Deze gebruiksaanwijzing s.v.p. voor gebruik zorgvuldig doorlezen. Leer cuidadosamente y comprender estas instrucciones antes del uso. Antes de usar, leia com cuidado para assimilar estas instruções. Διαβάστε προσεκτικά και κατανοήςετε αυτές τις οδηγίες πριν τη χρήση.

Handling instructions Bedienungsanleitung Mode d'emploi Instruzioni per l'uso Gebruiksaanwijzing Instrucciones de manejo Instruções de uso Οδηγίες χειρισμού

1

Technical diagram of a mechanical device with labeled parts 1 and 2, showing hands operating the component.

2

Technical diagram of a mechanical component with numbered parts and an arrow indicating direction

3

Technical diagram of a hand operating a power tool with numbered parts labeled 1 through 11

4

Technical diagram showing numbered components of a device with labeled parts 3, 9, and 12

5

Technical diagram showing a drill bit being inserted into a mechanical component, labeled with parts 13 through 16.

6

Technical diagram showing a drill bit being inserted into a tool, with labeled component 16

7

17

8

⑱

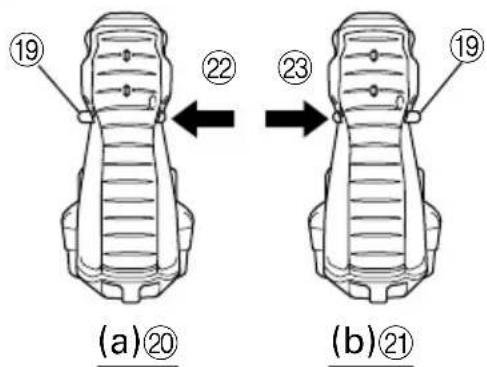

9

(a)⑳ (b)②1

[ ]③0

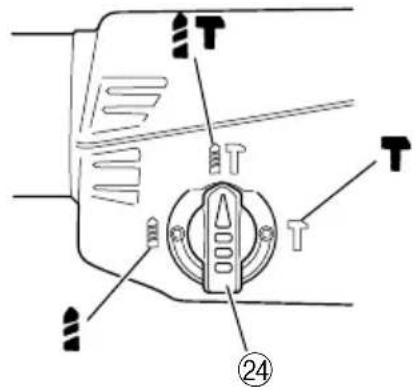

10

T T T T ②4

11

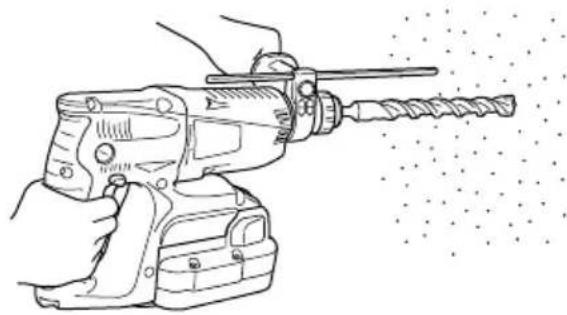

Line drawing of a hand operating a drill bit with a drill bit being inserted (no text or symbols present)

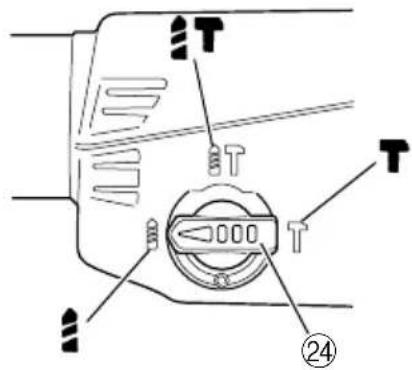

12

T T T T ②4

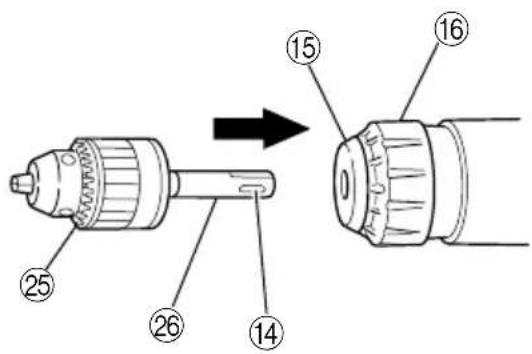

13

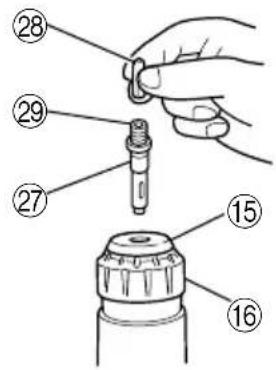

Technical diagram of a drill bit with numbered parts and directional arrow indicating process flow

14

Diagram showing a hand holding a dropper with numbered parts labeled 15, 16, 27, 28, and 29.

15

T T T ②4

16

T T T ②4

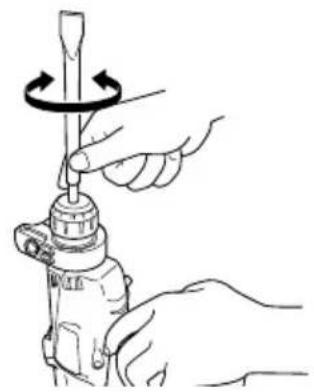

17

Illustration of hands using a drill bit to lift a screwdriver (no text or symbols present)

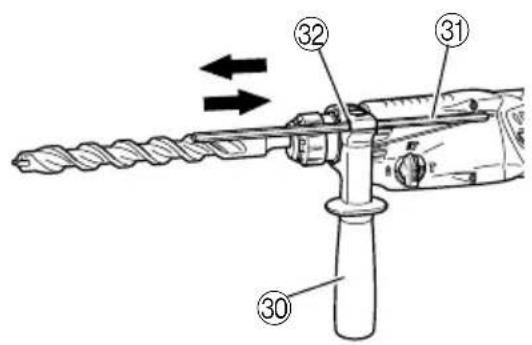

18

Technical diagram of a drill bit with numbered parts and directional arrows indicating motion or movement.

19

Diagram showing a tool being processed with numbered parts, including a twist drill bit and a mechanical component.

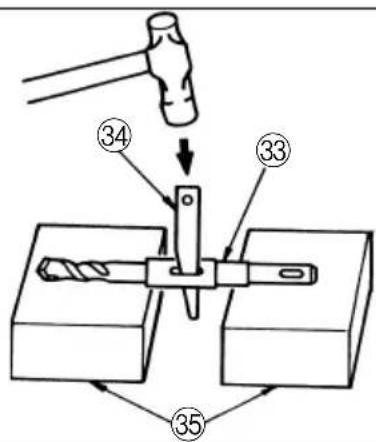

20

Technical diagram showing a hammer tool interacting with a drill bit, labeled with parts 33, 34, and 35.

	English Deutsch Français Italiano

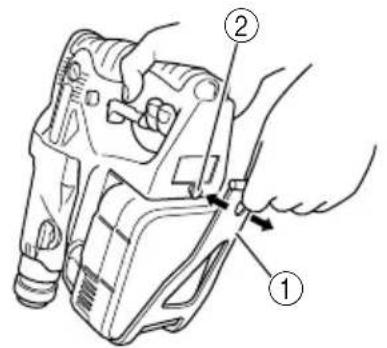

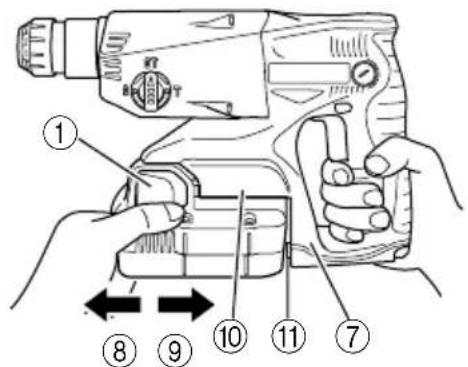

1	Battery band Akkuband Bra celet de batterie Banda della batteria
2	Hook Haken Crochet Gancetto

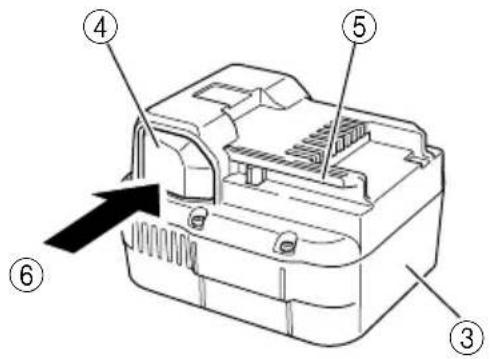

3	Rechargeable battery Batterie Batterie rechargeable Batteria ricaricabile
4	Latch Schnapper Loquet Fermo
5	Guide rail of batery	Führungsschiene der Batterie	Rail guide de la batterie	Binario guida della batteria
6	Push Drücken Pousser Spingere
7	Housing Gehäuse	Boîtier	Alloggiamento
8	Pull out	Herausziehen	Tirer vers l'extérieur	Estrarre
9	Insert	Einsetzen	Insérer Inserire
10	Guide rail of housing	Führungsschiene des Gehäuses	Rail guide du logement	Binario guida dell'alloggiamento
11	Rubber cushion	Gummipolster	Amortisseur en caoutchouc	Cuscinetto in gomma

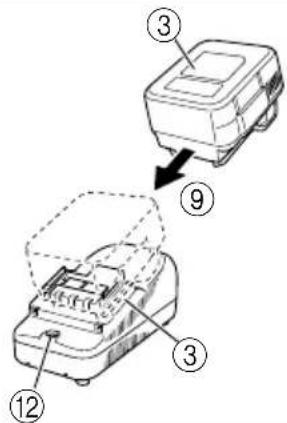

12	Pilot lamp	Kontrollampe	Lampe témoin	Spia

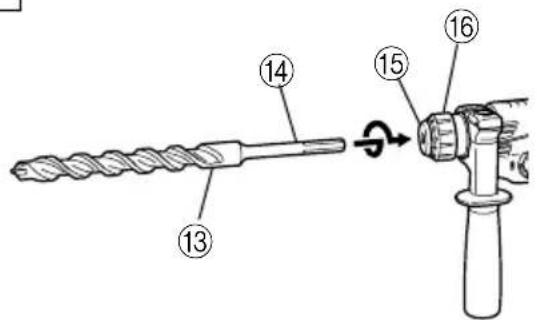

13	Drill bit	Bohrer	Foret de perçage	Punta del trapano
14	Part of SDS-plus shank	Teil des SDS-plus Schaftes	Elément de la tige SDS plus	Parte dell'asta SDS plus
15	Front cap	Vordere Abdeckung	Capuchon avant	Protezione davanti
16	Grip	Spannbacke	Attache coulissante	Presa davanti
17	Dust cup	Staubschale	Godet a poussière	Contenitore a polvere

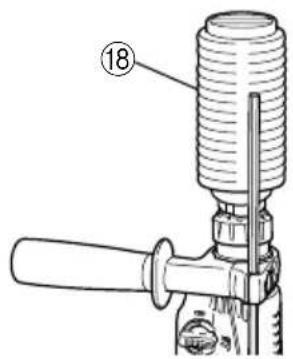

18	Dust collector (B)	Staubfang (B)	Collecteur à poussière (B)	Camera a polvere (B)
19	Push button	Druckknopf	Poussoir	Tasto da premere
20	Forward rotation	Vorwärtsdrehung	Rotation avant	Rotazione in avanti
21	Reverse rotation	Rückwärtsdrehung	Rotation inverse	Rotazione indietro
22	Push the (R) side	Die (R) Seite drücken	Pousser sur le côté (R)	Spingere il lato (R)
23	Push the (L) side	Die (L) Seite drücken	Pousser sur le côté (L)	Spingere il lato (L)

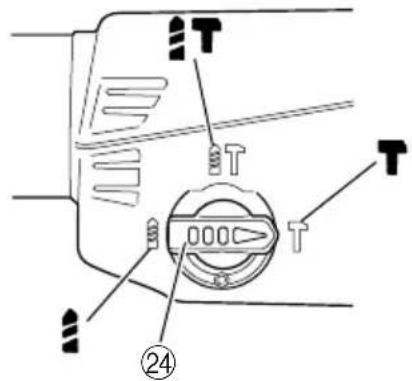

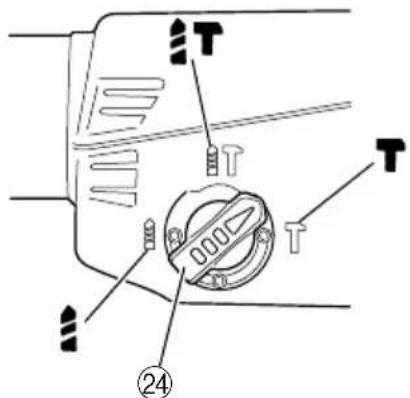

24	Change lever	Wechselknopf	Bouton de changement	Rotella di cambio
25	Drill chuck	Bohrfutter	Mandrin porte-feret	Mandrino
26	Chuck adaptor	Bohrutteradapter	Raccord de mandrin	Adattatore per mandrino
27	Chuck adaptor (D)	Bohrutteradapter (D)	Raccord de mandrin (D)	Adattatore per mandrino (D)
28	Bit	Bohrerspitzen	Mèche	Punta
29	Socket	Fassung	Prise	Presa
30	Side handle	Handgriff	Poignée laterale	Laterale
31	Depth gauge	Tiefenmesser	Jauge de profondeur	Calibro profondità
32	Mounting hole	Befestigungsoffnung	Orifice de montage	Foro d'inserimento della bacchetta di arresto

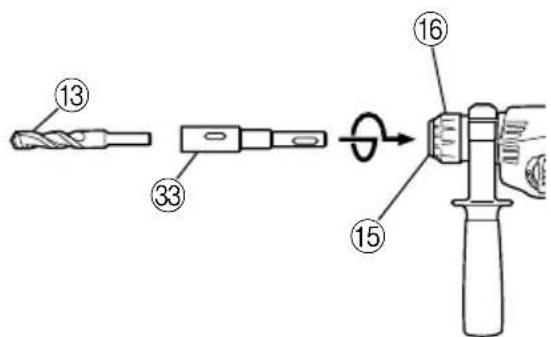

33	Taper shank adapter	Kegelschaftadapter	Raccord de queue conique	Adattatore per gambo conico
34	Cotter	Dorn	Clavette	Coppiglia
35	Rest	Auflage	Support	Appoggio
	Nederlands Español	Português Ελληνικὰ
1	Batterijband Banda de la batería Cinta da bateria		Ζώνη μπαταρίας
2	Haak Gancho Gancho Γαντζο
3	Oplaadbare batterij Bateriα recargable Bateria recarregável		Επαναφορτιζόμενη μπαταρία
4	Vergrendeling Enganche Lingüeta Måvδαλο
5	Geleider batterij Riel de guía de la batería Guia da grade da bateria		Τροχιογραμμή της μπαταρίας
6	Drukken Presionar Apertar Σπρώξε
7	Behuizing Carcasa	Cárter	Περίβλημα
8	Uittrekken	Sacar	Retirar	Τραβήξτε έξω
9	Insteken	Insertar	Inserir	Εισχωρήστε
10	Geleiderail behuizing	Riel de guía de la carcasa	Trilho de segurança do cárter	Τροχιογραμμή του περιβλήματος
11	Rubber kussentje	Amortiguador de caucho	Almofada de borracha	Λαστιχένιο άκρο
12	Kontrolelampje	Lámpara piloto	Lâmpada piloto	Δοκιμαστική λάμπα
13	Boorstuk	Broca	Broca	Λεπίδα τρυπανιού
14	Onderdeel van SDS Plus schacht	Parte del SDS más vástago	Cabo de peça SDS-plus	Τμήμα του SDS-plus στελέχους
15	Voorkap	Cubierta frontal	Tampa da frente	Μπροστινό περίβλημα
16	Greep	Sujetador Mordente Λαβή
17	Stofvangkap	Copa de polvo	Receptáculo para poeira	Κύπελλο σκόνης
18	Stofverzamelaar (B)	Colector de polvo (B)	Coletor de poeira (B)	Συλλέκτης σκόνης (B)
19	Druktoets	Pulsador	Botão de pressão	Κουμπί ώθησης
20	Voorwaartse draairichting	Rotación hacia la derecha	Rotação para frente	Προς τα εμπρός περιστροφή
21	Terugwaartse draairichting	Rotación hacia la izquierda	Rotação inversa	Αντίστροφη περιστροφή
22	Druk aan de (R) kant	Presione el lado (R)	Apertar o lado (R)	Σπρώξετε την (R) πλευρά
23	Druk aan de (L) kant	Presione el lado (L)	Apertar o lado (L)	Σπρώξετε την (L) πλευρά
24	Omstelknop	Perilla de cambio	Seletor	Μοχλός αλλαγής
25	Boorkop	Portabrocas	Mandril	Σφικτήρας τρυπανιού
26	Boorkopadapter	Adaptador del portabrocas	Adaptador do mandril	Προσαρμογέας σφικτήρα
27	Boorkopadapter (D)	Adaptador del portabrocas (D)	Adaptador do mandril (D)	Προσαρμογέας σφικτήρα (D)
28	Boorstuk	Broca	Palhetão	Λεπίδα
29	Aansluithus	Cubo	Encaixe	Υποδοχή
30	Zijgreep	Mango lateral	Empunhadura lateral	Πλευρική λαβή
31	Diepte-maatlat	Calibre de profundidad	Sonda	Μετρητής βάθους
32	Montagegat	Agujero de montaje	Orifício de montagem	Τρύπα στερέωσης
33	Vernauwde schachtadaptor	Adaptador de la espiga	Adaptador de cabo cônico	Κωνικός προσαρμογέας στελέχους
34	Cotter	Chaveta	Cavilha	Κόφτης
35	Steun	Apoya	Suporte	Στήριγμα
	Symbols⚠ WARNINGThe following show symbols used for the machine. Be sure that you understand their meaning before use.	Symbole⚠ WARNUNGDie folgenden Symbole werden für diese Maschine verwendet. Achten Sie darauf, diese vor der Verwendung zu verstehen.	Symboles⚠ AVERTISSEMENTLes symboles suivants sont utilisés pour l’outil. Bien se familiariser avec leur signification avant d’utiliser l’outil.	Simboli⚠ AVVERTENZADi seguito mostriamo i simboli usati per la macchina. Assicurarsi di comprenderne il significato prima dell’uso.
	Read all safety warnings and all instructions.Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.	Lesen Sie sämtliche Sicherheitshinweise und Anweisungen durch.Wenn die Warnungen und Anweisungen nicht befolgt werden, kann es zu Stromschlag, Brand und/oder ernsthaftenVerletzungen kommen.	Lire tous les avertissements de sécurité et toutes les instructions.Tout manquement à observer ces avertissements et instructions peut engendrer des chocs électriques, des incendies et/ou des blessures graves.	Leggere tutti gli avvertimenti di sicurezza e tutte le istruzioni.La mancata osservanza degli avvertimenti e delle istruzioni potrebbe essere causa di scosse elettriche, incendi e/o gravi lesioni.
	Only for EU countriesDo not dispose of electric tools together with household waste material!In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.	Nur für EU-LänderWerfen Sie Elektrowerkzeuge nicht in den Hausmüll!Gemäss Europäischer Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte und Umsetzung in nationales Recht müssen verbrauchte Elektrowerkzeuge getrennt gesammelt und einer umweltgerechtenWiederververitung zugeführt werden.	Pour les pays européens uniquementNe pas jeter les appareils électriques dans les ordures ménagères!Conformément à la directive européenne 2002/96/EG relative aux déchets d’équipements électriques ou électroniques (DEEE), et à sa transposition dans la législation nationale, les appareils électriques doivent être collectés à part et être soumis à un recyclage respectueux de l’environnement.	Solo per Paesi UENon gettare le apparecchiature elettriche tra i rifiuti domestici.Secondo la Direttiva Europea 2002/96/CE sui rifiuti di apparecchiature elettriche ed elettroniche e la sua attuazione in conformità alle norme nazionali, le apparecchiature elettriche esauste devono essere raccolte separatamente, al fine di essere reimpiegate in modo eco-compatibile.
	Symbolen⚠ WAARSCHUWINGHieronder staan symbolen afgebeeld die van toepassing zijn op deze machine. U moet de betekenis hiervan begrijpen voor gebruik.	Símbolos⚠ ADVERTENCIAA continuación se muestran los símbolos usados para la máquina. Asegúrese de comprender su significado antes del uso.	Símbolos⚠ AVISOA seguir aparecem os símbolos utilizados pela máquina. Assimile bem seus significados antes do uso.	Σύμβολα⚠ ΠΡΟΣΟΧΗΤα παρακάτω δείχνουν τα σύμβολα που χρησιμοποιούνται στο μηχάνημα. Βεβαιωθείτε ότι κατανοείτε τη σημασίας τους πριν τη χρήση.
	Lees alle waarschuwingen en instructies aandachtig door.Nalating om de waarschuwingen en instructies op te volgen kan in een elektrische schok, brand en/of ernstig letsel resulteren.	Lea todas las instrucciones y advertencias de seguridad.Si no se siguen las advertencias e instrucciones, podría producirse una descarga eléctrica, un incendio y/o daños graves.	Leia todas as instruções e avisos de segurança.Se não seguir todas as instruções e os avisos, pode provocar um choque eléctrico, incêndio e/ou ferimentos graves.	Διαδάζετε όλες τις προειδοποιήσεις ασφαλείας και όλες τις οδηγίες.Η μη τήρηση των προειδοποιήσεων και οδηγιών μπορεί να προκαλέσει ηλεκτροπληξία, πυρκαγιά καυή σοβαρό τραυματισμό.
	Alleen voor EU-landen Geef elektrisch gereedschap niet met het huisvuil mee!Volgens de Europese richtlijn 2002/96/EG inzake oude elektrische en elektronische apparaten en de toepassing daarvan binnen de nationale wetgeving, dient gebruikt elektrisch gereedschap gescheiden te worden ingezameld en te worden afgevoerd naar een recycle bedrijf dat voldoet aan de geldende milieu-eisen.	Sólo para países de la Unión Europea¡No deseche los aparatos eléctricos junto con los residuos domésticos!De conformidad con la Directiva Europea 2002/96/CE sobre residuos de aparatos eléctricos y electrónicos y su aplicación de acuerdo con la legislación nacional, las herramientas eléctricas cuya vida útil haya llegado a su fin se deberán recoger por separado y trasladar a una planta de reciclaje que cumpla con las exigencias ecológicas.	Apenas para países da UE Não deite ferramentas eléctricas no lixo doméstico!De acordo com a directiva europeia 2002/96/CE sobre ferramentas eléctricas e electrónicas usadas e a transposição para as leis nacionais, as ferramentas eléctricas usadas devem ser recolhidas em separado e encaminhadas a uma instalação de reciclagem dos materiais ecológica.	Μόνο για τις χώρες της ΕΕ Μην πετάτε τα ηλεκτρικά εργαλεία στον κάδο οικιακών απορριμμάτων!Σύμφωνα με την ευρωπαϊκή οδηγία 2002/96/EK περί ηλεκτρικών και ηλεκτρονικών συσκευών και την ενσωμάτωσή της στο εθνικό δίκαιο, τα ηλεκτρικά εργαλεία πρέτει να συλλέγονται ξεχωριστά και να επιστρέφονται για ανακύκλωση με τρόπο φιλικό προς το περιβάλλον.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infirm persons away.

When not in use, tools should be stored out of reach of children and infirm persons.

CORDLESS ROTARY HAMMER SAFETY WARNINGS

1. Wear ear protectors

Exposure to noise can cause hearing loss.

1. Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.

2. When using this unit continuously, the unit may overheat, leading to damage in the motor and switch. Please leave it without using it for approximately 15 minutes.

SPECIFICATIONS

POWER TOOL

Model DH24DVC
No-load speed 0 - 1250 min			-1
Full-load impact rate 0 - 5600 min			-1
Capacity	Drilling	Concrete 3.4 - 20 mm
		Steel 13 mm
		Wood 27 mm
	Driving	Wood screw	6.2 mm (diameter) × 40 mm (length)
Rechargeable battery BSH2420: Ni-MH 24 V (2.0 Ah 20 cells)
Weight 3.6 kg

CHARGER

Model UC24SGH
Charging voltage 24 V
Weight 0.4 kg

1. When drilling in wall, floor or ceiling, check for buried electric power cord, etc.

2. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.

3. Do not touch the bit during or immediately after operation. The bit becomes very hot during operation and could cause serious burns.

4. Always hold the body handle and side handle of the power tool firmly. Otherwise the counterforce produced may result in inaccurate and even dangerous operation.

5. Wear a dust mask Do not inhale the harmful dusts generated in drilling or chiseling operation. The dust can endanger the health of yourself and bystanders.

6. Always charge the battery at a temperature of 0 - 40°C.

A temperature of less than 0^ C will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40^ C. The most suitable temperature for charging is that of 20 – 25^ C.

1. Do not use the charger continuously. When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.

2. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.

3. Never disassemble the rechargeable battery and charger.

4. Never short-circuit the rechargeable battery. Short-chircuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

5. Do not dispose of the battery in fire. If the battery is burnt, it may explode.

6. Do not insert object into the air ventilation slots of the charger. Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.

7. Using an exhausted battery will damage the charger.

STANDARD ACCESSORIES

DH24DVC (2HBSK)

1 Side handle....12 Depth gauge....13 Charger....14 Plastic case....15 Extra battery....1

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES (sold separately)

1. Battery (BSH2420)

Line drawing of a battery pack with internal circuitry (no text or symbols)

It may be convenient to prepare some extra batteries.

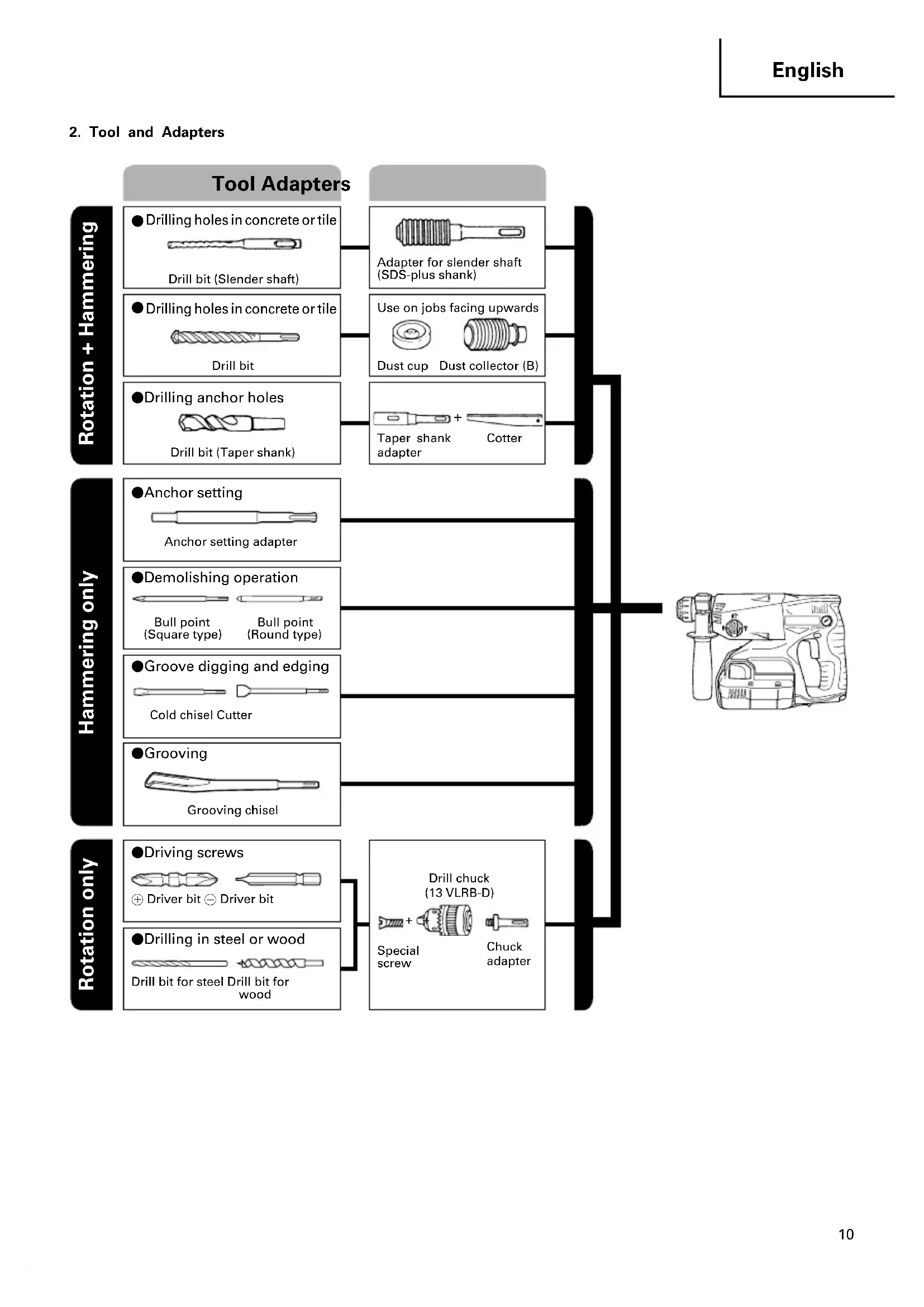

1. Tool and Adapters

    B --> B1["Drilling holes in concrete or tile\nDrill bit (Slender shaft)"]
    B --> B2["Drilling holes in concrete or tile\nDrill bit"]
    B --> B3["Drilling anchor holes\nDrill bit (Taper shank)"]

    B1 --> B1a["Adapter for slender shaft (SDS-plus shank)"]
    B2 --> B2a["Use on jobs facing upwards\nDust cup Dust collector (B)"]
    B3 --> B3a["Taper shank + Cotter adapter"]

    C --> C1["Anchor setting\nAnchor setting adapter"]

    C --> C2["Demolishing operation\nBull point (Square type) Bull point (Round type)"]

    C --> C3["Groove digging and edging\nCold chisel Cutter"]

    C --> C4["Grooving\nGrooving chisel"]

    D --> D1["Driving screws\nDriver bit Driver bit"]
    D --> D2["Drilling in steel or wood\nDrill bit for steel Drill bit for wood"]

    D1 --> D1a["Drill chuck (13 VLRB-D)\nSpecial screw Chuck adapter"]

●Drilling holes in concrete or tile

Drill bit (slender shaft)
Outer dia.	Overall length Effective length
3.4 mm	90 mm 45 mm
3.5 mm

SDS-plus Drill bit
Outer dia.	Overall length Effective length
4.0 mm 1	10 mm 50 mm
5.0 mm	110 mm 50 mm
	160 mm 100 mm
5.5 mm 1	10 mm 50 mm
6.5 mm 1	60 mm 100 mm
7.0 mm 1	60 mm 100 mm
8.0 mm 1	60 mm 100 mm
8.5 mm 1	60 mm 100 mm
9.0 mm 1	60 mm 100 mm
12.0 mm	166 mm 100 mm
	260 mm 200 mm
12.7 mm 1	66 mm 100 mm
14.0 mm 1	66 mm 100 mm
15.0 mm 1	66 mm 100 mm
16.0 mm	166 mm 100 mm
	260 mm 200 mm
17.0 mm 1	66 mm 100 mm
19.0 mm 2	60 mm 200 mm
20.0 mm 2	50 mm 200 mm

●Drilling anchor holes

Taper shank adapterTaper mode

Morse taper No.1

Morse taper No.2

A-Taper

B-taper

• Anchor setting

Anchor setting adapterAnchor size

W 1/4"

W 5/16"

W 3/8"

Optional accessories are subject to change without notice.

APPLICATIONS

Rotation and hammering function

○Drilling anchor holes

○Drilling holes in concrete

○Drilling holes in tile

Rotation only function

○Drilling in steel or wood

(with optional accessories)

○Tightening machine screws, wood screws

(with optional accessories)

Hammering only function

○Light-duty chiselling of concrete, groove digging and edging.

BATTERY REMOVAL/INSTALLATION

1. Battery removal

○ Stretch the battery band and unhook it. (Fig. 1)

○Hold the handle tightly and push the battery latches to remove the battery. (see Figs. 2 and 3)

CAUTION

Never short-circuit the battery.

2. Battery installation

○Insert the battery aligning both guide rail of battery and body. Make sure the battery is fixed firmly.

○ Stretch the battery band and hook it. (Fig. 1)

NOTE

This tool equips rubber cushion and battery band to hold the battery tightly. Push the battery hard against the rubber cushion and hook the latch completely. (Fig. 3)

Hang the battery band to hook of tool. (Fig. 1)

CHARGING

Before using the power tool, charge the battery as follows.

1. Connect the charger's power cord to a receptacle. When the power cord is connected, the charger's pilot lamp will blink in red. (At 1-second intervals)

2. Insert the battery into the charger.

Insert the battery into the charger as shown in Fig. 4. Make sure the battery is fully seated in the charger.

3. Charging

When inserting a battery in the charger, charging will commence and the pilot lamp will light continuously in red.

When the battery becomes fully recharged, the pilot lamp will blink in red. (At 1-second intervals) (See Table 1)

(1) Pilot lamp indication

The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery.

Table 1

Indications of the pilot lamp
Pilot lamp(red)	Before Blinks charging for 0.5 seconds. (off for 0.5 seconds)
	While charging	Lights Lights continuously
	Charging complete	Blinks Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	Overheat standby	Blinks Lights for 1 second. Does not light for 0.5 seconds. (off for 0.5 seconds)	Battery overheated. Unable to charge.(Charging will commence when battery cools)

(2) Regarding the temperatures of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the table 2, and batteries that have become hot should be cooled for a while before being recharged.

Table 2

Battery type which the battery can be recharged	Temperatures at
BSH2420 0°C - 50°C

(3) Regarding recharging time

Depending on the type of the battery, the charging time will become as shown in Table 3.

Table 3 Charging time (At 20°C)

Battery type Recharging time

BSH2420 Approx. 60 min.

NOTE: The charging time may vary according to ambient temperature and power source voltage.

1. Disconnect the charger's power cord from the receptacle.

2. Hold the charger firmly and pull out the battery. NOTE

After operation, pull out batteries from the charger first, and then keep the batteries properly.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times.

How to make the batteries perform longer

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

☐If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights for 1 second, does not light for 0.5 seconds (off for 0.5 seconds). In such a case, first let the battery cool, then start charging.

○Since the built-in micro computer takes about 3 seconds to confirm that the battery being charged with UC24SGH is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

PRIOR TO OPERATION

1. Mounting the drill bit (Fig. 5, 6)

CAUTION

To prevent accidents, make sure to turn the switch off.

NOTE

When using tools such as drill bits, etc., make sure to use the genuine parts designated by our company.

(1) Clean the shank portion of the drill bit.

(2) Insert the drill bit in a twisting manner into the tool holder until it latches itself. (Fig. 5)

(3) Check the latching by pulling on the drill bit.

(4) To remove the drill bit, fully pull the grip in the direction of the arrow and pull out the drill bit.

1. Confirm that the battery is mounted correctly.

2. Installation of dust cup or dust collector (B) (Optional accessories) (Fig. 7, Fig. 8)

When using a rotary hammer for upward drilling operations attach a dust cup or a dust collector (B) to collect dust or particles for easy operation.

○Installing the dust cup

Use the dust cup by attaching to the drill bit as shown in Fig. 7.

When using a bit which has big diameter, enlarge the center hole of the dust cup with this rotary hammer.

○Installing dust collector (B)

When using dust collector (B), insert dust collector (B) from the tip of the bit by aligning it to the groove on the grip. (Fig. 8)

CAUTION

○The dust cup and dust collector (B) are for exclusive use of concrete drilling work. Do not use them for wood or metal drilling work.

○Insert dust collector (B) completely into the chuck part of the main unit.

When turning the rotary hammer on while dust collector (B) is detached from a concrete surface, dust collector (B) will rotate together with the drill bit. Make sure to turn on the switch after pressing dust cup on the concrete surface. When using dust collector (B) attached to a drill bit that has more than 190 mm of overall length, dust collector (B) cannot touch the concrete surface and will rotate. Therefore, please use dust collector (B) by attaching to drill bits which have 166 mm, 160 mm, and 110 mm overall length.

○Dump particles after every two or three holes when drilling.

○Please replace the drill bit after removing dust collector (B).

4. Selecting the driver bit

Screw heads or bits will be damaged unless a bit appropriate for the screw diameter is employed to drive in the screws.

5. Confirm the direction of bit rotation (Fig. 9)

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the push button. (Fig. 9-a)

The L-side of the push button is pushed to turn the bit counterclockwise. (Fig. 9-b)

6. Continuous drilling

The number of holes that can be drilled in concrete after one recharge is shown in Table 4.

Table 4

Bit dia. (mm)	Depth drilling (mm) BSH2420	Possible continuous number (holes)
6.5 55	18
8.5 45
10.5 35
12.5 60
14.5 15
18 13
20 10

These data are for the referential values. The number of holes that can be drilled varies according to the sharpness of the used bit or the conditions of the concrete being drilled.

CAUTION

When using this unit continuously, the unit may overheat, leading to damage in the motor and switch. Please leave it without using it for approximately 15 minutes.

HOW TO USE

1. Switch operation

The rotation speed of the drill bit can be controlled steplessly by varying the amount that the trigger switch is pulled. Speed is low when the trigger switch is pulled slightly and increases as the switch is pulled more. Continuous operation may be attained by pulling the trigger switch and depressing the stopper. To turn the switch OFF, pull the trigger switch again to disengage the stopper, and release the trigger switch to its original position.

However, the switch trigger can only be pulled in halfway during reverse and rotates at half the speed of forward operation.

The switch stopper is unusable during reverse.

2. Rotation + hammering

This rotary hammer can be set to rotation and hammering mode by turning the change lever to the T mark (Fig. 10).

(1) Mount the drill bit.

(2) Pull the trigger switch after applying the drill bit tip to the drilling position (Fig. 11).

(3) Pushing the rotary hammer forcibly is not necessary at all. Pushing slightly so that drill dust comes out gradually is sufficient.

CAUTION

When the drill bit touches construction iron bar, the bit will stop immediately and the rotary hammer will react to revolve. Therefore grip the side handle and handle tightly as shown in Fig. 11.

3. Rotation only

This rotary hammer can be set to rotation only mode by turning the change lever to the mark (Fig. 12).

To drill wood or metal material using the drill chuck and chuck adapter (optional accessories), proceed as follows.

Installing drill chuck and chuck adapter (Fig. 13).

(1) Attach the drill chuck to the chuck adapter.

(2) The part of the SDS-plus shank is the same as the drill bit. Therefore, refer to the item of "Mounting the drill bit" for attaching it.

CAUTION

○Application of force more than necessary will not only expedite the work, but will deteriorate the tip edge of the drill bit and reduce the service life of the rotary hammer in addition.

○Drill bits may snap off while withdrawing the rotary hammer from the drilled hole. For withdrawing, it is important to use a pushing motion.

○Do not attempt to drill anchor holes or holes in concrete with the machine set in the rotation only function.

☐Do not attempt to use the rotary hammer in the rotation and striking function with the drill chuck and chuck adapter attached. This would seriously shorten the service life of every component of the machine.

4. When driving machine screws (Fig. 14)

First, insert the bit into the socket in the end of chuck adapter (D).

Next, mount chuck adapter (D) on the main unit using procedures described in 4 (1), (2), (3), put the tip of the bit in the slots in the head of the screw, grasp the main unit and tighten the screw.

CAUTION

Exercise care not to excessively prolong driving time, otherwise, the screws may be damaged by excessive force.
○Apply the rotary hammer perpendicularly to the screw head when driving the screw; otherwise, the screw head or bit will be damaged, or driving force will not be fully transferred to the screw.
○Do not attempt to use the rotary hammer in the rotation and hammering function with the chuck adapter and bit attached.

5. When driving wood screws (Fig. 14)

(1) Selecting a suitable driver bit Employ plus-head screws, if possible, since the driver bit easily slips off the heads of minus-head screws.
(2) Driving in wood screws
○Prior to driving in wood screws, make pilot holes suitable for them in the wooden board. Apply the bit to the screw head grooves and gently drive the screws into the holes.
○After rotating the rotary hammer at low speed for a while until the wood screw is partly driven into the wood, squeeze the trigger more strongly to obtain the optimum driving force.

CAUTION

Exercise care in preparing a pilot hole suitable for the wood screw taking the hardness of the wood into consideration. Should the hole be excessively small or shallow, requiring much power to drive the screw into it, the thread of the wood screw may sometimes be damaged.

6. Hammering only

This rotary hammer can be set to hammering only mode by turning the change lever to the T mark (Fig. 15).

(1) Mount the bull point or cold chisel.
(2) Set the change lever to middle of T mark and T mark (Fig. 16).
The rotation is released, turn the tool and adjust the cold chisel to desired position (Fig. 17).
(3) Turn the change lever to T mark (Fig. 15). Then bull point or cold chisel is locked.

7. Using depth gauge (Fig. 18)

(1) Loosen the knob on the side handle, and insert the depth gauge into the mounting hole on the side handle.
(2) Adjust the depth gauge position according to the depth of the hole and thighten the knob securely.

8. How to use the drill bit (taper shank) and the taper shank adapter

(1) Mount the taper shank adapter to the rotary hammer (Fig. 19).
(2) Mount the drill bit (taper shank) to the taper shank adapter (Fig. 19).
(3) Turn the switch ON, and drill a hole in prescribed depth.
(4) To remove the drill bit (taper shank), insert the cotter into the slot of the taper shank adapter and strike the head of the cotter with a hammer supporting on a rests (Fig. 20).

LUBRICATION

Low viscosity grease is applied to this rotary hammer so that it can be used for a long period without replacing the grease. Please contact the nearest service center for grease replacement when any grease is leaking form loosened screw.

Further use of the rotary hammer despite the grease shortage causes damage to reduce the service life.

CAUTION

A specific grease is used with this machine, therefore, the normal performance of the machine may be badly affected by use of different grease. Please be sure to let one of our service centers to undertake replacement of the grease.

MAINTENANCE AND INSPECTION

1. Inspecting the tool

Since use of a dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspecting the carbon brushes

For your continued safety and electrical shock protection, carbon brush inspection and replacement on this tool should ONLY be performed by a HiKOKI Authorized Service Center.

5. Cleaning on the outside

When the power tool is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, as they melt plastics.

6. Storage

Store the power tool in a place in which the temperature is less than 40^ C and out of reach of children.

7. Service parts list

CAUTION

Repair, modification and inspection of HiKOKI Power Tools must be carried out by a HiKOKI Authorized Service Center.

This Parts List will be helpful if presented with the tool to the HiKOKI Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATION

HiKOKI Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts may be changed without prior notice.

Important notice on the batteries for the HiKOKI cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

GUARANTEE

We guarantee HiKOKI Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center.

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

Information concerning airborne noise and vibration

The measured values were determined according to EN60745 and declared in accordance with ISO 4871.

Measured A-weighted sound power level: 103 dB (A).

Measured A-weighted sound pressure level: 92 dB (A).

Uncertainty KpA: 3 dB (A).

Wear ear protection.

Vibration total values (triax vector sum) determined according to EN60745.

Hammer drilling into concrete:

Vibration emission value ah,HD=13.2~m/s^2

Uncertainty K = 1.5 m/s ^4

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another.

It may also be used in a preliminary assessment of exposure.

WARNING

○The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used.
To identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Line drawing of a mechanical housing or enclosure component (no text or symbols)

1. Rotation + percussion

Line drawing of a mechanical device casing with internal components (no text or symbols)

Line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Line drawing of a battery pack with internal compartments and mounting holes (no text or symbols)

Line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts and component labels

Line drawing of a quill pen with inkwell (no text or symbols)

English		Nederlands
GUARANTEE CERTIFICATE1Model No.2Serial No.3Date of Purchase4Customer Name and Address5Dealer Name and Address(Please stamp dealer name and address)		GARANTIEBEWIJS1Modelnummer2Serienummer3Datum van aankoop4Naam en adres van de gebruiker5Naam en adres van de handelaar(Stempel a.u.b. naam en adres vande de handelaar)
Deutsch		Español
GARANTIESCHEIN1Modell-Nr.2Serien-Nr.3Kaufdaturn4Name und Anschrift des Kunden5Name und Anschrift des Händlers(Bitte mit Namen und Anschrift des Handlers abstempeln)		CERTIFICADO DE GARANTIA1Número de modelo2Número de serie3Fecha de adquisición4Nombre y dirección del cliente5Nombre y dirección del distribudor(Se ruega poner el sellú del distribudor con su nombre y dirección)
Français Português
CERTIFICAT DE GARANTIE1No. de modèle2No. de série3Date d'achat4Nom et adresse du client5Nom et adresse du revendeur(Cachet portant le nom et l'adresse du revendeur)		CERTIFICADO DE GARANTIA1Número do modelo2Número do série3Data de compra4Nome e morada do cliente5Nome e morada do distribuidor(Por favor, carímbe o nome e morada do distribuidor)
Italiano Ελληνικά
CERTIFICATO DI GARANZIA1Modello2N° di serie3Data di acquisto4Nome e indirizzo dell'acquirente5Nome e indirizzo del rivenditore(Si prega di apporre il timbro con questi dati)		ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΕΓΓΥΗΣΗΣ1Αρ. Μοντέλου2Αύξων Αρ.3Ημερομηνία αγοράς4Όνομα και διεύθυνση πελάτη5Όνομα και διεύθυνση μεταπωλητή(Παρακαλούμε να χρησιμοποιηθεί σφραγίδα)

HiKOKI

1
2
3
4
5

Line drawing of a quill pen with inkwell (no text or symbols)

Line drawing of a quill pen with inkwell (no text or symbols)

Siemensring 34, 47877 willich, Germany

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.de

Hikoki Power Tools Netherlands B.V.

Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.nl

Hikoki Power Tools (U.K.) Ltd.

Precedent Drive, Rooksley, Milton Keynes, MK 13, 8PJ,

United Kingdom

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.uk

Hikoki Power Tools France S.A.S.

Hikoki Power Tools Belgium N.V./S.A.

Koningin Astridlaan 51, B-1780 Wemmel, Belgium

Tel: [phone]

Fax: [phone]

URL http://www.hikoki-powertools.be

Hikoki Power Tools Italia S.p.A

Via Piave 35, 36077, Altavilla Vicentina (VI), Italy

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.it

Hikoki Power Tools Ibérica, S.A.

C/ Puigbarral, 26-28, Pol. Ind. Can Petit, 08227 Terrassa

(Barcelona), Spain

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.es
