Product type	TMC traffic information receiver
Brand	Garmin
Model	GTM 25
Category	Navigation accessory
Power supply	12 V via cigarette lighter cable
GPS connection	Mini-USB connector
Signal reception	FM RDS (Traffic Message Channel)
Internal antenna	Yes, built-in
External antenna	Optional, with suction cup
Power LED	Red (power indicator)
Main functions	Provide real-time traffic information (slowdowns, incidents) to compatible GPS
Compatibility	Garmin GPS with mini-USB connector and traffic functionality
Subscription	Free or paid service depending on region
Mounting	On windshield with suction cup (do not obstruct visibility)
Safety	Caution regarding heat from metallic windshields
Maintenance	Clean with a soft, dry cloth
Spare parts	External antenna, suction cups, cigarette lighter cable
Repairability	Repair not recommended by user; contact Garmin support
General information	Manual available in several languages at notice-facile.com

Frequently Asked Questions - GTM 25 GARMIN

How to connect the GTM 25 receiver to my GPS?

Connect the mini-USB connector of the receiver to the mini-USB port of your Garmin GPS, then plug the cigarette lighter cable into a 12V socket in the vehicle. The GPS must be on external power.

The red LED does not light up, what should I do?

Check that the cigarette lighter cable is properly connected and that the vehicle socket is powered. If the LED remains off, the receiver may be defective.

Why am I not receiving traffic information?

Make sure you are in an area covered by the TMC FM service. Check that the receiver is properly connected and that the internal or external antenna is correctly positioned. A metallic windshield can reduce reception.

Is a subscription required to use the receiver?

Depending on the region, the service may be free or require a subscription. Check the traffic settings on your GPS or the Garmin website (www.garmin.com/traffic) for more information.

Can I use the external antenna provided with my nüvi?

Yes, if your GPS comes with an external antenna, you can connect it to the external antenna connector of the GTM 25 to improve reception in weak signal areas.

How to know if the receiver is working?

The red LED lights up when it is powered. Check on your GPS map for traffic incident display or traffic icon. Data acquisition may take up to 5 minutes.

Where to place the receiver for best reception?

Place it on the windshield using the suction cup, preferably vertically, without obstructing visibility. Avoid metallic areas and heat-resistant windshields. If necessary, use the external antenna.

Is the receiver compatible with all Garmin GPS devices?

It is compatible with Garmin GPS devices that have a mini-USB port and are capable of receiving TMC traffic data. Check the compatibility list on the Garmin website.

How to clean the receiver?

Use a soft, dry cloth. Do not use chemical or abrasive products. Disconnect it before cleaning.

What to do if the receiver is defective?

Contact Garmin customer service. Do not attempt to repair it yourself, as this would void the warranty. Refer to the manual for warranty information.

USER MANUAL GTM 25 GARMIN

real-time traffic receiver

Black cable with plug and connector, no visible text or symbols

GTM ^™ 25 Instructions....3

Instructions GTM ^™ 25....8

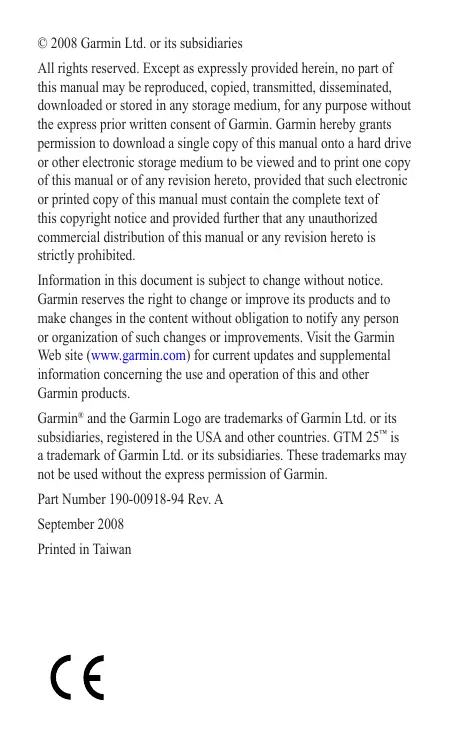

© 2008 Garmin Ltd. or its subsidiaries

All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products.

Garmin ^® and the Garmin Logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. GTM 25 ^™ is a trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.

Part Number 190-00918-94 Rev. A

September 2008

Printed in Taiwan

GTM ^TM 25 Instructions

See the Important Safety and Product Information guide in the GPS device box for product warnings and other important information.

The Garmin GTM 25 delivers Traffic Message Channel (TMC) information, including road conditions and traffic delays, to your GPS device. When traffic information is received, your GPS device displays traffic delays on the map. This information is used to avoid traffic delays and find the fastest routes.

The traffic information is broadcast over the FM Radio Data System (RDS). For coverage areas, refer to the Garmin Web site at www.garmin.com/traffic.

To receive traffic information, the traffic receiver must be connected to the GPS device, connected to an external power source, and the traffic receiver and GPS device must be in data range of an FM station transmitting TMC data.

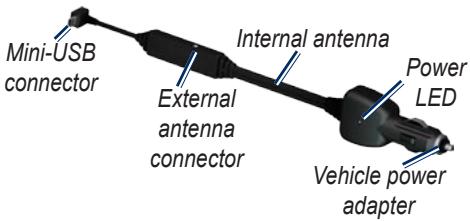

Connecting the Traffic Receiver

Before mounting the traffic receiver, see the Important Safety and Product Information guide included with your GPS device for information about laws pertaining to windshield mounting.

1. Remove the power cable from your GPS device, if necessary.
2. Connect the mini-USB connector on the traffic receiver to the mini-USB connector on your GPS device.

1. Plug the vehicle power adapter on the traffic receiver into a power outlet in your vehicle.

2. The internal antenna is sufficient in strong signal areas. To increase the signal range, connect the external antenna (if it came with one) to the traffic receiver. Use the attached suction cups to route the external antenna on the windshield vertically, if possible. Do not obstruct the driver's view.

1. Route the traffic receiver so that it does not interfere with vehicle operating controls.
2. For added support, attach the additional suction cup anywhere on the traffic receiver.

Testing the Traffic Receiver

• Observe the LED: When the traffic receiver is connected to power, the red LED is on. The traffic receiver may take up to five minutes to acquire data.
• Check the map: Check the map on the GPS device for traffic incidents or a traffic icon. Refer to the owner's manual.

TIP: If you have trouble receiving traffic information, you may be in a poor signal area. Drive your vehicle to an open area, out of garages and away from tall buildings. Connect the external antenna, if necessary.

- Verify your service area: Check for service from the pay service or free or premium services.

NOTE: Heated (metalized) windshields could degrade the performance of the traffic receiver.

Service and Subscription Information

Depending on your region, your traffic receiver receives traffic data through either a premium service or a free, public service. For information about your traffic service subscription, see the product packaging or the Traffic settings in the GPS device. The subscription activates automatically after your Garmin GPS device acquires satellite signals while receiving traffic signals from the service provider.

You can add other FM TMC subscriptions at any time. Check the Garmin Web site at www.garmin.com/fmtraffic for other available services.

Registering the Traffic Receiver

To register your traffic receiver, visit our Web site at http://my.garmin.com.

Instructions GTM ^TM 25

© 2008 Garmin Ltd. or its subsidiaries

Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, USA

Garmin (Europe) Ltd. Liberty House, Houndown Business Park, Southampton, Hampshire, SO40 9RB UK

Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan

www.garmin.com

Part Number 190-00918-94 Rev. A

August 2008

Printed in Taiwan
