Product Type	Automatic built-in coffee machine
Brand	EAS Electric
Model	ECOFFE45
Dimensions (W x H x D)	594 x 454 x 474 mm
Net Weight	23 kg
Power Supply	220-240 V ~ 50/60 Hz, 1300-1500 W, 10 A max
Pump Pressure	20 bar max
Water Tank Capacity	1.8 liters
Bean Hopper Capacity	Not specified in manual, estimated around 250 g
Coffee Types Prepared	Espresso, long coffee, cappuccino, latte, milk foam, hot milk
Use of Ground Coffee	Yes, via dedicated funnel with measuring spoon
Built-in Grinder	Yes, adjustable (13 levels)
Display	Yes, displays messages and settings
Timer	Yes, programmable (auto ON)
Auto Shut-off	Yes, adjustable (30, 60 or 90 minutes)
Water Hardness Adjustment	Yes, 6 levels (1 to 5 + level 6?) depending on hardness
Automatic Rinse	Yes, on startup and on demand
Brewing Unit Cleaning	Cleaning program with tablets (every 300 cups)
Automatic Descaling	Descaling program with specific solution
Coffee Grounds Container	Capacity for about 15 cups before emptying
Drip Tray Light	Yes, LED lights near spouts
Built-in Installation	Yes, requires tall cabinet with ventilation (500 cm²)
Safety	Main switch, mandatory grounding, auto shut-off
Warranty	3 years (Spain and Portugal, variable conditions elsewhere)

Frequently Asked Questions - ECOFFE45 EAS Electric

How to adjust water hardness on the ECOFFE45 machine?

Use a test strip to determine your water hardness. Then, from the READY state, press Enter, navigate to WATER HARDNESS, and choose the corresponding level (1 to 5) based on the ppm of limestone. This allows you to program descaling alerts.

What to do if coffee comes out too slowly or drip by drip?

This indicates too fine a grind. While the grinder is running, turn the regulator (A6) one click clockwise (toward the large symbol) for a coarser grind. The effect is visible after preparing two coffees.

How to clean the brewing unit (CLEAN BREW)?

When the display shows CLEAN READY (every 300 cups), press Enter until you see EMPTY TRAY. Empty the drip tray, then ADD TABLET appears. Place a cleaning tablet in the ground coffee funnel and press Enter. The program lasts about 10 minutes. You can also start it manually from MENU > INFORMATION > BREW CLEAN.

Why does the message 'EMPTY GROUNDS' appear?

This message appears after about 15 coffees, when the grounds container (A7) is full. To resolve, remove the drip tray (A9), empty and carefully clean the grounds container. Important: clean it every time you remove the tray, even if it is not full.

How to prepare a cappuccino with the ECOFFE45 machine?

Make sure the emulsifier selector (A2) is in the foam position. Place a cup under the spout, press the Cappuccino (B2) button. The machine grinds the beans, brews the coffee, then heats and froths the milk automatically. You can adjust the frothing time with the + or - buttons. After serving, an automatic rinse is offered.

What does the message 'FILL WATER' mean?

The water tank (A11) is empty or incorrectly positioned. Fill it with fresh water and reposition it correctly. A small amount of water may remain when the message appears. Never remove the tank during coffee preparation.

How to set the time on the machine?

From the READY state, press Enter, select DISPLAY, then TIME. Set the hours with + or -, confirm with Enter, then do the same for minutes. You can also change units (CC/OZ) in this menu.

The machine does not heat the coffee enough, what to do?

Preheat the cups by rinsing with hot water. If more than 2-3 minutes have passed since the last coffee, start a rinse cycle (press Enter twice) to warm the brewing unit. You can also set the temperature to HIGH in the TEMPERATURE menu.

How to use ground coffee instead of beans?

From READY, press Enter, select USE POWDER. Remove the machine and open the funnel lid (A14). Add a single measure of ground coffee using the supplied measuring spoon. Replace the machine and select the desired beverage. Never put frozen coffee or beans into this funnel.

What to do if the message 'DECALCIFY READY' appears?

The machine needs descaling. Obtain a suitable descaling solution. From READY, press Enter and follow the instructions: empty the drip tray, add the liquid to the tank, then start the program. Descaling takes about 30 minutes. A final rinse is automatic. Failure to do so voids the warranty.

USER MANUAL ECOFFE45 EAS Electric

Line drawing of a 3D printer with a coiled cable and control panel (no text or symbols)

ECOFFE45

Technical line drawing of a mechanical frame assembly with mounting brackets and structural supports (no text or symbols)

Technical line drawing of a mechanical assembly inside a shelving unit (no text or symbols)

Line drawing of a two-tiered shelving unit with metal racks and structural beams (no text or symbols)

Line drawing of a mechanical device with internal components and housing (no text or symbols)

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Technical line drawing of an internal machine or device with a top view showing internal components (no text or symbols)

SELF CHECK

Technical line drawing of a machine with an inset showing a device labeled A6 (no text or symbols on the diagram itself)

PRESS RINSE

LECHE CALIENTE

BREW CLEAN

EMPTY TRAY

ADD TABLET

CLEANING

Descalcificación

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

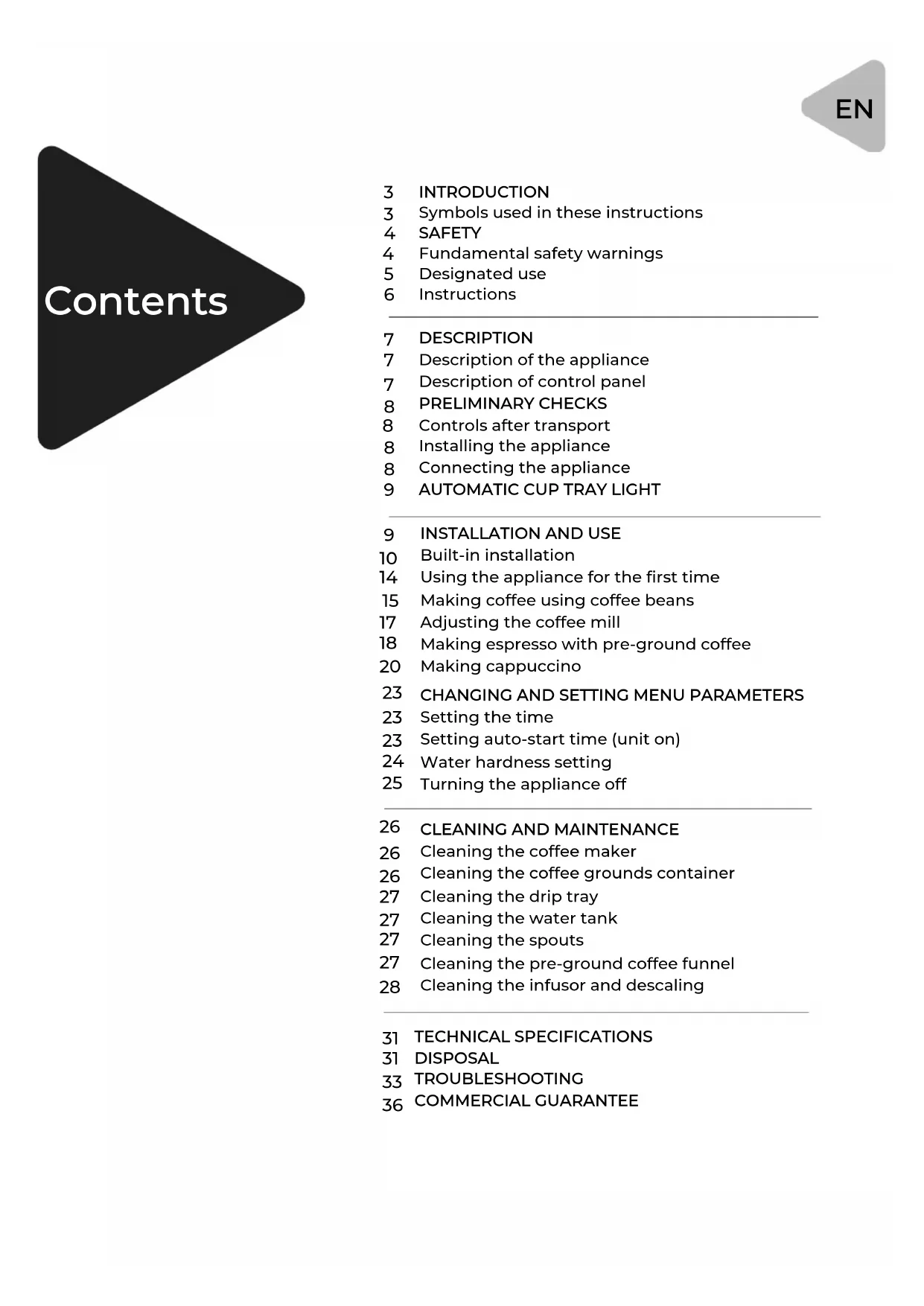

3 INTRODUCTION
3 Symbols used in these instructions
4 SAFETY
4 Fundamental safety warnings
5 Designated use
6 Instructions

7 DESCRIPTION
7 Description of the appliance
7 Description of control panel
8 PRELIMINARY CHECKS
8 Controls after transport
8 Installing the appliance
8 Connecting the appliance
9 AUTOMATIC CUP TRAY LIGHT

9 INSTALLATION AND USE
10 Built-in installation
14 Using the appliance for the first time
15 Making coffee using coffee beans
17 Adjusting the coffee mill
18 Making espresso with pre-ground coffee
20 Making cappuccino
23 CHANGING AND SETTING MENU PARAMETERS
23 Setting the time
23 Setting auto-start time (unit on)
24 Water hardness setting
25 Turning the appliance off

26 CLEANING AND MAINTENANCE
26 Cleaning the coffee maker
26 Cleaning the coffee grounds container
27 Cleaning the drip tray
27 Cleaning the water tank
27 Cleaning the spouts
27 Cleaning the pre-ground coffee funnel
28 Cleaning the infusor and descaling

31 TECHNICAL SPECIFICATIONS
31 DISPOSAL
33 TROUBLESHOOTING
36 COMMERCIAL GUARANTEE

INTRODUCTION

Thank you for choosing our automatic coffee and cappuccino maker. We hope you enjoy using your new appliance. Take a few minutes to read these instructions, as this will avoid all risks and damage to the machine.

Symbols used in these instructions

Important warnings are identified by these symbols. It is vital to respect these warnings:

Danger

Failure to observe the warning could result in possibly life threatening injury from electric shock.

Important

Failure to observe the warning could result in injury or damage to the appliance.

Dangerofburns!

Failure to observe the warning could result in scalding or burns.

NOTE

This symbol identifies important advice or information for the user.

Troubleshooting and repairs

If this information does not resolve your problem or you require further information, you should consult Customer Service by calling the number given on the "Customer Service" sheet.

If repairwork is required, contact Customer Services only.

SAFETY

Fundamental safety warnings

Danger!

This is an electrical appliance and may cause electric shock. You should therefore respect the following safety warnings:

• Never touch the appliance with damp hands or feet.
• Never touch the plug with damp hands.
  ■ Make sure the socket used is freely accessible at all times, enabling the appliance to be unplugged when necessary.
• To disconnect the appliance completely, place the main switch (at the right side of the appliance) in the 0 position.
• If the appliance is faulty do not attempt to repair. Turn it off using the main switch (A5), unplug from the mains socket and contact customer services.
• If the plug or powder cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Important! Keep all packaging (plastic bags, poly- yrene foam) away from children.

Important!

The appliance is designed and produced for domestic use only. The appliance is not intended for use by people (including children) with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure they do not play with the appliance.

Do not immerse this machine in water.

⚠️ Important! Do not grasp the coffee maker when it is out of the cabinet. Do not rest recipients containing liquids or inflammable or corrosive materials on top of the appliance. Place the accessories required to prepare the coffee (the measure for example) in the special holder. Do not rest large objects which could obstruct movement or unstable objects on the appliance.

⚠️ Important! Never make drinks, hot water or steam when the appliance is extracted. Always make sure the appliance is inactive before extracting it. Failure to observe this precaution could lead to damage to the appliance. The only exception is adjusting the coffee mill which must be done with the machine out (see the section “Adjusting the coffee mill”).

Danger of burns! This appliance produces hot water and steam may form while it is in operation. Avoid contact with splashes of water or hot steam. Avoid touching hot surfaces when the appliance is in use.

Note: Use original or manufacturer recommended accessories and spare parts only.

Designated use

This appliance is designed and made to prepare coffee and heat drinks. All other use is considered improper. This appliance is not suitable for commercial use. The manufacturer is not liable for damage deriving from improper use of the appliance.

This appliance can be installed in combination with a built-in oven if the latter is fitted with a cooling fan at the rear (maximum oven power: 3 kW).

Instructions

Read these instructions carefully before using the appliance.

• Save these instructions. If the appliance is passed to other persons, they must also be provided with these instructions.
• Failure to follow these instructions may result in burns or damage to the appliance. The manufacturer is not liable for damage deriving from failure to respect these instructions.

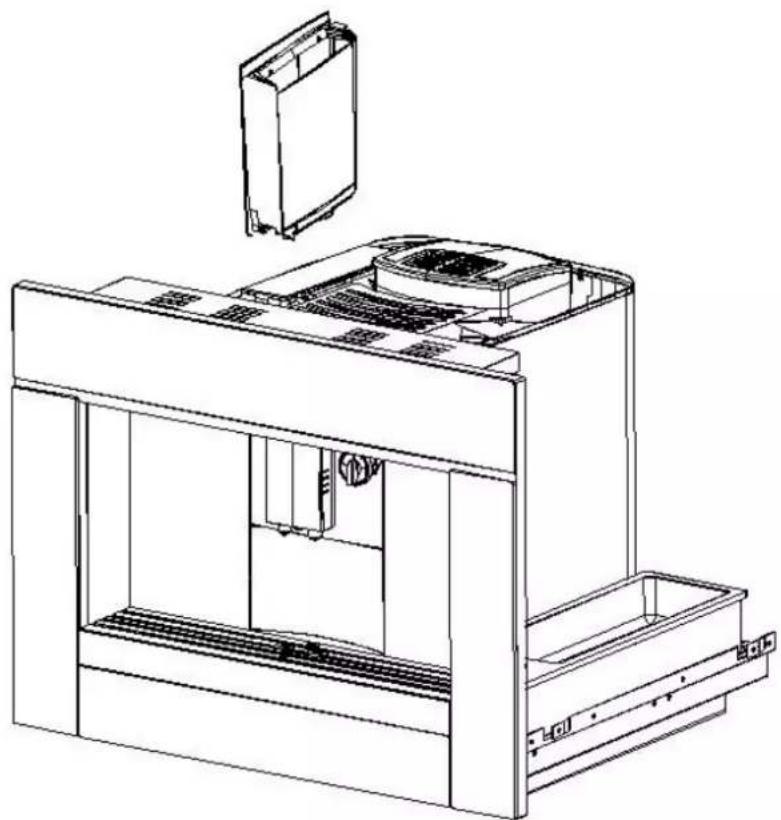

A1 A2 A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 B8 A11 A12 A13 A6 A14 A7 A8 A9 A10

DESCRIPTION

Description of the appliance

A1. Display screen
A2. Milk cream unit
A3. Cream nozzle
A4. Coffee nozzle
A5. Main switch
A6. Adjustable mill knob
A7. Coffee grounds container
A8. Load tray
A9. Drip tray
A10. Metal drip tray
All. Tank
A12. Coffee bean container.
A13. Coffee bean cover
A14. Pre-ground coffee funnel

Description of control panel

There are 8 buttons on the panel. This is indicated in brackets in the description

B1. ON/OFF
B2. Cappuccino
B3. Latte
B4. Espresso
B5. Coffee
B6. "+" button
B7. "-" button
B8. Pause/Enter

PRELIMINARY CHECKS

Controls after transport

After removing the packaging, make sure the product is complete and undamaged and that all accessories are present. Do not use the appliance if it is visibly damaged. Contact Customer Services.

Installing the appliance

Important! When installing the appliance. respect the following safety warnings:

• Installation must be performed by a qualified professional in compliance with legislation in force in the country of installation (see Built-in installation).
• The packing elements (plastic bags. polystyrene foam, etc.) should be kept out of reach of children as they are a Safety hazard.
• Do not install the appliance in rooms where the temperature may drop to 0°C or lower (the water in the appliance could freeze and cause damage).
• You should set the water hardness as soon as possible following the instructions in the "Setting water hardness" chapter.

Connecting the appliance

Danger! Check that the mains power supply voltage corresponds to the value indicated on the appliance rating plate. Connect the appliance to an efficiently earthed and correctly installed socket with a minimum current rating of 10A only. If the power socket does not match the plug of the appliance, have the socket replaced with a suitable type by a qualified professional.

To comply with safety directives, an rock switch with a minimum contact distance of 3mm must be installed.

Do not use multiple sockets or extensions.

To learn to use the appliance correctly, the first time you use it follow the detailed instructions in the following paragraphs.

⚠️ Important! Safety cut out devices must be included in the mains power supply in compliance with the installation regulations in the country concerned.

When the appliance is working, the lights (near coffee spout) automatically illuminate the spout and cup tray.

⚠️ Important! Do not look at the lights directly nor using an optical instrument.

BUILT-IN INSTALLATION

Verify the minimum measure required for correct installation of the appliance.

The coffee maker must be installed in a column and the column must be firmly fixed to the wall with commercially available brackets.

Important:

- All installation or maintenance operations must be performed with the appliance disconnected from the mains electricity supply.

- Kitchen furniture in direct contact with the appliance must be heat resistant (<65°C).

- To guarantee correct ventilation, leave a gap at the bottom of the cabinet (see measurements in figure).

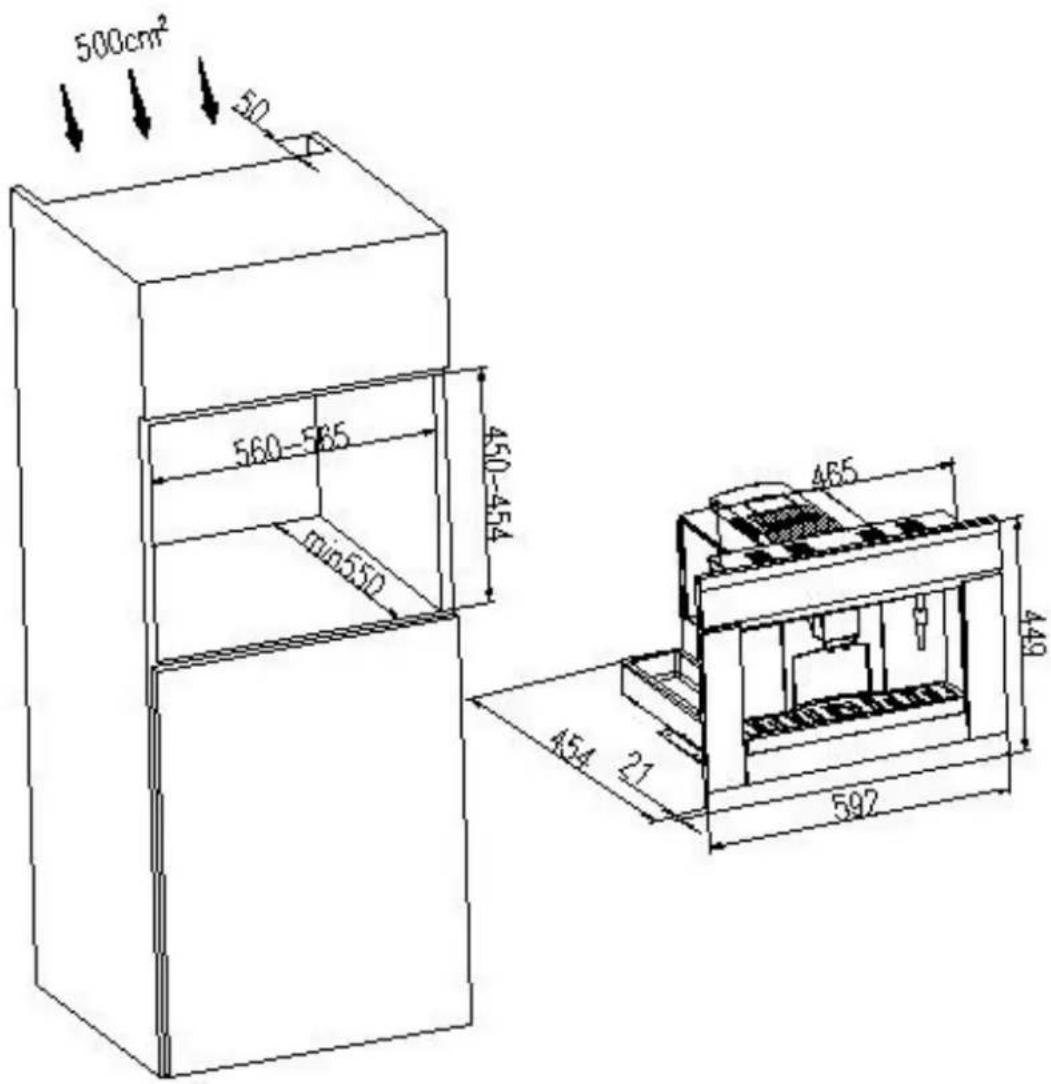

500cm² 560-585 450-454 min550 485 454 21 592 449

Check that the cabinet size fits this picture before installing.

Technical line drawing of a mechanical frame assembly with mounting brackets and support structures (no text or symbols)

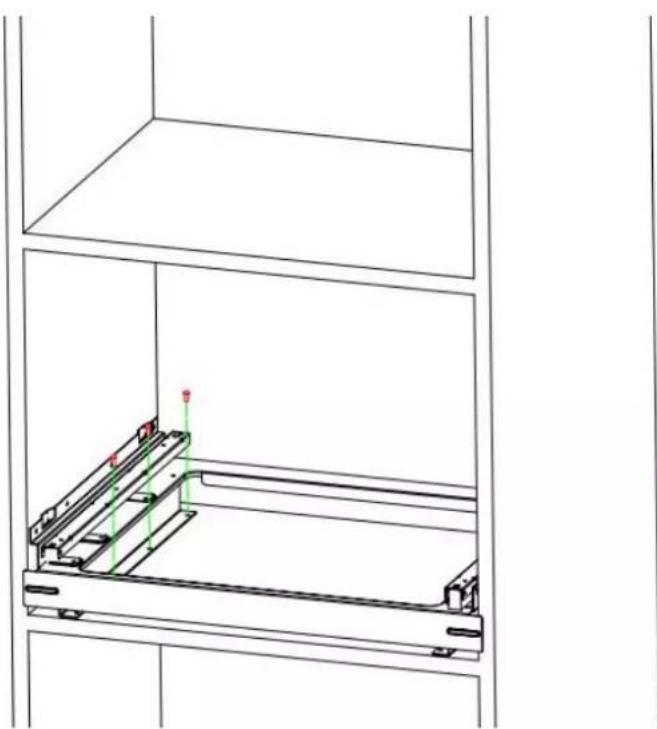

Step 1: Install the guide connect bracket (fix with the screws if you use side install method).

Technical line drawing of a mechanical assembly inside a shelving unit (no text or symbols)

Step 2: Fix with the screws (if bottom install method is used).

Line drawing of a two-tiered shelving unit with metal racks and structural beams (no text or symbols)

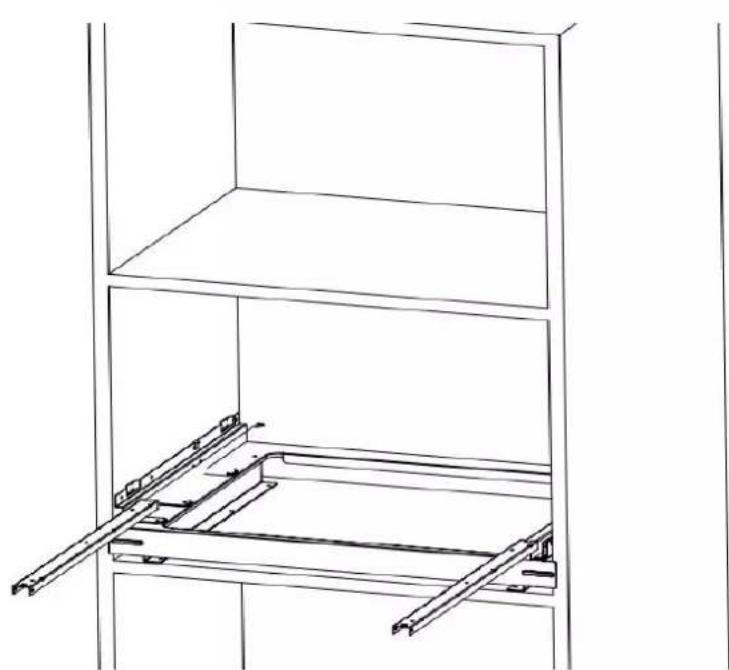

Step 3: extract the guides completely.

Line drawing of a mechanical device with internal components and housing (no text or symbols)

Step 4: put the coffee machine on the guides.

Technical line drawing of a server rack with an inset close-up showing internal components (no text or symbols)

And install 2 screws in both sides.

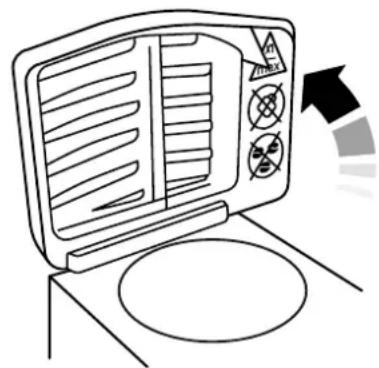

Step 5: Extract the machine outside. Open the coffee bean cover to add coffee beans in container.

A11

Step 6: Open the tank cover in left side (A11).

Technical line drawing of an open industrial machine with internal components and a top view showing internal structure (no text or symbols)

Step 7: Take out the tank and add pure water in, then insert in original position. Put the appliance to the built-in cabinet, connect the plug to the supply and turn on main switch (A5). You can now start to use this machine.

Fix the power cable with the clip to avoid it tangling when the appliance is inserted or extracted. The power cable must be long enough to allow the appliance to be extracted from the cabinet to fill the coffee beans container.

The appliance must be earthed in compliance with legislation. Electrical connections must be performed by a qualified electrician in compliance with the manufacturer's instructions and legislation in force.

USING THE APPLIANCE FOR THE FIRST TIME

• The machine has been tested in factory therefore it is completely normal for there to be traces of coffee in the mill.
• You should set water hardness as soon as possible following the instructions in the “Setting water hardness” chapter. Connect the appliance to the mains electricity supply and turn on the main switch (A5).

SELF CHECK

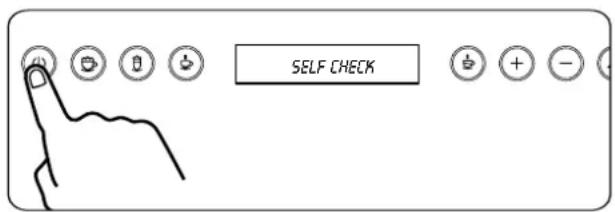

Press the ON/OFF button to turn on the appliance. The machine will display "SELF-CHECK", and then display "HEATING". Wait for some time, the coffee maker will automatically start "RINSING". When rinse program finish, the machine will display "READY". When it reaches this state, that means all functions can be done.

⚠️ Important! To prevent malfunction, never introduce pre-ground coffee, freeze dried coffee, caramelized beans or anything else which could damage the appliance. The coffee maker is for normal use.

NOTE The coffee maker shall be turned on each time by using the main switch (A5.

MAKING COFFEE USING COFFEE BEANS

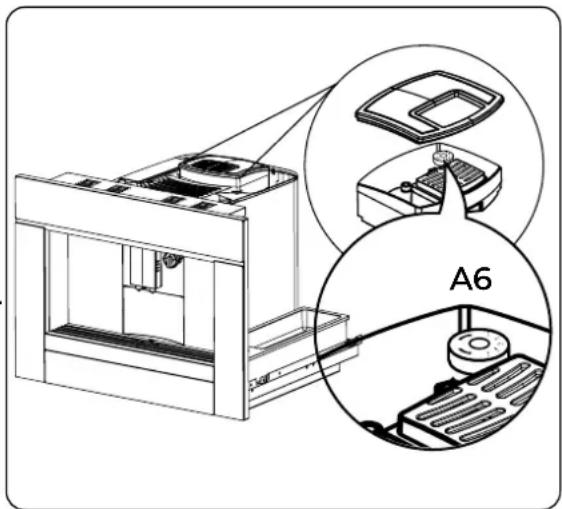

1. When the appliance displays "READY", you can select a function button.
   2: Press the "Coffee" key so the machine can start working: first it grinds the coffee bean, followed by the brew system running, and finally it will output coffee from A4 hole.
   3: You can also adjust the output coffee volume by pressing the "+" or "-" keys. Each touch will increase or reduce 5 CC of coffee.
   4: You can also change the aroma and temperature settings, but always before making coffee.

Changing the aroma: when the machine displays "READY", press Enter and "USE POWDER" will be displayed. Press the "+" or "-" key to scroll and select "AROMA" menu, then press Enter to select MILD, NORMAL or STRONG. Press the "+" or "-" keys until it displays your preferred setting, then press Enter to finish the aroma setting. Then select "Exit" to go back to "READY" state.

Changing the temperature: Follow the same operation as aroma. First select "MENU", then press Enter to enter. Next select "TEMPERATURE" (you can choose "NORMAL" or "HIGH"), then press Enter to finish the temperature setting.

NOTE 1: If the coffee is delivered a drop at a time or not at all, turn the grinding adjustment knob (A6) one click clockwise (see "Adjusting the coffee mill"). Proceed one click at a time until coffee delivery is satisfactory.

NOTE 2: if the coffee is delivered too fast and the cream is not satisfactory, turn the grinding adjustment knob (A6) one click anticlockwise (see "Adjusting the coffee mill").

NOTE 3: Tips for a hotter coffee:

- When you turn the appliance on, if you want to make a short coffee (less than 60 cc), rinse the cups with hot water to preheat the cups. If more than 2/3 minutes have passed since the last coffee made, before requesting another coffee, you must preheat the infuser. Deliver the water into the underlying drip tray or alternatively use this water to fill (and then empty) the cup to be used for the coffee, so as to preheat it.

• Unless preheated, do not use excessively thick cups as they will absorb too much heat.
  ■ Preheat the cups by rinsing them with hot water.

NOTE 4: When the appliance displays "FILL WATER", fill the tank with water or the appliance will not deliver coffee. (It is normal for there to be a little water left in the tank when the message is displayed).

NOTE 5: After about 15 coffees, the appliance will display "EMPTY GROUND", indicating that the ground container is full and must be emptied and cleaned. Until the ground container has been cleaned, the appliance continues to display the message and coffee cannot be made.

To clean, extract the drip tray (A9), then empty and clean it. When cleaning, always extract the drip tray completely to avoid it falling when the ground container is removed. Empty the ground container and clean thoroughly to remove all residues left on the bottom.

NOTE 6: when the appliance displays "EMPTY TRAY", indicating that drip tray is full of waste water, that means you must extract the drip tray, remove all water and clean it

and put it back to original position for the coffee maker to go back for "READY" state.

⚠️ Important! when removing the drip tray, the ground container must be emptied, even if it is not completely full. If this is not done, when you make the next coffee, the ground container may fill up more than expected and clog the machine.

NOTE 8: Never extract the water tank while the machine is delivering coffee. If it is removed, it will not be possible to make the coffee and the appliance will display "FILL WATER". Put the water tank in original position for the interrupted program to go on until completion.

The coffee mill is preset in the factory to make coffee correctly and should not require further adjusting initially.

However, if after making the first few coffees you find that delivery is either too fast or too slow (a drop at a time), this can be corrected by adjusting the grinding adjustment knob (A6).

⚠️ Important! The grinding adjustment knob (A6) must only be turned when the coffee mill is in operation. For slower delivery and creamier coffee, turn one click anticlockwise (finer pre-ground coffee).

For faster delivery (not a drop at a time), turn one click clockwise (coarser pre-ground coffee).

(Coffee has been used to factory test the appliance and it is therefore completely normal for there to be traces of coffee in the mill.)

Technical line drawing of a machine with two circular insets showing internal components (no text or symbols)

MAKING ESPRESSO WITH PRE-GROUND COFFEE (INSTEAD OF BEANS)

When the appliance displays "READY", press Enter then it will state "USE POWDER". You can then extract the appliance and press Enter.

"FILL POWDER" will be displayed.

Open the coffee powder cap and use a spoon to fill coffee powder. You will be able to then make any type of coffee by selecting the desired function.

When using coffee powder, you can also change the settings for output coffee volume and temperature, following the same steps as you would with coffee beans.

Pre-ground coffee unit

Technical line drawing of a coffee maker's front panel and side view (no text or symbols)

Line drawing of a microwave oven with control panel and fan (no text or symbols)

NOTE 1: Never introduce pre-ground coffee when the machine is off or before pressing the button, to avoid the coffee spreading through the inside of the appliance.

NOTE 2: Never add more than 1 level measure, otherwise the appliance will not make the coffee and the pre-ground coffee will be dispersed inside the appliance, dirtying it; or the coffee will be delivered a drop at a time.

NOTE 3: Use the measuring spoon provided to add the right amount of coffee.

NOTE 4: Introduce only pre-ground coffee for espresso coffee machines into the funnel. Never fill with coffee beans, freeze dried coffee or other substance that could damage the appliance.

NOTE 5: If more than one measure of pre-ground coffee is used and the funnel clogs, push the coffee down with a knife, then remove and clean the infuser and machine as described in the "Cleaning the infuser" chapter.

MAKING HOT MILK OR HOT CREAM (steam function)

Make sure to add milk in the jug and set up the machine following the picture below:

K5/25 K5/25

We can use steam function to make hot cream/milk froth, following these steps:

1: First turn the knob into the right position (see up picture).

2: When the machine is in "READY" state, press Enter once, and then select HOT CREAM.

3: Press Enter and the machine will display "STEAM HEATING".

4: Put the silicone pipe deep in the milk to make hot cream. 5: You can also adjust the cycle time by pressing the "+" or "-" keys, to increase or reduce it by 1 second.

6: When the hot cream process is finished, the machine will display "PRESS RINSE". Press Enter and the machine will automatically clean the hot cream pipe and revert back to "READY" state.

PRESS RIYSE

Hot milk

It is the same operation as hot cream, the only difference is that the knob position has to be in "Hot milk". When the machine is in "READY" state, press Enter once, and then enter the select menu ("USE POWDER/"HOT MILK"/"HOT CREAM"). Select "HOT MILK" instead of "HOT CREAM", and all other operations are the same as for making hot cream.

MAKING CAPPUCCINO (using coffee beans)

Set up the machine as shown in the picture (for cappuccino, we recommend selecting milk froth/hot cream):

CS/CS CS/CS

When the machine is in "READY" state:

1: Place a clean mug under the spout. Press the B2 button and the appliance will automatically make cappuccino. It will first grind coffee beans, then the brewing system will work, next begins the steam heating (machine will display "STEAM HEATING"), and after the coffee finishes, the machine will spray steam and the screen will display "HOT CREAM **S". The milk will now be added to the cappuccino. After the hot cream finishes, the appliance will automatically cool down and output coffee from A4.

2: You can adjust the hot cream time cycle. Press "+" key or "-" key to increase or reduce 1 second of the circle time.

3: You can adjust the output coffee volume while the coffee is flowing. Press the "+" or "-" key for the output coffee to increase or reduce 5 CC.

4: You can also adjust the aroma and temperature of the cappuccino (set both before making cappuccino). See page 14 and follow the same operation.

5: When finishing every cappuccino, the appliance will display "PRESS RINSE". Press Enter and the machine will automatically clean the hot cream pipe and revert back back to "READY" state.

MAKING LATTE (using coffee beans)

Set up the machine as shown in the picture (for latte, we recommend selecting hot milk):

Diagram of a coffee machine with labeled control panel and circular dial, showing mechanical components and a close-up view of the dial.

When the machine is in "READY" state:

1: Place a clean mug under the spout. Press B3 button for latte. After grinding the beans and brewing the coffee, the mug will fill and the appliance will steam heat the milk (screen will display "STEAM HEATING"). The machine will spray steam and the screen will display "HOT CREAM **S". After the hot cream finishes, the appliance will automatically cool down and output coffee from A4. Note: latte takes longer than making cappuccino.

2: You can also adjust the hot cream time cycle. Press "+" key or "-" key to increase or reduce by 1 second.

3: You can also adjust the output coffee volume while the coffee is flowing. Press the "+" or "-" key for the output coffee to increase or reduce 5 CC.

4: You can also adjust the aroma or temperature of the latte (always before making the latte). See page 14 and follow the same operation.

5: When finishing every latte, the appliance will display "PRESS RINSE". Press Enter and the machine will automatically clean the hot cream pipe and revert back to "READY" state.

RINSE function:

When you first push the ON/Standby button to turn on the machine, after it runs its SELF-CHECK, it will rinse if it has not been used for a while.

In case you require an extra rinse, when the machine is in "READY" state, you can press Enter quickly twice for the appliance to automatically run the rinse program. The screen will display "RINSING", and after that the machine will go back to "READY" state.

RINSING

Notice: if you press Enter quickly twice and the machine doesn't run, that means the temperature is still too hot. Press Enter again to start the Cooling down program, the screen will display "COOLING DOWN", and after this program the machine will automatically run the Rinse program.

If you have just made hot milk, hot cream, cappuccino or latte, the "RINSING" is the last step of the operation by default.

CHANGING AND SETTING MENU PARAMETERS

After the appliance is "READY", select "MENU" or "DISPLAY" and it will allow you to use the internal menu to modify the following parameters and functions:

Setting the current time

In "READY" state, press Enter, select "DISPLAY" and press Enter to enter. Navigate the options (CC/OZ, time) pressing the + key or - key until the LCD displays "TIME". Press B8 and LCD will display "--/--" with the hours number flashing. Next press + key or - key to set the current hour. Confirm the hour value by pressing B8. Now the LCD displays "**/--" with the minute numbers flashing. Press + key or - key to set the minute, then confirm by pressing the "enter" key. The appliance will now run in this set time. (Note: In the DISPLAY menu you can also change the measuring unit (CC/OZ) following the same operation. If you select CC, in screen the output coffee will be displayed in "CC".)

Setting auto-start time (auto ON)

The machine will turn on automatically at a set time.

■ Make sure the current time has been set as described in the previous chapter and that the machine is fully ready (drip tray empty, water tank full and beans or pre-ground coffee).

You can set the auto-start time following the same operation as to setting the time. In "READY" state, press Enter, enter "MENU" and select "AUTO ON". Press Enter and follow the same steps as with "TIME" to set the time for the machine to turn on.

Turn off the machine without turning off the knock switch (A5) and this machine will automatically start at the set time for auto ON.

Emptying

When this machine is not going to be used for a long time or has to be transported to another area, we suggest to use this function:

In "READY" state, press Enter, and press + to scroll the menu and select "MAINTENANCE". Press Enter to enter next menu, select "EMPTY READY" and press Enter again. The machine will display "REMOVE TANK", after removing it press Enter for the appliance to start the program (the screen will display "EMPTYING").

EMPTYING

Wait for a moment, then the buzzer will run 3 times and the screen will become black. That means the emptying program has finished.

Notice: even if the machine has been manually emptied, the next start will automatically run the "system filling" program. The screen displays "OPEN TAP": press Enter and the screen will display "SYSTEM FILLING", the pump will start working and water might flow from the A3 hole.

Setting water hardness

The descale message is displayed after the appliance has been operated for a factory set period of time calculated on the basis of the maximum quantity of lime scale which may be contained in the water used.

The operating period can be extended if you require making descaling less frequent by programming the machine on the basis of the real lime content in the water used. Proceed as follows:

Use a special water hardness testing strip to check the water hardness level of your water supply and set the appliance

accordingly.

In "READY" state, press Enter to enter "MENU", scroll to "WATER HARDNESS" and press Enter. Now you can select between Level 1 and Level 6 according to the strip test level. The coffee maker will then be programmed to provide the descale warning when necessary, based on the actual hardness of the water.

Level PPM CaCo 3		Hardness
1 Below 50 ppm Very soft
2 50 - 120 ppm Soft
3 120-240 ppm Medium hard
4	240 - 360 ppm	Hard water
5	Above 360 ppm	Very hard

WATER HARDNESS

LEVEL 4

SETTING AUTO-OFF TIME

After setting the current time you can also set the automatic turn off, following the same operation as "AUTO ON". In "READY" state, press Enter, use "+" to scroll to "AUTO OFF" and press Enter, then you can select between "30 MINS", "60 MINS" and "90 MINS". Select what you need and press Enter. After doing this, the appliance can automatically turn off after the set time. To turn the appliance off, hold the ON/OFF button (B1). The appliance will turn off at any state.

AUTO OFF

60 MINS

Danger of burns! During rinsing, a little hot water flows from the coffee spouts. Avoid contact with splashes of water.

Note: If the appliance is not used for an extended period, place the main switch on the back of the appliance (A5) in the O position.

CLEANING AND MAINTENANCE

Before performing any cleaning operations, leave the machine to cool down completely and unplug from the mains power supply. Never immerse the coffee maker in water since it is an electrical appliance. Do not use solvents or abrasive detergents to clean the coffee maker, a soft damp cloth will suffice. Never wash any of the components of the coffee maker in the dishwasher.

Cleaning the coffee maker

The following parts of the machine must be cleaned regularly:

■ Coffee ground container (A7)
- Drip tray (A9)
■ Water tank (A11)
■ Coffee spouts (A4)
- Steam nozzle (A3)
■ Pre-ground coffee funnel (A14)

Water Tank Pre-ground coffee funnel Water Spout Coffee Grounds Container Load Tray Drip Tray Metal Drip Tray Pre-ground Coffee unit

Cleaning the coffee grounds container

When "EMPTY GROUNDS" is displayed, the ground container must be emptied and cleaned. Until the ground container has been cleaned, the appliance continues to display "EMPTY GROUNDS" and coffee cannot be made. To clean, extract the drip tray (A9), then also extract the ground container to empty and clean it.

Empty the ground container and clean thoroughly to remove all residues left on the bottom.

⚠️ Important! If the drip tray is not emptied regularly, the water could overflow from the edge and seep inside or around the coffee maker. This could damage the appliance and cabinet.

Cleaning the drip tray

The machine will emit an automatic alarm to remove water in the drip tray, and the machine will display "EMPTY TRAY", which means that the waste water must be emptied.

1. Extract the drip tray.
2. Remove the grounds container (A7).
3. Take out the metal drip tray and bracket.
4. Wash the drip tray.

Cleaning the water tank

1. Clean the water tank (A11) regularly (about once a month) with a damp cloth and a little mild washing up liquid.
2. Clean to remove all washing up liquid residues, then rinse the water tank thoroughly.

Cleaning the spouts

1. Clean the spouts (A4) periodically using a sponge or cloth.
2. Check regularly that the holes in the coffee spout are not blocked. If necessary, use a pin to poke the hole and clean it.

Cleaning the pre-ground coffee funnel

Check regularly (about once a month) that the pre-ground coffee funnel (A14) is not blocked. If necessary, remove coffee deposits with a knife.

Danger! Before performing any cleaning operations the machine must be turned off by shut off the main switch (A5) and unplugged from the mains power supply.

Never immerse the coffee maker in water.

Cleaning the inside of the coffee maker

1. Check regularly (about once a week) that the inside of the appliance is not dirty.

If necessary, remove coffee deposits with a knife and a sponge. Remove the residues with a vacuum cleaner.

Cleaning the infuser ("Clean brew")

When you make a total of 300 cups of coffee, the display will show "CLEAN READY". Even though this state still allows you to make coffee or use any other functions, it is strongly recommended to perform this cleaning program as soon as possible. Special tablets to clean this appliance can be readily purchased, make sure to follow the instructions provided with them. After using them, wash and refill the water tank with clear water and complete a rinse cycle.

Proceed as follows:

1: Machine will display "CLEAN READY";
2: Keep on pressing Enter until it displays "EMPTY TRAY";
3: Extract the drip tray, empty all waste water and put it back;
4: Then the machine will display "ADD TABLET". Press Enter and the cleaning program will begin. The machine will display "CLEANING".
5: After 10 minutes, this program will finish and revert back to "READY" state.

To start this program manually to run a cleaning cycle, follow these steps:

1: Press Enter to enter "MENU" and access "INFORMATION".
2: Press the + button to scroll and select "BREW CLEAN", then press Enter again. The appliance will then display "CLEAN READY"; press Enter one more time to start.
3: Press Enter to start cleaning the infuser program, the following steps are the same as above.

INFORMATION

BREW CLEAN

EMPTY TRAY

ADD TABLET

CLEANING

Descaling

⚠️ Important! Descaler contains acids which may irritate the skin and eyes. It is vital to respect the manufacturer's safety warnings given on the descaler pack and the warning relating to the procedure to follow in the event of contact with the skin and eyes.

Note The use of an unsuitable agent for this process or use not in accordance with the instructions of the descaler, as well as not descaling the appliance as described in these instructions, invalidates the warranty.

Over time, constant heating up of the water used to make the coffee leads to limescale building up in the inner circuits of the appliance. When "DECALCIFY READY" is displayed, the machine requires descaling. In this state, you can continue to make coffee or use the steam functions, but we suggest you to do this program as soon as possible. Appropriate coffee machine descaling solution can be readily purchased.

1: Press Enter; the appliance displays "30 MIN",
2: Press Enter, the appliance displays "EMPTY TRAY",
3: Extract drip tray, the appliance displays "TRAY MISSING",
4: When you put the drip tray back, the appliance displays "ADD DESCALING FLUID",

5: Extract water tank to add descaling fluid, put tank back to original position and Press Enter to start the automatic descale program. The appliance will display "DESCALING".

6: After 20 minutes, the appliance will display "change water". Extract the water tank to add pure water, put the tank back to original position and press Enter, this machine also display "DESCALING".

7: After 10 minutes, the appliance will display "CHANGE WATER". Extract water tank to add pure water and put the tank back to its original position. The coffee maker will automatically apply the Rinse function, then revert back to "READY" state. That means descaling is finished.

⚠️ Important! FAILURE TO DESCALE THE APPLIANCE REGULARLY INVALIDATES THE GUARANTEE.

This program can also be manually started, following these steps:

1: Press Enter to enter "MENU" and then access "INFORMATION". Press Enter next to enter "NUMBER OF USE", press Enter again to select "DESCALE". The machine will display "DESCALE READY": press Enter to start.

2: Press Enter to start the program, the following operations are the same as those described above.

TECHNICAL SPECIFICATIONS

Voltage: 220-240 V \~ 50/60 Hz max.10A

Absorbed power: 1300-1500 W

Pump max pressure: 20 bars

Water tank capacity: 1.8 litre

Size LxHxW: 594x454x474 mm

Net Weight: 23 kg

The appliance complies with the following EC directives: Low Voltage Directive 2006/95/EC and subsequent amendments.

EMC Directive 2004/108/CE and subsequent amendments.

Materials and accessories coming into contact with food conform to EEC regulation 1935/2004.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE, requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

ELECTRICAL CONNECTION

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted by a qualified electrician, as below.

WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard. With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.

B) If your appliance's not fitted with a plug, please follow the instructions provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Green and yellow: Earth

Blue: Neutral

Brown: Live

If the color of the wires in the mains lead do not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.

TROUBLESHOOTING

DISPLAYEDMESSAGE	POSSIBLE CAUSE	REMEDY
Fill water	The water tank is empty or positioned incorrectly	Fill the tank with water and/or insert it correctly, pushing it as far as it will go
Fault 3	The grinding is too fine and the coffee is delivered too slowly	Turn the grinding adjustment knob one click clockwise towards big symbol
	The machine cannot make coffee; there is air in the hydraulic circuit.	Running "self check" Program and can repair the machine
EMPTY GROUNDS	The total number of of coffee made has reached 15	Extract the drip tray and empty the grounds container and clean. then put to original position.
		Important: when removing the drip tray the grounds container MUST be emptied, even if it is not completely full.
Tray Missing	Tray not inserted or not in right position	Put the tray to original position
Fill powder	The "pre-ground coffee" function has been selected without placing any pre-ground coffee in the funnel	Extract the appliance and place pre-ground coffee in the funnel using the spoon
	The funnel (A14) is blocked	Empty the funnel with the help of a knife as described in the section "Cleaning the pre-ground coffee funnel"
Decalcify ready	The machine must be descaled	The descaling procedure described in the "Descaling" section needs to be performed as soon as possible.
FILL BEANS	The coffee beans have run out	Fill beans to container
Add more powder	The powder not enough to make coffee	Use spoon to add powder
Clean brew	The inside of the appliance is very dirty	Clean the inside of the appliance thoroughly. If the message is still displayed after cleaning, contact a service centre

Below is a list of other possible malfunctions. If the problem cannot be resolved as described, contact Customer Services.

PROBLEM	POSSIBLE CAUSE	REMEDY
The coffee is not hot	The cups were not preheated	Warm the cups by rinsing them with hot water
	The infuser has cooled down because 2/3 minutes have elapsed since the last coffee was made	Before making coffee, heat the infuser by pressing rinse
The coffee is not creamy enough	The coffee is ground too coarsely	Turn the grinding adjustment knob (A6) one click anticlockwise towards small symbol while the coffee mill is in operation
	Wrong type of coffee	Use a type of coffee for espresso coffee makers
The coffee is delivered too slowly or a drop at a time	The coffee is ground too finely	Turn the grinding adjustment knob (A6) one click anticlockwise towards big symbol while the coffee mill is in operation
		Continue one click at a time until coffee delivery is satisfactory
		The effect is only visible after delivering two coffees
The coffee is delivered too quickly	The coffee is ground too coarsely	Turn the grinding adjustment knob (A6)one click anticlockwise towards small symbol while the coffee mill is in operation
		The effect is only visible after delivering two coffees
Coffee does not come out of one of the spouts	The spouts are blocked	Clean the spouts with a toothpick
Water comes out of the spouts instead of coffee (using coffee powder)	The pre-ground coffee may be blocked in the funnel (A14)	Clean the funnel (A14) with a wooden or plastic fork, clean the inside of the machine

Contenu

Technical line drawing of a mechanical frame assembly with mounting brackets and structural supports (no text or symbols)

Technical line drawing of a mechanical assembly inside a shelving unit (no text or symbols)

Line drawing of a two-tiered shelving unit with metal racks and structural beams (no text or symbols)

Line drawing of a mechanical device with internal components and housing (no text or symbols)

Technical line drawing of a server rack with an inset close-up showing internal components (no text or symbols)

Technical line drawing of an internal machine or device with a top view showing internal components (no text or symbols present)

SELF CHECK

Technical line drawing of a mechanical assembly with inset views showing internal components (no text or symbols)

FAIRE UN ESPRESSO AVEC DU CAFÉ MOULU (AU LIEU DE GRAINS)

Line drawing of a microwave oven with control panel and fan (no text or symbols)

PRESS RIHSE

LAIT CHAUD

BREW CLEAN

EMPTY TRAY

ADD TABLET

CLEANING

Détartrage

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

CONDITIONS DE LA GARANTIE

Technical line drawing of a mechanical frame assembly with mounting brackets and structural supports (no text or symbols)

Technical line drawing of a mechanical assembly inside a shelving unit (no text or symbols)

Line drawing of a two-tiered shelving unit with metal racks and railings (no text or symbols)

Line drawing of a mechanical device with internal components and housing (no text or symbols)

Technical line drawing of a server rack with an inset close-up view showing internal components (no text or symbols)

Technical line drawing of an internal machine or enclosure with a lid and ventilation slots (no text or symbols)

SELF CHECK

Technical line drawing of a mechanical assembly with inset views showing internal components (no text or symbols)

FAZER CAFÉ EXPRESSO COM CAFÉ MOÍDO (EM VEZ DE CAFÉ EM GRÃO)

Line drawing of a microwave oven with control panel and fan (no text or symbols)

PRESS RINSE

LEITE QUENTE

BREW CLEAN

EMPTY TRAY

ADD TABLET

CLEANING

Descalcificação

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Scan for manual in other languages and further updates:
