Product Type	Electric Water Heater
Model	EME50L
Brand	EAS Electric
Capacity	50 liters
Dimensions (H x W x D)	Approx. 650 x 400 x 400 mm
Weight (net)	Approx. 18 kg
Power Rating	2000 W
Voltage	220-240 V / 50 Hz
Energy Efficiency Class	C (typical for electric water heaters)
Thermostat	Adjustable, up to 75°C
Safety Features	Thermal cut-off, pressure relief valve, anti-corrosion anode
Installation Type	Wall-mounted vertical
Material	Steel tank with enamel coating
Insulation	Polyurethane foam, 40 mm thickness
Heating Time	Approx. 2.5 hours to reach 75°C from cold
Max Operating Pressure	8 bar
Water Connection	G 1/2" inlet and outlet
Maintenance	Replace anode annually; drain tank every 6 months
Spare Parts Availability	Thermostat, heating element, anode, safety valves
Included Accessories	Pressure relief valve, mounting brackets, user manual

Frequently Asked Questions - EME50L EAS Electric

What capacity is the EME50L water heater?

The EME50L has a capacity of 50 liters, suitable for small households.

How do I install the water heater?

Installation should be done by a qualified plumber. It must be wall-mounted vertically, connected to a cold water supply, and fitted with a pressure relief valve.

Can I adjust the water temperature?

Yes, the thermostat is adjustable. Turn the knob to set the desired temperature, typically up to 75°C.

What safety features does it have?

It includes a thermal cut-off to prevent overheating, a pressure relief valve, and an anti-corrosion anode.

How often should I maintain the water heater?

Check the anode annually and replace if corroded. Drain the tank every 6 months to remove sediment.

What is the power consumption?

The heater operates at 2000 W. Actual consumption depends on usage and temperature setting.

Does the water heater have a warranty?

Typically, EAS Electric offers a 2-year warranty on the tank and components. Check your local dealer.

Can I use it with solar pre-heating?

Yes, it can be connected to a solar system as a backup heater, provided the inlet water temperature does not exceed 80°C.

What is the heating time?

From cold water (15°C) to 75°C, it takes approximately 2.5 hours.

Where can I find spare parts?

Spare parts like thermostats, heating elements, and anodes are available from authorized EAS Electric service centers or online retailers.

USER MANUAL EME50L EAS Electric

Abstract arrangement of gray and white triangular shapes arranged in a row (no text or symbols)

EAS ELECTRIC

SMART TECHNOLOGY

TERMO ELÉCTRICO

ELECTRIC BOILER

Line drawing of a white rectangular water heater with a circular pressure gauge and a base (no text or symbols)

EME30L

EME50L

EME80L

EME100L

Scan for manual in other languages and further updates

Technical line drawing of a mechanical assembly with hatched background and vertical rail (no text or symbols)

Cross-sectional diagram of a mechanical component with hatched fill and labeled point P (no text or symbols beyond label)

(Fig.3)

• The installation and maintenance has to be carried out by qualified professionals and authorized technicians.
• The manufacturer shall not be held responsible for any damage or malfunction caused by wrong installation or failing to comply with following instructions included in this pamphlet.
• For more detailed installation and maintenance guidelines, please refer to below chapters.

TABLE OF CONTENTS

TITLE PAGE

1. Cautions ......(2)
   2.Product introduction ....(3)
2. Unit installation ....(5)
   4.Methods of using....(7)
3. Maintenance....(7)
   6.Troubleshooting....(8)
4. Produce information with EU Regulation....(9)
   8.Warranty conditions....(12)

1. CAUTIONS

Before installing this water heater, check and confirm that the earthing on the supply socket is reliably grounded. Otherwise, the electrical water heater can not be installed and used. Do not use extension boards. Incorrect installation and use of this electrical water heater may result in serious injuries and loss of property.

Special Cautions

• The water heater is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the heater.
• The wall in which the electrical water heater is installed must be able to bear the load more than two times of the heater filled fully with water without distortion and cracks. Otherwise, other strengthening measures must be adopted.
• The supply socket must be earthed reliably. The installation height of the supply socket must not be lower than 1.8m. The rated current of the socket must not be lower than 16A. The socket and plug must be kept dry to prevent electrical leakage. If the flexible power supply cord is damaged, the special supply cord provided by the manufacturer must be selected, and replaced by the professional maintenance personnel.
• The maximum inlet water pressure is 0.5MPa; the minimum inlet water pressure is 0.1MPa, if this is necessary for the correct operation of the appliance.
• When using the heater for the first time (or the first use after maintenance), the heater can not be switched on until it has been filled fully with water. When filling the water, at least one of the outlet valves at the outlet of the heater must be opened to exhaust the air. This valve can be closed after the heater has been filled fully with water.
• The pressure relief valve attached with the heater must be installed at the cold water inlet of this heater, and make sure it is not exposed in the foggy. The water may be outflowed from pressure relief valve, so the outflow pipe must open wide in the air. In order to drain away the water inside the inner container, it can be drained away from the pressure release valve. Twist the thread screw of the pressure release valve off, and lift the drain handle upwards(See Fig.1). The drainage pipe connected to the pressure release hole must be kept sloping downwards and in a frost-free environment. The water may drip from the discharge pipe of the pressure-relief device and that this pipe must be left open to the atmosphere.
• During heating, there may be drops of water dripping from the pressure release hole of the pressure relief valve, this is a normal phenomenon. The pressure release hole shall not be blocked under no circumstances, otherwise, the heater may get damaged, even resulting in accidents. If there is a large amount of water leak, please contact customer care center for repair.
• The pressure relief valve need to be checked and cleaned regularly, so as to make sure it will not be blocked.
• Since the water temperature inside the heater can reach up to 75°C, the hot water must not be exposed to human bodies when it is initially used. Adjust the water temperature to a suitable temperature to avoid scalding.
• If any parts and components of this electrical water heater are damaged please contact customer care center for repair.

V.2

(Fig.1)

2. PRODUCT INTRODUCTION

2.1 Technical Performance Parameters

Model	Volume (L)	Rated Power (W)	Rated Voltage (ACV)	Rated Pressure (MPa)	Max Of Water Temperature (°C)	Protection Class	Waterproof Grade
EME30L	30	1500	220-240	0.75	75	I	IPX4
EME50L	50	1500	220-240	0.75	75	I	IPX4
EME80L					750.7522	0-24@1500	80 IPX4
EME100L					750.7522	0-24@1500	100IPX4

2.2 Brief introduction of product structure

V.2

	EME30L	EME50L EME80L EME100L
A	603	600	805	970
B	340	450	450	450
C	340	450	450	450
D	200	200	200	200

(Note: All dimensions are in mm)

2.3 Internal Wire Diagram

3. UNIT INSTALLATION

3.1 Installation Instruction

① This electrical water heater shall be installed on a solid wall. If the strength of the wall cannot bear the load equal to two times of the total weight of the heater filled fully with water, it is then necessary to install a special support. In case of hollow bricks wall, ensure to fill it with cement concrete completely.

② After selecting a proper location, determine the positons of the two install holes used for expansion bolts with hook, Make two holes in the wall with the corresponding depth by using a chopping bit with the size matching the expansion bolts attached with the machine, insert the screws, make the hook upwards, tighten the nuts to fix firmly, and then hang the electrical water heater on it (see Fig.2).

Technical line drawing of a mechanical assembly with hatched background and vertical rail (no text or symbols)

Cross-sectional diagram of a mechanical component with hatched fill and labeled point B (no text or symbols beyond label)

Expansion bolt (with hook)
(Fig.2)

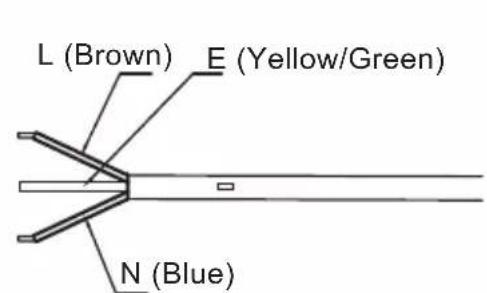

③ Install the supply socket in the wall. The supply socket be 220V. It is recommended to placed the socket on the right above the heater. The height of the socket to the ground shall not be less than 1.8m (see Fig.3). If there is fault on power cable, it should be replaced by the manufacturers, agencies or qualified person who is able to do this so as to ensure the safety.

(Fig.3)

④ If the bathroom is too small, the heater can be installed at another place. However, in order to reduce the pipeline heat losses, the installation position of the heater shall be closed to the location shall be as near as possible to the heater.

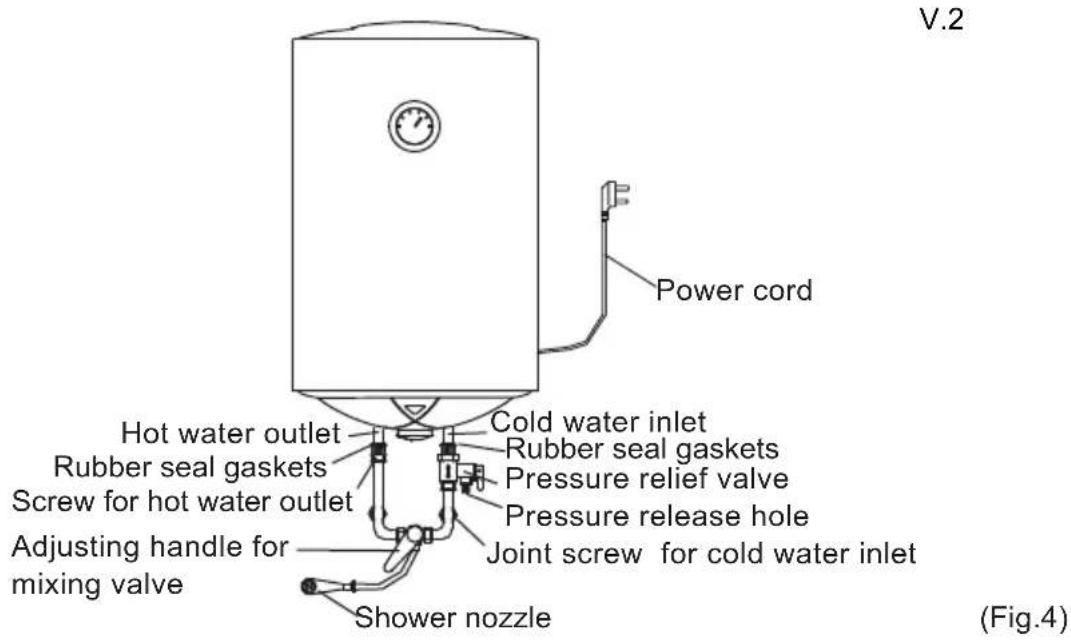

3.2 Pipelines Connection

① The dimension of each pipe part is G1/2"; The massive pressure of inlet should use Pa as the unit; The minimum pressure of inlet should use Pa as the unit.
② Connection of pressure relief valve with the heater on the inlet of the water heater.
③ In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with the heater must be added at the end of the threads to ensure leak proof joints (see Fig.4).

④ If the users want to realize a multi-way supply system, refer to the method shown in fig.5 for connection of the pipelines.

NOTE

Please be sure to use the accessories provided by our company to install this electric water heater. This electric water heater can not be hung on the support until it has been confirmed to be firm and reliable. Otherwise, the electric water heater may drop off from the wall, resulting in damage of the heater, even serious accidents of injury. When determining the locations of the bolt holes, it shall be ensured that there is a clearance not less than 0.2m on the right side of the electric heater, to convenient the maintenance of the heater, if necessary.

4. METHODS OF USING

- First, open any one of the outlet valves at the outlet of the water heater, then, open the inlet valve. The water heater gets filled with water. When water flows out of the outlet pipe it implies that the heater has been filled fully with water, and the outlet valve can be closed.

NOTE

During normal operation, the inlet valve shall be always kept open.

• Insert the supply plug into the socket.
• Rotate the temperature adjusting knob, the “HEATING” indicator will light up. According to the marking on the knob to increase or decrease the setting temperature. The thermostat will automatically control the temperature. When the water temperature inside the heater has reached the set temperature, it will switch off automatically and light off the “Heating” indicator. When the water temperature falls below the set point, the heater will be turned on automatically to restore the heating, the indicator will light up again.

5. MAINTENANCE

WARNING

Before doing any maintenance, please cut off the power supply.

• Check the power plug and outlet as often as possible. Secure electrical contact and also proper grounding must be provided. The plug and outlet must not heat excessively.
• If the heater is not used for a long time, especially in regions with low air temperature(below 0 °C), it is necessary to drain water from the heater to prevent damage of the water heater, due to water freezing in the internal tank.(Refer Cautions in this manual for the method to drain away the water from the inner container).
• To ensure long reliable water heater operation, it is recommended to regularly clean the internal tank and remove deposits on the electric heating element of the water heater, as well as check condition (fully decomposed or not) of the magnesium anode and, if necessary, replace it with a new one in case of full decomposition. Tank cleaning frequency depends on hardness of water located in this territory. Cleaning must be performed by special maintenance services. You can ask the seller for address of the nearest service center.

• The water heater is equipped with a thermal switch, which cuts off power supply of the heating element upon water overheating or its absence in the water heater. If the water heater is connected to the mains, but water is not heated and the indicator doesn't light up, then the thermal switch was switched off or not switched on. To reset the water heater to the operating condition, it is necessary to:

• De-energize the water heater, remove the plate of the side/lower cover.

• Press the button, located at the center of the thermal switch, see Fig.6;
• If the button is not pressed and there is no clicking, then you should wait until the thermal switch cools down to the initial temperature.

V.2

(Fig.6)

WARNING

Non-professionals are not allowed to disassemble the thermal switch to reset. Please contact professionals to maintain. Otherwise our company will not take responsibility if any quality accident happens because of this.

6. TROUBLESHOOTING

Failures Reasons Treatment
The heating indicator light is off.	Failures of the temperature controller.	Contact with our tecnice service EAS ELECTRIC
No water coming out of the hot water outlet.	1. The running water supply is cut off.2. The hydraulic pressure is too low.3. The inlet valve of running water is not open.	1. Wait for restoration of running water supply.2. Use the heater again when the hydraulic pressure is increased.3. Open the inlet valve of running water.
The water temperature is too high.	Failures of the temperature control system.	Contact with our tecnice service EAS ELECTRIC
Water leak.	Seal problem of the joint of each pipe.	Seal up the joints.

NOTE

Parts illustrated in this use and care manual are indicative only, parts provided with the product may differ with illustrations. This product is intended for household use only. Specifications are subject to change without notice.

NOTE:

If after making all checks, the problem persists, contact our technical service through our website:

www.easelectric.es

7. PRODUCE INFORMATION WITH EU REGULATION

The electrical storage water heater EME30L of EAS was tested with a declared load profile of the size "S"

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of η_wh = 32%

that correspond to the water heating efficiency class "C"

In accordance with Annex II Energy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report with respect of conformity with the related commission regulation (No 812/2013 and 814/2013) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec and water heating energy efficiency η_p and mixed water at 40°C (V40)

Description Parameter Value Unit
k-Value	k 0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term Q	cor -0.393 kWh
Referenct energy	Qref	2.1	kWh
Useful energy content	QH2O	2.484	kWh
Correction ratio of reference and useful energy	Qref/QH2O 0.845		kWh
Daily electricity consumption (measured)	Qtestelec	3.307	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	77.6	°C
Water temperature at the end of the 24h measurement cycle	T5	78.0	°C
Storage volume	Mact	30.3	kg
Storage volume	Cact	30.3 L
Daily electricity consumption (corrected)	Qelec	2.784	kWh
Water heating energy efficiency	nwh	32.0
Annual Electricity Consumption	AEC	577	kWh
Water heating energy efficiency class		C
Water temperature without tapping	Tset	77.1	°C
Average water temperature of outlet warm water	θp'	70.4	°C
Average water temperature of inlet cold water	θc	10.7	°C
Normalised value of the average temperature	θp	70.4	°C
Volume that delivered water of at least 40°C	V40exp	25.2 L
Calculated volume that delivered hot water of at least 40°C	V40	51 L

V.2

The electrical storage water heater EME50L of EAS was tested with a declared load profile of the size “M”

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of η_wh = 37%

that correspond to the water heating efficiency class "C"

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report with respect of conformity with the related commission regulation (No 812/2013 and 814/20) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_e and water heating energy efficiency η_wh and mixed water at 40°C (V40)

Description Parameter Value Unit
k-Value	k 0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term Q	cor -0.313 kWh
Referenct energy	Qref	5.845	kWh
Useful energy content	QH2O	6.875	kWh
Correction ratio of reference and useful energy	Qref/QH2O 0.850		kWh
Daily electricity consumption (measured)	Qtestelec	7.508	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	74.8	°C
Water temperature at the end of the 24h measurement cycle	T5	74.7	°C
Storage volume	Mact	51	kg
Storage volume	Cact	51	L
Daily electricity consumption (corrected)	Qelec	6.389	kWh
Water heating energy efficiency	nwh	37.3
Annual Electricity Consumption	AEC	1375	kWh
Water heating energy efficiency class		C
Water temperature without tapping	Tset	74.9	°C
Average water temperature of outlet warm water	θp'	70.7	°C
Average water temperature of inlet cold water	θc	10.2	°C
Normalised value of the average temperature	θp	70.6	°C
Volume that delivered water of at least 40°C	V40exp	42.5	L
Calculated volume that delivered hot water of at least 40°C	V40	86	L

V.2

The electrical storage water heater EME80L of EAS was tested with a declared load profile of the size “M”

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of η_wh = 38%

that correspond to the water heating efficiency class "C"

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report with respect of conformity with the related commission regulation (No 812/2013 and 814/201) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_e and water heating energy efficiency η_wh and mixed water at 40°C (V40)

Description Parameter Value Unit
k-Value	k 0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term Q	cor -0.247 kWh
Referenct energy	Qref	5.845	kWh
Useful energy content	QH2O	6.423	kWh
Correction ratio of reference and useful energy	Qref/QH2O 0.910		kWh
Daily electricity consumption (measured)	Qtestelec	7.056	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	57.2	°C
Water temperature at the end of the 24h measurement cycle	T5	58.9	°C
Storage volume	Mact	80.8	kg
Storage volume	Cact	80.8 L
Daily electricity consumption (corrected)	Qelec	6.275 kWh
Water heating energy efficiency	nwh	37.8
Annual Electricity Consumption	AEC	1356	kWh
Water heating energy efficiency class		C
Water temperature without tapping	Tset	57.7	°C
Average water temperature of outlet warm water	θp'	55	°C
Average water temperature of inlet cold water	θc	10.4	°C
Normalised value of the average temperature	θp	55	°C
Volume that delivered water of at least 40°C	V40exp	60.1	L
Calculated volume that delivered hot water of at least 40°C	V40	90	L

V.2

The electrical storage water heater EME100L of EAS was tested with a declared load profile of the size “M”

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of η_wh = 37%

that correspond to the water heating efficiency class "C"

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report with respect of conformity with the related commission regulation (No 812/2013 and 814/201) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_e and water heating energy efficiency η_wh and mixed water at 40°C (V40)

Description Parameter Value Unit
k-Value	k 0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term Q	cor -0.398 kWh
Referenct energy	Qref	5.845	kWh
Useful energy content	QH2O	7.322	kWh
Correction ratio of reference and useful energy	Qref/QH2O 0.798		kWh
Daily electricity consumption (measured)	Qtestelec	8.236	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	56.9	°C
Water temperature at the end of the 24h measurement cycle	T5	57.4	°C
Storage volume	Mact	101	kg
Storage volume	Cact	101 L
Daily electricity consumption (corrected)	Qelec	6.537 kWh
Water heating energy efficiency	nwh	36.7
Annual Electricity Consumption	AEC	1401	kWh
Water heating energy efficiency class		C
Water temperature without tapping	Tset	57.4	°C
Average water temperature of outlet warm water	θp'	53.8	°C
Average water temperature of inlet cold water	θc	10.6	°C
Normalised value of the average temperature	θp	53.7	°C
Volume that delivered water of at least 40°C	V40exp	77.6	L
Calculated volume that delivered hot water of at least 40°C	V40	113	L

WARRANTY CONDITIONS OF THE ELECTRIC BOILER

This appliance is covered by a 3-year repair warranty against all manufacturing defects, including labour and spare parts; and a 5-year warranty on the tank in the event of manufacturing defects in the tank that cause breakage, pitting or rust inside the tank. In order to justify the date of purchase, it will be obligatory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTYEXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.
5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.
6. Civil liabilities of any nature.
7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.
8. Maintenance or upkeep of the appliance and replacement of consumable parts of the appliance equipment: periodic inspections, adjustments and greasing.
9. Breakdowns due to failure to comply with the manufacturer's recommendations for proper maintenance.
10. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.
11. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.
12. Interventions in which the anode has a size reduction greater than 2/3 of the original size or is covered with lime in its entirety.
13. Appliances used in industrial applications or for commercial purposes.
14. Appliances with illegible or altered serial number.
15. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.
16. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.
17. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.
18. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

The water heater tanks are made of vitrified steel. When the tank is filled with water, electrolytic reactions occur which can corrode the walls. To protect the water heater and extend its useful life, the water heaters are equipped with a magnesium anode, a replaceable element, whose function is to absorb the chemical reactions that take place inside the tank, thus producing wear on the anode and not on the walls of the tank. The wear of the anode depends on the salinity and hardness of the water, and on the material of which the water supply pipes are made. EAS ELECTRIC SMART TECHNOLOGY recommends that the internal anode of electric water heaters should be checked every six months. In order to comply with the 5-year tank warranty, EAS ELECTRIC SMART TECHNOLOGY requires the anode to be changed annually. The replacement of the anode must be carried out by the Official Technical Service.

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

EAS ELECTRIC

SMART TECHNOLOGY

Scan for manual in other languages and further updates:

Complete documents about the product

Abstract arrangement of eight triangular shapes in varying shades of gray, arranged in a grid pattern (no text or symbols)
