EMCF302 - Freezer EAS Electric - Free user manual and instructions
Find the device manual for free EMCF302 EAS Electric in PDF.
| Product type | Freezer |
| Brand | EAS Electric |
| Model | EMCF302 |
| Temperature control | Rotary dial from 1 to 9 (positions 1-3: refrigeration, 4-9: freezing) |
| Defrost mode | Manual |
| Climate class | SN, N, ST, T (ambient temperature from +10°C to +43°C) |
| Interior lighting | Incandescent bulb (max 15W) or LED depending on version |
| Warranty | 3 years |
| Spare parts available | Thermostats, temperature sensors, printed circuit boards, lights, handles, hinges, shelves, baskets, door gaskets (available up to 10 years) |
| Interior cleaning | Baking soda diluted in warm water |
| Exterior cleaning | Soft cloth soaked in soapy water |
| Safety | Do not use electrical appliances inside; do not damage the refrigeration circuit; unplug before maintenance |
| Installation | Clearance of at least 70 cm above and 20 cm on sides and rear |
| Recommended setting | Position 6 for freezing, position 2 for refrigeration |
| Energy consumption | Not specified (estimated: approximately 200-300 kWh/year for a similar model) |
Frequently Asked Questions - EMCF302 EAS Electric
User questions about EMCF302 EAS Electric
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Freezer in PDF format for free! Find your manual EMCF302 - EAS Electric and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EMCF302 by EAS Electric.

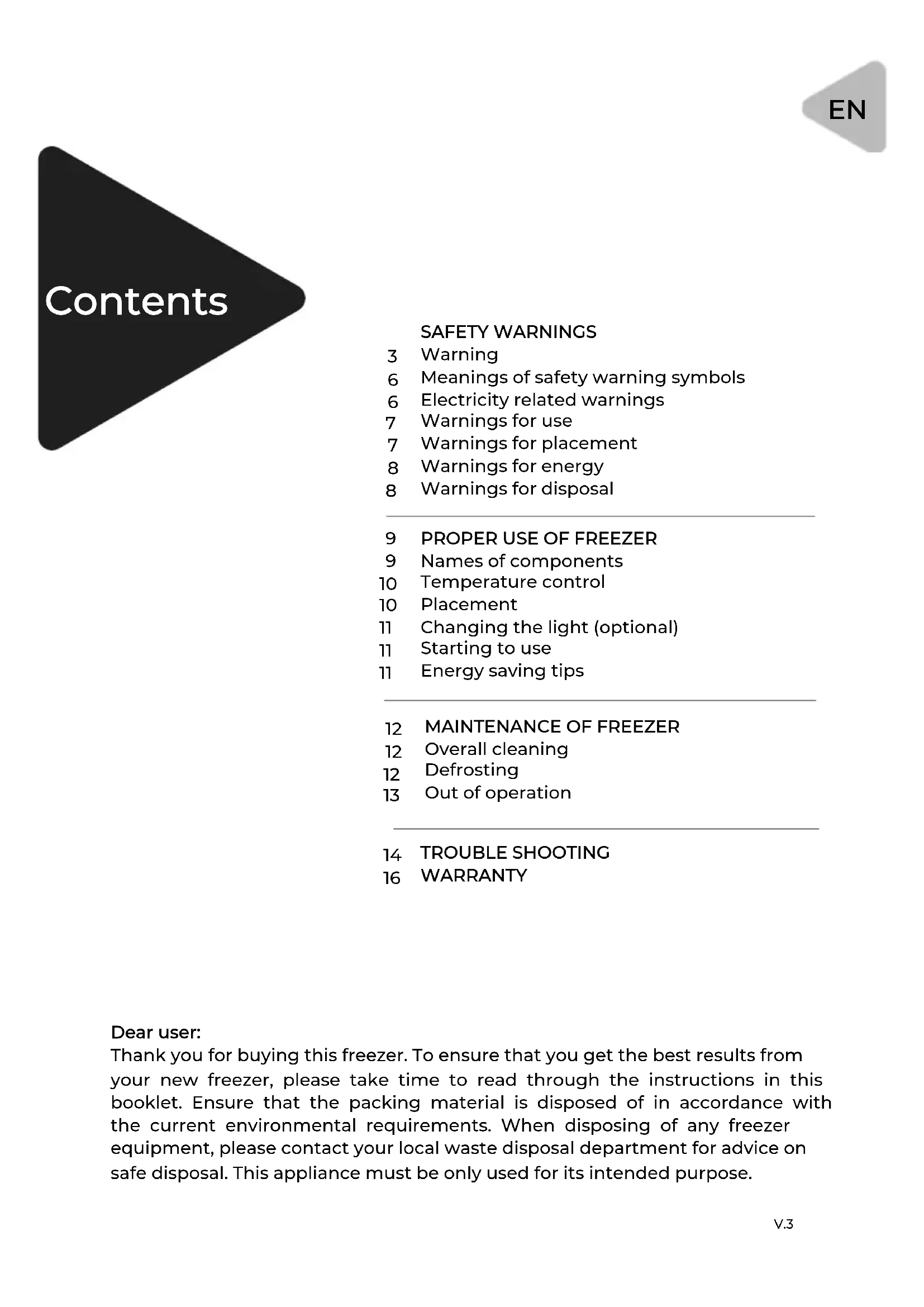

USER MANUAL EMCF302 EAS Electric
No permitted that you can use the camera.
3 Warning
6 Meanings of safety warning symbols
6 Electricity related warnings
7Warnings for use
7Warnings for placement
8Warnings for energy
8Warnings for disposal
9 PROPER USE OF FREEZER
9 Names of components
10 Temperature control
10 Placement
11 Changing the light (optional)
11 Starting to use
11 Energy saving tips
12 MAINTENANCE OF FREEZER
12 Overall cleaning
12 Defrosting
13 Out of operation
14 TROUBLE SHOOTING
16 WARRANTY
Dear user:
Thank you for buying this freezer. To ensure that you get the best results from your new freezer, please take time to read through the instructions in this booklet. Ensure that the packing material is disposed of in accordance with the current environmental requirements. When disposing of any freezer equipment, please contact your local waste disposal department for advice on safe disposal. This appliance must be only used for its intended purpose.
1 SAFETY WARNING
1.1 Warning
Warning: risk of fire / flammable materials
This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.) Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
WARNING: Please abandon the freezer according to local regulators for it uses flammable blowing gas and refrigerant.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Do not use extension cords or ungrounded (two prong) adapters.
DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:
- Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.
The freezer must be disconnected from the source of electrical supply before attempting the installation of accessory.
Refrigerant and cyclopentane foaming material used for the freezer are flammable. Therefore, when the freezer is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.
For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
To avoid contamination of food, please respect the following instructions:
-
Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
-
Clean regularly surfaces that can come in contact with food and accessible drainage systems.
-
Clean water tanks if they have not been used for 48h ; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)
-
Store raw meat and fish in suitable containers in the freezer, so that it is not in contact with or drip onto other food.
-
Two-star frozen-food compartments are suitable for storing pre-frozen food, storing and making ice-cream and making ice cubes. (note 2)
-
One, two and three-star compartments are not suitable for the freezing of fresh food. (note 3)
-
Appliances without a 4-star compartment are not suitable for freezing foodstuffs (note 4).
-
If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
Note 1, 2, 3, 4: Please confirm whether it is applicable according to your product compartment type.
For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.
Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. See chapter 2.4 for lamp replacement.
WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
WARNING: Connect to potable water supply only. (Suitable for ice making machining).
To prevent a child from being entrapped, keep out of reach of children and not in the vicinity of freezer (or refrigerator). (Suitable for products with locks).
1.2 Meaning of safety warning symbols
Prohibition symbol
This is a prohibition symbol.
Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.
Warning symbol
This is a warning symbol.
It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.
Note symbol
This is a cautioning symbol.
Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.
This manual contains lots of important safety information which shall be observed by the users.
1.3 Electricity related warnings
Do not pull the power cord when pulling the power plug of the freezer. Please firmly grasp the plug and pull out it from the socket directly.
Do not damage the power cord under any condition so as to ensure safe use, and do not use when the power cord is damaged or the plug is worn.
Worn or damaged power cords shall be replaced in manufacturer-authorized maintenance stations.
The power plug should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the freezer and other electrical appliances considering that spark may cause a fire.
To ensure safety, it is not recommended to place regulators, rice cookers, microwave ovens or other appliances on top of the freezer, except those recommended by the manufacturer. Do not use electrical appliances in the food pan.
1.4Warnings for using
Do not arbitrarily disassemble or reconstruct the freezer, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.
Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.
The gaps between freezer doors and between doors and freezer body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when closing the freezer door to avoid falling articles.
Do not pick foods or containers with wet hands in the freezing chamber when the freezer is running, especially metal containers in order to avoid frostbite.
Do not allow children to get into or climb the freezer; otherwise suffocation or falling injury of the child may be caused.
Do not spray or wash the freezer, and do not put it in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the freezer.
Do not place heavy objects on the top of the freezer because they may fall when you close or open the door, and accidental injuries might be caused.
Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.
1.5Warnings for placement
Do not put flammable, explosive, volatile and highly corrosive items in the freezer to prevent damages to the product or fire accidents.
Do not place flammable items near the freezer to avoid fires.
The freezer is intended for household use, such as storage of foods. According to national standards, it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.
Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.
1.6Warnings for energy
- Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
- The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
- The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
- The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
- The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
1.7Warnings for disposal
Refrigerant and cyclopentane foaming material used for the freezer are flammable. Therefore, when the freezer is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.
When the freezer is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.
The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
2. Proper use of the freezer

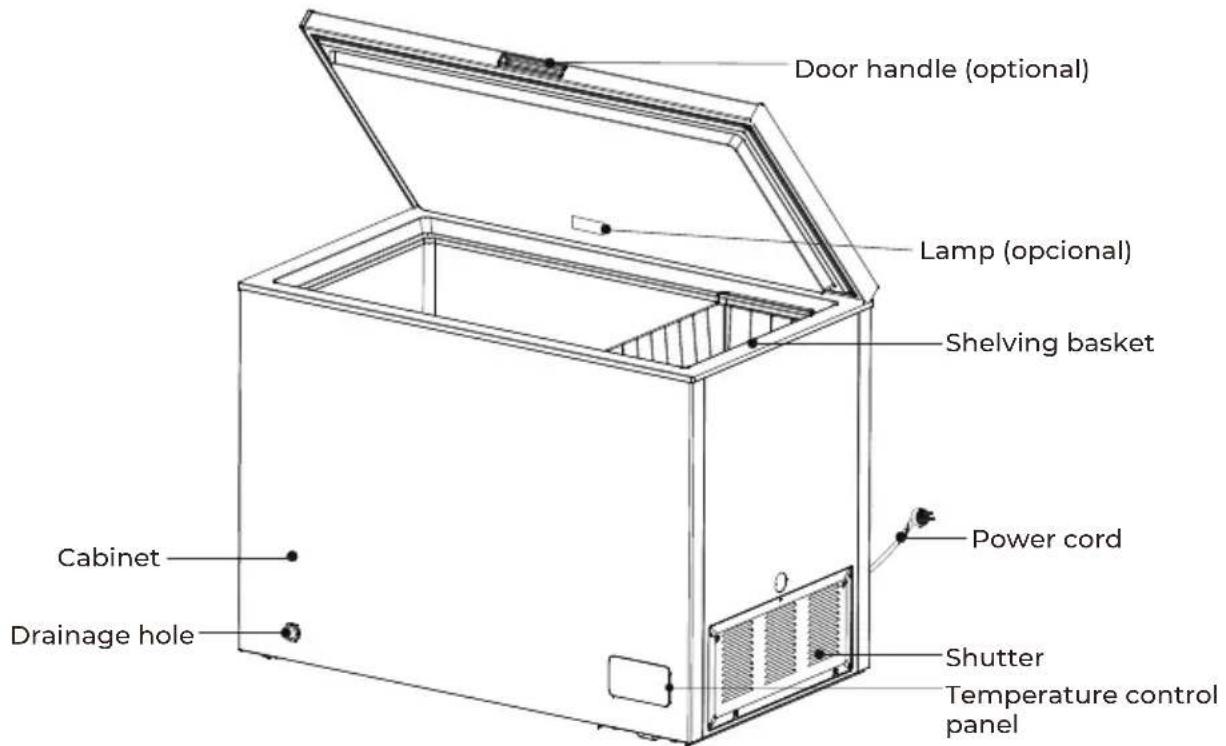

2.1 Names of components
(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)
- The low temperature of freezer may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
- The freezer is suitable for storage of meat, fish, shrimp, pastries and other foods not to be consumed in short term. Do not store fluids in bottled or closed containers items such as bottled beer, beverages, etc.
- Please be noted food shall be consumed within the shelf time.
- The freezing speed of the product is related to the amount of food stored and the ambient temperature. If too much normal temperature food is put in at the same time, the thermostat shall be adjusted to the maximum gear 24 hours in advance or prepare ice ahead for cold storage, and the large food shall be divided into small pieces and put in several times, otherwise the large size or amount of food cannot be frozen locally, and the food may deteriorate.
- Connect the freezer to power supply and "Power" indicator (the green light) will shine. "Run" indicator (the red light) will shine when the compressor is running.
The set temperature is adjusted through the thermostat knob. The number "1, 2, 3, 4, 5, 6, 7, 8, 9" do not mean a specific temperature, the lower the number is, the higher the temperature inside will be and vice versa.
"1 - 2 - 3" stands for cooling.
"4-5-6-7-8-9" stands for freezing.
- Recommended gear: Gear 6 for freezing / Gear 2 for refrigeration.
(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)
2.3 Placement
Before using the freezer, remove all packaging materiales including bottom cushions and foam pads and tapes inside the freezer, tear off the protective film on the door and the freezer body.
Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.
The freezer should be placed in a well-ventilated indoor place. The ground shall be flat and sturdy.
The top space of the freezer shall be greater than 70cm , and the distances from both sides and backside shall be more than 20cm to facilitate heat dissipation.
2.4 Changing the Light (Optional)
Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.
Replacement of incandescent lamps:
Disconnect the power supply before carrying out the bulb replacement.
Hold and remove the light bulb cover.
Dismantle the old bulb by unscrewing it counterclockwise. Replace with a new bulb (max. 15W) by screwing it clockwise, and make sure it is fixed in the bulb holder tightly.
Reassemble the light cover and reconnect your freezer to the power supply.
2.5 Starting to use
The freezer shall stay for half an hour before connecting power when it is firstly started.
The freezer shall run 2 to 3 hours before loading fresh or frozen foods. The freezer shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.
2.6 Energy saving tips
heat producing appliances or heating ducts, and out of the direct sunlight.
Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
the appliance. This cuts down on frost build-up inside the appliance.
paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
Remove as many items as needed at one time, and close the door as soon as possible.
3. Maintenance of freezer
3.1 Overall cleaning
Dusts behind the freezer and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
The interior of the freezer should be cleaned regularly to avoid odor.
Please turn off the power before cleaning interior, remove all foods, basket, container, etc.
Use a soft cloth or sponge to clean the inside of the freezer, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
For areas that are difficult to clean in the freezer (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the freezer or contaminated food.
Clean the baskets with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
Wipe the outer surface of the freezer with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.
Please unplug the freezer for defrost and cleaning.)
3.2 Defrosting
The freezer shall be manually defrosted.
Unplug the freezer and open the freezer door, remove foods and shelving basket before defrosting. Open the outflow hole and drainage hole, and place water container at the outflow hole. The indoor frost will naturally melt, wipe the defrost water with a dry, soft cloth. When the frost softens, an ice scraper may be used to accelerate the de-icing process.
Please remove the food and put in a cool place when defrosting before removing accessories.
Other mechanical devices or other means shall not be used to accelerate except those recommended by the manufacturer. Do not damage the refrigerant circuit.
3.3 Out of operation
Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.
Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.
Moving: Do not turn upside or vibrate the freezer. The carrying angle can not be greater than 45^ . Do not hold the door and hinge when moving this unit.
The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted, otherwise the service life may be impaired.
4. Trouble shooting
You may try to solve the following simple problems by yourself. If they cannot be solved, please contact the after-sales department.
| Failed operation | Check whether the appliance is connected to power or whether the plug is in well contact Check whether the voltage is too low Check whether there is a power failure or partial circuits have tripped |
| Smell | Odorous foods shall be tightly wrapped Check whether there is any rotten food Clean the inside of the freezer |
| Long-time operation of the compressor | Long operation of the freezer is normal in summer when the ambient temperature is high It is not suggestible having too much food in the appliance at the same time Food shall get cool before being put into the appliance The doors are opened too frequently Thick frost layer (defrost is needed) |
| Light fails to get lit | Check whether the freezer is connected to power supply and whether the illuminating light is damaged |
| Doors cannot be properly closed | The door is stuck by food packages Too much food; Unbalanced freezer |
| Loud noise | Check whether the floor is level and whether the freezer is placed stably. Check whether accessories are placed at proper locations |
| Transient difficulty in door opening | After refrigeration, there will be pressure difference between the inside and outside of the freezer to result in transient difficulty in door opening. This is a normal physical phenomenon. |
| Freezer enclosure heat Condensation | The freezer enclosure may emit heat during operation specially in summer. This is cause by the radiation of the condenser and it is a normal phenomenon. Condensation on the exterior surface and door seals of the freezer is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel. |
| Abnormal noises | Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal and does not affect the cooling effect. Buzz will be generated by running compressor, specially when starting up or shutting down. The solenoid valve or electric switch valve will clatter, which is a nomal phenomenon and does not affect the operation. |
Table 1 Climate classes
| Class Symbol | Ambient temperature range (°C) | |
| Extended temperate | SN | +10 to +32 |
| Temperate | N | +16 to +32 |
| Subtropical | ST | +16 to +38 |
| Tropical | T | +16 to +43 |
Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^ ;
temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 32^ ;
Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 38^ ;
Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 43^ ;
Special for new European standard:
The ordered parts in the following table can be acquired from our after sales service:
| Ordered Part | Provided by | Minimum Time Required for Provision |
| thermostats | Professional maintenance personnel | At least 7 years after the last model is launched on the market |
| temperature sensors | Professional maintenance personnel | At least 7 years after the last model is launched on the market |
| printed circuit boards | Professional maintenance personnel | At least 7 years after the last model is launched on the market |
| light sources | Professional maintenance personnel | At least 7 years after the last model is launched on the market |
| door handles | Professional repairers and final users | At least 7 years after the last model is launched on the market |
| door hinges | Professional repairers and final users | At least 7 years after the last model is launched on the market |
| trays | Professional repairers and final users | At least 7 years after the last model is launched on the market |
| baskets | Professional repairers and final users | At least 7 years after the last model is launched on the market |
| door gaskets | Professional repairers and final users | At least 10 years after the last model is launched on the market |
This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.
-
Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
-
Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
-
Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
-
Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.
-
Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.
-
Civil liabilities of any nature.
-
Consequential damage to the appliance as long as it has not been caused by an internal malfunction.
-
Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.
-
Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.
-
Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.
-
Appliances used in industrial applications or for commercial purposes.
-
Appliances with illegible or altered serial number.
-
Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.
14.During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.
-
Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.
-
Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".
AVERTISSEMENTS DE SECURITÉ
CONDITIONS DE LA GARANTIE
Scan for manual in other languages and further updates:
