USER MANUAL EMZ851 EAS Electric

Abstract arrangement of gray and white triangular shapes (no text or symbols)

CONGELADOR

FREEZER

CONGÉLATEUR

CONGELADOR

Simple line drawing of a rectangular frame with a curved top and two corner supports at the bottom (no text or symbols)

EMZ851

QR code with embedded logo and text 'ERS ELECTRIC' in the center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Contenido

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing hand holding a pen and checkmark next to a camera icon, with a hand holding a magnifying glass on the left side.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a monitor and equipment (no text or symbols)

Simple line drawing of a refrigerator with a top-mounted appliance (no text or symbols)

Simple line drawing of a refrigerator with tools and a crossed-out cross symbol (no text or labels)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Line drawing of a person climbing a ladder inside an open wardrobe (no text or symbols)

Simple line drawing of a trash can with a sad face and warning symbols (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, cheese, and milk, accompanied by an 'X' symbol and an exclamation mark.

Blood Design Natural product

Diagram showing a hand holding a cylindrical object labeled 'Beet' with a cross symbol and an exclamation mark indicating warning.

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Simple line drawing of a person pushing a cardboard box with a smiling face (no text or symbols)

Simple line drawing of a refrigerator with a sad face, sun, and potted plant (no text or symbols)

Simple line drawing of a refrigerator and a window (no text or symbols)

Simple line drawing of a 3D box with a smiling face and two vertical lines, no text or symbols present.

Isometric line drawing of a rectangular box with two side clips and a flat top (no text or symbols)

Simple line drawing of a table with legs and a side table, no text or symbols present

Simple line drawing of a structural beam with supports and a downward arrow indicating upward motion (no text or symbols)

Simple line drawing of a table with a handle and a small object on top (no text or symbols)

Simple line drawing of a two-level structure with supports and a horizontal beam (no text or symbols)

Simple line drawing of a mechanical or architectural component with no text, numbers, or symbols

Simple line drawing of a rectangular frame with horizontal bars and arrows indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a rectangular refrigerator with lid and front panel (no text or symbols)

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

Illustration of various household items including a kettle, spray bottle, and a container (no text or symbols)

6 Meanings of safety warning symbols

6 Electricity related warnings

7 Warnings for use

7 Warnings for placement

8 Warnings for energy

8 Warnings for disposal

9 PROPER USE OF REFRIGERATOR

9 Placement

10 Levelling feet

10 Door Right-Left Change

12 Start to use

12 Energy saving tips

13 STRUCTURE AND FUNCTIONS

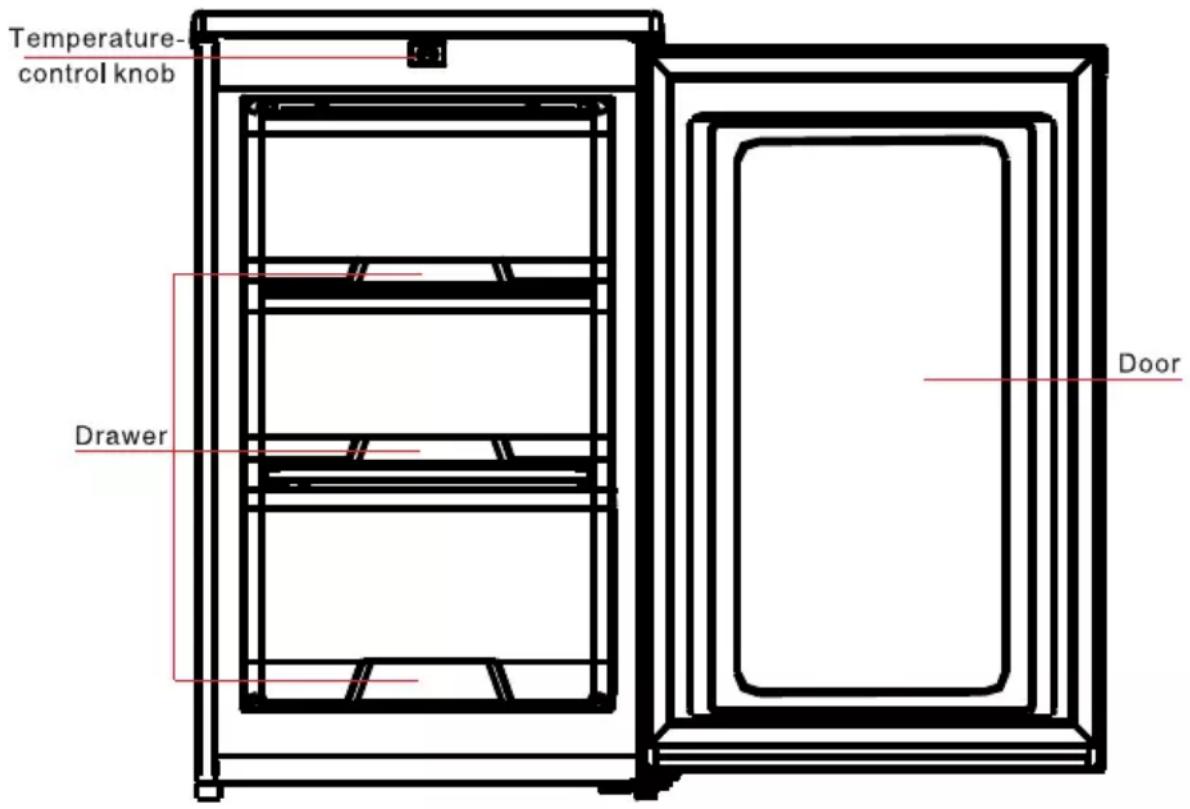

13 Key components

14 MAINTENANCE AND CARE OF REFRIGERATOR

14 Overall cleaning

14 Defrosting

15 Out of operation

16 TROUBLE SHOOTING

17 WARRANTY

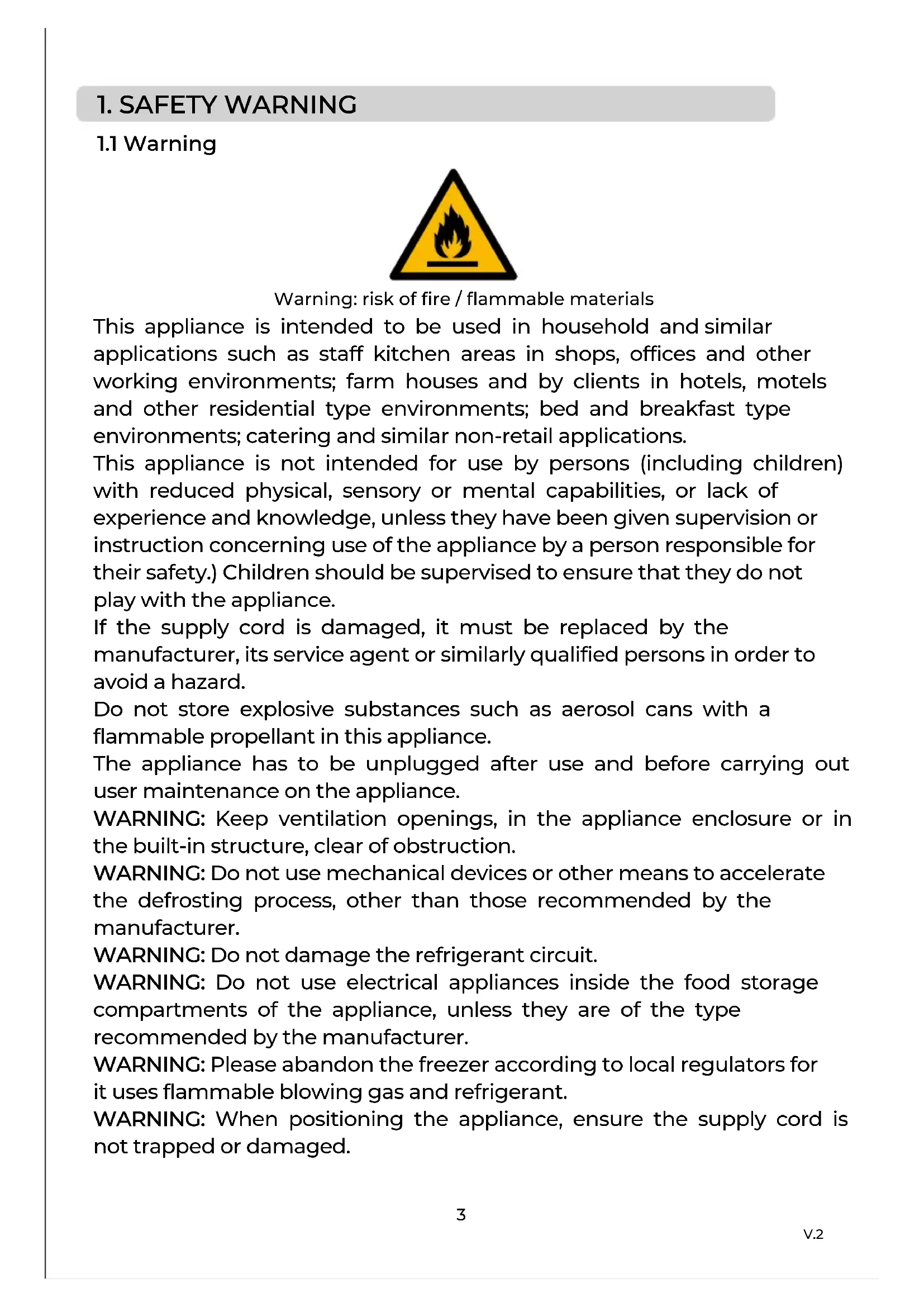

1. SAFETY WARNING

1.1 Warning

Warning sign depicting a flame symbol in yellow and black on white background

Warning: risk of fire / flammable materials

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.) Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the freezer according to local regulators for it uses flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Do not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

Take off the doors.

Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

For EU standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing and making ice-cream and making ice cubes. (note 2)

• One, two and three-star compartments are not suitable for the freezing of fresh food. (note 3)

• Appliances without a 4-star compartment are not suitable for freezing foodstuffs (note 4).

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1, 2, 3, 4: Please confirm whether it is applicable according to your product compartment type.

For freestanding appliances: this appliances is not intended to be used as a built-in unit.

WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

WARNING: Connect to potable water supply only. (Suitable for ice making machine)

To prevent a child from being entrapped, keep out of reach of children and not in the vicinity of freezer (or refrigerator). (Suitable for products with locks)

1.2 Meaning of safety warning symbols

Prohibition symbol

This is a prohibition symbol.

Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol

This is a warning symbol.

It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.

Note symbol

This is a cautioning symbol.

Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Diagram showing hand gesture with checkmark and finger pointing to a cartoon character, alongside a checkmark symbol and a hand holding a pen.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a monitor and equipment (no text or symbols)

Simple line drawing of a refrigerator with a mounted appliance (no text or symbols)

Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.

To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances. The power plug should be firmly contacted with the socket or else fires might be caused.

Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.

1.4 Warnings for using

Simple line drawing of a refrigerator with a knife and tools, no text or symbols present

Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.

Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when closing the refrigerator door to avoid falling articles.

Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Line drawing of a person hanging from an open wardrobe (no text or symbols)

Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

Simple line drawing of a sad, anthropomorphic object with a frowning face and a stack of boxes, accompanied by a crossed-out symbol and an exclamation mark (no text or labels)

Do not place heavy objects on the top of the refrigerator considering that objectives may fall when you close or open the door, and accidental injuries might be caused.

Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

Illustration of hands holding a tray with a bottle, boxes, and a cross symbol (no text or labels)

Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

Do not place flammable items near the refrigerator to avoid fires.

B/vei Drugs Antique mèch

The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

Freezing chamber Bear

Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 Warnings for energy

1. Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2. The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3. The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
4. The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5. The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

1. 7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

2. Proper use of refrigerator

2.1 Placement

Simple line drawing of a person carrying a cardboard box next to an elevator (no text or symbols)

Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

Simple line drawing of a refrigerator with a sad face, sun, and a potted plant nearby (no text or symbols)

Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Simple line drawing of a refrigerator and a refrigerator with a door (no text or symbols)

The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat and sturdy (rotate left or right to adjust the wheel for levelling if unstable).

Simple line drawing of a refrigerator with a smiling face and wheels, no text or symbols present.

The top space of the refrigerator shall be greater than 30cm, and the refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation.

Precautions before installation:

Information in the Instruction Manual is only for reference. The physical product may differ. Before installation and adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

Precautions shall be taken to prevent fall of the handle from causing any personal injury.

2.2 Levelling feet

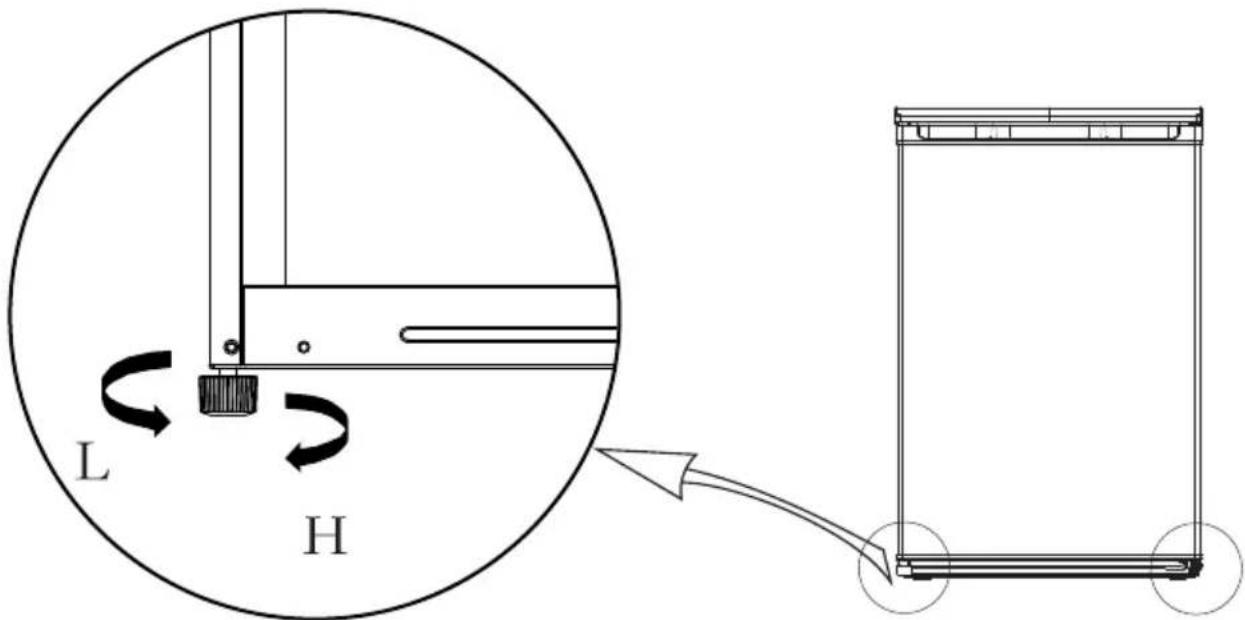

Schematic diagram of the levelling feet

L H

(The picture above is only reference. The actual configuration will depend on the physical product or statement by the distributor)

Adjustment procedures:

a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.

2.3 Door Right-Left Change

List of tools to be provided by the user
	Cross screwdriver		Putty knife thin-blade screwdriver
	5/16" socket and ratchet		Masking tape

1) Power off the refrigerator, and remove all objects from the door trays.
2) Fix the door with tape.

Isometric line drawing of a rectangular box with four corner clips (no text or symbols)

3) Unscrew screws of the top cover. Remove the top cover.

Simple line drawing of a table with legs and a side table, no text or symbols present

Simple line drawing of a table with an upward arrow indicating motion (no text or symbols)

4) Unscrew screws of the upper hinge. Remove the upper hinge.

5) Remove the door. Unscrew screws of the bottom hinge. Remove bottom hinge and levelling feet.

Simple line drawing of a mechanical setup with a flat base and clamping tool (no text or symbols)

Simple line drawing of a mechanical or architectural component with no text, numbers, or symbols

6) Fix the levelling feet, bottom hinge in the opposite side.
7) Assemble the door stopper and axle sleeve in the opposite side.

Simple line drawing of a mechanical or architectural component with no text, numbers, or symbols

Simple rectangular frame with arrows indicating left and right sides (no text or symbols)

8) Put down the door on bottom hinge vertically. Fix the upper hinge, fix top cover of refrigerator.

Technical line drawing of a mechanical assembly with no visible text or symbols

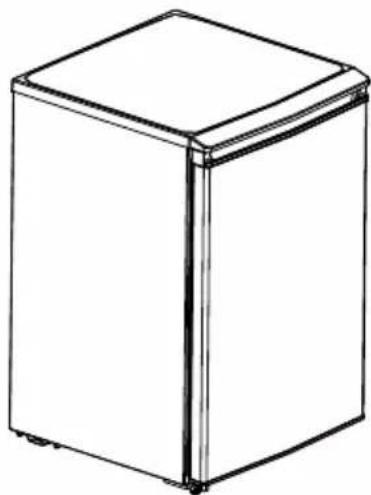

Line drawing of a single refrigerator with lid and front panel (no text or symbols)

2.4 Start to use

Simple line drawing of a smiling rectangular character with eyes closed, connected to an electrical outlet (no text or symbols)

Before initial start, keep the refrigerator still for half an hour before connecting it to power supply.

Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

553mm 574mm 1010mm 135° 994mm

Spare enough space for convenient opening of the doors and drawers or statement by the distributor.

2.5 Energy saving tips

away from heat producing appliances or heating ducts, and out of the direct sunlight.

appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

placing them in the appliance. This cuts down on frost build-up inside the appliance.

paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

searches. Remove as many items as needed at one time, and close the door as soon as possible.

3. Structure and functions

3.1 Key components

Temperature- control knob Drawer Door

(The picture above is only reference. The actual configuration will depend on the physical product or statement by the distributor)

Freezing chamber

above.

other foods not to be consumed in short term.

access. Please be noted food shall be consumed within the shelf time.

Note: Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall no block the air outlet; or otherwise the freezing effect will also be adversely affected.

Temperature-control knob

1- -2 • 4- -3

summer, according to actual needs, the thermostat adjusted to 4.

winter, according to actual needs, the thermostat adjusted to 1.

4. Maintenance and care of refrigerator

4.1 Overall cleaning

Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.

The interior of the refrigerator should be cleaned regularly to avoid odor. Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.

Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.

Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.

Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally. Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior.

Boiling water and organic solvents such as benzene may deform or damage plastic parts.

Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Illustration of various household items including a gas cylinder, alcohol spray bottle, and a kettle with a flame (no text or symbols)

Please unplug the refrigerator for defrost and cleaning.)

4.2 Defrost

Power off the refrigerator.

Remove the food from the refrigerator and place it properly to prevent food from melting.

Clean the drain pipe (to use soft materials to prevent damage to the liner). Prepare the water containers for defrosting (pay attention to clean the compressor compartment water draining tray, avoiding overflow to the ground).

You can use the natural temperature for the natural defrost, you can also use the ice shovel to eliminate the frost (to use plastic or wooden shovel, for avoiding damage to the liner or pipe).

You can also use the appropriate amount of hot water to speed up the defrost, with a dry towel to dry the water after defrosting.

After defrosting, put back the foods in cabinet, and power the refrigerator.

4.3 Stop using

Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.

Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.

Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers, etc. with tape, and tighten the levelling feet; close the doors and seal them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ . Do not hold the door and hinge when moving this unit.

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted, otherwise the service life may be impaired.

5. Trouble shooting

5.1 You may try to solve the following simple problems by yourself. If they cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contact.Check whether the voltage is too low.Check whether there is a power failure or partial circuits have tripped.
Odor	Odorous foods shall be tightly wrapped.Check whether there is any rotten food.Clean the inside of the refrigerator.
Long-time operation of the compressor	Long operation of the refrigerator is normal in summer when the ambient temperature is high.It is not suggestible having too much food in the appliance at the same time.Food shall get cool before being put into appliance.The doors are opened too frequently.
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged.Have the light replaced by a specialist.
Doors cannot be properly closed	The door is stuck by food packages.Too much food is placed.The refrigerator is tilted.
Loud noise	Check whether the floor is level and whether the refrigerator is placed stably.Check whether accessories are placed at proper locations.
Door seal fails to be tight	Remove foreign matters on the door seal.Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting.The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting.
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal. When housing becomes hot due to high ambient temperature, storage too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation.
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high.Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

EAS ELECTRIC

SMART TECHNOLOGY

www.easelectric.es

Table 1 Climate classes

Class Symbol		Ambient temperature range (°C)
Extended temperate	SN	+10 to +32
Temperate	N	+16 to +32
Subtropical	ST	+16 to +38
Tropical	T	+16 to +43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’;

The ordered parts in the following table can be acquired from our after sales service:

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

Contenu

AVERTISSEMENTS DE SÉCURITÉ

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing hand gesture with checkmark and magnifying glass, alongside a cartoon face with a smiling face.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a monitor and equipment (no text or symbols)

Simple line drawing of a refrigerator with a top-mounted appliance (no text or symbols)

Simple line drawing of a refrigerator with tools and a crossed-out cross symbol (no text or labels)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Line drawing of a person climbing a ladder inside an open wardrobe (no text or symbols)

Simple line drawing of a trash can with a sad face and warning symbols (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, cheese, and milk, accompanied by an 'X' symbol and an exclamation mark.

Blood Design Natural product

Diagram showing a hand holding a beer bottle with a cross symbol and warning sign, alongside stacked cylindrical objects.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a person pushing a cardboard box (no text or symbols)

Simple line drawing of a refrigerator with a sad face, sun, and potted plant (no text or symbols)

Simple line drawing of a refrigerator and a window (no text or symbols)

Simple line drawing of a box with a smiling face and two vertical lines above it (no text or symbols)

Isometric line drawing of a rectangular box with two side clips and a top cover (no text or symbols)

Simple line drawing of a table with legs and a side table, no text or symbols present

Simple line drawing of a structural beam with supports and a downward arrow indicating upward motion (no text or symbols)

Simple line drawing of a table with a handle and a small object on top (no text or symbols)

Simple line drawing of a two-level structure with supports and a horizontal beam (no text or symbols)

Simple line drawing of a mechanical assembly with no text or symbols

Simple line drawing of a rectangular frame with horizontal bars and arrows indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a rectangular refrigerator with lid and front panel (no text or symbols)

2.4 Mise en service

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

Illustration of various household items including a water bottle, spray bottle, and kettle (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing hand holding a pen and checkmark next to a robot icon, with partial text labels visible.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a monitor and equipment (no text or symbols)

Simple line drawing of a refrigerator with a top-mounted appliance (no text or symbols)

Simple line drawing of a refrigerator with a knife and tools, no text or symbols present

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Line drawing of a person hanging from an open wardrobe (no text or symbols)

Simple line drawing of a sad, anthropomorphic object with a frowning face and a stack of boxes, accompanied by a crossed-out symbol and an exclamation mark (no text or labels)

Illustration of hands holding a tray with a bottle, boxes, and a cross symbol (no text or labels)

Freezing chamber Beet

Symbol of a trash bin crossed with two crossed arms, no text or labels present

Simple line drawing of a person pushing a cardboard box next to an elevator (no text or symbols)

Antes de usar, remova todas as embalagens, incluindo rolhas e fitas adesivas, de dentro do congelador e remova a película protetora das portas e paredes.

Simple line drawing of a refrigerator with a sad face, sun, and potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a refrigerator with a door (no text or symbols)

Simple line drawing of a refrigerator with a smiling face and wheels, no text or symbols present.

Isometric line drawing of a rectangular box with two side clips and a flat top (no text or symbols)

3) Desaparafusar os parafusos da tampa superior. Retirar a tampa superior.

Simple line drawing of a table with legs and a side table, no text or symbols present

Simple line drawing of a table with an upward arrow indicating motion (no text or symbols)

4) Desaparafusar os parafusos da dobradiça superior. Retirar a dobradiça superior.

Simple line drawing of a table with a handle and a small object on top (no text or symbols)

Simple line drawing of a mechanical or architectural component with no text, numbers, or symbols

Simple line drawing of a mechanical or architectural component with no text, numbers, or symbols

Simple rectangular frame with arrows indicating horizontal and vertical motion (no text or symbols)

8) Pousar a porta na dobradiça inferior verticalmente. Fixar a dobradiça superior, fixar a tampa superior do frigorífico.

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a simple refrigerator with a square top and side panel (no text or symbols)

Simple line drawing of a smiling rectangular character with eyes closed, connected to a power outlet (no text or symbols)

Gas Alcohol Water

Scan for manual in other languages and further updates:
