EMCF153 - Freezer EAS Electric - Free user manual and instructions

Product type	Chest freezer
Brand	EAS Electric
Model	EMCF153
Capacity	Approximately 150 L (estimate)
Climate class	SN, N, ST, T (from +10°C to +43°C)
Power supply	230 V / 50 Hz (estimate)
Rated power	Not specified
Energy consumption	Not specified
Refrigerant type	Flammable gas (not specified)
Main features	Rotary temperature control, interior light, storage basket, storage compartment
Maintenance and cleaning	Manual defrosting, interior cleaning with baking soda, exterior cleaning with soft cloth
Safety	Automatic shutdown in case of overheating? Child lock not mentioned
Spare parts available	Thermostats, sensors, circuit boards, lights, handles, hinges, shelves, baskets, door gaskets (available up to 7 or 10 years after end of commercialization)
Warranty	3 years (Spain and Portugal)
Noise level	Not specified

Frequently Asked Questions - EMCF153 EAS Electric

How to set the temperature of my EAS Electric EMCF153 freezer?

Turn the temperature control knob on the panel. Settings range from 1 (least cold) to 7 (coldest). For quick freezing, use the highest level 12 hours before adding food, then return to a normal setting.

How to defrost the freezer?

Unplug the appliance, open the door and remove the food. Place a container under the drain hole. The frost melts naturally. You can accelerate with an ice scraper (do not use metal objects or mechanical devices). Wipe the interior with a clean cloth.

What to do in case of a power outage?

Food stays cold for several hours. Avoid opening the door and do not add fresh food. If the outage lasts a long time, check the food condition and discard any that have thawed.

How to clean the inside of the freezer?

Unplug the appliance, remove food and accessories. Clean with a soft cloth soaked in a mixture of 2 tablespoons of baking soda per 1 liter of warm water. Rinse and dry. Do not use harsh detergents or water directly.

What to do if the freezer makes noise?

Slight noise is normal (compressor, refrigerant circulation). If the noise is loud, check that the appliance is level, the floor is stable, and accessories are properly placed. Lubricate hinges if necessary.

How to replace the interior light bulb?

Unplug the appliance. Remove the light cover. Unscrew the old bulb and replace it with a new one of max. 15 W. Replace the cover and plug in. For LED, contact a professional.

What is the lifespan of spare parts?

Parts such as thermostats, sensors, circuit boards, lights, handles, hinges, shelves and baskets are available at least 7 years after end of commercialization. Door gaskets are available at least 10 years.

Can I freeze hot food?

No, always let food cool to room temperature before placing it in the freezer. Hot food increases energy consumption and may damage the compressor.

Which foods should not be frozen?

Do not freeze carbonated drinks in sealed bottles (risk of explosion), nor highly flammable, explosive or corrosive foods. Also avoid perishable foods with very short shelf life.

How to maintain the door gasket?

Clean the gaskets regularly with a soft cloth soaked in soapy water or diluted detergent. Check that there is no residue. A clean gasket ensures good sealing and reduces energy consumption.

USER MANUAL EMCF153 EAS Electric

Line drawing of a single open refrigerator with lid, vent, and side panel (no text or symbols)

EMCF153

QR code with embedded logo and text 'EAS ELECTRONICS'

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Diagram showing three electrical installation methods: one with a switch, another with a power socket, and a third with a plug.

Simple line drawing of a wall socket with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a cabinet and monitor, no text or symbols present

Simple line drawing of a box with a small box and warning symbol (no text or labels)

Diagram showing a box with a warning symbol and a broken-out tool, accompanied by a crossed-out cross symbol.

Simple line drawing of a box with a starburst on the lid and an exclamation mark in the corner (no text or symbols)

Illustration of a child climbing inside a rectangular box with a broken object, marked with an exclamation mark (no text or symbols on the diagram itself)

Cartoon illustration of a sad, anthropomorphic character with arms and legs, standing on a surface with a 'X' symbol and a warning sign (no text or symbols on the character itself)

Illustration showing a hand holding a tray with labeled items including a bottle, a container, and a cross symbol, alongside a warning icon.

Blood Dryness Insulin defect

Diagram showing a hand holding a beer bottle next to stacked cylindrical containers, with an exclamation mark and warning symbol nearby.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Simple line drawing of a box with a smiling face and a small plug attached to the side (no text or symbols)

Hand-drawn sketch showing various chemical and beverage items including gas, alcohol, spray bottle, and kettle with a small symbol below.

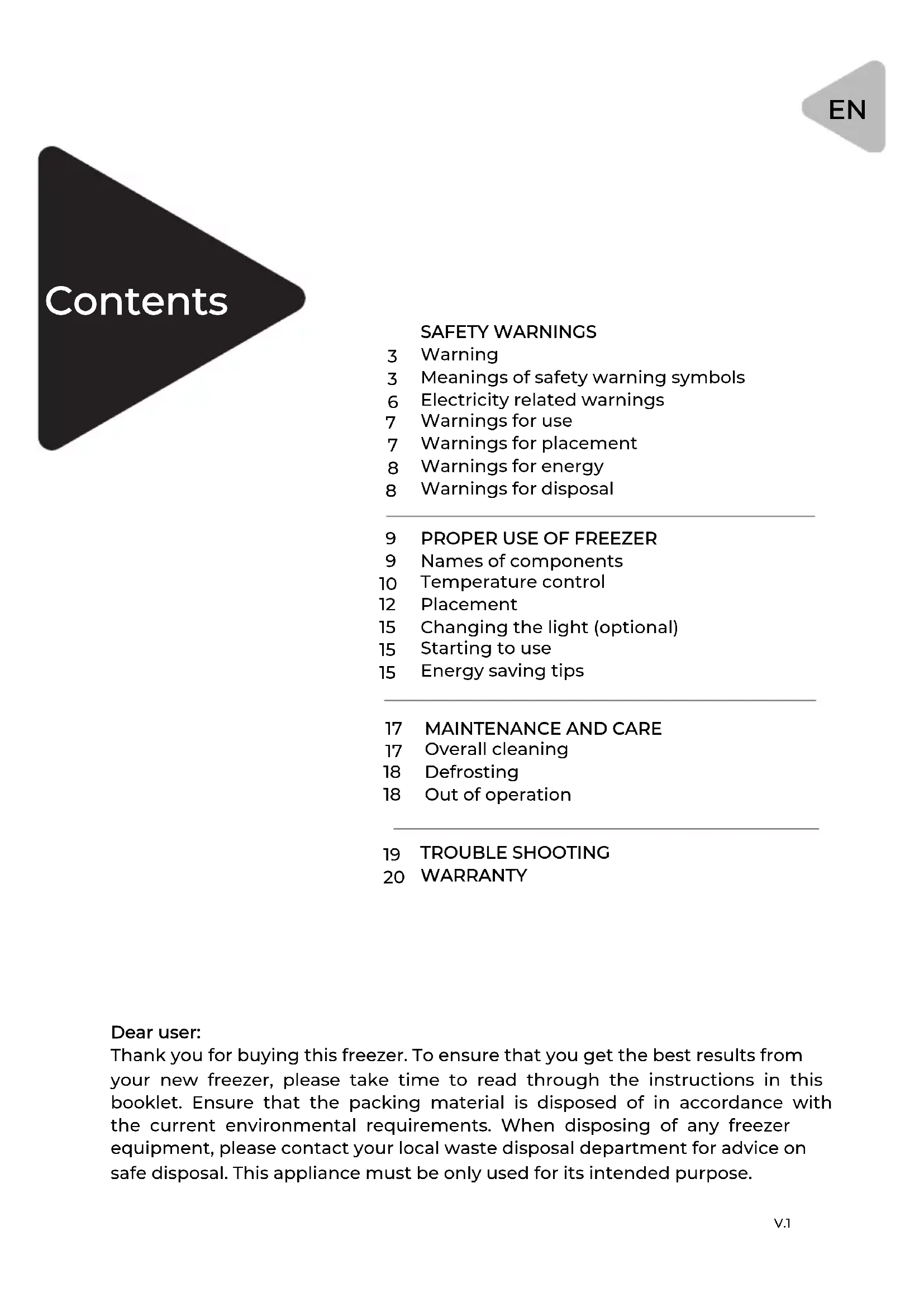

3 Warning
3 Meanings of safety warning symbols
6 Electricity related warnings
7 Warnings for use
7 Warnings for placement
8 Warnings for energy
8 Warnings for disposal

9 PROPER USE OF FREEZER
9 Names of components
10 Temperature control
12 Placement
15 Changing the light (optional)
15 Starting to use
15 Energy saving tips

17 MAINTENANCE AND CARE
17 Overall cleaning
18 Defrosting
18 Out of operation

19 TROUBLE SHOOTING
20 WARRANTY

Dear user:

Thank you for buying this freezer. To ensure that you get the best results from your new freezer, please take time to read through the instructions in this booklet. Ensure that the packing material is disposed of in accordance with the current environmental requirements. When disposing of any freezer equipment, please contact your local waste disposal department for advice on safe disposal. This appliance must be only used for its intended purpose.

1 SAFETY WARNING

1.1 Warning

Warning sign depicting a flame symbol in yellow and black on white background

Warning: risk of fire / flammable materials

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it uses flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Do not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

For IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children should be supervised to ensure that they do not play with the appliance.

To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing and making ice-cream and making ice cubes. (note 2)

- One, two and three-star compartments are not suitable for the freezing of fresh food. (note 3)

- Appliances without a 4-star compartment are not suitable for freezing foodstuffs (note 4).

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1, 2, 3, 4: Please confirm whether it is applicable according to your product compartment type.

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. See chapter 2.4 for lamp replacement.

WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

1.2 Meaning of safety warning symbols

Prohibition symbol

This is a prohibition symbol.

Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol

This is a warning symbol.

It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.

Note symbol

This is a cautioning symbol.

Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Diagram illustrating electrical circuit switch installation with checkmarks and no symbols

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a window and equipment, no text or symbols present

Simple line drawing of a box with a small object on top and warning symbols (no text or labels)

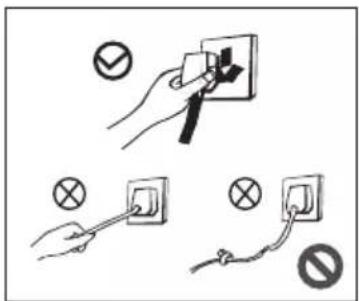

Do not pull the power cord when pulling the power plug of the freezer. Please firmly grasp the plug and pull out it from the socket directly.

Do not damage the power cord under any condition so as to ensure safe use, and do not use when the power cord is damaged or the plug is worn.

Worn or damaged power cords shall be replaced in manufacturer-authorized maintenance stations.

The power plug should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the freezer and other electrical appliances considering that spark may cause a fire.

To ensure safety, it is not recommended to place regulators, rice cookers, microwave ovens or other appliances on top of the freezer, except those recommended by the manufacturer. Do not use electrical appliances in the food pan.

1.4 Warnings for using

Simple line drawing of a box with a magnified view showing a small object and a prohibition symbol (no text or labels)

Do not arbitrarily disassemble or reconstruct the freezer, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.

Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a box with a starburst on the lid and an exclamation mark at the bottom (no text or symbols)

The gaps between freezer doors and between doors and freezer body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when closing the freezer door to avoid falling articles.

Illustration of a child climbing inside a rectangular container with a falling object, marked with an exclamation mark (no text or symbols on the diagram itself)

Do not pick foods or containers with wet hands in the freezing chamber when the freezer is running, especially metal containers in order to avoid frostbite.

Do not allow children to get into or climb the freezer; otherwise suffocation or falling injury of the child may be caused.

Do not spray or wash the freezer, and do not put it in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the freezer.

Cartoon illustration of a sad, anthropomorphic character with arms and legs, standing on a surface with a 'X' symbol and exclamation mark (no text or symbols on the character itself)

Do not place heavy objects on the top of the freezer because they may fall when you close or open the door, and accidental injuries might be caused.

Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

Illustration showing a hand holding a tray with labeled items including a bottle, a container, and a cross symbol, alongside a warning icon.

Do not put flammable, explosive, volatile and highly corrosive items in the freezer to prevent damages to the product or fire accidents.

Do not place flammable items near the freezer to avoid fires.

Blood Dryness Insulin defect

The freezer is intended for household use, such as storage of foods. According to national standards, it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

Diagram showing a hand holding a cylindrical object labeled 'Beer' with a cross symbol and an exclamation mark, likely illustrating a cooking or cooking process.

Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

1.6 Warnings for energy

• Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
• The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold:
• The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
• The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
• The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

1. 7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

2. Proper use of the freezer

2.1 Names of components

Door handle (optional) Lamp (optional) Hinge Shelving basket Cabinet Drainage hole Power cord Shutter Temperature control panel

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

• The low temperature of freezer may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezer is suitable for storage of meat, fish, shrimp, pastries and other foods not to be consumed in short term. Do not store fluids in bottled or closed containers items such as bottled beer, beverages, etc.
• Please be noted food shall be consumed within the shelf time.
• The coldest gear can quickly freeze food in a short time, if a large amount of food is frozen at once, it is recommended that the user adjusts the gear to the coldest gear 12 hours in advance. In this way, the freezing speed of the freezer compartment is increased, so the food can be frozen quickly and the nutrition of the food can be effectively locked.

Reminder: When the gear is in the coldest gear, the power consumption may increase. After the food is quickly frozen, please adjust the gear back to the normal gear.

Notice: After long term using, there may be a certain degree of wear with the hinge which can cause noise when opening or closing the door and reduce the service life of the hinge. It is recommended to put grease on the hinge for maintenance regularly, it can effectively eliminate noise and extend the service life of the hinge.

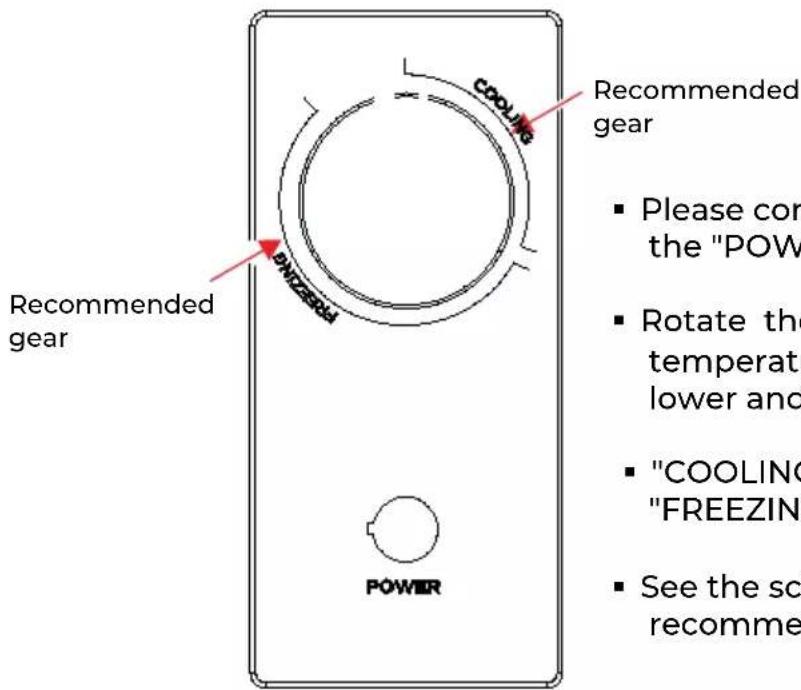

Recommended gear PANZEBEL COOLING Recommended gear Please con the "POW Rotate the temperat lower and "COOLING "FREEZIN See the sc recommend

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

2.3 Placement

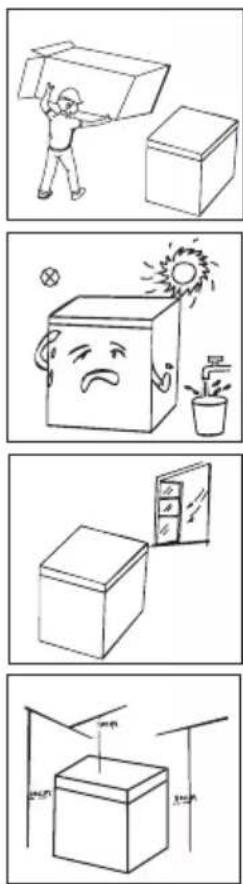

Four-panel cartoon showing a person lifting a box while reacting to a sad face, sun, and potted plant.

Before using the freezer, remove all packaging materials including bottom cushions and foam pads and tapes inside the freezer, tear off the protective film on the door and the freezer body.

Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

The freezer should be placed in a well-ventilated indoor place. The ground shall be flat and sturdy.

The top space of the freezer shall be greater than 70cm, and the distances from both sides and backside shall be more than 20cm to facilitate heat dissipation.

2.4 Changing the Light

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

Replacement of incandescent lamps:

Disconnect the power supply before carrying out the bulb replacement.

Hold and remove the light bulb cover.

Dismantle the old bulb by unscrewing it counterclockwise. Replace with a new bulb (max. 15W) by screwing it clockwise, and make sure it is fixed in the bulb holder tightly.

Reassemble the light cover and reconnect your freezer to the power supply.

2.5 Starting to use

Simple line drawing of a box with a smiling face and a small plug attached to the side (no text or symbols)

The freezer shall stay for half an hour before connecting power when it is firstly started.

The freezer shall run 2 to 3 hours before loading fresh or frozen foods. The freezer shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.

2.6 Energy saving tips

heat producing appliances or heating ducts, and out of the direct sunlight.

Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

the appliance. This cuts down on frost build-up inside the appliance.

paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

Remove as many items as needed at one time, and close the door as soon as possible.

3. Maintenance and care of the appliance

3.1 Overall cleaning

Dusts behind the freezer and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.

The interior of the refrigerator should be cleaned regularly to avoid odor.

Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.

Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.

Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.

Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally. Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Gas Alcohol Bottle Sprout Hotpot

Please unplug the freezer for defrost and cleaning.)

3.2 Defrosting

The freezer shall be manually defrosted.

Unplug the freezer and open the freezer door, remove foods and shelving basket before defrosting. Open the outflow hole and drainage hole, and place water container at the outflow hole. The indoor frost will naturally melt, wipe the defrost water with a dry, soft cloth. When the frost softens, an ice scraper may be used to accelerate the de-icing process.

Please remove the food and put in a cool place when defrosting before removing accessories.

Other mechanical devices or other means shall not be used to accelerate except those recommended by the manufacturer. Do not damage the refrigerant circuit.

3.3 Out of operation

Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.

Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.

Moving: Do not turn upside or vibrate the freezer. The carrying angle can not be greater than 45^ . Do not hold the door and hinge when moving this unit.

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted, otherwise the service life may be impaired.

4. Trouble shooting

You may try to solve the following simple problems by yourself. If they cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Smell	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the freezer is normal in summer when the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequentlyThick frost layer (defrost is needed)
Light fails to get lit	Check whether the freezer is connected to power supply and whether the illuminating light is damagedHave the light replaced by a specialist
Doors cannot be properly closed	The door is stuck by food packagesToo much food;Unbalanced freezer
Loud noise	Check whether the floor is level and whether the freezer is placed stably. Check whether accessories are placed at proper locations
Transient difficulty in door opening	After refrigeration, there will be pressure difference between the inside and outside of the freezer to result in transient difficulty in door opening. This is a normal physical phenomenon.
Freezer enclosure heat Condensation	The freezer enclosure may emit heat during operation specially in summer. This is cause by the radiation of the condenser and it is a normal phenomenon.Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noises	Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal and does not affect the cooling effect.Buzz will be generated by running compressor, specially when starting up or shutting down. The solenoid valve or electric switch valve will clatter, which is a normal phenomenon and does not affect the operation.

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.
5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.
6. Civil liabilities of any nature.
7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.
8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.
9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.
10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.
11. Appliances used in industrial applications or for commercial purposes.
12. Appliances with illegible or altered serial number.
13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.
14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.
15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.
16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Table 1 Climate classes

Class Symbol		Ambient temperature range (°C)
Extended temperate	SN	+10 to +32
Temperate	N	+16 to +32
Subtropical	ST	+16 to +38
Tropical	T	+16 to +43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Special for new European standard:

The ordered parts in the following table can be acquired from our after sales service:

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

Contenu

AVERTISSEMENTS DE SÉCURITÉ

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Diagram illustrating three electrical circuit symbols: a switch, a power socket, and a plug with a prohibition sign.

Simple line drawing of a wall socket with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a window and equipment, no text or symbols present

Simple line drawing of a box with a small object on top and warning symbols (no text or labels)

Diagram showing a box with a warning symbol and a broken-out tool, accompanied by a crossed-out cross symbol.

Simple line drawing of a box with a starburst on the lid and an exclamation mark in the corner (no text or symbols)

Illustration of a child crawling inside a rectangular box with a broken object, no text or symbols present

Cartoon illustration of a sad, anthropomorphic character with arms and legs, standing on a surface with a warning symbol (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, a container, and a cross symbol, alongside a warning icon.

Blood Dryness Insulin defect

Diagram showing a hand holding a beer bottle next to stacked cylindrical containers, with an exclamation mark and warning symbol nearby.

Simple line drawing of a smiling cube with a small attached icon (no text or symbols)

Illustration of various household items including a gas container, shower bottle, and steaming cup (no text or symbols)

CONDITIONS DE LA GARANTIE

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Diagram showing three electrical installation methods: one using a switch, another with a bulb, and a third with a bulb.

Simple line drawing of a wall socket with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a window and cabinet, no text or symbols present

Simple line drawing of a box with a small box on top and warning symbols (no text or labels)

Simple line drawing of a box with a magnified view showing a small object and a prohibition symbol (no text or labels)

Simple line drawing of a box with a starburst on the lid and an exclamation mark at the bottom right (no text or symbols)

Illustration of a child climbing inside a rectangular container with a broken object, marked with an exclamation mark (no text or symbols on the diagram itself)

Cartoon illustration of a sad, anthropomorphic object with a stack of boxes on top, surrounded by legs and a warning symbol (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, a container, and a cross symbol, alongside a warning icon.

Blood Dryness Insulin defect

Diagram showing a hand holding a beer bottle next to stacked cylindrical objects, with an exclamation mark and warning symbol nearby.

Simple line drawing of a smiling cube with a small attached icon (no text or symbols)

Illustration of various household items including a bottle, spray bottle, and cooking pot (no text or symbols)
