EMV70DTX - Oven EAS Electric - Free user manual and instructions

Brand	EAS Electric
Model	EMV70DTX
Product type	Built-in oven
Cooking functions	Defrosting, Bottom heat, Conventional cooking, Convection cooking, Single grill, Double grill, Double grill with fan, ECO
Temperature range	50-250°C (cooking), 180-240°C (grill)
Display	LED with 24-hour clock
Timer	Yes, programmable up to 9h59
Delay start function	Yes, programmable delayed start
Reminder function	Yes, from 0:01 to 9:59
Child safety	Yes, key lock
Interior lighting	Yes (except ECO mode), halogen bulb 25W/230V T300°C
Removable door	Yes, with glass disassembly for cleaning
Included accessories	Grid, removable support, universal tray (depending on model)
Cleaning	Do not use abrasive cleaners or steam cleaners
Power supply	230V ~ 50Hz (estimate)
Warranty	3 years (Spain and Portugal)
Installation	Must be carried out by a qualified technician
Ventilation	Cooling fan continues after cooking if temperature > 75°C
Energy saving mode	Yes, screen turns off after 10 min in standby
Number of grid levels	Multiple positions (grid on side rails)

Frequently Asked Questions - EMV70DTX EAS Electric

How to set the oven clock?

Press the ☐ button until the hour digits flash. Turn knob K2 to set the hour (0-23). Press ☐ again to switch to minutes, turn K2 (0-59). Confirm by pressing ☐. The clock is in 24-hour format.

How to use the delayed cooking function?

First set the clock. Press the timer setting button, turn K2 to set the start hour (0-23), press again and set the minutes (0-59). Then turn K1 to select the cooking function, then press ☐ to set the time and temperature. The timer icon lights up. The oven will start automatically at the programmed time.

How to activate child safety?

Press simultaneously the ☐ and ☐ buttons for 3 seconds. A beep sounds and the lock icon lights up. To deactivate, repeat the same operation.

How to clean the inside of the oven?

Unplug the oven and wait until it is lukewarm. Use a damp cloth, soft brush or non-abrasive pad. For stubborn dirt, use hot water with a mild detergent. Never use abrasive cleaners, metal scrapers or steam cleaners.

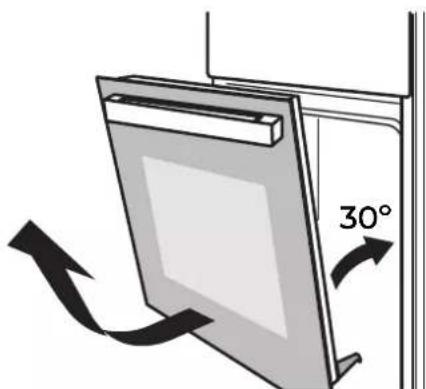

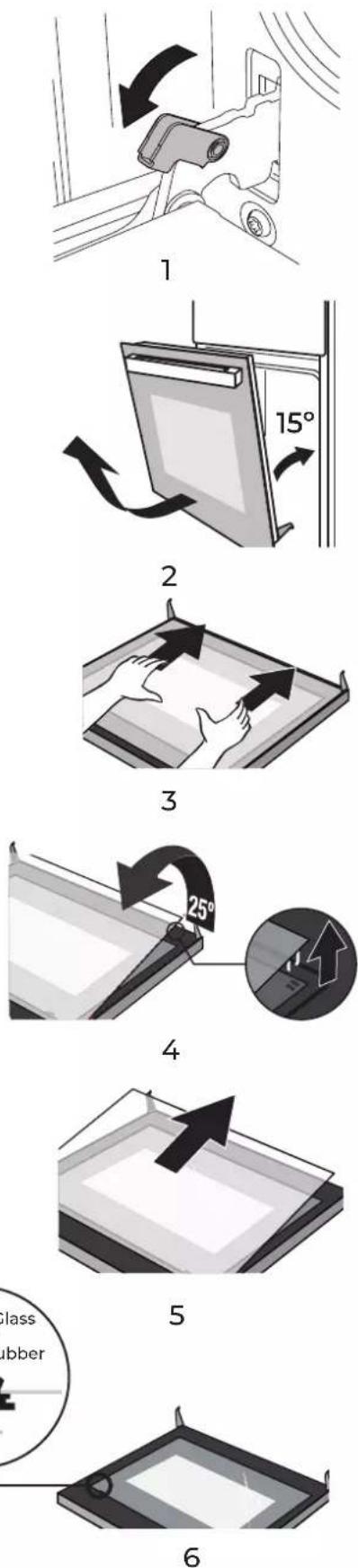

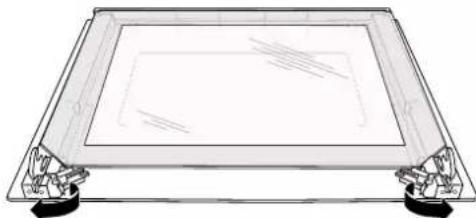

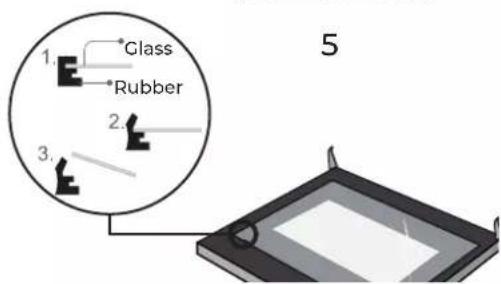

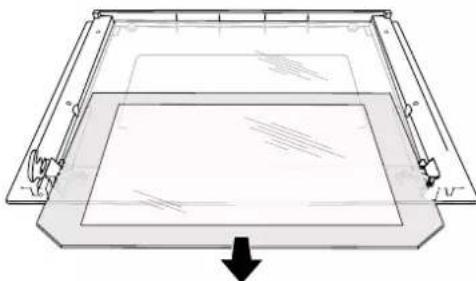

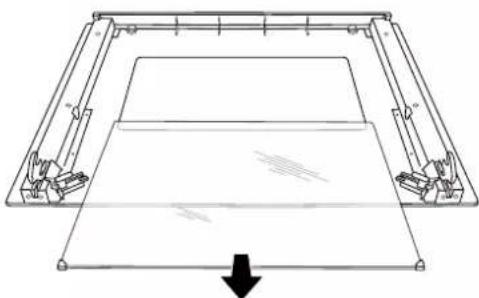

How to remove the oven door for cleaning?

Open the door fully, then pull the metal hinge locks outward. Close the door to about 15°, lift it and carefully remove it. To disassemble the glass, place the door flat, separate the outer glass by lifting it about 25°, then remove the inner glass after lifting the rubber. Be careful of the hinge springs.

What to do if the oven emits smoke or odor during first use?

This is normal due to the adhesive agent in the insulation. Heat the empty oven in conventional cooking mode at 250°C for 90 minutes to burn off impurities. Ventilate the room. Do not put food until the odor has disappeared.

What is the ECO function and how to use it?

The ECO function provides energy-efficient cooking with gentle heat from top and bottom. To use it, turn knob K1 until the ECO symbol is selected. No temperature adjustment is possible; the oven automatically applies the optimal setting. Suitable for slow-cooked dishes.

How to change the oven light bulb?

Unplug the oven. Unscrew the glass cover (counterclockwise). Replace the bulb with a halogen bulb type 25W/230V, resistant to 300°C. Screw the cover back on. Do not touch the bulb with bare fingers.

Why does the fan continue to run after cooking?

The cooling fan continues to operate as long as the internal oven temperature exceeds 75°C. It stops automatically when the temperature drops below this threshold. This is normal.

What accessories are included with the oven?

Depending on the model, the oven may include: one or two metal grids, a side removable support, a universal baking tray, and possibly telescopic guides. Check the accessory list in the packaging.

USER MANUAL EMV70DTX EAS Electric

Abstract arrangement of gray and white triangular shapes arranged in a row (no text or symbols)

HORNO

OVEN

FOUR

FORNO

Simple diagram with two circles above a horizontal line, likely indicating a division or partitioning step.

EMV70DTX

QR code with embedded logo and text 'ERS' and 'PEE ECTECH' in the center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Pure geometric diagram of a rectangular plate with vertical slats, no text or symbols present

Pure diagram of a container with horizontal lines and a wavy top section, no text or symbols present.

Pure geometric diagram of a rectangular frame with internal hexagonal divisions (no text or symbols)

Technical line drawing of a multi-tiered grid structure with mounting brackets (no text or symbols)

Technical line drawing of an oven with internal structure and ventilation slots (no text or symbols)

O

Technical line drawing of an open oven or rack unit with internal compartments and ventilation grilles (no text or symbols)

Simple line drawing of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Diagram showing a square window with arrows indicating direction and a close-up of a screw with a circular hole (no text or symbols)

Technical diagram of an electronic device with labeled ports and components, including a zoomed-in inset showing a component labeled 'N' and 'L'.

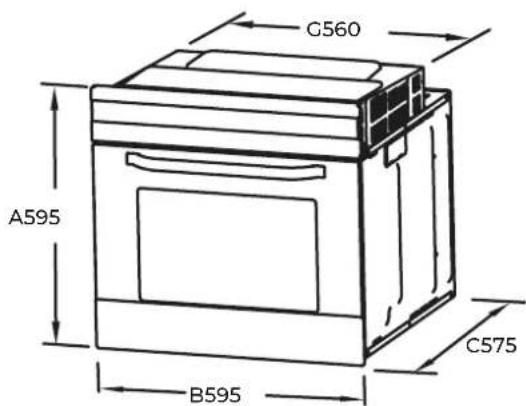

INSTALACIÓN

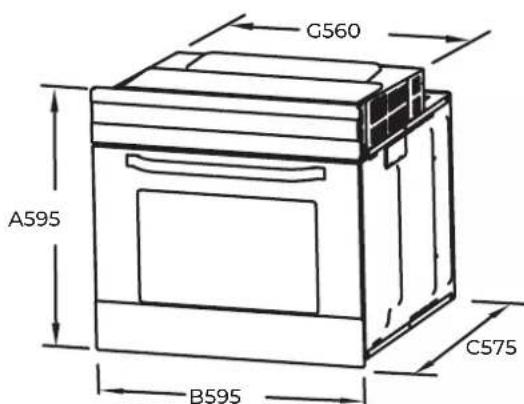

G560 A595 B595 C575

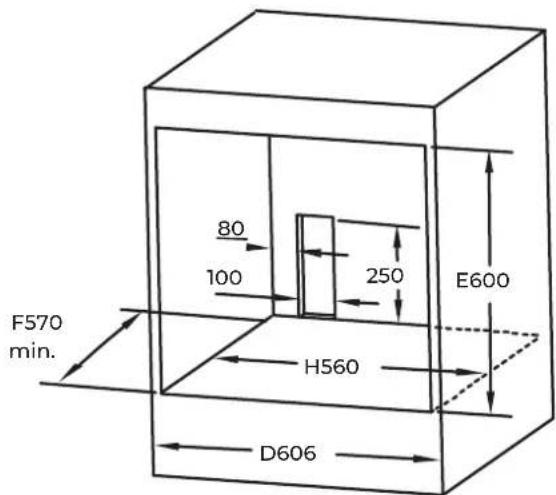

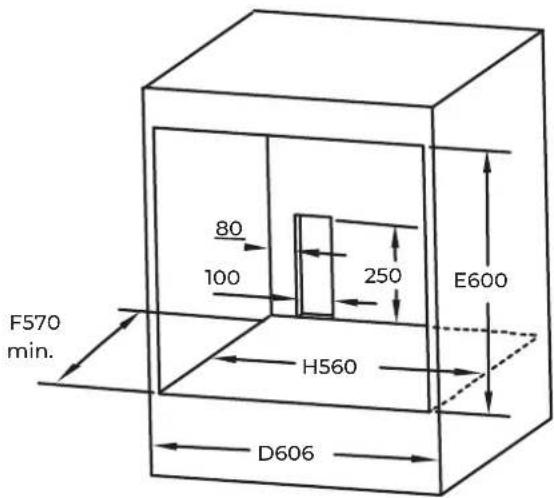

F570 min. 80 100 250 H560 E600 D606

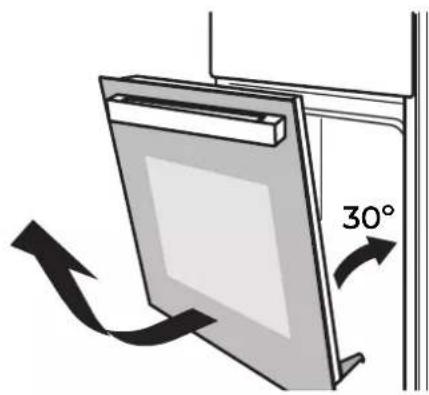

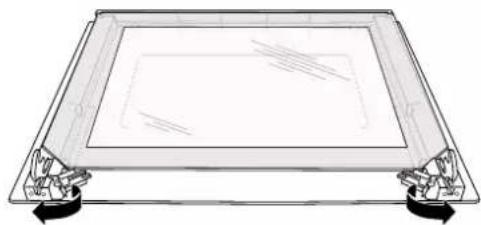

Nota:

Symbol of a trash bin crossed with no visible text or labels

Technical diagram showing a mechanical assembly with a highlighted inset view of a gear mechanism (no text or symbols present)

Diagram of a door frame with 30-degree angle标注 and directional arrows indicating rotation (no text or symbols beyond the angle marker)

Technical line drawing of a rectangular frame with corner supports and a central screen (no text or symbols)

Technical line drawing of a rectangular frame with internal components and an arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

CONDICIONES DE LA GARANTÍA

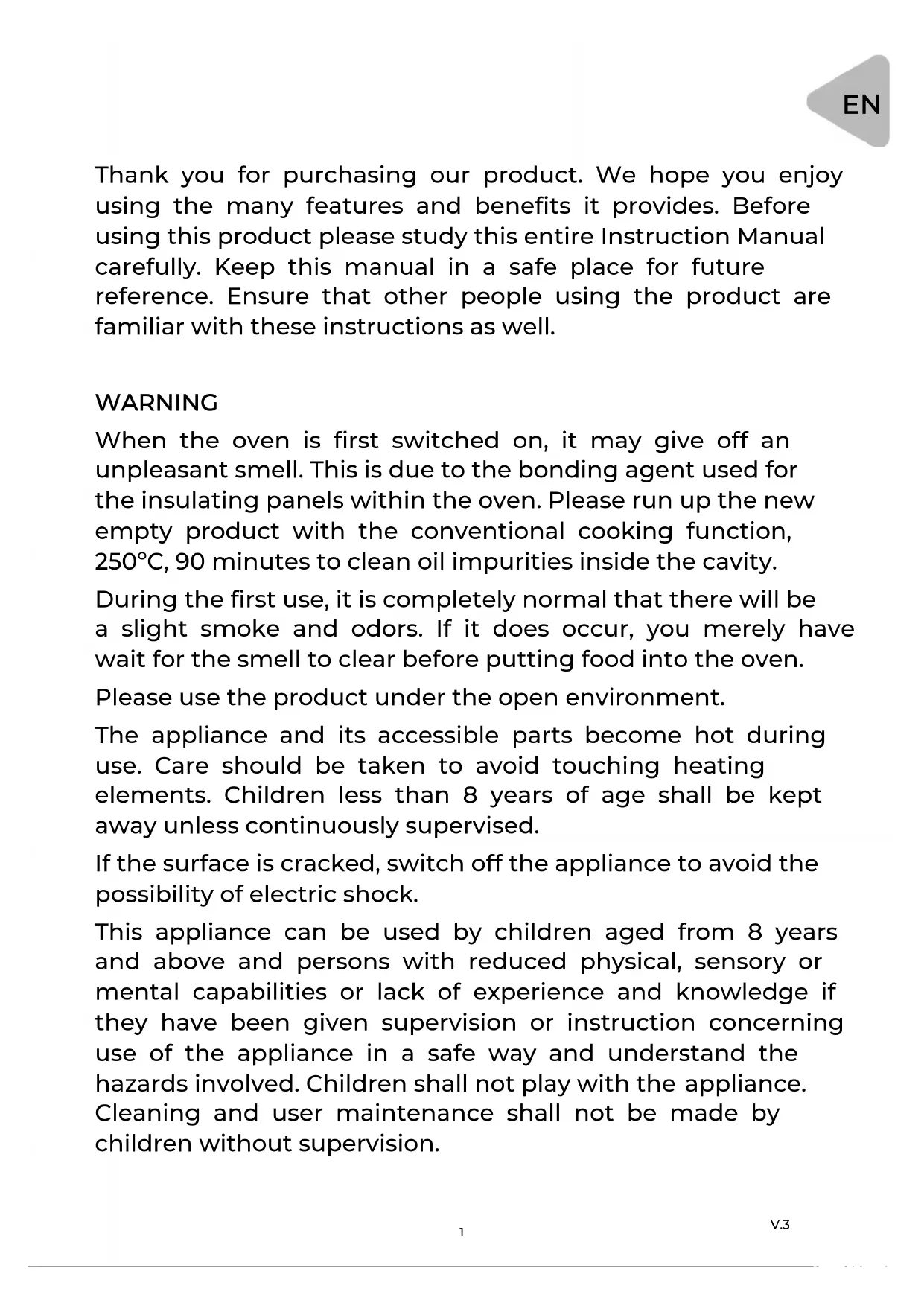

Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference. Ensure that other people using the product are familiar with these instructions as well.

WARNING

When the oven is first switched on, it may give off an unpleasant smell. This is due to the bonding agent used for the insulating panels within the oven. Please run up the new empty product with the conventional cooking function, 250°C, 90 minutes to clean oil impurities inside the cavity.

During the first use, it is completely normal that there will be a slight smoke and odors. If it does occur, you merely have wait for the smell to clear before putting food into the oven.

Please use the product under the open environment.

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Do not allow children to go near the oven when it is operating, especially when the grill is on.

Ensure that the appliance is switched off before replacing the oven lamp to avoid the possibility of electric shock.

An all-pole disconnection means must be incorporated in the fixed wiring in accordance with the wiring rules.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

A steam cleaner is not to be used.

The appliances are not intended to be operated by means of an external timer or separate remote-control system.

The instructions for ovens that have shelves shall include details indicating the correct installations of the shelves.

This oven is designed for indoor domestic use. If it is used for other purposes, or if it is misused, the warranty will be void.

SAFETY HINTS

• Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet.
• For oven: Oven door should not be opened often during the cooking period.
• The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement, and installation by unauthorized personnel.
• When the door or drawer of oven is open do not leave anything on it, you may unbalance your appliance or break the door.
• Some parts of appliance may keep its heat for a long time; it is required to wait for it to cool down before touching onto the points that are exposed to the heat directly.
• If you will not use the appliance for a long time, it is advised to plug it off.
• Remove excessive dirt before cleaning; refer to the products that can be used inside the oven during cleaning.
• Use only the temperature probe recommended for this oven.

FITTING THE OVEN INTO THE KITCHEN UNIT

Fit the oven into the space provided in the kitchen unit; it may be fitted underneath a work top or into an upright cupboard. Fix the oven in position by screwing into place, using the two fixing holes in the frame. To locate the fixing holes, open the oven door and look inside. To allow adequate ventilation, the measurements and distances adhered to when fixing the oven.

IMPORTANT

If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit that are next to the oven must be made of a heat resistant material. Ensure that the glues of units that are made of veneered wood can withstand temperatures of at least 120 °C. Plastics or glues that cannot withstand such temperatures will melt and deform the unit, once the oven has been lodged inside the units, electrical parts must be completely insulated. This is a legal safety requirement.

All guards must be firmly fixed into place so that it is impossible to remove them without using special tools. Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. The hob must have a rear gap of at least 45 mm.

DECLARATION OF COMPLIANCE

When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualified person.

Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because these are dangerous to children.

CE

PRODUCT DESCRIPTION

K1 Remind button Start button K2 Time button Stop button

Symbol Function description
	Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions except ECO function.
	Defrost: The circulation of air at room temperature enables quicker thawing of frozen food,(without the use of any heat). It's a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream filled produce etc.
	Bottom heater: A concealed element in the bottom of the oven provides heat. It is mainly used for keeping food warm. The temperature can be set within the range of 60-120°C. The default temperature is 60°C.
	Conventional cooking: The top and bottom work together to provide convectional cooking. The temperature can be set within the range of 50-250°C. The default temperature is 220°C.
	Convention with fan: Combination of the fan and both heating element provides more even heat penetration, saving up to 30-40% of energy. Dishes are lightly browned on the outside and still moist on the inside. Note: This function is suitable for grilling or roasting big pieces of meat at a higher temperature. The temperature can be set within the range of 50-250°C. The default temperature is 220°C.
	Radiant grilling: The inner grill element switches on and off to maintain temperature. The temperature can be set within the range of 180-240°C. The default temperature is 210°C.
	Double grilling: The inside radiant element and top element are working.The temperature can be set within the range of 180-240°C. The default temperature is 210°C.
[3CBD]	Double grilling with fan: The inside radiant element and top element are working with fan The temperature can be set within the range of 180-240°C. The default temperature is 210°C.
	For energy-saved cooking. Cooking the selected ingredients in a gentle manner, and the heat comes from the top and the bottom.

OPERATION INSTRUCTIONS

After connecting the unit to the power, the symbols "0:00" will be visible on the display.

1. Clock Setting

1> Press " ☐", the hour figures will flash.
2> Rotate "K2" to adjust the hour figures, (time should be within 0--23).
3> Press "☐" again, the minutes will flash.
4> Rotate "K2" to adjust the minutes setting, (time should be within 0--59).
5> Press "☐" to finish the clock settings. ":" will flash, and the time will be illuminated.

Note: The clock is 24 hours. After power on, if not set, the clock will show "0:00".

2. Function Setting

1> Rotate " K1 " to choose the cooking function you require. The related symbol will illuminate.
2>Rotate "K2" to adjust the temperature.
3> Press " ▶" to confirm the start of cooking.
4> If step 2 is ignored, Press "☐" to confirm the start of cooking and the default time is 9 hours, the default temperature will display on the LED.

NOTE:

1> The step quantities for the adjustment time of the knobs are as follows:

0--0:30 min: 1 minute steps

0:30--9:00 hour: 5 minute steps

2> The step quantities for the adjustment of temperature is 5^ C, and the grill function is 30^ C.

3> Rotate "K1" to adjust the cooking time when cooking begins. Then press "☐" to confirm. If "☐ not pressed within 3 seconds, the oven will revert back to the previous time to continue cooking.

4> Rotate "K2" to adjust the temperature when cooking begins. The related indicator will be illuminated. Then press "☐" to start cooking. If "☐" not pressed in 3 seconds, the oven will revert back to the previous temperatru to continue cooking.

3. Lamp Setting

1> Rotate"K1" to select the relevant function, then the corresponding icon will be on.

2 > Press " ▶" button to start, "0:00" and lamp icon " 😊" will light up, ":" will flash.

4. Inquiring function

In the following states, you can use inquiring function, after 3 seconds return to the current state

1> During working state, if the clock was set, press " ☐ button to see the current time; if the reminder function was set, press " ☐" button to see the time of reminder.

2> In reminding state, if the clock was set, press "☐" button to see the current time.

3> In clock display state, if the reservation function was set, press "☐" button to see the time of reservation.

5. Child lock function

To Lock: press "☐" and "☐" simultaneously for 3 seconds, there will be a long "beeping" sound and the "☐" will be illuminated.

Lock quitting: press "☐" and "☐" simultaneously for 3 seconds, there will be a long "beeping" sound indicating the child-lock is released.

Note: During working mode, if you want to stop cooking, press stop button quickly. Do not need to long pressing on stop button, it is invalid.

5. Reminder Function

This function will help to remind you to start cooking in a certain time from 0:01 to 9:59. Only when oven in standby mode, the reminder can be set. Follow below to set the reminder:

1> Press reminder setting button "☐";

2>Rotate " K2 " to set the hour time of reminder. (Time should be within 0--9).

3>Press reminder setting button "☐" again;

4> Rotate "K2" to set minute time of reminder. (Time should be within 0--59).

5>Press "☐" to confirm setting. The time will count down.

Note: The oven buzzer will sound for 10 times after the time back to the zero hour.

You can cancel the reminder during setting by pressing the stop button; After the reminder has been set, you can cancel it by pressing stop button twice.

7. Start/Pause/Cancel Function

1> If the cooking time has been set, press "☐" to start cooking. If the cooking is paused, press "☐" to resume cooking.

8.. Energy-Saving Function

1> In waiting state and reminding state, press "☐" for three seconds, the LED display will go off and set to energy-saving mode.

2>If no operation in 10 minutes under waiting state, the LED display will go off and go into energy-saving mode.

3>Under the energy-saving mode, press any key or rotate any knob can quit the energy-saving mode.

9.. Reservation function

1> To use reservation function, clock must be set in advance. Then, in the way of setting the clock, reserved time that oven starts to cook must be set:

a> Press reservation setting button "☐";

b> Rotate "K2" to set the hour time of reservation. Time should be within 0--23.

c>> Press reservation setting button " again;

d> Rotate "K2" to set minute time of reservation. Time should be within 0--59.), but don't press clock this time. Next, turn knob "K1" to choose function.

2> Press "☐" button to set cooking time and temperature. Then turn knob "K1" to adjust time, and "K2" to adjust temperature.

3> Press the "☐" button to finish cooking setting, and the clock will be on the screen with reservation sign ☒ " always lighting. But no other function signals are presented. Reservation time can be checked by pressing " ☐, 3 seconds later the screen will show clock again.

4> At the time of reservation, cooking will start automatically after a buzzing sound. The reservation symbol "☒" will put out, and other indicating signs will work normally.

Note:

1. Lamp, defrost, probe can't be reserved.

2. During the status of reservation, press cancel button once, time and temperature of reservation menu will be shown with menu icon lighting constantly. Press again, screen returns to clock, or press start button to return to reservation status.

3. Reminder function is invalid during reservation status.

5. Note

1> The oven lamp will be on for all functions (Except in ECO mode).

2> Once the cooking programme has been set and the "☐" button is not pressed within 5 minutes, the current time will be displayed or turn back to waiting state. The setting program will be invalid.

3> The buzzer will sound once when effectively pressed, if not effectively pressed there will be no response.

4> The buzzer will sound five times to remind you when cooking has finished.

ACCESSORIES

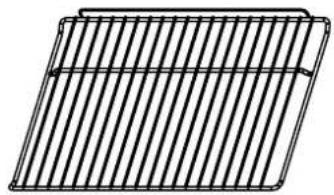

Grates: For grilling dishes or placing containers for roasting or baking food.

Pure geometric diagram of a rectangular grid with vertical lines, no text or symbols present

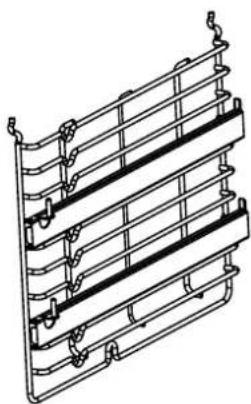

Removable rack: This rack is placed on the right and left side of the oven, and can be removed to clean the oven walls (depending on model).

Pure diagram of a grid structure with wavy lines, no text or symbols present

Universal tray: For cooking large quantities of food such as cakes, pastries, frozen food, etc... or for collecting grease or spillages from cooking meat.

Pure geometric diagram of a rectangular frame with internal hexagonal divisions (no text or symbols)

Telescopic guides: Some of the models contain telescopic guides to facilitate the use of the oven. These telescopic guides can be removed for cleaning by unscrewing the screws used to fix them. (depending on the model).

Technical line drawing of a multi-panel rack structure with no text or symbols

Recipes for ECO mode

Recipes	Temperature °C	Level	Time (min)	Preheat
Potato and cheese gratin	180 1		90-100	No
Cheese cake	160	1	100-150	No
Meatloaf	190	1	110-130	No

SHELF PLACEMENT WARNING:

To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is imperative. Shelves and the pan only can be used between the first and fifth layers. The shelves should be used with the right direction, it will ensure that during careful removal of the shelf or tray, hot food items should not slide out.

Technical line drawing of an oven with internal shelves and ventilation duct (no text or symbols)

OR

Technical line drawing of a multi-tiered oven or rack unit (no text or symbols)

BULB REPLACEMENT

The oven light bulb is a special bulb that is resistant to high temperatures. To replace it, proceed as follows:

• Disconnect power from the mains outlet or switch off the circuit breaker of the unit's mains outlet.
• Unscrew the glass lamp cover by turning it counter-clockwise (note, it may be stiff) and replace the bulb with a new one of the same type.
• Screw the glass lamp cover back in place.

Simple line drawing of a container with a fan and circular arrow indicating rotation (no text or symbols)

Note: Only use 25W/230V, T300°C halogen lamps.

SECURING THE OVEN TO THE CABINET

1. Fit oven into the cabinet recess.
2. Open the oven door and determine the location of the mounting screw holes.
3. Fix the oven to the cabinet with two screws.

Diagram showing a door frame with arrows indicating direction and a screw inserted into a circular hole, enclosed in a dashed circle (no text or symbols)

VENTILATING OPENINGS

When cooking is finished or in pause state or in waiting state, if the oven's center temperature is over 75 degree, the cooling fan will continue working for 15 minutes. Or when the oven's center temperature becomes lower than 75 degree, the cooling fan will stop in advance.

Ventilating openings

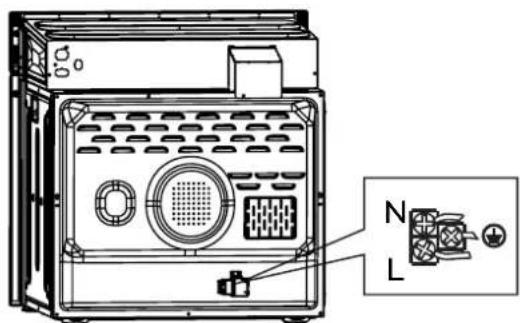

CONNECTION OF THE OVEN

Technical diagram of an electronic device with labeled ports and components, including a zoomed-in inset showing a component labeled 'N' and 'L'.

INSTALLATION

C560 A595 B595 C575

F570 min. 80 100 250 H560 E600 D606

Remark:

1. Only plus deviations are admissible for all dimension.
2. The cabinet is not include the power switch or socket.
3. The cabinet dimension is in mm.

NOTE: The number of accessories included depends on the particular appliance purchased.

CLEANING AND MAINTENANCE

For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to be cleaned regularly.

■ Before any maintenance and cleaning, disconnect the power.
- Set all controls in the OFF position.
- Wait until the inside of the unit is not hot but only slightly warm-cleaning is easier than when warm.
- Clean the surface of the unit with a damp cloth, soft brush or fine sponge and then wipe dry. In case of heavy soiling, use hot water with non-abrasive cleaning product.
- For cleaning the glass of the oven door, do not use abrasive cleaners or sharp metal scrapers, these can scratch the surface or lead to the glass being damaged.
- Never leave acidic substances (lemon juice, vinegar) on stainless steel parts.
- Do not use a high pressure cleaner for cleaning the unit. The baking pans may be washed in mild detergent.

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collecti on of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

REMOVING THE DOOR FROM OVEN (OPTIONAL)

Removable doors allow full access to entire interior of the oven for easier and quicker maintenance. Handle parts and glass with great care, as breakage due to improper handling is not covered by the warranty.

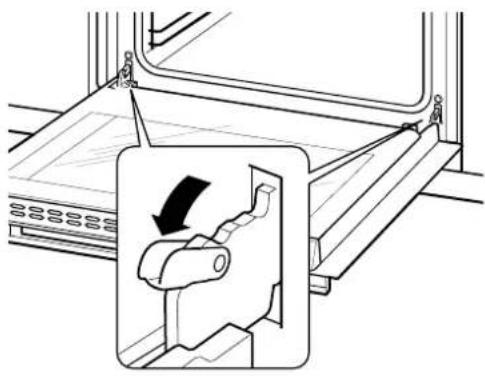

1. To remove the door, open the door to the maximum angle. Then pull the buckle at the door hinge backward. (Figure 1)

2. Close the door to an angle approximately 15^ . Lift up and slowly pull the door out from the oven. (Figure 2)

3. Place the door flatwise with door top cover towards yourself, put your hands on the glass and pull it towards the oven. (Figure 3)

4. Separate the glass carefully by lifting it approximately 25^ .(Figure 4)

5. Push the glass into the position indicated by the arrow in Figure 5. Gently pull the glass out of the socket.

6. After pulling out the inner glass, please take out the middle layer glass as shown in Figure 6.

7. When cleaning is completed, reverse the above procedures to return the door to its original position.

1. Glass Rubber 2. 3. 5

REMOVING THE DOOR FROM OVEN (OPTIONAL) TYPE-2

Disassembly of oven door components

1. To remove the door, open the door to the maximum angle.Then pull the buckle at the door hinge backward.
2. Close the door to an angle approximately 30^ . Hold the door with one hand on each side. Lift up and slowly pull the door out from the oven.

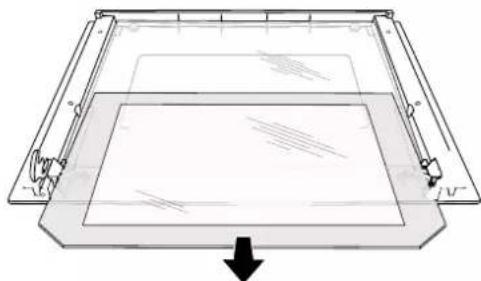

3. Open the door rotation bracket assembly, refer the action in the following picture.

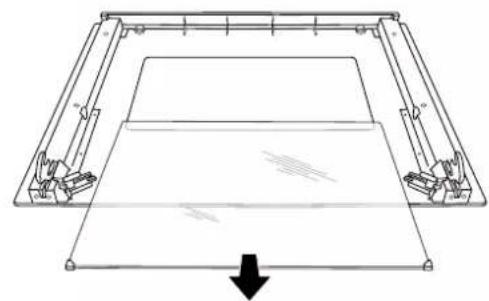

4. Lift up the door outer glass and pull it out, then take the door middle glass out in the same way.

WARNING:

Don't pull the door forcibly and prevent the glass breakage during the dismantling process.

WARNING:

Note that the hinge springs could loose and cause personal injury.

WARNING:

Do not lift or carry the oven door by the door handle.

Technical diagram showing a mechanical assembly with a highlighted inset view of a gear mechanism (no text or symbols present)

Diagram of a door frame with 30-degree angle标注 and directional arrows indicating rotation (no text or symbols beyond the angle marker)

Technical line drawing of a rectangular frame with corner supports and a central screen (no text or symbols)

Technical line drawing of a rectangular frame with internal components and an arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

EAS ELECTRIC

SMART TECHNOLOGY

www.easelectric.es

DÉCLARATION DE CONFORMITÉ

Simple line drawing of a rectangular plate with vertical slats (no text or symbols)

Pure diagram of a container with horizontal lines and a small U-shaped object at the bottom (no text or symbols)

Pure geometric diagram of a rectangular frame with internal diagonal lines (no text or symbols)

Technical line drawing of a multi-tiered mechanical or structural component with no visible text or symbols

Technical line drawing of an oven with internal shelves and a spherical component (no text or symbols)

OU

Technical line drawing of a multi-tiered storage unit with internal compartments and mounting brackets (no text or symbols)

REEMPLACEMENT DES AMPOULES

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Diagram showing a square window with arrows indicating rotation and a screw head with a circular detail (no text or symbols)

OUVERTURES DE VENTILATION

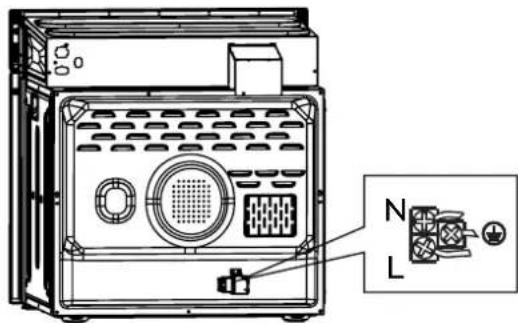

RACCORDEMENT DU FOUR

Technical diagram of an electronic device with labeled ports and internal components, including a zoomed-in inset showing connection details.

INSTALLATION

C560 A595 B595 C575

F570 min. 80 100 250 E600 H560 D606

Note :

Symbol of a trash bin crossed with no visible text or labels

RETIRER LA PORTE DU FOUR (EN OPTION)

RETIRER LA PORTE DU FOUR (OPTION) TYPE 2

Technical diagram showing a mechanical assembly with a highlighted component (no text or symbols present)

Diagram of a door frame with 30-degree angle标注 and directional arrows indicating rotation (no text or symbols beyond the angle marker)

Line drawing of a rectangular frame with two side supports at the bottom (no text or symbols)

Diagram of a rectangular tray with internal compartments and a downward arrow indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

CONDITIONS DE LA GARANTIE

EXCLUSIONS DE LA GARANTIE

Simple line drawing of a rectangular grid structure with vertical lines (no text or symbols)

Pure diagram of a grid structure with wavy lines, no text or symbols present

Pure geometric diagram of a rectangular frame with internal hexagonal divisions (no text or symbols)

Technical line drawing of a multi-tiered metal frame structure (no text or symbols)

Technical line drawing of an oven with internal compartments and a spherical component (no text or symbols)

OU

Technical line drawing of a multi-tiered oven or rack unit (no text or symbols)

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Nota: Utilizar apenas lâmpadas de halogéneo 25W/230V, T300°C.

Diagram showing a square window with arrows indicating rotation and a screw inserted into a circular hole (no text or symbols)

Technical diagram of an electronic device with labeled ports and a close-up inset showing component labels N and L.

INSTALAÇÃO

G560 A595 B595 C575

F570 min. 80 100 250 H560 E600 D606

Nota:

Technical diagram showing a mechanical assembly with a highlighted inset view of a gear mechanism (no text or symbols present)

Diagram of a door frame with 30-degree angle标注 and directional arrows indicating rotation (no text or symbols beyond the angle marker)

ADVERTÊNCIA:

Technical line drawing of a rectangular frame with corner supports and a central screen (no text or symbols)

Technical line drawing of a rectangular frame with internal components and a downward arrow indicating force or motion (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

CONDIÇÕES DA GARANTIA

Scan for manual in other languages and further updates:
