Product type	Built-in fridge-freezer, frost-free
Brand	EAS Electric
Model	EMZ177ASI
Cooling technology	Frost-free (No Frost)
Installation type	Built-in
Height (mm)	1770
Width (mm)	545
Depth (mm)	560
Voltage / Frequency	220-240 V / 50 Hz
Climate class	T/SN (10 °C to 43 °C)
Freezing capacity (24 h)	Check the appliance label
Number of freezer drawers	4 (including one for quick freezing)
Interior lighting	LED strip
Ice maker	Yes, with lever
Super freeze mode	Yes (activate 24 h before, duration 54 h)
Defrost	Automatic (frost-free)
Recommended cleaning	Baking soda solution and warm water
Availability of spare parts	10 years from the last market introduction
Commercial warranty	2 years (valid in Spain)
CE compliance	Yes

Frequently Asked Questions - EMZ177ASI EAS Electric

How to adjust the freezer temperature?

Press the freezer temperature adjustment key to scroll through values: -16 °C, -18 °C, -20 °C, -22 °C, -24 °C. The default temperature is -18 °C. To activate Super freeze mode, keep pressing until the Super symbol lights up.

When to use Super freeze mode?

Use Super freeze mode to quickly freeze large quantities of fresh food. Activate it 24 hours before placing the food. The mode stops automatically after 54 hours.

What to do if the freezer door does not close properly?

Check that food or packaging is not blocking the door. Make sure the drawers are properly in place and that the door gaskets are not damaged or twisted. Also check that the appliance is level.

Why is my freezer making noises?

The following noises are normal: cracking (automatic defrost or expansion), clicking (compressor start/stop), motor noise (compressor), bubbling or water flow (refrigerant or defrost water), blowing (air circulation). Excessive noise may indicate a problem.

How to clean the freezer?

Unplug the appliance. Clean the inside with a solution of warm water and baking soda. Rinse and dry. Do not use abrasive products. Clean the condenser with a brush at least twice a year.

Why are there water droplets on the back wall?

It is normal after an automatic defrost. The condensation water then evaporates. If humidity is excessive, check that food is well wrapped and that the door is not opened too often.

How to save energy with this refrigerator?

Install the appliance in a cool, ventilated place, out of direct sunlight. Let food cool down before storing. Keep doors closed as much as possible. Regularly clean the condenser and check the condition of the gaskets.

How to use the ice maker?

Pull the lever to remove the tray, fill with water up to the indicated level, replace it. When the ice cubes are formed, turn the lever to drop them into the bin. Never fill the ice maker compartment directly with water.

What does the red alarm on the panel mean?

The red alarm indicates a malfunction or abnormal temperature. If the appliance is plugged in for the first time or after a prolonged power cut, wait 1 hour. If the alarm persists, contact after-sales service.

What is the warranty duration and what does it cover?

The commercial warranty is 2 years from the date of sale, covering manufacturing defects (parts and labor). It is valid in Spain. Excludes normal wear, cosmetic damage, and failures due to incorrect use.

USER MANUAL EMZ177ASI EAS Electric

EN Built-in Freezer / User Manual

Simple line drawing of a door with a vertical slot on the left side (no text or symbols)

EMZ177ASI

3 USO DEL APARATO....12

Line drawing of an open refrigerator with labeled door and shelves (no text or symbols)

Technical line drawing of a door frame with ladder and side panel (no text or symbols)

Technical line drawing of a multi-level industrial or processing facility with directional arrows indicating flow or movement (no text or symbols present)

Diagram showing airflow or ventilation system with two circular components and red arrows indicating direction (no text or symbols)

Diagram of a device with two circular ports and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a refrigerated refrigerator with cooling panel and side-mounted unit (no text or symbols)

luces LED

6 TRANSPORTEY REUBICACIÓN

Line drawing of an open refrigerator with labeled door and side panel (no text or symbols)

Technical line drawing of a refrigerator with ladder and door frame (no text or symbols)

6) Tira de lâmpadas LED do congelador

Notas gerais:

Cross-sectional technical drawing of a multi-level industrial or storage unit with directional arrows indicating flow or movement (no text or symbols present)

3.2 Visor e Painel de Controlo

1 2 3 4 * super -16 -18 -20 -22 -24

Utilizar o Painel de Controlo

Diagram showing airflow or ventilation system with two circular chambers and red arrows indicating direction (no text or symbols)

Diagram of a device with two circular ports and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a refrigerated industrial machine with cooling panel and cooling unit (no text or symbols)

luzes LED

Thank you for choosing this product.

This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT Operating the system correctly	V.1

CONTENTS

1 SAFETY INSTRUCTIONS .... 50

1.1 General Safety Warnings ....50
1.2 Installation warnings....54
1.3 During Usage....54

2 DESCRIPTION OF THE APPLIANCE 56

2.1 Dimensions....57

3 USING THE APPLIANCE ....58

3.1 Information on No-Frost technology ....58
3.2 Display and Control Panel....59
3.3 Operating your Freezer 59
3.3.1 Freezer Temperature Set Button....59
3.3.2 Alarm symbol (Alarm LED)....59
3.3.3 Super Freezer Mode....59
3.3.4 Freezer Temperature Settings....59
3.4 Temperature Adjustment Warnings....60
3.5 Accessories 60
3.5.1 The Icematic 60

4 FOOD STORAGE 61

5 CLEANING AND MAINTENANCE 63

5.1 Defrosting....64

6 SHIPMENT AND REPOSITIONING....64

6.1 Transportation and Changing Positioning ....64

7 BEFORE CALLING AFTER-SALES SERVICE....65

8 TIPS FOR SAVING ENERGY 66

9 TECHNICAL DATA 66

10 INFORMATION FOR TEST INSTITUTES....67

11 CUSTOMER CARE AND SERVICE....67

12 COMMERCIAL GUARANTEE 68

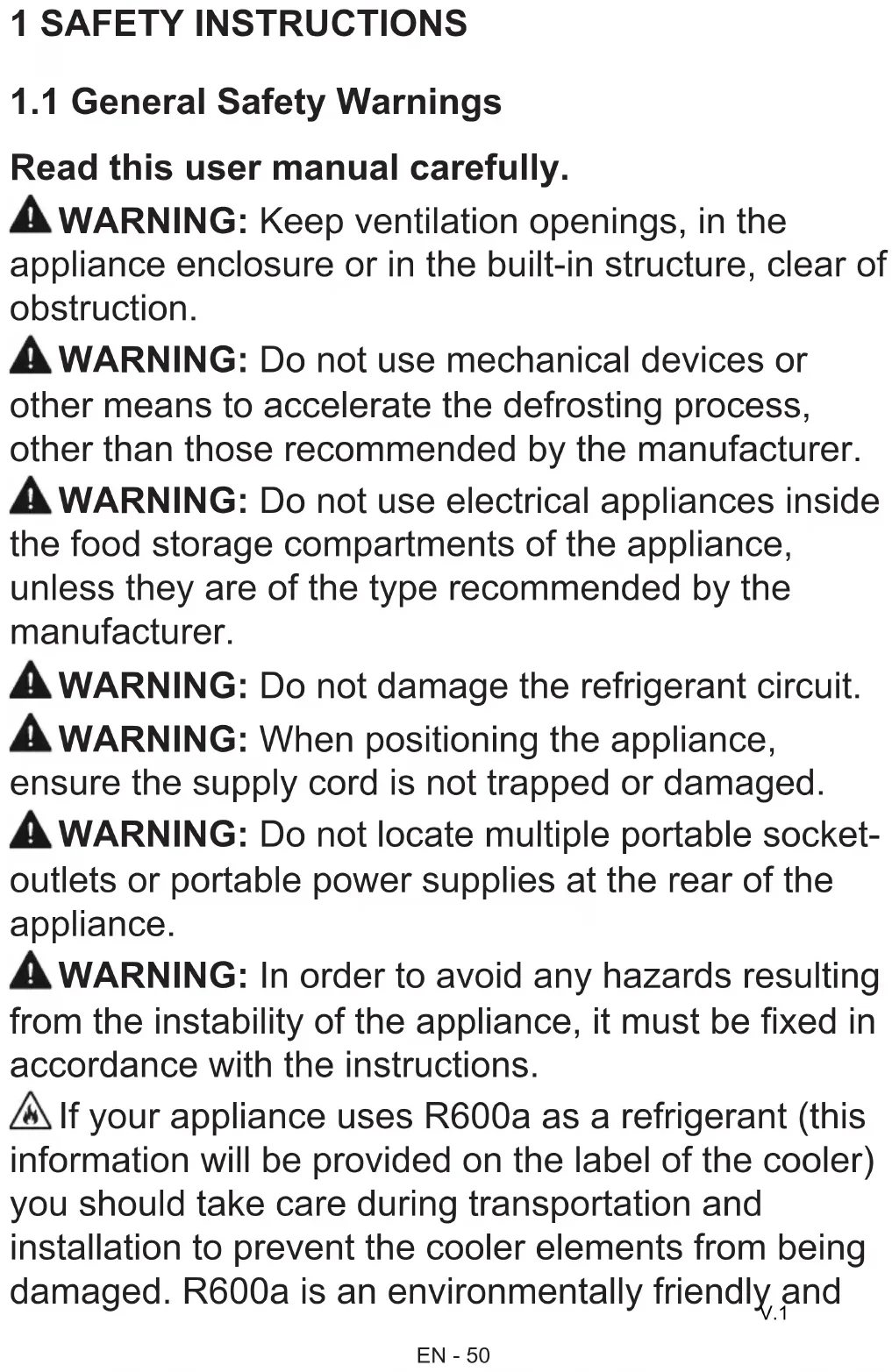

1 SAFETY INSTRUCTIONS

1.1 General Safety Warnings

Read this user manual carefully.

⚠ WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
⚠ WARNING: Do not damage the refrigerant circuit.
⚠ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
⚠ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
⚠ WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the instructions.
⚠️ If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly _v.1 and

natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and domestic applications such as:

-staff kitchen areas in shops, offices and other working environments.

-farm houses and by clients in hotels, motels and other residential type environments.

-bed and breakfast type environments;

-catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

- This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1.2 Installation warnings

Before using your freezer for the first time, please pay attention to the following points:

• The operating voltage for your freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your freezer may have an odour when it is operated for the first time. This is normal and the odour will fade when your freezer starts to cool.
• Before connecting your freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your freezer where it will not be exposed to direct sunlight.
• Your freezer must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
• If your freezer is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.
• Do not cover the body or top of freezer with lace. This will affect the performance of your freezer.

- Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.

- Do not place heavy items on the appliance.

- Clean the appliance thoroughly before use (see Cleaning and Maintenance).

- Before using your freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the freezer after cleaning.

- The installation procedure into a kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.

1.3 During Usage

• Do not connect your freezer to the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.
• Do not place glass bottles or cans in your freezer as they will burst when the contents freeze.
• Do not place explosive or flammable material in your freezer.
• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.
• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Packaging and the Environment

Packaging materials protect your machine from damage that may occur during transportation.

The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

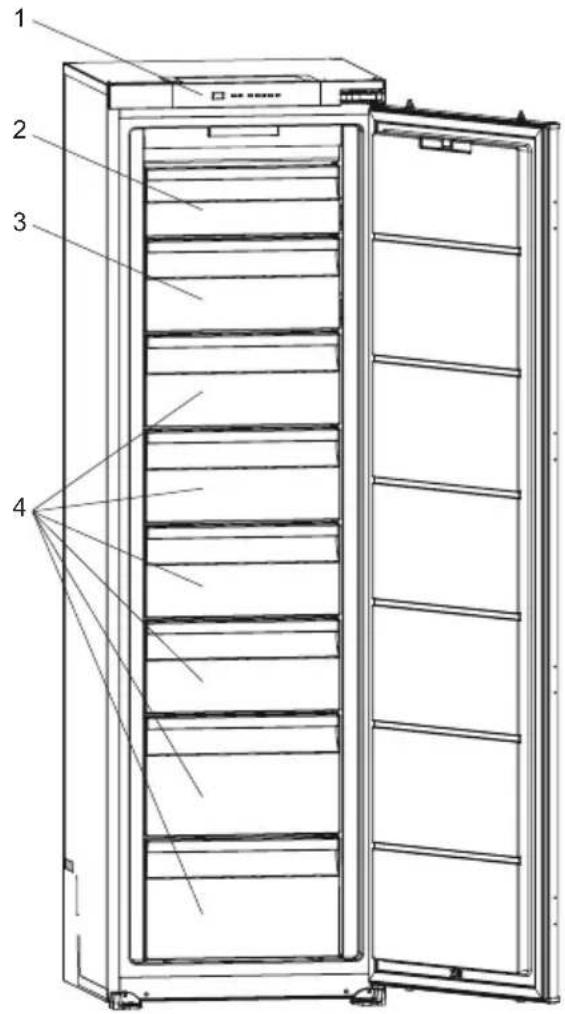

2 DESCRIPTION OF THE APPLIANCE

Technical diagram of a refrigerator with numbered parts and labeled interior features

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Control panel
2) Freezer upper room flap
3) Freezer bottom room flap / Freezer compartment drawer
4) Freezer compartment drawers

Line drawing of an open refrigerator with labeled door and shelves (no text or symbols)

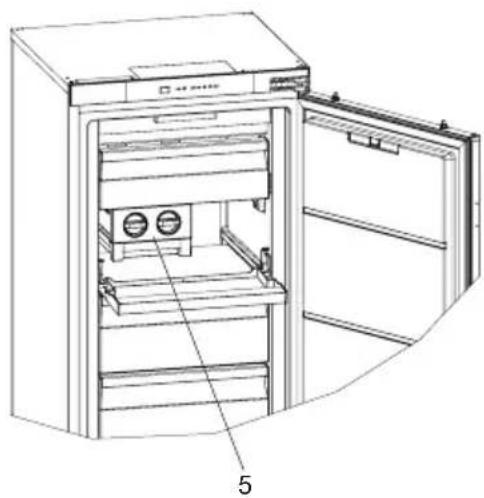

5) Icematic

Technical line drawing of a refrigerator with ladder and door, labeled with number 6 (no text or symbols on the diagram itself)

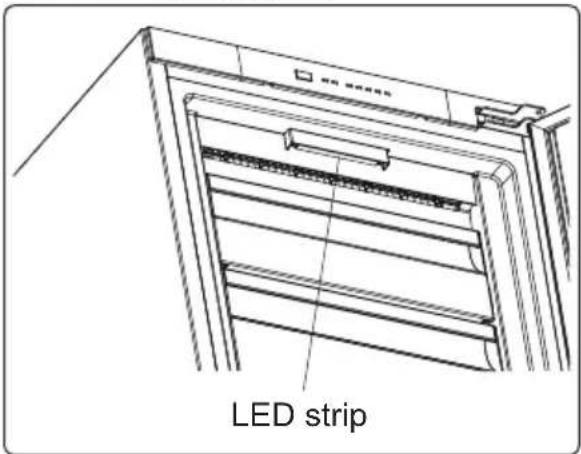

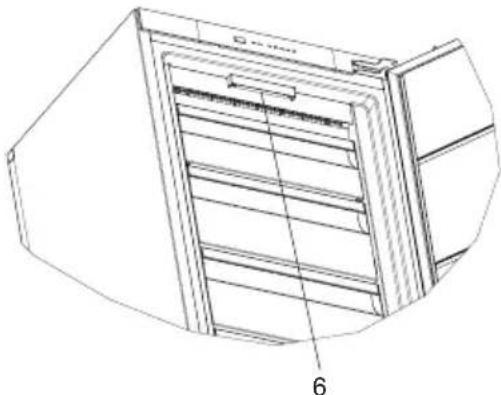

6) Freezer LED strip

General notes:

Freezer Compartment (Freezer): Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

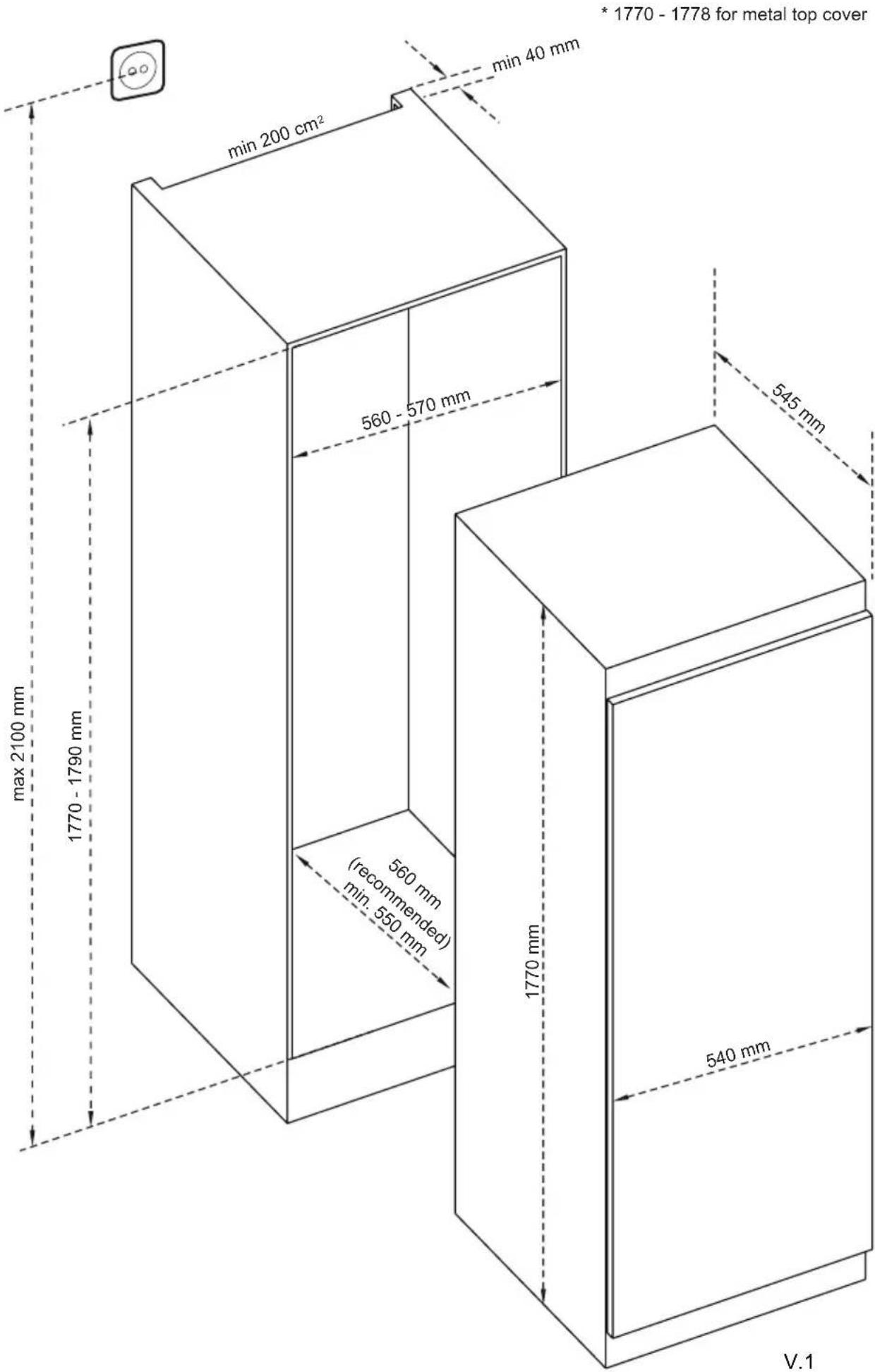

2.1 Dimensions

min 200 cm² min 40 mm 560 - 570 mm max 2100 mm 1770 - 1790 mm 560 mm (recommended) min. 550 mm 1770 mm 540 mm * 1770 - 1778 for metal top cover V.1

EN - 57

3 USING THE APPLIANCE

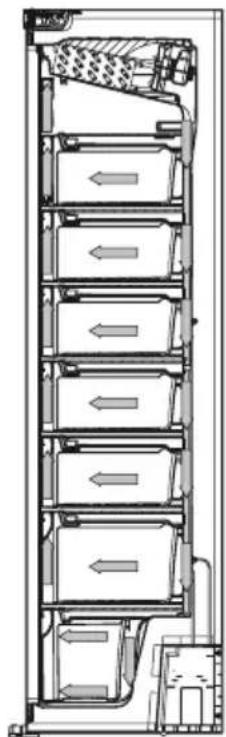

3.1 Information on No-Frost technology

No-frost freezers differ from other static

freezers in their operating principle.

In normal freezers, the humidity entering the freezer due to opening the door and the humidity inherent in the food causes freezing in the freezer compartment. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the freezer, place the food that needs to be kept frozen in a separately cooled container and remove the ice gathered in the freezer compartment.

The situation is completely different in no-frost freezers. Dry and cold air is blown into the freezer compartment homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing.

Therefore your no-frost freezer allows you ease of use, in addition to its huge capacity and stylish appearance.

Cross-sectional technical diagram of a multi-level industrial or processing unit with directional arrows indicating flow or movement (no text or labels present)

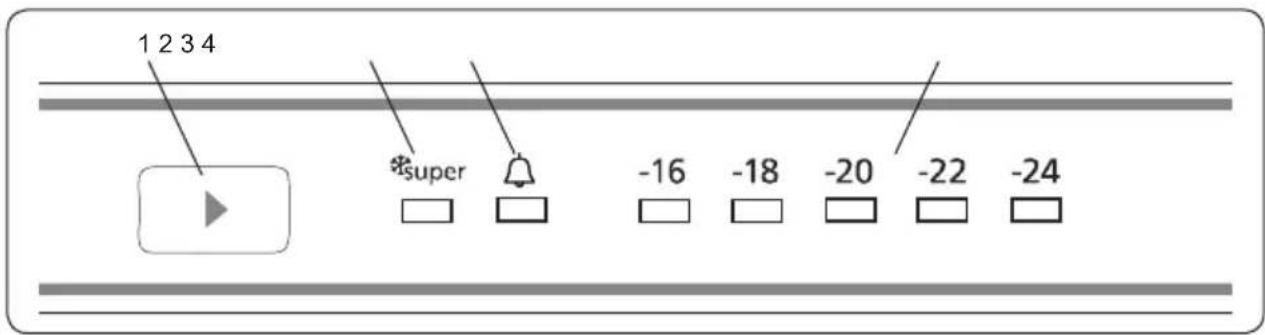

3.2 Display and Control Panel

1 2 3 4 * super -16 -18 -20 -22 -24

Using the Control Panel

1. Freezer temperature set button
2. Super freeze symbol (Super freeze LED)
3. Alarm symbol (Alarm LED)
4. Freezer adjusted temperature indicator

3.3 Operating your Freezer

Lighting (If available)

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

3.3.1 Freezer Temperature Set Button

This button allows setting temperature of the freezer. In order to set values for freezer partition, press this button. Use this button also to activate super freeze mode.

3.3.2 Alarm symbol (Alarm LED)

In case of a problem within the freezer, the alarm led will release red light.

3.3.3 Super Freezer Mode

When Would It Be Used?

• To freeze huge quantities of food.
• To freeze fast food.
• To freeze food quickly.
• To store seasonal food for a long time.

This option shall be turned on 24 hours before placing the fresh food to the freezer. After 54h, it returns to the normal set value.

How To Use?

• Press temperature set button until super freezing light comes on.
• Super freezing led will light during this mode.

• Maximum amount of fresh food (in kilograms) to be frozen within 24 hours is shown on the appliance label.
- For optimal appliance performance in maximum freezer capacity, set the appliance to active super freeze mode 24 hours before you put the fresh food into the freezer.

During This Mode:

If you press temperature set button, the mode will be cancelled and the setting will be restored from -16.

3.3.4 Freezer Temperature Settings

• The initial temperature of the setting display is -18^ .
• Press freezer setting button once.
• Every time you press the button, the setting temperature will decrease. (-16 °C, -18 °C, -20 °C,.. super freezing)
• If you press freezer setting button until super freezer symbol is displayed on freezer.
• Settings display and you do not press any button within the following 3 seconds, super freezing will blink.
• If you keep on pressing, it will restart from last value.

Recommended Temperature Values for Freezer

When to adjust	Inner Temperature
For minimum freezing capacity	-16 °C, -18 °C
In normal usage	-18 °C, -20 °C,-22 °C
For maximum freezing capacity	-24 °C

3.4 Temperature Adjustment Warnings

• It is not recommended that you operate your freezer in environments colder than 10^ C in terms of its efficiency.
• Do not start another adjustment while you are already making an adjustment.
• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the freezer and the ambient temperature in the location of your freezer.
• In order to allow your freezer to reach the operating temperature after being connected to mains, do not open the door frequently or place large quantities of food in the freezer. Please note that, depending on the ambient temperature, it may take 24 hours for your freezer to reach the operating temperature.
• A 5 minute delay function is applied to prevent damage to the compressor of your freezer when connecting or disconnecting to mains, or when an energy breakdown occurs. Your freezer will begin to operate normally after 5 minutes.
• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

3.5 Accessories

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

3.5.1 The Icematic

Simple line drawing of a room with two circular windows and red arrows indicating airflow or movement (no text or symbols)

• Pull the lever towards you and remove the ice maker tray
• Fill with water to the marked level
• Hold the left end of the lever and set the ice-tray on the icebox
• When ice cubes have formed, twist the lever to drop the ice cubes into the icebox.

Note:

Do not fill the icebox with water in order to make ice. It can be broken.

The movement of the ice maker may be difficult while the refrigerator is running. In such a case should be cleaned by removing the glass shelves.

Removing the icemaker

Diagram of a device with two circular ports and directional arrows indicating flow or movement (no text or symbols)

• Take out of the freezer glass shelves
- Remove the icemaker by dragging left or right on the shelf.

You can remove the icemaker to use a larger volume of the freezer compartment.

4 FOOD STORAGE

• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.
• Do not store fresh food next to frozen food as it can thaw the frozen food.
• Before freezing fresh food, divide it into portions that can be consumed in one sitting.
• Consume thawed frozen food within a short period of time after defrosting
• Never place warm food in the freezer compartment as it will thaw the frozen food.
• Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided food, should not be stored for more than 3 months from the date of purchase.
• When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.
• Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.
• Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.

- The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.

- Use the fast freezing shelf to freeze home cooking (and any other food which needs to be frozen quickly) more quickly because of the freezing shelf's greater freezing power. Fast freezing shelf is the bottom drawer of the freezer compartment.

NOTE: If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily.

Important note:

• Never refreeze thawed frozen food.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period of time. Therefore, add small amounts of spices to food to be frozen, or the desired spice should be added after the food has thawed.
• The storage time of food is dependent on the type of oil used. Suitable oils are margarine, calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.

The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment.

Meat and fish Preparation		Maximum storage time (months)
Steak Wrap in foil 6 - 8
Lamb meat Wrap in foil 6 - 8
Veal roast Wrap in foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packaging without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami Should be kept packaged even if it has a membrane
Chicken and turkey Wrap in foil 4 - 6
Goose and duck	Wrap in foil 4 - 6
Deer, rabbit, wild boar	In 2.5 kg portions or as fillets	6 - 8
Freshwater fish (Salmon, Carp, Crane, Catfish)	After cleaning the bowels and scales of the fish, wash and dry it. If necessary, remove the tail and head.	2
Lean fish (Bass, Turbot, Flounder)		4
Fatty fishes (Tuna, Mackerel, Bluefish, Anchovy)		2 - 4
Shellfish	Clean and in a bag	4 - 6
Caviar	In its packaging, or in an aluminium or plastic container	2 - 3
Snails	In salty water, or in an aluminium or plastic container 3
NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.

Vegetables and Fruits	Preparation	Maximum storage time (months)
String beans and beans	Wash, cut into small pieces and boil in water	10 - 13
Beans	Hull, wash and boil in water	12
Cabbage	Clean and boil in water	6 - 8
Carrot	Clean, cut into slices and boil in water	12
Pepper	Cut the stem, cut into two pieces, remove the core and boil in water	8 - 10
Spinach	Wash and boil in water	6 - 9
Cauliflower	Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while	10 - 12
Eggplant	Cut into pieces of 2cm after washing	10 - 12
Corn	Clean and pack with its stem or as sweet corn 12
Apple and pear	Peel and slice	8 - 10
Apricot and Peach	Cut into two pieces and remove the stone	4 - 6
Vegetables and Fruits Preparation		Maximum storage time (months)
Strawberry and Blackberry	Wash and hull 8 - 12
Cooked fruits Add 10 % of sugar to the container 12
Plum, cherry, sourberry Wash and hull the stems 8 - 12

	Maximum storage time (months)	Thawing time at room temperature (hours)	Thawing time in oven (minutes)
Bread 4 - 6 2 - 3 4-5 (220-225 °C)
Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C)
Pastry 1 - 3 2 - 3 5-10 (200-225 °C)
Pie 1 - 1,5 3 - 4 5-8 (190-200 °C)
Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C)
Pizza 2 - 3 2 - 4 15-20 (200 °C)

Dairy products Preparation		Maximum storage time (months)	Storage conditions
Packet (Homogenized) Milk	In its own packet	2 - 3 Pure Milk – in its own	packet
Cheese - excluding white cheese	In slices	6 - 8	Original packaging may be used for short-term storage.Keep wrapped in foil for longer periods.
Butter, margarine	In its packaging	6

5 CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not wash your appliance by pouring water on it.

Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.
• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.

- Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.

The power supply must be disconnected during cleaning.

5.1 Defrosting

Technical line drawing of a refrigerated appliance with cooling fins and a central fan (no text or symbols)

• Your appliance performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container behind your appliance and evaporates there.
• Make sure you have disconnected the plug of your appliance before cleaning the vaporisation container.
• Remove the vaporisation container from its position by removing the screws as indicated. Clean it with soapy water at specific time intervals. This will prevent odours from forming.

Replacing LED Lighting

Depending on the model, one LED strip in the freezer is used to illuminate the interior of your appliance.

To replace any of the LEDs, please contact the nearest Authorised Service Centre.

Some versions may not include freezer illumination.

LED strip

6 SHIPMENTAND REPOSITIONING

6.1 Transportation and Changing Positioning

• The original packaging and foam may be kept for re-transportation (optional).
• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
• Remove all movable parts (drawers, ice trays and so on) or fix them into the appliance against shocks using bands when re-positioning or transporting.

Always carry your appliance in the upright position.

7 BEFORE CALLING AFTER-SALES SERVICE

Errors

Your freezer will warn you if the temperatures for the freezer is at improper levels or if a problem occurs with the appliance. In case of a problem within the freezer, the alarm led will release red light.

Alarm indicator LED is turning on	MEANING WHY WHAT TO DO
	"Failure" Warning	There is/are some part(s) out of order or there is a failure in the cooling process.The product is plugged for the first time or a long-time power interruption for 1 hour.	Check the door is open or not and check if the product working 1 hour. If the door is not open and the product had worked 1 hour, call service for assistance as soon as possible.

If you are experiencing a problem with your freezer, please check the following before contacting the after-sales service.

Your freezer is not operating

Check if:

• There is power
• The plug is correctly placed in the socket
• The plug fuse or the mains fuse has blown
• The socket is faulty. Examine this by plugging your freezer into a working socket.

What to do if your appliance performs poorly;

Check that;

• You have not overloaded the appliance,
  • The freezer temperature set to -16,
  • The doors are closed perfectly,
  • There is no dust on the condenser,
• There is enough place at the rear and side walls.

Your freezer is operating noisily

Normal noises

Cracking (ice cracking) noise occurs:

• During automatic defrosting
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking noise occurs: When the thermostat switches the compressor on/off.

Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash occurs: Due to the flow of the refrigerant in the tubes of the system.

Water flowing noise occurs: Due to water flowing to the evaporation container. This noise is normal during defrosting.

Air blowing noise occurs: In No-Frost freezers during normal operation of the system due to the circulation of air.

The edges of the freezer in contact with the door joint are warm

Especially during summer (warm seasons), the surfaces in contact with the door joint may become warmer during the operation of the compressor, this is normal.

The door does not open or close properly

Check if:

• There is food or packaging preventing the door from closing
  • The door joints are broken or torn
• Your freezer is on a level surface.

Recommendations

To stop the appliance completely, unplug from main socket (for cleaning and when the door is left open).

8 TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
4. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
5. The door gasket must be clean and pliable. In case of wear, replace the gasket.

9 TECHNICALDATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance. It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

10 INFORMATION FOR TEST INSTITUTES

Appliance for any EcoDesign verification shall be compliant with EN 62552.

Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at Chapter 2. Please contact the manufacturer for any other further information, including loading plans.

11 CUSTOMERCAREAND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. Subject to change without notice.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website to:

CONDITIONS OF THE COMMERCIAL GUARANTEE ON ELECTRICAL APPLIANCES

This device has a two-year repair guarantee, from the date of sale, against all malfunctions arising from manufacture, including labour and spare parts. To justify the date of purchase, the invoice or receipt must be presented. This guarantee will only be effective in Spain.

EXCLUSIONS FROM THE GUARANTEE

1. Remote controls, drainage intake tires, door stops and seals or weatherstripping.
2. Enamels, paints, nickel-plating, chrome-plating, oxidation or other parts which do not affect the internal functioning of the appliance (aesthetic parts or components).
3. Parts subject to wear and tear, corrosion, oxidation either caused by normal use or wear of the appliance or accelerated by unfavourable environmental or climatic conditions, and notoriously unsuitable sand and dust. Not suitable for outdoor use.
4. The guarantee does not apply to fragile parts of glass, glass-ceramic, plastics, handles, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.
5. Breakdowns caused by abnormal, negligent or improper use of the appliance or by any type of external origin.
6. Civil liabilities of any nature.
7. Consequential damage to the device provided that this is not caused by an internal operating fault.
8. Maintenance or conservation of the device: periodic revisions, adjustments and greasing.
9. Damage to accessories and complements, adapters, external cables, bags, loose parts of all kinds, lamps, as well as any part considered consumable by the manufacturer.
10. Faults caused by incorrect or nonlegal installation, inadequate ventilation, inappropriate modifications or use of nonoriginal spare parts.
11. Malfunctions that may occur to accessories and complements, as well as any part considered consumable by the manufacturer.
12. Household appliances used in industrial applications or for commercial purposes.

13. Appliances with illegible serial numbers.

14. Defects or malfunctions resulting from repairs, modifications, or dismantling of the appliance installation by a technician not authorised by the manufacturer, or as a result of manifest non-compliance with the manufacturer's operating and maintenance instructions.

15. During the guarantee period it is essential to keep all manuals with the equipment. Should any of these be lost, no claim may be made for their replacement.
16. The breakdowns that have their origin or are a direct or indirect consequence of: Nuclear reaction or radiation or radioactive contamination; natural or meteorological phenomena of an extraordinary or catastrophic nature (floods, seismic phenomena or movements, volcanic eruptions, hurricanes, storms), events derived from terrorism, riots, popular uprisings or tumults, legal or illegal demonstrations and strikes; acts of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (whether declared or not); vice or defect of property; acts qualified by the Government of the Nation as a "national catastrophe or calamity".

The design and specifications are subject to change without notice for product improvement.

www.easelectric.es

EAS ELECTRIC

Smart Technology

Line drawing of an open refrigerator with labeled door and side panel (no text or symbols)

5) Icematic

Technical line drawing of a cabinet or rack unit with ladder and door, showing internal shelves and structural components (no text or symbols)

Technical line drawing of a multi-level industrial or processing facility with directional arrows indicating flow or movement (no text or symbols present)

Diagram showing airflow or ventilation around two circular components (no text or symbols)

Diagram of a device with two circular ports and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a refrigerated appliance with cooling panel and side-mounted unit (no text or symbols)

3.3.2 Mode Super congélation....104

Line drawing of an open refrigerator with labeled door and shelves (no text or symbols)

Technical line drawing of a cabinet or rack unit with ladder and side panel (no text or symbols)

Compartiment congélation

Technical line drawing of a multi-level industrial or processing facility with directional arrows indicating flow or movement (no text or symbols present)

Diagram showing airflow or ventilation around two circular components (no text or symbols)

Diagram of a device with two circular ports and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a refrigerated appliance with cooling fins and a central fan (no text or symbols)
