Brand	EAS Electric
Model	EMC2010SX1
Product type	Combined refrigerator with No Frost freezer
Climate class	SN (10°C to 32°C), N (16°C to 32°C), ST (16°C to 38°C), T (16°C to 43°C)
Interior lighting	LED
Temperature control	Electronic with digital display, 5 power levels
Special functions	Super refrigeration (InstantCool), Open door alarm, Fault indicator
Defrost type	Automatic (Total No Frost)
Reversible door	Yes
Adjustable feet	Yes
Warranty	3 years
Spare parts available	Thermostats, temperature probes, printed circuit boards, lights, door handles, hinges, shelves, baskets, door gaskets
Cleaning and maintenance	Clean interior with baking soda, exterior with soft cloth, do not use abrasive products
Safety	Unplug before maintenance, do not damage the refrigerant circuit, keep out of reach of children

Frequently Asked Questions - EMC2010SX1 EAS Electric

What are the installation precautions for the EAS Electric EMC2010SX1 refrigerator?

Place the refrigerator in a well-ventilated area, away from heat and sunlight. Leave at least 10 cm of space above and behind. Clean the interior before first use. Plug in after 2 hours of rest.

How to set the temperature of the EMC2010SX1 refrigerator?

Use the SET button to choose among 5 power levels. The digital display indicates the set temperature. The refrigerator temperature range is 2°C to 8°C. For the freezer, a separate button allows you to choose between NORMAL, COLD and COLDER.

What to do if the open door alarm sounds?

Close the door. The alarm stops after closing. If it persists, check that nothing is preventing closure. You can also press a button to stop it temporarily.

How to defrost the EMC2010SX1 refrigerator?

This appliance is equipped with the No Frost function, so defrosting is automatic. If necessary, unplug the appliance, allow it to defrost naturally or use a plastic scraper. Never use metal objects or heating devices.

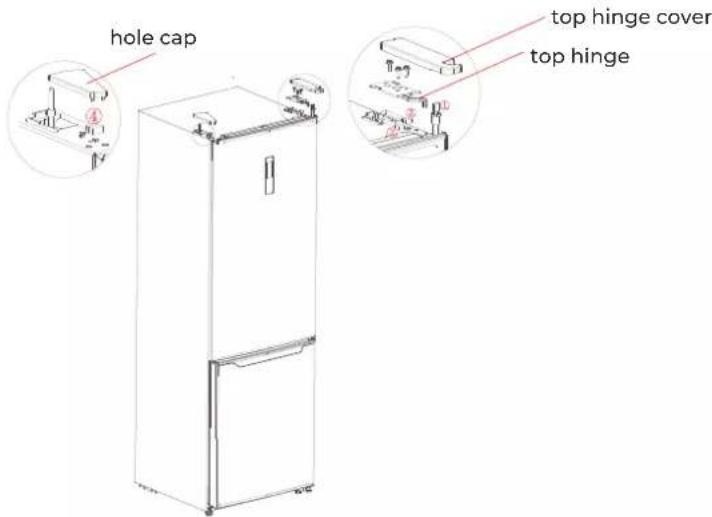

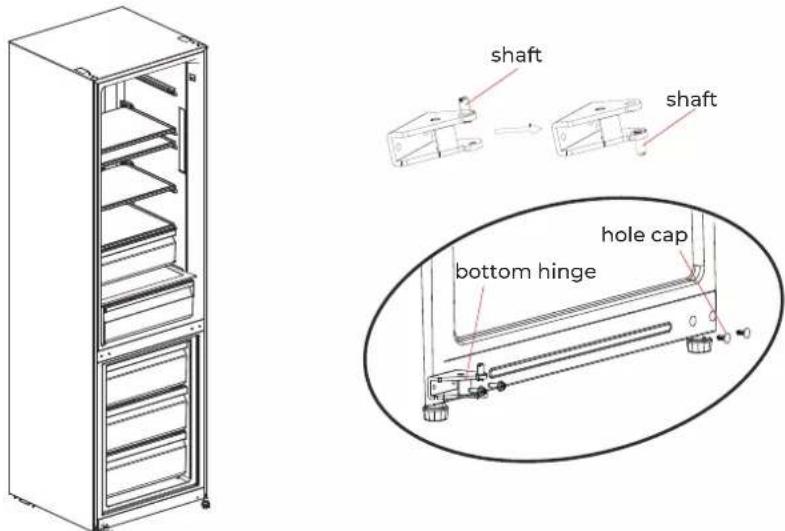

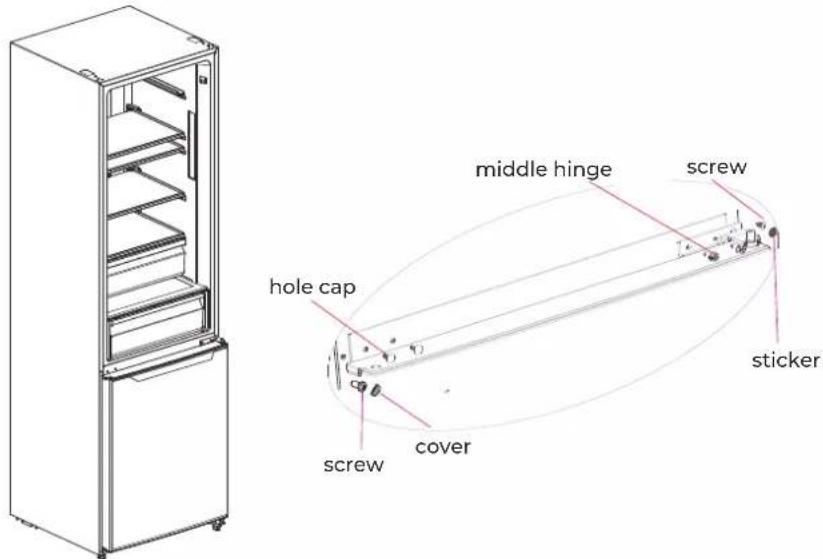

How to reverse the door opening direction?

Follow the instructions in the manual: remove food, disassemble the top hinge, door, middle hinge, then the freezer door. Replace the hinges on the opposite side using the supplied screws and caps. Refer to the manual for detailed diagrams.

What do the error codes E1, E2, E3, E5, E6, E7 mean?

These codes indicate probe faults: E1 (refrigerator probe), E2 (freezer probe), E3 (chill drawer probe), E5 (defrost), E6 (communication), E7 (ambient). Contact technical service if the problem persists.

Which product to use to clean the interior of the refrigerator?

Use a mixture of two tablespoons of baking soda in one liter of warm water. Rinse with clean water. Do not use soap, detergent, or abrasive products. Regularly clean the gaskets and shelves.

How to save energy with this refrigerator?

Place the appliance away from heat sources. Let food cool before storing. Do not leave the door open too long. The No Frost system prevents frost buildup, improving efficiency. Clean dust from behind the appliance.

Where can I find spare parts for this model?

Parts such as thermostats, probes, boards, lights, handles, hinges, shelves, baskets and door gaskets are available from after-sales service. The availability guarantee is at least 7 years for most, and 10 years for door gaskets.

What does the 3-year warranty cover?

The warranty covers manufacturing defects including labor and parts for 3 years from the date of purchase. It does not cover cosmetic damage, wear parts, accidents or improper use. Present the invoice to claim the warranty.

USER MANUAL EMC2010SX1 EAS Electric

Abstract arrangement of gray and white triangular shapes (no text or symbols)

FRIGORÍFICO COMBI

COMBI FRIDGE

RÉFRIGÉRATEUR COMBI

FRIGORIFICO COMBI

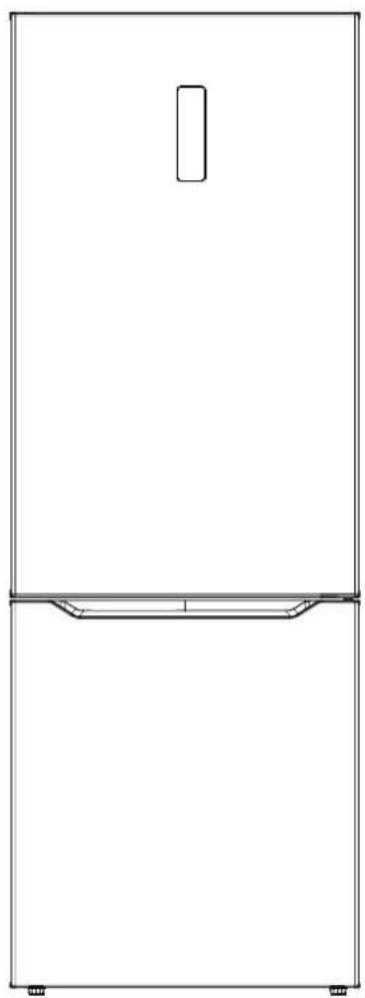

Line drawing of a double-door refrigerator with a vertical door and frontrest (no text or symbols)

Solid black right-pointing triangle shape on white background (no text or symbols)

QR code with embedded logo and text 'EAS' and 'www.essence.com'

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Solid black right-pointing triangle shape on white background (no text or symbols)

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Simple line drawing of a hand holding a checkmark and a smiley face icon, separated by a vertical line (no text or symbols)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and a wall-mounted device, no text or symbols present.

Simple line drawing of a refrigerator with a door and lid, no text or symbols present

Simple line drawing of a refrigerator with a door, battery, and tools (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a refrigerator with a baby inside, no text or symbols present

Simple line drawing of a trash bin with a sad face and an 'X' symbol, no text or labels present.

Illustration of hands holding a tray with a bottle, boxes, and a magnifying glass (no text or symbols)

Billed Power Power (induct) !

Freezing chamber !

aparato.

Line drawing of a person handling an open cardboard box and next to an electric refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a potted plant and sun symbols (no text or labels)

Simple line drawing of a refrigerator and a door (no text or symbols)

10cm 10cm 10cm

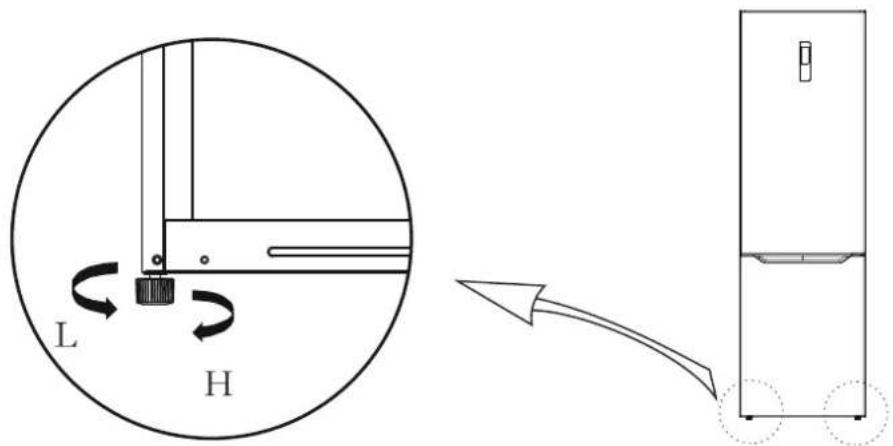

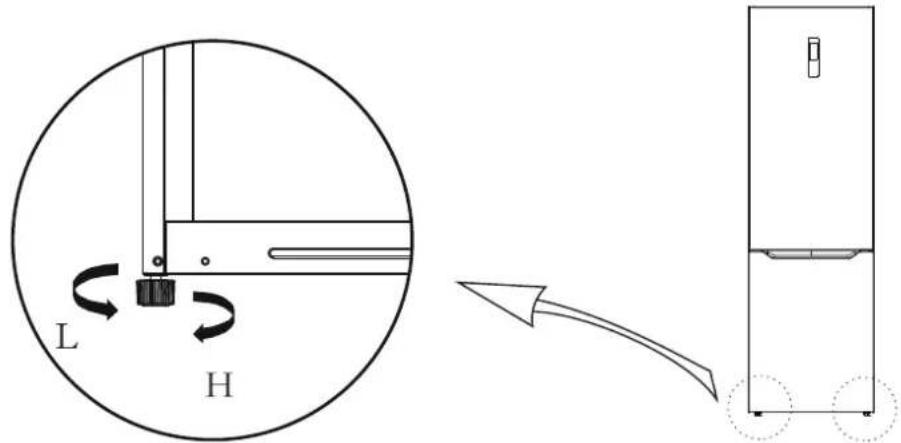

L H

		1
		1
		1
		1
		1
		1
		1
		1
		3
		1
		2
		1
		1

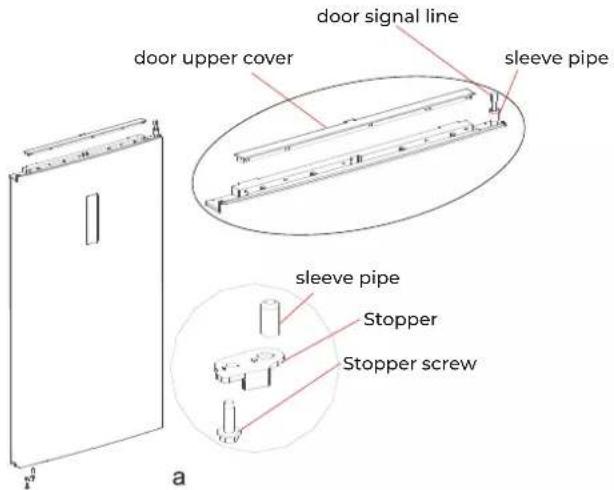

Technical line drawing of a door panel and its internal components, shown with magnified views (no text or symbols)

Technical line drawing of a rectangular component with two circular views showing internal components (no text or symbols)

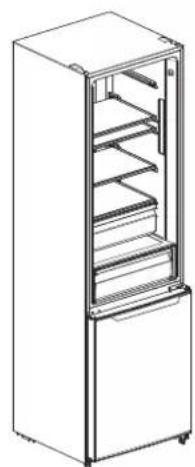

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

r θ l x y z a b c d e f g h i j k l1 l2 l3 l4 l5 l6 l7 l8 l9 l10 l11 l12 l13 l14 l15 l16 l17 l18 l19 l20 l21 l22 l23 l24 l25 l26 l27 l28 l29 l30 l31 l32 l33 l34 l35 l36 l37 l38 l39 l40 l41 l42 l43 l44 l45 l46 l47 l48 l49 l50 l51 l52 l53 l54 l55 l56 l57 l58 l59 l60 l61 l62 l63 l64 l65 l66 l67 l68 l69 l70 l71 l72 l73 l74 l75 l76 l77 l78 l79 l80 l81 l82 l83 l84 l85 l86 l87 l88 l89 l90 l91 l92 l93 l94 l95 l96 l97 l98 l99 l100

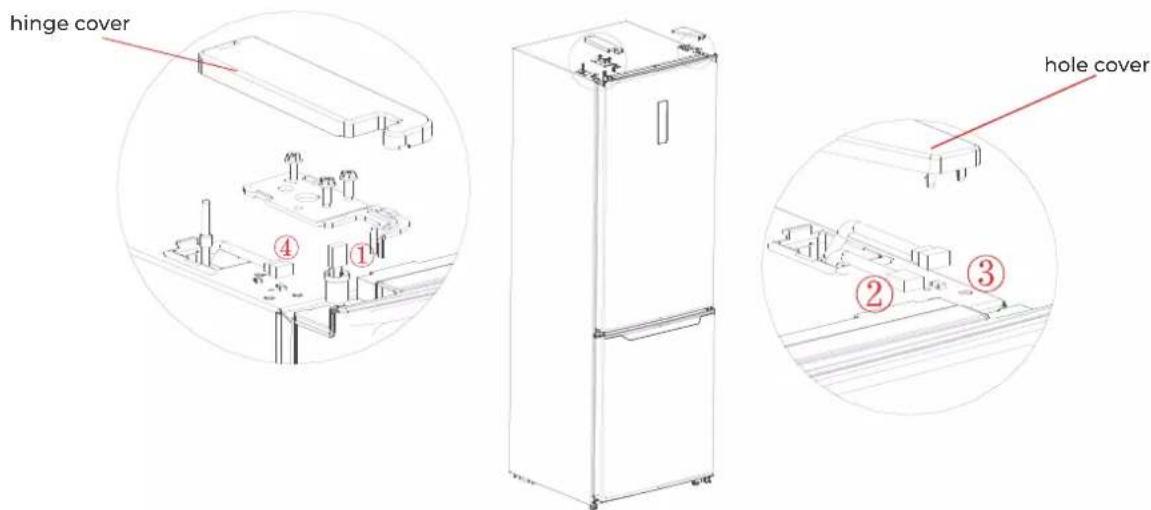

Technical diagram showing mechanical assembly with numbered components and a red laser line indicator

Line drawing of a double refrigerator with lid and front panel (no text or symbols)

Technical diagram showing three labeled components (②, ③) of a mechanical or structural assembly with dimension lines and a red diagonal line.

1		2
3		4

595mm 545mm 135° 1033mm 1082mm

Technical line drawing of a refrigerator interior showing door, front panel, and shelves (no text or labels)

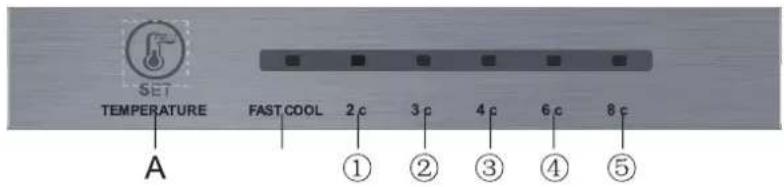

SET TEMPERATURE FAST COOL 2 c 3 p 4 c 6 c 8 c A ① ② ③ ④ ⑤

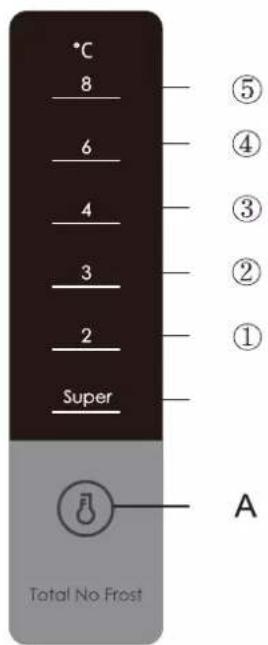

°C 8 6 4 3 2 Super ⑤ ④ ③ ② ① A Total No Frost


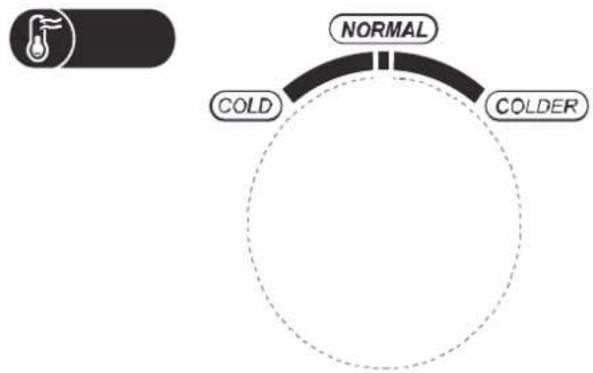

NORMAL COLD COLDER

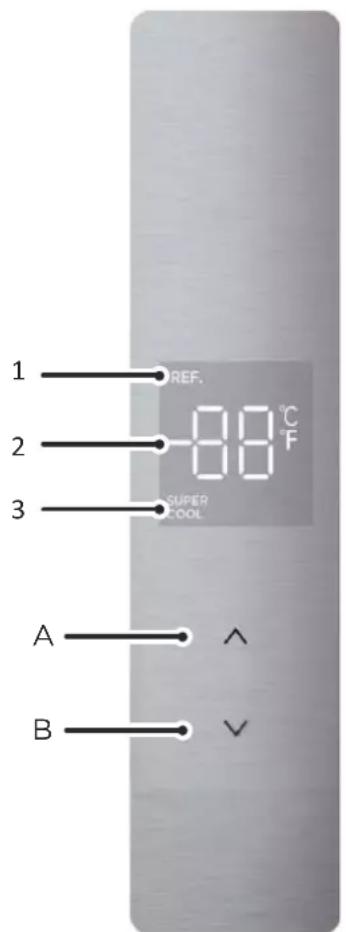

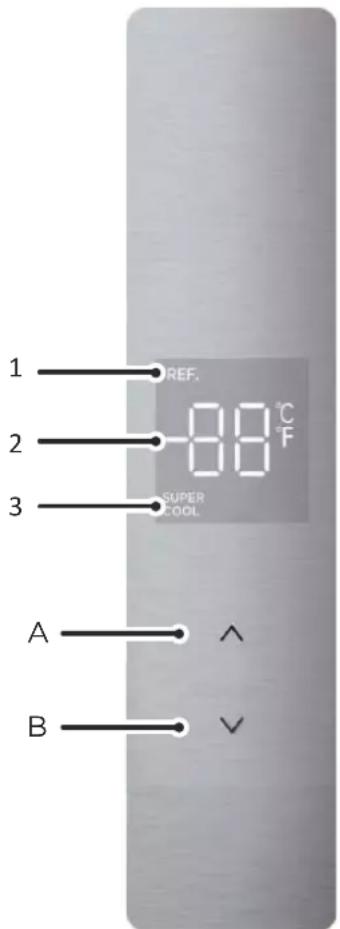

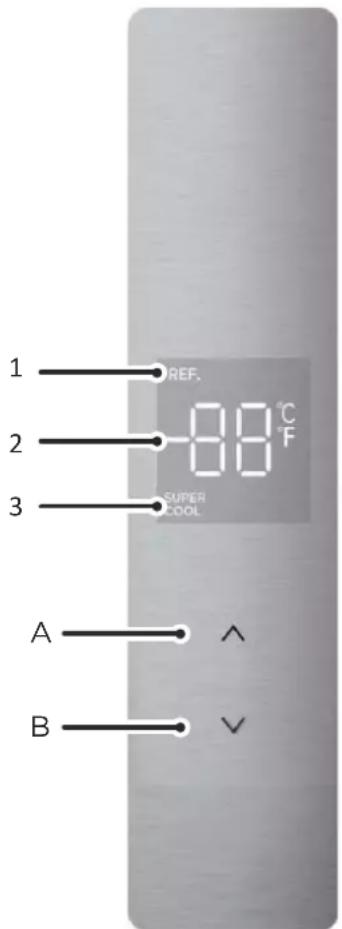

1 REF. 2 80 °C F 3 SUPER COOL A ^ B V

NORMAL COLD COLDER

Illustration of various cooking and beverage items including a glass, water bottles, and a kettle (no text or symbols)

Simple horizontal line with a triangular warning symbol at the top-left corner (no text or labels)

Line drawing of a cabinet or cabinet with a hand inserting a component (no text or symbols)

3 Warning Meanings of safety warning symbols
6 Electricity related warnings
7 Warnings for using
7 Warnings for placement
8 Warnings for energy
8 Warnings for disposal

9 PROPER USE OF THE REFRIGERATOR
9 Placement

10

Changing the light

Starting to use

Energy saving tips

STRUCTURE AND FUNCTIONS

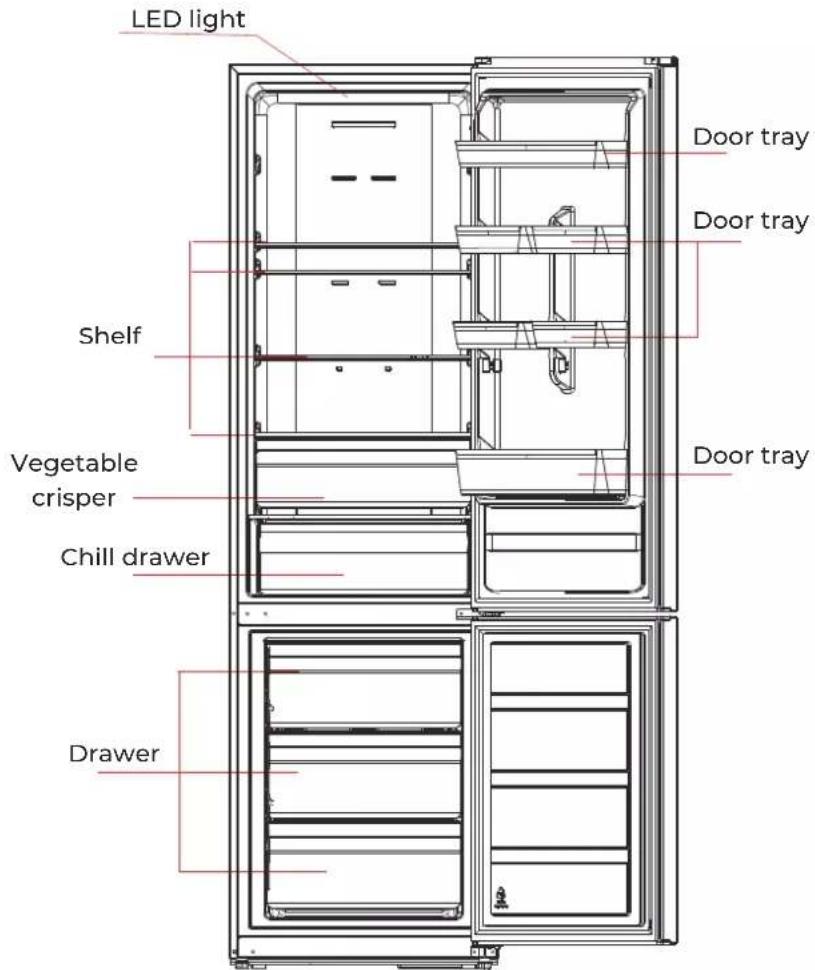

Key components

Functions

17 MAINTENANCE AND CARE
17 Overall cleaning
18 Defrosting
18 Out of operation

19 TROUBLE SHOOTING

20

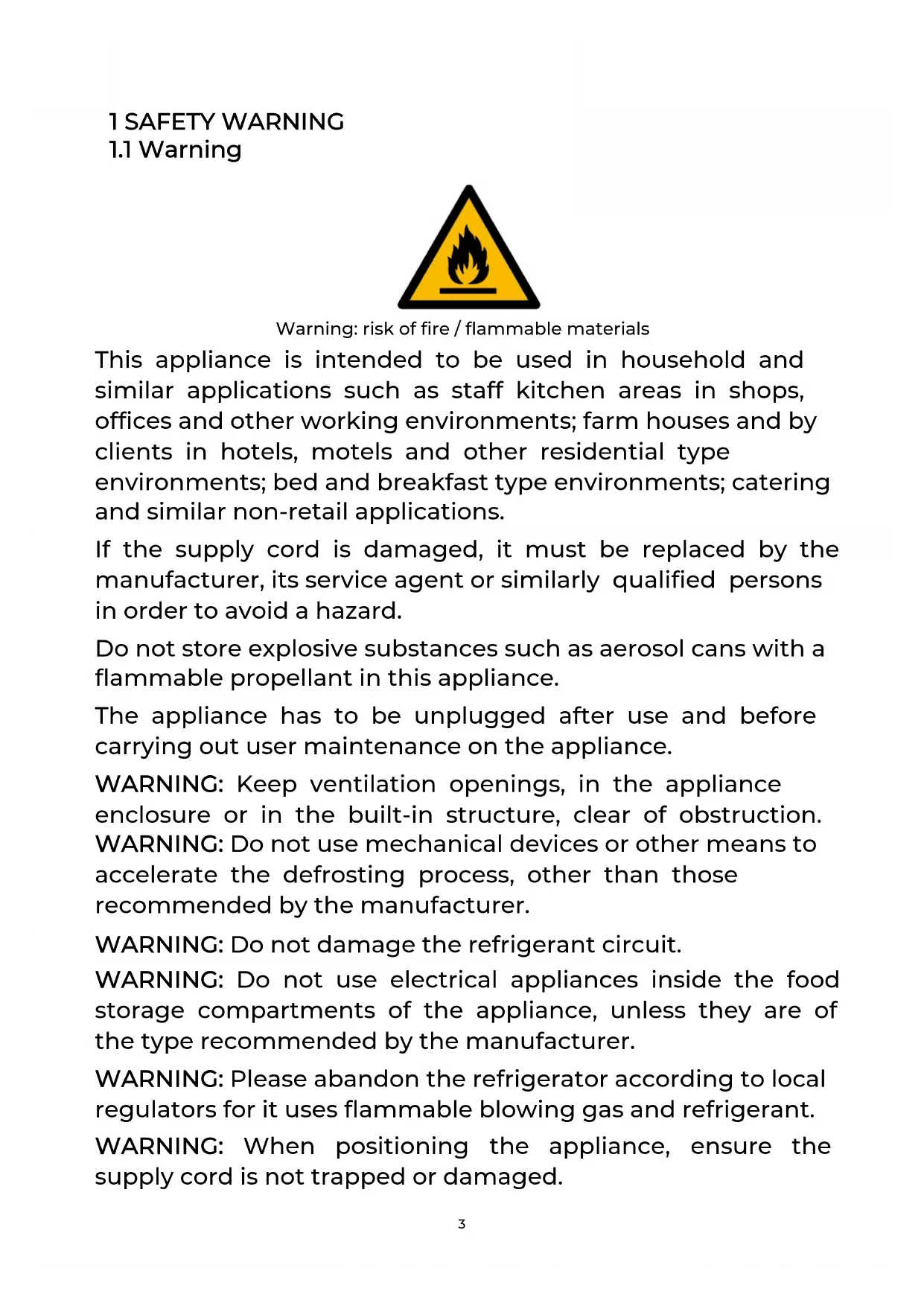

1 SAFETY WARNING

1.1 Warning

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Warning: risk of fire / flammable materials

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it uses flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Do not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

For IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children should be supervised to ensure that they do not play with the appliance.

To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing and making ice-cream and making ice cubes. (note 2)

■ One, two and three-star compartments are not suitable for the freezing of fresh food. (note 3)

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1, 2, 3: Please confirm whether it is applicable according to your product compartment type.

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

This product contains a light source of energy efficiency class (F)

1.2 Meaning of safety warning symbols

Prohibition symbol

This is a prohibition symbol.

Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol

This is a warning symbol.

It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.

Note symbol

This is a cautioning symbol.

Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Simple line drawing of a hand holding a checkmark and a smiley face icon, separated by a vertical line (no text or symbols)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and a box, no text or symbols present

Simple line drawing of a refrigerator with a door and handle, no text or symbols present

Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.

To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances. The power plug should be firmly contacted with the socket or else fires might be caused.

Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.

1.4 Warnings for using

Simple line drawing of a refrigerator with an open lid and a hand holding a pencil, accompanied by a crossed-out electrical symbol (no text or labels)

Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.

Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when closing the refrigerator door to avoid falling articles.

Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Simple line drawing of a baby hanging from an open refrigerator with no text or symbols

Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

Simple line drawing of a trash can with a frowning face and warning symbol (no text or labels)

Do not place heavy objects on the top of the refrigerator considering that objectives may fall when you close or open the door, and accidental injuries might be caused.

Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

Illustration of a hand holding a tray with a bottle, boxes, and an icon (no text or symbols)

Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

Do not place flammable items near the refrigerator to avoid fires.

Milk Palm Palm/No.1

The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

Freezing chamber ###

Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 Warnings for energy

1. Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2. The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3. The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
4. The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5. The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

1.7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Symbol of a trash bin crossed with diagonal lines, no text or labels present

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

2.1 Placement

Simple line drawing of a person handling a cardboard box next to an electric refrigerator (no text or symbols)

Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

Simple line drawing of a refrigerator with a sad face, sun, and potted plant (no text or symbols)

Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

Simple line drawing of a refrigerator and a door (no text or symbols)

Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

10cm 10cm 10cm

The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat and sturdy.

The top space of the refrigerator shall be greater than 10cm, and the refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation.

Precautions before installation:

Information in the Instruction Manual is only for reference. The physical product may differ. Before installation and adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

2.2 Levelling feet

Schematic diagram of the leveling feet

L H

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Adjusting procedures:

a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.

List of tools to be provided by the user
	Cross screwdriver		Putty knife and thin blade screwdriver
	5/16" Socket and ratchet		Masking tape

1) Power off the refrigerator, and remove all objects from the door trays.
2) Fix the door with masking tape.

Parts to be used for door reverse
SN	parts	Quantity	Notes
1		1
2	Upper hinge screw	1	Pre-installed on the refrigerator and to be used when changing the door
3	Right stopper	1	Pre-installed on the refrigerator, removed when the door is reversed, and kept for future use
4	Hinge cover assembly	1	Pre-installed on the refrigerator, removed when the door is reversed, and kept for future use
5	Pillar switch	1	Pre-installed on the refrigerator and to be used when changing the door
6	Right hinge cover	1	Pre-installed on the refrigerator, removed when the door is reversed, and kept for future use
7	Right upper hinge	1	Pre-installed on the refrigerator, removed when the door is reversed, and kept for future use
8	Adjustable foot	1	Pre-installed on the refrigerator and to be used when changing the door
9	Accessory package	3	Left upper hinge/Left upper hinge cover/Leftstopper
10	Lower hinge assembly	1	Pre-installed on the refrigerator and to be used when changing the door
11	Lower hinge screw	2	Pre-installed on the refrigerator and to be used when changing the door
12	End cover plate	1	Pre-installed on the refrigerator and to be used when changing the door
13	Hole cover	1	Pre-installed on the refrigerator and to be used when changing the door

1. Dismantle top hinge cover, top hinge and hole cap of the other side. Unplug the wiring connector on the right side of the refrigerator top (1, 3 wiring connector).

hole cap top hinge cover top hinge

1. Remove the refrigerator door, screws and screw cover, the middle hinge and screw hole caps of the other side.

middle hinge screw hole cap sticker cover screw

1. Remove the freezer door and dismantle bottom hinge and hole caps. Exchange the installation position of bottom hinge and adjustable foot, and fix the bottom hinge by fitting screws.

shaft shaft bottom hinge hole cap

1. a) Remove the upper cover of refrigerating chamber door, install the upper hinge sleeve, door signal line to the other side and install the door upper cover. Dismantle the stopper and sleeve pipe from the right bottom of freezing chamber door, take out another spare stopper of reversible door, and assemble the sleeve pipe and spare stopper on left bottom of door by screw install the upper hinge, door signal line to the other side and install the door upper cover. b) Dismantle the stopper and sleeve pipe from the right bottom of freezing chamber door, take out another spare stopper (for reversible door), and assemble the sleeve pipe and spare stopper on left bottom of door by screw. Take off the sleeve pipe and hole caps on the freezing chamber door and mount it on the other side.

door signal line door upper cover sleeve pipe sleeve pipe Stopper Stopper screw a

sleeve pipe Stopper Stopper screw b

1. Put the freezer door on bottom hinge, then install the middle hinge and screw hole caps.

hole cap screw middle hinge cover screw sticker

1. Take out left top hinge and cover from the accessories package, then put the refrigerator door on middle hinge. Connect signal line terminal 4 to signal line terminal 1, and terminal 2 to terminal 3. Install top hinge cover and hole cover.

hinge cover hole cover ④ ① ② ③

2.4 Changing the Light

Any repair or maintenance of LED bulbs must be carried out by the manufacturer, its technical service or another equally qualified technical professional.

1	1. Unplug the appliance before removing the bulb.	2	2. Remove the lamp with a screwdriver.
3	3. Remove the lamp panel.	4	4. Disconnect the connection terminal.

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

595mm 545mm 1082mm 135° 1033mm

Before initial start, keep the refrigerator still for half an hour before connecting it to power supply.

Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

Spare enough space for convenient opening of the doors and drawers or statement by the distributor.

2.6 Energy saving tips

from heat producing appliances or heating ducts, and out of the direct sunlight.

Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

them in the appliance. This cuts down on frost build-up inside the appliance.

or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

Remove as many items as needed at one time, and close the door as soon as possible.

3. STRUCTURE AND FUNCTIONS

3.1 Key components

LED light Shelf Vegetable crisper Chill drawer Drawer Door tray Door tray Door tray

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor

Refrigerating chamber

beverages and other food consumed in the short term. Suggested storage time: 3 to 5 days.

temperature.

storage space and easy use.

Freezing chamber

mainly used to store frozen foods and making ice.

not to be consumed in short term.

Please be noted food shall be consumed within the shelf time.

Chill drawer

be frozen cannot be placed in.

Drawers, food boxes, etc. placed according to the position in the picture above are the most energy efficient.

SET TEMPERATURE FAST COOL 2 c 3 p 4 c 6 c 8 c A ① ② ③ ④ ⑤

°C 8 6 4 3 2 Super ⑤ ④ ③ ② ① A Total No Frost

NORMAL COLD COLDER

1 REF. 2 80 °C F 3 SUPER COOL A ^ B ✓

A. Temperature increase button

B. Temperature decrease button

2) Display

The first time the appliance is switched on, the display (including the key) will be fully illuminated for 3 seconds and then the power corresponding to the actual operation will be illuminated. The display lights up when the door is opened and goes out when the door is closed. The default temperature of the cooling compartment at the first use is 5°C. If errors occur, the display panel will show an error code. Otherwise, the panel will display the set temperature.

3) Temperature setting

Each time the temperature setting button A is pressed, the temperature will increase by 1°C, and pressing button B will decrease by 1°C. The adjustment range of the refrigerator is from 2-8°C. If the limit of the range is reached, the refrigerator will beep if an attempt is made to continue pressing the temperature setting buttons.

4) InstantCool Mode

To enter super cooling mode, press the B button again when the refrigerator reaches the setting of 2^ C. To exit this mode, press the temperature increase button A or the mode will end automatically after 6 hours. After exiting this mode, the temperature setting will automatically return to the temperature that was set before starting the InstantCool mode.

Door open alarm

If the door is not closed within two minutes, an acoustic signal will sound until the door is closed. Press any button to stop the alarm.

NORMAL COLD COLDER

E1
E2
E3
E5
E6
E7

4. Maintenance and care of the appliance

4.1 Overall cleaning

Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.

The interior of the refrigerator should be cleaned regularly to avoid odor.

Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.

Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.

Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.

Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.

Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

Do not use hard brushes, clean steel balls, wire brushes,

abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Gas Alcohol Bilirubin Kanolin

⚠️ Please unplug the refrigerator for defrost and cleaning.)

Line drawing of a door with a hand inserting a tool into the lock (no text or symbols)

Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.

Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.

Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and seal them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted, otherwise the service life may be impaired.

5. Trouble shooting

You may try to solve the following simple problems by yourself. If they cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Smell	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the refrigerator is normal in summer when the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequently
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damagedHave the light replaced by a specialist
Doors cannot be properly closed	The door is stuck by food packagesThe refrigerator is tilted
Loud noise	Check whether the floor is level and whether the refrigerator is placed stably. Check whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting.The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal. When housing becomes hot due to high ambient temperature and storage of too much food, it is recommended to provide sound ventilation to facilitate heat dissipation.
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

Table 1 Climate classes

Class Symbol		Ambient temperature range (°C)
Extended temperate	SN	+10 to +32
Temperate	N	+16 to +32
Subtropical	ST	+16 to +38
Tropical	T	+16 to +43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Special for new European standard:

The ordered parts in the following table can be acquired from our after sales service:

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy. (Remember to bring the purchase invoice)
2. If your product breaks down which needs to repair, please contact after-sales service provider.

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

Contenu

STRUCTURE ET FONCTIONS

Fonctions

17 MAINTENANCE ET ENTRETIEN

Warning sign depicting a flame symbol in a yellow triangle with black border

Simple line drawing of a hand holding a checkmark and a smiley face icon, separated by a vertical line (no text or symbols)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and a box, no text or symbols present

Simple line drawing of a refrigerator with a door and handle, no text or symbols present

Simple line drawing of a refrigerator with a door, battery, and tools (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a baby inside an open refrigerator with no text or symbols

Simple line drawing of a trash bin with an exclamation mark and warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, boxes, and a magnifying glass (no text or symbols)

Billed Power Power (induct) !

Freezing chamber

Simple line drawing of a person carrying a large box next to an open refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

10cm 10cm 10cm

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

595mm 545mm 135° 1033mm 1082mm

NORMAL COLD COLDER

1 REF. 2 88°C F 3 SUPER COOL A ^ B

1) Panneau

2) Affichage

Illustration of various household items including a soda bottle, alcohol lamp, and steaming kettle (no text or symbols)

Line drawing of a cabinet interior with hand inserting a component (no text or symbols)

4.3 Dégivrage

CONDITIONS DE LA GARANTIE

EXCLUSIONS DE LA GARANTIE

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Simple line drawing of a hand holding a checkmark and a smiley face icon, separated by a vertical line (no text or symbols)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and a box, no text or symbols present

Simple line drawing of a refrigerator with a door and handle, no text or symbols present

Simple line drawing of a refrigerator, battery, and hand tool (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a baby hanging from an open refrigerator with no text or symbols

Simple line drawing of a trash can with a frowning face and warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, a container, and an icon (no text or symbols)

Freezing chamber !

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Simple line drawing of a person carrying a large box next to an open refrigerator (no text or symbols)

Antes de usar, remova todas as embalagens, incluindo rolhas e fitas adesivas, de dentro do frigorífico e remova a película protetora das portas e paredes.

Simple line drawing of a refrigerator with sun and potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

10cm 10cm 10cm

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

595mm 545mm 135° 1082mm 1033mm

NORMAL COLD COLDER

1 REF. 2 80 °C F 3 SUPER COOL A ^ B V

1) Painel

Illustration of various alcohol and beverage items including a glass, water bottles, and a kettle (no text or symbols)

Line drawing of a door with a hand inserting a component into the window (no text or symbols)

Scan for manual in other languages and further updates:
