Product type	Combined refrigerator with freezer compartment
Brand	EAS Electric
Model	EMSS178GN2
Total gross volume	Approximately 178 liters (estimate)
Dimensions (H x W x D)	Approximately 150 x 55 x 60 cm (estimate)
Net weight	Approximately 50 kg (estimate)
Power supply	220-240 V ~ 50 Hz
Climate class	SN, N, ST, T (from +10°C to +43°C)
Cooling technology	No Frost, independent ventilation
Defrosting	Automatic (pre-cooling and intelligent defrosting)
Special functions	Super Cool, Super Freeze, Holiday Mode, screen lock
Refrigerator temperature range	2 °C to 8 °C (adjustable by 1 °C)
Freezer temperature range	-16 °C to -24 °C (adjustable by 1 °C)
Refrigerator shelves	3 sliding glass shelves, height adjustable
Refrigerator door shelves	4 adjustable door bins
Vegetable drawer	1 drawer
Freezer compartment	3-star, with 2 shelves and 2 drawers
Lighting	LED, energy efficiency class G
Refrigerant	R600a (flammable)
Blowing agent	Cyclopentane (flammable)
Noise level	Approximately 40 dB (estimate)
Maintenance	Regular cleaning with soapy water, automatic defrosting
Spare parts availability	At least 7 years (thermostats, sensors, boards); 10 years for rubber seals
Warranty	3 years (Spain and Portugal)

Frequently Asked Questions - EMSS178GN2 EAS Electric

How to adjust the refrigerator temperature?

Press the REF.TEMP button (A) to make the display blink. Use the same button to choose between 2°C and 8°C. The temperature locks after 5 seconds.

How to activate Super Cool mode?

Unlock the screen by holding button E for 3 seconds. Press button C until you see the Super Cool icon. The mode lasts 5 hours and then stops automatically.

What to do if the screen shows an error code?

An automatic error alarm activates. Consult the troubleshooting section of the manual. If the problem persists, contact technical service.

How to clean the inside of the refrigerator?

Unplug the appliance, remove food and shelves. Use a soft cloth with warm water and baking soda. Rinse and dry before plugging back in.

Why is there condensation on the exterior walls?

It's normal in high ambient humidity. Wipe with a dry cloth. It usually disappears when humidity decreases.

Can I freeze fresh food in this refrigerator?

Yes, but only in the 3-star compartments. Use Super Freeze mode for quick freezing. Do not freeze for more than 25 hours continuously.

How to defrost the freezer?

Defrosting is automatic (No Frost). No manual action is necessary. If ice accumulates, check that the door closes properly.

What is the power consumption?

Consumption depends on use. To save energy, place the appliance away from heat sources and do not overload.

What to do in case of a power outage?

Open the door as little as possible. Do not put fresh food. The refrigerator keeps cold for several hours depending on the load.

How to replace the LED bulb?

LED lamps must be replaced by a professional. Unplug the appliance before any intervention.

USER MANUAL EMSS178GN2 EAS Electric

Simple line drawing of a cabinet with two vertical bars and one horizontal bar (no text or symbols)

EMSS178GN2

EMSS178GW2

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Contenido

Diagram of a rectangular plate with two small square cutouts and an arrow indicating downward motion (no text or symbols)

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

3 SAFETY WARNINGS
6 DIAGRAM AND COMPONENTS
7 PREPARING BEFORE USING
7 Specifications of the product

7 CORRECT USE OF THE REFRIGERATOR
7 Warnings
7 Reception of new refrigerator
8 Height adjustment of the door
8 TRANSPORT AND LOCATION

9 REFRIGERATOR COMPARTMENT

10 Shelf adjustment

10 Height adjustment and cleaning of rack

11 Storage area recommendations

12 FREEZER COMPARTMENT

12 Storage area recommendations

13 FUNCTIONS

15 MAINTENANCE AND CARE

15 Defrosting

15 Overall cleaning

16 Replacement of lights

16 Shutting off the refrigerator

17 TROUBLE SHOOTING

18 ENERGY SAVING AND WARNINGS

18 DISPOSAL

19 WARRANTY

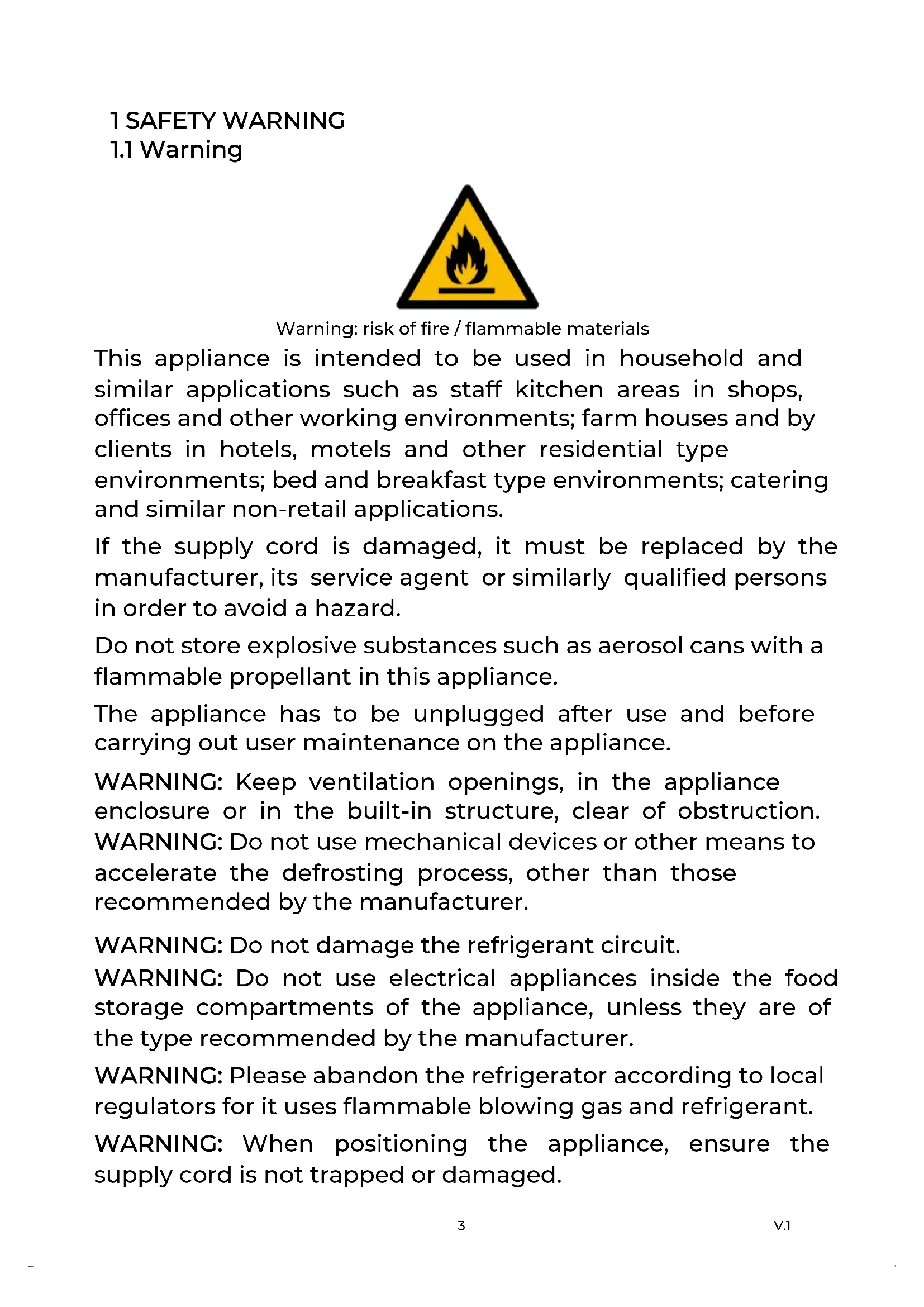

1 SAFETY WARNING

1.1 Warning

Warning: risk of fire / flammable materials

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it uses flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Do not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

For IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children should be supervised to ensure that they do not play with the appliance.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing and making ice-cream and making ice cubes. (note 2)
• One, two and three-star compartments are not suitable for the freezing of fresh food. (note 3)
• Appliances without a 4-star compartment are not suitable for freezing foodstuffs (note 4).
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1, 2, 3, 4: Please confirm whether it is applicable according to your product compartment type.

Freestanding appliances are not intended to be used as built-in appliances.

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

This product contains two light sources of energy efficiency class G.

IMPORTANT: Please read this manual carefully and keep for future reference

NOTICE

Before using the appliance, please notice these important safety instructions.

Please read this guide thoroughly before operation and keep it handy for reference at all time.

EAS Electric products should continue to improve, so they are subject to change without notice.

When disposing of any refrigerator equipment, please contact your local waste disposal department for advice on safe disposal.

Do not store or place dry ice in the refrigerator.

The images in this guide are just for reference and certain characteristics and fittings could not be completely consistent with your purchased refrigerator. Please take the refrigerator in the packing list as the standard.

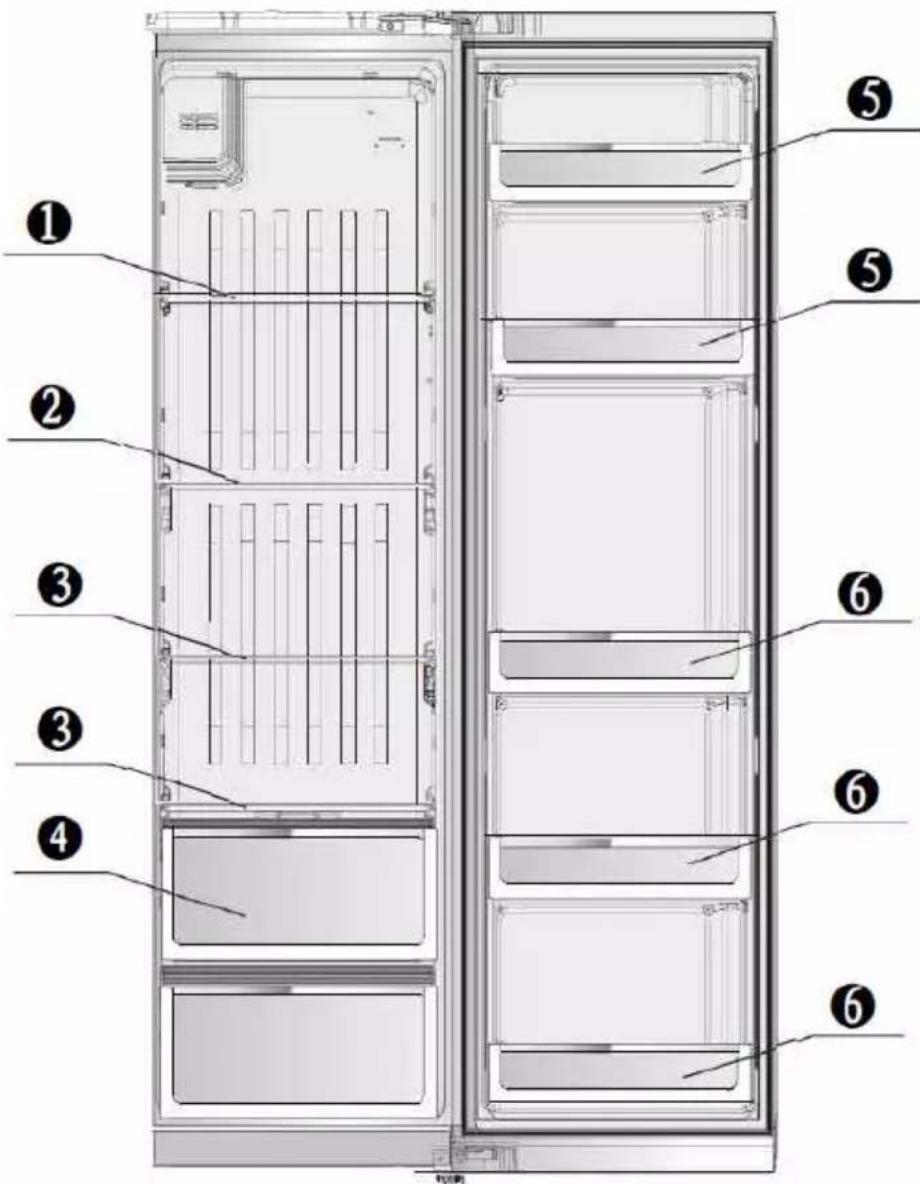

1 Freezer door rack

2 Freezer compartment glass shelf

3 Freezer compartment drawer

4 Refrigerator compartment glass shelf

5 Vegetable crisper

6 Refrigerator door rack

Drawers, food boxes, shelves, etc. placed according to the position in the picture above are the most energy efficient.

Preparing before using

Specifications of the product

Invariable Fresh technology

Separate ventilation system in refrigerator compartment and separate temperature control for stable storage temperature that ensures the stored food is kept fresh for a long time.

Defrost pre-cold

Technology of defrost pre-cold with the purpose of keeping temperature stable in refrigerator, suitable for keeping food fresh.

Smart defrosting

Defrosting depends on use frequency for energy saving purposes

Gliding shelves

The freezer and refrigerator's rack are designed to allow gliding and height adjusting, which makes it more convenient for food storage.

Human aptitude

The freezing effect is adjusted according to storage temperature and inside temperature by computer.

Other features:

CFC and no-frost design.

InstantCool and InstantFreeze

Automatic alarm in case of errors.

Reliable compressor with good quality.

Opening door alarm, LED screen

Correct use of the refrigerator

Warnings

• Don't use mechanical equipment or other methods to accelerate the defrosting process except the means recommended by the manufacturer.
• Don't use any electrical appliances in the food storage compartments except the model recommended by the manufacturer.
• The R600a refrigerant and cyclopentane foaming material used in the refrigerator are inflammable. All waste and discarded refrigerators shall be placed away from naked fire and they are not allowed to burn.

Reception of the new refrigerator

- Remove all packaging material before using the new refrigerator, including the foam base and all adhesive tape holding the refrigerator accessories inside and outside.

• Clean both the inside and outside of the refrigerator with wet cloth (a little detergent could be added into the warm water to wash the cloth and then wipe it again with the clean water);
• Prepare an independent two-pole socket with grounding contact for the refrigerator and it shall not share a multi-purpose socket with other electrical appliances;
• Make sure to connect the grounding wire! The grounding pole of the socket shall be provided with a reliable grounding wire.
• Open the refrigerator body and take out the accessory (decorative cover for bottom beam) and the three screws from the instruction packaging bag; then install them into the bottom beam.

Door height adjustment

Before adjusting the height of the door, rotate the downward adjusting nut clockwise (as shown in Figure I) for 2 circles with a wrench to loosen it. Rotate the upward adjusting nut (as shown in Figure I) to adjust the height, and then tighten the downward adjusting nut counterclockwise again.

1. When the door of refrigerating chamber is low:

Open the door, use the accompanying wrench to rotate the upward adjusting nut counterclockwise according to the method as shown in Figure I, to move it upward until it is parallel and level.

2. When the door of refrigerating chamber is high:

Open the door, use the accompanying wrench to rotate the upward adjusting nut clockwise according to the method as shown in Figure 1, to move it downward, until it is parallel and level.

Note: Height adjustment cannot be too large. The total height can be adjusted to 5 mm!

Refrigerator's transport and location

Transport

Please don't transport the refrigerator upside down and do not allow it to get squeezed or to vibrate. The tilt angle cannot be larger than 45^ .

When moving, do not hold the refrigerator by the door or the handle.

Location

Ensure proper air circulation around the refrigerator and do not place the unit near any heat sources, direct sunlight, moisture or water, to avoid rust and weakening of the insulation.

Make sure there is a 30cm space on top and at least 10cm on both the sides and back 10cm from the wall, so the refrigerator door can be conveniently opened or closed and dissipate heat.

The refrigerator must be installed on solid, level floor. If the floor is not completely flat, adjust the levelling feet to ensure the refrigerator is level.

Attention

Don't allow the power cable to be pressed by the refrigerator itself or other heavy object. If the power cable is damaged it may cause an electric shock. Before connecting the power, please carefully check the voltage range of refrigerator and power supply.

Start using

Before it is used, make sure that the refrigerator is installed on solid and level floor and that you understand all the attention notes and warnings to security matters.

1. After unsealing the refrigerator, fix the lower cover on the refrigerator. If the floor is rugged, please refer to the adjustment instructions which are located in the lower left corner of the right panel of the refrigerator to adjust.)

2. Connect to power supply

After connecting to power supply, the refrigerator is in the default status, and it shows the actual cooling and freezing temperature. The refrigerator has a power-down memory, so every time after it is first powered on, it will be set up at the last power-down operation.

1. Work mode of the refrigerator

Manual mode: You can use the temperature control keys to set the temperature.

1. Put the food into the refrigerator

After the refrigerator has been under power for a period of time, the inside of the refrigerator will be fully cooled and ready to put the food into the refrigerator and start using it.

Tip: When the setting temperature has been changed or when you put new food into the refrigerator, it will take some time to balance the inside temperature. The length of this period depends on the size of the temperature change, the temperature of the surrounding environment, the frequency of opening door and the amount of food that has just been put in.

Refrigerator compartment

This compartment is intended for food with short-term storage life or that is ready to eat at any time.

Although the regulation of the temperature enables the average temperature of the cooling compartment to stay within 0-10°C, it cannot ensure long-term preservation of food. Therefore, the refrigerator compartment must only be used as a short-term food storage.

Shelf adjustment

According to the needs of food storage, you can adjust the shelf to proper position. To facilitate the use of it or to adjust the location, the shelf can be set to slip out of the refrigerator. When you want to remove the shelf, please move the shelf in direction (1), then turn the shelf in direction (2) at 90° until it is perpendicular to the original direction, then pull out the shelf in direction (3).

Height adjustment and cleaning of rack

Lift the rack by the direction (1), holding both sides, then pull it out by the direction (2). After cleaning, reinstall the rack in the opposite direction. You can also adjust the position according to the height of stored food.

Refrigerator compartment

Recommendations of storage area for all kinds of food

Due to the cycle of air circulation inside the refrigerator, the temperatures in different areas of the compartment might differ, so different kinds of food should be placed on different temperature areas.

1. Store pasta, canned goods, milk, etc.
2. Store fast food, easy-string together food, dairy products, etc.
3. Store cooked meat and sausage, etc.
4. Store fruits and vegetables, etc
5. Store easy-open tin can, canned goods, spices, etc.
6. Store all kinds of bottled drinks and food

Freezer compartment

The freezer compartment is for food storage for a long time

The temperature of freezer compartment is very low, so it can keep the food's fresh state for a long time. It is advisable to put any food that needs to be kept for a long period of time in this space, always complying with the storage time marked on food packaging.

Recommendations of storage area for all kinds of food

1. The storage grilles on the door of the freezer room (2 stars) are used for short-term storage of food and ice cream.
2. The storage grilles in the freezer room are used for the storage of frozen food.
3. The glass shelves are used for the storage of frozen foods, such as fish, meat and ice cream.
4. Freezer drawer is used for the storage of fish, meat and poultry with the food packaging.

Functions

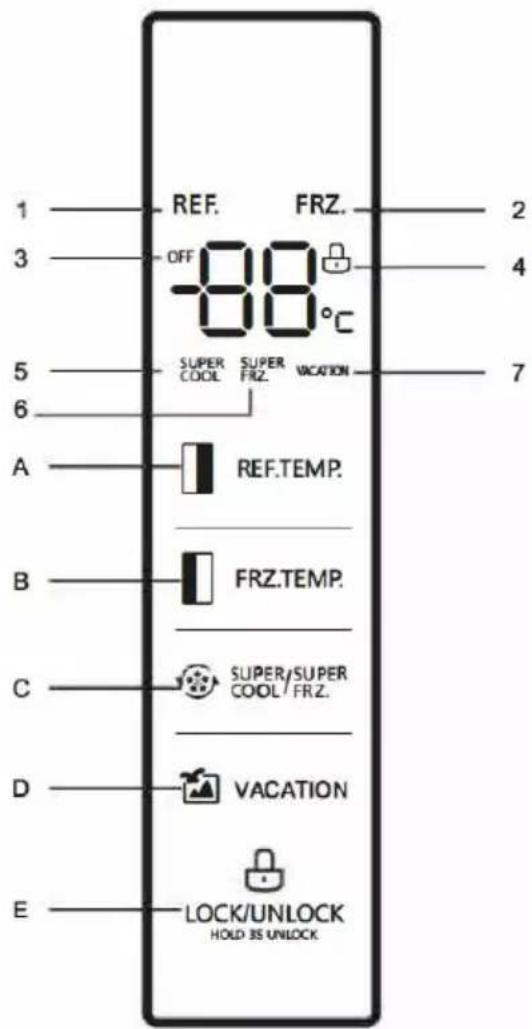

1. Button operation

A. Refrigerator compartment temperature adjustment
B. Freezer compartment temperature adjustment
C. Super cool/Super FRZ.
D. Vacation mode
E. Lock/Unlock

2. Display

1. Refrigerator compartment
2. Freezer compartment
3. Close Refrigerator compartment
4. Lock icon
5. Super cool mode
6. Super FRZ. mode
7. Vacation mode

At non-lock state, press key E for 3 seconds. The refrigerator will go into the Locked state and icon 4 📋 will show. To release the locked state, press key E for 3 seconds while in locked state until icon 4 displays ⚙, then the unit will be unlocked.

The following functions must be in operation under the unlocked state.

Press mode button (button C) to choose running mode according to the following sequence:

Super cool > Super FRZ. > Super cool and FRZ > NONE > Super cool...

The following settings must be valid upon locking.

4. Vacation mode

Press key D to select Vacation mode. Icon 7 will be displayed, then press key E to confirm and the refrigerator will start running according to Vacation mode.

5. Super cool mode

Press key C to select Super cool mode, the icon 5 turns on. Upon the lock, the refrigerator will run under the Super cool mode.

Super cool mode is automatically disabled after 5h.

6. Super FRZ. mode

Press key C to select Super FRZ. mode, the icon 6 turns on. U pon the lock, the refrigerator will run under the Super FRZ . mode.

Super FRZ. is automatically disabled after 25h.

7. Refrigerator compartment temperature settings

Press the key REF.TEMP. (Key A), the refrigerating temperature area gives a prompt by flashing. Then, press the key REF.TEMP. to adjust the setting temperature upon the beep. The temperature changes 1°C each press, ranging between 2\~8°C.

The temperature adjustment sequence is:

$$ 8 ^ {\circ} \mathrm{C} > 7 ^ {\circ} \mathrm{C} > 6 ^ {\circ} \mathrm{C} > 5 ^ {\circ} \mathrm{C} > 4 ^ {\circ} \mathrm{C} > 3 ^ {\circ} \mathrm{C} > 2 ^ {\circ} \mathrm{C} > 8 ^ {\circ} \mathrm{C} > 7 ^ {\circ} \mathrm{C} \dots $$

Upon the temperature adjustment, the display flashes for 5s and the new setting temperature is effective upon the lock.

8. Freezer room temperature settings

Press the key FRZ.TEMP. (Key B), the freezing temperature area gives a prompt by flashing. Then, press the key FRZ.TEMP. to adjust the setting temperature upon the beep. The temperature changes 1°C each press, ranging between -16\~-24°C.

The temperature adjustment sequence is:

$$ - 1 6 ^ {\circ} \mathrm{C} > - 1 7 ^ {\circ} > - 1 8 ^ {\circ} \mathrm{C} > - 1 9 ^ {\circ} \mathrm{C} > - 2 0 ^ {\circ} \mathrm{C} > - 2 1 ^ {\circ} \mathrm{C} > - 2 2 ^ {\circ} \mathrm{C} > - 2 3 ^ {\circ} \mathrm{C} > - 2 4 ^ {\circ} \mathrm{C} > - 1 6 ^ {\circ} \mathrm{C} > - 1 7 ^ {\circ} \mathrm{C} \dots $$

Upon the temperature adjustment, the display flashes for 5s and the new setting temperature is effective upon the lock.

Recommended setting: Refrigerated chamber 4°C, freezing chamber -18 °C.

Note: when the set temperature of freezer changes, if a relevant function mode has been previously set (e.g. quick-cool mode, quick-freezer mode, quick-cool and freezer mode, vacation mode), the relevant function mode shall be quitted or canceled at once.

Warnings

The refrigerator uses alternating current supply, which is 220-240V/50Hz. If the voltage fluctuations are large (over the scope of 198-264V), it may cause some failures, such as the refrigerator not starting, the main control board and compressor burn and the compressor works with abnormal noise, etc. If this is the case, you must install an automatic voltage regulator above 1000w for use. The refrigerator's power cord with a three-plug (grounding) complies with the standard three-socket (grounding). Don't cut off or remove the third pin of the power card under any circumstances. After the refrigerator is installed, plugs should be easily reached to facilitate use. The power plug must have firm contact with the socket, otherwise it might cause fire.

Do not grasp and drag the power cord to pull out the refrigerator plugs. Hold the plug firmly, and pull out the plug from the socket directly. Make sure the power lines are not pinned by the refrigerator or trampled by people. Be careful when the refrigerator is separated from walls so as not to roll or damage power lines. Do not use power lines and plugs that are damaged or worn out. If they are, please contact the authorized service center closest to you so they change them.

When flammable gas is leaked, such as coal gas, close the gas valve, open the doors and windows, and do not plug nor unplug the refrigerator and any other appliances.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Do not use flammable solvent near the refrigerator, so as to avoid fire.

To ensure safety, do not place power outlets, voltage regulated power supplies, microwave ovens and other appliances on top of the refrigerator. Do not use other appliances in the refrigerator (except recommended models), in order to avoid electromagnetic interference and other accidents.

Do not let children go into the refrigerator or climb it up, in order to avoid them getting trapped inside or the refrigerator falling and hurting them.

After the refrigerator is running, do not touch the icy surface of the freezer with your hands, particularly if they are wet. It may cause frostbite.

The gaps between the doors and between the door and refrigerator body are very narrow. Be careful not to put your hands into these areas to prevent injuries. Do not let the children near the refrigerator when opening and closing the doors.

Do not spray and rinse the refrigerator with water, and do not install the refrigerator in the wet place or the place which water or rain splashes, so as not to affect the electrical insulation of the refrigerator.

Never dismantle or modify the refrigerator yourself, and do not damage the cooling pipes in any way. Maintenance of refrigerator must only be carried out by professionals.

Do not put bottled drinks in the freezer, the bottle might break.

Pull out the plug in case of power failure or when you are cleaning, and wait for 5 minutes or longer when reconnecting the plug. The compressor might be damaged due to continuous start.

Before you dispose of your old refrigerator, take off the door, remove the door seals and the shelves and place the door and rack in the right position, so as to avoid children climbing inside and causing accidents.

This product is for household use only. According to the regulation of government standard, household refrigerators are only for food storage, not for other uses, such as storage of blood, drugs and biological products.

Maintenance and care of the refrigerator

Defrost the freezer

The freezer compartment will defrost automatically.

Cleaning

Dust behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. The interior of the refrigerator should be cleaned regularly to avoid odor.

Please turn off the power before cleaning the interior. Remove all foods, drinks, shelves, drawers, etc. Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

For areas that are difficult to clean in the refrigerator, such as narrow sandwiches, gaps or corners, it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacteria accumulate in these areas.

Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminate food.

Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.

Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Replacement on lights in freezer and refrigerator, and specification of lights

Specification: direct current 12v, LED

1. Shut off the power.
2. As per the photo, remove the shade along the drive direction of the arrow, and then tighten the screws, remove the LED lights.
3. Restore following the same steps in reverse.
4. The lights must always be replaced by professionals.

Diagram of a rectangular plate with internal structure and two small square markers, showing a downward arrow (no text or symbols)

When shutting off the refrigerator

No use for long periods of time

You should plug out the power supply, otherwise, it may cause electric shock or fire if power lines are aging.

In case of power failure

You should minimize the frequency of opening the door, and it is not recommended to add fresh foods in the refrigerator in this state.

When discarding the refrigerator

Before you throw away your old refrigerator, make sure to take off the doors, so as to avoid the children climbing inside to cause accidents.

5. Trouble shooting

You may try to solve the following simple problems by yourself. If they cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Smell	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the refrigerator is normal in summer when the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequently
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damagedHave the light replaced by a specialist
Doors cannot be properly closed	The door is stuck by food packagesThe refrigerator is tilted
Loud noise	Check whether the floor is level and whether the refrigerator is placed stably. Check whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting.The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal. When housing becomes hot due to high ambient temperature and storage of too much food, it is recommended to provide sound ventilation to facilitate heat dissipation.
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature befo replacing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Warnings for energy

• Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
• The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
• The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
• The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
• The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.

2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.

3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.

4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of ground-ting in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Table 1 Climate classes

Class Symbol		Ambient temperature range (°C)
Extended temperate	SN	+10 to +32
Temperate	N	+16 to +32
Subtropical	ST	+16 to +38
Tropical	T	+16 to +43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Special for new European standard:

The ordered parts in the following table can be acquired from our after sales service:

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

Contenu

3 AVERTISSEMENTS DE SÉCURITÉ

6 DIAGRAMME ET COMPOSANTS

7 AVANT UTILISATION

Diagram of a rectangular plate with two small square cutouts and an arrow indicating downward motion (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

CONDITIONS DE LA GARANTIE

Diagram of a rectangular plate with two small square cutouts and a downward arrow indicating force or direction (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Three vertically aligned black oval shapes on white background (no text or symbols)

Illustration of a hand tool with a handle and screwdriver, alongside four black oval shapes (no text or symbols)
