CLEAN AND MAINTENANCE

Cleaning method Lamp Replacement FAULT HANDLING TECHNICAL PARAMETERS PRODUCT RECYCLING WARRANTY PRODUCT INTRODUCTION Control Panel introduction Mode introduction First use Operation steps ACCESSORIES Accessories included Accessories use INSTALLATION Cabinet Diagram (Standing Cabinet) Cabinet Diagram (Ground Cabinet) Installation Important Instructions Installation steps

V.101 Thank you for choosing us! Please read all instructions before using this appliance. This book contains valuable information about operation, care and service. Keep it in a safe place for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with appliance in order that new owner can be acquaint- ed with the functioning of the appliance and relevant warnings. THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. PLEASE READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE. To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:

• Call only the Service Centers authorized by store where you buy the cooker

• Always use original Spare Parts When the oven is first switched on, it may give off an unpleas- ant smell. This is due to the bonding agent used for the insulat- ing panels within the oven. Please run the new empty product with the conventional cooking function, 250°C, 90 minutes to clean oil impurities inside the cavity. When you use it for the first time, there will be a pungent smell or smoke, which is normal. If it does happen, you should wait for the smell or smoke to disappear before putting food in the oven. Please use the product under an open environment. The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Chil- dren less than 8 years of age shall be kept away unless continuously supervised. If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. SAFETY INFORMATION

V.102 During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements inside the oven. Do not allow children to go near the oven when it is operating, especially when the grill is on. Ensure that the appliance is switched off before replacing the oven lamp to avoid the possibility of electric shock. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring specifications. Children should be supervised to ensure that they do not play with the appliance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appli- ance by person responsible for their safety. Accessible parts may become hot during use. Young children should be kept away. An all-pole disconnection means must be incorporated in the fixed wiring in accordance with the wiring rules. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Only use the temperature probe recommended for this oven. A steam cleaner is not to be used. The appliance is not intended to be operated by means of an external timer or a separate remote control system. The instructions for ovens that have shelves shall include de- tails indicating the correct installations of the shelves.

V.1Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet. For oven: Oven door should not be opened often during the cooking period. The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement, and installation by unauthorized personnel.

When the door or drawer of oven is open do not leave anything on it, or you may unbalance your appliance or break the door. Some parts of appliance may keep its heat for a long time; it is required to wait for it to cool down before touching onto the points that are exposed to the heat directly. If you will not use the appliance for a long time, it is advised to plug it off.

When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact the technical service department. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because these are dangerous to children. V.104

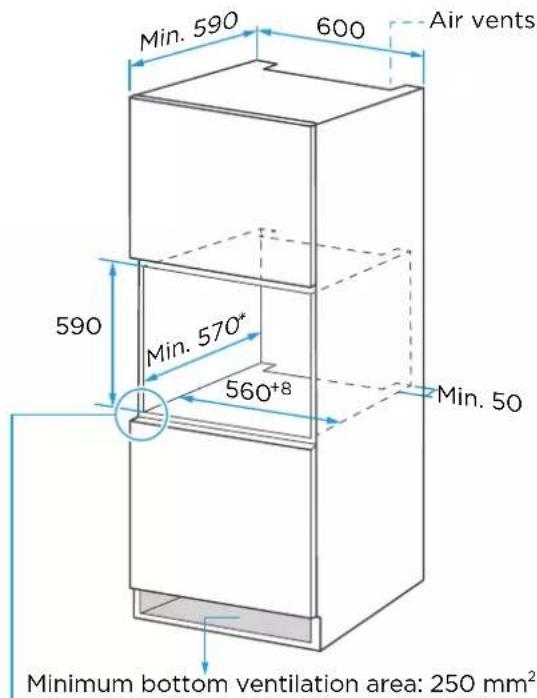

As the appliance is constantly upgrading, the actual appliance shall prevail if the picture is different from the actual appliance. The thickness of the cabinet board is 20 mm. If the power socket is installed on the back of the appliance, the depth of the cabinet opening shall be increased from a minimum of 590 mm to 620 mm. The dimensions in the figures are in mm. Cabinet Diagram (Standing Cabinet) Min. 570 Minimum bottom ventilation area: 250 mm

Native appliance INSTALLATION

Reserve 5 mm for the door panel at the top and bottom respectively.Reserve 20 mm for the door panel on the left and right respectively.Reserve 20 mm for the door panel in thickness. V.105 Minimum bottom ventilation area: 250 mm

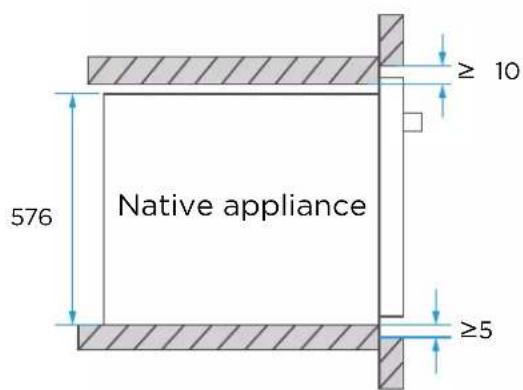

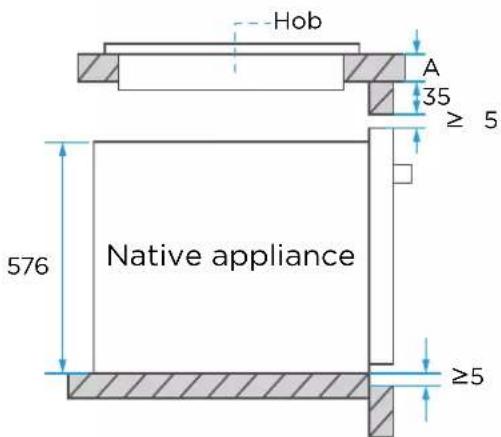

If the appliance is installed under the hob, the minimumthickness of worktop A is shown below: ≥ 5

Native appliance Native appliance Without hob Hob

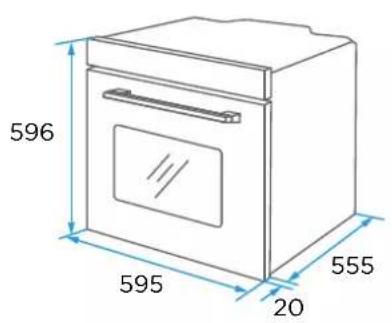

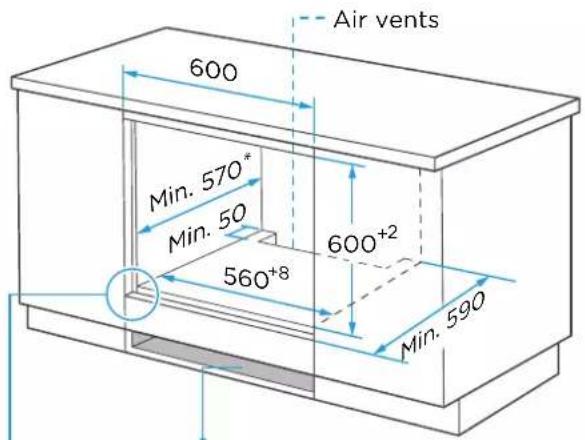

Cabinet Diagram (Ground Cabinet)

Reserve 5 mm for the door panel at the top and bottom respectively.Reserve 20 mm for the door panel on the left and right respectively.Reserve 20 mm for the door panel in thickness. V.106 Installation Important Instructions

Content that means [mandatory] The safe operation of this appliance can only be guaranteed if it has been installed to a professional standard in accordance with these installation instructions. The installer shall be liable for any damage resulting from incorrect installation. The entire installation process requires two professional installers. Wear dry protective gloves during installation to avoid scratch or electric shock. Fitted units must be heat-resistant up to 90°C, and adjacent unit fronts up to 70 °C. Please use a 16A socket. Content that means [prohibit ] Do not install the appliance behind a decorative door or the door of a kitchen unit, as this may cause the appliance to overheat. Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transit. Do not block the vent of the appliance and the gap between the cabinet and the appliance. Use extreme caution when moving or installing the appliance. It is very heavy, do not lift the appliance by the door handle. If the power cord or power plug is damaged, stop using the appliance immediately, to avoid fire, electric shock or other injuries. Content that means [note] Be very careful when moving or installing the appliance to avoid damage to the appliance or damage to the cabinets. Before starting up the appliance, remove all packaging materials and accessories from the cavity. The power socket shall be accessible to users (such as next to the cabinet) for easy power-off. After installation is complete, make sure that the power plug is firmly inserted into the socket. Please refer to the "Cabinet Diagram" for the requirements of net depth of the cabinet. The clearance between the cabinet bottom board and the rear board (or wall) shall not be less than 50 mm. V.107 Please customize the cabinet according to the "Cabinet Diagram". Before installation, please check for normal power socket and appropriate grounding, and check whether the cabinet dimension meets the installation requirements. Place the appliance in designated locations in the kitchen, install it in a vertical cabinet, and connect the power supply. To locate the mounting fixing holes, open the appliance door and look at the side frame of the appliance (position shown above). Fix the appliance to the cabinet with two rubber plugs A and screws B provided with the appliance.

Installation steps Mounting fixing hole V.108 PRODUCT INTRODUCTION When removing food, please wear heat insulating gloves to prevent burns! At the moment of opening the door of the furnace, pay attention to the steam. Please open the door at a small Angle to avoid the steam on your face. As the product is constantly upgraded, if there is any difference between the real object and the picture below, please refer to the real object. Control panel Mounting fixing hole Door handle Door glass Ventilating openings Mounting fixing hole Control Panel introduction Turn knob K1 cooking mode. Turn knob K2 to adjust the time. Turn knob K3 to adjust the temperature. K1 K3K2 V.109 Mode introduction Mode Mode introduction Which enables the use r to observe the progress of cooking without opening the doo

. Oven lamp will light for all cooking functions. Barbecue flat food. Evenly distributed heat and top two heating elements work simultaneously. Bake small amounts of flat food. The top two heating elements work simultaneously. Lamp Double grill + fan Defrost Defrost frozen food. Bake small amount s of food. Please place food in the middle layer of the cavit

Radiant heat For energy-saved cooking. ECO Heat is provided by heating pipes at the bottom of the oven. Mainly used for food keeping warm and food bottom coloring. Clean Bottom heater Conventional The top and bottom heating elements work at the same time, making them ideal for baking larger cakes. Steam softens food residue or grease in the cavity. Double grill The combination of fans and heating elements provides more uniform heat penetration, saving up to 30-40% of energy

Radiant heat V.110 Operation steps

First use Before using it for the first time, please clean the oven and accessories to a certain extent. Remove the oven packaging shipping protection parts. Remove all accessories (eg: baking trays, grills, foam, etc.) from the cavity. Thoroughly clean the attachment with soapy water and a rag or soft brush. Wipe cavity and oven surfaces with a soft damp cloth. To avoid fire, please make sure that the cavity is free of any remaining packing materials and accessories when using it for the first time. When using it for the first time, keep the kitchen highly ventilated (open the hood and windows). During this time, keep children and pets out of the kitchen and keep the doors of adjacent rooms closed. When used for the first time, the anti-corrosion coating of the oven heating tube evaporates when heated, which will produce a pungent smell or smoke, which is a normal phenomenon. Please run the following mode:

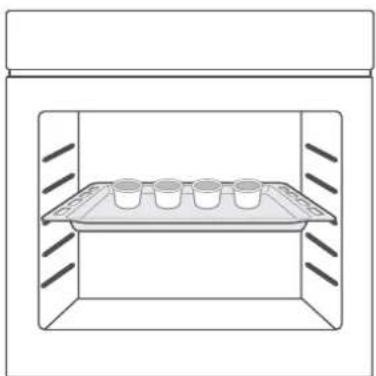

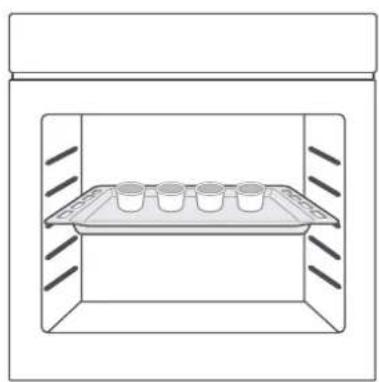

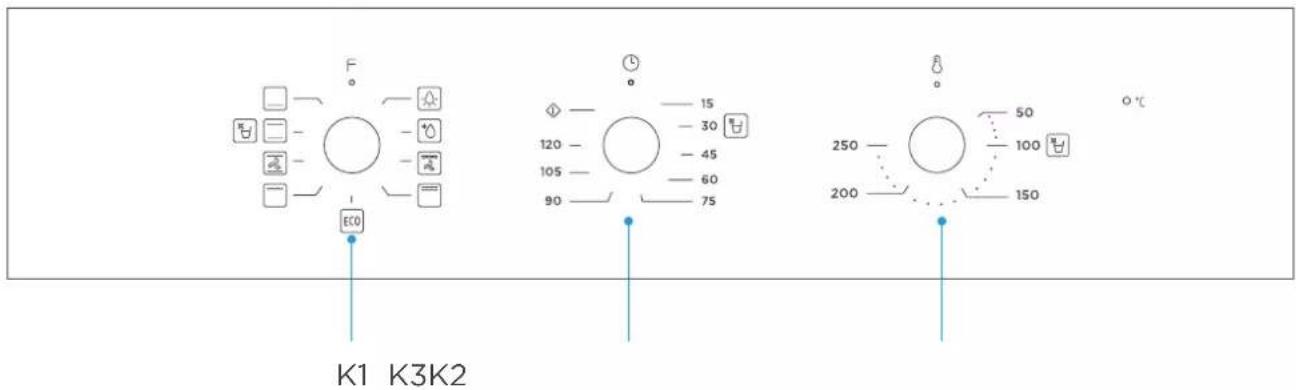

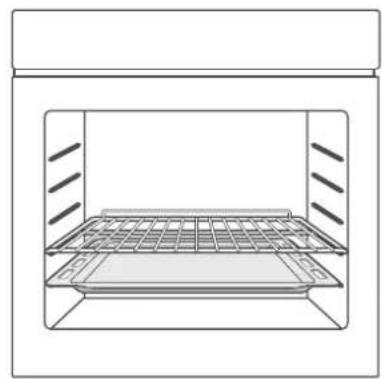

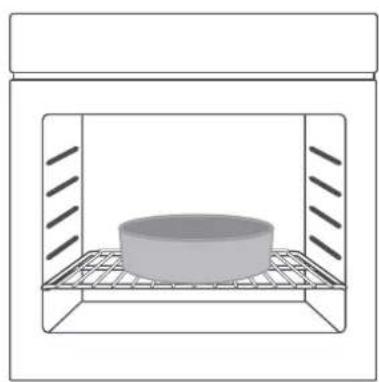

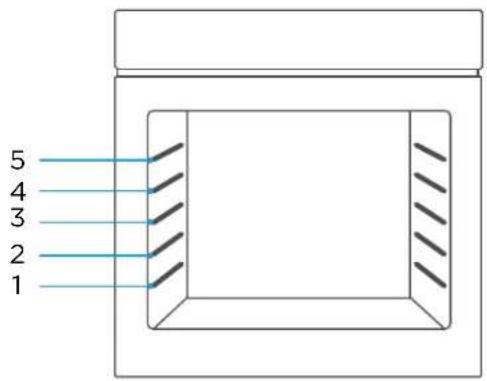

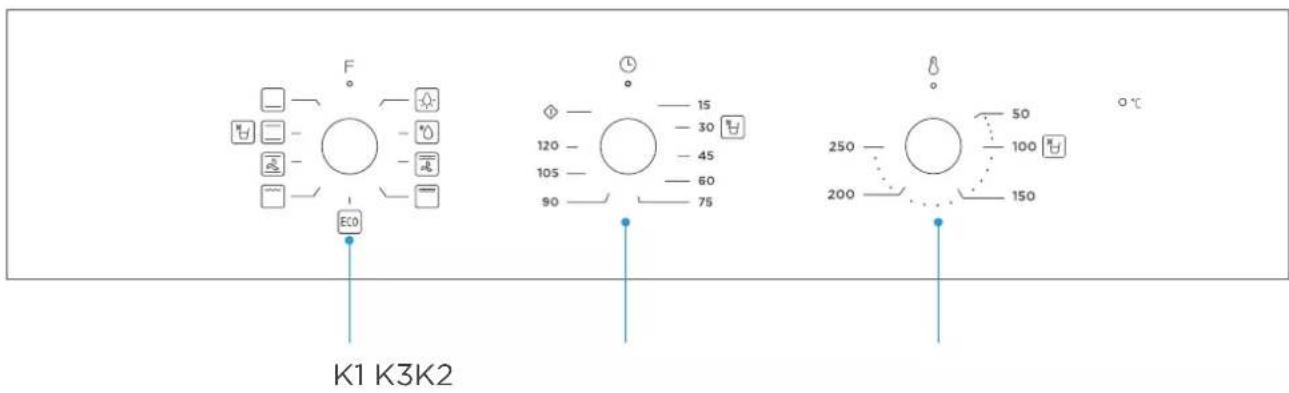

Mode Temperature Time 250ºC 0.5-1 Hour Turn knob K1 cooking mode. Turn knob K2 to adjust the time. Turn knob K3 to adjust the temperature. Radiant heat K1 K3K2 V.111 ACCESSORIES As the products and accessories are constantly upgraded, if there is any difference between the real object and the picture below, please refer to the real object. Your appliance is accompanied by a range of accessories. Here, you can find an overview of the accessories included and information on how to use them correctly. Accessories included Your appliance is equipped with the following accessories: Baking Tray Cook large portions of food or catch food scraps Barbecue rack Grill food or place heat-resistant cooking containers Accessories use For the oven to work properly, the grill rack and Baking Tray should only be placed between the first and fifth levels. When used together, place the Baking tray under the grill.

CLEAN AND MAINTENANCE

After cooking is complete, wait for the oven to cool down completely. Remove oven accessories, rinse with warm water and dry. Use a hot rag to clean food residue or grease from the oven. Clean the oven surface with a soft cloth dampened with detergent and dry. Disconnect the power supply before cleaning and maintenance. In order to ensure the life of the machine, it should be thoroughly cleaned frequently. Cleaning method 1

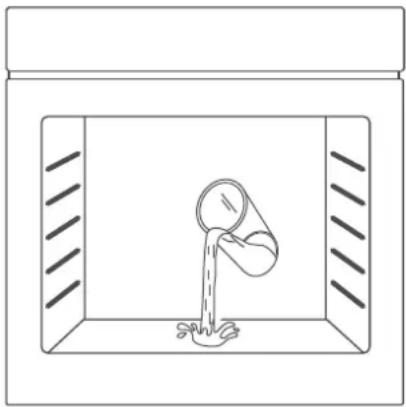

the cavity and stir well. 2). With the oven door closed, Turn knob K1 to the position. 3). Turn knob K2 to the 30 minute position. 4). Turn knob K3 to the 100°C position. After cooking is complete, wait for the oven to cool down completely. Remove oven accessories, rinse with warm water and dry. Use a hot rag to clean food residue or grease from the oven. Clean the oven surface with a soft cloth dampened with detergent and dry. Start the cleaning function. The operation steps are as follows: 1). Add about 250 ml of purified water and an appropriate amount of dish soap to After the oven has cooled completely, dry the cavity with a clean absorbent sponge or soft cloth. Cleaning method 2 V.113 Lamp Replacement

To avoid electric shocks-please ensure that the electricity supply to the appliance is switched off and the appliance is fully cold. before removing the lamp lens.

Switch off and disconnect the power from the oven. Ensure that the internal parts are cool before touching internal parts. Remove the lamp cover by turning it counter-clockwise (note, it may be stiff), replace the bulb with a new one of the same type. Insert the new bulb, which should be resistant to 300°C. For replacement bulbs contact your local service centre. Re-fit the cover. If in any doubt, consult a qualified electrician for help. V.114 FAULT HANDLING If the problem cannot be solved or other problems occur, please contact the after-sales service. After cooking, the machine still has the sound of working (the sound of the fan rotating).Under normal conditions, food can be taken out normally without treatment;Do not unplug the fan while it is in operation.Fan delay blowing, used for heat dissipation.There is a sound in the oven cavity when the oven is working. Belong to normal condition,need not deal with. Wipe the heating tubeand furnace cavity with aclean towel. The sound of a cavity expandingby heat and contracting by cold. The furnace cavity is notcleaned for a long time, whichaccumulates a lot of grease.The first use has an unpleasant smell.For the first use, please heat the cavity in a well-ventilated environment for half an hour.Heating tube with anticorrosive coating, heating after melting smell.The machine was smoking. Turn off the power and seekafter service. Wipe the heating tube andfurnace cavity with a cleantowel Product failure damage. The furnace cavity has oil,food residue, etc., not cleaned intime.The food is not cooked. Prolong the heating timeappropriately. Break the food intosmallpieces or cook it multiple times. The heating time is tooshort. Oversized portions offood.Furnace light not on. Please seek after service.The furnace lamp is broken. The fault phenomenon Processing methodPossible causes TECHNICAL PARAMETERS Model EMV651VX Usable Volume ECelectric, cavity ( ) ECelectric, cavity ( ) Energy efficiency class 65L

---- kWh/cycle Rated voltage 220-240V~ Rated frequency 50Hz-60Hz ECelectric power

V.115 PRODUCT RECYCLING When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualified person. Keep packing materials such as plastic bags, polystyren, or nails out of the reach of children because these are dangerous to children. The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

V.1WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions. WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.

2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of

aesthetic parts or components that do not affect the internal functioning of the appliance.

3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use

of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.

4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light

bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence

of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of

all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of

grounding in the home, power disturbances, inappropriate modifications or use of non- original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or

disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the

equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with

liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations

and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity". Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version. www.easelectric.es
