USER MANUAL ECA 100 ipro KB Maico

Scope of delivery ● Small room fan ECA 100 ipro ● Electronics cover ● Sensor (only for models F, H and B) ● Foam strip ● Installation and operating instructions

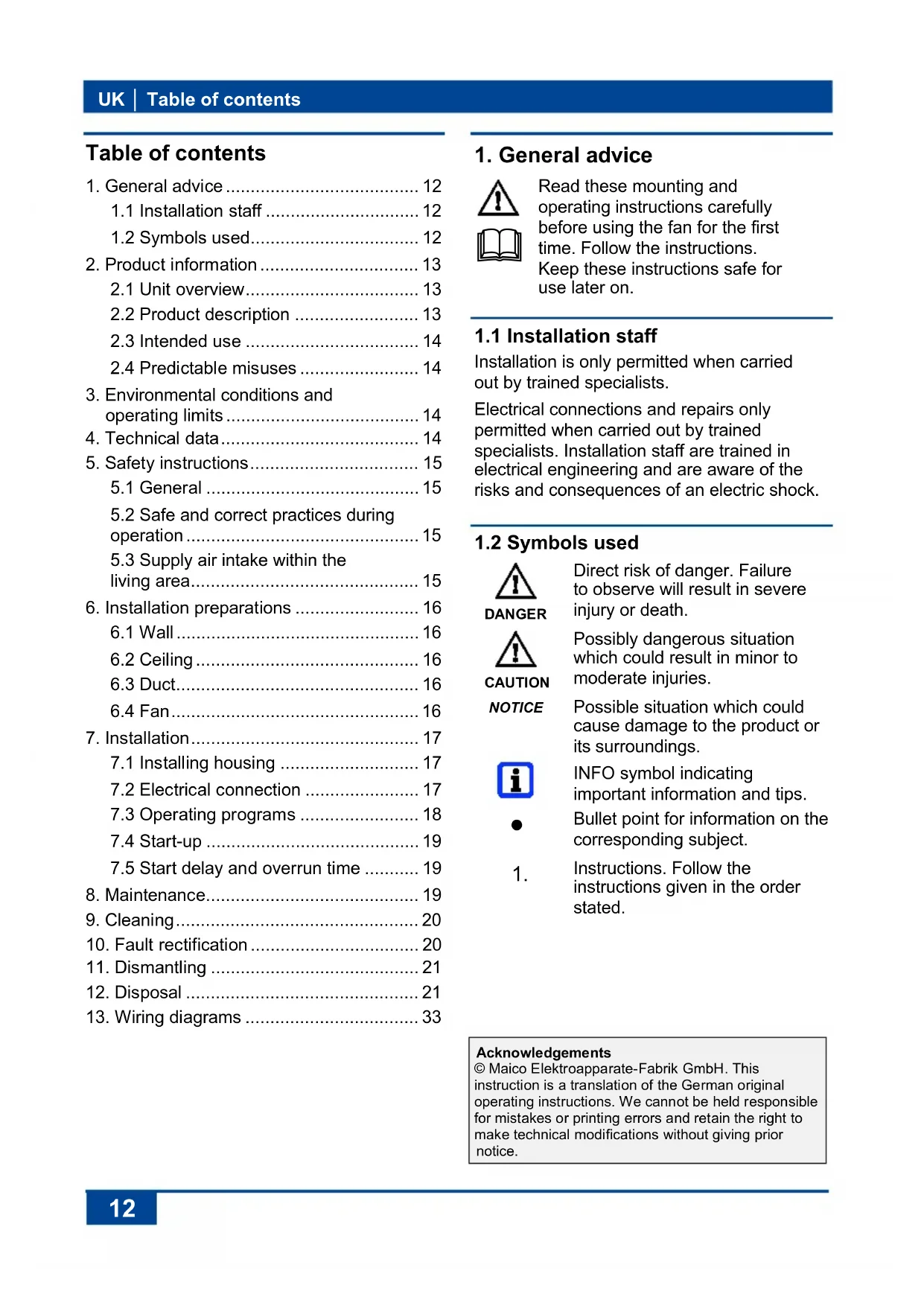

3. Environmental conditions and

5.2 Safe and correct practices during

operation ............................................... 15

5.3 Supply air intake within the

7.5 Start delay and overrun time ........... 19

Read these mounting and operating instructions carefully before using the fan for the first time. Follow the instructions. Keep these instructions safe for use later on.

1.1 Installation staff

Installation is only permitted when carried out by trained specialists. Electrical connections and repairs only permitted when carried out by trained specialists. Installation staff are trained in electrical engineering and are aware of the risks and consequences of an electric shock.

DANGER Direct risk of danger. Failure to observe will result in severe injury or death. CAUTION Possibly dangerous situation which could result in minor to moderate injuries. NOTICE Possible situation which could cause damage to the product or its surroundings. INFO symbol indicating important information and tips.

Bullet point for information on the corresponding subject.

Instructions. Follow the instructions given in the order stated. Acknowledgements © Maico Elektroapparate-Fabrik GmbH. This instruction is a translation of the German original operating instructions. We cannot be held responsible for mistakes or printing errors and retain the right to make technical modifications without giving prior notice.2. Product information │ UK

2.1 Unit overview, Fig. A, B and C

1 Housing with motor 2 Impeller 3 Cable grommet 4 Electronics cover 5 Internal grille or internal shutter

5.1 Fixed internal grille

5.2 Electrically operated internal shutter

6 Cover 7 Designer cover 8 Electronic circuit boards

8.1 Standard electronics

8.2 Sensor electronics

(only for models F, H and B)

9.1 Motion sensor “B”

9.2 Light sensor “F”

● Small room fan for extracting air from rooms. ● ECA 100 ipro with fixed internal grille. ● ECA 100 ipro K with electrically operated internal shutter. ● Two performance levels as standard. ● Models Standard: Can be operated at two levels with an optional double switch. VZC and KVZC: Model with start delay and overrun time. F and KF: Model with light sensor, start delay and overrun time. Switch-on intensity (at fan) min. 30 lux. Switch-off intensity (at fan) max. 1.7 lux. H and KH: Model with humidity control (fully automatic), start delay and overrun time. B and KB: Model with motion detector and overrun time. Without start delay. Monito- ring range of motion detector horizontal 100°/vertical 82°. Unit model Start delay [sec.] Overrun time [min.] Mains cable [mm²] 4 operating programmes Speed controllable ECA 100 ipro 5 x 1,5 ● ECA 100 ipro VZC 0/50/90/120 0/8/17/25 5 x 1,5 ● ECA 100 ipro F 0/50/90/120 0/8/17/25 3 x 1,5 ● ECA 100 ipro H 0/50/90/120* 8/17/25** 3 x 1,5 ECA 100 ipro B 0/8/17/25 3 x 1,5 ● ECA 100 ipro K 5 x 1,5 ● ECA 100 ipro KVZC 0/50/90/120 0/8/17/25 5 x 1,5 ● ECA 100 ipro KF 0/50/90/120 0/8/17/25 3 x 1,5 ● ECA 100 ipro KH 0/50/90/120* 8/17/25** 3 x 1,5 ECA 100 ipro KB 0/8/17/25 3 x 1,5 ● Bold Condition as supplied * Start delay available when using an optional switch ● Standard equipment (e.g. light switch). 4 operating programs available ** 0 min overrun time available when using an optional with optional light switch switch (e.g. light switch).UK │ 2. Product information

Humidity control function for H and KH units Once the fan is installed, it adjusts itself to the prevailing room humidity (relative humidity). This humidity value is saved as the first reference value. The reference value does not have to be specified manually. If the relative humidity falls below the reference value during operation, the newly established reference value is saved. The lowest possible reference value is 48 % relative humidity. If the room humidity increases by 7 %, the fan engages automatically at performance level 1 (78 m³/h). ● If the room humidity increases even further, the unit switches to performance level 2 (92 m³/h). ● If there are no further increases, the unit continues to run at performance level 1 until the humidity again falls below the saved reference value. If the humidity falls below the reference value, overrun mode starts with the set overrun time. The current reference value is then saved. If the humidity does not fall below the reference value within 60 minutes, the unit switches to the set overrun mode and then switches off. H and KH units can also be operated using the light switch. The set opera- ting program starts when the light is switched on ( chapter 7.3). The operating program takes priority over the automatic humidity process. If the light is switched off, the unit continues to run until the remaining overrun time has passed. The automatic humidity process is then assigned maximum priority again and controls the unit as described above.

● This fan is only intended for domestic use and similar purposes. ● Fan for or extracting air from bathrooms, toilet rooms, storage rooms, showrooms, offices, fitness studios, changing rooms and similar places. ● An operation is only permitted when: ● permanent installation in buildings. ● installation on walls or ceilings. ● air supply via shaft or pipe. ● recessed mounted electrical connection. ● Window installation permitted with window installation kit FE 100/1, connection in flat channel duct systems permitted with spacing frame ECA-DR.

2.4 Predictable misuses

Maico is not liable for damages caused by use contrary to the intended purpose. Under no circumstances the unit should be used: ● in single air extraction systems according to DIN 18017-3. ● close to flammable materials, liquids or gases. ● for the conveying of chemicals, aggressive gases or vapours. ● in potentially explosive atmospheres ● outdoors.

3. Environmental conditions and

operating limits ● Maximum permitted temperature of the air medium + 40 °C. ● Sufficient supply air intake must be ensured during operation with air- ventilated fireplaces. The maximum permitted pressure difference per living unit is 4 Pa. ● Resistance to interference according to EN 55014-2 depending on pulse shape and energy component 1000 to 4000 V. If operating with fluorescent tubes, extra interference suppression measures are needed (L or C components or RC modules, protection diodes, varistors) because these values may be exceeded. ● Recommendation: Connect a X2-capacitor (220 nF/250 V) against neutral lead in case of a switch with negative-glow lamp. The capacitor is to be provided by the customer.

● Assembly and electrical connection may only be undertaken by electricians in accordance with chapter 1. ● Read these operating instruct- tions carefully before commis- sionning. ● Only connect unit to perma- nently wired electrical install- lations with NYM-O or NYM-J (3 x 1.5 mm² or 5 x 1.5 mm²) cables. Fixture for disconnect- ting from mains, with at least 3 mm contact opening needed per pole. ● The fan unit may only be operated using the voltage and frequency shown on the rating plate. ● Do not make any modifica- tions to the fan unit. ● Never operate unit without electronics cover [4] and cover [6].

5.2 Safe and correct practices

during operation Danger of injury caused by objects in the impeller. Do not insert any objects in the fan unit. Danger of injury from rotating impeller. Do not get too close to the fan unit, to avoid hair, clothing or jewellery being drawn into the unit. ● Risks for people (including children) with reduced physical, sensory or mental capabilities or a lack of knowledge. Fan may only be installed, commissioned, cleaned and maintained by people who can safely recognise and avoid the risks associated with this work. Children must not play with the unit.

5.3 Supply air intake within

the living area ● The domestic air supply must be set-up so that virtually no air can flow into the living areas from the kitchen, bathroom and WC. ● A room from which the air has to be extracted must be fitted with an non-closable, free supply air cross section of at least 150 cm², e.g. with door ventilation grille MLK.UK │ 5. Safety instructions

The prescribed minimum distances between the wall and the ceiling shown in the figure must be observed.

1. Make sure the housing has a level base.

2. Fit wall breakthrough or drill core hole.

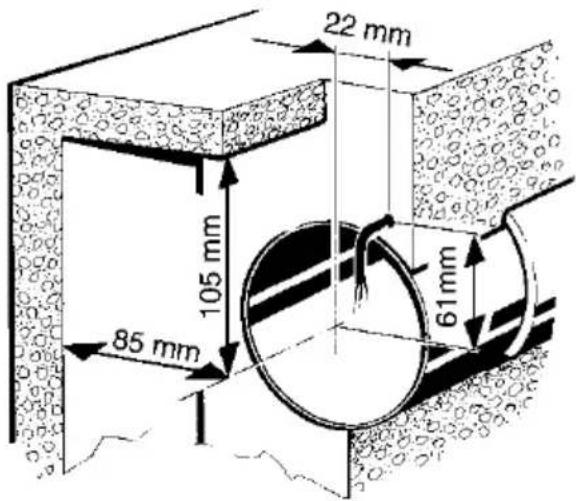

Minimum diameter, 105 mm. Recommendation: Fit wall sleeve WH 100. Fit wall breakthrough with a minimum diameter of 115 mm. Use mounting plate ZM 11 for rectangular wall breakthroughs.

3. Lay power cable (recessed) up to place of

installation, see above for spacing. Guide the power cable at least 110 mm from the wall.

NOTICE Danger of short-circuits and damage to unit if conden- sation builds up in the fan housing. Thermally insulate ventilation ducts in professional manner. Allow for a condensation drain or condensate collector in the riser.

Perform installation preparations as described in Chapter 6.1.

1. Debur edges on the inside of the duct.

2. Perform installation preparations as

described in Chapter 6.1.

1. Unpack ECA and remove cover [6].

Unlock locking hooks ( arrow) with screwdriver to loosen cover.

2. Fit foam strip supplied to connector in

centre. The foam strip must be fitted to ECA 100 ipro H and KH such that the units do not draw in any unwanted air from outside.7. Installation │ UK

For installation with window installa- tion kit FE 100/1 or spacing frame ECA-DR dedicated mounting instructions.

7.1 Installing housing

1. Insert housing [1] into wall breakthrough/

wall sleeve (TOP must be at top).

2. Align housing horizontally and mark the

two dowel holes ( arrows).

3. Remove housing [1], drill M6 dowel holes

with a Ø of 6 mm and insert dowels.

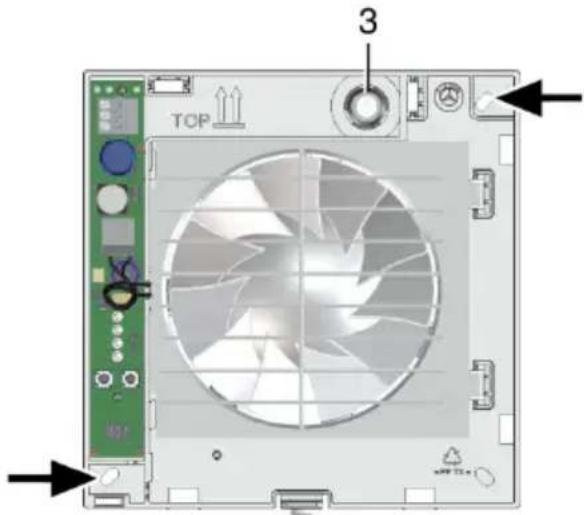

4. Push cable grommet [3] carefully out of

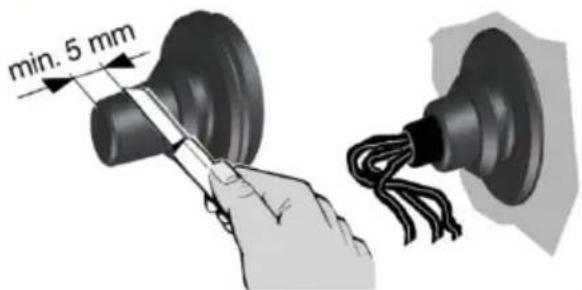

housing and remove. NOTICE Danger of short circuits and damage to unit! Water will penetrate if the power cable is incorrectly fed into the fan housing or if the cable grom- met is not fitted correctly. Cut off cable grommet cap [3] such that the cable grommet fits tightly round the power cable. Cut off at least 5 mm of the cap (power cable can bend better and electronics cover [4] can be positioned correctly). Fit cable grommet [3] correctly, seal on both sides if required.

5. Insert cable grommet into housing.

Guide power cable into connection area such that the cable grommet fits around the cable sheathing completely and does not penetrate too far into the connection area.

7.2 Electrical connection

DANGER Danger to life from electric shock. Switch the mains fuse off. NOTICE Unit damage in the case of short-circuits. Insulate PE conductor and unneeded cable cores.

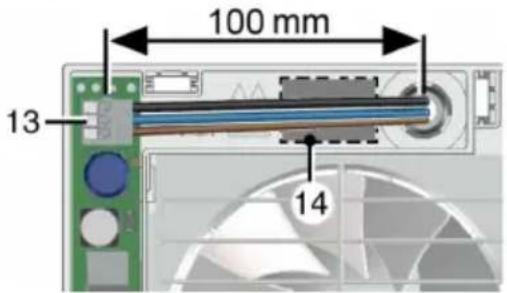

do this, reduce power cable sheathing to a length of 100 mm. Strip single cable cores to 9 to 10 mm.

2. Insert housing [1] into wall breakthrough/

wall sleeve and secure with two screws. Do not insert the housing such that it is twisted or crushed. Make sure you use mounting material which is sized for the purpose.

3. Electrically connect power cable to spring

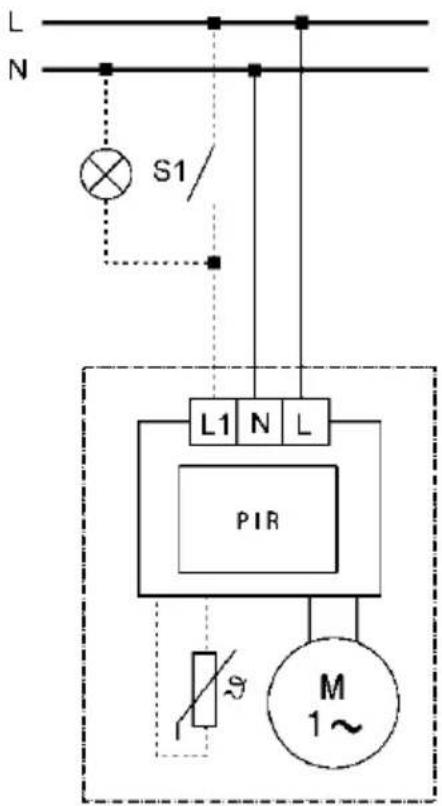

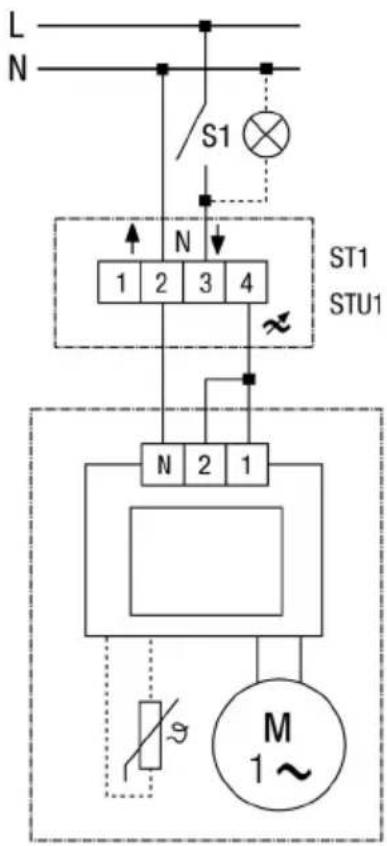

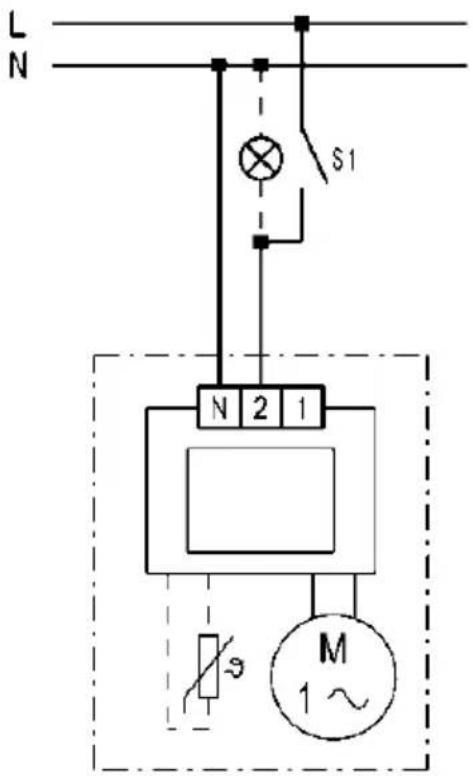

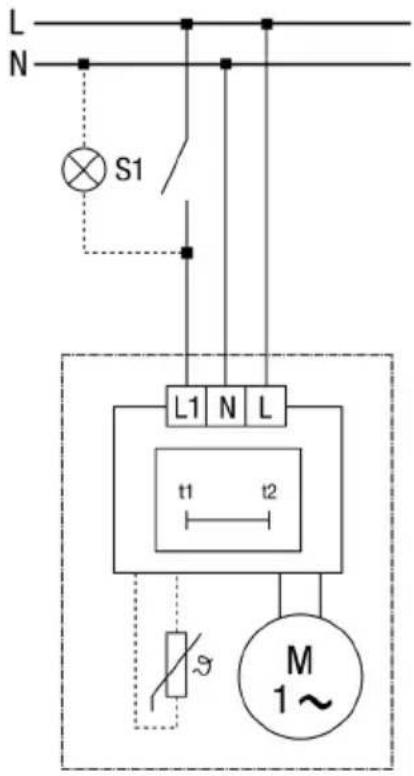

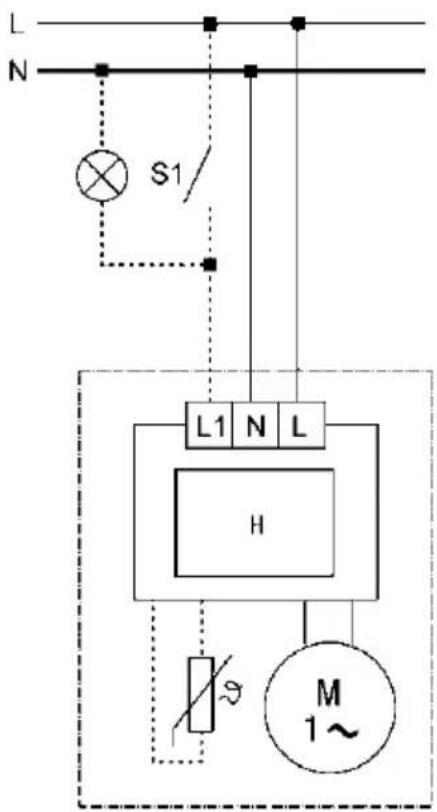

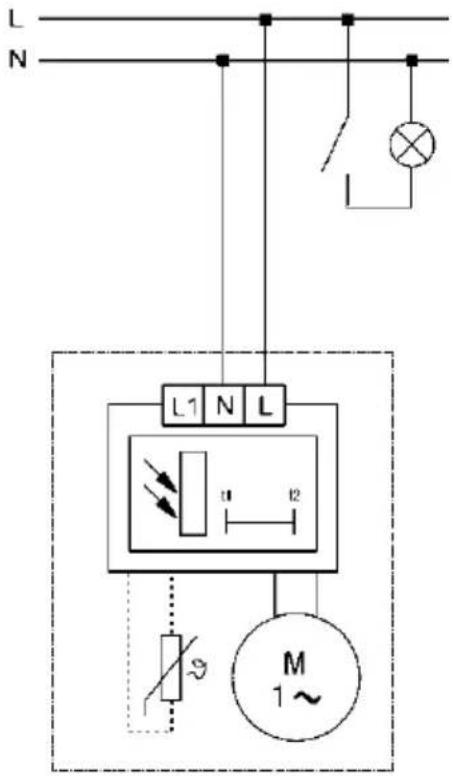

clip [13] according to connection wiring diagram [14], also see wiring diagrams in

ECA 100 ipro standard model units can be operated at two levels with double switches. Without a double switch, the fan can either be opera- ted at performance level 1 or perfor- mance level 2, see switch variants in

7.3 Operating programs

● VZC, KVZC, F, KF, B and KB: One of the 4 following operating programs can be set with jumpers J4 and J5. ● H and KH: One of the 4 following opera- ting programs can be set with jumpers J4 and J5 and the light switch connected in accordance with chapter 13. If this is switched on, it takes priority over the automatic humidity process. ● Comfort program (supplied in this mode), night program, economy program and power program.

1. Set the operating program you want with

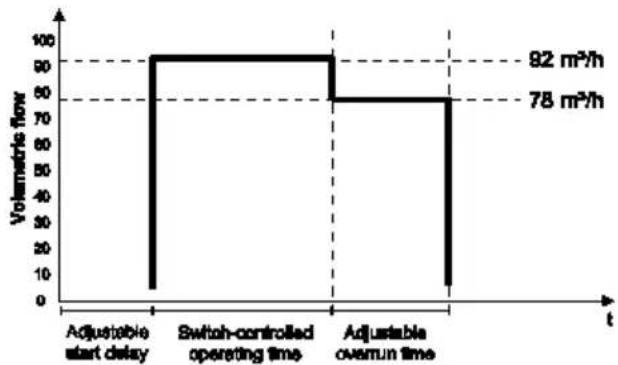

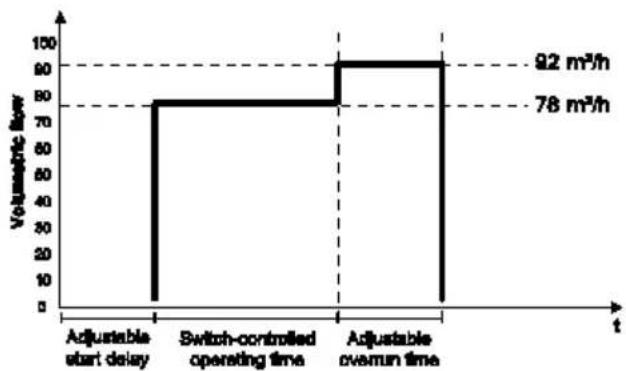

jumpers J4 and J5. Comfort program ● Performance level 1 while room is being used, performance level 2 during overrun time. ● J4 bridged, J5 bridged Night program ● Performance level 2 while room is being used, performance level 1 during overrun time. ● J4 open, J5 open

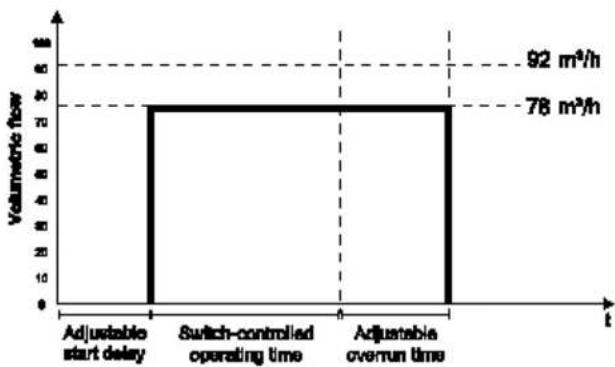

Economy program ● Performance level 1 during operation and overrun. ● J4 open, J5 bridged

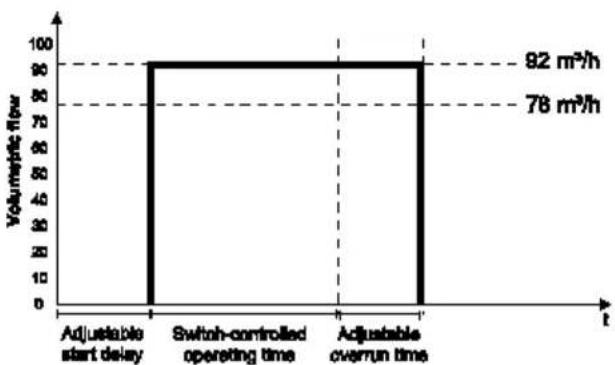

Power program ● Performance level 2 during operation and overrun. ● J4 bridged, J5 open7. Installation │ UK

2. Fit electronics cover.

NOTICE Danger of short circuits and damage to unit! Humidity will penetrate if electronics cover is not used correctly. Press electronics cover firmly onto housing such that it is sealed and flush all the way around. Do not press setting buttons [11] and [12].

3. Insert electronics cover into housing

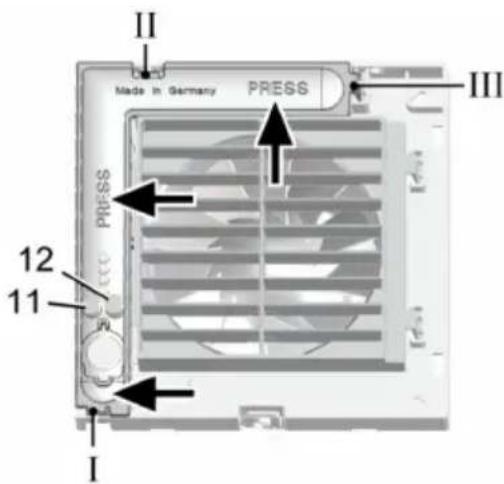

recesses I, II and III with the 3 latches until they snap into place. Press the electronics cover firmly on to the housing at the points indicated by the arrows.

4. For unit versions F, KF, H, KH, B and KB,

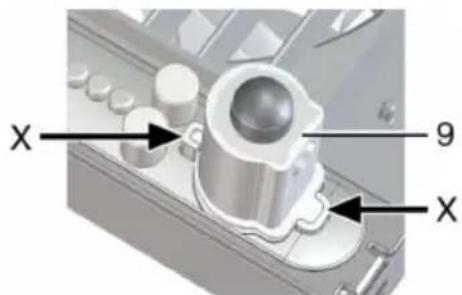

insert the sensor supplied [9] in the correct position ( arrow X) in the connector base.

6. Set start delay and overrun time in

accordance with Chapter 7.5.

7. Fit designer cover [7] ( fold out page,

7.5 Start delay and overrun time

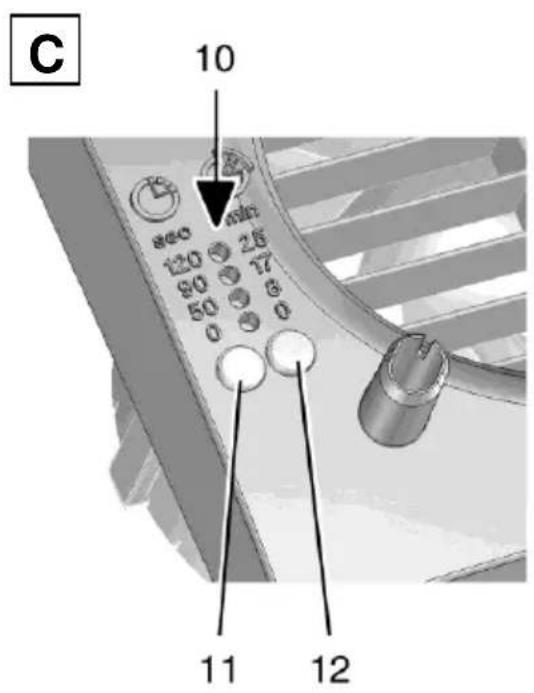

When the setting button is pressed for the first time, the value currently set is displayed. The LEDs are off during operation. For condition in which unit is supplied, table in Chapter 2.1.

1. Remove designer cover [7] carefully

Press setting button [11] until the LED for the start delay time you want lights up. Wait until the LED flashes twice and goes out. The value is now saved.

3. Set overrun time:

Press setting button [12] until the LED for the overrun time you want lights up. Wait until the LED flashes twice and goes out. The value is now saved. The settings take effect during the next switch process (sensor, light switch).

4. Fit designer cover [7] ( fold out page,

The unit is maintenance-free.UK │ 9. Cleaning

DANGER Danger to life from electric shock. Switch the mains fuse off.

NOTICE Damage to unit if incorrect cleaning agent is used. Only clean cover [6] and designer cover [7] with water. Do not use aggressive cleaning agents.

NOTICE For ECA 100 ipro K: lamella may break if cleaned incorrectly. Take care when cleaning. Do not exercise force when opening, shutting or bending the lamella..

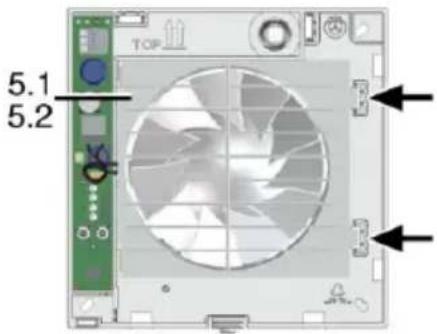

1. Only clean inside parts of the fan with a

2. If the designer cover [7] is very dirty,

remove it carefully ( fold out page, Fig. B) and clean with water.

3. Fit designer cover [7] ( fold out page,

● Call on the services of a trained electrician any time there is a fault. ● Repairs should only be carried out by a trained electrician.

DANGER Danger to life from electric shock. Switch off mains fuse before working on electrical connection.

Fault Cause, Measure Fan does not switch on. Start delay (max. 120 seconds). Wait for the start delay and reduce if necessary, Chap. 7.5. Fan does not switch on. No mains voltage. Check whether the mains fuse has failed. Switch on if necessary. Fan does not switch on. Impeller blocked. Should only be carried out by a trained electrician: Remove cover [6]. Unlock internal grille [5.1] or internal shutter [5.2] using locking hooks (see arrow) and remove. Check impeller and clean if necessary. Fan does not switch off. Overrun time (max. 25 minutes). Wait for the overrun time and reduce if necessary,

Motor’s thermal overload protection switches the fan off. Motor too hot. Wait until the motor has cooled. Cool-down time can be up to 10 minutes. Unit switches back on automa- tically after cooling. Lamella do not open or close for K units.

1) Lamella very dirty or

blocked. Clean lamella. Check whether there is any-thing between the lamella. Remove if necessary.

2) Check whether the wiring is

correctly carried out refer to diagram 1 (high level), page 33. Bridge terminal 1 and 2.10. Fault rectification │ UK

Fault Cause, Measure Fan does not switch off

fan switch on accidentally. A high-impedance voltage applies against terminal L1 with a control switch negative glow lamp, parallel installed wires (mutual induction) or transformers respectively other electrical parts. Recommendation: Connect a X2-capacitor (220 nF/250 V) against neutral lead.

Dismantling may only be undertaken by an electrician.

DANGER Danger to life from electric shock. Switch off mains fuse before removing.

CAUTION Danger of burning due to contact with bimetal (K units). Bimetal [5.3] is very hot after fan is switched off. Do not touch. Cool-down time can be up to 10 minutes.

1. Unlock covers (see arrow) and remove.

2. Remove electronics cover [4] (3 latches).

3. Remove power cable.

Not in domestic waste. The unit contains in part material that can be recycled and in part substances that should not end up as domestic waste. Dispose of the unit once it has reached the end of its working life according to the regu- lations valid where you are.FR │ Sommaire

Speed controller recessed mounted
