OTV 32H-5022C - TV OK - Free user manual and instructions

Product type	32-inch LED TV
Brand	OK
Model	OTV 32H-5022C
Screen size (diagonal)	32 inches (81 cm)
Dimensions without stand (W x H x D)	733 x 435 x 80 mm
Net weight without stand	3.7 kg
Power supply	100 – 240 V~ 50/60 Hz
Rated power consumption	55 W
TV system	DTV : DVB-T/T2/C/S/S2 ; ATV : PAL / SECAM BG / DK / I
Connectivity	1 x HDMI, 1 x USB 2.0, 1 x ANT (RF 75 Ω), 1 x AV (input), 1 x CI (Common Interface)
Main functions	Teletext, EPG, Favorites list, Sleep timer, Parental control, Hotel mode, USB multimedia playback (photo, music, video, text)
OSD languages	Multiple options (including French)
Max. USB power	DC 5 V, 500 mA
Supported multimedia formats	Video: MPEG, AVI, MKV, MP4, FLV; Audio: MP3, WAV; Photo: JPEG, BMP, PNG; Text: TXT
Safety	Class II device (double insulation), automatic shutdown in absence of signal, overvoltage protection
Cleaning	Frame: soft dry cloth; Screen: slightly damp soft cloth (warm water + mild detergent), wipe and let air dry
Spare parts	Use only parts specified by the manufacturer
Repairability	Have any repairs carried out by a qualified technician

Frequently Asked Questions - OTV 32H-5022C OK

How to turn on the TV for the first time?

Plug in the power cord, then press the ⏻ button located under the front panel or on the remote control. Then follow the on-screen instructions to select language, country, time zone, and start automatic channel search.

What to do if the remote control does not work?

First check that the batteries are installed correctly (respect the + and - polarities) and that they are not discharged. Replace them if necessary. Make sure there is no obstacle between the remote control and the TV sensor, and that the sensor is not exposed to intense direct light.

How to search for channels automatically?

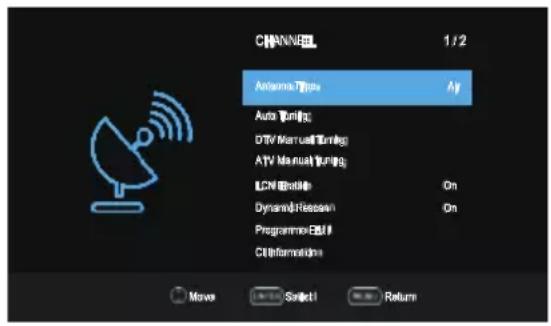

Press the MENU button, select the Channel icon, then choose Auto Tuning. Select your country and signal type (Antenna, Cable or Satellite). The TV will store all available channels.

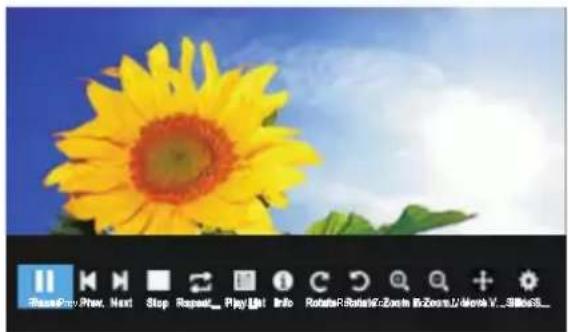

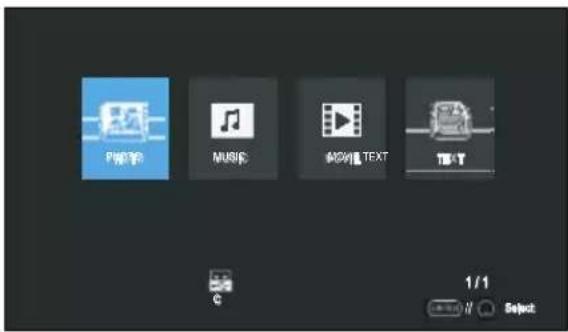

How to play a video file from a USB drive?

Insert the USB drive into the TV's USB port. Press the SOURCE or DMP button on the remote, select USB and confirm. Use the arrows to choose the video file and press ▶ to start playback.

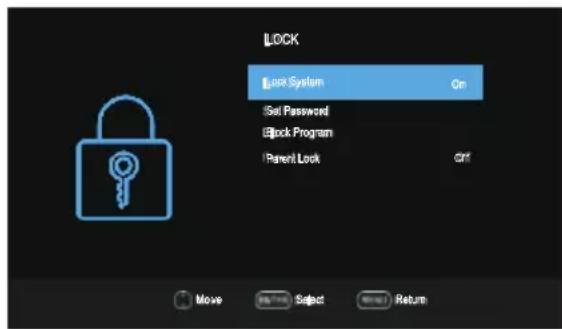

How to activate parental control?

Press MENU, go to the Lock icon, then activate Lock System. The default password is 0000. You can then block channels via Block Programme or set an age limit via Parent Lock.

There is no picture and no sound, what to do?

First check that the power cord is properly plugged in and that the TV is turned on (the indicator light should be on). Make sure the input source is correct (press SOURCE). If the indicator is green or blue, check the volume and mute function. Finally, test with another cable or device.

How to clean the TV screen?

Turn off and unplug the TV. Dampen a soft cloth with a mixture of warm water and a little mild detergent or fabric softener. Wring it out well until almost dry, then gently wipe the screen. Then wipe off excess water and let air dry before turning on.

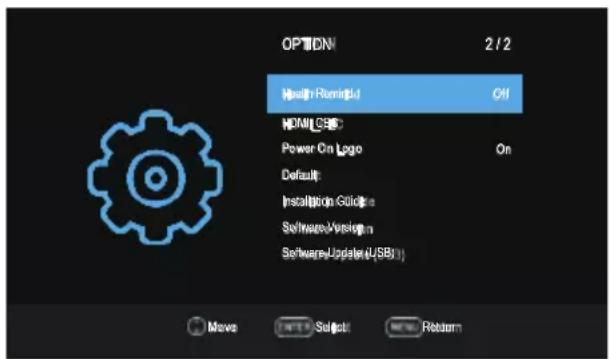

How to update the TV software?

Download the update to a USB drive from the manufacturer's website. Insert the drive into the TV's USB port. Go to MENU > Option > Software Update (USB). Follow on-screen instructions. Do not unplug the power or the drive during the update.

The TV turns off by itself, is this normal?

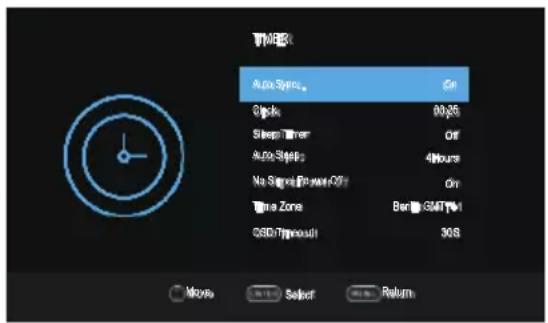

Check the settings of the sleep timer (Sleep Timer) and auto power off (Auto Sleep). If the No Signal Power Off function is enabled, the TV will turn off after about 5 minutes without a signal. Disable these options if you do not want automatic shutdown.

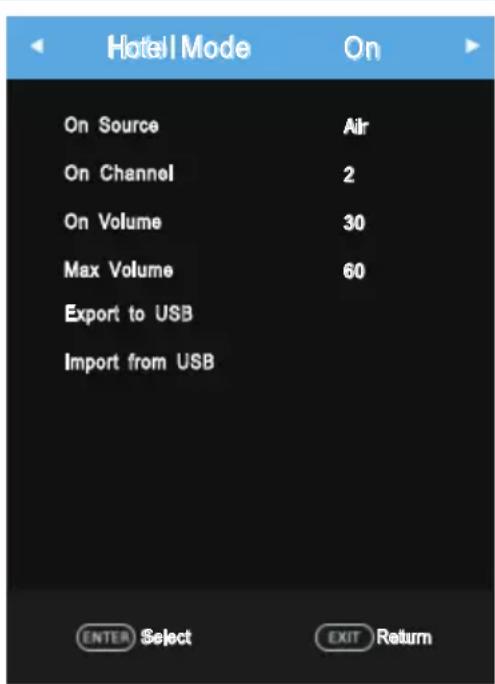

How to use Hotel mode?

Press the SOURCE button to display the Source menu, then type 2 1 to access Hotel mode. You can activate the mode, set the default source and channel, initial and maximum volume, and export/import channel lists via USB.

USER MANUAL OTV 32H-5022C OK

Front view of a black rectangular TV with two tripod stands (no visible text or symbols)

DE SCHNELLSTARTANLEITUNG
EN QUICK-START GUIDE 34
FR GUIDE DE DÉMARRAGE RAPIDE
HU GYORS BEÜZEMELÉSI ÚTMUTATÓ
NL SNELSTARTGIDS
DE SCHNELLSTARTANLEITUNG
EN QUICK-START GUIDE 34
FR GUIDE DE DÉMARRAGE RAPIDE
HU GYORS BEÜZEMELÉSI ÚTMUTATÓ
NL SNELSTARTGIDS

2 PL PRZEWOONIK SZYBKIEGO 149
IT GUIDA RAPIDA 178
62 ES GUIA DE INICIO RÁPIDO 210
91 PT GUIA RÁPIDO 2 43

Warnung

Cartoon illustration of a smiling computer monitor holding an open book labeled 'STATION BANK' (no text beyond label)

Cartoon illustration of a computer monitor with a smiling face and a bandaged bag, no text or symbols present.

Illustration of a smiling man presenting to a computer monitor with a power plug (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and raised arms, surrounded by abstract brain-like shapes (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and angry expression, accompanied by an air conditioner (no text or symbols)

Cartoon illustration of a computer monitor with an angry face and electrical plug, showing stress or shock (no text or symbols)

Cartoon illustration of a smiling computer monitor with hands and lightning bolts, surrounded by clouds and a battery (no text or symbols)

Symbolic illustration of a person using a ladder to lift a vehicle, enclosed in a circle with no text or symbols.

Cartoon illustration of a smiling computer monitor and a worker holding a toolbox (no text or symbols)

HINWEIS:

Line drawing of a flat-screen monitor with stand holders (no text or symbols)

Line drawing of a flat-screen TV unit back view showing front panel, display screen, and warning symbols (no text or labels)

HDMI2(CEC) HDM1 (ARC/CEC) ANT1 ANT2 (SATellite) DIGITAL AUDIO OUT 13/18 V=400mA AV USB2.0 (EV=50mA) COMMON INTERFACE

Three schematic diagrams of a battery-like device with internal components and directional arrows indicating flow or movement (no text or symbols)

PROGRAM/MM 1 / 2 Antennaopog Kabel Automotive/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Service/Services AGN aktivigen An Dynamic/Pulseband An Programme/Simulus/Simulus Citeformakopen Verschreiben Auswählen Zurücks

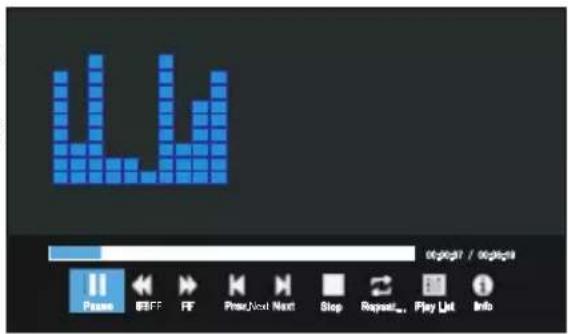

Screenshot of a music player interface showing a blue music bar with playback controls and status icons.

Scenic coastal view with mountain range and floating buildings under blue sky (no visible text or symbols)

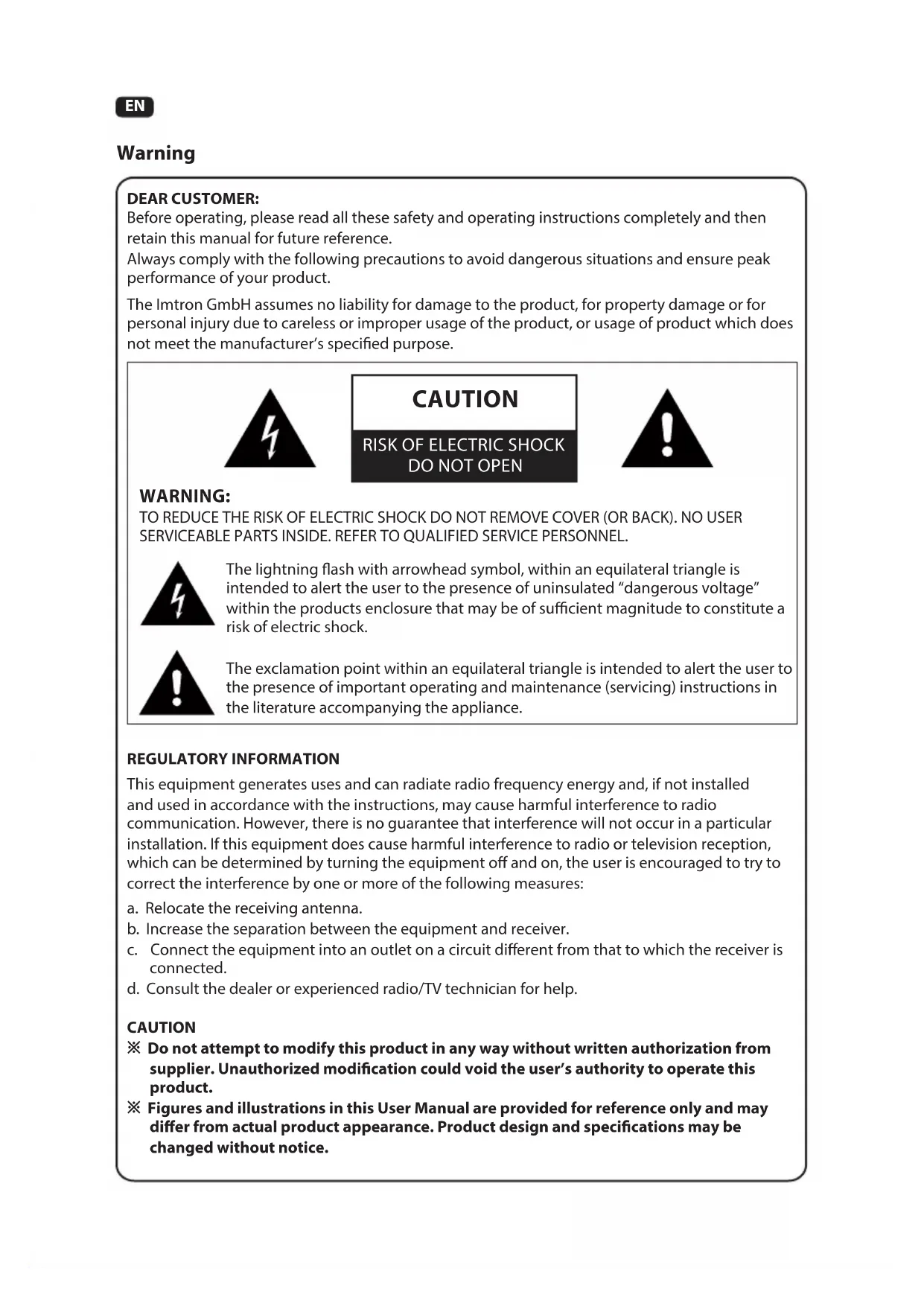

Before operating, please read all these safety and operating instructions completely and then retain this manual for future reference.

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

REGULATORY INFORMATION

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

a. Relocate the receiving antenna.
b. Increase the separation between the equipment and receiver.
c. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
d. Consult the dealer or experienced radio/TV technician for help.

CAUTION

※ Do not attempt to modify this product in any way without written authorization from supplier. Unauthorized modification could void the user's authority to operate this product.
※ Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

Warning

IMPORTANT WARNINGS AND CAUTIONS!

Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product.

1. Attachments---Only use attachments/accessories specified by the manufacturer. Do not use attachments not recommended by the manufacturer. Use of improper attachments can result in accidents.
2. Water--- To reduce the risk of fire or electric shock, do not expose this TV to rain or moisture. Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g. on shelves above the unit).
3. Fire or explosion--- Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV. Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.
   Warning: To prevent the spread of fire, keep candles or other open flames away from this product at all times.
4. Ventilation--- For ventilation purposes, leave at least 5cm free space around the TV. The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.
5. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
6. Power source---This product is intended to be supplied by a listed power supply indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Overloading---Do not overload wall outlets, extension cables, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.
8. Voltage---Before installing this TV set, make sure your outlet voltage corresponds to the voltage stated on the appliance rating label.
9. Power plug --- Do not defeat the safety purpose of the polarized or grounding-type plug. Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.
10. Wall mounting --- When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer. This is a safety feature.
11. Stand--- Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Always place the TV on furniture that can safely support the TV. Make sure the ends of the TV do not overhang the edge of the supporting furniture.
12. Entering of objects and liquids---Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.
13. Damage requiring service--- This unit should only be serviced by an authorized and properly trained technician. Opening the cover or other attempts by the user to service this unit may result in serious injury or death from electrical shock, and may increase the risk of fire.

Warning

1. Replacement parts --- In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
2. Safety checks --- Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.
3. Children ---Do not allow young children to play with the plastic bag that came with the television when you unpacked it. Failure to do so can result in suffocation, causing injury.
4. Batteries---The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Do not dispose of any batteries in with the domestic waste. Return them to a collection point for old batteries.

1. Antenna ---Install the antenna away from high-voltage power lines and communication cables and make sure it is installed securely. If the antenna touches a power line, contact with the antenna could result in fire, electric shock or serious injury.
2. Panel protection--- The panel used in this product is made of glass. Therefore, it can break when the product is dropped or impacted upon by other objects. Be careful not to be injured by broken glass pieces in case the panel breaks.
3. ∼ : Indicates an alternating current.

---: Indicates direct current.

If you would like to connect an external device with this product, a good quality shielded cable must be used, which ensures the electromagnetic compatibility of the product and the used cable as a whole.

Never place a television set in an unstable location, A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that maybe located between the television set and supporting furniture.
  • Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated. The same consider actions as above should be applied.

NOTE:

Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.

Cartoon illustration of a smiling computer monitor holding a book labeled 'POSTA BANK' (no text on monitor or background)

1. Do not block any ventilation openings. Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains etc.

Cartoon illustration of a computer monitor with a sad face and raised arms, surrounded by a brain (no text or symbols)

1. Do not use this apparatus near water.

Cartoon illustration of a computer monitor celebrating with a smiling face and a speech bubble (no text or symbols)

1. Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Cartoon illustration of a computer monitor with a sad face and exclamation marks, accompanied by an air conditioner (no text or symbols)

1. Clean only with a dry cloth. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

Illustration of a smiling man standing beside a computer monitor with a smiling face and electrical plug (no text or symbols)

1. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

EN

Safety Instructions

1. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Cartoon illustration of a computer monitor with an angry face and a power plug, showing electrical connections (no text or symbols)

1. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system.

Cartoon illustration of a smiling computer monitor with arms and legs, surrounded by lightning, clouds, and a battery (no text or symbols)

1. Only use the attachments/ accessories specified by the manufacturer. Educate children about the dangers of climbing on furniture to reach TV controls.

2. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Sudden stops, excessive force and uneven floor surfaces can cause the product to fall from the Trolley.

Symbolic icon of a person climbing a ladder inside a circle with a diagonal line (no text or symbols)

1. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Illustration of a smiling computer monitor and a technician holding a toolbox (no text or symbols)

NOTE:

♦ Disposal of this product must be carried out in accordance to the regulations of your local authority. Do not dispose of this product with general household waste disposal.
Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However there have no adverse effects on the monitor's performance.
Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effect on the screen.
It is not recommended to keep a certain still image displayed on the screen for a long time as well as displaying extremely bright images on screen, reduce the 'brightness' and 'contrast' when displaying still images.

Main Unit Controls

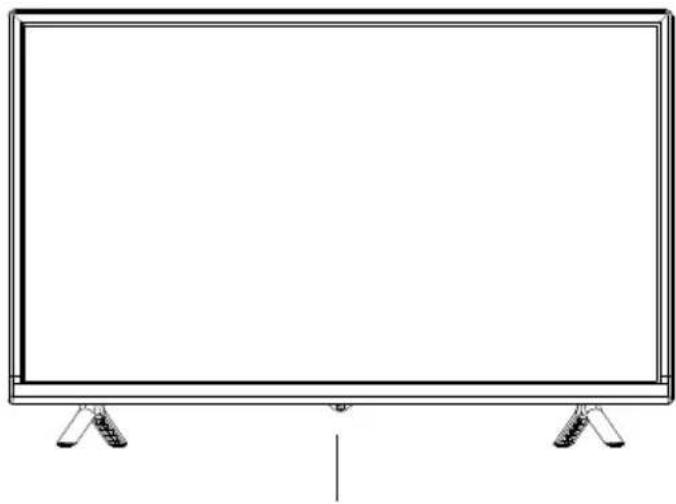

Front Panel

Line drawing of a flat-screen monitor with two stand feet at the bottom (no text or symbols)

Remote sensor
Power Indicator

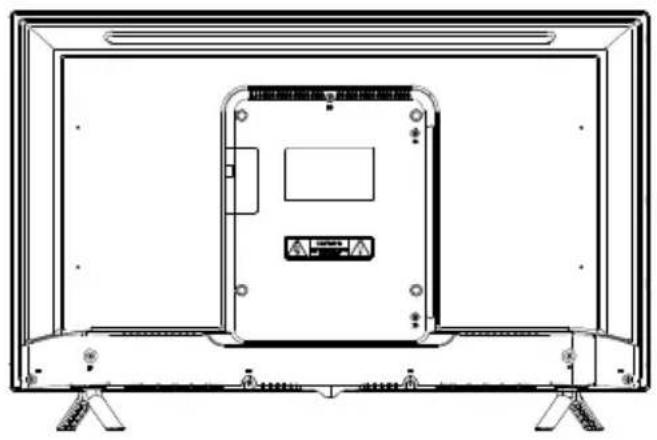

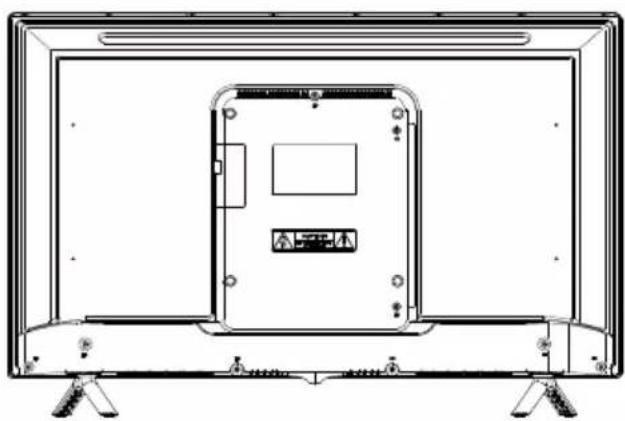

Line drawing of a flat-screen TV with rear panel and display stand (no text or symbols)

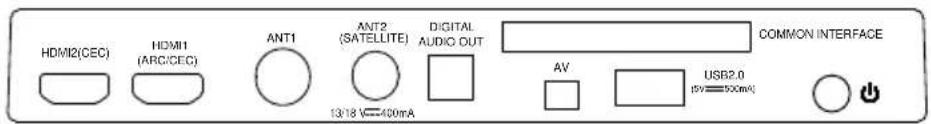

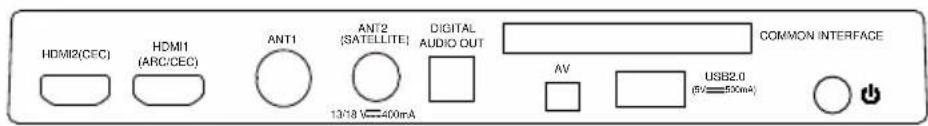

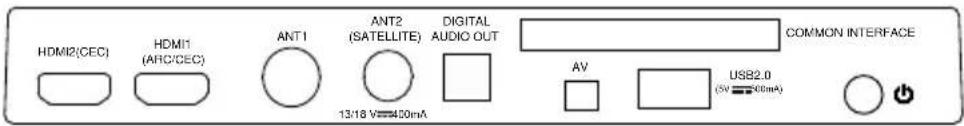

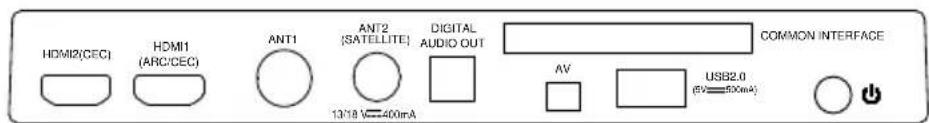

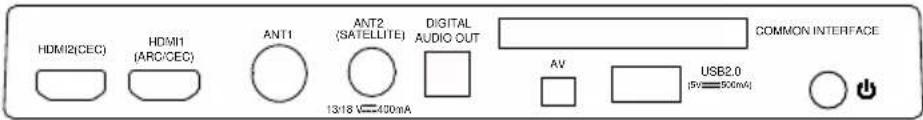

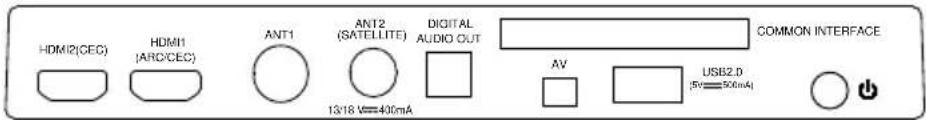

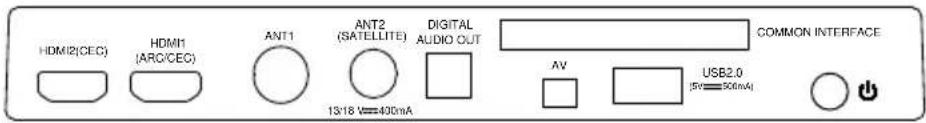

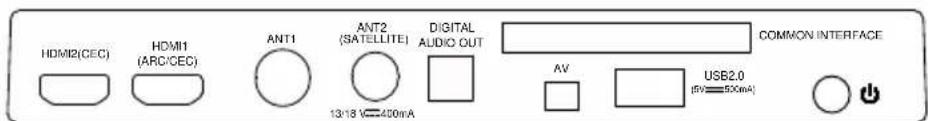

HDMI2(CEC) HDM1 (ARC/CEC) ANT1 ANT2 (SATELLITE) DIGITAL AUDIO OUT 13*18 V=400mA AV USB2.0 (5V=500mA) COMMON INTERFACE

No. Name	Description
1 HDMI Connect a HDMI input signal source, such as a DVD player, via the HDMI interfaces.
2 ANT Connect a coaxial cable to receive a signal from the antenna, cable or satellite.
3 USB2.0 USB port. Connect a USB Storage device for multimedia file playback.
4 COMMON INTERFACE COMMON INTERFACE slot.
5 AV Connect audio and video signal sources via AV IN.
7	➊	Short press to turn on the TV, then short press to open the Source Menu, long press to turn off the TV

NOTE: Input / Output connectivity options may change from model to model.

Note: If you would like to connect an external device with this product, a good quality shielded cable must be used, which ensures the electromagnetic compatibility of the product and the used cable as a whole.

Getting Started

Before the installation and use, please read carefully the relevant content in "Warning and Safety instructions".

Take out the TV from the wrapping package and put it in a drafty and flat place.

NOTE:

The range of power input for the TV is 100-240V\~50/60Hz; Do not connect the TV power input port with the power cable out of the above range.
Before connecting to an external device, please firstly make sure that the TV set and the external device have been turned off. When connecting, please make reference to the interface name and the interface color to connect the signal cable.
Please hold the insulated part of the plug when you are unplugging the power cable, do not touch directly the metallic part of the cable.

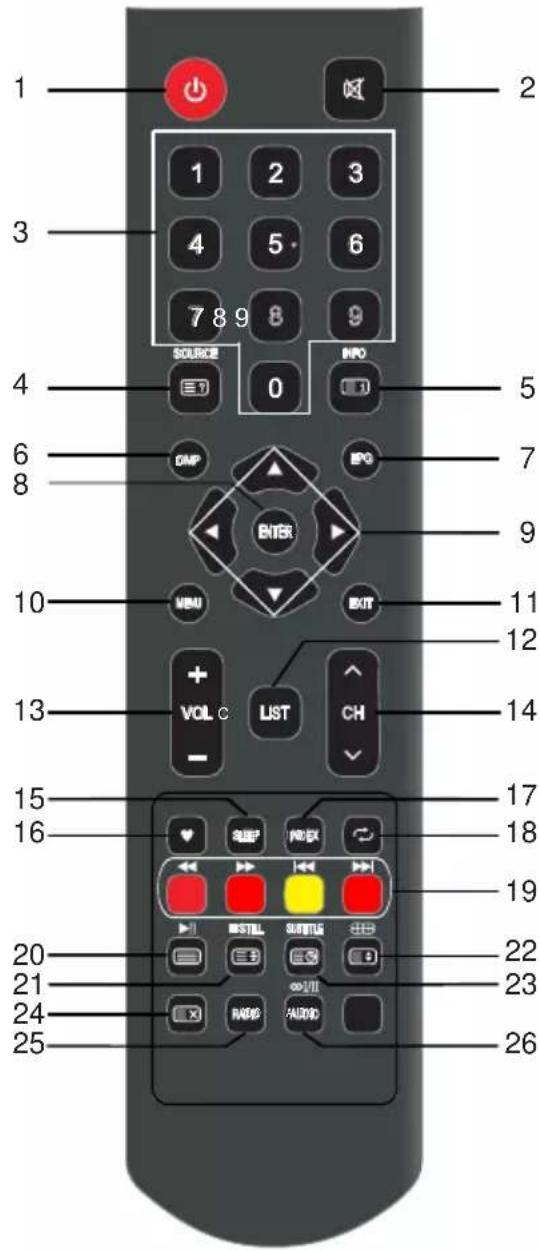

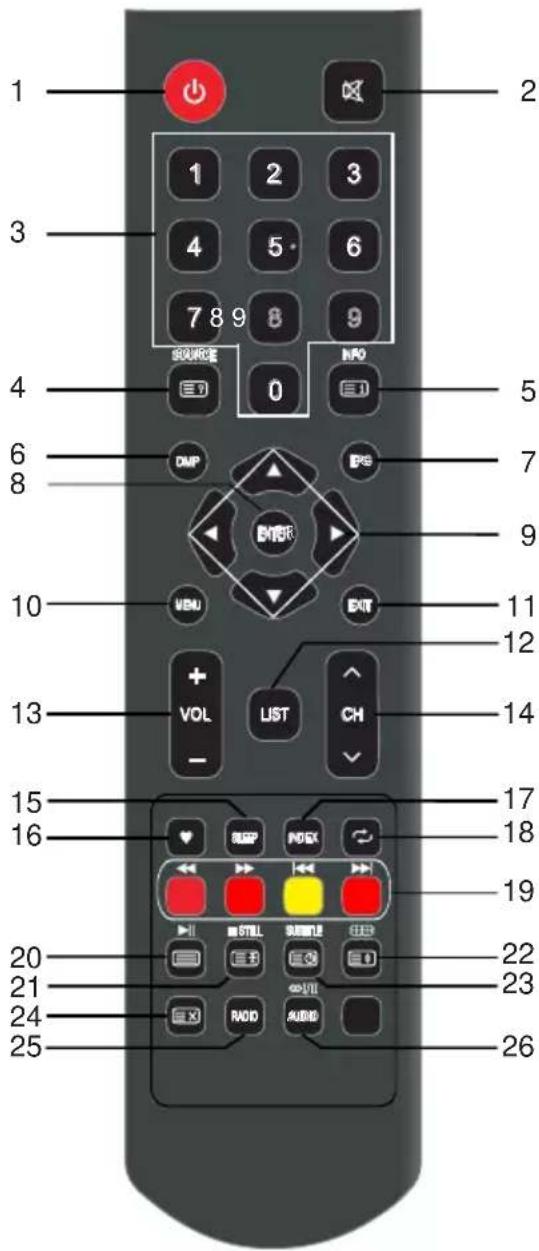

Using the Remote Control

When using the remote control, aim it at the remote sensor on the television. If there is an object between the remote control and the remote sensor on the unit, the unit may not operate.

• Point the remote control at the REMOTE SENSOR located on the television.
• When the remote sensor is under direct sunlight or strong lightning, the remote control might not function properly. If so please change the lightning or TV's position, or operate the remote control closer to the remote sensor.
• The recommended effective distance for using the remote control is about 7 metres.

Installing Batteries in the Remote Control

1. Open the cover at the back of the remote control.
2. Install two AAA size batteries. Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.
3. Replace the cover.

Three schematic diagrams of a battery-like device with internal components and directional arrows, no text or symbols present.

Battery Replacement

You will need to install the batteries into the remote control to make it operate following the instruction below.

When the batteries become weak, the operating distance of the remote control will be greatly reduced and you will need to replace the batteries.

Notes on Using Batteries:

The use of the wrong type of batteries may cause chemical leakage and/or explosion. Please note the following:

• Always ensure that the batteries are inserted with the + and - terminals in the correct direction as shown in the battery compartment.
• Different types of batteries have different characteristics. Do not mix different types.
• Do not mix old and new batteries. Mixing old and new batteries will shorten battery life and/or cause chemical leakage.
• Replace batteries as soon as they do not work.
• Chemicals which leak from batteries may cause skin irritation. If any chemical matter seeps out of the batteries, wipe it up immediately with a dry cloth.
• The batteries may have a shorter life expectancy due to storage conditions. Remove the batteries whenever you anticipate that the remote control will not be used for an extended period.
• The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION:

• It may result in an explosion if batteries are replaced incorrectly.
• Only replace batteries with the same or equivalent type.

CAUTION!

• Non-rechargeable batteries must not be recharged.
- Keep batteries out of reach of small children. If batteries have been swallowed, seek immediate medical attention.
- If the batteries leak, remove them with a cloth and dispose of them accordingly. Prevent battery acid from coming into contact with skin and eyes. If you do get battery acid in your eyes, flush them thoroughly with lots of water and consult a physician immediately. If battery acid comes into contact with your skin, wash the affected area with lots of water and soap.
- Do not store them haphazardly in a place where they may short-circuit each other or be short-circuited by other metal objects.

Getting Started

The buttons of the original remote control are as following:

1 2 3 4 5 6 7 8 9 SOURCE INFO 0 ED ED 5 6 8 DMP DG ENTER 9 10 VBU ENT 11 12 13 + LIST CH - 14 15 16 17 18 19 20 21 22 23 24 25 RND AUDIO 26

Definition of the buttons on remote control:

1. ⏻: Power, Press to enter or exit the standby mode.

2. ☒: Mute or restore sound.

3. NUMBER BUTTONS: Choose channels or password importation.

4. SOURCE: Press to select signal source.

☐ : Reveal the hidden information of some teletext pages.

1. INFO: Display the current program information on the screen.

≡i : Go to the index page.

1. DMP: Press to switch to the USB source.

2. EPG: Electronic Program Guide, use in the DTV mode.

3. ENTER: Select or confirm menu item.

4. ▲/▼/◄/►: Press the direction buttons to select menu options or settings.

5. MENU: Press to enter the menu screen for various optional adjustable settings.

6. EXIT: Quit the current interface.

7. LIST: Press to call up the channel list. Press again to exit it.

8. VOL+/VOL-: Press to adjust the volume level up or down.

9. CH ∧/CHΨ Press to select channels in ascending or descending order.

10. SLEEP: Press the button repeatedly to select the desired time to sleep or select off to close the function.

11. ♥: Press to display your favorite channel in DTV mode. (You should setup your favorite channels in Program Edit menu).

12. INDEX: Change the list by TIMER or CHANNEL. (In PROGRAMME GUIDE menu)

13. ↗: Return to last viewed program.

EN

Getting Started

1 2 3 4 5 6 7 8 9 SOURCE INFO 0 4 5 6 CMP BPG 8 ENTER 9 10 MEAU EXIT 11 12 13 VOL C LIST CH - 14 15 16 17 18 19 20 21 22 23 24 25 RADIO AUDIO

1. COLOR BUTTONS: Red/green/yellow/blue key navigation link.

◀: Fast reverse (in USB mode)

▶: Fast forward (in USB mode)

◀: Previous (in USB mode)

▶: Next (in USB mode)

1. ▶: Play / Pause (in USB mode).

: Enter the Teletext, press again for MIX mode, press this button again to exit.

1. STILL: Freeze or activate the current picture.

■ : Stop (in USB mode).

☐ : Hold the teletext page on display, press again to release.

1. ☐: Adjust displayable aspect ratio.

: Change size of teletext screen in display mode.

1. SUBTITLE: Press to select alternate subtitle language during view/playback of a DTV program. 📄: Press to turn on or turn off subpage.

2. ☒: Cancel the teletext but not to exit teletext, press again to exit.

3. RADIO: Press to interchange Radio and program (In DTV mode). DTV programs when there is Radio.

4. AUDIO(∞I/II): Press to select the NICAM modes in Analog TV mode. Press to select desired audio language in Digital TV Mode.

NOTE:

◆ The buttons not mentioned here are not used.
All pictures in this manual are examples, only for reference, actual product may differ from the pictures.

Basic Operation

Turning on and off the TV

■ Turn on the TV

Plug the power cord into a suitable power point, then press the (symbol) Power button, under the TV panel or on the remote control.

■ Turn off the TV

Press the ⏻ button on the remote control to enter standby mode. To power down the TV completely, unplug the power cord from the mains socket.

Do not leave your TV in standby mode for long periods of time. If you will not use the TV for a long time, it is recommended to unplug the set from the mains and aerial.

NOTE:

If there is an accident power off, the TV will be in standby mode automatically after re-supply the power. To ensure the normal use of the TV, the frequent turning on and off is forbidden, when there is an accident power off, it is recommended to unplug the power cable from the power socket.

First Time Setup

If this is the first time you run the TV, the Initial Setup Menu will appear in the picture, and the items of this menu also exist in other menus, so you are able to change the values after you set them up.

Tips: Make sure that the antenna connection is made.

■ Set your desired language

Press ▲/▼ buttons to select the language to be used for menus and message.

■ Select your country

Press the ▲/▼ buttons to select the country you are living in, and then press the ENTER button.

■ Select your time zone.

Press the ▲/▼ buttons to select a time zone, and then press the ▶ button.

■ Select your TV environment.

Press the ▲/▼ buttons to select the Home Mode or Store Mode and then press the ▶ button. • Home is the recommended setting to produce the best energy efficiency. If you want to set Store Mode, a message appears asking you to confirm your choice.

■ Select the Antenna Type

Press the ▲/▼ buttons to select the Antenna Type and then press the ▶ button. (For more detailed information, please refer to Channel menu → Auto Tuning).

■ Auto Tuning

Press the ▶ button to start the auto searching. First tuning DTV, press Menu and left arrow button to skip DTV tuning, Second tuning ATV, press Menu and left arrow button to skip ATV tuning.

NOTE:

If the TV doesn't receive any channels, please check your aerial connection or the country you selected, and then try an auto search again.
If the TV just receives some of the channels, it means the aerial's reception isn't good enough and an antenna service is recommended.

EN

Choosing a TV channel

■ Using the CH ^/on the remote control.

Press CH^to increase channel number.

Press CH to decrease channel number.

■ Using 0-9 digital buttons.

You can select the channel number by pressing 0 to 9.

Additionally, when TV is in some mode, the TV will work in TV mode and play the corresponding channel if any number button is pressed.

■ Example

To select -- channel (e.g. Channel 5): Press 5.

To select -- channel (e.g. Channel 20): Press 2 and 0 in a short time.

Volume Adjustment

■ Press the VOL+/- on the remote control to adjust the volume.

■ If you want to switch the sound OFF, press the ☒.

■ You can release mute by pressing the ⏻ or increase the volume.

Changing the Input Source

You can select the input source by pressing the SOURCE button on the remote control.

Press the ▲/▼ buttons to cycle through the input source, and press the ENTER button to confirm your choice.

Menu Operation

How to Navigate Menus

Before using the TV follow the steps below to learn how to navigate the menu in order to select and adjust different functions. The access step may differ depending on the selected menu.

1. Press the MENU button to display the main menu.
2. Press the ◀/▶ buttons to cycle through the main menu. You can choose between Channel, Picture, Sound, Time, Lock and Option.
3. Press the ENTER button to access the submenu page.
4. Press the ▲/▼ buttons to select the preferred option.
5. Press the ◀/▶ buttons to adjust the value.
6. Press the MENU button to return to the previous menu.
7. Press the EXIT button to exit the entire menu.

CHANNEL CONFIG SOUND TIMER LOCK OPTION LOCK OPTION

NOTE:

When an item in MENU is displayed gray, it means that the item is not available or cannot be adjusted.
Some items in the menus may be hidden depending on modes or signal sources used.
- Buttons on the TV have the same function as corresponding buttons on the remote control. If your remote control is lost or couldn't work, you may use the buttons on the TV to select menus. This manual focuses on operation of the remote control.
TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

Channel Menu

■ Antenna Type: Press the ▲/▼ buttons to select the antenna type.

※ When TV signal is Aerial.

■ Auto tuning: Select the ENTER button to start Auto Tuning.

1. Select the country and tune type for channels.
2. The TV will begin memorizing all of the available channels.

CHANNEL 1/2 Antenna Type: AY Auto Tuning: DTV Manual Tuning: ATV Manual Tuning: LCN Satellite On Dynamic Wireless On Programme EUI Citi Informations Move Select Return

Once the progress bar is full, the found channels will be stored and the unit will proceed to the search for TV, DTV and Radio.

If you press the MENU button in TV searching, the Channel Tuning will skip to DTV searching as the suggestive picture shows.

■ DTV Manual Tuning: Press the ENTER button.

Press the ◀/▶ button to select channel, then press the ENTER button to search.

When a channel is found, the searching process will stop, the channel will be saved with current channel number.

If the program is not your expected one, please press the ◀/▶ button to continue the searching.

Press the EXIT button to exit.

※ When TV signal is Cable.

■ Auto Tuning: Select the ENTER button to start Auto Tuning.

1. Select the country and tune type for channels.
2. Adjust the Cable Scan Menu.

- Scan Type: Scans for all active broadcast station channels and stores them in the TV.

If you select Network Search, you can set up the frequency, Network ID and symbol manually by pressing the button on the remote control.

CHANNEL 1/2 Anisena Tipo: Cable Auto Tools CAD® Manual™ ATV Manual™ CNN Audio On Dynamix Riscan On Programme Edit C:\Information\+ Move Select Return

Quick Scan only search DVBC digital programmes, can not search for ATV programmes.

If you select Full Scan, the Auto Tuning will search through all or appointed frequencies to find available channels.

– Frequency: Enter a user-defined frequency. (Differs in each country)
- Network ID: Select the Network ID setting Mode among Auto or manual. When Network is Manual, you can set up Network ID using the numeric buttons.

When you are satisfied with your setting, press ENTER button.

- Symbol: Selects the Symbol setting mode among Auto or Manual. When Symbol is Manual, you can set up Symbol using the numeric buttons.

1. The TV will begin memorizing all of the available channels.

■ CADTV Manual Tuning

Frequency, Symbol and Network ID are needed in order to add a programme correctly in DVB cable mode. Please inquire of the cable service provider about the correct values.

EN

※ When TV signal is Satellite.

■ Auto Tuning: Select the ENTER button to start Auto Tuning.

Satellite Setup

■ Satellite/Transponder: Press the INDEX button to switch between the satellite list and the corresponding transponder list.

Press the ▲/▼ button to select the satellite/transponder from the list.

■ CH+/CH-: Press the CH ∧/button to page up or down the satellite/transponder list.

CHANNEL 1/2 Anamai Type Sales Auto Parking ATM Manual Parking LCN Broadcast On Dynamic Research On Programme Edit B/S Channel Edit C:\Information\. Move Select Return

Delete: Press the red button to delete the current satellite.

Edit: Press the green button to edit the current satellite.

Add: Press the yellow button to add a new satellite.

Scan: Press the blue button to enter sub-menu.

• Scan mode: Press the ◀/▶ buttons to select Scan Mode: Default, Blind Scan.
• Encrypted: Scan either free or all channels.
  • Service Type: Select the service type to scan.

– LNB Type: Select the LBN type.
– LNB Power: Select the power supply type for the LBN.
- 22kHz: Select the 22KHz depending on the LNB type.
– Toneburst: You can choose one of two satellites. Used to choose proper device.
- DiSEqC1.0: You can choose one of four satellites. Used to choose proper device.
- DiSEqC1.1: You can choose one of sixteen satellites. Used to choose proper device.
- Motor: Sets the positioned type between DiSEqC1.2 and USALS.
- Reset All: Satellite list, transponder list and some setting will be reset to the default values. After reset all, you can re-set the county while Auto Tuning.
■ ATV Manual Tuning: Manual store for ATV channels.

Storage To 1: Store the searched channel to 1 (you can adjust the channel number by ◀/▶).

Sound Standard: Select the sound Standard.

Video Standard: Select the Video Standard.

Current CH 1: Select the current channel.

Search: Press the ◀ button to search down from the current frequency, and press the ▶ button to search up.

Fine-Tune: Adjust the frequency of the channel finely.

Press the red button to save it. Press the EXIT to exit.

■ LCN Enable

Press the ENTER button to select On or Off.

■ Dynamic Rescan (In DTV mode)

Switch the Dynamic Rescan function On or Off.

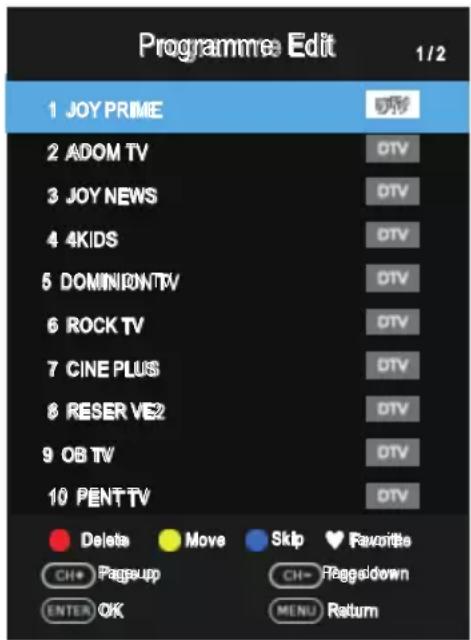

■ Programme Edit

Press the ▲/▼ buttons to select the Programme Edit, then press the ENTER button to enter sub-menu.

First press the ▲/▼ buttons to highlight the channel you want to delete, skip, or Move, then:

Delete: Press the RED button to delete the channel.

Move: Press the YELLOW button to set the channel to moving state, and then press the ▲/▼ buttons to move it to the position you want to put.

Skip: Press the BLUE button to skip the channel. (Your TV set will skip the channel automatically when using CH+/- to view the channels.)

Favorite: Press the ♥ button to set the favorite channel. (One or more groups can be select.)

■ BISS Channel List (In Satellite mode)

Press the ▲/▼ buttons to select the BISS Channel List, then press the ENTER button to enter sub-menu.

Press the RED button to delete the BISS programme.

Press the GREEN button to edit the BISS programme.

Programme Edit 1/2 1 JOY PRIME 2 ADOM TV 3 JOY NEWS 4 4KIDS 5 DOMINIONTV 6 ROCK TV 7 CINE PLUS 8 RESER VE2 9 OB TV 10 PENT TV Delete Move Skip Favorite CH+ Pageup CH- Pagedown ENTER OK MENU Return

■ CI Information (In DTV mode)

This function enables you to watch some encrypted services (pay services).

Please insert CI card into the CI slot according to the arrow on the CI card.

NOTE:

◆ The function can only be gotten when CI slot is available.
It is possible for you to change CI (Common Interface) menu screen and service by consulting your dealer.
◆ Please do not insert or pull out the CI card when power on.
Do not insert or pull out the CI card frequently so as to avoid any damages of the TV and the CI card.
During initialization of the CI card, please don't operate the TV.

■ Signal Information (Only available when there is signal under DTV)

Press the ▲/▼ buttons to select the Signal Information, then press the ENTER button to see the detail information.

Picture Menu

■ Picture Mode: You can select the type of picture which best corresponds to your viewing

requirements. Contrast, Brightness, Color, Sharpness, and Tint (NTSC) can be adjusted when the picture mode is set to User.

• Contrast: Adjust the white level of the picture.
• Brightness: Adjust darkness of black sections in the picture.
• Color: Adjust the color intensity of the picture.
• Sharpness: Object edges are enhanced for picture detail.
• Tint: Adjust the hue of the picture. (Valid only for NTSC signals).

PICTUREE Picture/Nape: Normal Color Temperature Standard Aspect Ratio 100% NR Middle Dynamic/Contrast Off OverScan Normal Picture/Reset Move Select Return

EN

■ Color Temperature: Select the color temperature that you feel comfortable.
■ Aspect Ratio: You can select the picture size which best corresponds to your viewing requirements.
■ NR (Noise Reduction): Reduces screen noise without compromising video quality.
■ Dynamic Contrast: Adjusts the contrast to the optimal level according to the image's brightness.
■ OverScan: The picture reproduction rate is adjusted.
■ PC Mode (In HDMI mode): Switch PC Mode functions On or Off.
■ Game Mode (In HDMI mode): Switch Game Mode functions On or Off.
■ Picture Reset: Reset all picture settings to the factory defaults.

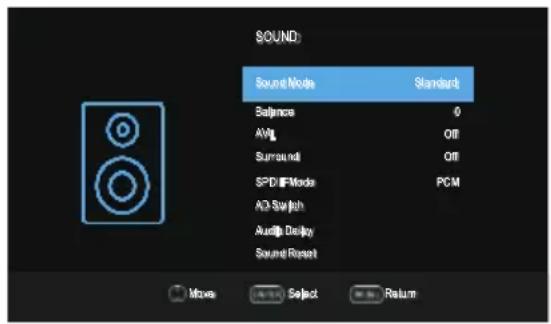

Sound Menu

■ Sound Mode: You can select a sound mode to suit your personal preferences. Treble and Bass can be adjusted when the sound mode is set to User.

- Treble: Adjust the high frequency sounds.

- Bass: Adjust the low frequency sounds.

■ Balance: Adjust the sound balance of the speakers to preferred levels.
■ AVL (Auto Volume Level): Auto Volume automatically remains on the same level of volume

if you change programmes. Because each broadcasting station has its own signal conditions, volume adjustment may be needed every time when the channel is changed. This feature allows users to enjoy stable volume levels by making automatic adjustments for each program.

SOUND: Sound Node Standard Balance 0 AVI Off Surround Off SPD/IF Mode PCM AD Switch Audio Display Sound Reset Move Select Return

■ Surround: The surround sound can be enabled or disabled according to the needs to experience unique audio effects.
■ SPDIF Mode: You can select a desired SPDIF Output mode. SPDIF (Sony Philips Digital Interface) provides digital audio output to speakers and various digital devices such as A/V receivers and Home Theaters which reduces interfaces and distortion.
■ AD Switch (In DTV mode): * this is only available in some countries, mainly in North America and Europe. This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster.
■ Audio Delay: Correct audio-video sync problems, when watching TV and when listening to audio output using an external device such as an audio receiver (0ms\~250ms).
■ Sound Reset: Reset all sound settings to the factory defaults.

Time Menu

■ Auto Sync: If it is switch on, the TV will sync the local clock according to the DTV broadcasting time automatically.
■ Clock: Display either the DTV signal stream time or set the time manually.
- Sleep Timer: Sleep Timer switches the TV to standby after a defined period of time. To cancel the Sleep Timer, set to "Off".
■ Auto Sleep: Select the Auto Sleep time you want. The TV will enter into standby mode automatically when there is no operation in set time.

VMBR Auto System. On Clock 00:35 Sleep Time Off Auto Time Offs 4Hours No Signal Power Off On Time Zone Bar CMRTM QSD/Thymsout 30S Movie Select Return

■ No Signal Power Off: When set to "On", if there is no TV signal or press-button operation, the TV will enter into standby status automatically about 5 minutes later.
■ Time Zone: Select your time zone (When the Auto Sync is set On, the Time Zone can be adjusted).
■ OSD Timeout: Select the time in seconds (15s, 30s, 60s, off) that you want the On-Screen Menu remains display after your last operation.

Lock Menu

■ Lock System: The feature can prevent unauthorized operating the TV set, unless entering 4-digit password. The default password is 0000.

NOTE:

If you forget your password, use the super password of 1225.

■ Set Password: Press the ENTER button to access the submenu.

LOCK Lock System On Set Password Block Program Parent Lock Off Move Select Return

You can set your private password. Press the number buttons on the remote control to set the new password. When the new password has been input twice, the setting is finished successfully.

■ Block Program (In ATV/DTV mode): Press the YELLOW button to lock the available channel you want. Press the YELLOW button again to unlock it. To watch a locked channel, enter your 4 digit password number when input screen displays.
- Parent Lock (In DTV mode): This feature can prevent children watching adult's TV programmes, according to the rating limit set. This function appears according to information from broadcasting station. Therefore if the signal has incorrect information, this function does not operate.

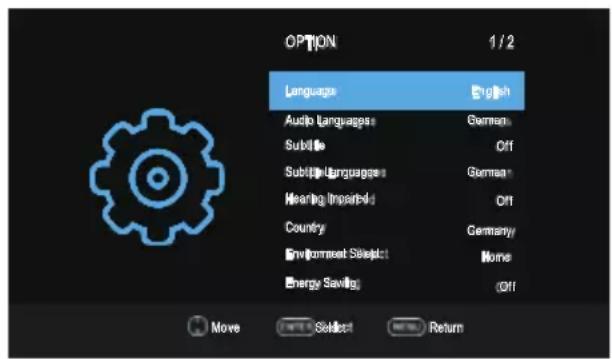

Option Menu

OPTION 1 / 2 Language English Audio Languages German Subtitle Off Subtitle Languages German* Hearing (Unpaired) Off Country Germany Environment Select: None Energy Saving Off Move Select Return

OPTION 2/2 Health Reminigil Off HDMI Gbps Power On Logo On Default Installation Guide Software Version Software Update (USB1) Move Select Return

■ Language: Select your preferred On Screen Display language.
■ Audio Languages: Select your preferred audio language. (Available for digital channels if multiple audio languages are broadcasted.)
■ Subtitle: Switch the Subtitle function On or Off.
■ Subtitle Language: Select your preferred subtitle Language. (Available for digital channels if multiple subtitle languages are broadcasted.)
■ Hearing Impaired: When hearing Impaired is ON, the TV screen will give some information to the people whose hearing are impaired. When Hearing Impaired is Off, the information will be hidden.
■ Country: Display the current country.

EN

■ Environment Select: Select Home or Store for the TV environment. It is recommended to set the TV to Home Mode.
■ Energy Saving: When the Environment Select is set to Home, the Energy Saving can be adjusted. Switch the Energy Saving function On or Off.
■ Health Remind: Switch the Health Remind function On or Off.
■ HDMI_CEC: Press ▲/▼ buttons to select HDMI CEC, press ENTER to enter sub-menu.

• HDMI CEC: Press ENTER buttons to switch the HDMI CEC on or off.
• ARC: To enable the audio through an AV receiver using HDMI (ARC). Press ENTER buttons to switch the HDMI ARC function on or off.
• Auto Standby: When the user turns off the TV, all active CEC enabled devices on the HDMI input will go to standby. Press ENTER buttons to switch the auto standby function on or off.
• Auto Power On: When this is set to "On", turning on the TV will turn on the connected devices as well.
  – Device List: Display devices that are connected to TV.

■ Power On Logo: Switch the Power On Logo function On or Off.
■ Default: Restore the system settings to the factory default. When the restore is complete, the TV will enter standby mode.
■ Installation Guide: This is an installation guide to help you to setup the TV.
■ Software Version: Display current software version information.
■ Software Update (USB): Update the software using the USB memory device. Please be careful not to disconnect the power or remove the USB drive until updates are complete.

Hotel Mode

Press the SOURCE button to display the Source Menu, then press 2 0 1 2 to enter into the Hotel Mode to adjust the relative settings.

- Hotel mode

Press the ▲/▼ buttons to select Hotel Mode, and then press ENTER button to set On or Off.

NOTE:

◆ The following settings work only when Hotel Mode is set to On.

- On Source

Set the default signal source by pressing the ◀/▶ buttons. (The default signal source will be displayed when the TV is turned on.)

- On Channel

Set the default channel by pressing the ◀/▶ buttons. (The default channel will be displayed when the TV is turned on.).

- On Volume

Set the default volume by pressing the ◀/▶ buttons. (The default volume is the volume when the TV is turned on. Remember the default volume should be less than the maximum volume).

- Max Volume

Set max volume by pressing the ◀/▶ buttons. When the max volume is lower than the default volume, the max volume is the priority.

Hotel Mode On On Source Air On Channel 2 On Volume 30 Max Volume 60 Export to USB Import from USB ENTER Select EXIT Return

- Export to USB

You can export all current channel information (including channel number, channel name, frequency, etc.) into the USB disk, as the channel information backup for this unit.

- Import from USB

If you cannot restore the initial channel information after sort, move, skip, lock etc. operations, you can import the channel information from the USB.

USB Operation

• First, insert a USB memory device into the USB port.
• Press the SOURCE button to call up the signal source selection menu. Use the ▲/▼ to highlight USB, and the press ENTER button to access the USB mode. (Alternatively, Press the DMP button on the remote control to enter the USB mode)
• You may also use the signal source selection menu to exit from the USB mode.

NOTE:

◆ Special USB device may be not or well supported.
USB max. Load: DC5V 500mA

• The formats supported

Media File Ext.		Codec		Remark
		Video Audio
Movie	.mpeg, .mpg	MPEG1/2,MPEG4,VC1	MPEG1/2 Layer1,M-PEG1/2 Layer2,MPEG1/2 Layer AC3, EAC3,	1. Max resolution 1080P 30fps2. MPEG-4 V2 not support
	.vob, .dat M	PEG1/2
	.ts, .tp, .trp M	MPEG1/2,H.264, VC1,HEVC
	.avi	MPEG1/2,MPEG4, H.264, VC1	MPEG1/2 Layer1,M-PEG1/2 Layer2,MPEG1/2 Layer3, AC3
	.mp4., mov	MPEG1/2,MPEG4, H.264, HEVC	MPEG1/2 Layer3, AC3, EAC3
	.mkv	MPEG1/2,MPEG4, H.264, VC1, HEVC	MPEG1/2 Layer1,M-PEG1/2 Layer2,MPEG1/2 Layer3, AC3
	.flv H.264,VC1 MPEG1/2 Layer3
	.asf	MPEG1/2,MPEG4, H.264,VC1,	MPEG1/2 Layer1,M-PEG1/2 Layer2,MPEG1/2 Layer3
Music	.mp3 --		MPEG1/2 Layer1MPEG1/2 Layer2MPEG1/2 Layer3	Max Bit Rate 384Kbps
	.wav	--	MPEG1/2 Layer1MPEG1/2 Layer2MPEG1/2 Layer3IMA-ADPCM
Photo	.jpg,jpeg	Progressive JPEG		Max Resolution:1024×768
		Baseline JPEG		Max Resolution:15360×8640(1920x8 x 1080x8)
	.bmp	--		Max Resolution:9600×6400
	.png	Non-Interlaced		Max Resolution:9600×6400
		Interlaced		Max Resolution:1200×800
Text.txt TM Player				File Size:Max 1MB
NOTE:♦ Special algorithm documents may not be or well be supported by the Media.♦ The Media supports the format mentioned above, if the file format is not supported, change it to the given format.

- Main Operating Interface

- Basic operation

1. Use the ◀/▶ buttons to select PHOTO, MUSIC, MOVIE or TEXT. Press ENTER button enter into sub-menu.
2. Use the arrow buttons and ENTER button to enter the desired disk. Press ENTER to open the folder.

3. Use the arrow buttons to highlight the file. Use the ENTER button to mark or unmark a file. Press ▶ button to play the selected files. If no file is marked, all the files in the folder will be played in sequence after you press ▶ button.

4. Press the ■ button to stop the playing files.

5. Press EXIT button to return to the previous menu and exit menu to quit.

PHP MUSIC BACKTEXT TEXT C 1/1 Select

When playing Photo files:

Press the INFO/ENTER button on the remote control to display the on-screen toolbar.

* Use the ◀/▶ buttons, then press ENTER to select a function such as Previous, Next, Rotate, Enlarge from the on-screen toolbar.

* Press ■ or EXIT buttons to exit playback & go back to file list page.

RussePro Priw. Next Stop RequestPlay List Info RotataR RotataG Zoomin InZoomin L/ Moris V... SIMOSI...

When playing Music files:

* Use the ◀/▶ buttons, then press ENTER to select a function such as Previous, Next, play, pause from the on-screen toolbar.
* Press ■ or EXIT buttons to exit playback & go back to file list page.

00:00:07 / 00:00:18 Pason EIFF FF Print Next Next Stop Repeat..., Play List Info

When playing Movie files:

Press the INFO/ENTER button on the remote control to display the on-screen toolbar.

* Use the ◀/▶ buttons, then press ENTER to select a function such as play, pause, previous file, next file, from the on-screen toolbar.
* Press ■ or EXIT buttons to exit playback & go back to file list page.

Scenic coastal view with a wooden hut and mountain range under a clear blue sky (no text or symbols visible)

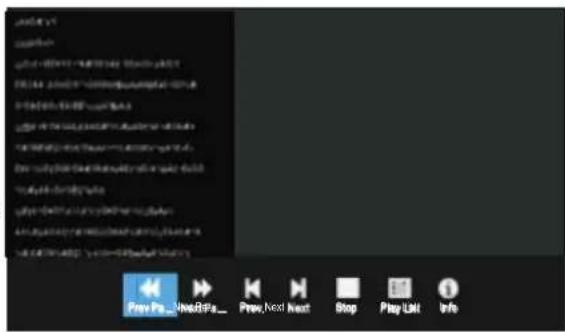

When playing Text files:

Press the INFO/ENTER button on the remote control to display the on-screen toolbar.

* Use the ◀/▶ buttons, then press ENTER to select a function such as previous file, next file, from the on-screen toolbar.
* Press ■ or EXIT buttons to exit playback & go back to file list page.

play stop pre Pre prePlay pre Next Stop Play List info

NOTE:

◆ To play your multimedia files, make sure you have selected the correct icon in the main media playback menu.

Important Unique Buttons

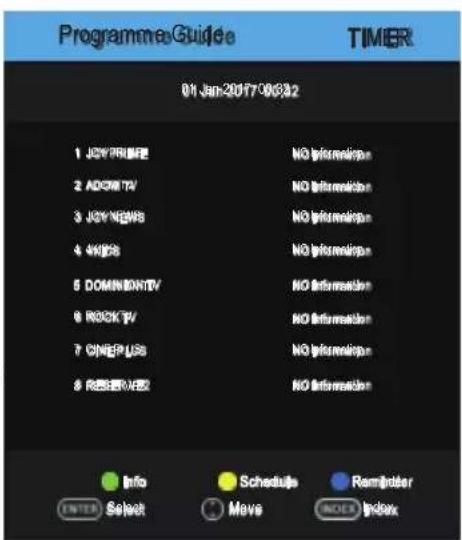

PROGRAMME GUIDE (In DTV mode)

Press the EPG button to display the Programme Guide menu. This function let you know the detailed information of the channel, indicating the time of the program playing. From the Programme Guide it is possible to check the program information for the next eight days (If the information is available from the broadcaster).

• Press the ◀/▶ buttons to select a different channel in the list and press ENTER to active the channel.
  • Schedule: Press the yellow button to display the Schedule list.
• Info: Press the green button to see the detailed information of the current channel.
• Reminder: If you find the desired program which will be shown in the future. Press the blue button to book program.
• Time/Channel: Press the Index button to select the top of items, and press the ◀/▶ button to change the list by Time or Channel.
• Press the EPG or EXIT button to exit.

ProgrammeGuide TIMER 01 Jan-2017-06/32 1 JOY PRIME NO Information 2 ADCRTV NO Information 3 JOY NEWS NO Information 4 KIDS NO Information 5 DOMINIONTV NO Information 6 ROCK TV NO Information 7 CINEERUS NO Information 8 RESOURCES NO Information Info Schedules Reminter ENTER Select Move ROCE Index

EN

Channel List

Press the LIST button to display the Channel List.

Press the ▲/▼ buttons to select the channel and press ENTER to watch it.

Press the GREEN button to sort the channel. (Satellite signals only).

Press the RED button to search the programmes.

Press CH/N button to page up or down the Channel list.

Press EXIT button to exit the channel list.

ChannelList 1/2 1 JOY PRIME 2 ADOM TV 3 JOY NEWS 4 4KIDS 5 DOMINIONTV 6 ROCK TV 7 CINEPLUS 8 RESERVE2 9 OB TV 10 PENITT V CH+ Page up Page down Move OK+ Page down ENTER Select

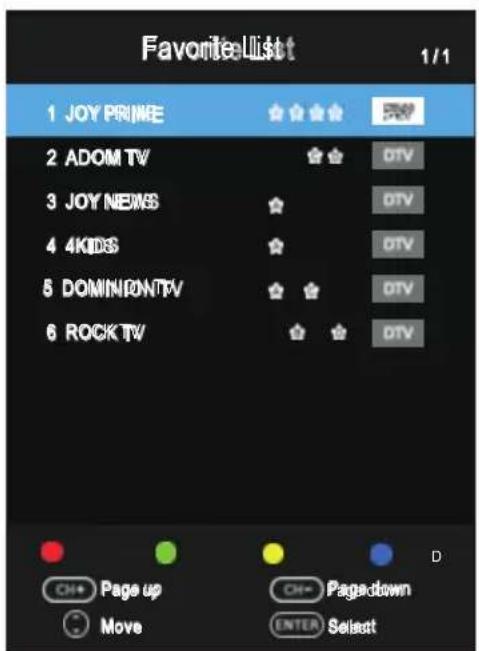

Favorite List

Press the ♥ button to display the Favorite List.

Press red, green, yellow, blue button to select the desired favorite group.

Press the ▲/▼ buttons to select the channel and press ENTER to watch it.

Press CH/Nbutton to page up or down the Favorite list.

Press EXIT button to exit the Favorite List.

FavoriteListt 1/1 1 JOY PRINCE 2 ADOM TV 3 JOY NEWS 4 4KIDS 5 DOMINIONTV 6 ROCK TV

Teletext

Using the teletext feature

- Display teletext

1. Select a TV station with a teletext signal.
2. Press the button to enter the teletext mode.
3. Press the button 2nd to enter the Mix mode. This function enables you to superimpose the teletext page over the TV program.
4. Press the button 3 rd to return or exit to the normal TV/DTV mode.

- Page selection

1. Enter the page number (three digits) using the number buttons. If you press a wrong number during input, you must complete the three digit number and then reenter the correct page number.
2. The CH ^/CH button can be used to select the preceding or following page.

- Hold

You can press the ☐ button to hold a page, and press it again to release the page.

- Index

Press the ☐ button to enter the main index page directly.

- Enlarging Text

When a page is displayed, you can double the size of the text to make it easier to read.

1. Press the button to enlarge the top half of the page.
2. Press the ⏻ button again to enlarge the bottom half of the page.
3. Press the button once more to return to the normal display.

- Reveal mode

You can display concealed teletext information (e.g. Answer to puzzles or riddles etc.) by pressing button. Press button again to remove the information from the display.

- Subpage

Some teletext may contain several sub-pages which are automatically paged in a certain cycle by the TV station.

1. Yon can enter into a certain sub page by pressing the Ⓤ button directly and select the page number with number buttons. Enter the sub page number (e.g. 0003) for the third sub page.
2. Press the button again to exit the sub page mode.

• Color buttons (Red, Green, Yellow and blue)

Press these buttons to access directly to the corresponding color pages displayed at the lower part of the teletext screen.

Specification

Specification
Working voltage	100 – 240 V~ 50/60 Hz
Rated power consumption	55 W
Dimensions (W x H x D) without stand	733 X 435 X 80 mm
Net weight without stand	3,7 Kg
RF aerial input	75Ωunbalanced
Language of OSD	Multiple options
System	DTV: DVB-T/T2/C/S/S2
	ATV: PAL/SECAM/BG/DK/I
Channel coverage	DTV: DVB-T: 177.5 MHz ~ 226.5 MHz
	474 MHz ~ 858 MHz
	DVB-C: 113 MHz~858 MHz
	DVB-S/S2: 950 MHz ~ 2150 MHz
	ATV: 45 MHz ~ 867 MHz

Note: Some specifications may be different at some regions or models, and please take your actual as the standard.

Troubleshooting Guide

Troubleshooting

When you meet the following common problems, you might diagnose and get the solutions without contacting with the technicians.

Symptoms Possible Reason Solutions
No picture, no sound, and no indicator light on	1. The power cord is not plugged in2. The power is off	1. Plug the power cord in2. Turn the power on
Picture and sound with abnormality	1. Contrast, sharpness, and color are set improperly2. Color system is set improperly3. Sound system is set improperly	1. Adjust the value of Contrast, sharpness, and color2. Set the Color system to the country broadcasting standard3. Set the Sound system to the country broadcasting standard
Picture is spotted or with snow	Signal source is low-grade or the signal cord is in a lower quality	Use the qualified signal cord
No picture, no sound and indicator light is green/blue	Volume is in the minimum value or TV is in mute mode.	Adjust the value of volume
	The signal cable is not correctly connected.	Connect the signal cable correctly
Blue screen, AV is displayed	There is no signal input or the video cable is not connected or incorrectly connected	Connect the video cable correctly
No sound	There is no audio signal input or audio cable is not connected correctly	Connect the audio cable correctly
HDMI source, with snow pixel of full screen	The source generate is not standard	Plug the HDMI cable again
The remote control does not work	Batteries are improperly installed or exhausted	1. Make sure the positive and the negative polarities are correct.2. Check if there is a loose contact between the batteries and the springs3. Replace the batteries

Maintenance

Early malfunctions can be prevented. Careful and regular cleaning can extend the life of your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the screen

1. Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then use it to wipe the screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

Extended Absence

If you expect to leave your TV dormant for a long time (such as a vacation), it's a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

The terms HDMI and High Definiton Multimedia Interface and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the USA and other countries. Manufactured under license from Dolby Laboratories.

Dolby, Dolby Audio and the double D symbol are trademarks of Dolby Laboratories.

This product contains free software that is subject to the GNU General Public License (GPL) and/or the GNU Lesser General Public License (LGPL). You may redistribute and/or publish it under the terms of the GNU General Public License or the GNU Lesser General Public License as published by the Free Software Foundation, either according to Version 2 or (at your option) any later version.

This program is published in the hope that it is of use to you but WITHOUT ANY GUARANTEE and especially without the implicit guarantee of BEING READY FOR THE MARKET or USE FOR A CERTAIN

This device is suited solely for use in closed spaces. This device may be used in all EU countries.

Imtron GmbH hereby declares that the radio equipment

complies with the

EU directive 2014/53/EU. Click on the following link to read the full text of the EU Declaration of Conformity:

Avertissement

CHER CLIENT,

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR

AVERTISSEMENT :

POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE COUVERCLE (OU LE PANNEAU ARRIÈRE). AUCUNE PIÈCE RÉPARABLE PAR L'UTILISATEUR À L'INTÉRIEUR. CONFIER L'ENTRETIEN À UN PERSONNEL DE SERVICE QUALIFIÉ.

Cartoon illustration of a smiling computer monitor holding a book and a document (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face and wings, surrounded by hands (no text or symbols)

Cartoon illustration of a computer monitor with a smiling face and a money bag, symbolizing online shopping or digital consumption (no text present)

Cartoon illustration of a computer monitor with a sad face and angry expression, accompanied by a refrigerator (no text or symbols)

Illustration of a smiling computer monitor with a smiling face and electrical plug, accompanied by a person standing beside it (no text or symbols present)

Cartoon illustration of a computer monitor with an angry face and a power plug, showing electrical connections (no text or symbols)

Cartoon illustration of a smiling computer monitor with a rainbow, surrounded by lightning, wind, and a small battery (no text or symbols)

Symbolic icon of a person climbing a ladder inside a circle (no text or symbols)

Illustration of a smiling computer monitor and a worker holding a box, no text or symbols present

REMARQUE :

Line drawing of a flat-screen monitor with two stand feet at the bottom (no text or symbols)

Line drawing of a flat-screen TV unit back view showing front panel, rear panel, and display (no text or symbols)

HDMI2(CEC) HDM1 (ARC/CEC) ANT1 ANT2 (SATELLITE) DIGITAL AUDIO OUT 13'18 V=400mA AV USB2.0 (5V=50mA) COMMON INTERFACE

Three schematic diagrams of a battery with internal components and directional arrows indicating flow or movement (no text or labels)

■ LCN Enable (Activation LCN)

MAG Mode Image Motion Temperature/decoudeur Standard Format de image 16.8 NR Moyen Contrast dynamic Normal Adaptational Pattern Normal Re Alternative of the Image Beager Sales/Female Relouch

SON Mode son Standard Balance 0 Volume auto AmBI Surround AmBI Mode SPO IP PCM AD Switch Reliant audio Reliant backup data Bouger Select format Retour

- On Source (source) on

- On Volume (volume) on

Sunflower image with green leaves against a blue sky background (no text or symbols on the flower or window)

LW Reset / Reset Power Prey. Sunt Stop Regate. Used. forms.

Scenic coastal view with mountainous terrain and a floating island, no visible text or symbols.

Cartoon illustration of a smiling computer monitor holding a book and a document (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face and raised arms, surrounded by clouds and flying birds (no text or symbols)

Cartoon illustration of a computer monitor with a smiling face and a money bag, symbolizing online shopping or digital commerce (no text present)

Cartoon illustration of a computer monitor with a sad face and a fist, accompanied by a refrigerator (no text or symbols)

Illustration of a smiling man pointing at a computer monitor with a cable, no text or symbols present

Cartoon illustration of a computer monitor with an angry face and a power outlet, showing electrical connections (no text or symbols)

Cartoon illustration of a smiling computer monitor with arms and legs, surrounded by lightning, clouds, and a small phone (no text or symbols)

Symbolic icon of a person climbing a ladder inside a circle with a diagonal line (no text or symbols)

Cartoon illustration of a smiling computer monitor and a worker pointing at a box (no text or symbols)

MEGJEGYZÉS

Line drawing of a flat-screen TV unit with front panel and rear legs, showing internal components and status indicators (no text or symbols)

HDMI2(CEC) HDM11 (ARC/CEC) ANT1 ANT2 (SATELLITE) DIGITAL AUDIO OUT 13/18 V=400mA AV USB2.0 (5V=500mA) COMMON INTERFACE

Three schematic diagrams of a battery with internal components and directional arrows, no text or symbols present.

Elemcsere

CSATOINA KEP MING JDS ZAR CPOD

1:0 Aerosol 1.5 mm/second 2.5 mm 6ms 0.5s 40mm Kissell 1.5 mm/second Kissell 4 ms Hir res 1.5 mm/second Sakupress Kissell 800 MHz OSO 1.5 mm/second 30s

Sunflower in a blue sky with green leaves, no visible text or symbols on the flower or background.

Screenshot of a music player interface showing playback controls and a blue musical bar chart

Scenic coastal view with a wooden cabin and mountainous background under a blue sky (no visible text or symbols)

Cartoon illustration of a smiling computer monitor holding a book and a document (no text or symbols present)

Cartoon illustration of a computer monitor with a smiling face and a speech bubble, symbolizing media or video content (no text present)

Illustration of a smiling computer monitor with a smiling face and a person standing beside it (no text or symbols present)

Cartoon illustration of a computer monitor character with a sad face and frowning expression, surrounded by abstract cloud-like shapes (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and angry expression, accompanied by a printer (no text or symbols present)

Cartoon illustration of a computer monitor with an angry face and a power plug, showing electrical connections (no text or symbols)

Cartoon illustration of a smiling computer monitor with a rainbow, surrounded by clouds and a small battery (no text or symbols)

Symbolic icon of a person climbing a ladder inside a circle with no text or symbols

Cartoon illustration of a smiling computer monitor and a technician holding a toolbox (no text or symbols)

OPMERKING:

Line drawing of a flat-screen monitor with two stand feet at the bottom (no text or symbols)

Line drawing of a flat-screen TV unit with front panel and display screen (no text or symbols)

HDMI2(CEC) HDM1 (ARC/CEC) ANT1 ANT2 (SATELLITE) DIGITAL AUDIO OUT 13/18 V=450mA AV USB2.0 (5V=500mA) COMMON INTERFACE

Three schematic diagrams of a battery with internal components and directional arrows indicating flow or movement (no text or labels)

Set your desired language

Scenic coastal view with mountain, wooden structures, and blue sky (no visible text or symbols)

NL

Screenshot of a software interface showing menu bar, navigation tabs, and playback controls with icons.

OPMERKING:

Press the ☐ button to enter the main index page directly.

- Tekst vergroten

Cartoon illustration of a smiling computer monitor character holding a book (no text or symbols present)

Cartoon illustration of a computer monitor with a smiling face and a hand holding a document, surrounded by a small megaphone (no text or symbols)

Illustration of a smiling computer monitor with a smiling face and electrical plug, accompanied by a person standing beside it (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face and wings, surrounded by abstract clouds (no text or symbols)

Cartoon illustration of a distressed computer monitor with a distressed face and a distressed front panel, no text or symbols present.

Cartoon illustration of a computer monitor with an angry face and a power outlet, showing electrical connections (no text or symbols)

Cartoon illustration of a smiling computer monitor with arms and legs, surrounded by lightning, clouds, and a small phone (no text or symbols)

Symbolic icon of a person climbing a ladder inside a circle with no text or symbols

Cartoon illustration of a smiling computer monitor and a worker pointing at a box (no text or symbols)

UWAGA:

Line drawing of a flat-screen monitor with two stand feet at the bottom (no text or symbols)

Line drawing of a flat-screen TV unit with front panel and rear legs, showing internal components and status indicators (no text or symbols)

HDMI2(CEC) HDM1 (ARC/CEC) ANT1 ANT2 (SATELLITE) DIGITAL AUDIO OUT 13/18 V=400mA AV USB2.0 (5V=500mA) COMMON INTERFACE

Three schematic diagrams of a battery with internal components and directional arrows, no text or symbols present.

Wymiana baterii

- Export to USB [Export to USB]

- Import from USB [Import from USB]

Sunflower image with blue sky background and control icons below (no readable text or symbols on the flower)

Screenshot of a media player interface showing a blue pixelated bar chart and playback controls

Scenic coastal view with a lake, wooden houses, and green hills under a blue sky (no visible text or symbols)

play play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() play() power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power power

Obsługa menu

PRZEWODNIK PROGRAMÓW (W trybie DTV)

Cartoon illustration of a smiling computer monitor holding a book and a document (no text or symbols present)

Cartoon illustration of a computer monitor with hands holding a document, surrounded by floating icons (no text or symbols)

Illustration of a smiling computer monitor with a cartoon face and a person standing beside it (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and wings, surrounded by hands (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and a distressed expression, accompanied by a printer (no text or symbols present)

Cartoon illustration of a computer monitor with an angry face and electrical plug, showing a distressed hand holding the screen (no text or symbols)

Cartoon illustration of a smiling computer monitor with hands and speech bubbles, surrounded by clouds and a small phone (no text or symbols)

Symbolic illustration of a person climbing a ladder inside a circle with a diagonal line (no text or symbols)

Cartoon illustration of a smiling computer monitor and a worker pointing at a box (no text or symbols)

NOTA:

Line drawing of a flat-screen monitor with stand supports (no text or symbols)

Line drawing of a flat-screen TV unit with front panel and display screen (no text or symbols)

HDMI2(CEC) HDM1 (ARC/CEC) ANT1 ANT2 (SATELLITE) DIGITAL AUDIO OUT 13x18 V=400mA AV USB2.0 [5V=500mA] COMMON INTERFACE

Three schematic diagrams of battery internal components with arrows indicating direction (no text or labels)

Primo Utilizzo

Five circular icons on a black background: a blue 'S' with signal waves, a computer monitor, a lock icon, a lock symbol, and a gear symbol (no text or labels)

Mobile app interface screenshot showing a satellite icon with signal waves and a progress bar, labeled with 'ENTER' and 'MENU' buttons.

■ Ricerca automatica

Mobile app interface screenshot showing a satellite icon with signal waves and a blue progress bar

■ Ricerca automatica

Mobile app interface screenshot showing a weather icon and navigation buttons including 'ENTER' and 'MENU'

Mobile app interface screenshot showing a clock icon and a progress bar with 'Fask1', 'ENTER', and 'MENU' buttons.

Mobile app login interface with a key icon and navigation buttons

Pure graphical interface element with blue header and two small icons at bottom (no text or symbols)

Screenshot of a media player interface with four icons: video, music note, play, and document.

Sunflower with green leaves against a blue sky and clouds, no text or symbols visible

Screenshot of a media player interface showing a blue pixelated bar chart and playback controls

Scenic lakeside view with thatched-roof huts and lush green hills under a clear blue sky (no text or symbols visible)

Screenshot of a media player interface with Chinese text and playback controls

Game interface screenshot showing a dark screen with three colored buttons at bottom (green, yellow, blue) and a blue header bar above (no readable text or symbols on main elements)

Lista Canali

GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV GTV HDTV

Televideo

Cartoon illustration of a smiling computer monitor holding an open book (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and raised arms, symbolizing stress or urgency (no text or symbols present)

Cartoon illustration of a computer monitor with a smiling face and a money bag, symbolizing online shopping or digital finance (no text present)

Cartoon illustration of a computer monitor with a sad face and a distressed expression, accompanied by a printer (no text or symbols present)

Illustration of a smiling computer monitor with a smiley face and a person standing beside it (no text or symbols present)

Cartoon illustration of a computer monitor with an angry face and a power plug emitting electrical shock (no text or symbols)

Cartoon illustration of a smiling computer monitor character with arms and legs, surrounded by lightning, clouds, and a battery (no text or symbols)

Symbolic illustration of a person climbing a ladder inside a circle with a diagonal line (no text or symbols)

Cartoon illustration of a smiling computer monitor and a worker holding a toolbox (no text or symbols)

NOTA:

Line drawing of a flat-screen TV unit with front panel and display (no text or symbols)

HDMI2(CEC) HDM1 (ARC/CEC) ANT1 ANT2 (SATELLITE) DIGITAL AUDIO OUT 13/18 V=400mA AV USB2.0 (5V=500mA) COMMON INTERFACE

Three schematic diagrams of a battery with internal components and directional arrows, no text or symbols present.

Guía de inicio

Cartoon illustration of a smiling computer monitor holding an open book (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face and raised arms, surrounded by clouds (no text or symbols)

Cartoon illustration of a computer monitor with hands holding a document and a money bag nearby (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and a distressed expression, accompanied by a printer (no text or symbols)

Illustration of a smiling man presenting to a computer monitor with an electrical plug (no text or symbols)

Cartoon illustration of a computer monitor with an angry face and electrical plugging (no text or symbols)

Cartoon illustration of a smiling computer monitor character with arms and legs, surrounded by clouds and industrial equipment (no text or symbols)

Symbolic icon of a person climbing a ladder inside a circle (no text or symbols)

Illustration of a smiling computer monitor and a delivery worker holding a box (no text or symbols)

NOTA:

Line drawing of a flat-screen monitor with stand supports at the bottom (no text or symbols)

Line drawing of a flat-screen TV unit with front panel and display screen (no text or symbols)

HDMI2(CEC) HDM1 (ARC/CEC) ANT1 ANT2 (SATELLITE) DIGITAL AUDIO OUT 13/18 V=50mA AV USB2.0 (5V 400mA) COMMON INTERFACE

7	➊	Npcpgml c p_ngb_k cl rc n_p_jge_p_RT *npccpgml c p_ngb_k cl rc n_p_ `pgmK cl s Dml rc *npccpgml c c qcespc n_p_ bcqjge_p RT

Iniciar

Utilizar o telecomando

Colocar as pilhas no telecomando

Three schematic diagrams of a battery with internal components and directional arrows indicating flow or movement (no text or labels)
