Product Type	Universal Remote Control
Brand	One For All
Model	URC 2160
Number of controllable devices	Up to 6 devices (TV, STREAM, STB, AUDIO, BLURAY, DVD)
Power supply	2 AAA / LR03 batteries (alkaline recommended)
Dimensions (approx.)	20 x 5 x 2 cm
Weight (approx.)	150 g (with batteries)
Infrared range	Up to 10 meters
Main functions	Power On/Off, input selection, menu navigation, playback control, volume, mute, numeric keys, RGYB keys, app shortcut key, volume lock
Configuration methods	SimpleSet, code search, learning from another remote
Code memory	Built-in database for major brands
Learning function	Yes, allows learning functions from an original remote
App shortcut key	Programmable to launch streaming apps (Netflix, YouTube, etc.)
Volume lock	Yes, allows fixing volume on a specific device (e.g., soundbar)
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive or solvent-based products.
Safety	Risk of explosion if batteries are replaced by an incorrect type. Use alkaline batteries. Keep out of reach of children.
Spare parts and repairability	No spare parts available. The device is not user-repairable. In case of malfunction, contact One For All support.
Warranty	1 year against defects in materials and workmanship. Terms at www.oneforall.com/remoteguarantee
General information	Universal remote preprogrammed for popular devices. Compatible with most TV brands, set-top boxes, Blu-ray/DVD players, soundbars, etc.

Frequently Asked Questions - URC 2160 ONE FOR ALL

How to configure the URC 2160 remote with my TV?

Turn on your TV, press the TV key on the remote, hold down the Setup key until the LED flashes twice, then press the number corresponding to your TV brand (see the SimpleSet guide). Release when the device turns off.

How to use the SimpleSet function?

SimpleSet allows quick setup for common brands. Turn on the device, press the device key (e.g., TV), hold down Setup until the LED flashes, then press the number corresponding to the brand in the SimpleSet table. The remote sends the power signal every 3 seconds; as soon as the device turns off, release the key.

What if my brand is not supported by SimpleSet?

Use code search: find the list of codes for your brand in the manual, turn on the device, press the device key, hold Setup, enter the first 4-digit code, then test with the Power key. If the device does not respond, try the next code.

How to learn a function from my original remote?

Place the original remote facing the URC 2160 (about 5 cm apart). Press the device key (e.g., TV), hold Setup until the LED flashes twice, enter 975, press the key on the URC 2160 you want to program (e.g., Power), then press the corresponding key on the original remote. The LED flashes twice if learning is successful.

How to lock volume to a single device?

Hold Setup until the LED flashes twice, enter 993, then press the key of the device you want to lock volume to (e.g., AUDIO). Now the volume and mute keys will always control that device, regardless of which device is selected.

How to program the app shortcut key (Netflix, etc.)?

Make sure the remote is controlling the desired device. Hold down the shortcut key until the LED flashes twice and stays on, press the device key (e.g., STREAM), then replicate the normal sequence to launch the app (e.g., Home, Down, OK). Finish by holding the shortcut key again until the LED flashes twice.

How to reset a learned key?

Hold Setup until the LED flashes twice, enter 976, then press twice the key you want to reset. The LED flashes twice to confirm.

What type of batteries to use and how to replace them?

Use 2 AAA/LR03 batteries, preferably alkaline. Open the battery compartment on the back, insert the batteries respecting polarity (+/-), then close. Do not mix old and new batteries. Remove the batteries if the remote is not used for a long time.

Where to find the list of codes for my brand?

The list of codes is in the user manual provided with the remote. You can also check the One For All website or download the complete instructions in PDF format at notice-facile.com.

What to do if the remote does not respond at all?

First check the batteries: replace them if necessary. Make sure no obstacles block the infrared signal and that you are within range. If the problem persists, reset the remote by removing the batteries for 30 seconds then reinserting them. Contact One For All support if the problem persists.

USER MANUAL URC 2160 ONE FOR ALL

Color palette bar with grayscale gradient and a red horizontal bar, no text or symbols present

INTRODUCTION

Thank you for purchasing the One For All Essence Universal Remote Control. The remote can be used to control up to 6 Audio Video Devices such as a TV, Set Top Box, Streaming device, Blu-ray player, DVD player/recorder, audio system, soundbar.

This manual will help you to set up the Essence to control all of your devices and take advantage of its features.

BATTERIES

Your remote requires 2 x AAA / LR03 batteries (not Included). Please insert them as shown below. Alkaline batteries are recommended.

Line drawing of a cylindrical device with a rectangular cutout and a small protrusion at the bottom (no text or symbols)

Line drawing of a cylindrical device with a curved arrow and label '2' (no text or symbols on the object itself)

Diagram of a cylindrical device with internal components and a separate housing, labeled '2x AAA' (no text or symbols on the device itself)

Line drawing of a cylindrical device with a lid and base, no text or symbols present

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Use quality Alkaline batteries.

Color palette bar with grayscale and red sections, no text or symbols present

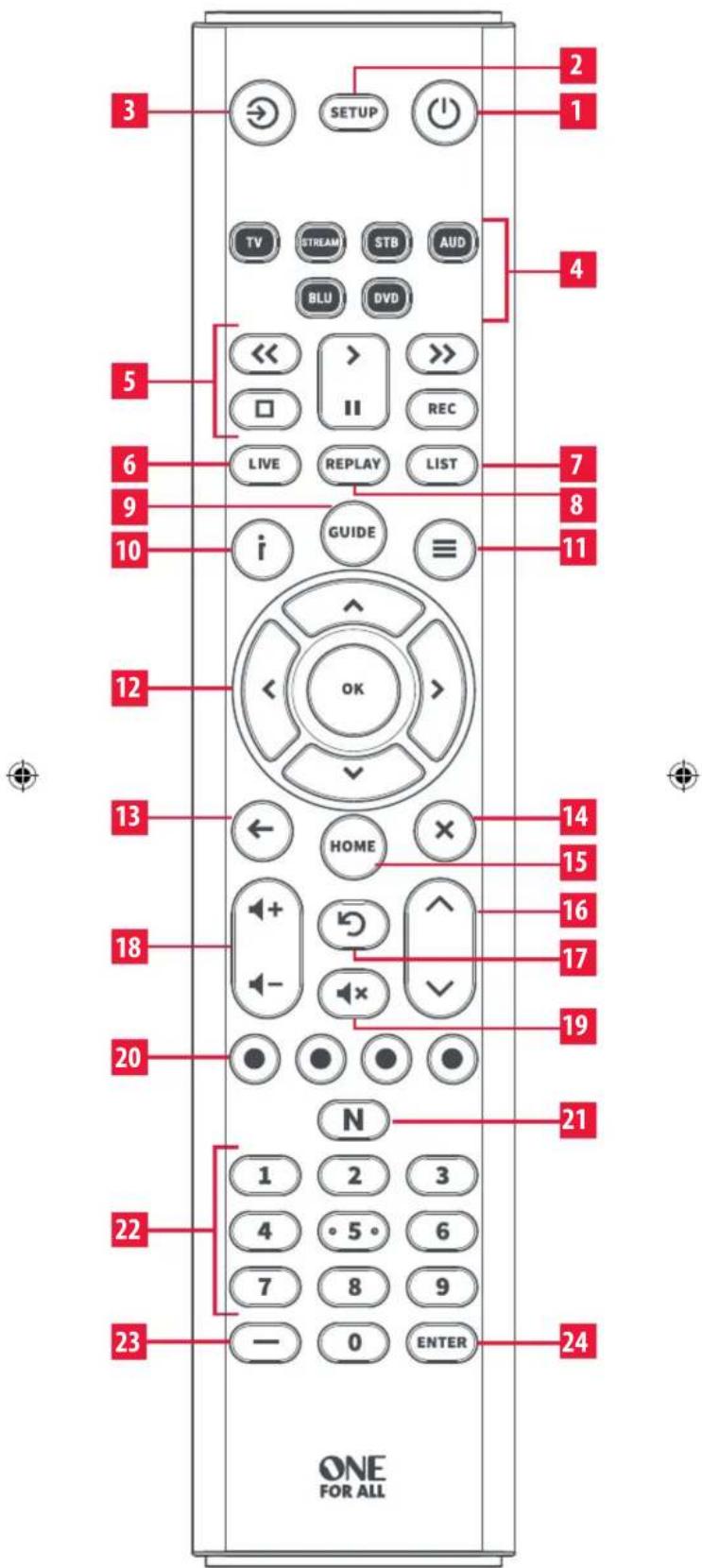

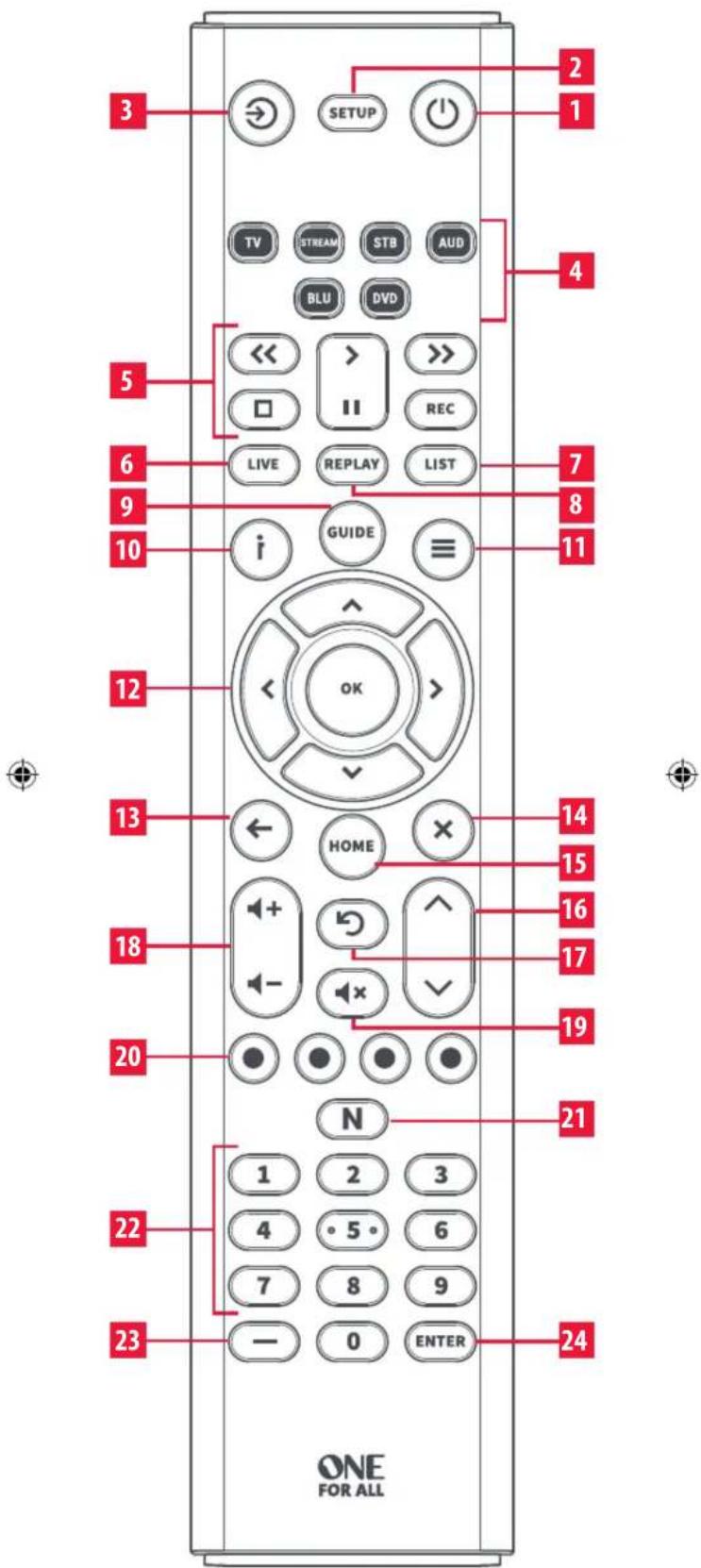

KEY DESCRIPTIONS

3 SETUP 2 1 TV STREAM STB AUD BLU DVD << > □ II REC LIVE REPLAY LIST i GUIDE 7 8 10 11 12 OK 13 HOME 14 15 16 17 18 N 20 21 22 3 4 5 6 7 8 9 — 0 ENTER 23 24 ONE FOR ALL

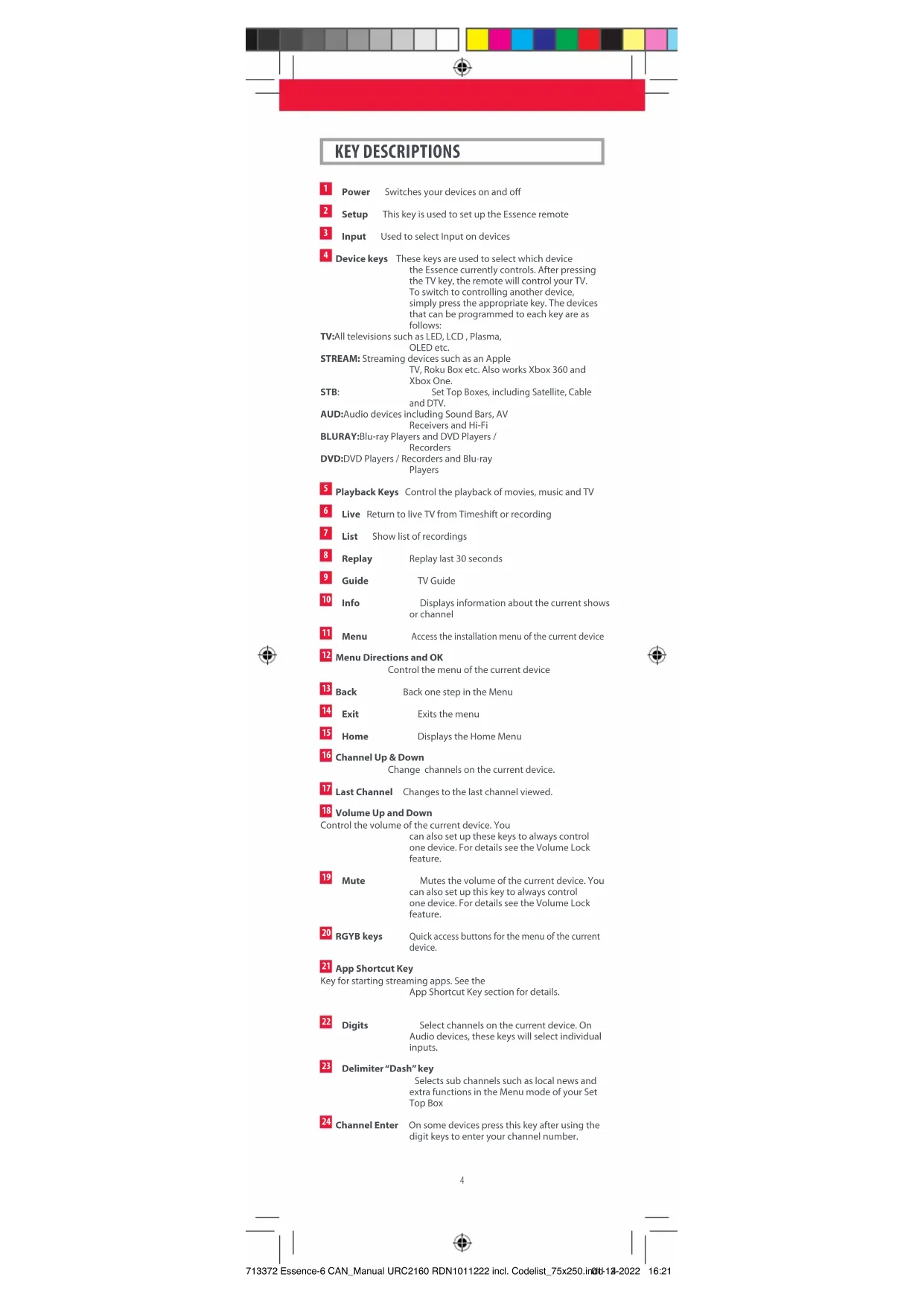

KEY DESCRIPTIONS

1 Power Switches your devices on and off

2 Setup This key is used to set up the Essence remote

3 Input Used to select Input on devices

4 Device keys These keys are used to select which device the Essence currently controls. After pressing the TV key, the remote will control your TV. To switch to controlling another device, simply press the appropriate key. The devices that can be programmed to each key are as follows:

TV: All televisions such as LED, LCD, Plasma, OLED etc.

STREAM: Streaming devices such as an Apple TV, Roku Box etc. Also works Xbox 360 and Xbox One.

STB: Set Top Boxes, including Satellite, Cable and DTV.

AUD:Audio devices including Sound Bars, AV Receivers and Hi-Fi

BLURAY: Blu-ray Players and DVD Players / Recorders

DVD:DVD Players / Recorders and Blu-ray Players

5 Playback Keys Control the playback of movies, music and TV

6 Live Return to live TV from Timeshift or recording

7 List Show list of recordings

8 Replay Replay last 30 seconds

9 Guide TV Guide

10 Info Displays information about the current shows or channel

11 Menu Access the installation menu of the current device

12 Menu Directions and OK Control the menu of the current device

13 Back Back one step in the Menu

14 Exit Exits the menu

15 Home Displays the Home Menu

16 Channel Up & Down Change channels on the current device.

17 Last Channel Changes to the last channel viewed.

18 Volume Up and Down

Control the volume of the current device. You can also set up these keys to always control one device. For details see the Volume Lock feature.

19 Mute Mutes the volume of the current device. You can also set up this key to always control one device. For details see the Volume Lock feature.

20 RGYB keys Quick access buttons for the menu of the current device.

21 App Shortcut Key Key for starting streaming apps. See the App Shortcut Key section for details.

22 Digits Select channels on the current device. On Audio devices, these keys will select individual inputs.

23 Delimiter "Dash" key Selects sub channels such as local news and extra functions in the Menu mode of your Set Top Box

24 Channel Enter On some devices press this key after using the digit keys to enter your channel number.

Color palette bar with grayscale gradient and a red horizontal bar, no text or symbols present

SETUP

The Essence remote is pre-programmed to control some of the most popular devices out of the box. If you have one of the following devices try the putting the batteries in and pressing the device key, and then press a few keys to see if the remote works your device:

Device Key To Press Device controlled

TV Samsung TV

STREAM Roku Streaming Box

STB Comcast Set top box

AUDIO Yamaha Receiver

BLURAY Samsung Blu-ray Player

DVD Sony DVD Player

If your device is not one of those listed above, or you have extra devices to set up, there are 3 ways to do this. The easiest is SimpleSet which is used for the common brands and devices.

SIMPLESET

If the brand of your device is shown in the SimpleSet list next to a digit key, you can use the SimpleSet system described in this section, please locate the brand of your device and note the key associated with it.

TV

signia

,Magnavox

Element

ng, Panasonic

Hisense

Sanyo

CA

a, Westinghouse

VIZIO

STREAM

AirTV, Sling TV

Apple

Microsoft

Netgear

NVIDIA

Onn

Roku

Sony

n Digital

Xiaomi

STB

Bell

Rogers

Shaw

Color palette bar and a red horizontal bar with a crosshair symbol (no text or labels)

SETUP

SIMPLESET

AUDIO

Bose

Denon

Polk Audio

LG

Onn

Onkyo

Samsung

Sony

Yamaha

Sonos

1 2 3 4 · 5 · 6 7 8 9 — 0 ENTER

DVD and BLURAY

LG, Sharp

Ohn, Insignia

3 Panasonic

Philips, Magnavox

5 Pioneer

6 Samsung

7 Sony

8 Toshiba

VIZIO, RCA

0 Yamaha

1 2 3 4 · 5 · 6 7 8 9 — 0 ENTER

To set up your device:

1. Turn on your device (not on standby) and point the Essence remote towards it. If you are setting up a Streaming device, make sure a movie or TV show is playing.

2. Pres Device key you wish to set up (for example TV).

3. SETUP Hold down the SETUP key until the LED under the Device key blinks twice

4. Hold down the digit key for your brand and device as listed in the tables above - e.g. 3 for a Philips TV.

5. The remote will send a Power command every 3 seconds, but if your device does not have a Power function (for example a streaming box like Apple TV) the remote will send the Play/Pause function.

6. As soon as your device reacts by turning off or Pausing (Streaming box only) release the digit.

7. The LED will blink twice and the remote should now operate your device.

- If you find one or more keys do not work as you expect, start again at step 2 – the remote will start with the next code in the memory.

Color palette bar with grayscale shades and a red horizontal bar at the bottom (no text or symbols)

SETUP

SETUP BY CODE

If the brand of your device is not listed in the SimpleSet feature, you can set up by trying codes individually. To do this, firstly locate your brand in the Code List. Codes are listed by brand and device, and in order of popularity.

1. Turn on your device (not on standby) and point the Essence remote towards it.
2. Prevent the Device key you wish to set up (for example TV)
3. Hold down the SETUP key until the LED under the Device key blinks twice
4. Enter the first 4 digit code listed for your brand (e.g. 1840 for LG).
5. The LED will blink twice on the last digit of the code.
6. Now aim the remote towards your device and press the POWER key.*
7. If the device turns off your remote is ready to use. If not, repeat steps 2-6 with the next code in the list.
   * Note: If your original remote did not have a Power key, try testing with a different key at step 6. For example try pressing Play or Pause when setting up a streaming box and see if the box responds.

Color palette bar with grayscale swatches and a red horizontal bar at the bottom (no text or symbols)

SETUP

LEARNING

Your Essence remote control can learn any function from any other working remote control. This is a quick and easy one-time setup that allows you to control any infrared controlled device you have in your living room. It also allows you to add a key or keys that may be missing to a spare key on the Essence.

To do this, firstly make sure you have all your original remote controls to hand, and that they have working batteries in.

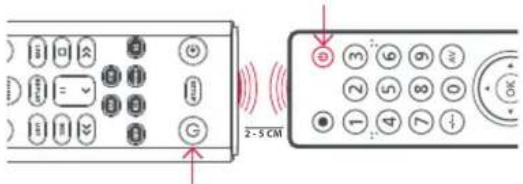

To learn functions, the original remote should be approximately 2-5 cm from the Essence remote, pointing towards it:

2-5 CM

1. Prepare the Device key for the device you want to learn functions onto (e.g. TV).

2. SETUP Hold down the SETUP key until the LED under the Device key blinks twice.

3. Press 975 the LED should blink twice.

4. Press and release the key you want to learn a function onto (for example the POWER key) – the LED will begin to flash rapidly.

5. Press and release* the corresponding key on the original remote, for example POWER.

6. The LED will blink twice to indicate the key has been learned correctly.

7. Repeat steps 4 and 5 for each key you want to learn – remember you can learn from multiple remotes, but only one function per key.

8. When you have learned all the functions you require, press and hold the SETUP key until the LED blinks twice.

* Some remotes send commands differently. If you find a function cannot be learned, try holding down the key on the original remote instead of pressing and releasing.

Hints:

• If the LED shows one long blink at step 5, the function was not learned correctly, please try again from step 4.
• If you find one or more keys don't work properly after set up, you can re-enter the learning mode at any time by repeating the procedure from step 1.
• If one or more of your original remotes aren't working, you can still set up the Essence remote by SimpleSet or Code Set Up.

Color palette bar and horizontal bar with a central crosshair (no text or symbols)

SETUP

Deleting a learned function

If you want to delete a learned function and return that key to its original state, you can use the following procedure:

1. Press the Device key for the device your learned function operates
2. Hold the SETUP key until the LED under the Device key blinks twice
3. Press 1976 - the LED should blink twice
4. Press the key you want to reset twice – the LED should blink twice and the learned function has been deleted.

VOLUME LOCK

If you primarily use one device for controlling sound, for example a Sound Bar or Audio Video Receiver, it's possible to program your Essence remote to only control that device when you use the Volume Up, Down and Mute keys. To do this:

1. Hold down the SETUP key until the LED under the Device key blinks twice.

2. Press 993 - the LED should blink twice.

3. Pres the device key for the device to always control volume – for example Audio.

4. The LED will blink twice.

From now on, pressing the Volume Up, Down or Mute keys will always control the above programmed device, no matter what device you are controlling.

To unlock the volume, and return the remote to controlling each device's sound individually, the procedure is:

1. Hold down the SETUP key until the LED under the Device key blinks twice

2. Press 993-the LED should blink twice

3. Press VOLUME DOWN – the LED will blink four times and Volume is now unlocked.

Color palette bar and horizontal bar with a central crosshair (no text or symbols)

APP SHORTCUT KEY

N

The Essence remote features an App Shortcut Key which can be used to open app on your Smart Devices. If your original remote control has a Netflix key, this key will perform the same function.

However if you did not have a key like this, but still had the ability to watch a streaming service, you can use this key as a shortcut by programming a macro on it. Most AV devices which are connected to the internet, such as Smart TVs or streaming Set Top Boxes have one or more applications they can run to access TV viewing via the internet. Examples of these would be Netflix, YouTube, Amazon Prime or similar.

To program the macro, you first need to know the device you use to access the service, and then the sequence of keys you need to press to always bring up the service you prefer. For example, some Panasonic TVs will start Netflix by pressing the Apps key, then Menu Down Twice, and finally the OK key. Or on an Apple TV, the sequence is Menu, Menu Down and OK.

Once you have determined the sequence for your device, follow these steps:

1. Sit in front of your device with it switched on (not on standby)
2. Hold down the App Shortcut key until the LED blinks twice.
3. Press the device key for the device you want to use for the macro (e.g. Stream)
4. Now perform the sequence of keys exactly as you would normally to start your streaming service The remote will operate your device and the macro is recorded in real time - so if it normally takes a few seconds for your device to react don't worry.
5. Once you have finished the sequence - and the Streaming Service has started on your device - hold down the App Shortcut key until the LED blinks twice and goes out. The macro is now stored.

Tips

• Make sure the Essence remote is operating the device in question before programming
- If you find the Macro doesn't work as expected, you can just repeat the same sequence to reprogram
- When programming, wait for your device to respond first, the remote will remember the timing
- The App Shortcut macro is tied to one device, remember to make sure you are watching the correct device

Connect with us on Facebook. Rejalignez-nous sur Facebook. facebook.com/oneforallworldwide

Connect with us on Instagram. Rejsignez-nous sur Instagram. @onefurallworldwide

Connect with us on LinkedIn, Rejouignez-vous sur LinkedIn, linkedin.com/company/sone-for-all-worldwide

Visit our YouTube channel. Visitez notre chalve youtube: youtube.com/user/serefallproducts

Color palette bar with grayscale swatches and a red horizontal bar at the bottom (no text or symbols)

INTRODUCTION

Line drawing of a cylindrical object with a rectangular opening and a small protrusion, labeled '1' in the top-left corner (no text or symbols on the object itself)

Line drawing of a cylindrical device with a curved arrow indicating rotation or movement (no text or symbols)

3 2x AAA

Line drawing of a handheld device with a cylindrical body and a rectangular casing (no text or symbols)

Color palette bar with grayscale gradient and a red horizontal bar, no text or symbols present

PRINCIPALES DESCRIPTIONS

3 SETUP 2 1 TV STREAM STB AUD BLU DVD 4 << > >> □ II REC 5 LIVE REPLAY LIST 6 9 i GUIDE 7 8 10 ≡ 11 12 OK 13 HOME 14 15 16 17 18 N 20 ● ● ● ● 21 22 1 2 3 4 · 5 · 6 7 8 9 — 0 ENTER 23 24 ONE FOR ALL

12

PRINCIPALES DESCRIPTIONS

Color palette bar and horizontal bar with a central crosshair (no text or symbols)

CONFIGURATION

Color palette bar and a red horizontal bar with a crosshair symbol (no text or labels)

SETUP

SIMPLESET

AUDIO

Bose

Denon

Polk Audio

LG

Onn

Onkyo

Samsung

Sony

Yamaha

O, Sonos

1 2 3 4 · 5 · 6 7 8 9 — 0 ENTER

DVD and BLURAY

sharp

signia

Panasonic

ps, Magnavox

Pioneer

Samsung

Sony

Toshiba

O, RCA

Yamaha

1 2 3 4 · 5 · 6 7 8 9 — 0 ENTER

Color palette bar with grayscale and red sections, no text or symbols present

SETUP

CONFIGURATION PAR CODE

Color palette bar with grayscale swatches and a red horizontal bar at the bottom (no text or symbols)

SETUP

APPRENTISSAGE

Diagram showing two remote control panels with labeled buttons and a 2-5 CM signal indicator

Color palette bar with grayscale gradient and a red horizontal bar at the bottom (no text or symbols)

SunBriteTV 2528.4139.1

Superscan 1963

Supersonic 3593.2104.17

SVA

Sylvania 1963. 1864

1394.1595.3332.

3577.4053

Symphonic 1963, 1595, 1394

TCL 4398, 2434, 3183

5446.3879

TCL-Roku 4398

Technicolor 3577

Toshiba 2724,3945,5213,

4885.5394

Upstar 4182, 4405, 3899

V7 Videoseven 2087

Vidao 2397

Videoseven 2087

Viewsonic 2014.2277.2087

3706.1755.2049.

1860 1564 1365

Viore 3382, 2352, 3118.

2104.3429.3094

VisionQuest 1687

VIZIO 1758 3758 4905

5454 4723 2707

2757 3415 2512

W. Box 2737, 3415, 2312

W BOX Technologies 4686

Technologies 4000 Wartinghouse 1712 4707 2550

1712,4797,3559,2287,4208,5172

3502, 4396, 5175, 4010, 2202, 2004

4910,2293,5094,4120,2560,4625

4139, 3560, 4635,

2397, 3908

Westinghouse-

Roku 4398

White

Westinghouse 1661

Wyse 1365

Xoceco 1753, 2049, 1749

Zenith 1423,2731,1661,

1365, 2358, 1463

STREAM

AirTV	5295
Amlogic	4899
Apple	2615
Armada	4899
Beelink	5123
Boxee	3693
Ceton	1272
Cloud Media	2260
Delta Electronics	4339
DishTV	5295
D-Link 3671, 3693
Dynalink	6413
Echostar	5295
Funai	3339
G-Box Midnight	4440
Geniatech	4339
Iomega	2558
Kollins	4339
LG	3373
Linksys	1272
Logitech	3272
Magnavox	3339
Matricom 4440, 4899
Media Center PC	1272
Mi	3982
Micca	3850
Microsoft	4000, 1272, 2049
Millet	3982
Mind	1272
Minix	4413, 3884
MyGica	4339
Netgear	3324, 2036, 4401, 3292
NVIDIA	4918
Onn	6490
Ortek	3122
Panasonic	3760

PDP 5724

Pivos 4339

Popcorn Hour 2260

Oumi 4339

RCA 3335

Roku 3061

Seagate 2698

Sling Media 5295 3778

Sling Media 9295,3776 Sony 2713 5724 1272

Sony 2715, 3724, 1272 Technicolor 5205

Technicolor 5295 Tiho 4330

100 4339 Vancemila 4800

Verishille 4899 Vivitsk 4220

Vivitek 4539 VIZIO 3670

VIZIO 3670 Western Digital 2558

Western Digital 2558

XBOX 4000, 2049

xiaomi 3982

STB

Access
Communications	1376, 2187, 4537
ADB	2586, 1481, 1998, 2254, 3028
Altice USA	3885, 1376, 6351, 1877, 3560, 1982
Amino 1615, 1481, 1898, 3605, 2482, 4437, 1998, 3028, 3426
Armstrong 1376, 3560
Arris	1376, 2378, 1982, 1998, 2187, 0869, 5912, 1877, 5889, 5097, 6400, 0858, 5537, 5942
AT&T	1377, 6268, 0858
AT&T U-verse	0858
Atlantic Broadband	1376, 1877, 1982, 3560, 4079
Axtel	4458
Bell	0775, 1998, 5537, 1877, 5097
Bell Aliant	1998
Bell Fibe TV	1998, 5097, 5537
Bell MTS	1998, 5097, 5537
Bell Satellite TV	0775
Blue Ridge
Communications	1877, 3560
Buckeye Broadband	1376, 1877, 2187, 4079
Cable Axion 1376
Cable One	1376, 3560, 1877
Cablecom Mexico	1376
Cablemas	1376, 1877
Cablevisión Mexico	1376, 4375, 4537
CenturyLink	1998, 0858
Channel Master	3118
Cincinnati Bell	1877, 1376
Cisco	1877, 1982, 2947, 0858, 3028, 2345, 2378, 5912, 1998, 4315, 3294, 4374, 5484, 2826, 4450, 4514, 5942

Cogeco 1376, 1982, 3560.

4537

Comcast 1982, 1376, 1877,

3560, 2187, 4079.

4443.4537

Cox

Communications 1877, 1376, 1982,

4315.3774.3560.

6400

DIRECTV 1377.6268.3724

DISH 077

Dish Mexico 0775 6068

DISH Network 0775

Eastlink 1376 2187

Echostar 0775

Echostal 0775 Entene 3426 1615 1898

Kaon Media 4458, 2746

Liberty Cablevision 1376

Maxcom 1998

Mediacom 1376, 3560, 1982,

1877

Megacable 1376, 6286, 4374

4450, 4514, 4375,

4537

Midco 1376, 1982, 3560.

2826.4079

Terms and Conditions for "100% Guaranteed To Work" policy, and the separate 1 Year Limited Warranty against defects in material and workmanship can be found at www.oneforall.com/remoteguarantee, or you may request hard copies via mail to Universal Electronics Inc. 15147 N. Scottsdale Road, Suite H300, Scottsdale, Arizona 85254. Please include your full name, product information, and contact information in your request communication.

www.oneforall.com

INFORMATIONS SUR LA GARANTIE

GARANTIE / INFORMATIONS SUR LA GARANTIE

Color palette bar with grayscale gradient and a red horizontal bar at the bottom (no text or symbols)

Connect with us on Facebook.

Rejignedez-hous sur Facebook. facebook.com/snefotalleworldwide

Connect with us on Instagram

Replaginiz-Cloud for Instagram: onone&call worldwide

Connect with us on LinkedIn.

Reignandez-nout zur LinkedIn.

Linkedin.com/company/one-for-all-worldwide

Visit our YouTube channel.

Visitez notre chaine youtube.

youtube.com/user/sone/smallproducts

Customer Support:

Service client:

www.oncforall-canada.ca

OFA warranty / terms & conditions

Garantie OFA / termes et conditions:

www.oneforall-canada.ca

Imported into Canada by:

One For All is a registered trademark of Universal Electronics BV

Industry Canada Regulatory Information

CAN ICES-3 (B)/NMB-3 (B)

Avis d'Industrie Canada CAN ICES-3 (B)/NMB-3 (B)

713372

RDN 1011222
