Product type	DAB+/FM Internet Radio
Brand	Imperial
Model	DABMAN i460
Dimensions (W x H x D)	250 mm x 180 mm x 95 mm
Weight	approx. 1446 g
Power supply	Mains adapter 100-240 V, 50/60 Hz, output 18 V DC / 1 A
Standby power consumption	< 0.1 W
Display	2.4-inch TFT colour display
Speaker	1 x 1 W
DAB+ reception	Band III (174 – 240 MHz)
FM reception	87.5 – 108 MHz
Internet reception	Wi-Fi 802.11 b/g/n, 2.4 GHz
Bluetooth	Yes
Connectivity	Wi-Fi, Bluetooth, USB 2.0, AUX IN (3.5 mm), Headphone (3.5 mm)
Main functions	DAB+/FM/Internet radio, Bluetooth, USB, UPnP, Alarms (x2), Sleep timer, USB recording, Equalizer, Weather, EWF (disaster alert)
Remote control	Yes, with CR2025 battery included
Antennas provided	Telescopic + wire antenna
Cleaning	Dry soft cloth, do not use liquids
Safety	Do not open the casing, use the provided power adapter, avoid humidity
Menu languages	Multilingual (French, German, English, etc.)
Box contents	Radio, remote control, power adapter, antennas, stands, battery, manual

Frequently Asked Questions - DABMAN i460 Imperial

How to set the time on the DABMAN i460 radio?

During initial setup, you can choose the time synchronization mode. If the radio is connected to the Internet via Wi-Fi, the time and date are set automatically. You can also adjust them manually in the menu System > Date/Time.

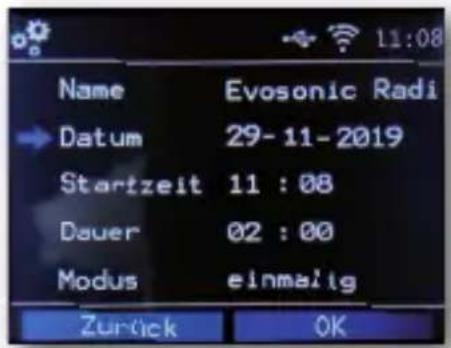

How to record a radio program to a USB stick?

Plug a USB stick (formatted FAT32 or NTFS) into the USB port on the back. During broadcast, press the Rec button on the remote control or the device. A red symbol appears. To stop, press Stop and confirm. You can also program a delayed recording by holding down the Rec button.

How to connect a smartphone via Bluetooth?

Select Bluetooth mode in the main menu. The radio becomes visible. On your smartphone, enable Bluetooth and search for devices. Select DABMAN i460. Once connected, you can stream your music through the radio.

What to do if the remote control does not work?

First check that the battery (CR2025) is correctly inserted and in good condition. Ensure there is no obstacle between the remote and the radio. Point the remote towards the front sensor of the device. If the problem persists, replace the battery.

How to update the software (firmware)?

Download the latest firmware version from www.telestar.de. Unzip the file and copy it to a USB stick. Plug the stick into the radio's USB port, then go to Menu > System > Software update and follow the instructions.

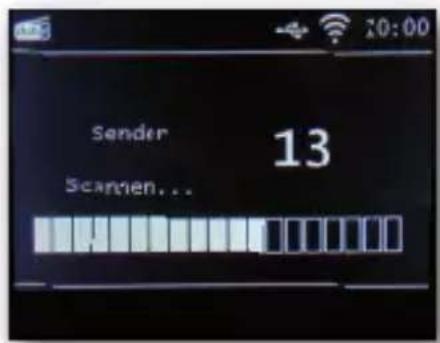

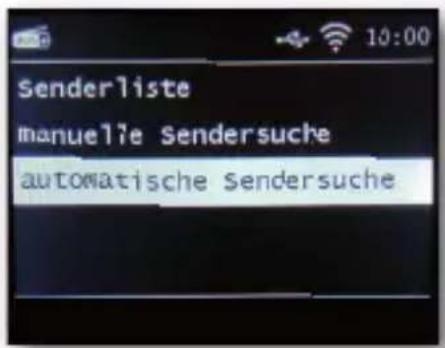

How to start an automatic scan for DAB+ stations?

Switch to DAB+ mode via the Mode button or the menu. Press Back several times to access the station list, then select Auto scan and confirm with OK. The radio searches for all available stations and saves them.

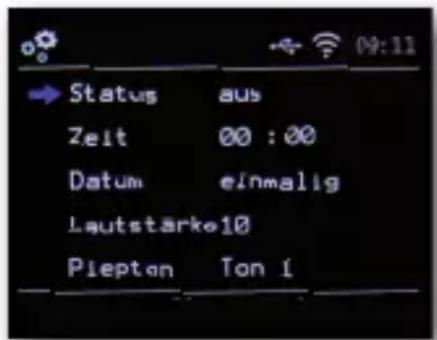

How to set an alarm (wake-up)?

Go to Menu > System > Alarm. You can set up to 2 alarms. Activate the alarm, set the time, repetition (once, daily, etc.), volume, and sound type (beep, DAB station, FM or Internet). Confirm with OK. To stop the alarm, press Standby; to snooze, press the rotary knob.

The screen remains black and the radio does not respond, what to do?

First check that the mains adapter is properly plugged in and that the power switch on the back is set to on. If the screen stays off, unplug the device for one minute then plug it back in. If the problem persists, contact TELESTAR customer service.

How to clean the radio?

Unplug the mains adapter before cleaning. Use a dry, soft cloth to wipe the surface. Never use liquids, solvents, or detergents, as they could damage the device.

Can I use an external battery to power the radio?

The radio is designed to be powered only by the supplied mains adapter (18 V DC, 1 A). Do not use any other power adapter or external battery not approved, as this could damage the device or pose a safety risk.

USER MANUAL DABMAN i460 Imperial

Scan the QR code to get a multilingual manual as a pdf file.

3D model of a gray plastic device with four metallic holes and red indicator lights (no text or symbols)

3D rendered image of a white mechanical device with red indicator lights and mounting holes (no text or symbols)

3D rendering of a gray rectangular electronic device with a flat top and control panel (no text or symbols visible)

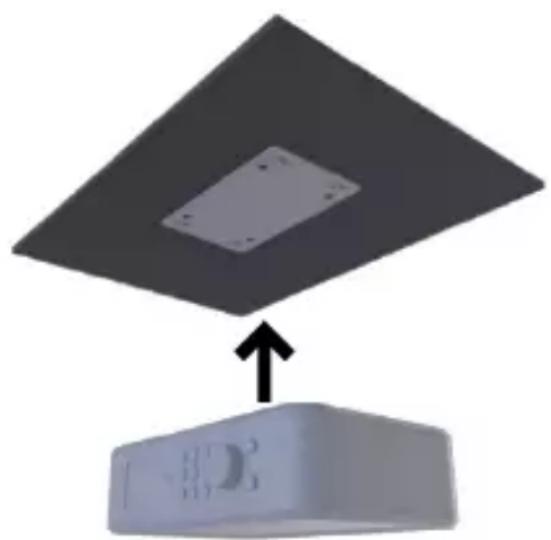

3. LIEFERUMFANG UND MONTAGE

Three-step diagram showing a structural assembly with mounting holes and a component, no text or symbols present.

imperial STAR*SAT Radio Ultravox - Dancing With Tears In My Eyes Last Present Mode 2# Rec OK DABMAN 1480 ① ② ③ ④ ⑤ ⑥ ⑧ ⑨ ⑫ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪

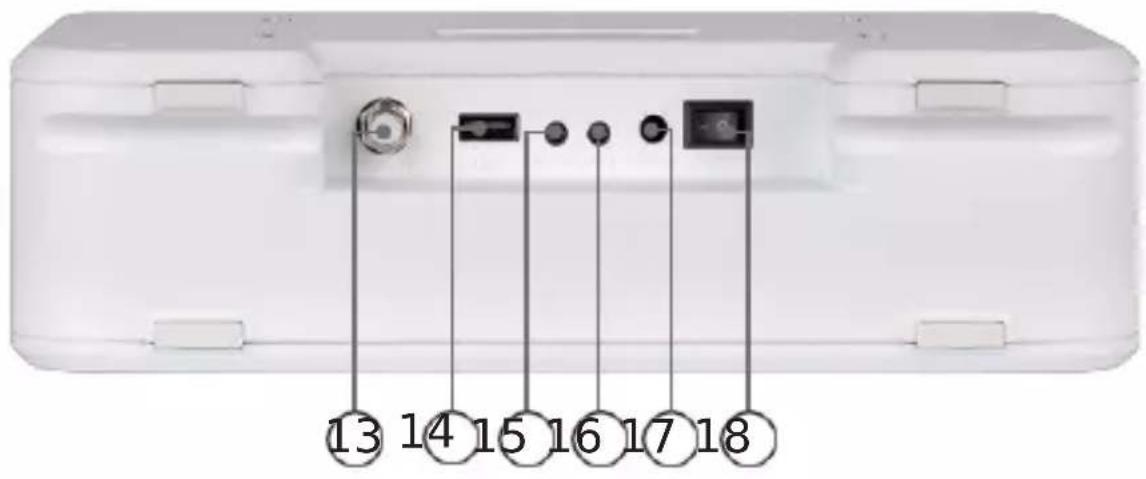

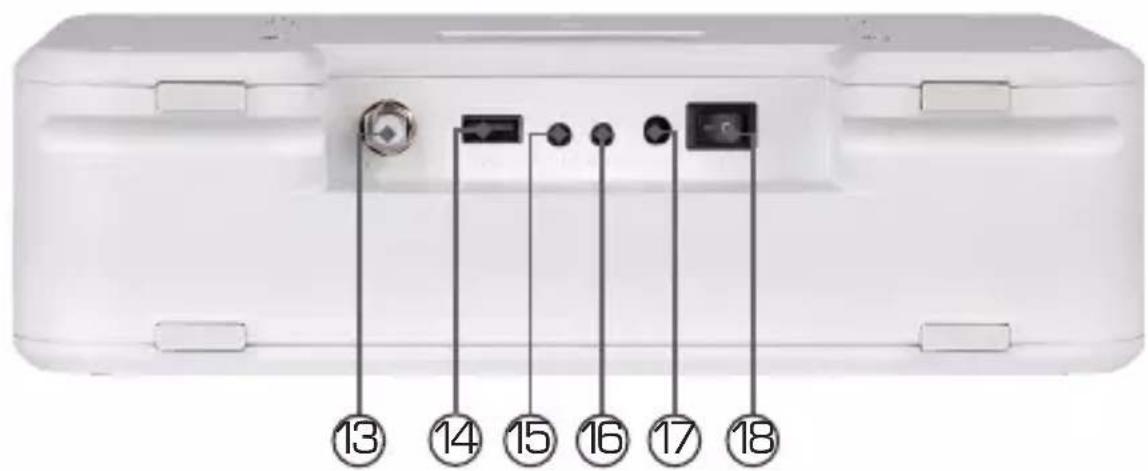

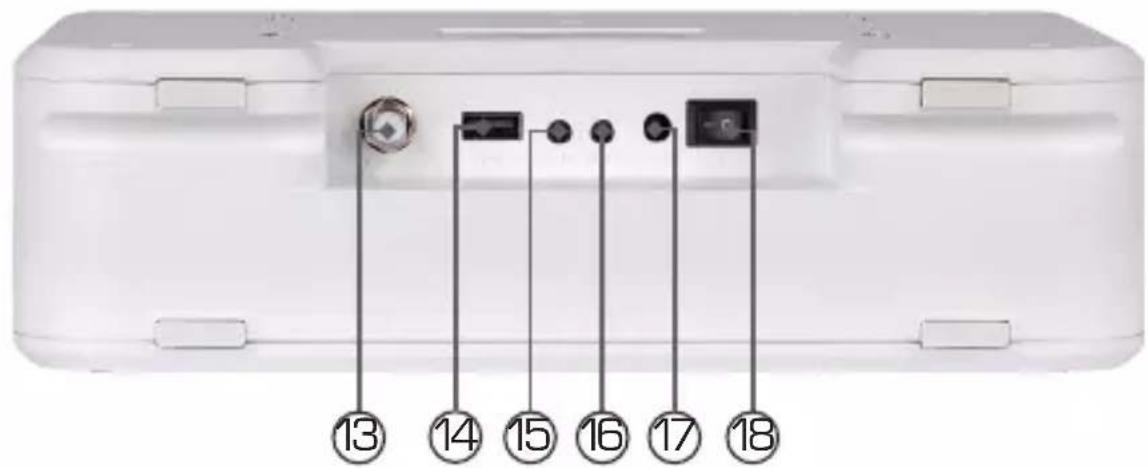

13 14 15 16 17 18

1. List

Two-step illustration showing hands holding a mechanical component, labeled ① and ② (no text or symbols on the diagram itself)

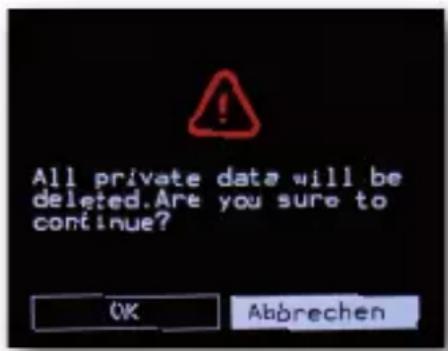

All private data will be deleted.Are you sure to continue? OK Abbrechen

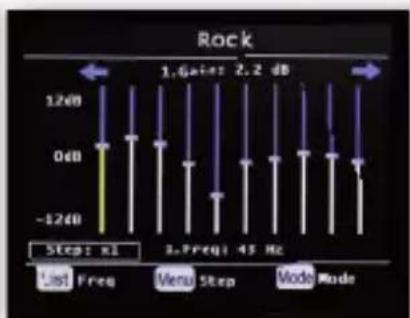

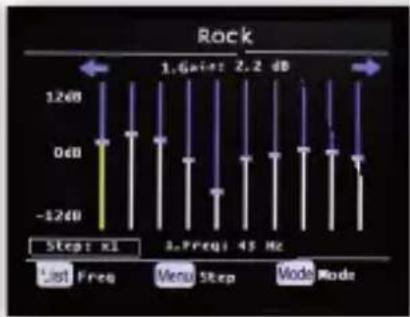

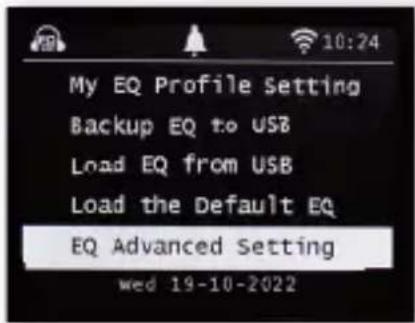

My EQ Profile Setting Backup EQ to USB Load EQ from USB Load the Default EQ EQ Advanced Setting wed 19-10-2022

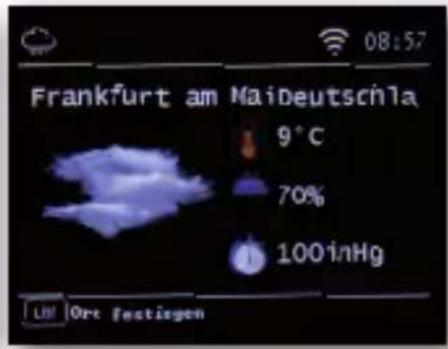

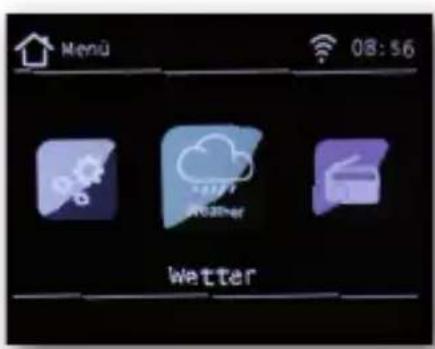

8.13. Wetter

EMERGENCY WARNING FUNCTIONALITY

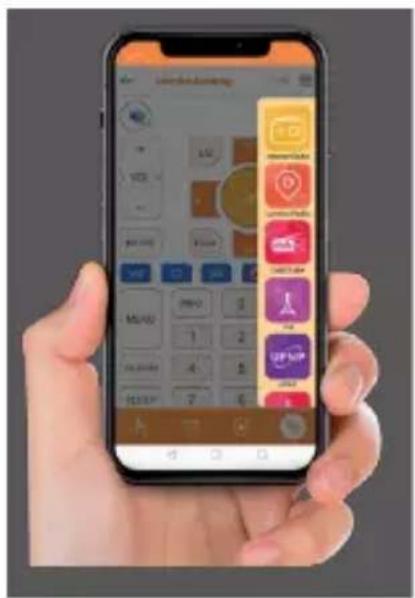

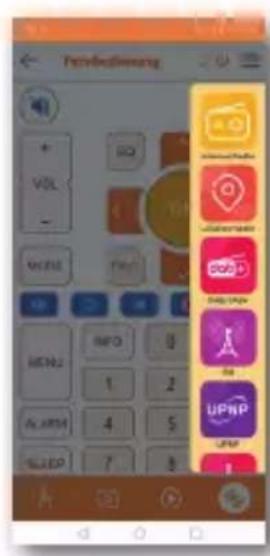

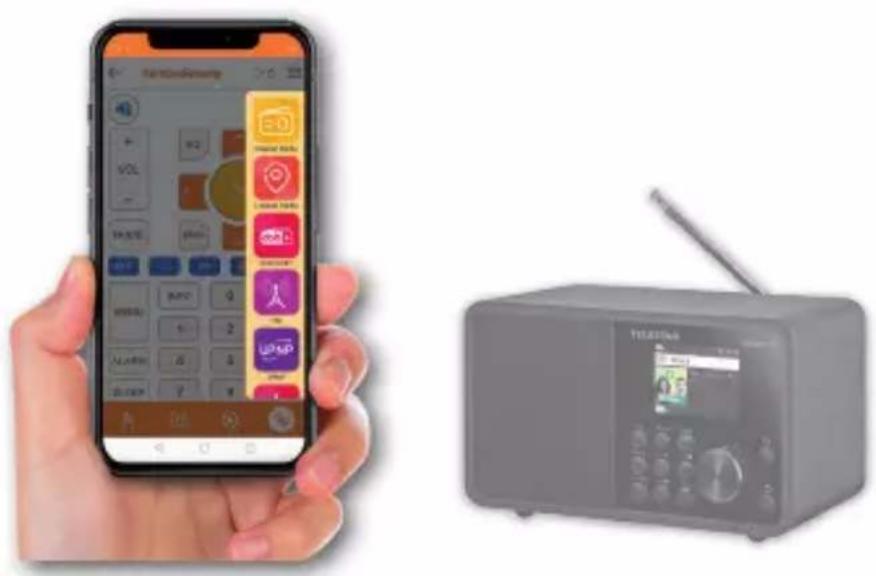

Hand holding smartphone displaying app interface with icons and a radio device labeled 'TOLARTAR' showing a music player.

Orange square icon with a white S-shaped logo and the word 'Soundmate' below it (no additional text or symbols)

JATTIN Google Play

Simple line drawing of a trash bin with no text or symbols

Abstract digital network diagram with interconnected nodes on a light background (no text or symbols)

Solid red horizontal bar with no text or symbols

imperial®

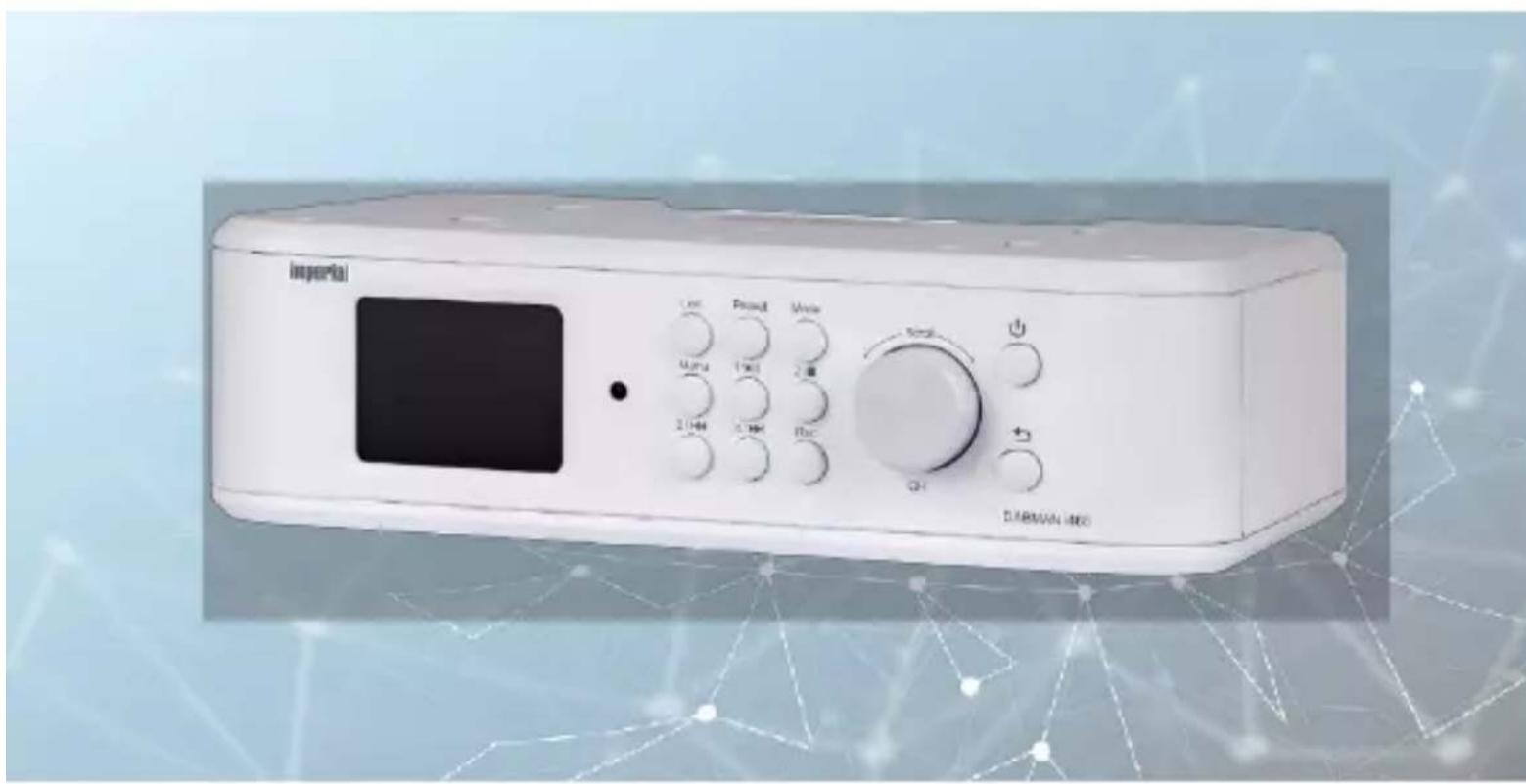

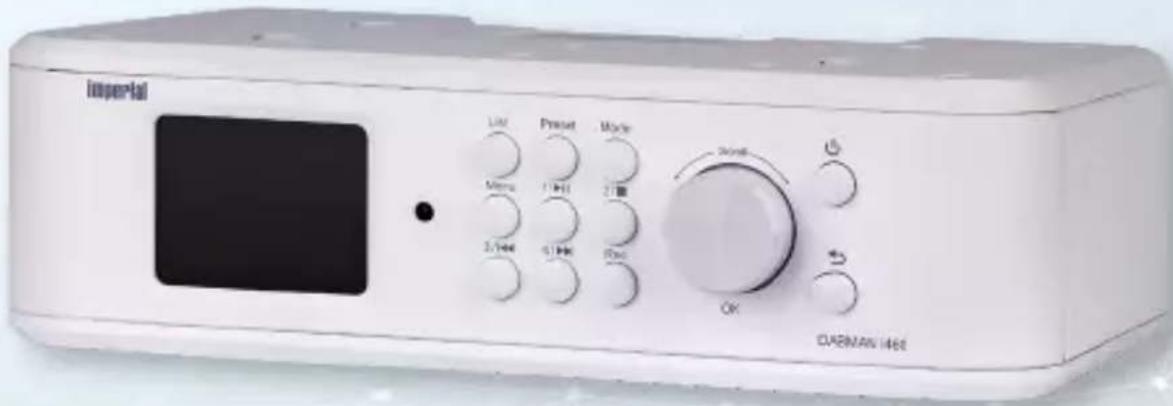

DABMAN i460

Operating Instructions

Imperial Lift Preset Mode Menu 1:1H1 2:1B 3:14E 4:14E 5:0 OK CABMAN 1468

Scan the QR code to get a multilingual manual as a pdf file.

1. FOREWORD 7
2. SAFETY INSTRUCTIONS....8

2.1 Explanation of symbols 8
2.2. Safety instructions.... 10
2.3. Operational safety 11
2.4. Connecting the device.... 13
2.5. Protect device from defects 13
2.6. Risk of injury 14
2.7. Notes on the radio interface.... 15
2.8. Handling batteries 15
2.9. Cleaning the appliance 18
2.10. Legal information.... 18

1. SCOPE OF DELIVERY AND ASSEMBLY ..... 19

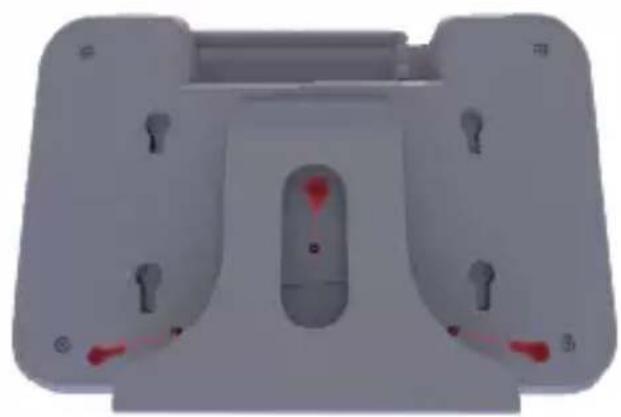

3.1. Fastening the radio to the shelf (without drilling) 20
3.2. Fastening the radio to the underside of the cabinet (with drill hole) . 21

1. OVERVIEW OF THE OPERATING ELEMENTS ..... 22

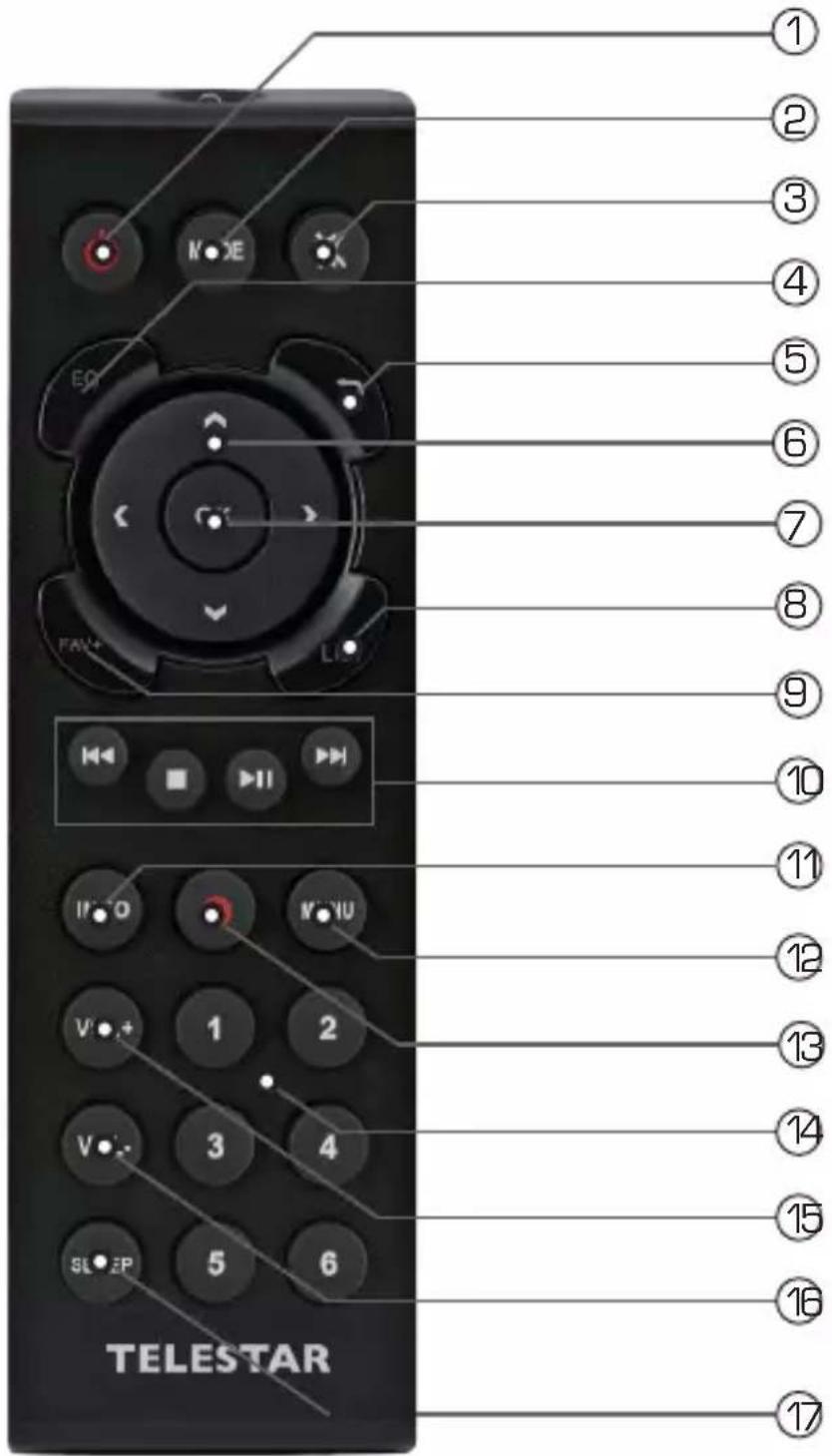

2. REMOTE CONTROL....25

3. INSTALLATION ....28

6.1 General operating instructions 28

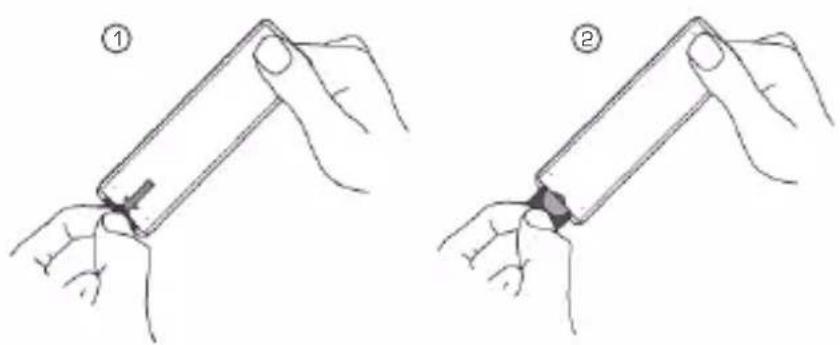

6.2. Prepare remote control.... 28
6.3 Antenna connection.... 29
6.4. Power connection 29

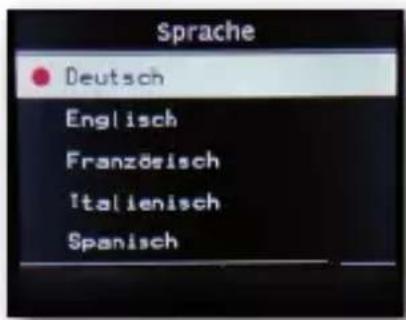

6.5. Language selection 30

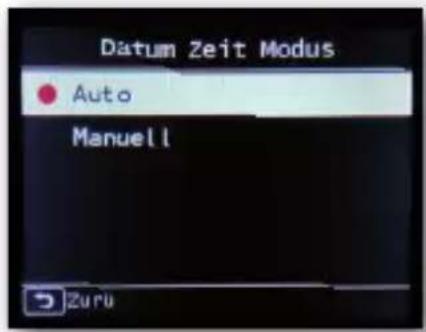

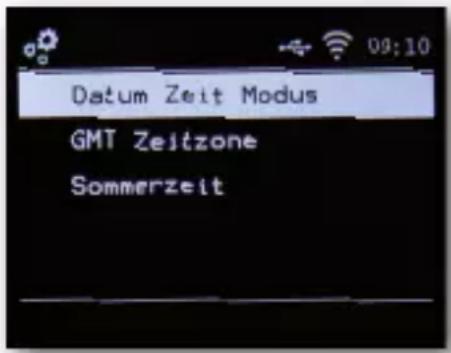

6.6. Date Time Mode.... 30

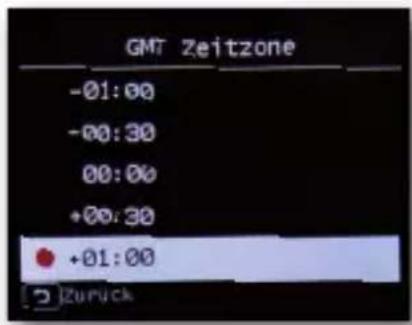

6.7. GMT time zone 31

1. TABLE OF CONTENTS

6.8.Summertime 32
6.9. Settings Location 32

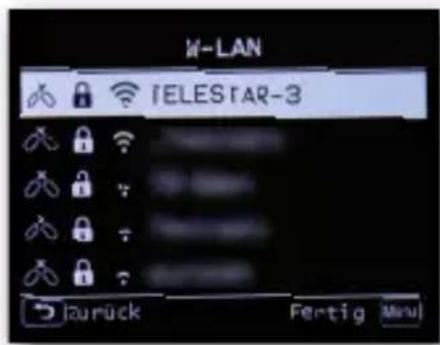

6.10. Network selection.... 33

E

7. SETTINGS....33

7.1. Basic operation.... 34
7.1.1. MENU button 34
7.1.2. Back button 35
7.1.3. Button List 35
7.1.4. Button Mode 35

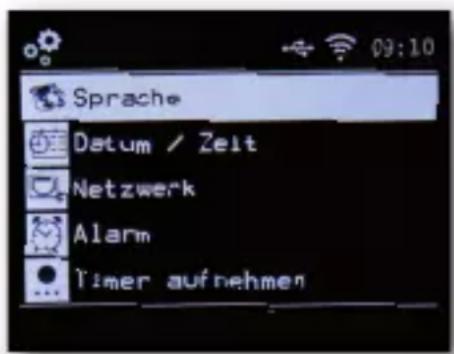

7.2. System 35
7.2.1 Language.... 36
7.2.2 Date Time 36
7.2.3. Network 37
7.2.4. Alarm/alarm clock.... 38
7.2.5. Edit timer 40

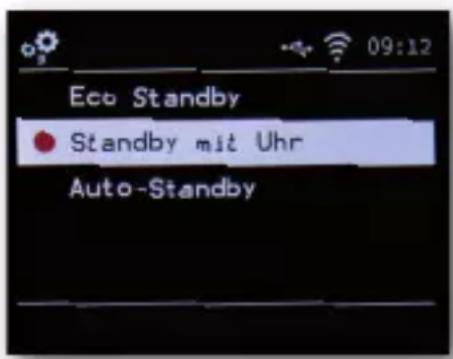

7.2.6. Standby mode.... 41

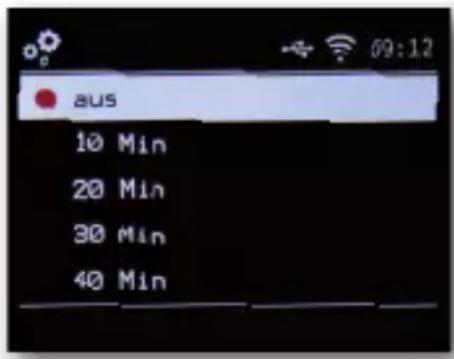

7.2.7.Sleeptimer 42

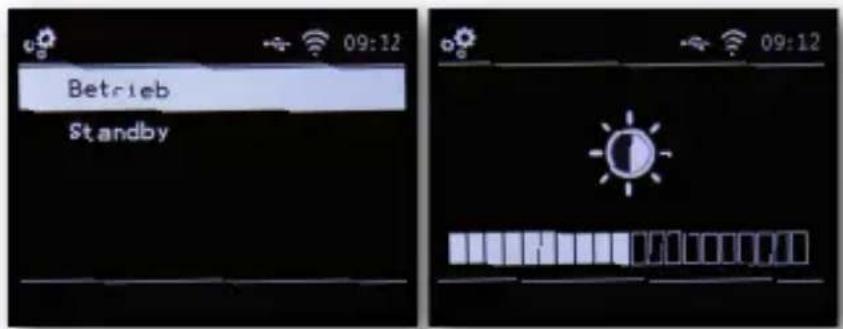

7.2.8. Backlight 42
7.2.9. Setting location.... 43
7.2.10. Software update.... 44
7.2.11. Factory settings.... 44
7.2.12.Version....45

1. TABLE OF CONTENTS

8. OPERATION ....45

8.1.DAB+ Radio 45

8.1.1. Channel list.... 46

8.1.2. DAB search.... 46

8.1.3. DAB Manual search.... 47

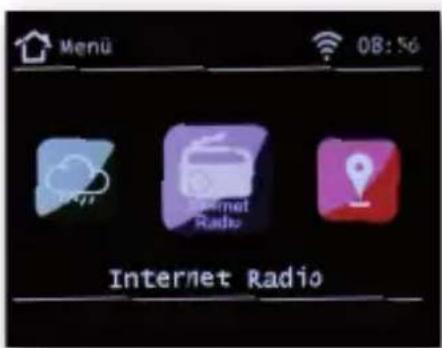

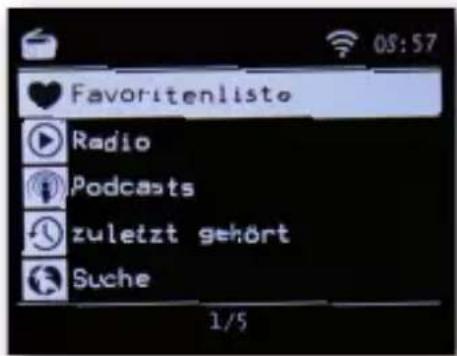

8.2. Select Internet radio station 48

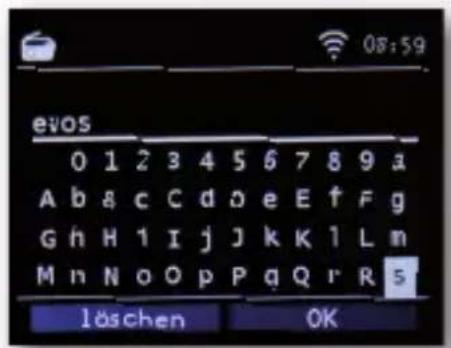

8.3. Search for an Internet radio station 49

8.4. Saving radio stations.... 50

8.5. Save radio stations in favourites list 50

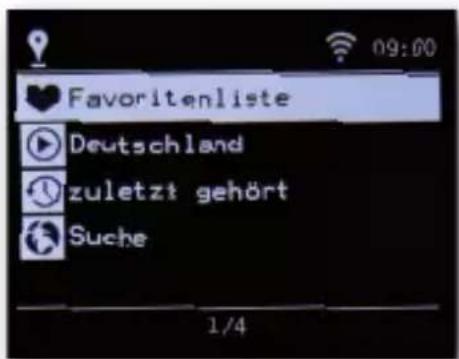

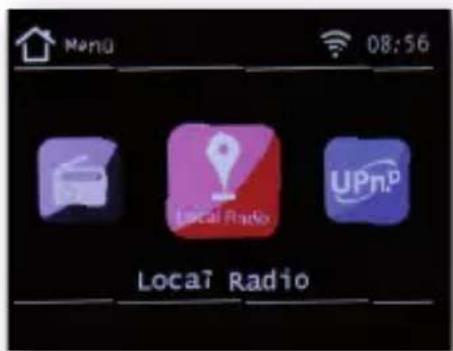

8.6. Local radio stations.... 51

8.7. Change volume.... 52

8.8. Switch operating mode.... 52

8.9.AUX IN 52

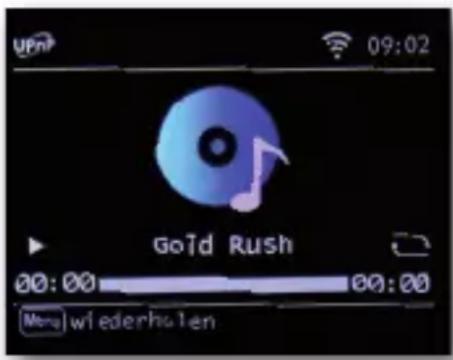

8.10. UPnP 54

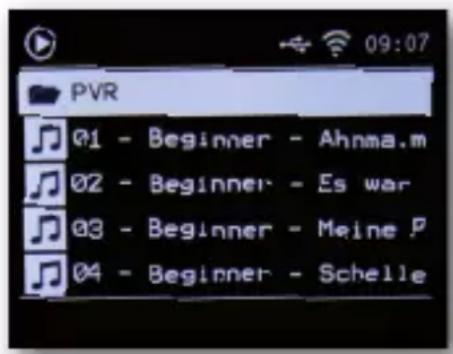

8.11. USB playback 55

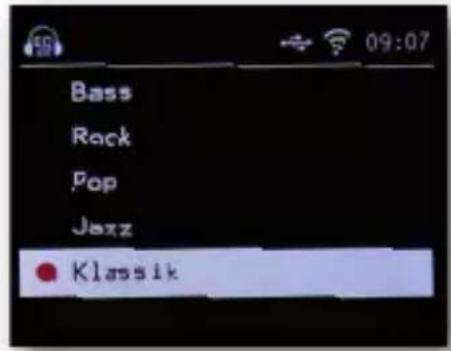

8.12. EQ (Equalizer) 55

8.13. Weather 57

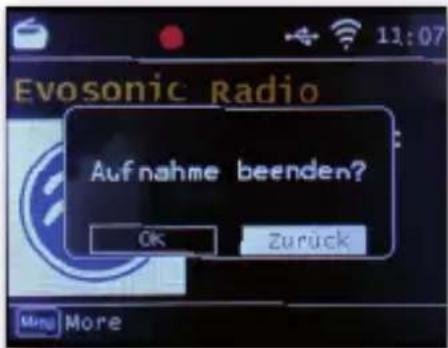

8.14. Record radio programmes 58

8.15. Bluetooth....60

8.15.1. Establishing a Bluetooth connection 60

8.15.2. Play media via Bluetooth 61

8.16. FM (VHF) ANALOG Radio 61

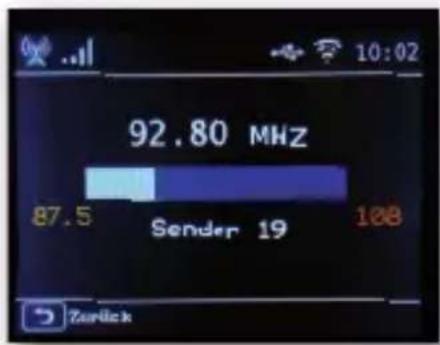

8.16.1. Automatic FM search.... 62

8.17. EWF Disaster warning function....63

8.17.1. What does EWF mean? 63

8.17.2. Setting EWF functions 63

8.17.2. Setting EWF functions 64

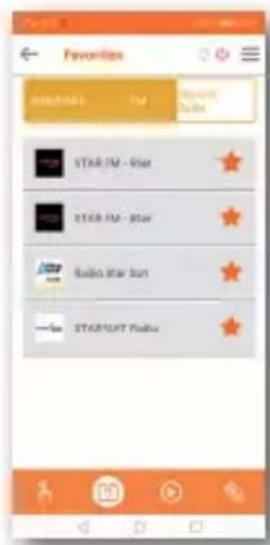

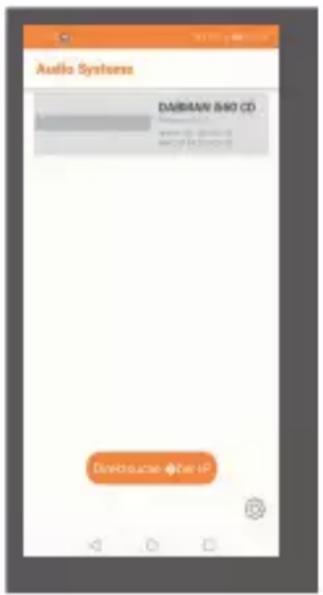

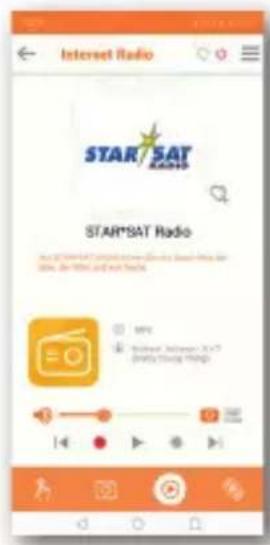

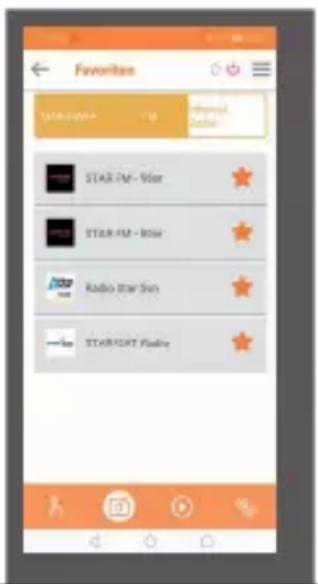

8.18. Operation via app 65

1. TABLE OF CONTENTS

1. TROUBLESHOOTING .....68

2. STORAGE....71

3. BRAND NOTES....71

4. DISPOSAL INSTRUCTIONS .....72

12.1.Disposal of packaging 72

12.2. Disposal of the appliance.... 72

12.3. Disposal of batteries.... 73

1. PROPERTIES AND TECHNICAL DATA 74

2. SERVICE AND SUPPORT....78

3. CE LABELLING ....79

1. FOREWORD

Dear customer,

Thank you for choosing this product.

Please read these instructions carefully, and please keep them for future reference. These operating instructions are an integral part of the appliance!

If you sell or pass on the appliance, please also hand over these operating instructions

1.2. Intended use

This product is a consumer electronics device. The device is used as a receiver for DAB+ FM and Internet radio signals and for playing audio files from a USB data carrier, Bluetooth device and for recording audio files to a USB data carrier.

Any other operation or use of the appliance is considered improper and may result in personal injury or damage to property.

Do not use the appliance for any other purpose.

The appliance is intended for private use only and not for commercial use.

We assume that the operator of the device has general knowledge of handling consumer electronics devices. Liability expires in the event of improper use

2. SAFETY INSTRUCTIONS

2.1 Explanation of symbols

SYMBOL MEANING

GEFAHR!

This signal word indicates a hazard with a high degree of risk that will result in death or serious injury if the warning is ignored.

WARNUNG!

This signal word indicates a hazard with a medium degree of risk, which, if the warning is not observed, can result in death or serious injury

VORSICHT!

This signal word indicates a hazard with a low level of risk that may result in minor or moderate injury if the warning is ignored.

HINWEIS!

This signal word warns of possible material damage

This symbol warns of danger.

2. SAFETY INSTRUCTIONS

2.1 Explanation of symbols

SYMBOL MEANING

Protection class II

Electrical appliances with protection class II have reinforced or double insulation in the amount of the rated insulation voltage between active and touchable parts (VDE 0100 Part 410, 412.1). They usually have no connection to the protective conductor. Even if they have electrically conductive surfaces, these are protected from contact with other live parts by reinforced or double insulation.

Products marked with this symbol fulfil the requirements of the European Community directives.

Fig. 1

Fig. 2

For devices with hollow plugs, these symbols indicate the polarity of the plug. A distinction is made between 2 variants Fig. 1: Outside plus / inside minus

Fig. 2: Inside plus / outside minus

Appliances with this symbol may only be operated indoors in a dry environment

2. SAFETY INSTRUCTIONS

2.2. Safety note

WARNING!

Check the appliance before use.

Do not operate the appliance if it is damaged or defective.

Risk of injury!

Risk of injury to children and persons with reduced physical, sensory or mental capabilities (e.g. partially disabled persons, elderly persons with reduced physical and mental capabilities) or lack of experience and knowledge. Keep the appliance only in places inaccessible to children. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Never leave children unattended when using the appliance.

Choking hazard!

Packaging material is not a toy! Do not store the packaging materials used (bags, polystyrene pieces etc.) within the reach of children. Children must not play with the packaging. There is a risk of suffocation, especially with packaging film.

2. SAFETY INSTRUCTIONS

2.3. Operational safety

GEFAHR!

Risk of injury!

Risk of injury due to electric shock from live parts.

There is a risk of electric shock or fire due to an unintentional short circuit.

Check the appliance for damage before each use.

If you notice visible damage or the appliance is visibly damaged, do not use it. If you notice a technical or mechanical problem, please contact TELESTAR Service.

Only use the power supply unit included in the scope of delivery! Never use any other power supply unit.

Never open the housing of the appliance.

In the event of malfunctions, disconnect the appliance from the power source immediately. To do this, immediately disconnect the mains adapter from the mains socket and from the appliance. Only use replacement parts and accessories supplied or authorised by us.

Do not modify the appliance and do not use any accessories or spare parts that have not been explicitly authorised or supplied by us.

Do not use the appliance in potentially explosive atmospheres. These include, for example, fuel storage areas, tank systems or areas where solvents are stored or processed

2.3. Operational safety

Do not operate the appliance in areas with particle-laden air (e.g. flour or wood dust). Malfunctions may be noticeable in the form of the appliance heating up or smoke developing from the appliance or the appliance's power supply unit, and loud or atypical noises may also be a sign of a malfunction. In this case, unplug the mains adapter from the mains socket immediately. Only touch the power supply unit by the housing.

Never pull the power supply unit out of the socket by the cable.

The appliance must not be used after a malfunction until it has been checked or repaired by an authorised person. If you move the appliance from a cold to a warm environment, moisture may condense inside the appliance.

In this case, wait about an hour before operating the appliance. If you are going to be away for a longer period of time or during a thunderstorm, unplug the device from the socket and ensure that it does not come into contact with moisture, water or splash water and that no objects filled with liquid - e.g. vases - are placed on or near the device or the power supply unit. If foreign bodies or liquid get into the device or the power supply unit, unplug the power supply unit immediately. Have the appliance checked by qualified specialists before putting it back into operation.

Otherwise there is a risk of electric shock. Ensure that the appliance or the power supply unit is not exposed to dripping or splashing water and that there are no open sources of fire (e.g. burning candles) near the device or the power supply unit. Never touch or handle the power supply unit with wet or damp hands

2. SAFETY INSTRUCTIONS

2.4. Connect device

Only connect the appliance to a properly installed, earthed and electrically fused socket. Please ensure that the power source (socket) is easily accessible. Do not kink or crush any cable connections.

Before putting the appliance into operation, check that the voltage information on the appliance corresponds to the local mains voltage. The information on the power supply unit must correspond to the local mains supply.

Only connect the radio to a properly installed 220-240 V AC, 50-60 Hz mains socket.

Place the radio on a firm, level surface. The appliance draws power in standby mode. To disconnect the device completely from the mains, the power supply unit must be unplugged from the socket.

2.5. Protect device from defects

HINWEIS!

Unfavourable ambient conditions such as humidity, excessive heat or lack of ventilation can damage the device. Only use the appliance in dry rooms.

Avoid direct proximity to: Heat sources, such as radiators, naked flames, such as candles, devices with strong magnetic fields, such as loudspeakers.

Do not expose the device to extreme conditions, e.g. direct sunlight, high humidity, moisture, extremely high or low temperatures, naked flames.

2. SAFETY INSTRUCTIONS

2.5. Protect device from defects

Ensure a sufficient distance from other objects so that the appliance is not covered, so that adequate ventilation is always guaranteed.

Avoid direct sunlight and places with an unusually high level of dust.

Do not place any heavy objects on the appliance or the power supply unit.

2.6. Risk of injury

! WARNING!

Excessive sound pressure when using earphones or headphones can lead to damage or loss of hearing.

Listening with earphones or headphones at a higher volume over a longer period of time can cause damage to the user.

Please check the volume before inserting or putting on earphones or headphones.

Set the volume to a low level and only increase the volume to a level that is still comfortable for you.

2. SAFETY INSTRUCTIONS

2.7. Notes on the radio interface

The device generates an electromagnetic field.

Please pay attention to signs in your neighbourhood that prohibit or restrict the use of electronic devices.

This can be the case, for example, in hospitals, at petrol stations and filling stations or at airports.

If corresponding warnings are present, disconnect the appliance from the power supply immediately.

The components contained in the device generate electromagnetic energy and magnetic fields. These can affect medical devices such as pacemakers or defibrillators. Therefore, please maintain a safe and sufficient distance between medical devices and the radio.

If you have reason to believe that the radio is causing interference with a medical device, switch off the radio immediately or disconnect it from the power supply

2.8. Handling batteries

Only use the battery type of the battery included in the scope of delivery.

GEFAHR!

Risk of injury!

There is a risk of injury due to improper handling of batteries! Never open, short-circuit or insert batteries into open

Throw flames.

2.8. Handling batteries

Never charge batteries.

There is a risk of explosion when attempting to charge batteries. Polarity must be observed! Ensure that the plus (+) and minus (-) poles are inserted correctly to avoid a short circuit. Only use batteries specified for this product.

Remove the batteries from the appliance if it is not to be used for a long period of time. Remove exhausted or leaking batteries from the appliance immediately. Leaking batteries pose a risk of chemical burns if they come into contact with the skin. Keep both new and used batteries out of the reach of children.

There is a risk of internal injury if batteries are swallowed. The battery acid in the batteries can cause injuries if it comes into contact with the skin.

After accidental ingestion or if there are signs of skin burns, rinse the affected area with plenty of clean water and seek medical help immediately

Batteries are not toys!

Always keep new and used batteries away from children.

Remove leaking batteries from the appliance immediately and clean the contacts before inserting new batteries.

2. SAFETY INSTRUCTIONS

2.8. Handling batteries

WARNING!

There is a risk of explosion if batteries are used incorrectly! Only use new batteries of the same type.

Never use new and old batteries together in the same device. Ensure that the batteries are correctly polarised when inserting them.

Never charge batteries.

Batteries should only be stored in cool and dry places.

Never throw batteries into a fire.

If the device is not to be used for a longer period of time, please remove the batteries from the device.

Never expose batteries to extreme heat or direct sunlight.

Batteries must not be deformed or opened.

Do not use the remote control if the battery door no longer closes properly

2.9. Cleaning the appliance

Unplug the appliance from the socket before cleaning. Use a dry, soft cloth to clean the appliance. Please do not use any liquids to clean the appliance. Do not use any solvents or cleaning agents, as these can damage the surface and/or labelling of the appliance. Cleaning must not be carried out by children.

2. SAFETY INSTRUCTIONS

2.10. Legal information

This device is intended for use in all countries of the European Union as well as in Switzerland, Norway, Liechtenstein and Iceland.

The radio reception range complies with the legal regulations for these countries; if the device is operated in another country, the laws of the country of use must be observed and complied with.

3. SCOPE OF DELIVERY AND ASSEMBLY

Please remove all parts from the packaging and completely remove all packaging materials. If one or more of the specified parts are missing, please contact us::

TELESTAR Service Centre

Am Weiher 14,

56766 Ulmen

e-mail: [e-mail]

Quantity Explanation

1 IMPERIAL DABMAN i460

1 Remote control

1 External power supply unit

1 Operating instructions

1 Shelf holder

1 Substructure holder

1 Battery for remote control type CR 2025 / 3 V (already inserted in remote control)

1 Telescopic antenna

1 Throwing antenna

3. SCOPE OF DELIVERY AND ASSEMBLY

3.1. Fastening the radio to the shelf (without drilling)

Loosen the 3 screws as shown in the illustration.

3D rendered image of a gray plastic enclosure with four vertical slots and red indicator lights (no text or symbols)

Fasten the shelf bracket with the 3 screws.

3D rendered image of a gray mechanical device with red indicator lights and mounting holes (no text or symbols)

Slide the radio with the holder onto a shelf.

3D rendering of a gray rectangular electronic device with a handle and control panel (no visible text or symbols)

3. SCOPE OF DELIVERY AND ASSEMBLY

3.2. Fasten the radio to the underside of the cabinet (with drill hole)

Fix the holder included in the scope of delivery with 4 screws e.g. on the underside of a wall cabinet.

3D rendering of a simple geometric structure with vertical supports and a triangular roof (no text or symbols)

3D diagram of a device with a black triangular cover and a gray base, showing an upward arrow pointing to a component (no text or symbols)

Snap the radio backwards into the retaining points

3D rendered object with a dark triangular base and a gray rectangular block, no visible text or symbols

imperial STAR*SAT Radio Ultravox - Dancing With Tears In My Eyes Last Present Mode 2/1 Svot OK DABMAN 1480 ① ② ③ ④ ⑤ ⑥ ⑧ ⑨ ⑫ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪ ⑪

13 14 15 16 17 18

1. Cunning

Calls up a list of the last 10 radio stations selected.

2. Station memory button 1/Multimedia control

Use these buttons to switch to a desired programme memory location in radio mode.

▶II Starts or pauses the playback of music tracks on a connected USB data carrier.

Press and hold the button for longer than 2 seconds to call up the main menu of the device.

4. Station memory button 4/Multimedia controls

Use these buttons to switch to a desired programme memory location in radio mode. ▶▶ Use this button to select the next track or to fast-forward in USB/media mode.

5. Station memory button 3/Multimedia controls

Use these buttons to switch to a desired programme memory location in radio mode. Use this button to select the previous track or perform a fast rewind in USB/media mode.

6. Preset

Calls up the Favourites channel list.

7. Recording

Starts a recording of the current radio programme on a connected USB data carrier. Press and hold the button for longer than 2 seconds to activate the timer menu for recording a radio programme.

8. Station memory button 2/Multimedia controls

Use these buttons to switch to a desired programme memory location in radio mode.

■ Stops an ongoing playback in USB/Media mode.

9. Volume control, confirmation button

Use the rotary control to change the volume or confirm menu entries by pressing this button.

10. Back

Press this button to go back one step in the menu

11. Power Button on-off

Press this button to switch the appliance on or to standby

Switches between the different operating modes

(Internet radio, FM, DAB+, AUX, USB, UPnP, Bluetooth) of the radio

13. Antenna connection

Screw on the telescopic aerial included in the scope of delivery here.

14. USB connection

Connect the device to a USB data carrier here to update the firmware if necessary. Or connect a USB data carrier such as a USB hard drive or USB stick here to play back music files or record radio programmes..

15. Headphone connection

Plug in headphones here to listen to the music played by the radio via headphones. If headphones are connected, the music playback via the device's speakers is interrupted..

16. AUX IN

Connect an external audio source such as an MP3 player, smart phone or tablet with the 3.5 mm AUX jack cable (see also chapter 8.9.)

17. Power supply connection

Connect the device to the power supply unit (included in the scope of delivery) at this socket.

18. Mains switch

The mains switch is used to completely disconnect the appliance from the power supply. Use this switch to switch the appliance on or off

5. REMOTE CONTROL

The radio can be controlled using both the device buttons and the remote control. The remote control is the more convenient and simpler way to operate the device.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 TELESTAR

5. REMOTE CONTROL

1. Standby Button

Use this button to switch the appliance on or off.

2. Mode

Switch the various operating modes here.

3. Mute

Switches the sound of the device to silent.

4. EQ Equaliser function

You can use this button to activate the equaliser function and make individual sound settings.

5. Back

Press this button to go back one step in the menu.

6. Navigation up/down - right/left / volume VOL+ -

Use these buttons to navigate through the menu.

Use the ◀▶ buttons to decrease or increase the volume.

7. Confirmation/OK

Press this button to confirm an entry.

8. LIST/Programme list

Calls up a list of the last 10 radio stations selected.

9. FAV+

You can use this button to add a selected radio station to the favourites list.

10. Control and selection of music tracks via USB or UPnP

Select previous track / fast rewind Stops playback

Stops playback

▶II Starts or pauses a playback

▶▶ Select next track / fast forward

5. REMOTE CONTROL

11. INFO

Shows information about the current radio programme..

12. Menu

Activate the device menu using this button

13. ● Rec

Starts a recording of the current radio programme on a connected USB data carrier. Press and hold the button for longer than 2 seconds to activate the timer menu for recording a radio programme.

14. Numeric keypad

15. VOL +

Use this button to increase the volume.

16. VOL -

Use this button to reduce the volume.

17. SLEEP

Press this button to set a sleep timer. The radio switches to standby after the time period you have set.

6. INSTALLATION

6.1 General operating instructions

Switch the device on or off using the standby button on the remote control.
Use the VOL+ button on the remote control to increase the volume.
Use the VOL-button on the remote control to reduce the volume.
The menu items can be selected using the ▼▲ buttons.
You can confirm a selection with the OK button.

6.2. Preparing the remote control

Remove the battery transport lock on the remote control. To do this, pull out the plastic tab on the battery housing of the remote control. This establishes the battery contact

Illustration of two hands holding a mechanical component, labeled ① and ② (no text or symbols on the diagram itself)

To replace the remote control battery, open the battery compartment on the back of the remote control

Pull the battery compartment out of the remote control

Remove the battery and insert a new battery of the same type

6. INSTALLATION

There is a risk of explosion if batteries are used incorrectly! Read the safety instructions in chapter 2.8.

Ensure that the battery polarity is correct! Then reinsert the battery compartment

6.3 Antenna connection

Screw the telescopic aerial supplied to the aerial connection on the back of the device

6.4. Power connection

Connect the mains adapter included in the scope of delivery to the corresponding socket on the back of the device. Now plug the power supply unit into a 230V socket. Switch the device on using the mains switch on the back. Switch on the radio using the standby button on the remote control or on the device. The device starts

6.5. Language selection

You can select the menu language using the up / down buttons on the remote control. Confirm the desired menu language with the OK button on the remote control

6. INSTALLATION

Select here how the radio should synchronise the time.

You can make the selection using the up / down buttons on the remote control. Confirm with the OK button on the remote control or on the appliance.

Datum Zeit Modus Auto Manuell Zuru

The device is configured at the factory for automatic time setting. If the device is connected to the Internet via a network, the time and date are synchronised automatically.

6. INSTALLATION

6.6. Date Time Mode

It is then not necessary to set the time. You can change these settings at any time in the main menu under System

6.7. GMT time zone

Select the time zone you are in here.

For Germany and most of Europe, select GMT + 1:00

GMT Zeitzone -01:00 -00:30 00:00 +00:30 +01:00 Zuruck

You can make the selection using the up / down buttons on the remote control. Confirm with the OK button on the remote control or on the appliance.

6. INSTALLATION

6.8. Summer time

Switch on summer time here if summer time is currently in effect. You can make the selection using the Up / Down buttons on the remote control. Confirm with the OK button on the remote control or on the appliance.

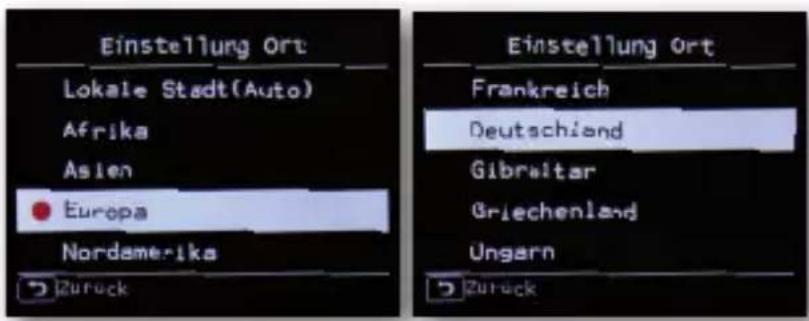

Select the location you are in here. Select the continent and, in the next step, the country in which you are located.

You can make the selection using the up / down buttons on the remote control. Confirm with the OK button on the remote control or on the appliance.

6. INSTALLATION

6.10. Network selection

In the next step, you will be shown all available W-LAN networks that are within range of the device. Select the network to which you want to establish a connection and confirm with the OK button.

Enter the W-LAN key. Use the ▼▲ buttons on the remote control or the rotary control on the device to select a character and press the ▶ button to jump to the next character. Confirm the entry via the OK field

Please note that the registration process on the router may take some time.

7. SETTINGS

7.1. Basic operation

7.1.1. MENU button

Press and hold the Menu button on the device or on the remote control for approx. 2 seconds.

Regardless of the current setting of the appliance, this always takes you to the main menu of the appliance.

Navigation in the main menu is via the ▶◀ buttons

The main menu of the device consists of the following menu items:

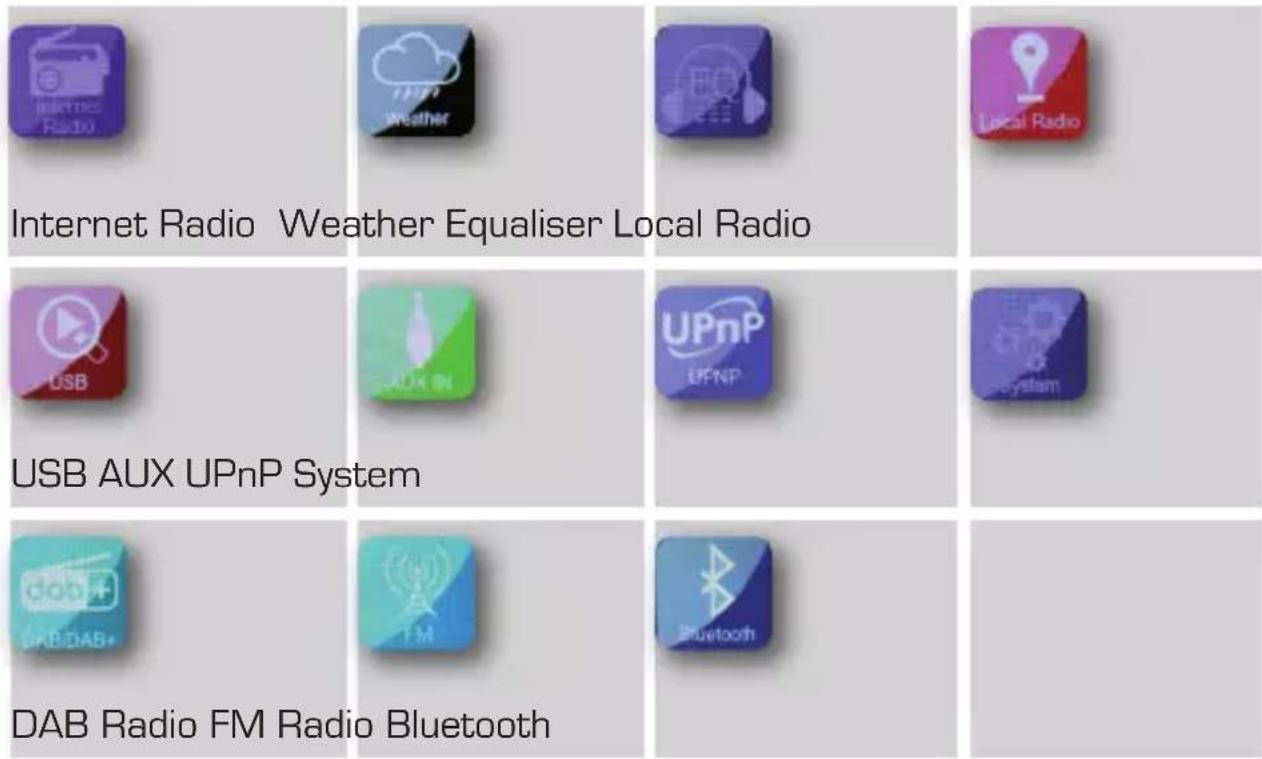

Internet Radio Weather Equaliser Local Radio USB AUX UPnP System DAB Radio FM Radio Bluetooth

You can select the individual menu items using the arrow buttons ▶◀. Confirm the selection with the OK button on the remote control or by pressing the confirmation button on the device.

7. SETTINGS

7.1.2. Back Button

The Back button always takes you back one step in each setting.

7.1.3. List Button

Press the List button in radio mode to display an overview of the most recently tuned-in radio stations.

7.1.4. Mode Button

You can switch the various operating modes of the radio using the Mode button.

7.2. System

Under this menu item, you can make individual settings for the appliance: Press the MENU button and select the System menu item using the ▶◀ buttons on the remote control or the rotary control on the appliance. Confirm the selection with the OK button on the remote control or by pressing the rotary control on the device.

You can select the menu language using the up / down buttons on the remote control. Confirm the desired menu language with the OK button on the remote control.

7.2.2 Date Time

You can make the selection using the up / down buttons on the remote control. Confirm with the OK button on the remote control or by pressing the rotary control on the appliance.

The device is configured at the factory for automatic time setting. If the device is connected to the Internet via a network, the time and date are synchronised automatically. It is then not necessary to set the time. select here how the radio should synchronise the time.

7. SETTINGS

7.2.3. Network

In order for the device to function as an Internet radio, the radio must be integrated into a network with Internet access.

If you have not already done so during the initial installation, you can establish the network connection in this menu item.

Press the MENU button on the remote control or on the device and select the System menu item using the ▶◀ buttons on the remote control or the rotary control on the device.

Confirm the selection with the OK button on the remote control or by pressing the rotary control on the appliance. Use the

buttons ▼▲ on the remote control to select the Network menu item.

09:11 TELESTAR-3

Confirm the selection with the OK button on the remote control or by pressing the rotary control on the device. Select the network using

buttons ▼▲ on the remote control to establish a connection and confirm with OK. Enter the W-LAN key. Use the ▼▲ buttons on the remote control or the rotary control on the device to select a character and press the ▶ button to jump to the next character. Confirm the entry using the OK field.

7.2.3. Network

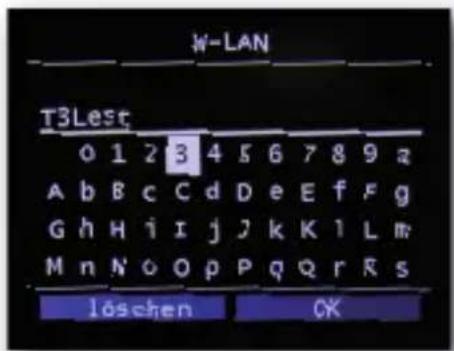

W-LAN T3Lesc 0 1 2 3 4 5 6 7 8 9 a A b B c C d D e E f F g G h H i I j J k K l L m M n N o O p P q Q r R s löschen CK

Please note that the registration process may take some time.

7.2.4. Alarm/alarm clock

The device can be used as a clock radio.

You can set up to 2 alarm times in this menu item. You can also set whether the alarm clock wakes you up with a sound or an Internet radio station.

To set an alarm time, please proceed as follows:

Press the MENU button on the remote control or on the device and select the System menu item using the ▶◀ buttons on the remote control or the rotary control on the device. Use the ▼▲ buttons on the remote control or the rotary control on the device to select the Alarm menu item and press the OK button on the remote control or confirm by pressing the rotary control on the device

7. SETTINGS

7.2.4. Alarm/alarm clock

Alarm 1(aus) Alarm 2(aus)

Select alarm clock 1 or alarm clock 2 and confirm with

Press the rotary control on the appliance or the OK button on the remote control.

Activate the alarm clock via the Status line. In the next line, set the time at which the alarm clock should be activated. To do this, use the numeric keypad on the remote control or the rotary control on the device.

To confirm the individual entries, they must be confirmed with the OK button can be saved.

Set the repetition intervals in the Date line.

You can decide whether the alarm clock is activated once, daily, on weekdays or only at weekends at the set time.

In the next line, set the volume at which the alarm clock is to be activated.

7.2.4. Alarm/alarm clock

You can decide in the Beep line, whether the alarm should be triggered by a signal tone or whether the device should switch on an Internet radio station, DAB radio station or FM station in the event of an alarm. Please note that when selecting FM, DAB/DAB+ or Internet radio stations, at least one favourite station of the respective reception type must be stored.

To stop an alarm, press the standby button on the remote control or on the appliance. To activate a snooze function, press the rotary control on the device when an alarm is triggered.

This pauses the alarm for 5 minutes. The alarm is reactivated after 5 minutes. To deactivate the alarm clock until the next day, press the Standby/Power button on the device

7.2.5. Edit timer

You can edit a set recording timer in this menu. Please read chapter 8.14 for more information.

7. SETTINGS

7.2.6. Standby Mode

You can use this function to customise the display in standby mode.

Use the ▼▲ buttons on the remote control or the

Select the Standby mode menu item using the rotary control on the device and press the OK button on the remote control or confirm by pressing the rotary control on the device.

Select the desired function here and confirm by pressing the rotary control on the appliance or with the OK button on the remote control.

Eco Standby

In this mode, the device has a very low power consumption in standby mode. The time is not displayed in standby mode.

Standby with clock

In this mode, the time is displayed in standby mode when you switch off the device using the standby button. The power consumption increases slightly. If you press and hold the Standby button, Eco Standby mode is activated.

Auto standby

In this mode, the appliance automatically switches to standby after a preset time if no operation has taken place during this period.

7.2.7. Sleeptimer

The radio automatically switches to standby mode using the sleep timer function. Here you can set the time after which the device switches off automatically. Use the ▼▲ buttons on the remote control or the rotary control on the device to select the Sleep timer menu item and press the OK button on the remote control or confirm by pressing the rotary control on the device.

aus 10 Min 20 Min 30 Min 40 Min

Select Off to deactivate this function or select a preset time between 10 and 120 minutes.

Confirm your entry with OK on the remote control or confirm by pressing the rotary control on the appliance.

7.2.8. Backlighting

You can use this function to change the brightness of the display. Use the ▼▲ buttons on the remote control or the rotary control on the device to select the Backlight menu item in the System menu and press the OK button on the remote control or confirm by pressing the rotary control on the device

7. SETTINGS

7.2.8. Backlighting

You can adjust the backlight for both operation and standby mode. To do this, use the ▶◀ buttons or the rotary control on the device and confirm with OK.

7.2.9. Setting location

You can use this setting to set the region in which you are located. With this setting, the radio selects radio stations in your area using the Local Radio function.

Use the ▼▲ buttons on the remote control or the rotary control on the device to select the Location setting menu item in the System menu and press the OK button on the remote control.

remote control or confirm by pressing the rotary control on the device. Then select the continent and the country you are in.

7. SETTINGS

It may be necessary to update the operating software to improve the functions of the device.

You can use the USB interface to update the operating software of your radio, which can be downloaded from www.telestar.de if required. The software provided on the website must be unpacked. The unzipped file is then copied to a suitable storage medium and connected to the radio via the USB port. Please refer to the description in the software download for the software update procedure.

7.2.11. Factory settings

In this menu item, you can reset the device to the delivery status. The device then starts up for the first time.

Use the ▼▲ buttons on the remote control or the rotary control on the device to select the Factory settings menu item in the System menu and press the OK button on the remote control or confirm by pressing the rotary control on the device.

All private data will be deleted.Are you sure to continue? OK Abbrechen

8. OPERATION

7.2.11. Factory settings

Confirm with OK if you want to call up the factory settings. Select Cancel if you want to cancel this action. If you activate the factory settings, the device is reset to the factory settings. All saved channels and favourite lists will be lost.

7.2.12. Version

In this menu item, you can view information on the firmware version installed on the device. use the ▼▲ buttons on the remote control or the rotary control on the device to select the Version menu item in the System menu and press the OK button on the remote control or confirm by pressing the rotary control on the device.

8.1. DAB+ Radio

In this radio mode, you can receive digitally transmitted radio stations. Press and hold the MENU button on the remote control or on the device and use the ▶◀ buttons to select the DAB/ DAB+ menu item. Confirm the selection by pressing the rotary control on the device or by pressing the OK button on the remote control.

8.1.1. Channel list

Press the List button to call up the DAB station list in the device. You can now call up a desired station via this station list. Please note that a DAB station list is only available if a DAB station scan has been carried out successfully beforehand.

Please also read chapter 8.1.2.

8.1.2. DAB scan

To start an automatic station search in DAB reception mode, press the Back button several times if necessary.

If the radio has not yet stored any programmes in DAB mode, a search is started automatically as soon as the radio is switched to DAB reception mode.

Switch to the automatic station search line and confirm with the OK button on the remote control or by pressing the rotary control on the device. The radio now automatically searches for all receivable digital radio stations and then saves them in a station list.

You can call these up as described in chapter 8.1.1.

8.1.2. DAB scan

Sender 13 Scanien...

The number on the right-hand side shows the number of radio stations found. After a successful search, the radio starts playing the first station found.

8.1.3. DAB manual search

You can also search for DAB radio stations manually. To do this, you must know the transmission frequency. Select the desired transmission frequency via this menu item and confirm with OK.

8.2. Selecting an Internet radio station

Use the arrow buttons ▶◀ to select Internet radio in the main menu of the device and confirm the selection with the OK button on the remote control or by pressing the OK button on the device.

Menu 08:56 Internet Radio

As soon as you have switched to Internet radio mode, the radio switches to the last radio station you tuned into. If no Internet radio station has been selected yet, you will be taken to the overview

8.2. Selecting an Internet radio station

Various lists are available here.

Favourites list

This list shows you all individually saved radio stations. To save a radio station, please also read chapter 8.4 Radio

Here you will find various radio programme lists.

Podcasts

Here you can choose from a range of radio podcasts.

Course

This list contains the 10 radio stations that were selected last.

Search

You can use this function to search for a specific radio station

8.3. Searching for an Internet radio station

Select the Search line and confirm with the OK button on the device

evos 0 1 2 3 4 5 6 7 8 9 a A b a c C d o e E f F g G h H 1 I j J k K l L m M n N o O p P q Q r R s löschen OK

Use the keypad on the remote control to enter the name of the radio station in the search field. To do this, use the ▼▲▶◀ buttons.

8.3. Searching for an Internet radio station

Confirm the entry with OK.

The radio will now search for all stations that match this input.

Select a channel using the ▼▲ buttons and confirm by pressing the rotary control on the device.

8.4. Saving radio stations

You can store up to 4 radio stations on one preset button. Select a radio station that you would like to store and press and hold the preset button on the device on which you would like to store the radio station for approx. 3 seconds. The radio station is stored. The radio station can now be called up using this button.

8.5. Saving radio stations in the favourites list

Radio stations can be saved in a favourites list, which you can quickly call up using the favourites button on the remote control.

You can save up to 10 favourite radio stations in this list. Select a radio station that you would like to add to the favourites list. Press the FAV+ button on the remote control.

Select a memory location number where you would like to store the radio station and press and hold the FAV+ button on the remote control for approx. 2 seconds. The radio station is stored in the selected position.

8. OPERATION

8.6. Local radio stations

To make it easier for you to search for stations in your area in Internet radio mode, you can search for specific radio stations from your region in the menu of the device.

Select Local Radio in the main menu of the device using the ▶◀ buttons on the remote control or the rotary control on the device.

Menu 08:56 Local Radio UPnP Local Radio

This menu item contains a selection of different Internet radio stations sorted by country region, which can be accessed more easily in this way. select a desired programme list in this menu item using the ▼▲ buttons.

Confirm the entry with OK.

8.7. Change volume

Change the volume using the VOL+/VOL- buttons on the remote control or using the rotary control on the device.

05

To mute the sound of the radio, press the Mute button on the remote control.

8.8. Switching the operating mode

Press the MODE button on the remote control to switch between AUX, Internet radio or UPnP operating modes

8.9. AUX IN

You can connect an external music playback device, such as an MP3 player, to the radio. To do this, connect an external device to the back of the radio using a suitable cable and switch this device on. Press the MENU button on the remote control or on the device and use the ▶◀ buttons on the remote control or the

the rotary control on the AUX device. Confirm with OK on the remote control or by pressing on the rotary control on the device.

8.9. AUX IN

Alternatively, you can switch to AUX mode by pressing the MODE button on the device repeatedly until AUX mode is activated.

AUX

You can now play music from the external device. The control (track forward, back, stop, play) is carried out via the connected device, the playback volume can be controlled via the VOL+/VOL- buttons or the radio's rotary control or via the external device.

Please note that you need a suitable cable to connect the external device. The AUX IN input on the radio is prepared for a 3.5 mm stereo jack plug.

8.10. UPnP

If the radio is connected to a wireless network, it can also be used as a media player to play music files from devices connected to the network, such as PCs or smartphones, via UPnP.

The prerequisite here is, on the one hand, the integration of the devices into the same home network and, on the other hand, the release of the corresponding

To select the UPnP, proceed as follows:

Press the MENU button on the remote control or on the device and select UPnP using the ▶◀ buttons on the remote control or the rotary control on the device. Confirm with OK on the remote control or by pressing the rotary control on the device.

Select a track that you want to play and confirm with the OK button on the device.

UPD 09:02 GoD Rush 00:00 00:00 Mono w iederhu 1 en

8.11. USB playback

You can play MP3 music files from a USB data carrier. To do this, insert a USB data carrier with music files into the USB socket on the back.

Press the MENU button on the remote control or on the device and select Multimedia using the ▶◀ buttons on the remote control or the rotary control on the device. Confirm with OK on the remote control or by pressing the OK button on the device. Select a track that you would like to play and confirm by pressing the rotary control on the device.

PVR 01 - Beginner - Ahnma.m 02 - Beginner - Es war 03 - Beginner - Meine P 04 - Beginner - Schelle

8.12. EQ (Equalizer)

You can select certain sound presets in this area. In addition to several sound presets, you can select the sound. You can also customise your radio and save this setting under My EQ.

Use the ▼▲ buttons on the remote control or the Select the Equaliser menu item in the main menu using the rotary control on the device and press the

8. OPERATION

OK button on the remote control or confirm by pressing the rotary control on the device

Bass Rock Pop Jazz Klassik

Use the ▼▲ buttons on the remote control or the Select a sound preset using the rotary control on the device and confirm with OK on the remote control or by pressing the rotary control on the device.

My EQ Profile Setting Backup EQ to USB Load EQ from USB Load the Default EQ EQ Advanced Setting wed 19-10-2022

8.13. Weather

The device can provide up-to-date weather information from your location display. To call up the weather information, select the Weather menu item in the radio's main menu and confirm with OK.

Menu 08:56 Wetter

You can change the location for the weather report using the LIST button on the remote control or on the device. To do this, enter the name of the city from which you would like to retrieve the current weather information. If the device is connected to the Internet, you can view weather information on the device display.

Please note: For the weather forecast, the device accesses an Internet server on which the weather information is stored. Therefore, the weather data displayed may differ from the actual weather data at your location.

8.14. Recording radio programmes

The device can be used to record radio programmes on a USB data carrier. The radio creates a folder on the connected USB data carrier in which all recordings are saved.

The folder is labelled PVR. The files are saved in MP3 format. You can record a programme directly during operation if you have connected a USB data carrier to the radio. During a programme, press the Record button (Rec) on the device or on the remote control. A red recording symbol appears on the display.

8. OPERATION

Evosonic Radio Beschreibung: Menu More

To stop recording, press the Stop button and confirm the prompt with OK.

8.14. Recording radio programmes

Similar to a video or DVD recorder, you can also programme timer recordings with the radio to record radio programmes when you are not at home, for example. To do this, press and hold the Record button on the device or on the remote control for longer than 2 seconds. Alternatively, select Record timer in the System menu.

Name Evosonic Radi → Datum 29-11-2019 Startzeit 11 : 08 Dauer 02 : 00 Modus einmalig Zurück OK

Name:

Select the radio programme to be recorded here.

Date:

Enter the date on which the timer should start here.

Start Time:

Select the Start time line, press the OK button and enter the time at which the timer is to be activated using the up/down arrow buttons on the remote control or the rotary control.

Duration:

Set the recording duration in hours and minutes here.

Mode:

Specify here whether the recording should take place once or daily.

8.15. Bluetooth

The radio can optionally be connected to an external device (e.g. smartphone/tablet) via Bluetooth. Media (locally stored MP3 files, streamed music, web radio) can then be played from the external device via the radio using the Bluetooth connection. Select Bluetooth from the menu.

A Bluetooth connection must be established so that you can send audio files to the radio via Bluetooth.

8.15.1. Establishing a Bluetooth connection

If you have selected Bluetooth mode on the radio, it is in pairing mode and searches for Bluetooth devices to be connected.

Now activate the Bluetooth function of the external device to be connected (for more information, refer to the operating instructions of the device to be connected). In the overview of available devices, search for „DABMAN i460, select it and establish the connection. You will hear a beep.

8.15.2. Playing media via Bluetooth

If you have established a Bluetooth connection as described in chapter

8.15.1, you can play music files stored on the external device via the radio.

To do this, proceed as follows:

Start playing the music on the external device by switching on the corresponding playback function (MP3 player etc.) or select a track from the respective playlist and start playback

8.16. FM (VHF) ANALOG Radio

You can receive analogue FM radio stations in this menu item. When the radio is switched to FM/UHF mode for the first time, a station search must be carried out. An automatic and a manual search function are available for this purpose.

8.16.1. Automatic FM search

After you have switched to FM, press the List button on the device. Press and hold the OK button until the search starts.

The device starts the automatic station search and saves all frequencies on which a radio station was found. Please note that the sensitivity of the reception and the associated number of radio stations found depends on the search sensitivity settings. To change the search sensitivity, press the Menu button in FM mode. Select between „All stations“, „Weak transmitters“ and „Strong transmitters“.

8.17. EWF disaster warning function

8.17.1. What does EWF mean?

EMERGENCY WARNING FUNCTIONALITY

„Emergency Warning Functionality - EWF for short - enables the population to be warned quickly and reliably in the event of a disaster. Whether floods, extreme storms, chemical accidents or terrorist attacks - digital radio provides information about impending dangers.

The current radio programme is interrupted in the event of an emergency alarm and the radios automatically switch to the warning and information channel. Radios that are in „standby mode“ are automatically activated. In addition to the warning announcement, the warning message appears on the radio displays in several languages and with detailed instructions and information.

8. OPERATION

8.17.2. Setting EWF functions

Press the MENU button on the remote control or on the device and select System using the ▶◀ buttons on the remote control or the rotary control on the device. Confirm with OK on the remote control or by pressing the rotary control on the appliance. Select the EWF menu item and confirm by pressing the rotary control on the appliance or by pressing OK on the remote control.

ON/OFF

Activate or deactivate the EWF function in the On/Off line.

Setting the volume

Set the volume at which a warning message is to be played here

Standby Monitor

If necessary, additional text information is transmitted via DAB. If this is to be shown on the display, select active.

8.18. Operation via app

Smartphone screen displaying app interface with icons and a radio device showing a music player on the right.

With the soundmate application you can operate your compatible

Internet radio via tablet or smartphone.

The app is suitable for both iOS and Android operating systems.

Note:

This description corresponds to the app as of 11/2022 In the course of software updates to the app functions or the appearance may change.

Download the application from the Google Play Store ® for Android ® operating systems, or via the itunes Store for iOS ® operating systems and install the app on your smartphone

Orange square icon with white S-shaped symbol and the word 'Soundmate' below (no additional text or symbols)

JITTSI GO Google Play

Schottich App Store

8.18. Operation via app

Audio Systems DARMAN 350 CD Conquanta € 100 €

Start the application.

When the app is started, it automatically recognises the radio, provided it is logged into the same network. The main menu of the app is structured like the menu of the radio.

The icons used in the app are similar to the icons in the radio menu. Tap on the radio you have found to start the app.

Touch Controller Back

Touch Controller

Using the touch controller, you can swipe to the right or left/up or down to access various functions such as the Control volume change or programme selection.

8.19. Operation via app

Favorites 小鹏音乐 小鹏音乐 STAR 1M - Star STAR 1M - Star Radio Star Sun STARSTART Pandora

Call up favourite channels

You can use this function to call up your saved favourite radio stations. Select a favourite radio station from the list. You can save favourite radio stations in the Store the radio as described in the operating instructions for the radio.

Pebelöhung VOL MENI INFO 1.2 ALARM 4.5 SLEEP 7.8 UPNP UPN 1

Switch operating mode

You can use this field to set the different operating modes of the radio. The selection options of the Operating modes depend on the functions of the connected radio.

8.19. Operation via app

Internet Radio STAR/SAT RADIO STAR/SAT Radio http://www.10.1234/10.1235/10.1236/10.1237/10.1238/10.1239/10.1240/10.1241/10.1242/10.1243/10.1244/10.1245/10.1246/10.1247/10.1248/10.1249/10.1250/10.1251/10.1252/10.1253/10.1254/10.1255/10.1256/10.1257/10.1258/10.1259/10.1260/10.1261/10.1262/10.1263/10.1264/10.1265/10.1266/10.1267/10.1268/10.1269/10.1270/10.1271/10.1272/10.1273/10.1274/10.1275/10.1276/10.1277/10.1278/10.1279/10.1280/10.1281/10.1282/10.1283/10.1284/10.1285/10.1286/10.1287/10.1288/10.1289/10.1290/10.1291/10.1292/10.1293/10.1294/10.1295/10.1296/10.1297/10.1298/10.1299/10.1300/10.1301/10.1302/10.1303/10.1304/10.1305/10.1306/10.1307/10.1308/10.1309/10.1310/10.1311/10.1312/10.1313/10.1314/10.1315/10.1316/10.1317/10.1318/10.1319/10.1320/10.1321/10.1322/10.1323/10.1324/10.1325/10.1326/10.1327/10.

Playback function

Use this button to call up the current playback. Here you can select radio stations via the Internet, DAB+ or FM. You can also change the playback volume here. You can also start a recording to a USB data carrier here. In addition to the radio station that is switched on, information transmitted by the radio station about the current programme is also displayed.

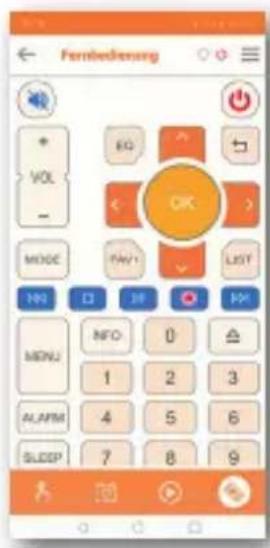

Fernbedienung + VOL - MODE NO MENU ALAFM SLEEP EG OK FAV1 LIST MF NFO 0 1 2 3 4 5 6 7 8 9

Remote Control

The remote control function allows you to control the radio with a virtual remote control.

To do this, tap the remote control symbol in the lower area. You can now control all the functions of the radio using the virtual remote control..

Symptom	Possible cause and remedy
No display, radio does not respond to operation	Establish the power connection using the power supply unit included in the scope of delivery.
Operation via remote control is not possible	Battery empty or not inserted correctly. Please check that the batteries are inserted in the correct direction. Point the remote control at the appliance.
AUX playback does not work	The device is in the wrong modeSwitch to „AUX“ mode Cable connection faulty. Check the cable connection between the radio and the external device.
Poor audio quality when playing music	File with low bit rate. Check the audio file. Tip: For MP3 files, the bit rate should be 192Kbit/s or higher.
Volume too low Check the volume setting on the DABMAN i460 radio and, if necessary, the volume setting of a paired device.

9. TROUBLESHOOTING

Symptom	Possible cause and remedy
Network connection can-not be established	Check the W-LAN function and activate the DHCP function of the router to which the radio is to be registered; a firewall may be active in the network.
W-LAN connection cannot be established	Check the availability of W-LAN networks, reduce the distance between the W-LAN router and the radio and make sure that you use the correct WEP/WPA password when logging on to a W-LAN router.
No Internet radio stations available	Check the access points of the network. The radio station is currently not available. The station's link has been changed or is currently no longer transmitting.

Symptom	Possible cause and remedy
USB data carrier is not recognised	Make sure that the USB data carrier is formatted FAT32 or NTFS
The device does not emit any sound. All other functions OK.	Headphones plugged into the device. Unplug the headphones.
DAB+ reception interference	No stations availablePerform a search.Antenna not fully extended. Change the position of the radio (closer to the window if necessary), perform a search again.

10. STORAGE

When not in use, please unplug the mains adapter from the socket, disconnect the mains adapter cable from the radio and store the device in a dry place protected from dust. The battery must be removed from the remote control if it is not used for a longer period of time.

11. BRAND NOTES

Product and company names mentioned herein are trademarks or registered trademarks of their respective owners.

12. DISPOSAL INSTRUCTIONS

12.1. Disposal of the packaging

The packaging of your appliance consists exclusively of recyclable materials. Please sort them accordingly and return them to the „Dual System“.

12.2. Disposal of the appliance

The symbol of a crossed-out wheeled bin shown on the right indicates

that this device is subject to Directive 2012 / 19 / EU. This directive states that you must not dispose of this device with normal household waste at the end of its service life, but rather at specially organised collection points,

recycling centres or waste disposal companies.

This disposal is free of charge for you. Protect the environment and dispose of it properly.

For more information, please contact your local waste disposal company or the city or municipal administration.

Simple line drawing of a trash bin with no text or symbols

12. DISPOSAL INSTRUCTIONS

12.3. Disposal of batteries

Batteries and rechargeable batteries must not be disposed of with household waste. The symbol shown on the right means that you as a consumer are obliged to dispose of all batteries and rechargeable batteries separately.

Appropriate collection containers are available in the specialised trade and numerous public institutions.

You can also obtain information on the disposal of old batteries and rechargeable batteries from specialised disposal companies, municipal and local authorities. This disposal is free of charge for you. Protect the environment and dispose of them properly.

An additional chemical symbol Pb (lead) or Hg (mercury) under the crossed-out waste bin means that the battery/rechargeable battery contains more than 0.0005% mercury or 0.004% lead.

E

13. PROPERTIES AND TECHNICAL DATA

Internet radio
Audio codecs MP3 (bit rate up to 320 Kbits/s, sampling rate up to 48 KHz) AAC/AAC+ (bit rate up to 320 Kbits/s, sampling rate up to 48 KHz) WMA (bit rate up to 320 Kbits/s sampling rate up to 48 KHz)
DAB/DAB+/FM
Reception area DAB Band III 174 MHz - 240 MHz FM 87.5 MHz -108 Mhz
Display
TFT Colour Display 2,4 inch
Sound
Loudspeaker 1 x 1 W	Output music power 3" loudspeaker an 6Ω

13. PROPERTIES AND TECHNICAL DATA

Connections

Headphones AUX IN

Polarity of power supply connection

USB socket

3.5 mm stereo jack socket

3.5 mm stereo jack socket

USB 2.0 Standard

Operating conditions

Temperature range 0

^ C - 45 ^ C

Air humidity 20% - 80% relative humidity

13. PROPERTIES AND TECHNICAL DATA

W-LAN interface
Frequency range modulation	2,412 GHz - 2,4835 GHzCCK, DQPSK, DBPSK,64-QAM, 16-QAM, QPSK, BPSK,IEEE Standards IEEE 802.11b/g/n
W-LAN data rate	1, 2, 5.5, 11Mbps
802.11b:	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g:	HT20 up to 72.2 Mbps HT40 up to 150Mbps
802.11n
Transmission power 18,5dBm (Max)
Storage conditions
Only store in dry rooms.
Dimensions and weight
Width x height x depth 250 mm x 180 mm x 95 mm
Weight approx. 1446 g

13. PROPERTIES AND TECHNICAL DATA

Battery remote control

Type CR 2025 / 3 V

Power supply unit DABMAN i460

Manufacturer

Type designation

Input voltage

Input frequency

Output voltage

Output current

Output power

Average efficiency in the

Operation

No-load power consumption

Shenzhen SOY Technology Co., Ltd.

SOY-SOY-1800100EU-063G

100-240V

50/60Hz

18V DC

1,0 A

18W

85%

< 0,1W

14. SERVICE AND SUPPORT

Dear customer!

Thank you for choosing a product from our company. Our product complies with legal requirements and has been manufactured under constant quality control. The technical data correspond to the current status at the time of printing. Subject to change without notice.

The warranty period for the IMPERIAL DABMAN radio corresponds to the statutory provisions at the time of purchase.

We also offer you our telephone HOTLINE service with professional assistance.

In our service area, professional specialists are available to answer your questions. Here you can ask any questions you may have about IMPERIAL products and get tips on localising the cause of a possible fault.

Our technicians are available to you from Monday to Friday from 8.00 a.m. to 16.45 under the following telephone number:

02676 / 95 20 101

or by e-mail at: [e-mail]

If the Service Hotline is unable to help you, please send your IMPERIAL

DABMAN radio to the following address, preferably in its original packaging, but packed securely for transport:

TELESTAR - DIGITAL GmbH

Service Center

Am Weiher 14 (industrial estate)

56766 Ulmen

CE

Your device bears the CE mark and fulfils all required EU standards.

TELESTAR DIGITAL GmbH hereby declares that the device

IMPERIAL DABMAN 460i in compliance with the essential requirements and

the other relevant provisions of the RoHS Directive 2011/65/EU, the RE

Directive 2014/53/EU and the

ErP Directive 2009/125/EC.

The declaration of conformity for this product is available at the following link::

IMPERIAL DABMAN i460

Abstract digital network diagram with interconnected nodes on a light background (no text or symbols)

Solid red horizontal bar with no text or symbols

imperial®

DABMAN i460

White industrial microwave oven with control knobs and a digital display, shown against a light blue background (no visible text or symbols on the device itself)

DAB+/UKW/internetradio

Soundmate Soovidmate Google Play App Store

V1_25_07_23

TELESTAR Service Center,

Am Weiher 14,

56766 Ulmen

e-mail: [e-mail]

NL

Exterior view of a gray plastic electrical connector with mounting holes and red indicator lights (no text or symbols)

3D rendered image of a gray plastic enclosure with internal components and mounting holes (no text or symbols visible)

3D rendering of a gray rectangular electronic device with a control panel and ventilation slots (no visible text or symbols)

3. OMVANG VAN LEVERING EN INSTALLATIE

3D diagram of a structural support frame with vertical supports and a flat panel (no text or symbols)

3D diagram of a device with a top panel and an arrow pointing to it, no text or symbols present.

3D rendered object with a dark triangular base and a white rectangular block, no visible text or symbols

4. OVERZICHT VAN DE BEDIENINGSELEMENTEN

Imperial STAR*SAT Radio Ultravox - Deferring with Years in My Eyes 1 2 3 4 5 6 7 8 9 OK DASMAN H60 12 11 10

13 14 15 16 17 18

1. Sluw

Two-step illustration showing hands holding a device, labeled ① and ② (no text or symbols on the devices themselves)

W-LAN T3LeSt 0 1 2 3 4 5 6 7 8 9 a A b B c C d D e E f F g G h H i I j J k K l L m M n N o O p P q Q r R s loschen OK

All private data will be deleted.Are you sure to continue? OK Abbrechen

8. BEDIENING

7.2.11. Fabrieksinstellingen

My EQ Profile Setting Backup EQ to USB Load EQ from USB Load the Default EQ EQ Advanced Setting wed 19-10-2022 Rock 1. Gain: 2.2 dB 12dB 0dB -12dB Step: x1 1.Freq: 43 Hz List Freq Menu Step Mode Mode

8. BEDIENING

8.13. Weer

8.16. FM (VHF) ANALOG radio

EMERGENCY WARNING FUNCTIONALITY

NL

8.18. Bediening via app

Smartphone screen displaying a mobile app interface with Chinese labels and UI elements, held by a hand.

Exterior view of a modern office building (no signage)

NL

Met de applicatie Soundmate kun je je compatibele internetradio bedienen via tablet of smartphone.

Orange square icon with white S-shaped logo and the word 'Soundmate' below (no additional text or symbols)

ATTIN Google Play

8.19. Bediening via app

NL

Audio Systems DARBIAN 840 CD Broadcast - Ctrl UP

8.19. Bediening via app

Favorites STAR TV - 1M STAR TM - Star STAR FM - Show Radio Star Sun STAR SMART Flash

Presellschaft VOL MODE INFO MENU ALAPM SUIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP SIP

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic, and a solid black rectangle below (no text or symbols)

12.

VERWIJDERINGSINSTRUCTIES

Shenzhen SOY Technology Co.

SOY-SOY-1800100EU-063G

100-240V

50/60Hz

18V DC

1,0 A

18W

85%

<0,1W

NL

14. SERVICE EN ONDERSTEUNING

Beste klant!

Abstract network diagram with interconnected nodes on a light blue gradient background (no text or symbols)

imperial®

DABMAN i460

Mode d'emploi

White industrial microwave oven with control knobs and a digital display, shown against a light blue background (no visible text or symbols on the device itself)

DAB+ / FM / Radio Internet

Soundmate Soovidmate Google Play App Store

V1_25_07_23

8.16. FM (FM) Radio ANALOGUE....61

3D rendered image of a gray plastic device with multiple mounting holes and red indicator lights (no text or symbols)

3D rendered mechanical component with mounting holes and a central vertical slot (no text or symbols visible)

3D rendering of a gray rectangular electronic device with a lid and control panel (no visible text or symbols)

3. CONTENU DE LA LIVRAISON ET MONTAGE

Three-step diagram showing a structural assembly with mounting holes and a component, no text or symbols present.

Imperial STAR*SAT Radio Ultravox - Defecting Email Years in My Eyes 1 2 3 4 5 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ DASMAN H60 ⑫ ⑪ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲

13 14 15 16 17 18

1. List

Two-step illustration showing hands holding a device, labeled ① and ② (no text or symbols on the devices themselves)

All private data will be deleted.Are you sure to continue? OK Abbrechen

8. COMMANDE

My EQ Profile Setting Backup EQ to USB Load EQ from USB Load the Default EQ EQ Advanced Setting wed 19-10-2022 Rock 1. Gain: 2.2 dB 12dB 0dB -12dB Step: x1 1.Freq: 43 Hz List Freq Menu Step Mode Mode

8. COMMANDE

8.13. Temps

8.16. FM (VHF) ANALOG Radio

EMERGENCY WARNING FUNCTIONALITY

Smartphone screen displaying a mobile app interface with Chinese labels and UI elements, held by a hand.

Exterior view of a modern office building (no signage)

Orange square icon with a white S-shaped logo and the word 'Soundmate' below it (no additional text or symbols)

ATTIN Google Play

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic, and a solid black rectangle below (no text or symbols)

12. CONSEIL POUR

L'ÉLIMINATION

Abstract network diagram with interconnected nodes on a light blue gradient background (no text or symbols)

imperial®

DABMAN i460

imperial DARMAN 1980

3D model of a gray plastic electrical plug with four black mounting holes and red indicator lights (no text or symbols)

3D rendered mechanical component with mounting holes and a central vertical slot (no text or symbols visible)

3D rendering of a gray rectangular electronic device with a control panel and ventilation slots (no visible text or symbols)

Three-step diagram showing a structural assembly with mounting brackets and a component, no text or symbols present.

Two-step illustration showing hands holding a device, labeled ① and ② (no text or symbols on the devices themselves)

W-LAN T3LeSt 0 1 2 3 4 5 6 7 8 9 a A b B c C d D e E f F g G h H i I j J k K l L m M n N o O p P q Q r R s loschen OK

All private data will be deleted.Are you sure to continue? OK Abbrechen

8.

FUNZIONAMEN

TO

My EQ Profile Setting Backup EQ to USB Load EQ from USB Load the Default EQ EQ Advanced Setting wed 19-10-2022 Rock 1. Gain: 2.2 dB 12dB 0dB -12dB Step: x1 1, Freq: 4J Hz List Freq Menu Step Mode Mode

8.

FUNZIONAMEN

TO

8.13. Tempo

8.16. Radio FM (VHF) ANALOGICA

EMERGENCY WARNING FUNCTIONALITY

D

Smartphone screen displaying a mobile app interface with a color picker and control buttons, showing Chinese text labels.

Exterior view of a vintage portable radio with a mounted antenna (no visible text or symbols)

D

Orange square icon with a white S-shaped logo and the word 'Soundmate' below it (no additional text or symbols)

ATTIN Google Play

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic, and a solid black rectangle below (no text or symbols)

12. ISTRUZIONI PER LO SMALTIMENTO

Abstract network diagram with interconnected nodes on a light blue gradient background (no text or symbols)
