USER MANUAL PWRHERO Mini A1 TINECO

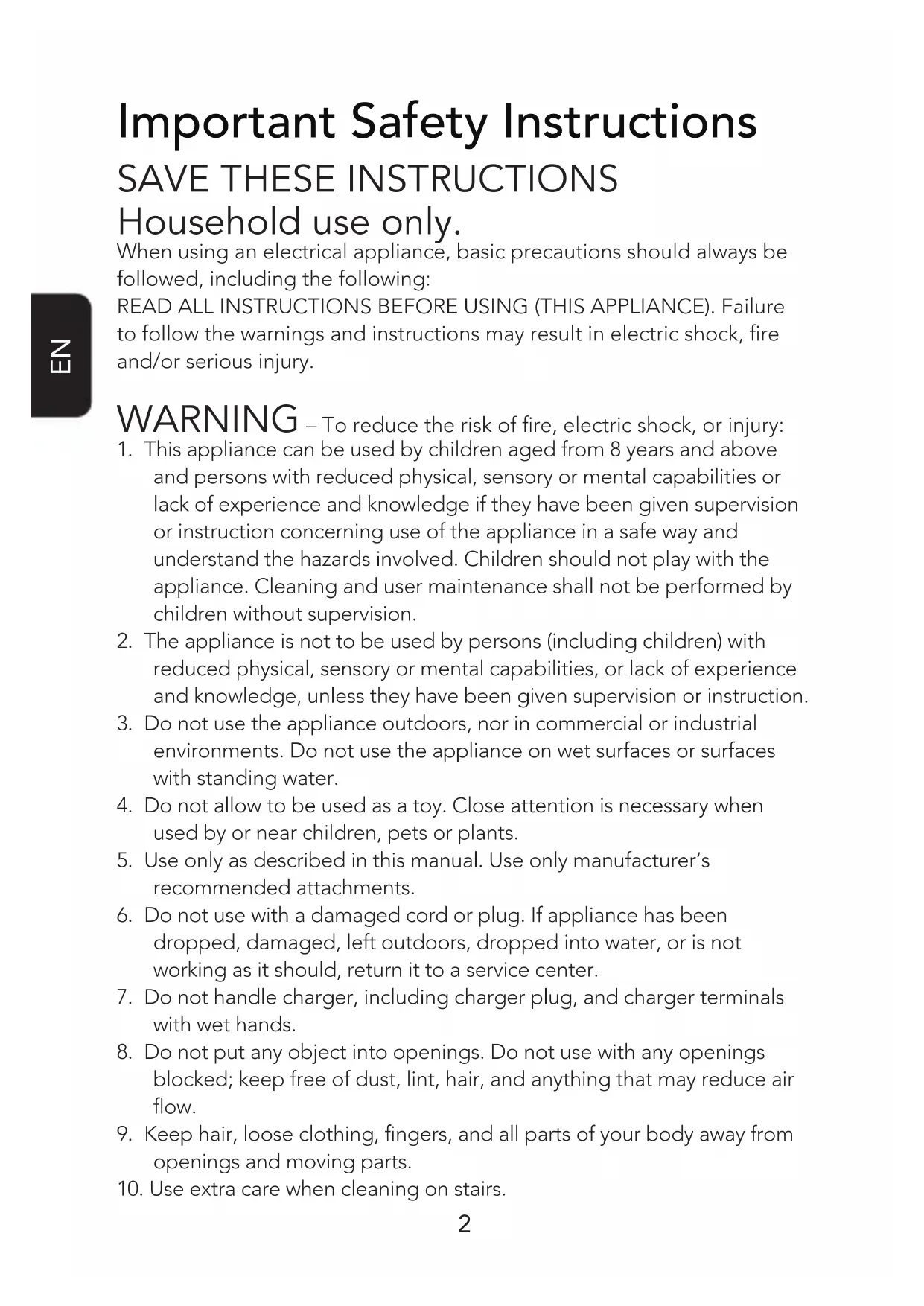

Important Safety Instructions

SAVE THESE INSTRUCTIONS

Household use only. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. WARNING – To reduce the risk of re, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.

2. The appliance is not to be used by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

3. Do not use the appliance outdoors, nor in commercial or industrial

environments. Do not use the appliance on wet surfaces or surfaces with standing water.

4. Do not allow to be used as a toy. Close attention is necessary when

used by or near children, pets or plants.

5. Use only as described in this manual. Use only manufacturer’s

recommended attachments.

6. Do not use with a damaged cord or plug. If appliance has been

dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.

7. Do not handle charger, including charger plug, and charger terminals

8. Do not put any object into openings. Do not use with any openings

blocked; keep free of dust, lint, hair, and anything that may reduce air ow.

9. Keep hair, loose clothing, ngers, and all parts of your body away from

openings and moving parts.

10. Use extra care when cleaning on stairs.3

11. Do not use to pick up ammable or combustible liquids, such as

gasoline, or use in areas where they may be present.

12. Do not pick up anything that is burning or smoking, such as cigarettes,

matches, or hot ashes.

13. Do not use without a lter.

14. Prevent unintentional activation. Ensure the switch is in the off position

before connecting to the battery pack, picking up or carrying the appliance. Carrying the appliance with your nger on the switch or powering on the appliance with the switch on may cause accidents.

15. Disconnect the battery pack from the appliance before making any

adjustments, changing accessories, storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

16. For the purposes of recharging the battery, only use the detachable

supply unit provided with this appliance. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

17. Use appliances only with specically designated Tineco battery packs.

Use of any other battery packs may create a risk of injury and re.

18. When battery pack is not in use, keep it away from other metal objects,

like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

19. Under improper usage, liquid may be ejected from the battery; avoid

contact. If contact accidentally occurs, ush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.

20. Do not use a battery pack or appliance that is damaged or modied.

Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

21. Do not expose a battery pack or appliance to re or excessive heat.

Exposure to re or temperatures above 266°F (130°C) may cause an explosion.

22. Follow all charging instructions and do not charge the battery pack

or appliance outside of the temperature range specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of re.

23. Have servicing performed by a qualied repair person using only

identical replacement parts. This will ensure that the safety of the product is maintained.4

24. This appliance contains battery cells that are non-replaceable. Do not

modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

25. Always turn off this appliance before connecting or disconnecting the

26. Do not charge or store the appliance outdoors. Only charge, store or

use the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C). The charger is for indoor use only.5

• Test an accessory on a small, inconspicuous area before use on sensitive surfaces.

• Accessories included can be attached directly to the appliance. Crevice tool Crevice brush is suitable for dusting screens, delicate surfaces, keyboard and more. Flip down to expose a at nozzle for cleaning corners and hard-to-reach areas. Hair cleaning tool Use the end with the small blade to remove wrapped hair and debris. Use the end with the brush to clean the lter and the dustbin, as required.7

Operation Preparing for Use Note:

• Before the rst use, please charge the appliance (see “Charging the Battery”) for 2-3 hours in an area where the ambient temperature is between 39.2°F (4°C) and 104°F (40°C). Press the power switch to turn on the appliance, and press it again to turn off. Emptying the Dustbin

1. With the power off, open the lock.

Slide the dustbin forward to open and empty contents.

Charging the Battery

• Connect the external charging cord to the appliance and plug it into the wall outlet.

• To avoid trip hazards, please place the appliance near a wall during charging.

• Only use the Tineco-provided adaptor to charge the appliance.

• During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is fully charged every 3 months.

• Do not expose appliance to sunlight or freezing temperature. Recommended temperature range: 39.2°F (4°C)~104°F (40°C). Runtime

• The runtime is approximately 15 minutes.

• Estimated runtime data was obtained by a Tineco Laboratory. Charging Time

• A full charge takes approximately 2-3 hours.

• Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2°F (4°C) to 104°F (40°C).9

Indicator When in Use Solid blue light. Blinking blue light: low power. During Charging Breathing blue light: charging. Fully Charged Within 5 minutes of full charge: solid blue light. After 5 minutes: light off.10

• Turn power switch off and disconnect plug from electrical outlet before performing maintenance.

• For optimal performance, wash and dry the mesh lter and HEPA bi- weekly, replacing both parts every 6 months. Dustbin

1. With the power off, open the lock and slide the dustbin forward to

open and empty contents.

2. If dirt remains inside the dustbin, press the release button at the end

of the slider. Remove the dustbin and clean with a damp cloth.

3. After cleaning, reinstall and lock the dustbin, close the dustbin lid.

The dustbin contains electrical components which must not be soaked or washed with water.11

Mesh Filter & HEPA Filter With the dustbin uninstalled, turn counter- clockwise to remove the mesh lter. Remove HEPA from the mesh lter, clean with the hair cleaning tool. Or wash both parts with water and air dry completely if necessary (recommended every two weeks). After cleaning, install the lters and dustbin back into the main body.12

• The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.

• When removing the battery, the appliance must be powered off.

• Batteries, chargers, accessories and packaging should be sorted for environmental friendly recycling. Do not put them into re, water or soil. Do not dispose of batteries and chargers into household waste!

• If battery leakage contacts skin or clothing, immediately ush with water to avoid irritation and seek medical help.13

Troubleshooting Problem Possible cause Solution The appliance does not turn on No power Charge the battery The appliance is blocked (i.e. the suction mouth, HEPA) Remove blockages Auto protection for overheating Restart after cooling down Weak suction power Dustbin and lters are full Clean the dustbin and lters Filters are not installed Install the lters The appliance is blocked (i.e. the suction mouth, HEPA) Remove blockages Abnormal motor sounds The suction mouth is blocked Check and remove blockages Battery won’t charge The adaptor is not designed for this appliance Use the original adaptor The adaptor is not correctly inserted Reinsert the adaptor correctly Note: If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support.14

• Only applies to purchases made from authorized retailers of Tineco.

• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below. WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual.

• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.

• This warranty will only be valid if the appliance is used in the country in which it was sold. WHAT IS NOT COVERED? Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.

• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.

• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.

• Use of parts not in accordance with the Tineco Instruction Manual.

• Use of parts and accessories other than those produced or recommended by Tineco.

• External factors unrelated to product quality and use, such as weather, modications, accidents, electrical outages, power surges or acts of God.

• Repairs or alterations carried out by unauthorized parties or agents.

• Failing to clear blockage and other hazardous material from the appliance.

• Normal wear and tear, including normal wearing parts, such as clear bin, lter, HEPA, and power cord (or where external damage or abuse is diagnosed).

• Reduction in battery discharge time due to battery age or use.15

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of tness for a particular purpose, are limited to the duration of this warranty.

• Warranty coverage applies to the original owner and is not transferable.

• This limited warranty gives you specic legal rights. You may also have other rights which vary by region.

• Manufacturer’s warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from.

• Please review the warranty carefully, and contact the manufacturer if you have any questions. WARRANTY SERVICE Register: We highly recommend that upon purchase, you register your appliance on the Tineco ofcial website (www.tineco.com) to enjoy exclusive benets. To register, please enter the last 11 digits of the serial number (found on the back of the appliance). Failure to register your product won’t diminish your warranty rights. How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it. All work will be carried out by Tineco or an authorized agent. Any replaced defective parts will become the property of Tineco. Service under this warranty will not extend the period of this warranty. E*********XXXXXXXXXXX E*********XXXXXXXXXXX Contact our Customer Service Hotline: [phone] or Visit Tineco website www.tineco.com for expert customer service.16
