CVT 3400 - Heating Orbegozo - Free user manual and instructions

Product type	Electric fan heater with Turbo fan
Brand	Orbegozo
Model	CVT 3400
Nominal thermal power	2.0 kW (2000 W)
Minimum thermal power	0.75 kW (750 W)
Maximum continuous thermal power	2.0 kW
Supply voltage	220-240 V ~ 50 Hz
Standby power consumption	0.000 kW
Temperature control type	Adjustable mechanical thermostat
Number of heat levels	2 (individual switches)
Fan	Yes, with Turbo function for rapid heat distribution
Safety	Safety shutdown in case of overheating; protective grille; do not cover
Material	Metal and plastic
Dimensions (approx.)	45 x 30 x 20 cm (height x width x depth)
Weight (approx.)	4.5 kg
Power cord length	Approx. 1.5 m
Usage	Domestic supplemental heating
Mounting	Feet to attach with provided screws
Maintenance and cleaning	Unplug and let cool; wipe with a damp cloth; do not use abrasive products
Included accessories	Feet and mounting screws
Manufacturer reference	CVT 3400 B

Frequently Asked Questions - CVT 3400 Orbegozo

How to assemble the feet of the Orbegozo CVT 3400 heater?

Carefully turn the appliance over. Use the four screws provided to attach the two feet to the heater, at the side hollow parts. Make sure the feet are positioned at the very bottom.

How to set the desired temperature?

Turn the Thermostat Knob fully clockwise to set it to maximum. Turn on the heating elements via the switches. When the desired temperature is reached, slowly turn the thermostat counterclockwise until you hear a 'click': the heater will then maintain the set temperature.

What is the maximum power of the heater?

The nominal thermal power is 2.0 kW. Using both switches gives you maximum power. The Turbo fan does not change the power but accelerates heat distribution.

How to clean the heater?

Always unplug the appliance and let it cool before cleaning. Wipe the exterior with a damp cloth, then with a dry cloth. Do not use abrasive products and avoid water entering the interior.

Can I use the heater in a bathroom?

No, do not use it in the immediate vicinity of a bathtub, shower, or swimming pool. The heater is not designed for humid rooms. Maintain a safe distance.

What to do if the heater does not heat?

Check that the plug is properly connected and the thermostat is set to maximum. Make sure both switches are on (the indicators light up). If the problem persists, contact technical service via https://orbegozo.com/asistencia-technica/.

Is the Turbo fan mandatory?

No, the Turbo Button is an option to accelerate heat distribution. You can use the heater without activating the fan; the heat will spread naturally by convection.

Is the appliance safe for children?

The appliance has a protective grille, but it does not guarantee complete protection. Children under 3 years must be kept out of reach. Children aged 3 to 8 can only turn the appliance on/off under supervision. Caution: surfaces become very hot.

How to store the heater when not in use?

After use, unplug it and let it cool. Protect it from dust and store it in a dry place. Do not wind the cord around the appliance.

Where to find after-sales service?

Contact technical service via the link https://orbegozo.com/asistencia-technica/ or send an email via the contact page https://orbegozo.com/contacto/. Keep the purchase receipt to claim the legal warranty.

USER MANUAL CVT 3400 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. The appliance must only be used as described in the instructions for use. Use for any other purpose is inadmissible! Any damage attributed to incorrect operation, improper use or non-observation of the safety information will invalidate all liability and the warranty!

These instructions for use belong to the appliance and must be kept in a safe place, when changing owners, these instructions must be surrendered to the new owner.

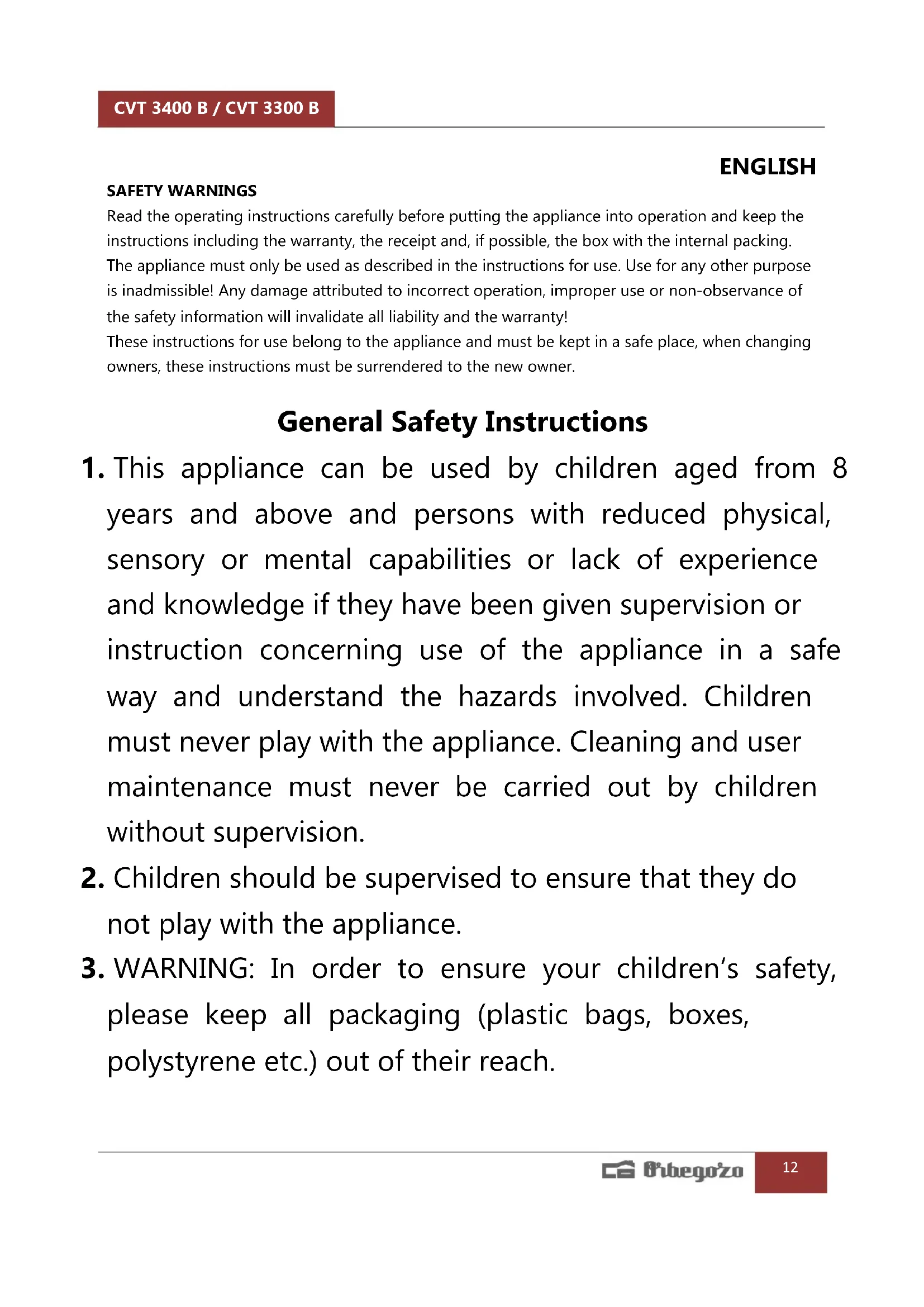

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.

3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

4. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid a hazard.

5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.
12. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com
13. WARNING: In case of misuse, there is a risk of possible injury.

Special Safety Instructions

WARNING: In order to avoid overheating, DO NOT COVER THE HEATER.

• Children under 3 years of age should be kept out of the reach of the appliance unless they are continuously supervised.
• Children from 3 years of age and under 8 years of age should only turn the appliance on/off provided that it has been placed or installed in its intended normal operating position and that they are supervised or have received instructions regarding the use of the appliance in a safe manner. and understand the risks that the device has. Children from 3 years and under 8 years of age must not plug in, regulate and clean the appliance or carry out maintenance operations.
• CAUTION: Some parts of this appliance can become very hot and cause burns. Particular attention should be paid when children and vulnerable people are present.
• The appliance must not be placed immediately below a power socket.

• Do not use this heater in the immediate vicinity of a bathtub, shower or swimming pool.

• Check that the voltage of the domestic network matches that indicated on the label of the appliance.

• The appliance must be connected to an earthed socket. If you are using an extension cord, use a grounded cord. However, you must make sure that the plugs and the cable support the power of the appliance. The extension cable must not be coiled, but extended.
• Do not use the device in flammable environments (for example near combustible gases or sprays). Risk of explosion and fire!
• Important! Do not insert any type of object through the openings of the heater. There is a risk of injury (electric shock) and damage to the device!
• Attention! The front grill becomes very hot when the appliance is used. Position the appliance so that it cannot be accidentally touched. Risk of burns. The appliance will gradually cool down after turning off.
• The heater is not designed to be used as the primary form of heating. Only use the appliance for its designed use, i.e. to additionally heat the house.
• Keep the cable at a safe distance from the air inlet and outlet grilles. Do not wrap the cord around the appliance or bend it.

• Always unplug the heater after use.

• Keep the appliance clean. Do not insert objects into the ventilation slots, as this may cause electric shock, fire or damage to the heater.

• The plug must be accessible at all times in order to disconnect the plug from the mains as quickly as possible.

• Do not try to move the heater while it is in use.

• Do not allow the appliance to run unattended or leave it on when you leave the house.

• The guard on this heater has been designed to prevent direct access to the heating elements and must be in place when in use. This protection does not guarantee full protection for children or disabled people.

• Do not use the heater on carpets that are too thick!

• Do not use the heater if it is not in an upright position.
• ATTENTION The device must not be connected immediately after a short circuit has occurred.
• Do not use this heater if it has fallen.
• Do not use if there are visible signs of damage to the heating appliance.

• Use this heater on a horizontal and stable surface, or fix it to the wall as applicable.

• WARNING: Do not use this heater in small rooms that are occupied by persons who cannot leave the room by themselves, unless permanent supervision is provided.

• WARNING: To reduce the risk of fire, keep textiles, curtains, or other flammable material at a minimum distance of 1m from the air outlet.

The images contained in this manual are for your reference only. The product you have purchased may vary from them.

ASSEMBLY OF THE HEATER

Fitting the feet:

• Carefully turn the unit upside down.
• Use 4 screws for feet to fix the 2 feet onto the heater.
• Take care to ensure that they are located correctly in the bottom ends of the heater side mouldings.

NOTE: It is normal when the heaters are turned on for the first time or when they are turned on after having not been used for a long period of time the heaters may emit some smell and fumes. This will disappear when the heater has been on a short while.

• Choose a suitable location for the heater, taking into account the safety instructions above.

• Insert the plug of the heater into a suitable socket.

• Turn THERMOSTAT KNOB fully in a clockwise direction to the maximum setting.

• Turn on the heating elements by means of HEATER SWITCHES on the side panel. When the heating elements are on the switches will illuminate. For maximum heat output both switches should be on. When the desired room temperature has been reached, the thermostat knob should be turned slowly anti-clockwise until the thermostat is heard to click off and the lights on the element switches are seen to go out. After this the heater will keep the air temperature in the room at the set temperature by switching on and off automatically.

• The Turbo button starts the internal fan for faster heat diffusion.

CLEANING THE HEATER

• Always un-plug the heater from the wall socket and allow it to cool down before cleaning.
• Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth.
• Do not use any detergents or abrasives and do not allow any water to enter the heater.

STORING THE HEATER

• When the heater is not used for long periods of time it should be protected from dust and stored in a clean dry place.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and

the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbego is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

CVT 3400 B

Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2.0	kW		manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	Pmin	0.75	kW		manual heat charge control with room and/or outdoor temperature feedback。	[no]
Maximum continuous heat output	Pmaxc	2	kW		electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption					fan assisted heat output	[no]
At nominal heat output	elmax	0	kW		Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0	kW		single stage heat output and no room temperature control	[no]
In standby mode	elsB	0	kW		Two or more manual stages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[yes]
					with electronic room temperature control	[no]
					electronic room temperature control plus day timer	[no]
					electronic room temperature control plus week timer	[no]
					Other control options (multiple selections possible)
					room temperature control, with presence detection	[no]
					room temperature control, with open window detection	[no]
					with distance control option	[no]
					with adaptive start control	[no]
					with working time limitation	[no]
					with black bulb sensor	[no]
Contact details info				SONIFER SA. Avenida de Santiago 86, 30007, Murcia. Spain.

CVT 3300 B

Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	1.8-2.0	kW		manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	Pmin	0.75	kW		manual heat charge control with room and/or outdoor temperature feedback。	[no]
Maximum continuous heat output	Pmaxc	2	kW		electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption					fan assisted heat output	[no]
At nominal heat output	elmax	0	kW		Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0	kW		single stage heat output and no room temperature control	[no]
In standby mode	elsb	0	kW		Two or more manual stages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[yes]
					with electronic room temperature control	[no]
					electronic room temperature control plus day timer	[no]
					electronic room temperature control plus week timer	[no]
					Other control options (multiple selections possible)
					room temperature control, with presence detection	[no]
					room temperature control, with open window detection	[no]
					with distance control option	[no]
					with adaptive start control	[no]
					with working time limitation	[no]
					with black bulb sensor	[no]
Contact details info				SONIFER SA. Avenida de Santiago 86, 30007, Murcia. Spain.
