Product type	Fan heater
Brand	Orbegozo
Model	FH 5570
Supply voltage	230 V
Frequency	50 Hz
Maximum power	2000 W
Minimum power	1000 W
Oscillation	Yes (±45°)
Adjustable thermostat	Yes
Overheat protection	Automatic shut-off
Control type	Rotary knobs
Dimensions (approx)	30 x 20 x 15 cm (H x W x D)
Weight (approx)	2 kg
Maintenance	Clean with a soft cloth, vacuum the grilles, do not use water
Safety	Do not cover, do not use near water, do not leave unattended

Frequently Asked Questions - FH 5570 Orbegozo

How to turn on the Orbegozo FH 5570 heater?

Set the thermostat knob to its maximum value, then turn the temperature control knob to position I (1000 W) or II (2000 W). The appliance will blow hot air. For cool air, use the ✱ position (fan only).

How to use the oscillation function?

Activate the oscillation switch located on the base. Position I enables rotation (±45°), position O stops it at the desired position. Oscillation works only when the appliance is on.

What is the maximum power of this heater?

The maximum power is 2000 W (position II). It can also operate at 1000 W (position I) or in fan-only mode without heating.

How to adjust the thermostat?

Turn the thermostat knob counterclockwise until the appliance turns off when the desired temperature is reached. It then automatically maintains the temperature. Turn clockwise to increase heat.

What to do in case of overheating?

The heater is equipped with a safety device that automatically cuts off power in case of overheating. Unplug the appliance, let it cool down, and check that the grilles are not blocked before using it again.

Can I use this heater in a bathroom?

No, it is forbidden to use the appliance in the immediate vicinity of a bathtub, shower, or swimming pool due to the risk of electrocution.

How to clean the heater?

Unplug the appliance and allow it to cool. Clean the exterior with a soft cloth. Use a vacuum cleaner with a brush for the intake and outlet grilles. Never use water or abrasive products.

Can I use an extension cord?

No, the manual advises against using an extension cord or a programmable switch. Plug the appliance directly into a wall outlet.

How to store the appliance in summer?

Clean it according to the instructions, place it back in its original packaging, and store it in a cool, dry place.

Is this heater suitable as a main heat source?

No, it is designed as a supplementary heater and not as a primary source. Ensure the room size is suitable for its power.

USER MANUAL FH 5570 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

We congratulate you for having chosen our product. Please read the following information carefully before using the appliance for the first time for your own safety and to ensure correct use. Read the Safety information's and safe positioning also carefully before using of the heater about to avoid any risk of fire or lives.

SAFETY INSTRUCTIONS

The appliance must only be used as described in the instructions for use. Use for any other purpose is inadmissible! Any damage attributed to incorrect operation, improper use or non-observance of the safety information will invalidate all liability and the warranty!

1. All liability is disclaimed for any frost damage caused by a heating capacity that is insufficient for the room size. By addition in the appliance, the room maintains specified for the remaining plate!
2. Never touch live parts! Danger to life!
3. Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard!
4. Important! Do not insert any foreign objects into the appliance openings! Risk of injury (electric shock) and damage to the appliance!
5. Attention! The front grille becomes very hot when the appliance is in use. Place the appliance so that is cannot be touched by accident! Risk of burns! The appliance will cool down gradually after being switched off.
6. The heater is not designed for use as the main form of heating. Use the appliance only for the intended use, i.e. extra heating in the house.
7. Prevent overheating to the appliance by keeping the air inlet and outlet grills free: do not hang anything in front of it or above it – otherwise there is a risk of fire. Check the grills from time to time for accumulated dust. If overheating should occur,
8. Keep the mains cord at a safe distance from the air inlet and outlet grills. Do not wind the cord around the appliance and do not bend it.
9. The appliance is not suitable for animal breeding purposes!
10. Always unplugged the heater after use.
11. The socket-outlet must be accessible at all times to enable the mains plug to be disconnected as quickly as possible.
12. The heater does not operate with an extension-cord or an interposed time switch clock.
13. Do not attempt to move the heater while in use.
14. Never use the appliance if the appliance or cord is damaged. Risk of injury!
15. Pay attention to the security of your children and keep away all packaging parts (plastic bag, cardboard, styropor etc.) from them
16. Allow to pursue the device not unsupervised and do not leave the house if you use the device.
17. WARNING: In order to avoid overheating, do not cover the heater.
18. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

19. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

20. Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

21. The fireguard of this heater is intended to prevent direct access to heating elements and must be in place when the heater in use; the fireguard does not give full protection for young children and for infirm persons.
22. The device should not be placed immediately below a socket base.
23. Do not use this heater in the immediate vicinity of a bath, shower or pool.
24. Never operate the appliance with wet hands! Danger to life!

These instructions for use belong to the appliance and must be kept in a safe place, when changing owners, these instructions must be surrendered to the new owner.

SAFE POSITIONING

1. The heater must not be located immediately below a socket outlet
2. For your own safety and that of others: water and electricity are a dangerous combination! Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool. Ensure that the appliance cannot fall into water (bath wash basin, shower cubicle, etc.)
3. Please read also the safety information's before using.
4. Do not use the heater on extremely deep-pile carpets!
5. Do not use the heater in an upright position.

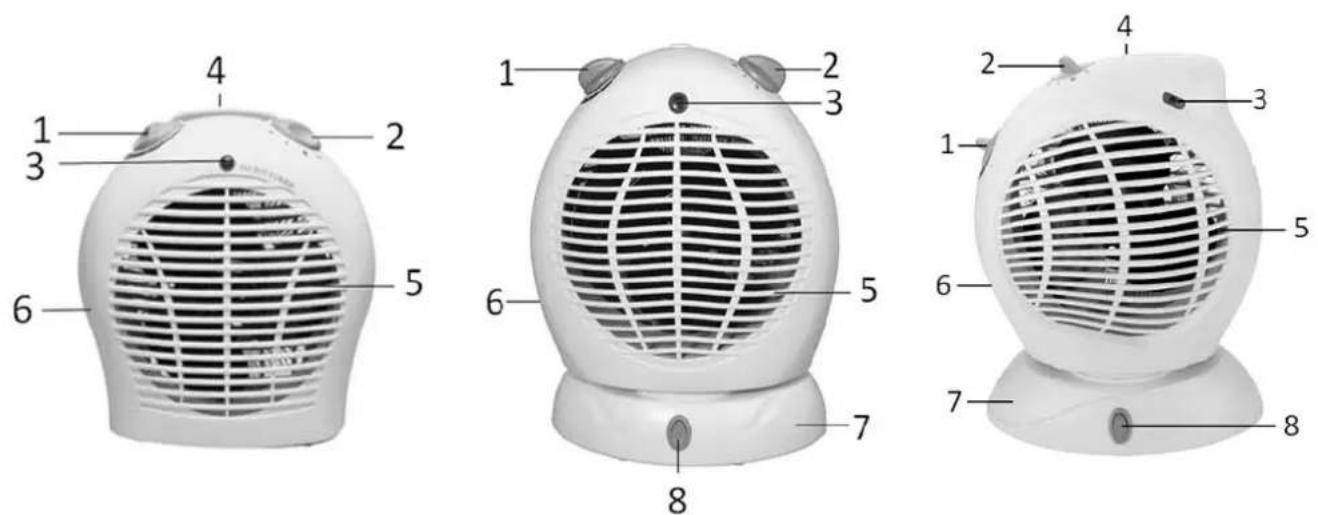

GENERAL DESCRIPTION

1. Thermostat

RnobHeat select switch

&nobIndicator

4ght

ElandAir outlet

1. Air inlet

7.

Base Oscillation

switch

INSTRUCTIONS FOR USE

1 Turn the thermostat switch to the minimal value, at the same time turn the heat select switch to the "O" position (see picture).
2 Plug in the appliance, and turn the thermostat switch to the maximum position. Then turn the heat select switch to choose air or warm air and the temperature of warm air as below. While working the indicator light will be on.
2.1 Turn the heat select switch to “☐”
2.2 Turn the heat select switch to "position, the heater blows warm air, working at 1000W.
2.3 Turn the heat select switch to "the position, the heater blows warm air, working at 2000W.
2.4 Turn the heat select switch to "D" position, the heater stops working, the indicator light will be off.
3. Adjust the thermostat switch to suitable position for desired temperature setting.
3.1 Check if the thermostat switch is on the maximum position.
3.2 When you feel the room temperature comfortable, turn the thermostat switch anti-clockwise slowly to the minimal position until the appliance stops working.
3.3 Then the thermostat switch will keep the room temperature at the desired temperature automatically.
3.4 You can also turn the thermostat switch anti-clockwise to the minimum position or turn the thermostat switch clockwise to maximum position to make the temperature lower or higher.

OSCILACION(FH 5580, FH 5570, FH 5560)

In order to spread the heat and to optimise the heating of room, your appliance is equipped with an oscillation feature of +/-45° that can simply be activated by pressing the switch situated on the base. Position I allows the appliance to rotate and position 0 blocks the rotation of the appliance in the desired position.

Note: Products Oscillation functions only by Oscillation switch control.

OVERHEATING SAFETY DEVICE

To prevent damage and risks due to overheating, the built-in overheating safety device cuts off the power as soon as the heating elements become too hot.

MAINTENANCE

We recommend that you clean your heater at least twice a year to remove accumulated dust and dirt. Get switch off. Remove the mains plug from the wall socket. Wait for the heater to cool down sufficiently. -You may clean the outside of the heater with a damp cloth or brush. Do not use water or allow water to

come into the appliance. Do not use any abrasive and caustic cleaning agents! -Never touch the heater in water! Danger to life! -Clean the air inlet and outlet grilles regularly with a vacuum cleaner, using the brush attachment.

Storage

Keep the original box in which the heater was packed to store it during the warmer months when it is not in use. Clean the heater according to the instructions under Cleaning. Pack the heater in the original box and store it in a cool, dry place.

TECHNICAL CHARACTERISTICS

Model: FH 5580, FH 5570, FH 5550, FH 5560

Voltage: 230 V Power: Maximum 2000 W

Tension: 50 Hz.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product disposal of old electrical appliances that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
