USER MANUAL TM 2400 S Christopeit

Assembly and operating instructions Page: 27-38 No. de commande: 2340

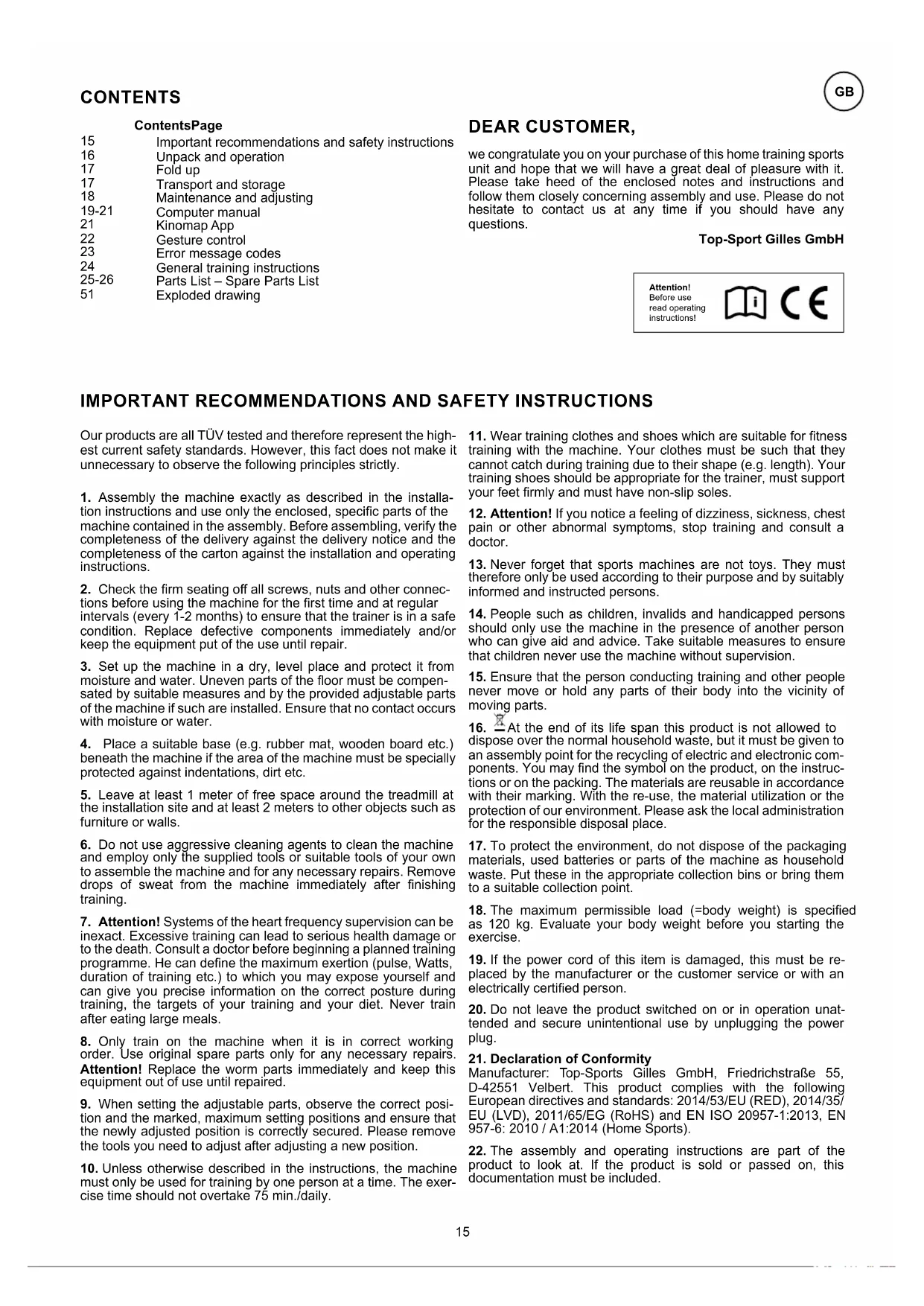

CONTENTS DEAR CUSTOMER, we congratulate you on your purchase of this home training sports unit and hope that we will have a great deal of pleasure with it. Please take heed of the enclosed notes and instructions and follow them closely concerning assembly and use. Please do not hesitate to contact us at any time if you should have any questions. Top-Sport Gilles GmbH ContentsPage Attention! Before use read operating instructions!

IMPORTANT RECOMMENDATIONS AND SAFETY INSTRUCTIONS

Our products are all TÜV tested and therefore represent the high- est current safety standards. However, this fact does not make it unnecessary to observe the following principles strictly.

1. Assembly the machine exactly as described in the installa-

tion instructions and use only the enclosed, specic parts of the machine contained in the assembly. Before assembling, verify the completeness of the delivery against the delivery notice and the completeness of the carton against the installation and operating instructions.

2. Check the rm seating o󰀨 all screws, nuts and other connec-

tions before using the machine for the rst time and at regular intervals (every 1-2 months) to ensure that the trainer is in a safe condition. Replace defective components immediately and/or keep the equipment put of the use until repair.

3. Set up the machine in a dry, level place and protect it from

moisture and water. Uneven parts of the oor must be compen- sated by suitable measures and by the provided adjustable parts of the machine if such are installed. Ensure that no contact occurs with moisture or water.

4. Place a suitable base (e.g. rubber mat, wooden board etc.)

beneath the machine if the area of the machine must be specially protected against indentations, dirt etc.

5. Leave at least 1 meter of free space around the treadmill at

the installation site and at least 2 meters to other objects such as furniture or walls.

6. Do not use aggressive cleaning agents to clean the machine

and employ only the supplied tools or suitable tools of your own to assemble the machine and for any necessary repairs. Remove drops of sweat from the machine immediately after nishing training.

7. Attention! Systems of the heart frequency supervision can be

inexact. Excessive training can lead to serious health damage or to the death. Consult a doctor before beginning a planned training programme. He can dene the maximum exertion (pulse, Watts, duration of training etc.) to which you may expose yourself and can give you precise information on the correct posture during training, the targets of your training and your diet. Never train after eating large meals.

8. Only train on the machine when it is in correct working

order. Use original spare parts only for any necessary repairs. Attention! Replace the worm parts immediately and keep this equipment out of use until repaired.

9. When setting the adjustable parts, observe the correct posi-

tion and the marked, maximum setting positions and ensure that the newly adjusted position is correctly secured. Please remove the tools you need to adjust after adjusting a new position.

10. Unless otherwise described in the instructions, the machine

must only be used for training by one person at a time. The exer- cise time should not overtake 75 min./daily.

11. Wear training clothes and shoes which are suitable for tness

training with the machine. Your clothes must be such that they cannot catch during training due to their shape (e.g. length). Your training shoes should be appropriate for the trainer, must support your feet rmly and must have non-slip soles.

12. Attention! If you notice a feeling of dizziness, sickness, chest

pain or other abnormal symptoms, stop training and consult a doctor.

13. Never forget that sports machines are not toys. They must

therefore only be used according to their purpose and by suitably informed and instructed persons.

14. People such as children, invalids and handicapped persons

should only use the machine in the presence of another person who can give aid and advice. Take suitable measures to ensure that children never use the machine without supervision.

15. Ensure that the person conducting training and other people

never move or hold any parts of their body into the vicinity of moving parts.

16. At the end of its life span this product is not allowed to

dispose over the normal household waste, but it must be given to an assembly point for the recycling of electric and electronic com- ponents. You may nd the symbol on the product, on the instruc- tions or on the packing. The materials are reusable in accordance with their marking. With the re-use, the material utilization or the protection of our environment. Please ask the local administration for the responsible disposal place.

17. To protect the environment, do not dispose of the packaging

materials, used batteries or parts of the machine as household waste. Put these in the appropriate collection bins or bring them to a suitable collection point.

18. The maximum permissible load (=body weight) is specied

as 120 kg. Evaluate your body weight before you starting the exercise.

19. If the power cord of this item is damaged, this must be re-

placed by the manufacturer or the customer service or with an electrically certied person.

20. Do not leave the product switched on or in operation unat-

tended and secure unintentional use by unplugging the power plug.

22. The assembly and operating instructions are part of the

product to look at. If the product is sold or passed on, this documentation must be included. Important recommendations and safety instructions Unpack and operation Fold up Transport and storage Maintenance and adjusting Computer manual Kinomap App Gesture control Error message codes General training instructions Parts List – Spare Parts List Exploded drawing

1. Check the correct installation and function of all screwed

and plug connections.

2. When everything is in order, connect the power supply

cable (2) with wall power (220-240V~50-60Hz) and switch socket (35). Switch on the main switch (35) below the front frame.

3. Put the safety key (71) onto the pulse grip and the

computer will show normal manual mode. Put the safety clip (71) at your exercising cloth and stand on the side rails (7+6). Press control knob and after a Count-Down 3-2-1 the tread- mill start moving. Start walking onto the walk surface (9) when speed is slowly and follow the speed. Familiarize yourself with the machine at a low speed settings.

4. Run in the middle of the running surface (9) and don’t step

on the side foot rails (7+6), Hold yourself tight at handle (59) if you feel insecure only run with look at the computer (81) on the treadmill during the running. In emergency case, step of the treadmill lateral and hold on to the handle (59).

CHECKS AND HOW TO START

Note: Please keep the tool set and the instructions in a safe place as these may be required for repairs or spare parts orders becoming necessary later.

1. Release the folding lever (52) on the right side of the tre-

2. Reach under the center of the computer (81) and carefully

lift it up to the upright position. Fix this position by tightening the folding lever (52) and make sure that the folding lever (52) is properly closed.

3. Open the handles (59) and x them by screwing in the han-

4. If desired, insert the tablet holder (76) into the computer

housing (81) and x it by screwing in the tablet holder screw (77). UNFOLD

1. Remove small parts, loose packing material out of the box

and then take out with help of a second person the treadmill of packaging. Put your hands below the main frame (19) and take care of no squeezing. UNPACK

UNPACK AND OPERATION

Before usage, observe our recommendations and safety instructions.

2. The treadmill can be stowed lying down or standing (on the mat and leaning against the wall).

3. Lift the treadmill until it moves freely on the transport wheels and push it to the storage location.

1. Remove the tablet holder (76) by unscrewing the fastening

screw (77) and taking out the tablet tray.

2. Unscrew the handle screws (85) a little so that the han-

dles (59) can be folded in (Attention! The handle screws do not have to be unscrewed completely from the support tubes). Fold in the handles (59) and x them by screwing in the handle screws (85) again.

3. Release the folding lever (52) on the right side of the tread-

4. Grip under the center of the computer (81) and carefully

5. Fix the lying position by tightening the folding lever (52)

and make sure that the folding lever (52) is properly closed. FOLD UP Note: Unplug the power cord if you do not intend to use the device for more than 4 weeks. Choose a dry storage location in the house. Cover the device to protect it from discoloration caused by possible sunlight and dust.

2. Lift the treadmill until it moves freely on

the transport wheels.

3. Push it until the treadmill touches the

4. Keep lifting it up and lean it against

the wall. Check if a stable storage posi- tion reached. Attention! Before folding up the treadmill, switch o󰀨 the tread- mill and wait until the running surface is stationary. Do not op- erate the treadmill when it is folded up!

Lubrication To ensure that the treadmill runs light and well over long term, the backside of running surface should always checked for lu- bricity and, if necessary, treated with silicone oil (no lubricant based on oil or petroleum). When using less than 3 hours / week, we recommend lubricating once a year, when using 3-4 hours / week, every six months and when using more than 5 hours / week, lubricate every three months. The lubrication takes place by the put in silicone oil into the maintenance opening. To do this, start the treadmill at a slow speed, remove the rubber plug (4), and dribble some silicone oil (approx. 5ml) into the opening (5). (Caution! Too much lubricant may cause the tread to slip.) Adjusting running belt You need to adjust the walking belt to the normal position, per the following steps if it is o󰀨. Set speed at 3-5km. Using the Allen key to adjust the belt tension bolt on the end cap of the system frame.

1. If you want to move the belt towards left, turn the right ten-

sion bolt clockwise.

2. If you want to move the belt towards right, turn the left ten-

sion bolt clockwise. If you have already done according to the steps above and it is still not at the good range, then the running belt should be damaged already, please contact your local dealer for replace- ment. Note: Make sure that the running surface is as centered as possible. Once these moves too far from the center, (about 10 mm) it should be readjusted into the center. Running belt slips a. The running surface is not properly tensioned. Slightly tight- en both screws on the end caps. b. Make sure the motor belt is not too loose. c. Remove excess lubricant with a cloth. No light on the Display - Check whether the plug is in the socket and whether the outlet has power. - Check that the main switch on the base frame is switched on and that the safety clip is correctly attached to the pulse grip. Attention! Always pull out the mains plug when checking the computer plug connections. Overload protection

1. Check whether the overload protection (32) has tripped. If

necessary, press the button.

2. The fuse compartment is located between the main switch

and the mains connection socket for the main connection (35). There is a microfuse 5x20mm with the data 8A/250V. Abnormal noise from the machine: - Check if any screw of machine is loose. - Check if the motor belt is in order. - Check if the running belt is in order. Note: You can nd further information in the error diagnosis. Adjustment of the folding lever In order to set the folding lever appropriately, there is the option of adjusting the preload with the tool for fold up mechanism (92) and allen tool (92) supplied. Attention! Do not unscrew the tension nut (46) completely. Remove the round cap (91) on the left side of the Treadmill to access the tension nut (46). Cleaning Use only a less wet cloth for cleaning. Attention! Never use benzene, thinner or other aggressive cleaning agents for surface cleaning as this damage caused. The device is only for private home use and for use suitable indoors. Keep the unit clean and moisture from the device.

Program selection mode: You can choose between the following programs by turning the control knob. [QUICK-START] Manual program [TARGET TIME] Time program [TARGET DISTANCE] Distance program [TARGET CALORIES] Calorie program [PROGRAM 1-16] Speed programs 1-16 The long press jumps the display in the selected program into [SET] mode. There you can set the target value. The training data are displayed alternately here. [Time] Shows how long you ran in minutes and seconds. [DISTANCE] Shows how far you have run in kilometers [CALORIES] Shows actually calories in kcal. [Program Diagrams] Shows only in programs 1-16. Bottom left display. Shows the set speed of the treadmill in kilometers per hour. Bottom right display. Shows the measured heart rate. (Only if you keep your hands on the heart rate sensors or use an optional heart rate belt.) [PAUSE] Shows that the training has been paused. [SLEEP] Shows that the treadmill is in sleep mode. [SAFE] Shows that the safety clip is not installed. CONTROL KNOB: Program selection mode: Program default mode: Training mode:20

1. Plug the mains plug into a properly installed socket (230V~50Hz) and switch on the main switch

(35) at the bottom front of the treadmill.

2. Stand on the side rails.

3. Put the safety clip on your training clothes (e.g. waisband) and in the corresponding holder on the

computer and the computer will show you the [QUICK-START] program and you are ready to start. [QUICK-START] Manual-Program: Press the control knob to start the treadmill. After a 3-second countdown, the running surface begins to move. Immediately after the belt starts up, step onto the treadmill and follow the set speed. Set the desired speed by turning the control knob. [TARGET-TIME] Time Program: Use the control knob to select the [TARGET-TIME] program, then the display ashes and a suggestion of 30:00 Min is shown. A long press on the control knob switches to the [SET] preset mode, where you can set the time by turning the control knob. (Default option 5:00-99.00 Min) Start the program after specifying the time with the control knob and the default value counts down to “0”. If this value is reached, a signal sounds and that treadmill stops. [TARGET-DISTANCE] Distance-Program: Use the control knob to select the [TARGET-DISTANCE] program, then the display ashes and a suggestion of 1,00 Km is shown. A long press on the control knob switches to the [SET] preset mode, where you can set the distance by turning the control knob. (Default option 0,5-65,0 Km) Start the program after specifying the distance with the control knob and the default value counts down to “0”. If this value is reached, a signal sounds and that treadmill stops. [TARGET-CALORIES] Calorie program: Use the control knob to select the [TARGET-CALORIES] program, then the display ashes and a suggestion of 50kcal is shown. A long press on the control knob switches to the [SET] preset mode, where you can set the calories by turning the control knob. (Default option 10-995 kcal.) Start the program after specifying the calories with the control knob and the default value counts down to “0”. If this value is reached, a signal sounds and that treadmill stops. PROGRAMMS Use the control knob to select the one of the exercise speed programs P01-P16. Each program is divided into 20 intervals of time and the speed changes as following program list shows. Initial setting time is 30 min, set a time for training session and press control knob to start the program. With next intervals of time the speed level will change back to program mode. If the program runs till end of time the motor will stop running after the display counts down time to zero. To stop the program, press the control knob. After 4 minutes, the treadmill will switch o󰀨 to [SLEEP]. [PROGRAM 1-16] Exercise programs P01-P16 Time. Programs in 20 time divisions Program

The safety clip (71) has an emergency function. In fear or danger or if you fall down or jumped from it, the safety clip (71) will lose position at computer and stops the motor with break system. Put the safety key out from computer on any status, the display is [SAFE], the buzzer beep each second. Put the safety key on computer, then the display will enter normal manual mode. All parameter reset to zero. SAFETY KEY APP CONNECTIVITY KINOMAP APP Sport, coaching, gaming and eSport are the keywords of the Kinomap app. This contains many kilometers of real lm ma- terial to exercise inside as if you were outside; Tracking routes and analysis of your performance; Coaching content; Multiplayer mode; new posts daily; O󰀩cial indoor races and more ... Download the app and connect Scan the adjacent QR code with your smartphone / tablet or use the search function at the Playstore (Android) or APP Store (IOS) to download the Kinomap APP. Register and follow the instruc- tions in the APP. Activate Bluetooth on the smartphone or tablet and select the device manager via the menu in the APP and then select the „Exercise bike“ category. Then select your type designation via the manufacturer logo „Christopeit Sport“ in order to connect the sports equipment. Depending on the sports equipment, di󰀨erent functions are recorded by the APP via Bluetooth or data is ex- changed. Attention! The Kinomap APP o󰀨ers a free trial version for 14 days. After that, fees will apply which are listed on the Kinomap homepage. Further information can be found at: https://www.kinomap.com/en/

Heart rate measurement using a heart rate belt: For reliable heart rate monitoring during training, we recom- mend wearing a suitable chest belt. The computer has a built- in receiver, so you can use a Bluetooth heart rate belt, such as the Christopeit Sport BT heart rate belt (item no.: 2209). If you moisten the heart rate belt a little before you put it on, the computer should record and display the heart rate data within 60 seconds. The range of the heart rate belts is 1 to 2 m depending on the model. Hand pulse measurement: The hand pulse sensors are located to the left and right of the safety clip. Please make sure that both palms always rest on the sensors at the same time with normal force. As soon as the pulse decreases, a value is shown in the pulse display. (The hand pulse measurement is only for orientation, since movement, friction, sweat, skin texture and blood circulation, etc. can lead to individual deviations from the actual pulse.) Note: If both pulse measurement methods are used at the same time, the hand pulse measurement has priority. Attention! Heart rate monitoring systems may be inaccurate. Excessive exercise can cause serious injury or death. If you feel dizzy or weak, stop training immediately. The pulse values are not suitable for medical purposes.

Start/Stop The treadmill also has the option of gesture control. The sensors are located on the left and right of the computer and are denoted by [-] and [+]. Moving around the sensor coverage area increase speed. Moving around the sensor coverage area decrease speed. Simultaneous actuation of the sensors starts or stops the treadmill. Attention! Depending on the incidence of light, the coverage area of the sensor can vary slightly. Familiarize yourself with the sensors by moving your hand toward, away from, and around the sensor in the coverage area. You will notice where the sensor reacts and where not. Stand on the sidebars. The normal sensor coverage area is ap- prox. 5-15 cm above the sensors. Run your hands over the two sensors. The treadmill should start after a 3 second countdown. Then move your right hand over the right [+] sensor. The speed increases as long as the hand is in the coverage area. When you remove your hand, the speed remains set. Then move your left hand over the left [-] sensor. The speed decreases as long as the hand is in the coverage area. When you remove your hand, the speed remains set. To stop the treadmill, place both hands over the sensors at the same time. The treadmill is stopped slowly. Stand on the tread. Follow the same steps to learn gesture controls while walking/ running. GESTURE CONTROL RIGHT SENSOR [+]

LEFT SENSOR [-] AND RIGHT SENSOR [+]

Increase the speed Start/Stop Decrease the speed23

Error message Potential reasons Solutions No display The controller is not powered on or is damaged

1. First of all, check whether the over-load protector has tripped o󰀨; if yes, press it.

2. Check the power supply switch, over-load protector and the controller’s power

cord and transformer to ensure well connection.

3. The transformer is damaged; replace the transformer.

Safe Safe lock falls down 1. Place back the safe lock.

2. Replace safe lock switch or magnetic sensor in the electronic meter; if the problem

still fails to be solved, replace the electronic meter. Error 1 Communication failure from the driver to the electronic meter

1. Check whether the connecting joint between the electronic meter and the core wire

of the controller is loose; whether wires are damaged; whether the core wires are in correct connecting order.

2. The transformer may be damaged. Check and replace a good one.

Error 3 No sensory signal 1. Check whether the photoelectric sensor directs to the hole on CD.

2. Check whether wires of photoelectric sensor are damaged and whether terminals

of the photoelectric sensor and speed terminals on the controller are rmly connect- ed. Error 4 Power supply abnor- mality Check whether the power supply voltage is less than 50% of the normal value; please ensure correct voltage and test again. Error 5 Self-inspection 1. Check whether motor signal wires are well inserted; re-insert the signal wire joint to ensure that it is reliable;

2. Replace the controller;

3. Check whether the power cords from the electronic meter to the controller are well

collected; dismantle the pillar to check connecting joints on each section of the wiring from the electronic meter to the controller; ensure that each wire core is well connected; or the reason may be the communication power cord defect (damaged or broke down); in such case, re-connect or replace wires. Error 6 Motor problem 1. Check whether motor wires are well connected; re-connect motor wires, or, if the problem still fails to be solved, replace the motor.

2. It may be the system’s self-protection against excessive current when the load

exceeds the rated value; restart the machine.

3. Some part of the treadmill is jammed so that the motor can not rotate, thus trigger-

ing the self-protection of the system against excessive current under excessive load; adjust the treadmill and restart it, or add lubricant.

4. Check whether there is over-current sound or burning odor when the motor is

ler. Error 7 Over-current protection Error 8 Motor cable problem Training area in mm (for home trainer and user) Free area in mm (Training area and security area (circulating 600mm))

In case of malfunctions may adjoining list of error messages help for people to get function back. Basically, electrical repairs only in compliance with the relevant safety rules which exists. For more information and assistance in case of malfunctions with our service department (contact details see last page.) Notice: If you cannot nd the error message, contact the seller or manufacturer.24

You must consider the following factors in determining the amount of training e󰀨ort required in order to attain tangible physical and health benets. INTENSITY The level of physical exertion during training must exceed the point of normal exertion, without going beyond the point of breathlessness and/or exhaustion. A suitable reference value can be the pulse. With each training session, the condition increases and therefore the training requirements should be adjusted. This is possible by extending the duration of the training, increasing the level of di󰀩culty or changing the type of training. FREQUENCY Most experts recommend the combination of a health-conscious diet, which must be adjusted according to the training goal, and physical exer- cise three to ve times a week. A normal adult needs twice a week exer- cise to maintain its current condition. To improve his condition and change his body weight, he needs at least three training sessions per week. Ideal of course is a frequency of ve training sessions per week. TRAINING PLAN Each training session should consist of three training phases: „warmup phase“, „training phase“ and „cool-down phase“. In the „warm-up phase“ the body temperature and the oxygen supply should be increased slowly. This is possible through gymnastic exercises over a period of ve to ten minutes. After that you start with actual training “training phase”. The training load should be adapted according to the training heart rate. In order to support the circulation after the training phase and to preventaching or strained muscles later, it is necessary to follow the training phase with a cool-down phase. This should be consist of stretching exercises and/ or light gymnastic exercises for a period of ve to ten minutes.

To determine the training heart rate, you can proceed as follows. Please note that these are guide values. If you have health problems or are unsure, consult a doctor or tness trainer. Sample calculation Male, 30 years old and weighs 80 kg. I am a beginner and would like to lose some weight and increase my endurance. 01: Maximum pulse - calculation Maximum heart rate = 214 - (0.5 x age) - (0.11 x body weight) Maximum heart rate = 214 - (0.5 x 30) - (0.11 x 80) Maximum pulse = approx. 190 beats/min After you have set your training heart rate for your training condition or Once you have identied goals, you can start training. Most of our endurance training equipment have heart rate sensors or are heart rate belt compatible. So you can check your heart rate on the monitor during the workouts. If the pulse rate is not shown on the computer display or you want to be on the safe side and want to check your pulse rate, which could be incor- rectly displayed due to possible application errors or similar, you can use the following tools: a. Pulse measurement in the conventional way (sensing the pulse beat, e.g. on the wrist and counting the beats within a minute). b. Heart rate measurement with suitable and calibrated heart rate measuring devices (available from medical supply stores). c. Heart rate measurement with other products such as heart rate moni- tors, smartphones.... 01 Maximum heart rate calculation The maximum pulse value can be determined in many di󰀨erent ways, since the maximum pulse depends on many factors. You can use the main-formula for the calculation (maximum heart rate = 220 - age). This formula is very general. It is used in many home sport products to determine the maximum heart rate. We recommend the Sally-Edwards-formula. This formula calculates the maximum heart rate more precisely and takes gender, age and body weight into account. Sally-Edwards-formula: Men: Maximum heart rate = 214 - (0.5 x age) - (0.11 x body weight) Women: Maximum heart rate = 210 - (0.5 x age) - (0.11 x body weight) 02 Training heart rate calculation The optimal training heart rate is determined by the goal of the training. Training zones were dened for this. Health - Zone: Regeneration and Compensation Suitable for: Beginners Type of training: very light cardio training Goal: recovery and health promotion. Building the basic condition. Training heart rate = 50 to 60% of the maximum heart rate Fat-Metabolism - Zone: Basics endurance training 1 Suitable for: beginners and advanced users Type of training: light cardio training Goal: activation of fat metabolism (calorie burning). improvement in endurance performance. Training heart rate = 60 to 70% of the maximum heart rate Aerobic - Zone: Basics endurance training 1 to 2 Suitable for: beginners and advanced Type of training: moderate cardio training. Goal: Activation of the fat metabolism (calorie burning), improving aerobic performance, Increase in endurance performance. Training heart rate = 70 to 80% of the maximum heart rate Anaerobic - Zone: Basics endurance training 2 Suitable for: advanced and competitive athletes Type of training: moderate endurance training or interval training Goal: improvement of lactate tolerance, maximum increase in perfor- mance. Training heart rate = 80 to 90% of the maximum heart rate Competition - Zone: Performance / Competition Training Suitable for: athletes and high-performance athletes Type of training: intensive interval training and competition training / Goal: improvement of maximum speed and power. Attention! Training in this area can lead to overloading of the cardio- vascular system and damage to health. Training heart rate = 90 to 100% of the maximum heart rate

GENERAL TRAINING INSTRUCTIONS

Example - stretching exercises for the warm-up and cool-down phases Start your warm up by walking on the spot for at least 3 minutes and then perform the following gymnastic exercises to the body for the training phase to prepare accordingly. The exercises do not overdo it and only as far run until a slight drag felt. This position will hold a while. Reach with your left hand behind your head to the right shoulder and pull with the right hand slightly to the left elbow. After 20sec. switch arm. Bend forward as far forward as possible and let your legs almost stretched. Show it with your ngers in the direction of toe. 2 x 20sec. Sit down with one leg stretched out on the oor and bend forward and try to reach the foot with your hands. 2 x 20sec. Kneel in a wide lunge forward and support yourself with your hands on the oor. Press the pelvis down. Change after 20 sec leg. MOTIVATION The key to a successful program is regular training. You should set a xed time and place for each day of training and prepare yourself mentally for the training. Only train when you are in the mood for it and always have your goalin view. With continuous training you will be able to see how you are progressing day by day and are approaching your personal training goal bit by bit. 02: Training heart rate calculation Due to my goals and training level, the fat metabolism zone suits me best. Training heart rate = 60 to 70% of the maximum heart rate Training heart rate = 190 x 0.6 [60%] Training heart rate = approx. 114 beats/min25

• 1 Quick-Start program and 3 program with targets of time, distance and calories

• 16 installed programs with di󰀨erent speed

• Gesture control for Start/Stop and speed adjustment

• Heart rate measurement via Bluetooth pulse belt or hand pulse measurement

• Vibration absorbing running surface

• Flat foldable with a height of only 22 cm

• Modern display showing: time, distance, speed, approx. calo- ries and heart rate TM 2400S

• Computers with Bluetooth connection for KINOMAP (APP for iOS and Android)

• Holder for Tablet and Smartphone

• Transport rollers for an easy and comfortable moving to lo- cation

• Mat for wall storage

Type: Order-Nr.: Date of technical data: Dimensions approx: [cm]: Dimensions folded approx. [cm]: Weight approx. [kg]: Load max. (User weight) [kg]: Electrical data: Space requirements [m

Please contact us if any components are defective or missing, or if you need any spare parts or replacements in future. This product is created only for private Home sports activity and not allowed to us in a commercial or professional area. Home Sport use class H/C. FEATURES NOTE
