Product Type	Cordless Chainsaw
Brand	Greencut
Model	GS560L
Battery Voltage	56 V DC
Battery Type	Lithium-ion
Chain Idle Speed	19.0 m/s
Guide Bar Length	406 mm (16")
Usable Cutting Length	300 mm (12")
Chain Pitch	9.525 mm (0.375")
Number of Drive Links	57
Chain Brake	< 2 s
Oil Tank Capacity	170 ml
Sound Pressure Level (LpA)	93.6 dB(A)
Sound Power Level (LWA)	96 dB(A)
Total Vibrations	2.1 m/s²
Power Supply	56 V lithium-ion battery compatible with BT562L, BT564L, BT560L
Maintenance and Cleaning	Cleaning after each use, daily check of chain tension and lubrication, regular sharpening
Safety	Chain brake, safety trigger, kickback protection, emergency stop
Spare Parts and Repairability	Genuine Greencut parts, official technical service

Frequently Asked Questions - GS560L Greencut

How to start the GS560L chainsaw?

Make sure the battery is charged and installed. Pull the chain brake lever towards the front handle until you hear a click. Press the trigger lock then pull the trigger. Release the lock after starting.

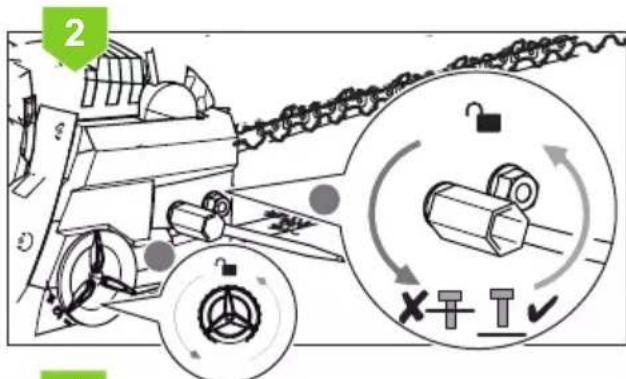

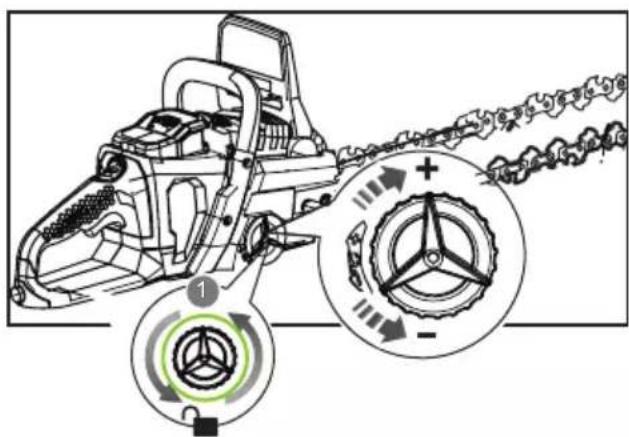

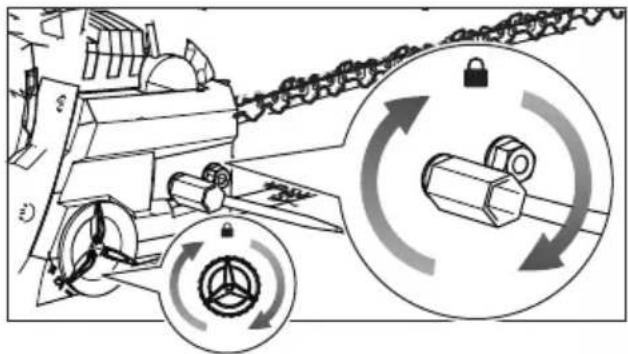

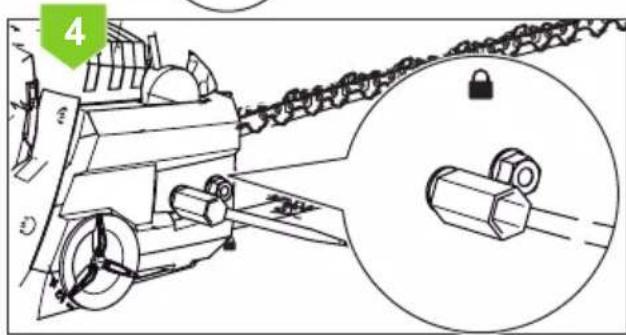

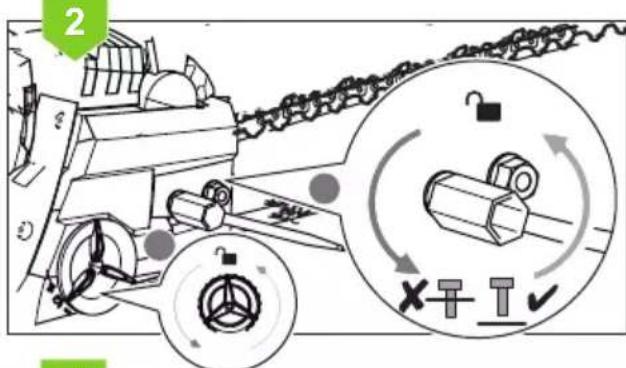

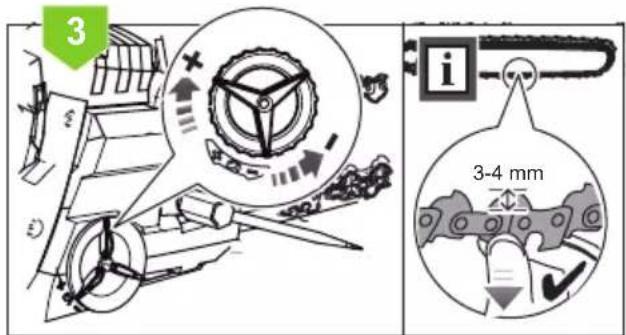

How to adjust chain tension?

Loosen the tensioner knob slightly. Turn the adjustment ring clockwise to increase tension, counterclockwise to decrease. Tension is correct when the gap between the chain and bar is 3 to 4 mm. Retighten the knob.

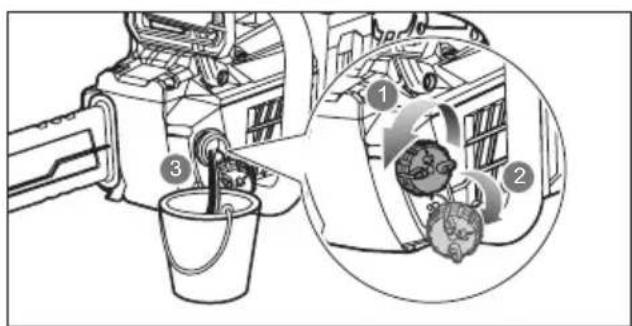

What oil to use for the chain?

Use a special chainsaw bar and chain oil. Never work without lubricant to avoid damaging the bar and chain.

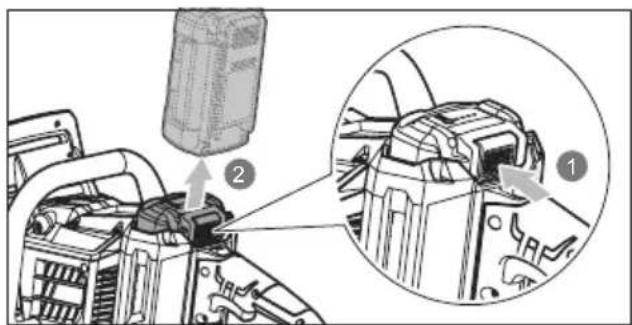

How to recharge the battery?

Use the CBT560L charger. Plug the charger into a wall outlet, then insert the battery. Ambient temperature must be between 0°C and 40°C. Do not charge outdoors.

What are the essential safety precautions?

Always wear protective equipment: helmet, goggles, hearing protection, gloves, cut-resistant trousers, and safety boots. Hold the saw with both hands. Keep people and animals at least 15 m away. Never cut above shoulder height.

What regular maintenance should be done?

Before each use: check chain tension, oil level, chain condition and chain brake operation. After each use: clean the saw. Every 5 hours: clean the chain brake mechanism.

What to do if the chain brake does not work?

If the chain brake does not stop the chain immediately or does not stay in the activated position, stop the machine and contact the official technical service. Do not use the saw until the brake is repaired.

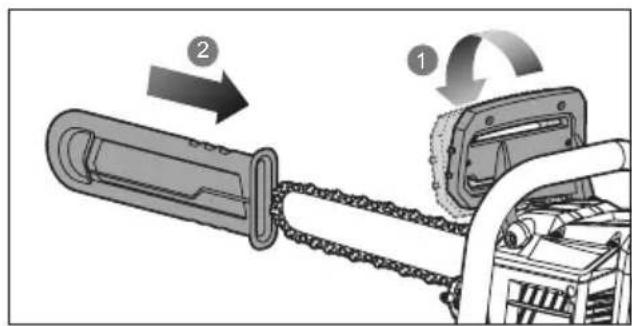

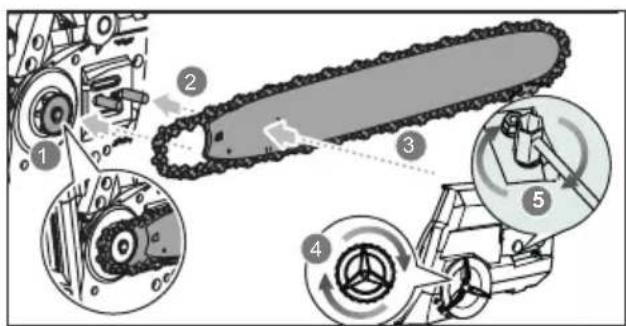

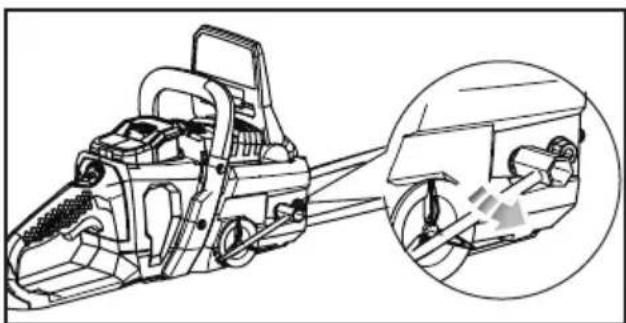

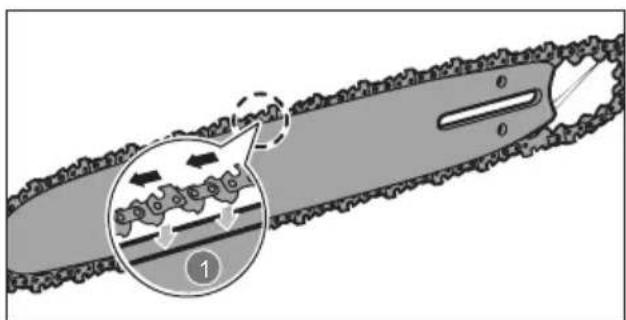

How to replace the guide bar and chain?

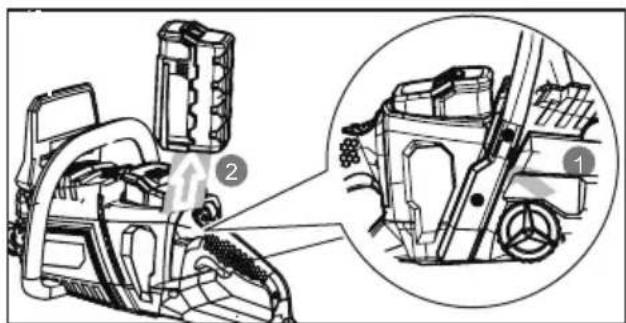

Remove the battery. Loosen the tensioner knob, remove the sprocket cover, then the old bar and chain. Mount the tension assembly on the new bar, place the chain in the groove and around the sprocket. Replace the cover and adjust tension.

How to store the saw safely?

Remove the battery. Clean the saw and cover the guide bar with its guard. Store in a dry, cool place away from children. Do not store the battery in humid or extreme temperatures. Recharge it every 3 months.

What is the warranty period?

The warranty is 2 years for all of Europe, provided you present the purchase receipt. It covers manufacturing defects, but not normal wear or damage from misuse. Repairs must be carried out by the official technical service.

USER MANUAL GS560L Greencut

Line drawing of a chainsaw with visible blade and handle (no text or symbols)

GS560L

ES

Technical line drawing of a car interior and its external components, showing front and side views (no text or symbols)

x1

x 1

x 1

Simple line drawing of a chain with no text or symbols

Technical diagram of a mechanical assembly with labeled parts and an inset view showing a gear mechanism.

Technical line drawing of a mechanical device with an inset close-up showing a component being inserted (no text or symbols present)

Diagram illustrating a chain-linking mechanism with labeled components and directional arrows indicating cycle or motion.

Diagram of a chain drive mechanism with gear mesh and labeled components (no text or symbols)

Diagram illustrating a mechanical assembly with labeled components including chain tracks, gear bodies, and wheel mechanisms.

Technical diagram showing mechanical assembly with gear and motor components, including a magnified view of the 3-4 mm component.

Technical diagram illustrating mechanical assembly and lock mechanism with labeled components and directional arrows

Technical diagram showing car interior components with numbered annotations and a magnified inset view of the engine compartment.

2 X T T ↓

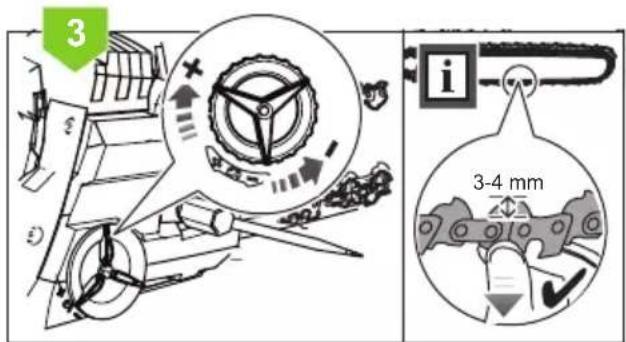

3 i 3-4 mm

Technical line drawing of a mechanical device with a close-up inset showing a lock and gear mechanism (no text or symbols)

USO DEL PRODUCTO

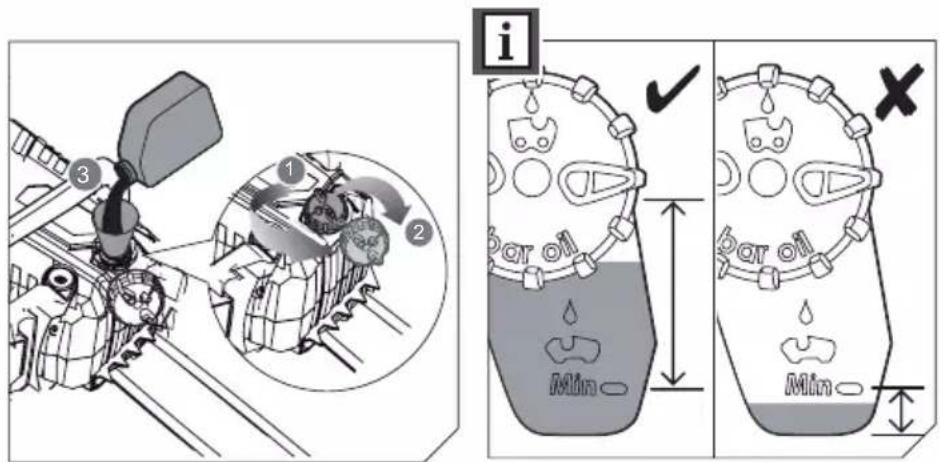

PONER ACEITE LUBRICANTE DE CADENA

Diagram illustrating a mechanical device with labeled parts and a minimum oil level indicator, showing step-by-step assembly and inspection.

Technical illustration of a mechanical device with a magnified inset showing a close-up of the component (no text or symbols present)

CÓMO SUJETAR LA MOTOSIERRA

Technical diagram of a chain-link robotic device with numbered components and directional arrows indicating motion or assembly.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating assembly steps

Diagram illustrating a chain drive mechanism with labeled components and directional arrows indicating motion.

Technical diagram showing a mechanical assembly with labeled parts and an inset close-up of a component detail.

Diagram showing two mechanical devices with arrows indicating motion or assembly (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

x 1

x 1

x 1

x 1

Simple line drawing of a chain-like shape with no text or symbols

x 1

Technical diagram of a mechanical assembly with labeled parts and an inset view showing a gear mechanism.

Technical line drawing of a mechanical device with an inset close-up showing a component being inserted (no text or symbols present)

Diagram illustrating a chain-linking mechanism with labeled components and directional arrows indicating cycle or motion.

Diagram of a chain drive mechanism with gear mesh and labeled components (no text or symbols)

Diagram illustrating a mechanical assembly with labeled components including chain tracks, gear wheels, and wheel hub mechanisms.

Technical diagram showing mechanical assembly with gear and motor components, including a magnified view of the 3-4 mm component.

Technical illustration of a mechanical assembly with gear and pulley components, showing directional arrows and lock symbols (no text or labels)

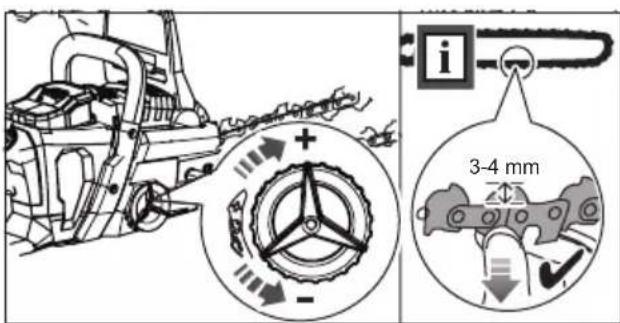

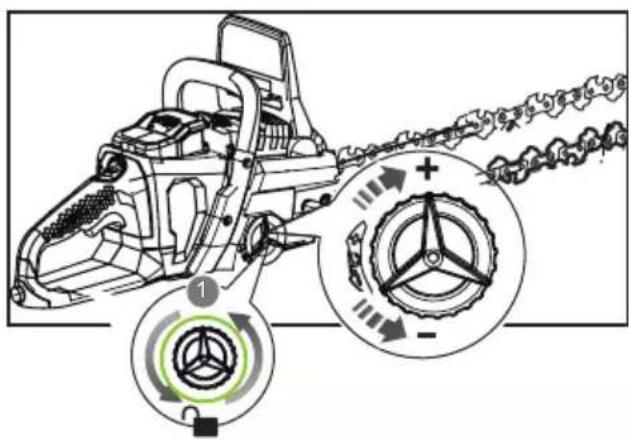

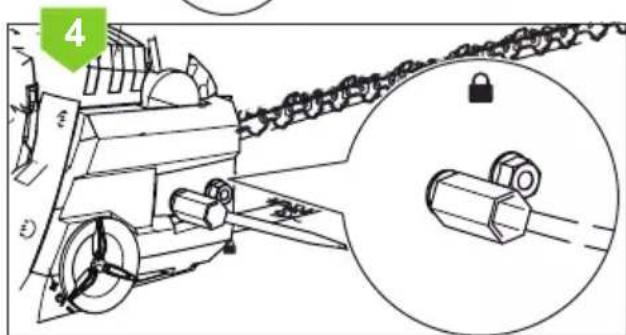

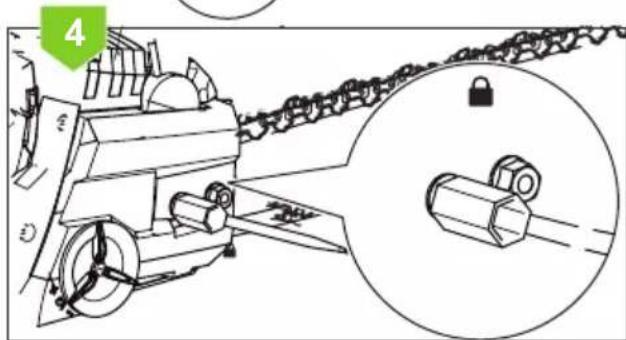

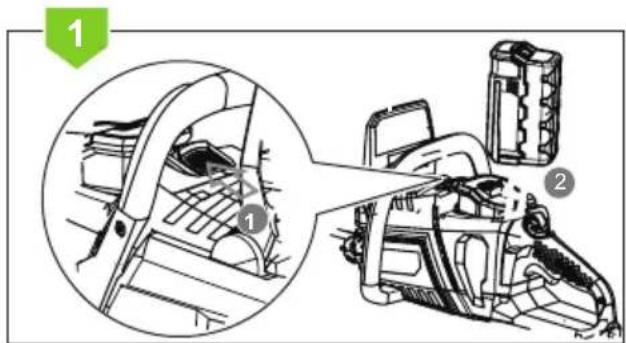

RÉGLAGE DE LA TENSION DE LA CHAÎNE

Technical diagram showing a mechanical assembly with labeled parts, including a magnified inset of the component.

2 X T T ↓

3 i 3-4 mm

Technical line drawing of a mechanical device with a close-up inset showing a lock and gear mechanism (no text or symbols)

USAGE DU PRODUIT

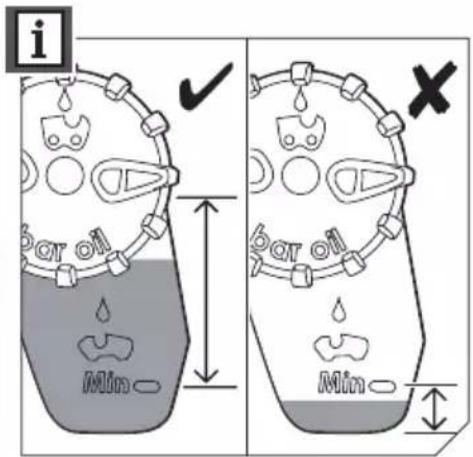

METTRE DANS L'HUILE DE LUBRIFICATION DE LA CHAÎNE

Technical diagram showing mechanical assembly with numbered components and a magnified inset highlighting a specific section.

i bar oil Min bar oil Min

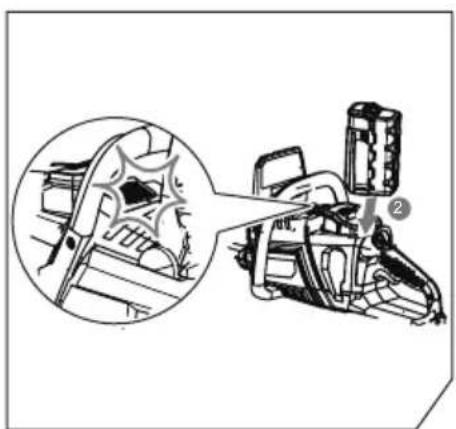

INSTALLATION DES PILES

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols visible)

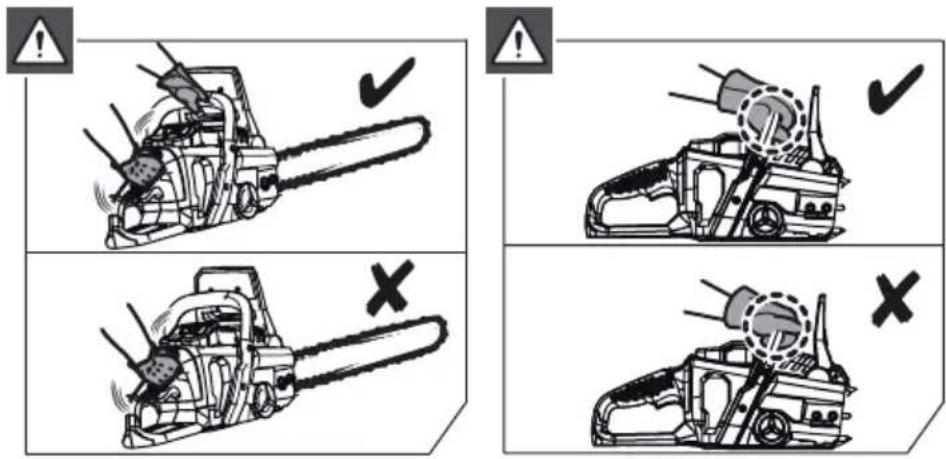

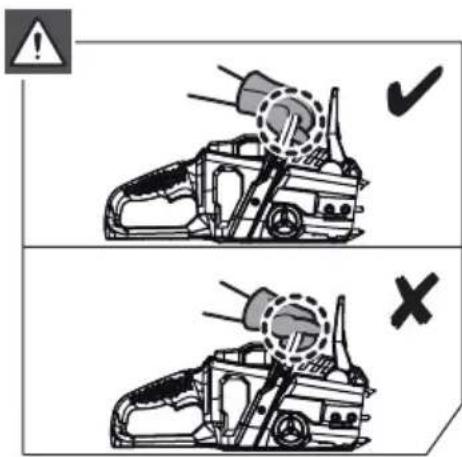

COMMENT FIXER LA TRONÇONNEUSE

Diagram showing two scenarios of a chain Gross with warning symbols and checkmark indicators

Diagram showing two scenarios of a mechanical device with checkmark and cross symbols indicating failure or rejection conditions.

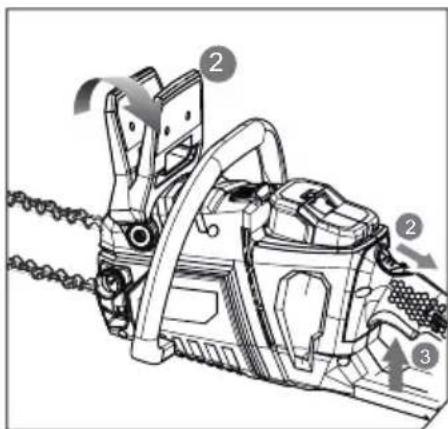

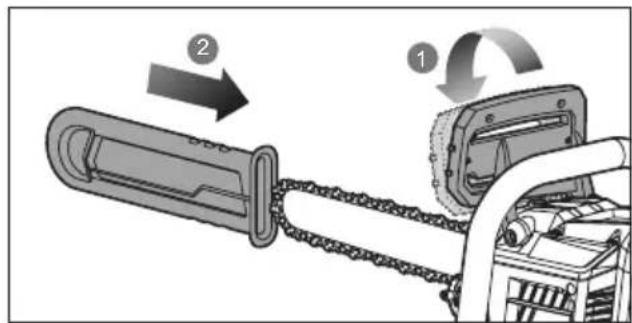

DÉMARRER LA TRONÇONNEUSE

Technical diagram of a chain-linking device with numbered components and directional arrows indicating motion or assembly.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating assembly steps

Diagram illustrating a chain drive mechanism with labeled components and directional arrows indicating motion.

Technical diagram showing a mechanical device with labeled parts and an inset close-up of internal components, likely illustrating a mechanical or electrical assembly.

Diagram showing two mechanical devices with downward arrows indicating motion, next to a cabinet interior (no text or symbols)

ÉLIMINATION ET RECYCLAGE

Technical line drawing of a car chassis frame with no visible text or symbols

x 1

x1

x 1

Simple line drawing of a chain with no text or symbols

x 1

Technical diagram of a mechanical assembly with labeled parts and an inset showing a gear mechanism detail.

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Diagram illustrating a chain-linking mechanism with labeled components and directional arrows indicating cycle or process flow.

Diagram of a chain drive mechanism with gear mesh and labeled component (no text or symbols)

Diagram illustrating a mechanical assembly with labeled components and motion directions, including chain tracks and wheel mechanisms.

Technical diagram showing mechanical assembly with gear and motor components, including a magnified view of a 3-4 mm component.

Technical diagram illustrating a mechanical assembly with gear and lock mechanism, including labeled components and directional arrows.

Technical diagram showing a mechanical assembly with labeled parts, including a magnified inset view of the component.

2 X T T ↓

3 i 3-4 mm

Technical line drawing of a mechanical device with chain and lock components, showing no text or symbols

USO DEL PRODOTTO

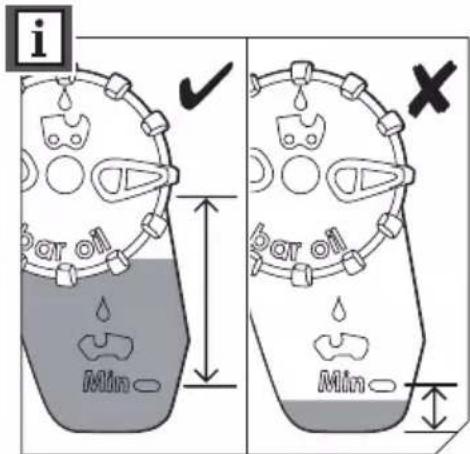

METTERE IN CATENA L'OLIO LUBRIFICANTE

Technical diagram showing mechanical assembly with numbered components and a magnified inset highlighting a specific component.

i bar oil Min bar oil Min

Technical diagram of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

COME FISSARE LA MOTOSEGA

Technical diagram of a chain-linking device with numbered components and directional arrows indicating motion or assembly.

Technical diagram showing mechanical assembly with labeled parts and magnified detail view

Diagram illustrating a chain drive mechanism with labeled components and directional arrows indicating motion.

Technical diagram showing a mechanical assembly with numbered components and an inset close-up of a component with labeled parts 1 and 2.

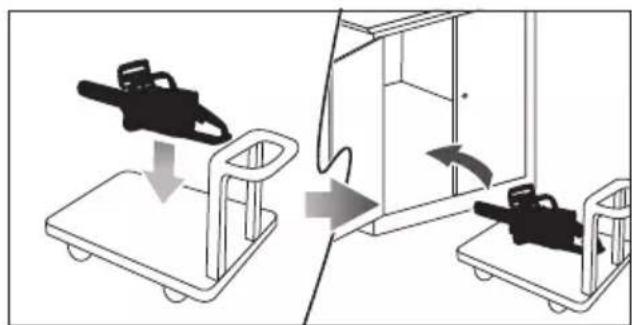

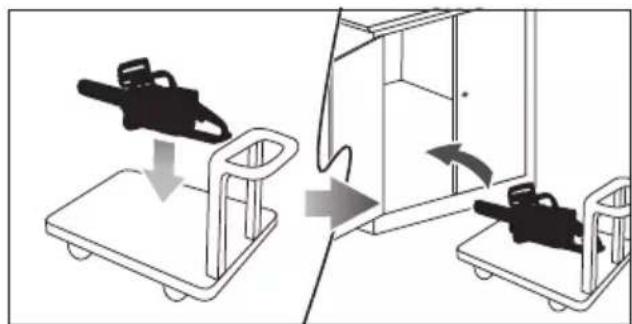

Illustration showing a mechanical device being processed from a cart to a cabinet, with no visible text or symbols.

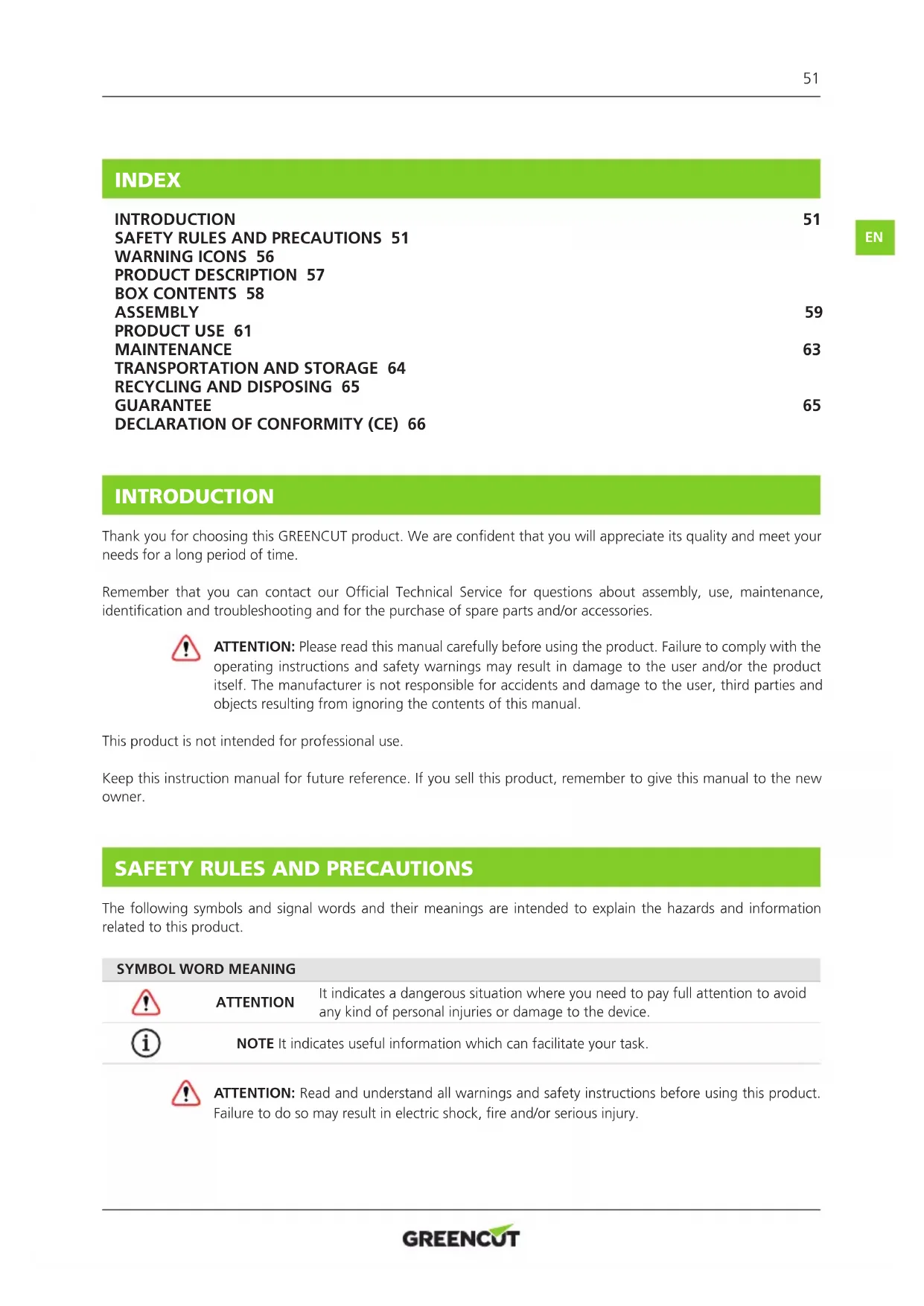

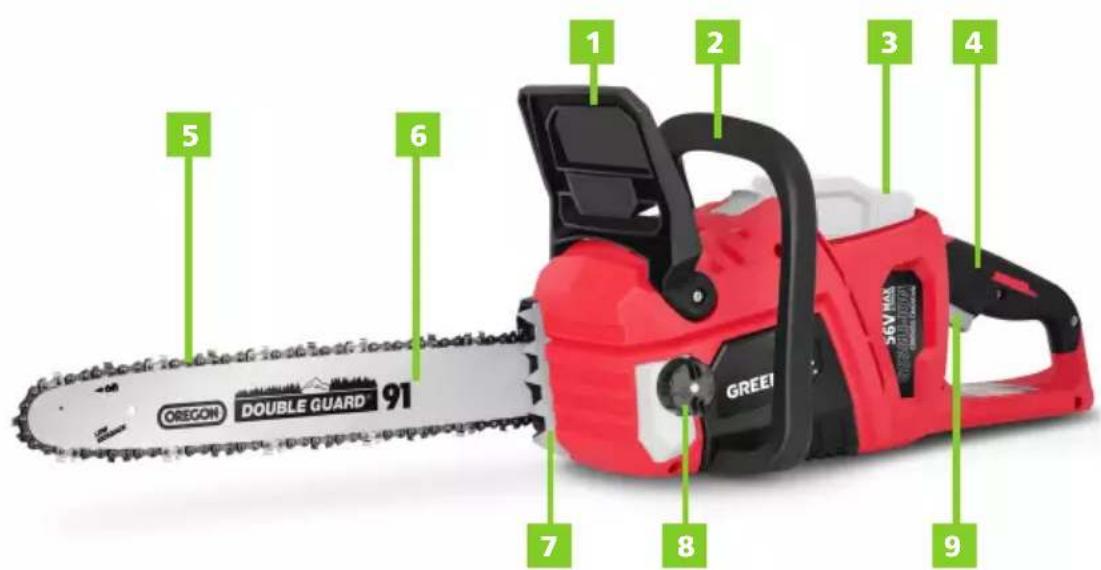

PRODUCT DESCRIPTION 57

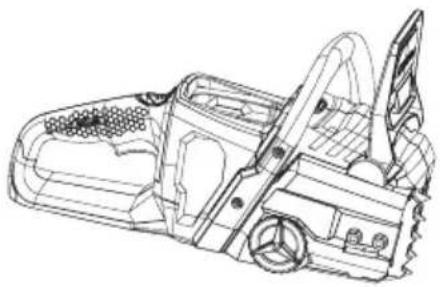

BOX CONTENTS 58

ASSEMBLY 59

PRODUCT USE 61

MAINTENANCE 63

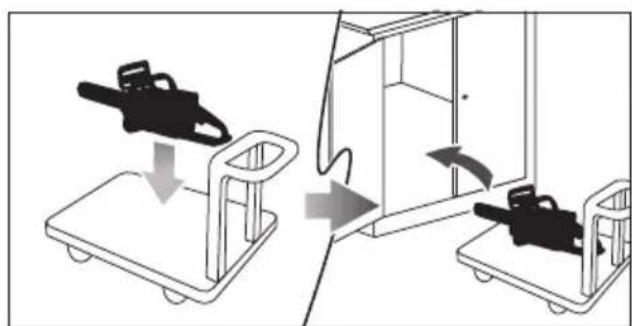

TRANSPORTATION AND STORAGE 64

RECYCLING AND DISPOSING 65

GUARANTEE 65

DECLARATION OF CONFORMITY (CE) 66

INTRODUCTION

Thank you for choosing this GREENCUT product. We are confident that you will appreciate its quality and meet your needs for a long period of time.

Remember that you can contact our Official Technical Service for questions about assembly, use, maintenance, identification and troubleshooting and for the purchase of spare parts and/or accessories.

ATTENTION: Please read this manual carefully before using the product. Failure to comply with the operating instructions and safety warnings may result in damage to the user and/or the product itself. The manufacturer is not responsible for accidents and damage to the user, third parties and objects resulting from ignoring the contents of this manual.

This product is not intended for professional use.

Keep this instruction manual for future reference. If you sell this product, remember to give this manual to the new owner.

SAFETY RULES AND PRECAUTIONS

The following symbols and signal words and their meanings are intended to explain the hazards and information related to this product.

SYMBOL WORD MEANING

ATTENTION

It indicates a dangerous situation where you need to pay full attention to avoid any kind of personal injuries or damage to the device.

NOTE It indicates useful information which can facilitate your task.

ATTENTION: Read and understand all warnings and safety instructions before using this product. Failure to do so may result in electric shock, fire and/or serious injury.

All information included in this manual is relevant to your own safety and that of your environment. If you have any questions about the information included in this manual, consult a professional or contact the Official GREENCUT Technical Service.

The following information on hazards and precautions includes the most probable situations that may arise during the use of this machine. Consult all the documentation, packaging and product labels before using it.

If you encounter a situation not described in this manual use common sense to use the machine as safely as possible and, if you see danger, do not use the machine.

USERS

• This machine has been designed to be manipulated only by users of legal age who have read and understood these instructions.
• Familiarize yourself with this machine before using it. Make sure you know the controls and safety devices and how they should be used.
• If you are an inexperienced user, we recommend that you do some practice doing simple jobs and, if possible, in the company of an experienced person.

PERSONAL SAFETY

• Use this machine, accessories, tools, etc. in accordance with these instructions and in the manner provided, taking into account the working conditions and the work to be performed.
• Be alert, watch what you are doing and use common sense when operating this machine. Never use the machine with defective protections or without safety devices.
• Do not modify the controls of this machine.
• Do not use this machine if any of its components are damaged.
• Do not use this machine when you are tired or under the influence of drugs, alcohol, or medication.
• Remove all keys or tools from the work area before starting this machine. A nearby key or tool may be touched and projected causing personal injury.
• Always maintain proper foot support and operate the machine only when it is on a fixed, secure, level surface. Sliding or unstable surfaces can cause a loss of balance or control of the machine.
• When operating from heights, never work on a ladder, tree, or unsafe support and never operate with one hand.
• Keep all body parts away from cutting elements and moving parts when the machine is running. Before starting the machine, make sure that the cutting element is not in contact with any objects. A moment of carelessness during operation may cause your clothing or body part to be cut by the cutting element.
• Always hold the saw with your right hand on the rear handle and your left hand on the front handle. Holding the saw with your hands upside down increases the risk of an accident and should never be done.
• Check the condition of the tree to prevent dry branches from falling on it while you cut. When cutting a branch that is under tension, be alert to the risk of elastic return. When the tension of the wood fibres is released, the branch, under a spring effect, can hit the operator and/or project the saw out of control.
• Use extreme caution when cutting weeds and young shrubs. Fine materials can trap the saw chain and be projected onto you, or cause you to lose your balance under the effect of traction.
• If you are an inexperienced user we recommend that you do a minimal amount of practice cutting logs on a sawhorse or sawing fork.
• Do not leave this machine unattended during operation. If you have to leave the machine unattended, turn it off completely.
• Do not attempt to remove the cut material from the cutting tool when it is moving. Make sure that the machine is switched off when cleaning up debris.
• Never pick up the machine by the cutting tool. Cutting tools have sharp edges that can hurt you.

WORKWEAR

- Dress appropriately. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothing, jewelry or long hair can be picked up by moving parts.

-Eye protection (safety glasses/mesh/methacrylate screens).
-Hearing protection (earmuffs/earplugs).
-Head and face protection (helmet and mask).
-Hand protection (gloves/mitons).
-Leg protection (trousers/pants).
-Foot protection (safety boots).

- Adequate protective clothing will reduce bodily hazards caused by projected debris or accidental contact with the saw chain.

VIBRATIONS

- A high level of vibration and long periods of exposure are the factors contributing to white finger disease (Raynaud's phenomenon). In order to reduce the risk of white finger disease, you need to be aware of these recommendations:

-Always wear gloves.
-Worry about always keeping your hands warm.
-Make sure that the chain is always sharp.
-Take frequent breaks.
-Always hold the machine firmly by the handles.

- If you notice any of the symptoms of white finger disease, see your doctor immediately.

WORK AREA SAFETY

• Do not use this machine in explosive atmospheres in the presence of flammable liquids, gases and dust.
• Do not start the machine in a closed room or enclosure. Exhaust gases and fuel vapors contain carbon monoxide and hazardous chemicals.
• The area within a 15-metre radius around the machine must be regarded as a danger zone which must not be entered by anyone while the machine is running (safety zone). When necessary, use ropes and warning signs to mark the safety zone. Keep children and curious persons away while operating this machine. Distractions can cause you to lose control.
• When the work must be performed simultaneously by two or more people, always check the presence and location of the others in order to maintain a sufficient distance between each person to ensure safety.
• Keep the work area clean and work in good lighting. Only use this machine in daylight or with good artificial lighting.
• Remember that the machine operator is responsible for hazards and accidents caused to other people or things. The manufacturer is in no way liable for damage caused by improper or incorrect use of this machine.

MAINTENANCE, TRANSPORTATION AND STORAGE SAFETY

• Carry out maintenance on the machine. We recommend that maintenance and repairs not described in this manual be performed by an Official Service Facility.
• Check that moving parts are not misaligned or jammed, that there are no broken parts or other conditions that could affect the operation of the machine. Whenever it is damaged, repair it before use.
• Keep the handles dry and clean. Dirty handles can cause a loss of control.
• Keep cutting instruments sharp and clean.
• Avoid accidental starting of the machine. Make sure that the switch is in the "off" position before picking up or transporting this machine. Transporting electrical machines with the switch in the "on" position can endanger their safety and lead to accidents.
• When transporting, hold the chainsaw by the front handle with the machine off, the chain and sword covered with the cover and at a distance from the body parts. When storing the chainsaw, always cover the sword with the cover.

- Disconnect the battery from the machine before making any adjustments, cleaning or storing this machine.

- Store the product with the battery disconnected out of the reach of children.

UNINVITED REACTIONS WHILE OPERATING WITH THE CHAINSAW

- Always be careful when cutting with the chainsaw and be aware of any unexpected reaction forces. There are three unforeseen reaction forces that occur on a chainsaw: rebound, forward pull and recoil.

REBOUND

- If an object is touched with the cutting chain in the area of the tip of the sword while it is running. Contact of the chain on the tip of the sword can cause an unforeseen reaction force that can push the tip of the sword upwards generating a rotating movement that can cause the chain's sword to collide with the user. This reaction can result in loss of control of the machine and severe personal injury.

PULL FORWARD

- When the chain stops abruptly when it is caught in the cutting area by a foreign body in the wood or because it is not cut properly. The chain, when stopped, pushes the saw forward and, if it is not correctly held against the branch or tree by the claw, it causes an unexpected pull that can cause loss of control and severe personal injury.

- To avoid this "pull forward", start cutting at full throttle and always keep the machine at full throttle during cutting and support the saw's claw against the wood to be cut.

REGRESSION

- Backdown can occur if the sword touches an object or when the wood is closed and the chain is stuck in the cut. The tip contact in some cases can cause an extremely fast reverse reaction, moving the sword upwards and towards the user. If the chain is locked in a position on the top edge of the sword, it can be pushed towards the user. In either case, the user may lose control of the machine and be seriously injured.

- Any of these reactions can cause you to lose control of the saw that could result in a serious personal injury.

- These reaction forces are the result of misuse of the tool and/or improper procedures or operating conditions and can be avoided by taking the appropriate precautions specified below:

- Hold the saw firmly with both hands and with both thumbs and fingers around the saw handles and position your body and arms to allow it to withstand unexpected forces.

- Do not extend your arms too far and do not cut above shoulder height.

-Always be aware of where the tip of the chain sword is.

-Make sure that the tip of the sword does not touch anything.

-Do not cut branches with the tip of the sword.

- Make sure there are no nails or pieces of metal in the cutting area and pay special attention to nails or pieces of iron that may be around the cutting area. Also be careful when cutting hardwood where the chain may become caught and blocked and therefore cause rebound.

- Start at full throttle and always keep the machine at full throttle during cutting.

-Cut a single branch or piece of wood at a time.

- Use caution when inserting the saw chain into an already started cut to continue.

- Do not cut with the chainsaw until you are familiar with the cutting technique.

- Do not cut into branches or pieces of wood that may change position during cutting.

-Keep the chain in good condition.

- Work only if the chain is well sharpened and correctly tensioned.

- Never stand on the cutting plane of the chainsaw.

- Use only replacement swords and chains specified by the manufacturer. Incorrectly replaced swords and chains can cause a chain break and/or recoil.

- Follow the manufacturer's instructions for sharpening and maintaining the saw chain.

ELECTRICAL SAFETY

• Never modify the plug in any way. Unchanged pins and matching bases will reduce the risk of electric shock. If any damage is discovered, send your machine to the Official Technical Service.
• Do not open or attempt to repair the battery or battery charger.
• Protect the battery and charger from moisture. Keep the battery away from extreme heat and cold.
• Only charge the battery at an ambient temperature (surrounding air) between 0^ and 40^ .
• Do not use the cable to carry, lift or unplug the charger. Keep the cable away from heat, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
• Do not operate the battery charger outdoors.
• When not in use or before cleaning and repairing, disconnect the charger from the power supply. Take special care with the battery.
• Store the battery in a dry place between 10^ and 30^ when not in use.
• This battery is sealed and must never leak liquid. If the seal becomes damaged and the liquid touches your skin quickly, wash with plenty of soap and water, neutralize the liquid with a weak acid such as lemon or vinegar and go to your medical center urgently. If liquid from the battery touches your eyes, flush them thoroughly with water for 10 minutes and call for immediate medical attention.
• The battery should be recharged when it does not produce enough power in the work that was easily done before. Do not continue to use the product with its battery depleted.
• The battery is not fully charged at the factory, before attempting to use it, fully charge it first.

SERVICE

- Have the product checked regularly by a qualified technician and use only original replacement parts. If you have any questions, please contact the Official Technical Service.

WARNING ICONS

The icons on the warning labels on this machine and/or in the manual indicate information necessary for the safe use of this machine.

Attention! Danger!

Keep unprotected people away and at a safe distance from the work area.

Read this manual carefully before starting or using the machine.

Keep children away from this machine.

Wear a helmet.

To prevent serious injury, do not touch cutting blades.

Wear eye and ear protection.

Do not expose to rain or damp conditions.

Wear a face mask to protect against dust, steam and other toxic fumes.

Before performing maintenance or repair work on the machine, turn it off and remove the battery.

Use resistant and anti-slippery gloves.

Guaranteed sound power level XX LWA, dB (A).

Wear leg protection and non-slip safety boots with steel protections.

Dispose of your device in an environmentally friendly way. This product should not be disposed of with household waste.

Danger of material protection. Beware of objects that may be fired.

Complies with the European Union Directive.

PRODUCT DESCRIPTION

CONDITIONS OF USE

Cut only wood. Do not use the chainsaw for any other purpose not intended. Do not use the chainsaw to cut plastic, bricks or building materials other than wood. Any use other than that described above may cause dangerous situations and exempts the manufacturer from any liability.

DETAILED DESCRIPTION OF THE PRODUCT

ORECON DOUBLE GUARD 91 1 2 3 4 5 6 7 8 9 GREEN

GREENCUT® OREG 10°

1. Front guard / chain brake
2. Front handle
3. Unlocking the trigger
4. Rear handle
5. Chain
6. Sword
7. Claw
8. Plug for chain lubricant
9. Throttle trigger

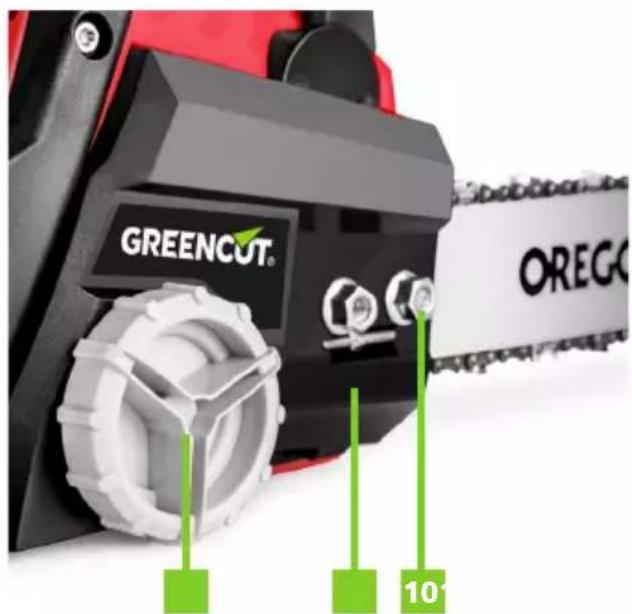

10. Chain tensioner adjustment ring
11. Sprocket cover
12. Chain tensioner knob

NOTE: The products detailed in this manual may vary in appearance, inclusions, description and packaging as shown or described here.

TECHNICAL DATA

GS560L
Battery type 56V DC lithium-ion battery
No-load speed 19,0m/s
Length of the sword 406mm
Usable cutting length 300mm (12")
Chain pitch 9,525mm (0,375")
Transmission links 57
Transmission sprocket 6 teeth x 0,375"
Chain stop <2s
Chain oil tank capacity 170 ml
Total vibration value 2,1 m/s	2
Measurement Uncertainty 1,5 m/s	2
LpA (sound pressure) 93,6 dB(A)
Measurement Uncertainty 2,5 dB
LWA (sound power) 96 dB(A)
Measurement Uncertainty 2,5 dB
Compatible Battery	BT562L (BAT-56V-2AH) - BT564L (BAT-56V-4AH) - BT560L (MC56LI-ION)
Compatible Charger CBT560L (CHAR-56V)

NOTE: GREENCUT reserves the right to modify the technical characteristics without prior notice.

BOX CONTENTS

Technical line drawing of a car body panel with no visible text or symbols

x 1

x1

x 1

Simple line drawing of a chain with no text or symbols

x 1

- Remove the product and accessories from the box. Make sure all items are present.

- Inspect the product to ensure that it has not been broken or damaged in transit.

- Do not discard the packaging material until you have carefully inspected and satisfactorily used the product.

ATTENTION: If any part is missing or damaged, contact the Official Technical Service. Do not use this product without having replaced the missing or damaged part. Using this product with damaged or missing parts can cause serious injury to the operator.

EN

ASSEMBLY

ASSEMBLY OF THE CHAIN AND THE SWORD

1. Be sure to remove the battery from the unit. Wear protective gloves.
2. Unscrew the chain tensioner knob and remove the sprocket cover.

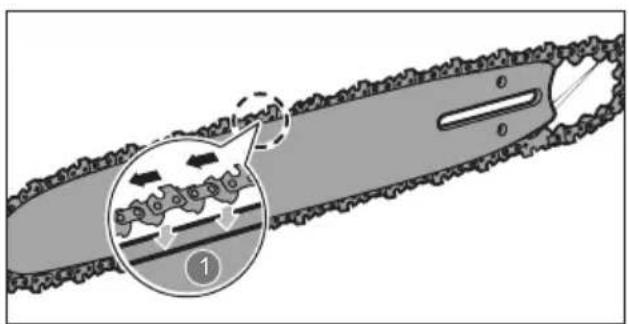

3. The saw chain should face in the direction of the chain rotation, if it faces backwards, rotate the cycle.
4. Place the chain drive links in the groove of the sword.

5. Place the chain so that there is a link on the back of the sword.

6. Hold the chain in position on the bar and place the link around the drive sprocket. Lower the bar so that the bolt passes through the hole in the chain tension assembly. You may need to rotate this assembly to align the bolt and hole. You can rotate this assembly again to apply some tension to the chain, which will help keep it in place.

7. Replace the sprocket cover and turn the chain tensioner knob until it is tight, turn the chain tension adjustment ring until the saw chain is properly tensioned. The sword should then be pushed upwards, check the chain tension again, do not over-tension the chain.

8. After the chain is properly tightened, tighten the knob again.

Technical diagram of a mechanical assembly with labeled parts and an inset showing a gear mechanism.

Technical line drawing of a mechanical device with an inset close-up showing a close-up of a component (no text or symbols present)

Diagram illustrating a chain-linking mechanism with labeled components and directional arrows indicating cycle or process flow.

Diagram illustrating a chain with gear meshing and gear meshing mechanism, labeled with component number 1

Diagram illustrating a mechanical assembly with labeled components and motion directions, including chain tracks and wheel mechanisms.

Technical diagram showing mechanical assembly with gear and motor components, including a magnified view of a 3-4 mm component.

Technical diagram illustrating mechanical assembly with gear and lock mechanism, including directional arrows and labeled components

ADJUSTMENT OF CHAIN TENSION

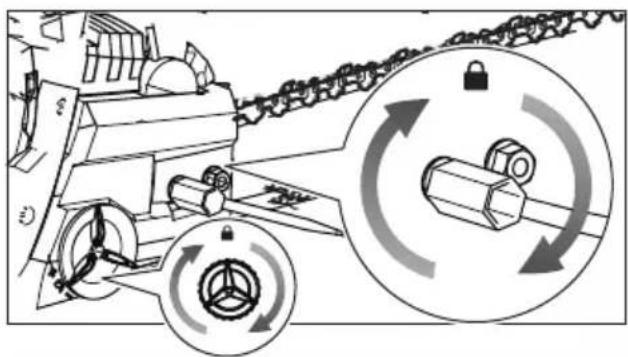

1. Slightly loosen the chain tensioner knob by turning it counterclockwise.
2. To increase the chain tension, turn the chain tensioner adjusting ring clockwise and check the chain tension frequently. To reduce chain tension, turn the chain tension adjusting ring of the chain tensioner counterclockwise and check the chain tension frequently.
3. The chain tension is correct when the gap between the chain cutter and the sword is between 3mm and 4mm. Pull the chain in the middle of the bottom side of the sword down (away from the sword) and measure the distance between the sword and the chain cutters.

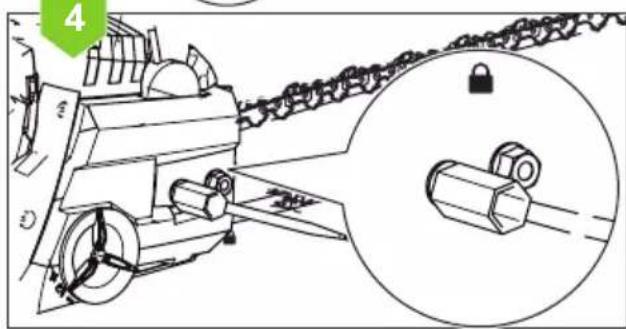

4. Tighten the chain tensioner knob by turning it clockwise.

Technical diagram showing a vehicle interior with labeled parts and a magnified inset view of the dashboard and engine compartment.

2 X T T ✓

3 i 3-4 mm

Technical line drawing of a mechanical device with a close-up inset showing a lock and gear mechanism (no text or symbols)

PRODUCT USE

PUT IN CHAIN LUBRICATING OIL

ATTENTION: Never work without chain lubricant. If the chain of the chainsaw operates without lubricant, the sword and chain of the saw may be damaged. It is therefore essential to check the oil level on the oil level indicator frequently and also every time before starting to use the chainsaw. Use special oil for chainsaw chains.

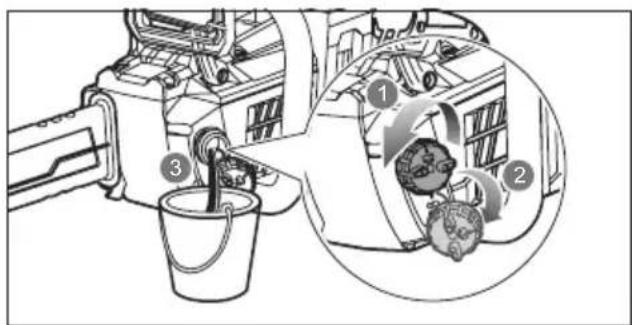

1. Clear the surface around the oil plug to avoid contamination.
2. Unscrew and remove the oil tank cap.
3. Pour the oil into the oil tank and check the oil level indicator. Make sure that no dirt gets into the oil tank during filling.
4. Replace the cap and tighten it. Clean up any spills.
5. A full oil tank will allow you to use the saw for 20-40 minutes.

i 1 2 3 bar oil Min bar oil Min

BATTERY INSTALLATION

1. Place the battery in the chainsaw. Align the raised battery ribs with the slots in the battery port of the chainsaw.
2. Make sure that the latch on the bottom of the battery locks into place and that the battery is correctly inserted and secured in the saw before using it.

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols visible)

HOW TO ATTACH THE CHAINSAW

Always hold the saw with your right hand on the rear handle and your left hand on the front handle. Grasp both handles with your thumbs and fingers around the handles. Make sure your left hand is holding the front handle so that your thumb is underneath.

START THE CHAINSAW

Before starting operation, the battery must be installed in the machine.

To start the machine:

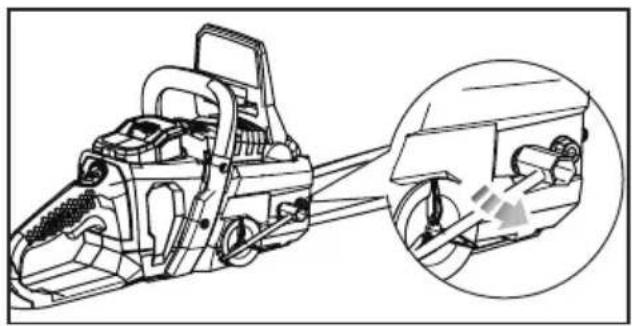

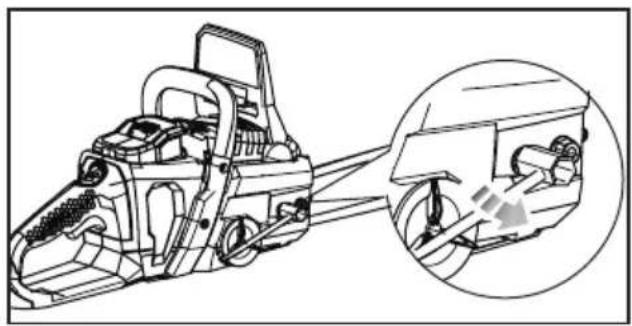

1. Pull the front cover/chain brake lever firmly towards the front handle until you hear a click.
2. Pull the trigger release with your thumb.
3. Pull the throttle trigger.

Once the throttle trigger is pulled, the trigger release is fixed and you can release it.

Technical diagram of a chain-linking device with numbered components and directional arrows indicating motion or assembly.

ATTENTION: If the chain brake does not stop the chain immediately, or if the chain brake does not remain in the activated position without assistance, take the chain saw to the Official Technical Service for repair before use.

MAINTENANCE

Good maintenance will extend the life of the machine. Prolonged or constant use may require more intensive maintenance for the machine to continue to function properly.

ATTENTION: Make sure the engine is completely shut down before performing any maintenance or repair. This will eliminate any potential risk.

PERIODIC MAINTENANCE

DAILY CHECK

Lubrication of the sword Before every use

Chain tension Before every use and frequently

Sharpening the chain Before each use, visual check

For damaged parts Before every use

For loose bolts Before every use

Chain brake function Before every use

INSPECT AND CLEAN

Sword Before every use

Complete saw After each use

Chain brake Every 5 hours*

ATTENTION

• Always wear gloves when working around the blade assembly.
- Use only original spare parts for this machine.
- Operating the engine without a muffler or with a damaged muffler installed can increase engine noise enough to cause hearing loss.

REPLACEMENT OF SWORD AND SAW CHAIN

ATTENTION: The saw chain is very sharp, always wear protective gloves when performing any maintenance on the chain. A dull or worn chain can cause excessive engine speed during cutting, which can cause severe engine damage. Incorrect chain sharpening increases the potential for kickback. Failure to replace or repair a damaged chain can cause serious injury.

1. Unscrew the chain tensioner knob by turning it counterclockwise until the sprocket cover loosens.
2. Remove the sprocket cover. Remove the sword and saw chain from the unit.
3. To replace the sword with a new one, unscrew the nut on the chain tension assembly. Mount the chain tension assembly to the new sword and tighten the nut.
4. Place the new chain in the correct direction on the sword and make sure that the drive links of the unit are aligned in the groove of the sword.
5. Attach the sword to the chain saw and wrap the chain around the drive sprocket.
6. Replace the sprocket cover.
7. Adjust the chain tension. See section "Adjusting the chain tension".

INSPECTION AND CLEANING OF THE CHAIN BRAKE

• Always keep the chain brake mechanism clean by lightly brushing the connections so that there is no dirt.

• Always check the function of the chain brake after cleaning.

TRANSPORTATION AND STORAGE

• Stop the machine, remove the battery and allow the tool to cool down before storing or transporting.
• Transport the battery in accordance with local and national regulations and standards.
• Ensure that no batteries can come into contact with other batteries or conductive materials during transport by protecting exposed connectors with non-conductive caps or insulation tape.
• Do not carry batteries that are cracked or leaking.
• Clean any foreign material from the product. Store in a cool, dry, well-ventilated place out of the reach of children. Keep product away from corrosive agents such as garden chemicals and thawing salts. Do not store outdoors.
  • Cover the sword with its cover before storing the unit or during transport.
• Store the battery and charger separately in a dry place without moisture or frost.
• Do not store the battery in places where static electricity may be generated. Never carry the battery in a metal box.
• Store the battery in a place without extreme temperatures and away from direct sunlight.
  • Store the charger only in a closed, dry place.
• All batteries gradually lose their charge. Recharge the batteries every 3 months.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating assembly steps

Diagram illustrating a chain drive mechanism with labeled components and directional arrows indicating motion.

Technical diagram showing a mechanical assembly with labeled parts and an inset close-up of a component with internal components.

Diagram showing two mechanical components with arrows indicating motion or assembly (no text or symbols)

RECYCLING AND DISPOSING

Used products are potentially recyclable and should not be disposed of in the usual rubbish. Help us protect the environment and preserve natural resources.

Dispose of the appliance in an environmentally friendly way. Do not throw it away with the household rubbish. Its plastic and metal components can be separated and recycled. Take this device to an approved recycling centre (green point).

Package materials are recyclables. Please, throw them away on the appropriate trash can.

ATTENTION: Take the battery to a local recycling and/or disposal centre that is certified for disposal. If the battery pack breaks or cracks, whether it leaks or not, do not recharge it and do not use it. Get rid of it and replace it with a new battery pack. DO NOT ATTEMPT TO REPAIR IT!

GUARANTEE

GREENCUT guarantees all GREENCUT products for a period of 24 months (valid for Europe). The warranty is subject to the date of purchase taking into account the intended use of the product.

As a condition subject to warranty, the original receipt must be presented indicating the date of purchase and its description as well as the defective tool.

The warranty does not cover normal wear and tear, especially on blades, blade fasteners, turbines, light sources, fan and transmission belts, impellers, air filters, spark plugs and damage caused by improper use, especially non-compliance with operating and maintenance instructions.

In the event that repairs or modifications have been made by the consumer or other than with original GREENCUT spare parts, the warranty will be voided.

In the event of a justified warranty claim, we are entitled, at our discretion, to repair or replace the defective tool free of charge. Other claims beyond this warranty are not valid.

DECLARATION OF CONFORMITY (CE)

We, PRAT INTERNATIONAL BRANDS S.L., owner of the brand GREENCUT, based in Calle Migdia S/N. 43830 - Torredembarra, SPAIN, we declare that the GS560L chainsaw from the serial number 2017 onwards are in conformity with the requirements of the applicable European Parliament and Council Directives:

• Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC.
• Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.
- Directive 2014/35 / EU of the European Parliament and of the Council of 26 February 2014 on the harmonization of the laws of the Member States regarding the marketing of electrical equipment intended for use with certain voltage limits.
• Directive 2000/14/EC of the European Parliament and of the Council of 8 May 2000 on the approximation of the laws of the Member States relating to the noise emission in the environment by equipment for use outdoors.

The product delivered coincides with the prototype that was submitted for CE exam.

Torredembarra (SPAIN), 9 May 2017,

Albert Prat Asensio, CEO (Authorized representative and responsible for technical documentation).

GREENCUT®

PRAT INTERNATIONAL BRANDS s.l.

Technical diagram of a mechanical assembly with labeled parts and an inset view showing a gear mechanism.

Technical line drawing of a mechanical device with an inset close-up showing a component being inserted (no text or symbols present)

Diagram illustrating a chain-linking mechanism with labeled components and directional arrows indicating cycle or motion.

Diagram of a chain drive mechanism with gear mesh and labeled components (no text or symbols)

Diagram illustrating a mechanical assembly with labeled components and motion indicators, including chain tracks and wheel mechanisms.

Technical diagram showing mechanical assembly with gear and motor components, including a magnified view of a 3-4 mm component.

Mechanical assembly diagram showing a conveyor belt system with gear and pulley, alongside a close-up of a lock mechanism (no text or symbols present)

Technical diagram showing mechanical assembly with labeled parts and a magnified inset view of a component detail.

2 XTT✓

3 i 3-4 mm

Technical line drawing of a mechanical device with gear and chain, showing a close-up inset of a lock mechanism (no text or symbols)

PRODUKT-NUTZUNG

KETTENSCHMIERÖL EINSETZEN

i 1 2 3 bar oil Min Bar oil Min

BATTERIEANLAGE

Technical illustration of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

WIE MAN DIE MOTORSÄGE HÄLT

Technical diagram of a chain-linking machine with numbered components and directional arrows indicating motion or flow.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating assembly steps

Diagram illustrating a chain drive mechanism with labeled components and directional arrows indicating motion

Diagram of a car interior showing engine, bucket, and dashboard components with numbered annotations

Diagram showing two mechanical devices with arrows indicating motion, one on a platform and the other in a cabinet (no text or symbols)
