USER MANUAL biOrb LOOP 30 OASE

Simple blue geometric shapes: a circle above a vertical rectangle (no text or symbols)

BY OASE

Simple line drawing of a circular connector with a coiled cable and connector (no text or symbols)

Simple line drawing of an open box with a blue arrow indicating rotation (no text or symbols)

LED

Line drawing of a circular device with three small circular components and a cord connected to a power adapter (no text or symbols)

MCR
LIGHTING

Line drawing of a remote control with a circular dial and a rectangular head (no text or symbols)

1

Illustration of a petri dish setup in an aquarium with a water tank and granular substrate (no text or symbols)

2

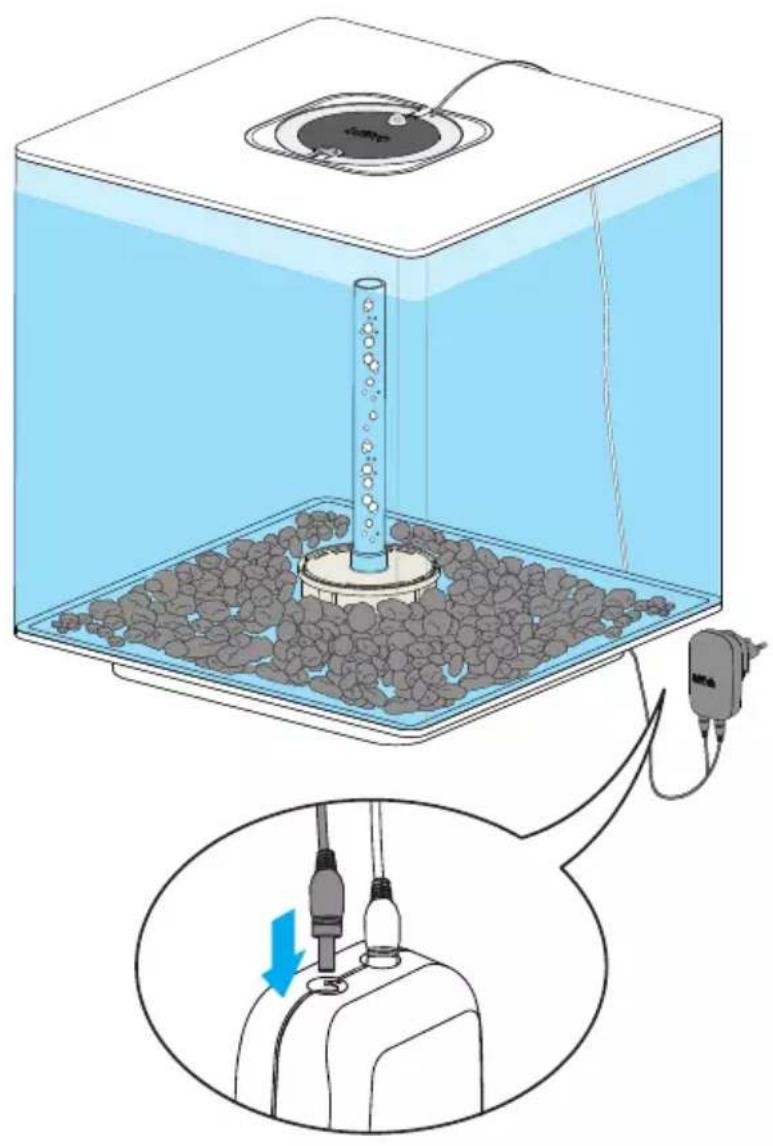

Illustration of a petri dish setup with a vertical tube inside a transparent container, connected to a power plug and a device (no text or symbols present)

3

4

LED

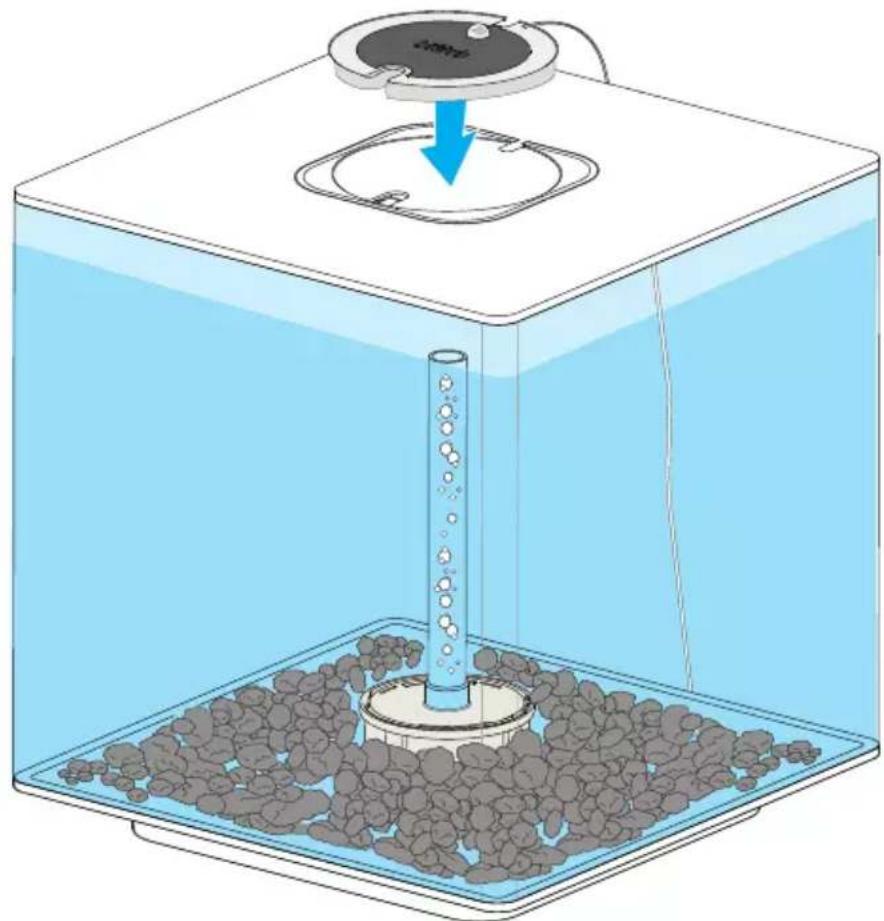

Line drawing of a medical or laboratory device with a circular plate and coiled cable (no text or symbols)

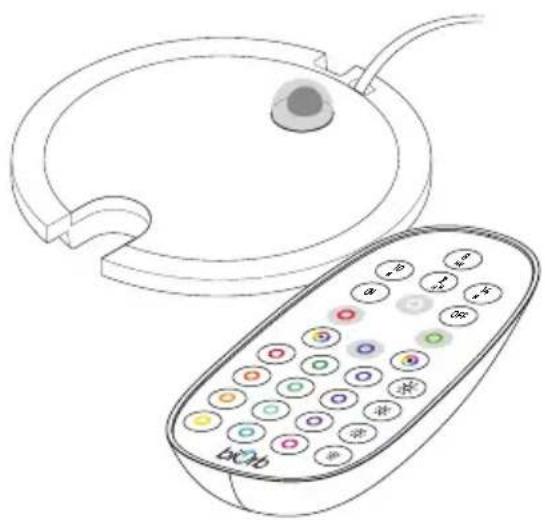

MCR LIGHTING

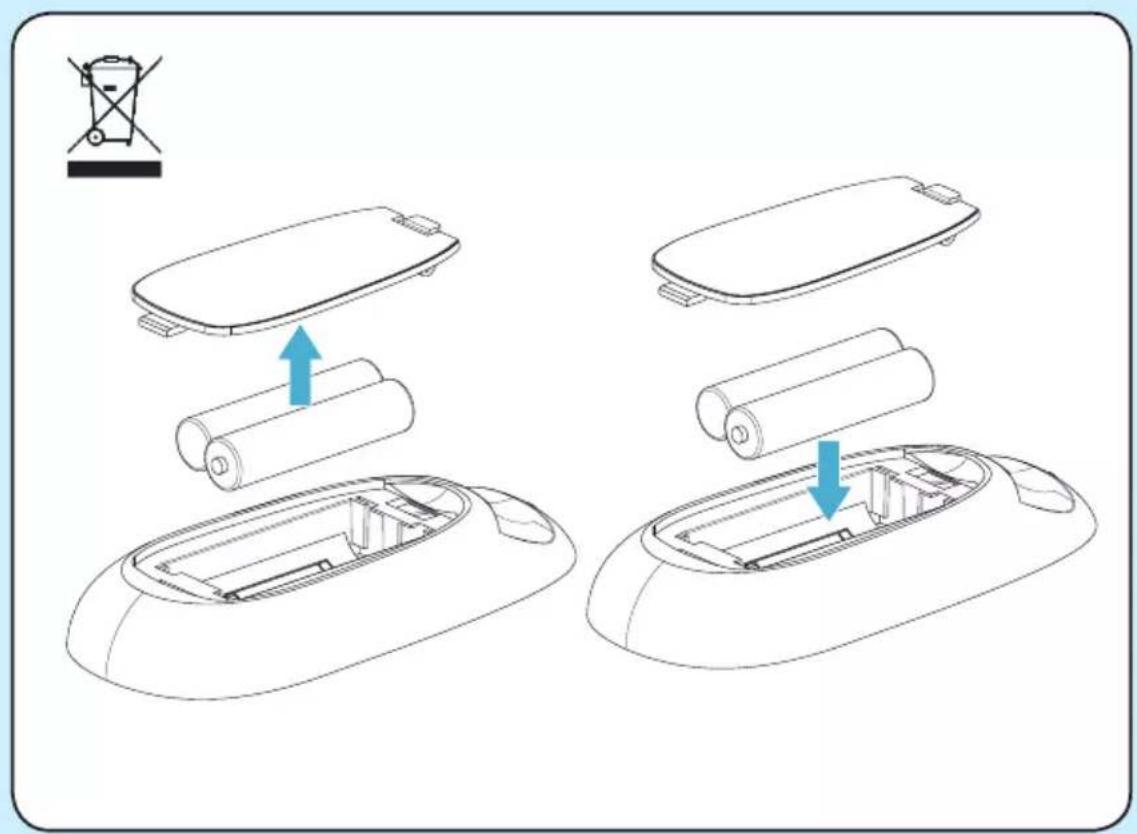

Diagram of a device's internal components, showing battery and casing assembly (no text or symbols)

5 MCR LIGHTING

HALO

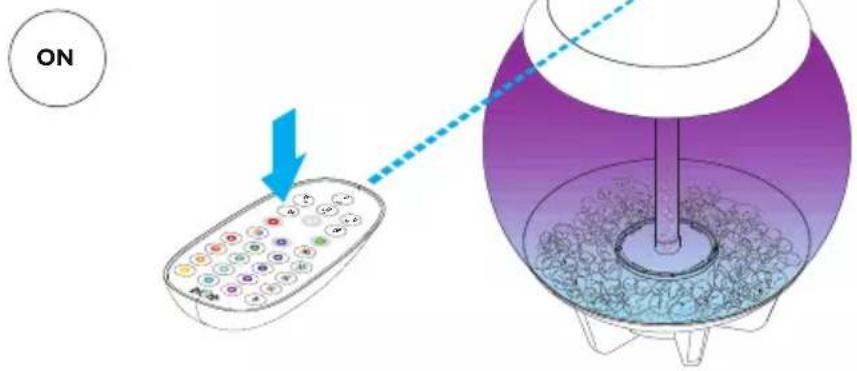

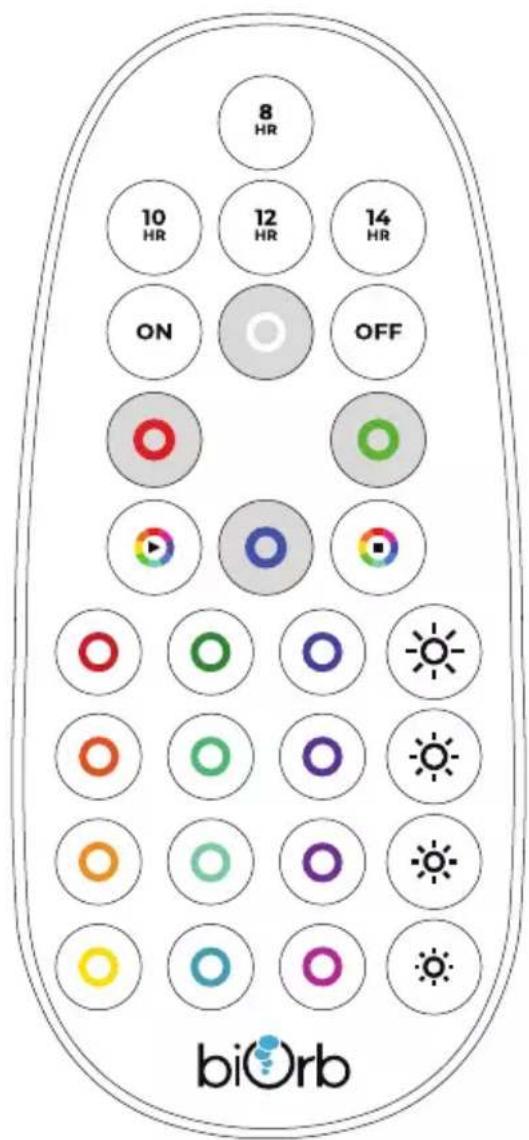

EN Switches on the light

EN Switches off the light

EN End of the colour light cycle

EN Start of the colour light cycle

Example for the 8 HR cycle: Sunrise 15 min - Daylight 7.5 hr - Sunset 15 min - Nightlight 16 hr. When the 10, 12 or 14 HR button is selected, the time for "Daylight" and "Nightlight" changes accordingly. "Daylight" is always reduced by 30 minutes for "Sunrise" and "Sunset". Total duration of a cycle: 24 hr.

DE Zyklusfunktion

EN Dims the light, 4 brightness stages.

EN 15 predefined colours.

MAINTENANCE AND CLEANING

Illustration of a person walking past a building entrance with a window and a blue signpost (no text or symbols)

Illustration of a customer service counter with two customers and product displays (no text or symbols)

Cleaner pads Reinigungspads Feutres de nettoyage Panni detergenti Reinigingspads

Illustration of a hand inserting a component into a green circuit board (no text or symbols)

WARNING

WARNUNG

WAARSCHUWING

AVERTISSEMENT

ADVERTENCIA

AVISO

AVVISO

ADVARSEL

WARNING

VAROITUS

FIGYELMEZTETÉS

OSTRZEŻENIE

VAROVÁNÍ

VÝSTRAHA

OPOZORILO

UPOZORENJE

AVERTIZARE

ПРЕДУПРЕЖДЕН

ИЕПОПЕРЕДЖЕННЯ

ПРЕДУПРЕЖДЕНИЕ

警告

EN

WARNING

• This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.
• Do not allow children to play with the unit.
• Only allow children to carry out cleaning and user maintenance under supervision.
• Do not use the unit if electrical cables or housings are damaged.
• Before reaching into the water, disconnect all electrical units in the water from the mains.
• Danger of suffocation. Keep plastic bags and small parts out of reach of babies and young children.

EN

SAFETY INFORMATION

• Do not expose the unit to direct sunlight.
• Never carry or pull the unit by the electrical cable.
• Route cables such that they are protected from damage and do not present a tripping hazard.
• Only connect the unit if the electrical data of the unit and the power supply correspond.
• Only connect the unit to a correctly fitted socket.
• Protect the plug connection from moisture.
• When using heaters, ensure that they are approved for use in the aquarium and that they do not come into contact with the acrylic wall of the aquarium.
• Disconnect the power plug before carrying out any work on the unit.
• Only open the unit housing or its attendant components if this is explicitly specified in the operating instructions.
• Never carry out technical changes to the unit.
• Exclusively use biOrb cleaning product to clean the aquarium. Other cleaning agents may cause scratches or tears in the acrylic material.
• Only use original spare parts and accessories for the unit.

For the complete operating manual, visit

www.biorb.com

EN

GUARANTEE

For this OASE unit purchased by you, OASE GmbH assumes a 24 month manufacturer's guarantee in accordance with the guarantee conditions laid down in the following. The guarantee period starts with the first purchase from an OASE specialist dealer. In other words, in the event of a resale, the guarantee period will not start again. If services are provided under the terms of this guarantee, this does not lead to extension or renewal of the guarantee period. Your legal rights as a purchaser, especially those ensuing from the warranty, per-sist. They are not restricted by this guarantee.

Guarantee conditions

OASE GmbH guarantees impeccable, purpose-related properties and workmanship, expert as-sembly and proper functionality. Subject to our discretion, the guarantee refers to free-of-charge repair or free-of-charge supply of spare parts or of a replacement unit respectively. Should the unit type concerned no longer be manufactured, we reserve the right, at our discretion, to supply a replacement unit from our range that is closest to the type subject to complaint. Claims, the origin of which can be traced back to installation and operating faults as well as lack of care, e.g. the use of unsuitable cleaning materials or negligent maintenance, use other than that intended, damage due to accidents, falls, impact, effect of frost, cutting plugs, shortening cables, calcium deposits or im-proper attempts to repair the unit, are not covered by our guarantee. We hereby refer to the proper use as specified in

the instructions of use that form an integral part of the guarantee. Wear parts such as bulbs etc. are exempted from the guarantee.

The refund of costs for removal and installation, checks, claims for lost profit and damages are exempted from the guarantee together with further reaching claims for damages and loss of whatever nature caused by the unit or its use.

The guarantee is only valid in the country in which

the unit was purchased from an OASE dealer.

This guarantee is governed by German law under the

exclusion of the agreement of the United Nations covering contracts governing the

international sale of goods (CISG) regulations.

Guarantee claims can only be brought forward by

presenting the sales receipt to us, OASE GmbH, Tecklenburger Straße 161 in D-48477 Hörstel, Germany by returning to us the unit or part of the unit subject to complaint, freight free, at your own risk, accompanied by a copy of the original purchase receipt from the OASE specialist dealer, this guarantee document and written information of the fault encountered.

EN

TECHNICAL DATA

biOrbAquarium	CLASSIC / FLOW / CUBE / LIFE / TUBE / HALO
Power supply voltage of the power pack V AC 100 - 240
Mains frequency Hz 50/60
Power pack output voltage V DC 12
Protection type IP 20
Aerator pump power consumption W 2.1
Aerator pump rated voltage V AC 12
Length of connection cable of the aerator pump m 1.5

Standard LED MCR LED

biOrbLighting unit		large small		HALO30/60	large	small	HALO15/30/60
Energy efficiency class		A++	A++	A++	A+	A+	A
Energy efficiency	lm/W	85	73	85	74	72	17
Rated power	W	2.4	2.0	2.0	2.8	2.8	2.9
Rated voltage	V DC	12	12	12	12	12	12
Length of the connection cable	m	1.4	1.4	1.5	1.5	1.5	1.4
Remote control battery	Type	-	-	-	CR 2025	CR 2025	CR 2025
