Product Type	Interactive Touch Monitor
Brand	Crestron
Model	TSS-1070
Screen Size	10.1 inches (diagonal)
Resolution	1280 x 800 pixels (WXGA)
Touch Technology	Multi-touch Capacitive
Dimensions (W x H x D)	271 x 185 x 33 mm
Weight	1.2 kg
Power Supply	PoE (Power over Ethernet) IEEE 802.3af, Class 0
Mounting	Wall (mounting box included) or desktop (optional stand)
Main Features	Touch display, audiovisual system control, customizable user interface (SST-V), LED backlight, built-in speaker
Connectivity	Ethernet 10/100/1000 Mbps, USB 2.0 (host), HDMI input (optional via adapter)
Maintenance and Cleaning	Use a soft, dry cloth; avoid abrasive products or liquids. Disconnect power before cleaning.
Safety	Do not expose to moisture or splashes; install out of reach of children; disconnect power during thunderstorms.
Spare Parts and Repairability	Contact a qualified Crestron technician for any repairs. No user-serviceable parts.
Environment	Operating temperature: 0 to 40 °C; relative humidity: 10 to 90% non-condensing.
Warranty	See Crestron website for warranty conditions: www.crestron.com/warranty

Frequently Asked Questions - TSS-1070 Crestron

How to install the TSS-1070 on the wall?

Use the supplied mounting box (SB-1070) and attach it to the wall according to the instructions. Connect the Ethernet cable for PoE power and network connectivity. Then screw the monitor onto the box.

Does the TSS-1070 require an external power supply?

No, it is powered via Power over Ethernet (PoE). Ensure your network supports IEEE 802.3af, Class 0.

Can I use the TSS-1070 without Crestron SST-V?

The monitor is designed to work with Crestron SST-V (Smart Screen Technology) software. Without it, the touch display remains functional but advanced control features will not be available.

How to safely clean the touch screen?

Turn off and unplug the device. Use a soft, dry, non-abrasive cloth. Avoid any liquid or chemical cleaner that could damage the touch surface or internal components.

What is the screen resolution?

The TSS-1070 offers a WXGA resolution of 1280 x 800 pixels, ideal for clear, detailed user interfaces.

Can I connect an HDMI device to the TSS-1070?

Yes, via an optional Crestron adapter (e.g., HD-EXT). The HDMI input allows displaying additional content on the screen.

What to do if the touch screen becomes unresponsive?

Check the Ethernet connection and PoE power. Restart the monitor by unplugging and reconnecting the network cable. If the problem persists, contact Crestron technical support.

Is the TSS-1070 compatible with existing Crestron control systems?

Yes, it integrates seamlessly with Crestron 3-Series or 4-Series systems over the network. It can be used as a control panel for home automation or meeting rooms.

Can I use the TSS-1070 in a bathroom or humid environment?

No, the device is not designed to be exposed to moisture or water splashes. Install it in a dry place, away from splashes.

How to reset the TSS-1070 to factory settings?

Press and hold the reset button on the back (near the Ethernet port) for 10 seconds until the screen flashes. Release and wait for the reboot. All settings will return to default values.

USER MANUAL TSS-1070 Crestron

Crestron Electronics, Inc.

The original language version of this document is U.S. English.

All other languages are a translation of the original document.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed online at www.crestron.com/legal/pat Chinese: Crestron 产品所覆盖的特定专利列表可在线查看www.crestron.com/legal/patents。

Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Elec Inc. in the United States and/or other countries. Other trademarks, registered trademarks, and names may be used in this document to refer to either the entities claiming the marks and their products. Crestron disclaims any proprietary interest in the marks and names of others. Not responsible for errors in typography or photography.

©2023 Crestron Electronics, Inc.

English

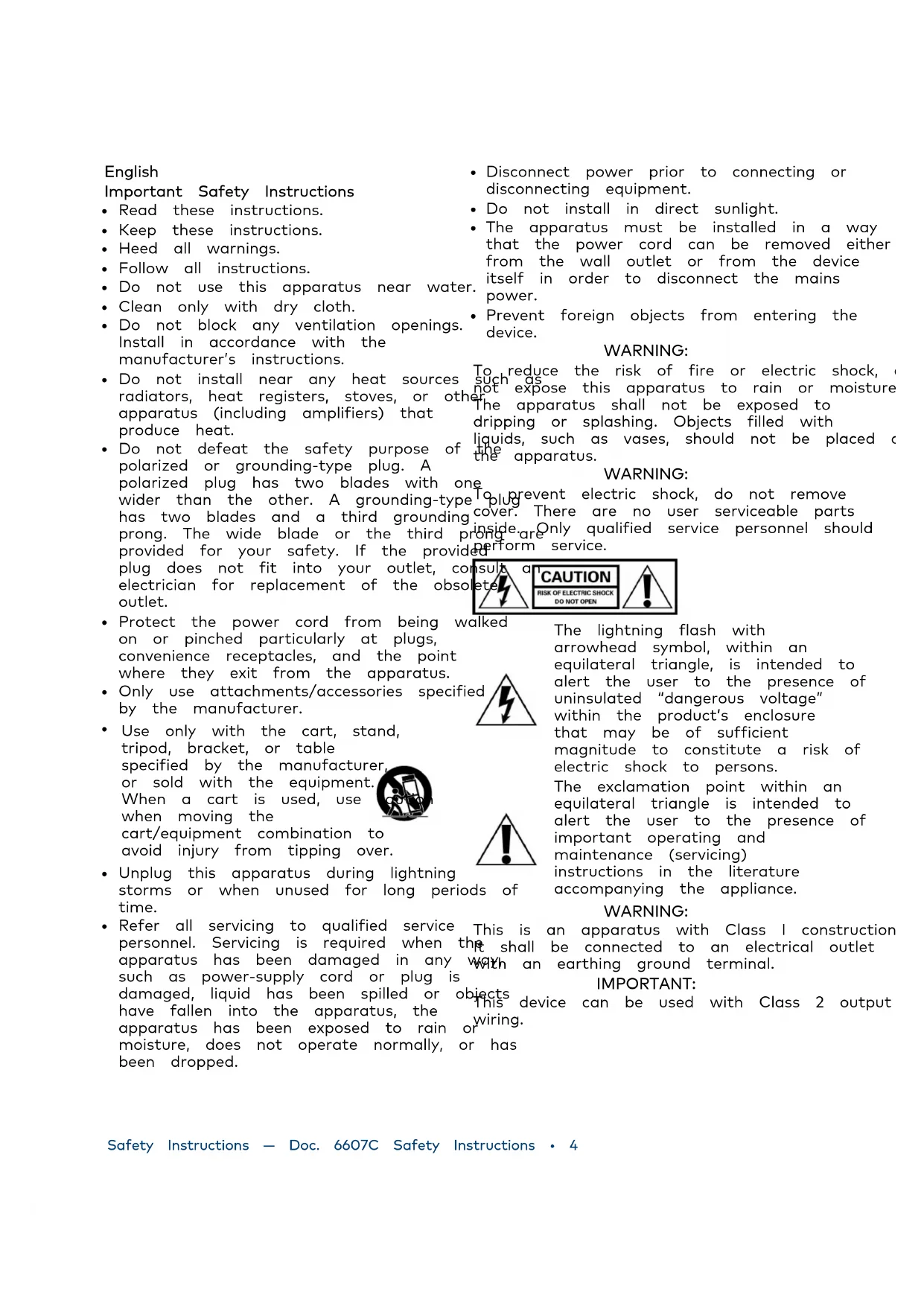

Important Safety Instructions
