Brand	Black & Decker
Model	BXMRA1500E
Product type	Electric space heater
Nominal heat output	1.50 kW (1500 W)
Minimum heat output	0.75 kW (750 W)
Maximum continuous heat output	1.50 kW (1500 W)
Power supply	220-240 V ~ 50/60 Hz
Standby power consumption	0.00 kW
Power settings	2 levels: 750 W and 1500 W
Temperature control	Adjustable mechanical thermostat
Operation indicator light	Yes
Carry handle	Yes, side
Anti-tip safety	Yes, automatic shut-off
Thermal protection (overheat)	Yes, thermal safety device
Safety distance to combustible materials	50 cm minimum
Usage	Indoor use only
Cleaning	Damp cloth with mild detergent, do not immerse
Maintenance	Unplug and let cool before cleaning
Repairs	Authorized technical support service only
Warranty	According to applicable law

Frequently Asked Questions - BXMRA1500E BLACK & DECKER

What is the maximum power of this heater?

The maximum heat output is 1.50 kW (1500 W) in high position.

Can I use this heater in a bathroom?

No, it is forbidden to use the appliance near a bathtub, shower, or swimming pool. It is intended for indoor use in dry rooms.

How to clean the appliance?

Unplug and let cool. Clean with a damp cloth moistened with a few drops of detergent, then dry. Do not immerse or use solvents.

What are the built-in safety features?

The appliance has an anti-tip device that cuts off power if tipped over, and thermal protection against overheating.

Does the heater make noise?

This model works by natural convection and has no fan, so it is very quiet.

Can I cover the appliance to dry laundry?

No, it is strictly forbidden to cover the appliance, as this could cause overheating and fire.

What safety distance must be observed?

Place the appliance at least 50 cm away from any combustible material (curtains, furniture, etc.).

How to adjust the temperature?

Turn the thermostat knob (A) to select the desired temperature. The indicator lights up when the appliance is heating.

What to do if the appliance turns off by itself?

Check that no obstacle blocks the air inlets/outlets. If the problem persists, unplug and wait 15 minutes before plugging back in. Contact an authorized service if necessary.

Is this heater suitable for children?

Children under 3 years must be kept away. Children aged 3 to 8 can only turn it on/off under supervision. Constant supervision required.

USER MANUAL BXMRA1500E BLACK & DECKER

BLACK+ DECKER™

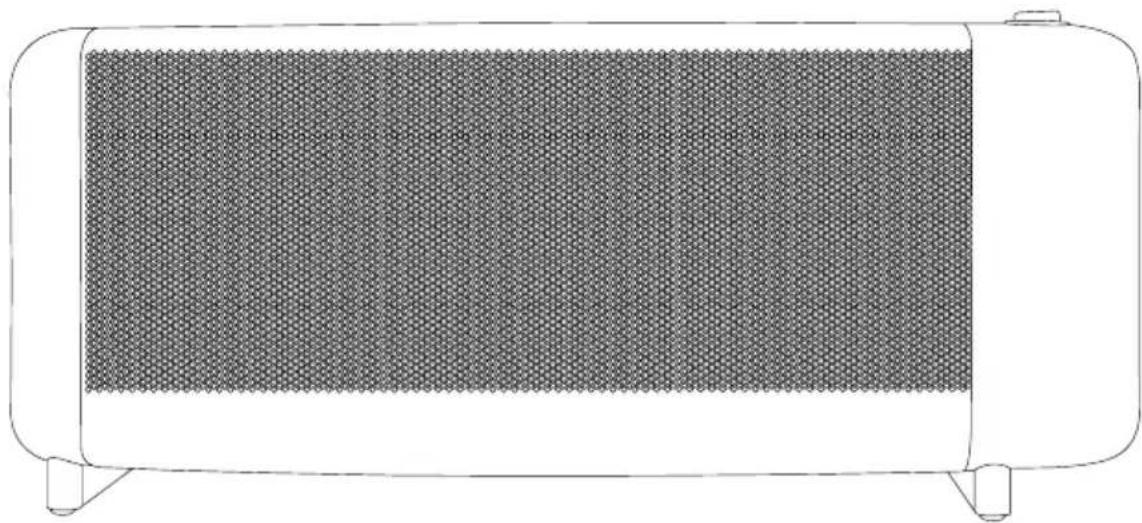

Line drawing of a rectangular industrial or thermal device with a mesh pattern on the side (no text or symbols)

D E E D

Diagram of a device with labeled components A, B, and C, showing a meshed rectangular area and connected circular elements.

EN: 'This product is only suitable for well insulated spaces or occasional use.'

Many thanks for choosing to purchase a Black+Decker brand product

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.

SAFETY ADVICE AND WARNINGS

NOTE: Certain parts on this product may become very hot and cause burns. Pay particular attention when children and vulnerable people are present.
◆ The appliance must not be placed below a power socket.
◆ Children under 3 years old must be kept out of reach of the appliance unless they are continuously supervised.
Children aged between 3 and 8 may only switch the appliance on/off if it has been placed or installed in its designated normal working position and if they are supervised or have received instructions relating to the safe use of the appliance and understand the risks the appliance has.

• This appliance can be used by children aged 8 and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or given instructions concerning use of the appliance in a safe way and understand the hazards involved.
  ◆ Cleaning and user maintenance must not be done by children unless they are supervised
  Children of between 3 and 8 years old may not plug in, adjust or clean the appliance or carry out maintenance operations.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
  ◆ WARNING: This heating appliance must not be used if the panels are damaged.
• Do not use the appliance near bathtubs, showers or swimming pools.
  NOTE: This device is not equipped with an ambient temperature control device. Do not use this appliance in small rooms occupied by people who are unable to leave the room by their own means, unless they are under constant supervision.
  If the mains connection is damaged, it must be replaced. Take the appliance to an authorised Techni-

cal Assistance Service In order to prevent any danger, do not attempt to dismantle or repair it yourself.

◆ This appliance is for household use only, not professional or industrial use.

symbol indicates that the device should not be covered.

NOTE: In order to prevent overheating, do not cover the appliance.

• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
  ◆ Connect the appliance to a 16 amp earthed mains socket.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
  ◆ Use the appliance in a well ventilated area.
  Make sure the room is adequately ventilated if other appliances powered by gas or other types of fuel are being used in the same room at the same time.
• Keep children and bystanders away when using this appliance.
  ◆ The appliance should be used and placed on a flat and stable surface.
  ♦ Keep the appliance away from flammable material such as textiles, cardboard or paper, etc.
  ◆ Position the appliance at least 50 cm away from flammable materials, such as curtains, furniture ...
• Do not place combustible materials near the appliance.
  ◆ Ensure that neither the air access nor exit become either totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.
• Do not use the appliance in conjunction with a programmer, timer or other device automatically connected to it.
  ◆ Do not use the appliance if the cable or plug is damaged.
  If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
  NOTE: Maintain the appliance dry.

• Do not use the appliance with damp hands or feet, or when barefooted.

• Do not stretch the mains cable. Never use the mains cable to lift, carry or unplug the appliance.
  ◆ Do not wrap the cable around the appliance.

• Do not allow the mains cable to become trapped or tangled.
• Do not allow the connection cable to come into contact with the appliance's hot surfaces.
• Keep the appliance away from heat sources, sharp edges and moving parts.
  ◆ Check the condition of the mains cable. Damaged or twisted cables increase the risk of electric shock.
  ◆ This appliance is not suitable for outdoor use.
• The power cord must be regularly examined for signs of damage and if damaged, the appliance must not be used.
  As an additional protection to the electrical supply for the appliance, it is advisable to have a differential current device with a maximum sensitivity of 30mA. Ask for advice from a competent installer.
  ◆ Do not use or store the appliance outdoors.
  Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
  ◆ Do not touch the plug with wet hands.
  Do not use the appliance, in the case persons insensitive to heat (the appliance has heated surfaces).
• The temperature of the accessible surfaces may be high when the appliance is in use.

USE AND CARE:

◆ Fully unroll the appliance's power cable before each use.
- Do not use the appliance if the ON/OFF switch does not work.
◆ Use the appliance handle/s, to lift or move it.
- Do not use the appliance at an angle or turn it over.
Do not tip the appliance over while it is in use or connected to the mains.
◆ Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
◆ Store this appliance out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfamiliar with its use
◆ Do not store or transport the appliance if it is still hot.
- Keep the appliance in a dry, dust-free place, out of direct sunlight.
◆ Never leave the appliance unattended while in use.
- Never leave the appliance connected and unattended if not in use. This also saves energy and prolongs the life

of the appliance.

◆ Do not use the appliance to dry pets or animals.
◆ Do not use the appliance to dry garments of any kind.
NOTE: Do not sleep while using this appliance, as there is risk you could be harmed.
- Turning the thermostat control to the minimum (MIN) setting does not guarantee that the appliance is switched off completely.

Service:

◆ Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
NOTE: There is a risk of fire if the appliance is not cleaned in accordance with these instructions.
- Misuse or failure to follow the instructions may be dangerous and renders the manufacturer's guarantee null and void.

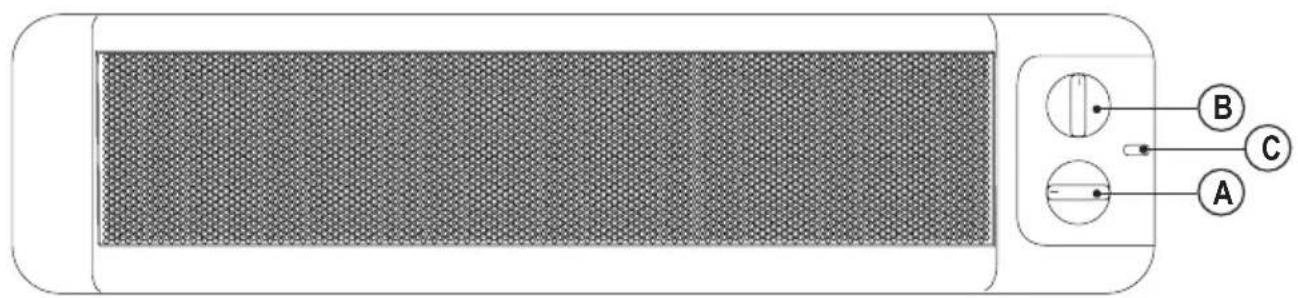

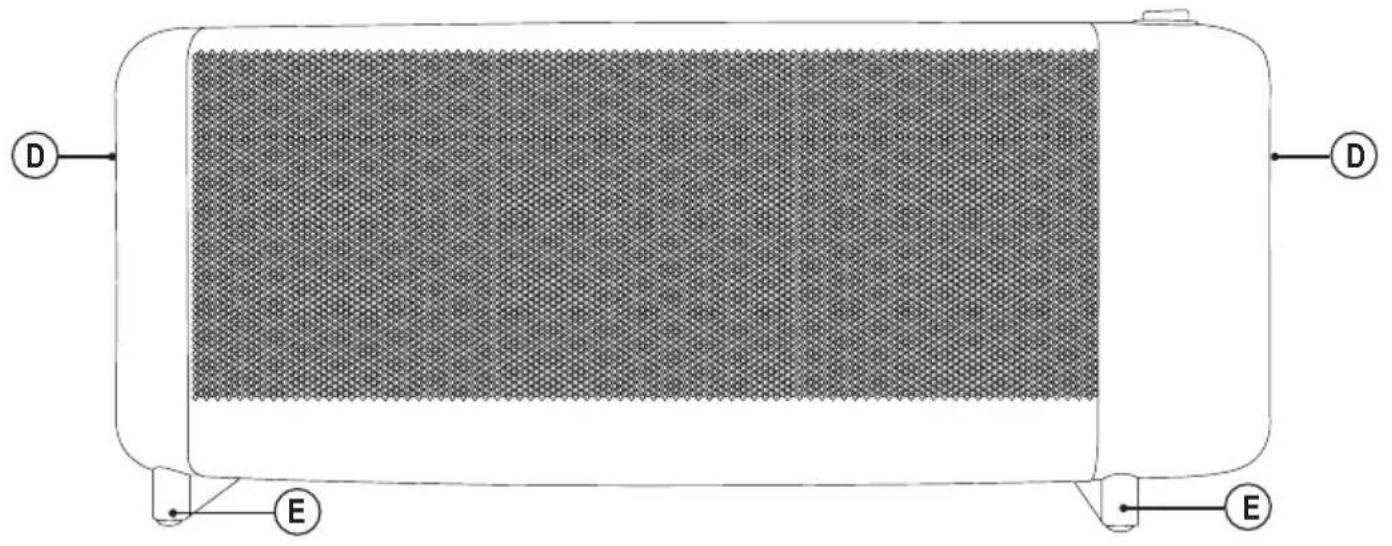

DESCRIPTION

A Thermostat
B Power selector
C Pilot light
D Handle
E Feet

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE

Before use:

◆ Make sure that all the product's packaging material has been removed.
To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.
◆ Prepare the appliance according to the function you wish to use.

Use:

◆ Unroll the cable completely before plugging it in.
◆ Connect the appliance to the mains.
◆ Start the appliance by turning on the power selector (B).
♦ Select the desired temperature.
◆ Turn the thermostat control to the desired temperature

position (A).

◆ The pilot light (C) comes on.

Once you have finished using the appliance:

◆ Select the minimum position (MIN) using the thermostat control (A).
- Turn off the appliance by selecting '0' on the power selector.
◆ Unplug the appliance from the mains.
◆ Allow to cool down.
◆ Clean the appliance

Carry handle/s:

- This appliance has side handles which facilitate comfortable transport (D).

Anti-Tilt safety device

The appliance has an anti-Tilt safety device which disconnects the appliance if the working position is incorrect.

Safety thermal protector

◆ The appliance has a safety device, which protects the appliance from overheating.
When the appliance switches itself on and off repeatedly, for reasons other than the thermostat control, check to ensure that there are no obstacles that impede correct air entry or expulsion.
If the appliance turns itself off and does not switch itself on again, unplug it from the mains supply and wait approximately 15 minutes before reconnecting it. If it fails to switch on again, take it to one of the authorised technical assistance services.

CLEANING

◆ Unplug the appliance from the mains and let it cool before performing any cleaning task.
◆ Clean the equipment using a damp cloth with a few drops of washing-up liquid and then dry.
Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
- Do not immerse the appliance in water or any other liquid, or place it under a running tap.
◆ If the appliance is not kept clean, its surface may deterior-

ENGLISH

(Original instructions)

rate, which will inevitably shorten the appliance's useful life, as well as making it unsafe to use.

Note: When the appliance is switched on using the heating function following a prolonged period of standing idle, it may give off a little smoke at first, this is due to dust or other particles on the heating element being burned, and is not cause for concern. This phenomenon can be avoided by using a vacuum cleaner or a jet of compressed air through the slits of the appliance to clean the inside of the appliance before use.

FAULTS AND REPAIR

Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair it, as this may be dangerous.

For EU product versions and/or in the case that it is requested in your country:

Ecology and recyclability of the product

- The packaging materials for this appliance are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material. - The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that if you wish to dispose of the product once its useful life has ended, it must be deposited with an authorised waste management agent for the selective collection of Waste Electrical and Electronic Equipment

(WEEE)

This appliance complies with Directive 2014/35/EU on Low Voltage, with Directive 2014/30/EU on Electromagnetic Compatibility, with Directive 2011/65/EU on restrictions on the use of certain dangerous substances in electrical and electronic appliances and with Directive 2009/125/EC on the ecological design requirements applicable to products related to energy.

WARRANTY AND TECHNICAL ASSISTANCE

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://www.2helpu.com/.

You can also request related information, by contacting us (see the last page of the manual).

You can download this instruction manual and its updates at http://www.2helpu.com/.

The following information details the characteristics related to the ecological design:

Model: BXMRA1500E
Heat output
Nominal heat output Pnom 1.50 kW
Minimum heat output (indicative) Pmin 0.75 kW
Maximum continuous heat output Pmax 1.50 kW
Auxiliary power consumption
At nominal heat output max N/A
Minimum heat outputmin N/A
Stand-by mode SB 0.00 kW
Type of heat input, only for electric thermal-storage room heaters
Manual control of heat load, with built-in thermostat No
Manual control of heat load with response to indoor/outdoor temperature.	No
Electronic control of heat load with response to indoor/outdoor temperature.	No
Fan assisted heating No
Type of heating / indoor temperature control
Single setting heating, with no indoor temperature control No
Two or more manual settings, with no indoor temperature control	No
With mechanical thermostat for indoor temperature control Yes
With electronic indoor temperature control No
Electronic indoor temperature control and daily timer No
Electronic indoor temperature control and weekly timer No
Other control options
Indoor temperature control with presence detector No
Indoor temperature control with open window detector	No
With optional remote control	No
With adaptable on/off control	No
With time-limit operation	No
With black light sensor	No
Contact information:	Engineering and Technology for Life, S.L.Avda. Barcelona, s/n, 25790 Oliana, Lleida, Spain
