TRT 140 AIR - Tent DOMETIC - Free user manual and instructions

Product type	Inflatable awning for roof tent
Brand	Dometic
Model	TRT 140 AIR
Intended use	Attachment to roof tent, light to moderate weather, excursions
Maximum inflation pressure	0.62 bar (9 psi)
Material	Flame-retardant fabric compliant with CPAI-84
Inflation system	Air tubes with valve
Delivery contents	Transport cover, awning, 2 solar roof tubes, stake bag
Installation	Stakes driven at 45°, adjustable anchor lines, storm straps
Cleaning	Clear water and soft brush, no chemicals
Maintenance	UV and water repellent treatment before each trip
Fire safety	Flame-retardant fabric, do not use flame or fuel-burning devices inside
Ventilation	Keep ventilation openings open at all times
Repairability	Repair kit available: tape, repair solution, silicone spray
Warranty	Limited warranty, contact dealer or Dometic
Storage	Dry and well-ventilated place, awning completely dry before storing

Frequently Asked Questions - TRT 140 AIR DOMETIC

How to inflate the TRT 140 AIR awning?

Use a suitable pump (not a tire compressor). Inflate the air tubes to a maximum pressure of 0.62 bar (9 psi). Do not overinflate.

What to do in case of an air leak?

Check that the valve is properly screwed and the seal is in place. Make sure the valve cap is tightened. If the leak persists, look for a puncture in the air tube.

How to repair a puncture in the air tube?

Open the zipper of the outer sleeve, remove the tube, then submerge it in water to locate the leak. Dry the area and apply repair tape and repair solution.

How to clean the awning?

Set up the awning completely and clean it with clean water and a soft brush. Do not use chemicals, alcohol, or sharp objects. Let it dry completely.

Where and how to store the awning?

After complete drying, fold or roll the awning and place it in the transport cover. Store it in a dry and well-ventilated place.

Can I use a barbecue or gas heater inside the awning?

No, it is dangerous. Fuel-burning devices produce carbon monoxide which accumulates and can be fatal. Never use them inside.

What is the recommended maximum inflation pressure?

The maximum pressure is 0.62 bar (9 psi). Do not exceed this limit to avoid damaging the tubes.

How to install the awning correctly?

Follow the illustrations in the manual. Drive the stakes at an angle of 45° relative to the awning. Attach the anchor lines and adjust them to tension the awning without deforming it.

What to do in case of condensation inside the awning?

Condensation is normal in high humidity or temperature drops. Increase ventilation by opening doors and windows. Install a waterproof ground sheet to reduce humidity.

What is the warranty coverage?

The limited warranty covers manufacturing and material defects. It does not cover normal wear, damage from UV, storms, or commercial use. See dometic.com/warranty for details.

USER MANUAL TRT 140 AIR DOMETIC

Line drawing of a camping tent with roof structure and vehicle (no text or symbols)

TRT140 AIR Awning Low, TRT140 AIR Awning Tall

FN Awning tent

Installation Manual....7

Auvent

Instructions de montage ..... 12

Avance

© 2022 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

Illustration of four different types of fabric or bedding items with numbered labels, likely for assembly or packaging instructions.

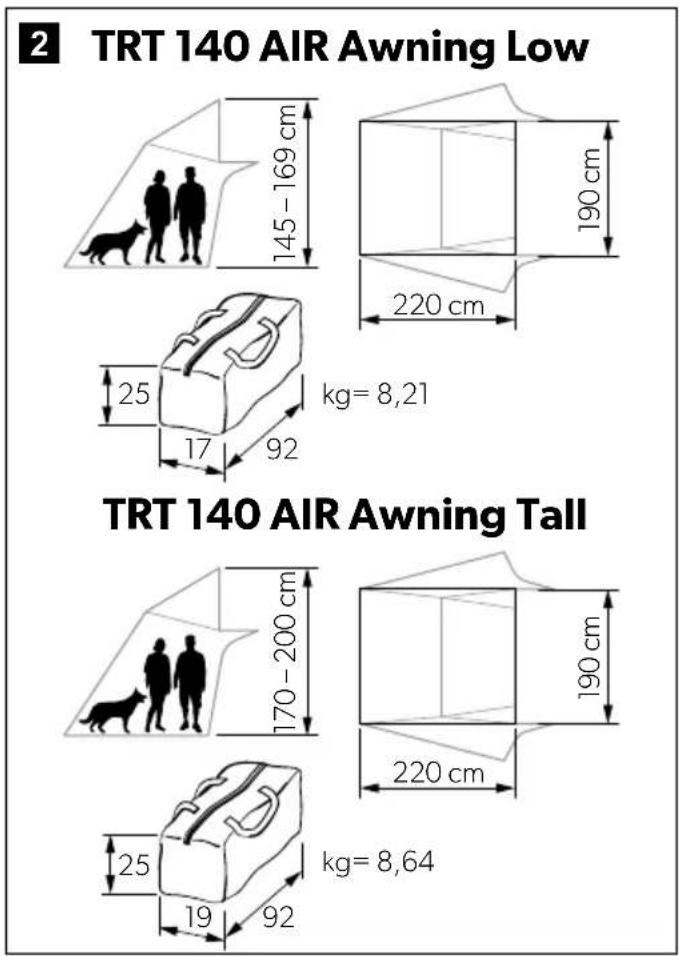

2 TRT 140 AIR Awning Low 145-169 cm 190 cm 220 cm 25 kg= 8,21 17 92 TRT 140 AIR Awning Tall 170-200 cm 190 cm 220 cm 25 kg= 8,64 19 92

3

4

5 1. 2.

6 1. 9 psi 2. 3.

7 1.2.

8

9

Diagram illustrating a person installing a roof structure using a device, with three diagrams showing different configurations of a tent.

10 A

2x 2x 1. 2x 3. 2x

11 B

1. 2x 2. 3. 3x

12

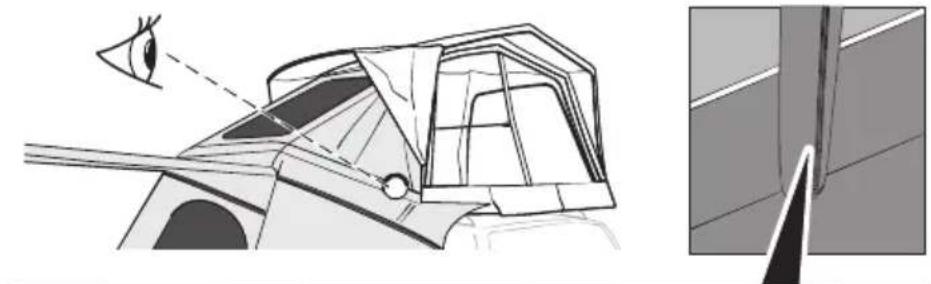

Technical line drawing of a car interior with an eye and window, alongside a close-up view of the door (no text or symbols)

Diagram illustrating three steps of fabric collar stitching: wire tightening, forming a zipper, and adjusting the seam.

4. 5. 6. 7. 8.

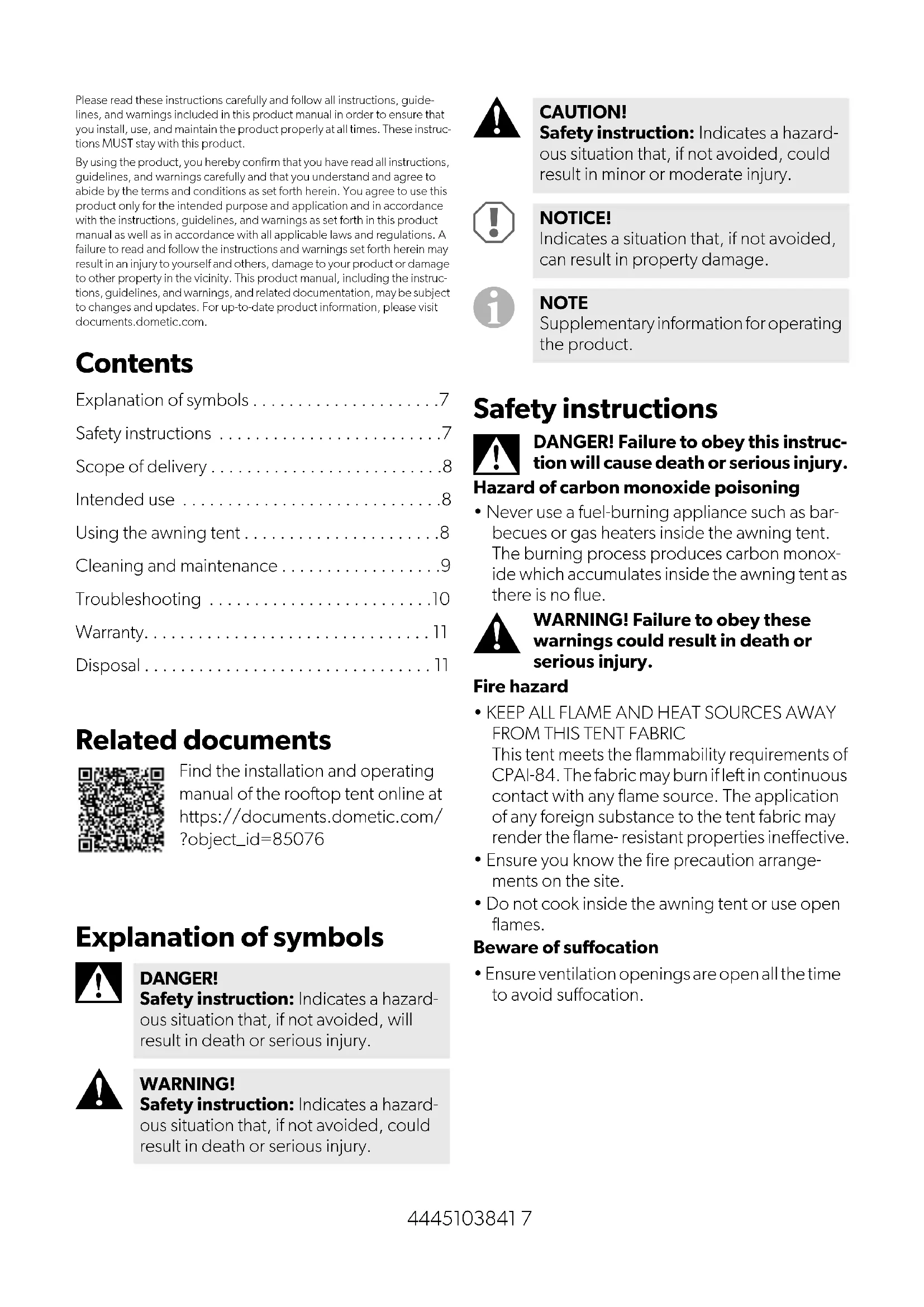

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com.

Contents

Explanation of symbols....7

Safety instructions ....7

Scope of delivery....8

Intended use 8

Using the awning tent....8

Cleaning and maintenance....9

Troubleshooting ....10

Warranty.....11

Disposal....11

Related documents

Find the installation and operating manual of the rooftop tent online at https://documents.dometic.com/?object_id=85076

Explanation of symbols

DANGER!

Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

Safety instructions

DANGER! Failure to obey this instruction will cause death or serious injury.

Hazard of carbon monoxide poisoning

- Never use a fuel-burning appliance such as barbecues or gas heaters inside the awning tent. The burning process produces carbon monoxide which accumulates inside the awning tent as there is no flue.

WARNING! Failure to obey these warnings could result in death or serious injury.

Fire hazard

• KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC
  This tent meets the flammability requirements of CPAI-84. The fabric may burn if left in continuous contact with any flame source. The application of any foreign substance to the tent fabric may render the flame-resistant properties ineffective.
• Ensure you know the fire precaution arrangements on the site.
• Do not cook inside the awning tent or use open flames.

Beware of suffocation

- Ensure ventilation openings are open all the time to avoid suffocation.

CAUTION! Failure to obey these cau-tions could result in minor or moderate injury.

Risk of injury

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.
• Do not allow children to play around the awning tent and ensure that suitable protective footwear is worn. Guy lines are a trip hazard and pegs can be sharp.
• Cleaning and user maintenance may not be carried out by unsupervised children.
• Keep passage ways clear.

Scope of delivery

No. in

fig. 1,

Component Quantity

page 3

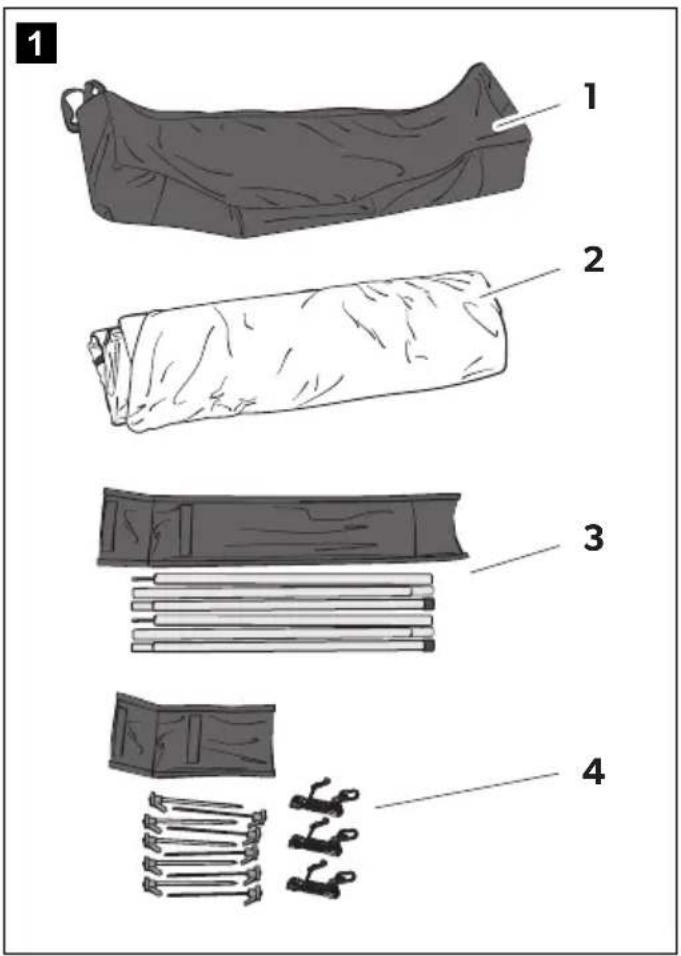

1 Carry bag 1

2	A	w	n	i	n	g
3	C	a	n	o	p	y
4	P	e	g	b	a	g

Intended use

This awning tent is suitable for:

• Attaching to the rooftop tent TRT 140 AIR
  • Light to moderate weather
• Touring

This awning tent is not suitable for:

• Very strong winds or snowfall
- Seasonal pitch or commercial use

This product is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

Using the awning tent

CAUTION! Risk of injury

Never open the zipper on the protective sleeve while an air pole is inflated. This will result in the air pole bursting.

NOTICE! Material damage

Do not open or close the zippers by force.

t e n t 1

Before first use

Famlliarize yourself with the product by carrying out a test set up before the product is used for the first time. Check if the scope of delivery is complete.

Setting up the awning tent

CAUTION! Risk of injury and material damage

• Do not use any type of compressor designed to inflate car tires.

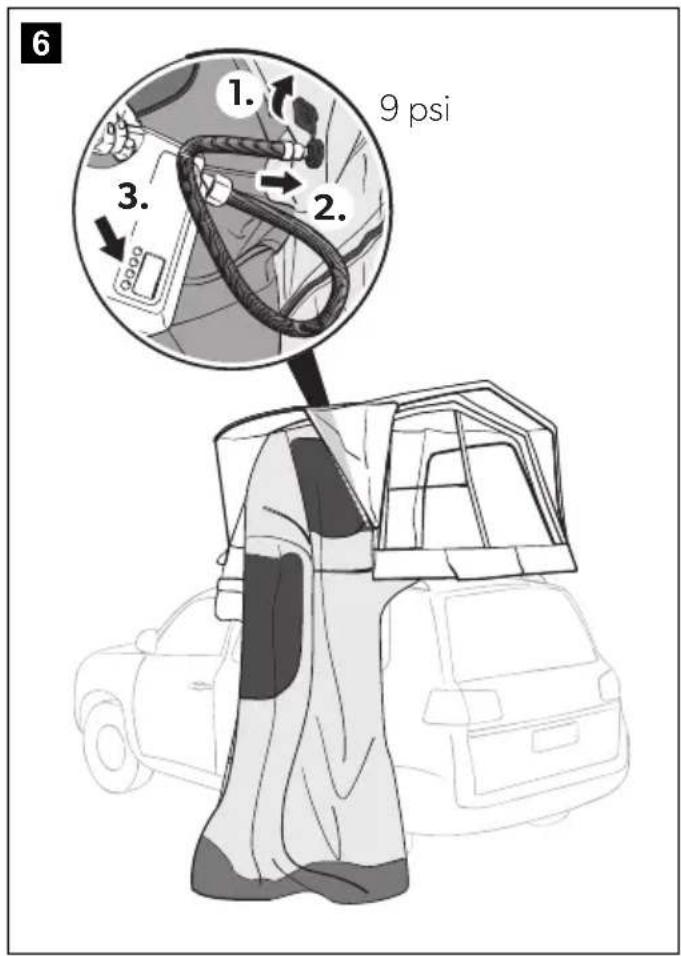

• Only inflate the air poles up to a maximum pressure of 9psi/0.62bar.

NOTE

• The awning tent comes with heavy duty pegs. These will be suitable for many sites but for some types of ground special pegs will be needed. Ask your dealer.

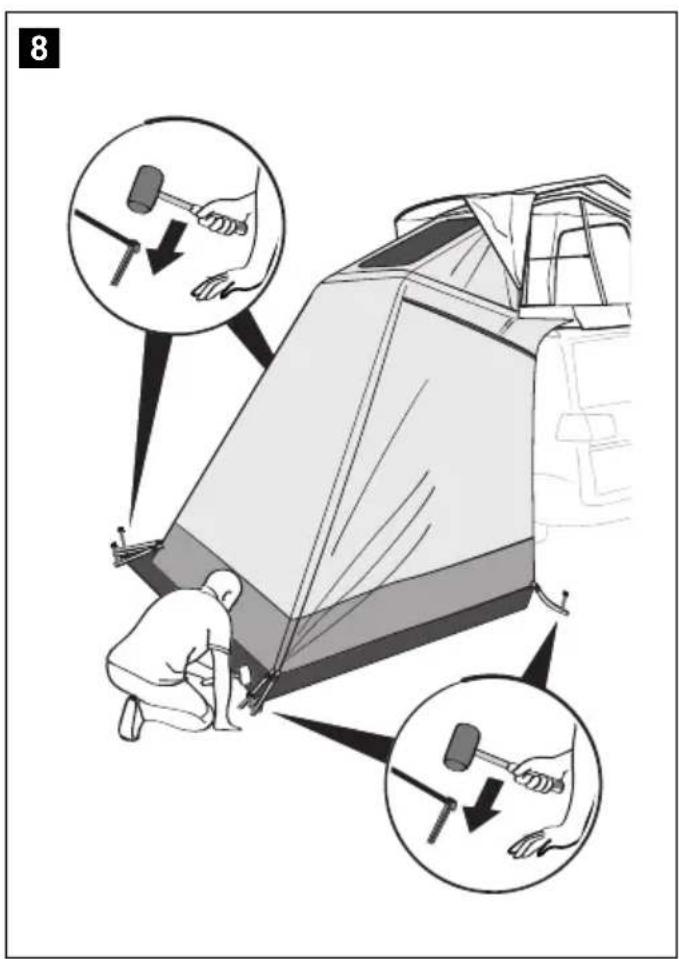

• Drive the pegs at a 45^ angle away from the awning tent into the ground.
• Peg each guy line in-line with the seam it starts from.

Keep the following tips in mind while setting up the awning tent:

• The figures provide a general overview of the set-up. The actual set-up will vary slightly based on the model of awning tent.
• Get help. The set-up is easier with more people.
• After standing the awning tent upright, check the corner pegs and re-peg if necessary. The groundsheet on the inside should be taut and in a rectangular shape.
• Peg the guy lines so that the awning tent is under tension without distorting the shape.
• If available, attach the storm straps.
• Check the guy lines from time to time to ensure adequate tension, if necessary use the runners to adjust.

Set up the awning tent as follows:

1. To protect the awning tent from dirt and damage, lay down a groundsheet or footprint before unpacking.
2. Unpack the awning tent.
3. Separate and identify the different components.

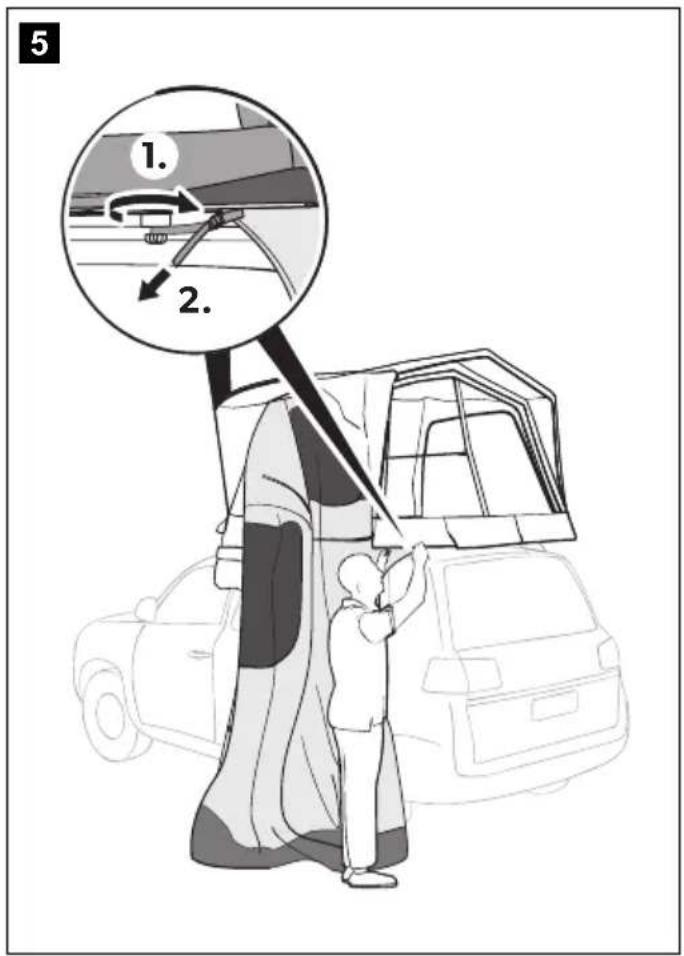

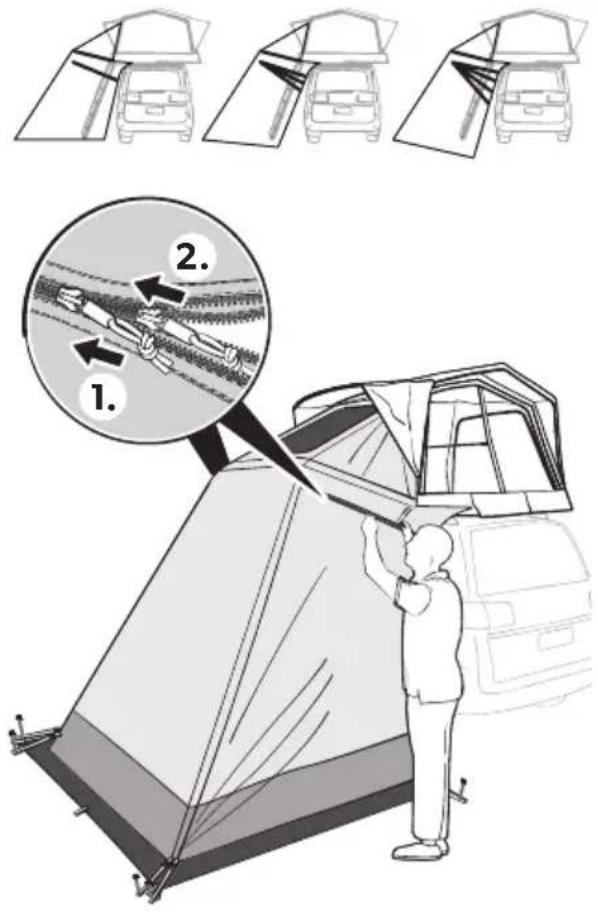

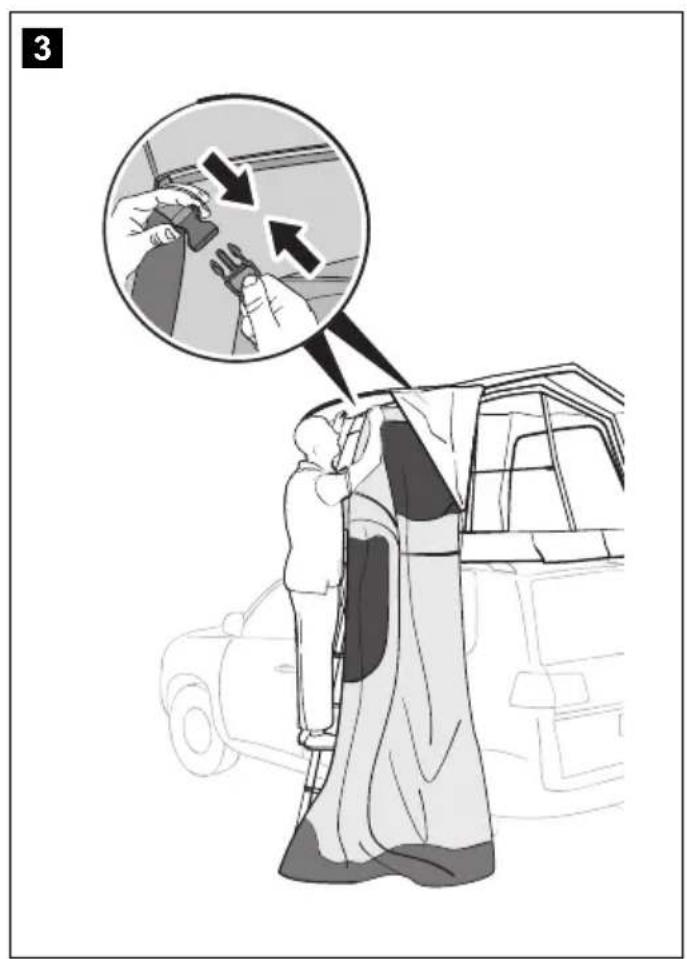

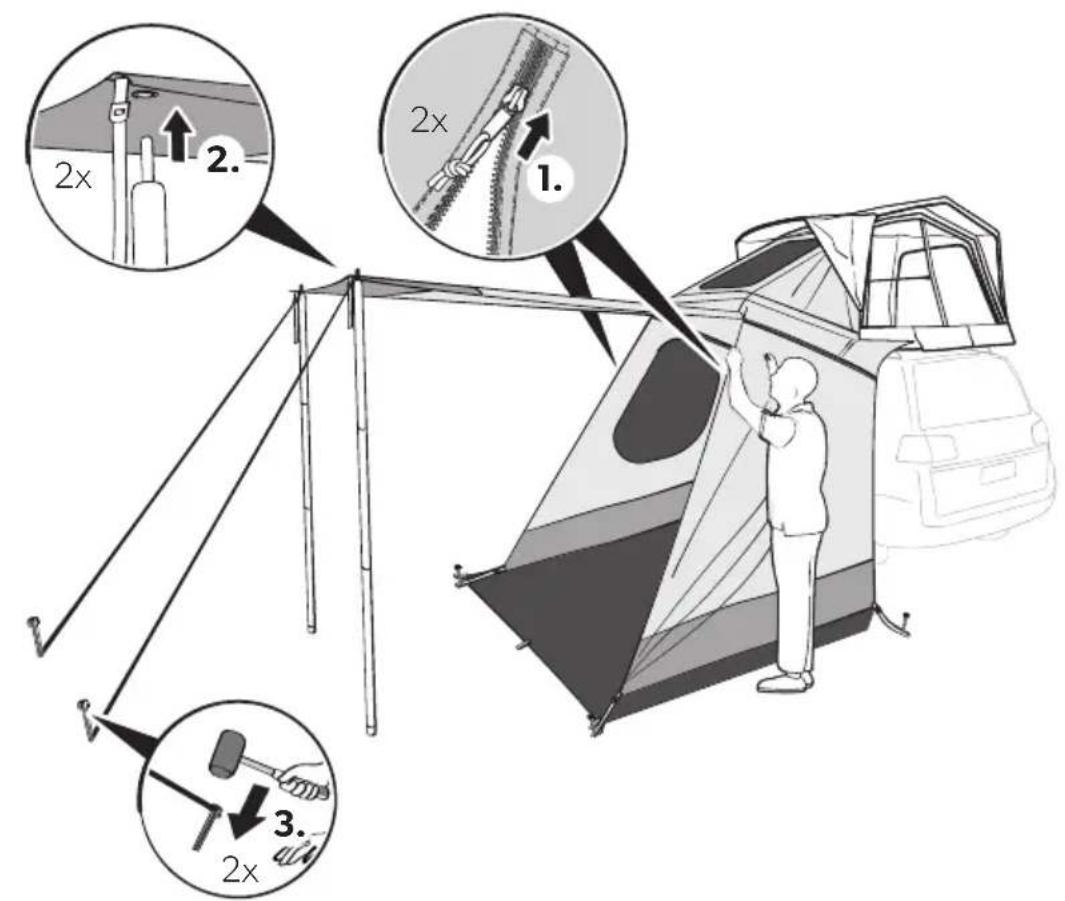

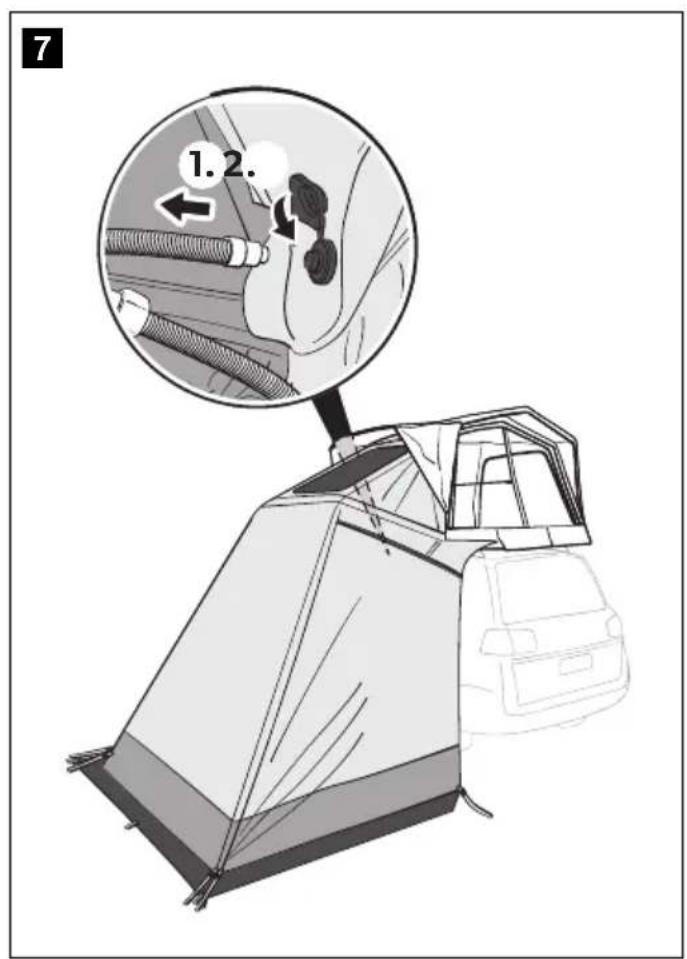

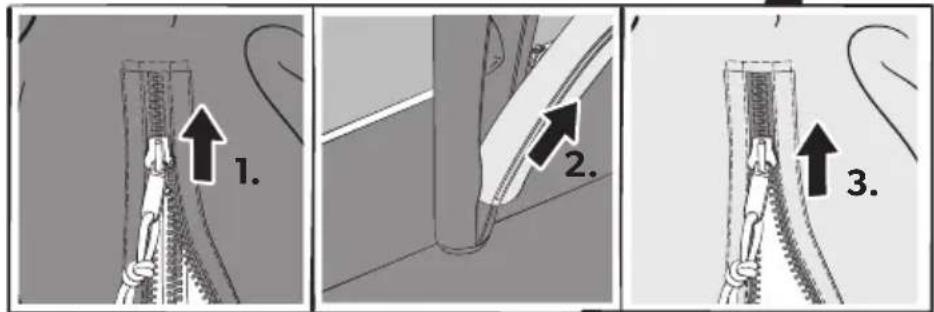

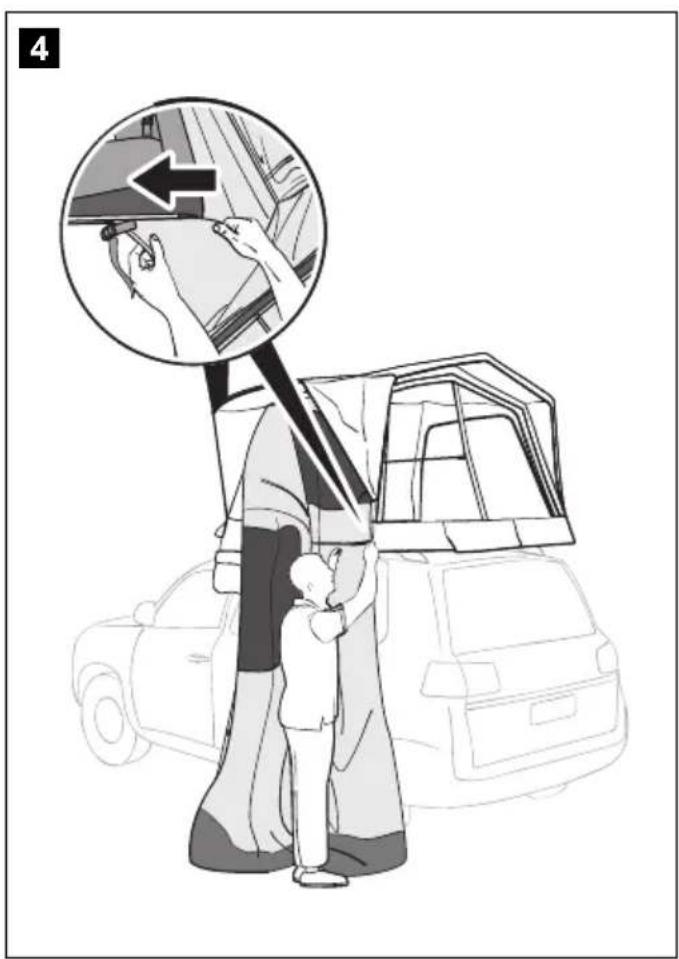

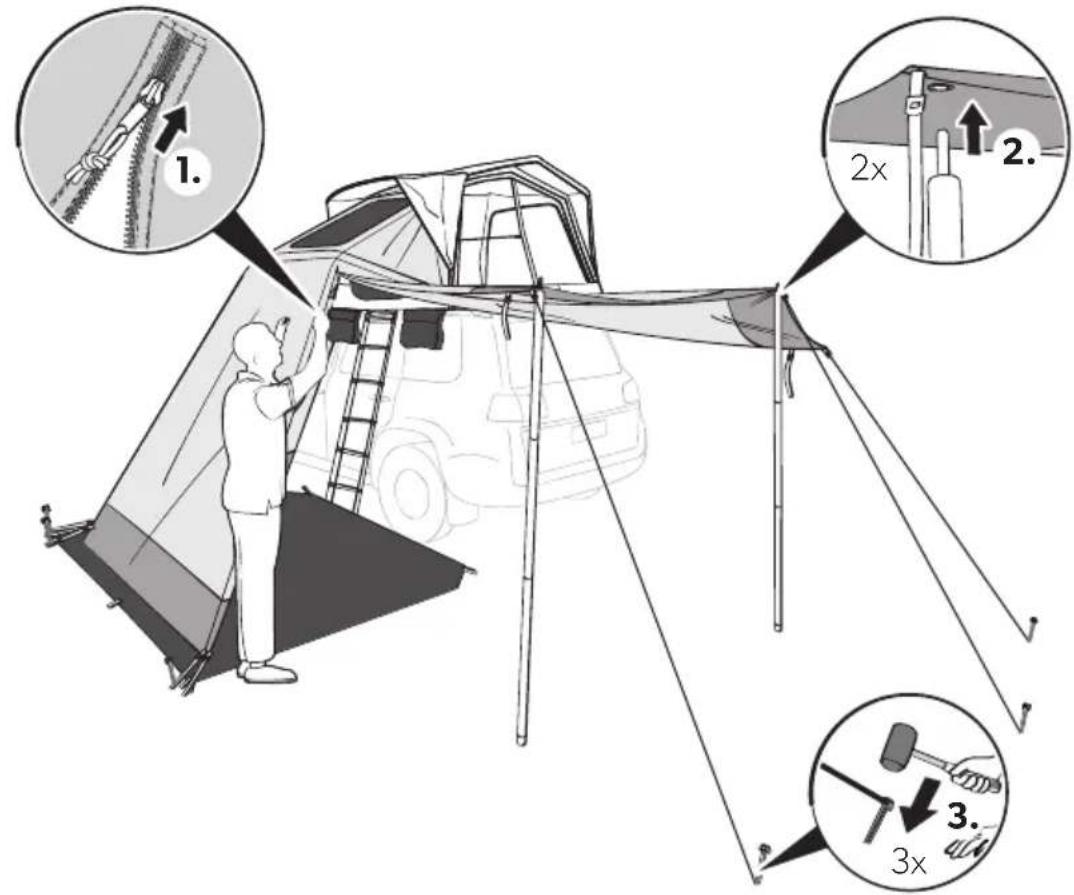

4. To set up the awning tent proceed as shown (fig. 3, page 3 – fig. 11, page 6).

Dismantling the awning tent

NOTICE! Damage hazard

Do not use force when dismantling the awning tent. Otherwise you might damage any material.

1. Remove any dirt on the outside.

2. If the awning tent is wet or damp, dry thoroughly.

3. Remove all lines and straps.

4. Remove all pegs.
5. Close all zippers.
6. Open the valve on the air pole.
7. Wait until most of the air has been expelled.
8. Carefully detach the awning tent from the extrusion channel.
9. Open the buckles to detach the awning tent from the rooftop tent.
10. Fold or roll the awning tent towards the valve to expel more air.
11. When deflated, roll the awning tent to fit into the carry bag.
12. Ensure that all parts are clean before packing them into the carry bag.

Storing the awning tent

1. Clean the awning tent.
2. Air fully and ensure the awning tent is totally dry before packing away.
3. Store in a well ventilated dry place.

Cleaning and maintenance

NOTICE! Material damage

• Do not use sharp or hard objects or cleaning agents for cleaning.
• Do not use alcohol based materials, chemicals, soap and detergents for cleaning.

NOTE

• Fully set up the awning tent for cleaning.
• Choose a sunny day for cleaning to ensure the material will dry thoroughly.

▶If necessary, clean the awning tent with clean water and a soft brush.
▶Remove bird droppings and tree resin as soon as possible to avoid permanent damage to the material.
▶Apply impregnation against water and UV radiation before each trip.

Troubleshooting

NOTE

- During first exposure to water there may be some moisture at the seams. Through this moisture the threads will swell and fill the holes that are created in the sewing process.

- A fully equipped spare parts kit should include:

• Waterproof
  – Repair tape and repair solution
  – Silicone spray for the zippers
• Spare pegs

Problem Solution

Awning tent only inflates with difficulties	▶ Check that the valve is fully screwed into the air pole. ▶ Check if the inflation tube is twisted at the valve. This may be indicated by noise. Untwist the inflation tube. ▶ Check that the electric pump is working.
Air poles are kinked	▶ Add more air (9 psi/0.62 bar).
Air leak	▶ Check that the valve is fully screwed into the air pole and the ring seal is in place. ▶ Check that the cap of the valve is done up tightly. ▶ Check for punctures, see chapter “Repairing a puncture in the air pole” on page 10
Water leak	▶ Check for leaky seams, damaged tapings and moist areas. ▶ If you cannot find any leaks, see chapter “Condensation” on page 10. ▶ If you find any leaks, apply seam sealant.
Rip in the fabric	▶ Use repair tape to seal the fabric. ▶ Have repairs carried out by an authorized specialist.

Condensation

All awning tents suffer from internal condensation if one or more of the following conditions apply:

• High air humidity
• High ground moisture
- A drop in temperature

Severe condensation can run down the inside of the roof and drip off ties, tapes and other internal fittings and can be mistaken for leaking.

▶ Increase ventilation by opening doors and/or windows.
▶ Install a waterproof groundsheet.

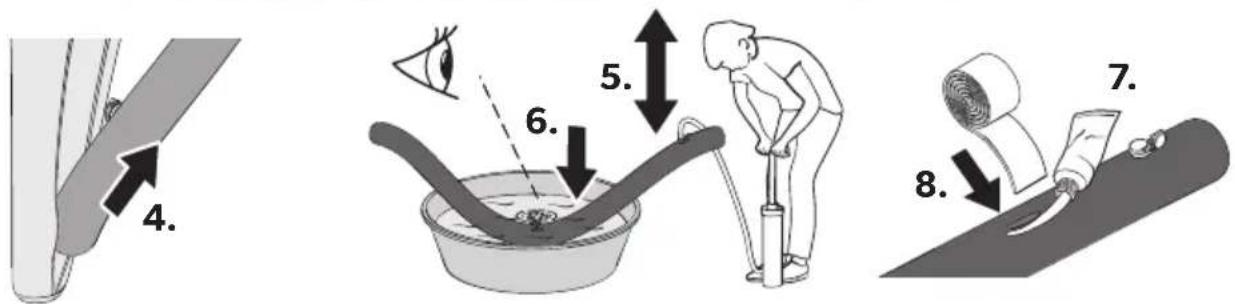

Repairing a puncture in the air pole

If the air pole loses air, proceed as follows:

1. Unzip the outer sleeve holding the air pole.
2. Remove the air pole.
3. Unzip the protective sleeve to expose the inflatable tube.
4. Submerge the tube in water.
5. Blow some air into the inflatable tube to locate the puncture.
6. Use repair tape and repair solution to seal the hole.
7. Zip the inflatable tube back into the protective sleeve.
8. Zip the air pole back into the outer sleeve.

▶ Also observe the information given in fig. 12, page 6.

Warranty

Refer to the sections below for information about warranty and warranty support in the US, Canada, and all other regions.

United States and Canada

LIMITED WARRANTY AVAILABLE AT DOMETIC.COM/WARRANTY.

IF YOU HAVE QUESTIONS, OR WANT TO OBTAIN A COPY OF THE LIMITED WARRANTY FREE OF CHARGE, CONTACT:

DOMETIC CORPORATION CUSTOMER SUPPORT CENTER

2320 INDUSTRIAL PARKWAY ELKHART, INDIANA 46516

1-800-544-4881 [e-mail]

All Other Regions

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your region (dometic.com/dealer) or your retailer.

For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

Note that self-repair or nonprofessional repair can have safety consequences and might void the warranty.

Warranty conditions

The warranty covers manufacturing defects, materials and parts. The warranty does not cover fading of the cover and wear and tear due to UV radiation, misuse, accidental damage, storm damage, or permanent, semi-permanent or commercial use. It does not cover any resulting damage. Please contact your dealer for claims. This does not affect your statutory rights.

Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.
Consult a local recycling center or specialist dealer for details about how to dispose of the product in accordance with the applicable disposal regulations.

https://documents.dometic.com/?object_id=85076

[e-mail]

https://documents.dometic.com/?object_id=85076

[e-mail]

Otras regiones

dometic.com/sales-offices
