DW055PL - Rangefinder DEWALT - Free user manual and instructions

Product Type	Laser Distance Measurer
Brand	DeWalt
Model	DW055PL
Measurement Range	0.165 m to 16.75 m (6.5 in to 55 ft)
Accuracy	Typically ± 6 mm (± 1/4 in) up to 10 m; beyond, ± 0.5 mm/m
Display Resolution	1 mm (1/16 in)
Laser Class	Class 2 (IEC/EN60825-1:2014)
Laser Wavelength	620-690 nm, ≤ 1.0 mW
Power Supply	Built-in rechargeable battery, charging via USB (cable included)
Battery Life	Up to 1000 measurements or 30 days (without use)
Charging Time	Approximately 2.5 hours
Auto Power Off	After 120 seconds of inactivity (laser after 60 s)
Protection Rating	IP54 (water and dust resistant)
Dimensions (H x D x W)	62 x 17.5 x 32 mm (2.44 x 0.69 x 1.25 in)
Weight	31.75 g (1.12 oz)
Operating Temperature Range	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature Range	-7 °C to 70 °C (19 °F to 158 °F)
Measurement Units	Decimal feet, fractional feet, meters, inches
Display	Digital display with backlight
Main Functions	Distance measurement, unit change, auto power off, continuous measurement
Maintenance and Cleaning	Wipe with a soft, dry cloth. Do not use solvents.
Safety	Do not look directly into the laser beam. Class 2 laser product.
Spare Parts / Repairability	Contact a DeWalt authorized service center for any repairs.
Warranty	See www.DeWalt.com for warranty information.

Frequently Asked Questions - DW055PL DEWALT

How to turn on the DW055PL laser distance measurer?

Press the Measure button (Figure A ③) to turn on the device. The red laser appears on the target.

How to change the measurement unit?

After a measurement, press and hold the Measure button for about 3 seconds until the unit changes. Available units are: decimal feet, fractional feet, meters, inches.

How to charge the DW055PL battery?

Open the USB port cover at the bottom of the device, connect the provided USB cable (small end into the device, large end into a USB charger or computer). Full charge takes about 2.5 hours.

What is the maximum measurement range?

The range is from 0.165 m to 16.75 m (6.5 in to 55 ft). Performance may vary depending on lighting conditions and target surface.

What is the accuracy of the distance measurer?

Accuracy is typically ± 6 mm (± 1/4 in) up to 10 m. For longer distances, the error may increase by ± 0.5 mm/m.

Is the laser dangerous to the eyes?

The DW055PL is a Class 2 laser. Do not look directly into the beam and do not point the laser at others' eyes. Brief exposure is generally not dangerous, but avoid prolonged eye contact.

How to turn off the device?

You can press and hold the Measure button for about 5 seconds until the screen turns off. The device also turns off automatically after 120 seconds of inactivity.

What to do if the device no longer displays anything?

Check that the battery is charged. Connect the USB cable and let it charge for at least 30 minutes before trying again. If the problem persists, contact a DeWalt authorized service center.

How to clean the distance measurer?

Use a soft, dry cloth to clean the exterior. Do not use chemicals or abrasives. Protect the laser lens from dust.

Is the device water-resistant?

Yes, it has an IP54 protection rating, meaning it is resistant to water splashes and dust, but should not be submerged.

USER MANUAL DW055PL DEWALT

• User Safety
• Charging the Battery
  Using the Tool
  Warranty
• Specifications

Retain all sections of this manual for future reference.

User Safety

WARNING:

Carefully read the Safety Instructions and Product Manual before using this product. The person responsible for the product must ensure that all users understand and adhere to these instructions.

WARNING:

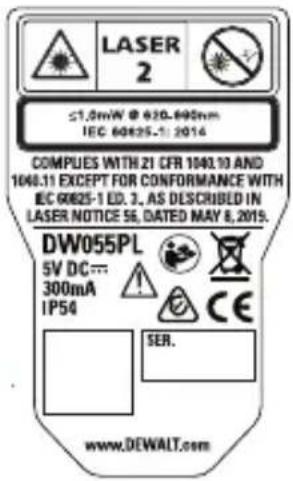

The following label information is placed on your laser tool to inform you of the laser class for your convenience and safety (Figure B).

Symbol Meaning

V Volts

mW Milliwatts

Laser Warning

nm Wavelength in nanometers

2 Class 2 Laser

E

WARNING: To reduce the risk of injury, user must read this instruction manual and the safety manual.

WARNING: LASER RADIATION. DO NOT STARE INTO BEAM. Class 2 Laser Product.

The DW055PL tool emits a visible laser beam, as shown in Figure A 1. The laser beam emitted is Laser Class 2 and complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1, Ed. 3, as described in Laser Notice 56, dated May 8, 2019.

WARNING:

While the laser tool is in operation, be careful not to expose your eyes to the emitting laser beam (red light source). Exposure to a laser beam for an extended time period may be hazardous to your eyes. Do not look into the beam with optical aids.

Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information

Responsible Party - U.S. Contact Information

DEWALT

701 East Joppa Road

Towson, Maryland 21286

www.DEWALT.com

E

FCC Statement

These devices comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

Canada, Industry Canada (IC) Notices

Class B digital circuitry of this device complies with Canadian ICES-003. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device.

Charging the Battery

Fully charge the battery before initial use and whenever the tool has not been used for 6 months or longer.

WARNING:

Only charge product using a certified power adapter that is compliant with applicable country regulations and international/regional safety standards. Using adapters that do not meet applicable safety standards could result in injury.

1. Locate the port cover on the bottom of the tool (Figure A 4).
2. Using your finger, gently pull the port cover up (Figure ①).
3. Insert the small end of the USB Recharge Cable into the port on the bottom of the tool, making sure to insert the flat side of the cable into the flat side of the port (Figure 2).
4. Insert the USB end of the cable into a USB port in a computer or USB power outlet (Figure 3).
5. Wait approximately 2.5 hours for the battery to fully charge and then disconnect the USB Recharge Cable.

When the tool is ON, the battery level appears in the display window (Figure D1).

Using the Tool

1 Point the laser at the top of the tool (Figure A 1) toward the wall whose distance you need to measure (Figure E 1).
2. Click (Figure A 3) to turn the tool on and display a laser dot on the wall (Figure E 1).
3. When the bottom of the tool is positioned at the correct distance from the wall, click to take the measurement (Figure E 2).
4. View the measurement on the display window (Figure D 3).

Changing the Unit of Measure

Once the current measurement is taken, you can change the unit of measure from decimal ft (6.21 ft) to fractional ft (6'02"9/16), fractional ft to meters (1.894 m), meters to inches (74 9/16 in), or inches to decimal ft.

To change the unit of measurement, press and hold until you see the measurement change (3 seconds).

NOTE: If you continue to hold after the measurement changes, the tool will turn off.

Re-measuring

1 When you need to take a new measurement, point the laser toward the wall whose distance you need to measure.

2. Click

The previous measurement (Figure D3) will be cleared from the display window.
- with change to in the display window (Figure ① ②).

1. When the bottom of the tool is positioned at the correct distance from the wall, click to take the measurement (Figure E 2).

Turning Off the Tool

The tool can be turned off in either of these ways:

After taking a measurement, press and hold for 5 seconds (until the display window clears).
- If you do not use the tool for 120 seconds, it will automatically turn off. (After 60 seconds, the laser (red dot) will turn off and then after another 60 seconds the unit will turn off.)

Warranty

Go to www.DEWALT.com for the latest warranty information.

Specifications

Range 6.5in to 55ft (.165m to 16.75m)
Measuring Accuracy* Typically ± 1/4in (± 6mm)*
Resolution** 1/16in (1mm)**
Laser Class Class 2 (IEC/EN60825-1: 2014)
Laser Wavelength ≤ 1.0mW @ 620-690nm
Auto Power Switch-off After 120s
Battery Life Up to 1000 Measurements	or 30 days (if the tool is not used)
Dimension (H x D x W) 2.44 x .69 x 1.25in (62 x 17.5 x 32mm)
Weight 1.12oz (31.75g)
IP Rating Water & Dust Resistant to IP54
Storage Temperature Range 19° F ~ 153°F (-7°C ~ +70 C)
Operating Temperature Range 32°F ~ 104°F (0°C ~ +40°C)
*Measuring Accuracy depends on the current conditions. Under favorable conditions (good target surface, low background illumination, and good room temperature) up to 30ft (10m). The measurement error can increase by up to ± 0.5mm/m for distances over 30ft (10m). **Resolution is the finest measurement you can see. In inches, that is 1/16". In mm, that is 1mm.
