USER MANUAL Velociptor Hero ES 108 EW HERO EMG

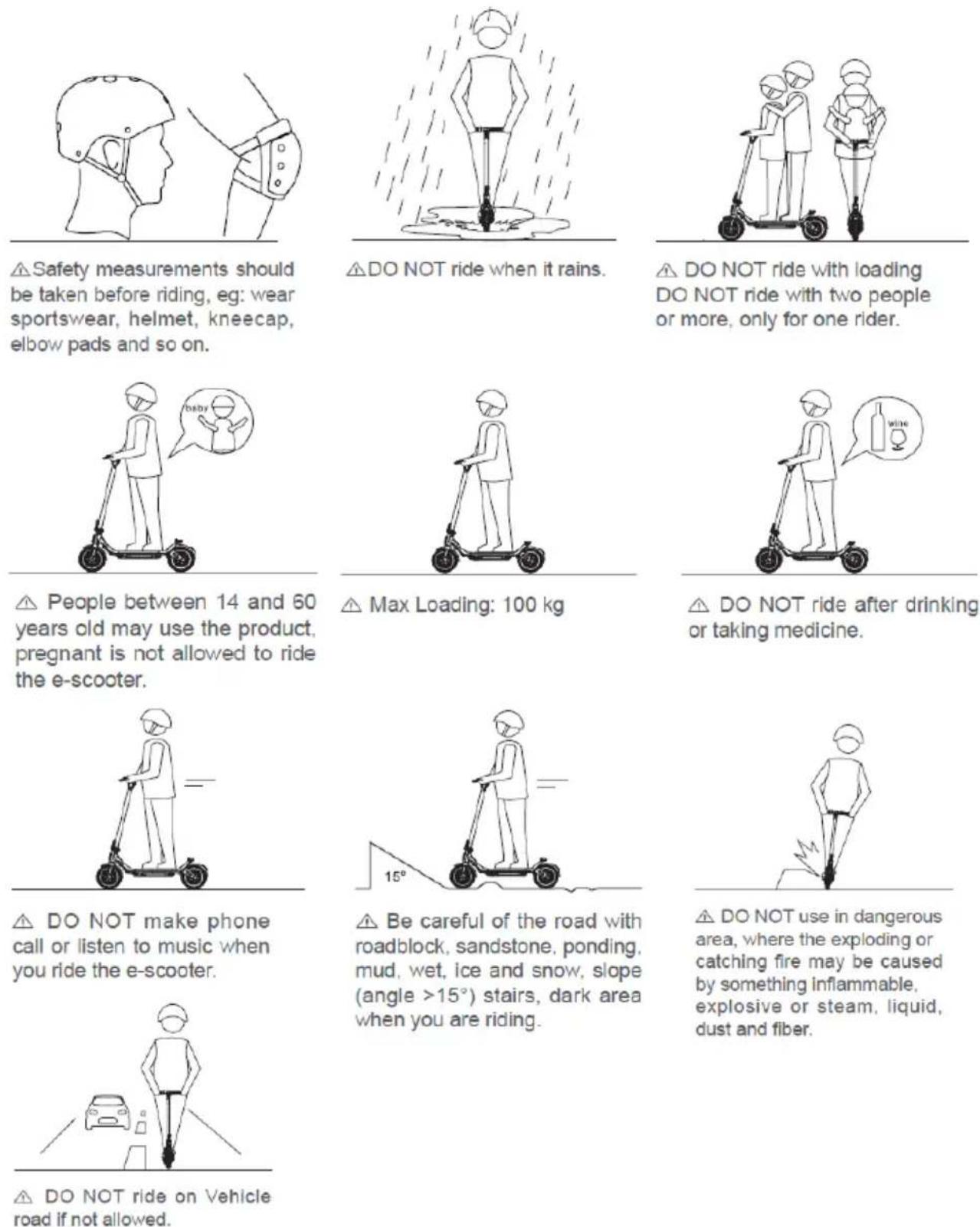

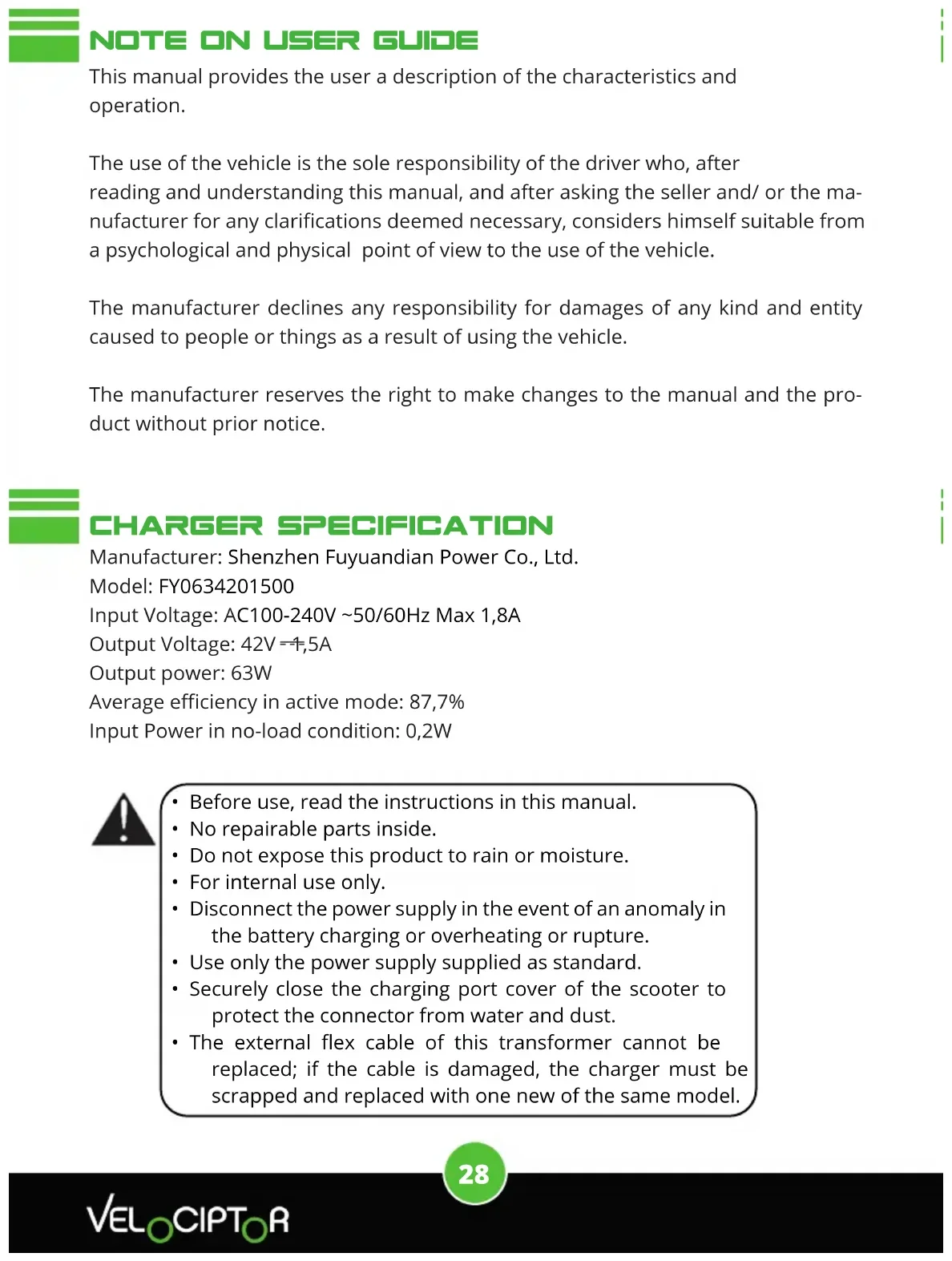

• Before use, read the instructions in this manual.

• No repairable parts inside.

• Do not expose this product to rain or moisture.

• For internal use only.

• Disconnect the power supply in the event of an anomaly in the battery charging or overheating or rupture.

• Use only the power supply supplied as standard.

• Securely close the charging port cover of the scooter to protect the connector from water and dust.

• The external ex cable of this transformer cannot be replaced; if the cable is damaged, the charger must be scrapped and replaced with one new of the same model.29 warnings

• Take the time to learn the basics of driving practice and gain experience to avoid serious accidents that can occur in the rst periods of use.

• Contact the seller to be directed to an appropriate driving training organization.

• Avoid high trac areas or congested areas.

• City trac involves crossing many obstacles such as sidewalks or steps. It is recommended to avoid jumping over obstacles. It is important to anticipate and adapt the trajectory and speed before crossing these obstacles. It is also recommended to stop and get o the vehicle when these obstacles become dangerous due to their shape, height or the risk of skidding they present.

• In any case, anticipate your trajectory and your speed in compliance with the highway code, the type of pavement and the obstacles present.

• Make your presence known when you approach a pedestrian or cyclist, when you are not seen or heard.

• Cross the pedestrian walkways by walking.

• Park the scooter only on a at and non-slippery surface using the special stand. Do not park the scooter on surfaces with an inclination greater than 6 °. Parking uphill or downhill involves the risk of loss of stability and falling or overturning.

• Either way, take care of yourself and others.

• Do not modify the vehicle from its original use.

• This vehicle is not intended for acrobatic use.

• Attention, the brake disc can overheat during use. Do not touch after use.

• Regularly check the tightness of the various bolted elements, especially the wheel pins, folding system, steering and brakes.

• Like any mechanical component, the vehicle is subject to severe stress and wear. Dierent materials and components can react dierently to wear or fati- gue. If the expected life of a component is exceeded, it can suddenly break and risk injuring the user. Cracks, scratches, and discoloration in high-stress areas indicate that the component has exceeded its life and needs to be replaced.

• Eliminates sharp edges caused by use.

• Do not modify or transform the vehicle.

• Avoid obstacles, smooth surfaces, snow, ice and rough surfaces.

• Avoid irregular objects that can clutter the road surface such as branches, gar- bage, stones, pebbles or other.

• Prolonged use of the vehicle or on uneven surfaces could lead to numerous body vibrations that could trigger certain pains; use the scooter in a reasonable way to limit these risks.

• Avoid tight spaces or spaces with obstacles.30

• Do not drive on slippery roads in rain or high humidity.

• Do not drive the scooter on steep slopes which could aect the stability of the vehicle.

• Any load attached to the handlebar will aect the stability of the vehicle.

• It is forbidden to use accessories or additional elements not approved by the manufacturer.

• There is no minimum and maximum height limit for the use of the scooter.

• When using the scooter, wear appropriate shoes and clothing, as well as all neces- sary protective items: helmet, knee pads, elbow pads and other protective gear.

• Attention: on wet roads or with high humidity the braking distance increases, adapt the speed accordingly. It is therefore very important to adapt your dri- ving style and speed and leave an adequate safety distance with pedestrians or other means of transport.

• It is necessary to evaluate the surface you are traveling on (at, clean, dry, at, wet, dirty, uneven) and adapt your driving style and speed to ensure a safe di- stance from pedestrians or other means of transport.

• Restrict driving in poorly lit areas, in the dark or at night. In this case, always use the lighting devices on the vehicle and use clothing equipped with high visibility devices.

• In the event of an accident, stay where you are and wait for help.

• Do not lend your scooter to people who are unfamiliar with the device.

• This device can be used by persons over the age of 14 as well as by persons with reduced physical, sensory or mental abilities, if they are adequately supervised by an adult and if they have been given instructions regarding the safe use of the device and if possible risks were understood; Cleaning and maintenance of the scooter should only be done by a properly trained adult.

• It is also necessary to wear shoes when handling the scooter (maintenance, assembly, repair, etc.)

• This item is not a toy.

• Use only the power supply supplied as standard.

• During use, tightly close the cover of the scooter’s charging socket to protect the connector from water and dust.

• The external ex cable of the charger cannot be replaced; if the cable is damaged, the battery charger must be scrapped and replaced with one of the same type.

• Minors using the scooter must always be supervised by an adult.

• Do not ride the scooter with more than one person on the footrest as this could cause you to lose control of the vehicle.

• Do not use the scooter in situations that could be dangerous to your safety and that of the people around you.31

• Do not use the vehicle under the inuence of alcohol, drugs or psychotropic substances that can alter your emotional state, your sensory abilities and the control of your movements.

• Always wear appropriate clothing that does not restrict movement, as well as at shoes (preferably sneakers with a non-slip rubber surface) that provide the necessary grip and stability.

• As with any means of transport, the use of the scooter can cause injuries to the user or to the people around, as a result of accidental falls or collisions. It is the- refore necessary to always wear protective equipment (such as bicycle helmet, knee pads, elbow pads) and be very careful not to cause damage to people and things.

• The scooter should not be used in standing water, puddles or adverse weather conditions (such as rain, snow or hail). Use the scooter in dry environments to avoid damage to the motor and electrical circuits.

• Do not attempt to disassemble the product or its parts. Any repairs must be carried out by authorized personnel according to the warranty conditions.

• Disconnect the power supply before cleaning the scooter. For cleaning, use a cloth slightly moistened with water or a solution suitable for cleaning these de- vices. Do not use alcohol or benzene. After cleaning, dry immediately with a soft cloth.

• Before using the scooter, the handlebar must be installed on the main frame of the vehicle.

• Periodically check that all screws are well tightened, that there are no loose bol- ts or screws on the handlebar and mechanical parts, that the brake is properly adjusted and that the front / rear lights work correctly.

• The user must be able to use his arms and hands freely and always hold the handlebar with both hands.

• At all times, the user must be able to look freely in front of him, on both sides, and freely perform the necessary maneuvers.

• the driver must wear the reective vest or the high visibility harness from half an hour after sunset, throughout the period of darkness and during the day, if the weather conditions require lighting.

• It is forbidden to transport other people, objects or animals, or to tow vehicles, transport animals and be towed by another vehicle.

• The scooter must not be equipped with a seat for the user because it is desi- gned to be used standing up.

• The scooter is equipped with a bell for all beeps.

• Only adults or people over the age of 14 can ride the scooter.

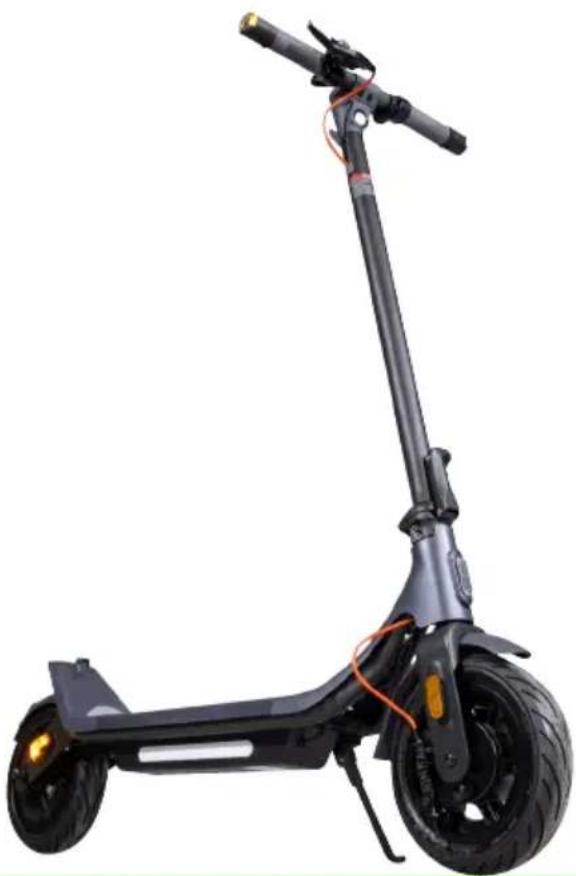

• Do not press the accelerator when walking next to the device.32 Safety Precautions Please, note that you may lose balance, crash or fall down when you ride an e-scoo- ter. To avoid injury, you should be familiar with this manual and keep the e-scooter in good condition. The manufacturer declines all responsibility for damage to persons or property occurring as a result of using the product.33 General description

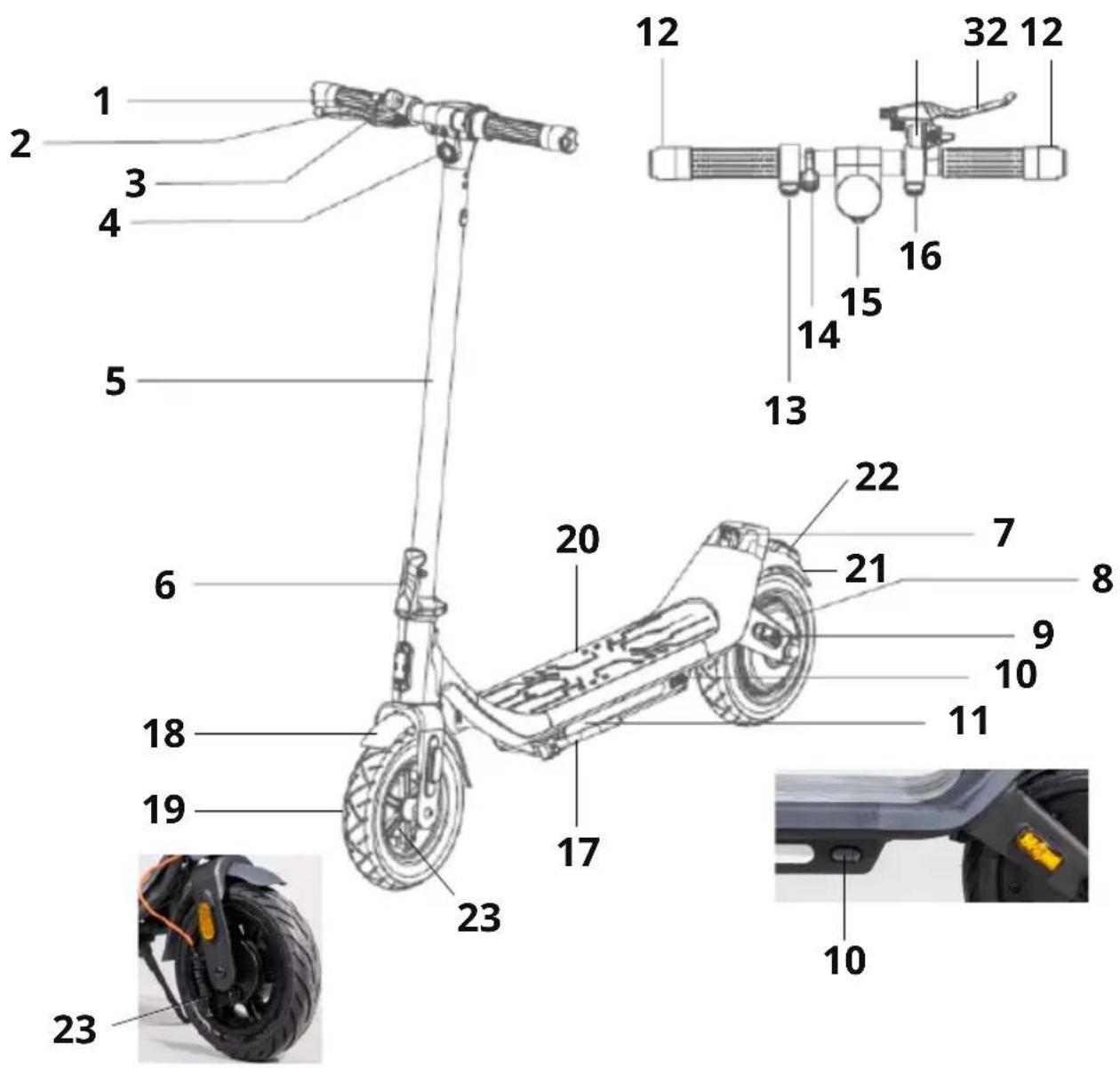

8. Rear wheel with motor

9. Rear signal Light

10. Charging socket with protection

11. Atmosphere Light

12. Front signal Light

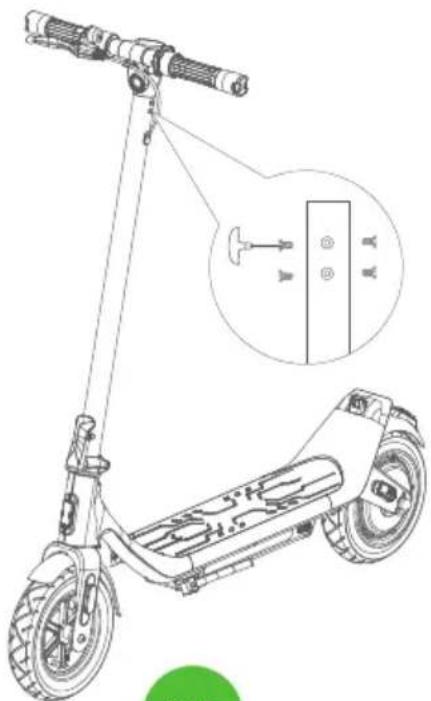

installation of the handlebar

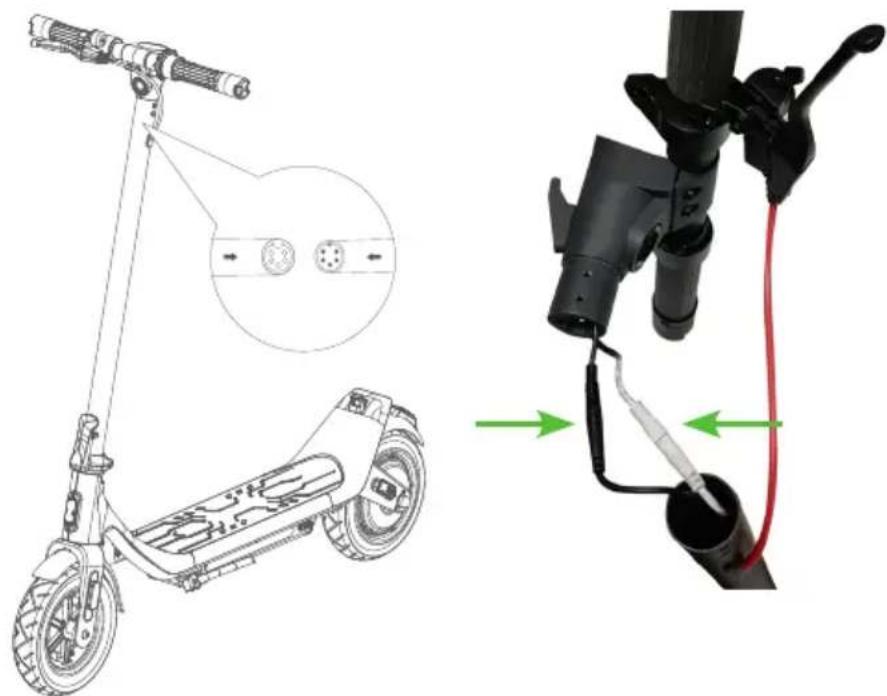

1. Connect the two connectors (one black and one white) that come out of the

handlebar to the connectors (black and white) that come out of the column, taking care to respect the colors (black with black and white with white) and the insertion direction of both connectors

2. Insert the handlebar into the vehicle column;

3. After matching the holes in the handlebar with those in the column, insert the

screws and tighten them well; repeat the operation also on the sides of the column and on the back, inserting a total of 6 screws.

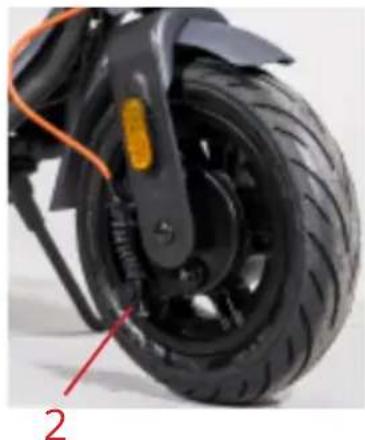

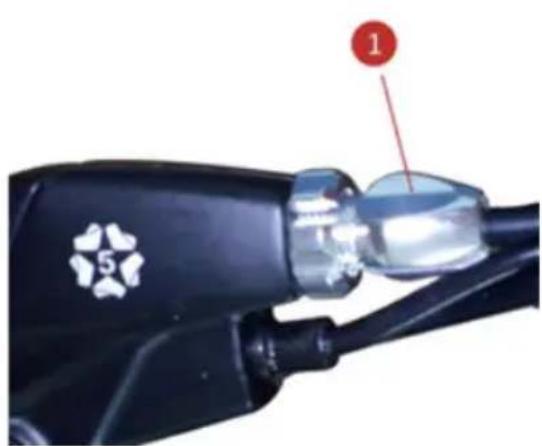

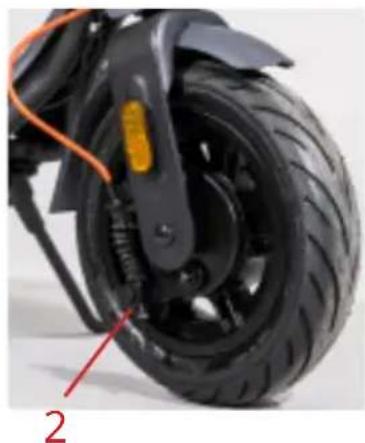

FIRST USE Drum brake The drum brake is adjusted at the factory, but it is advisable to check it before rst use. a / the braking intensity is adjusted by the screw on the brake lever (1) or by the brake mechanism (2) located on the front wheel.

Tire type and pressure The scooter mounts 10” air tire tubeless tyres. Optimum tire pressure is 55 p.s.i. (3.79 bar) Max.

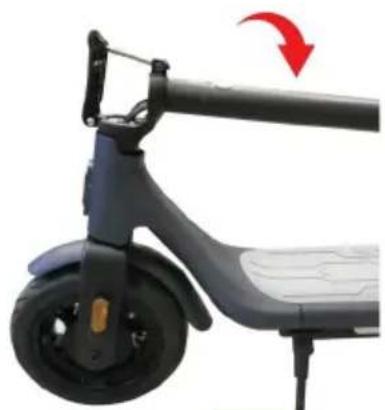

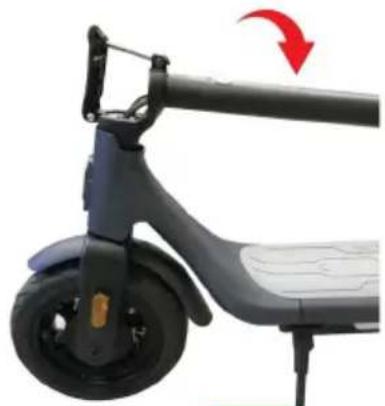

OPEN AND FOLD THE SCOOTER

1. Release the lever located on the lower part of the handlebar support tube by

lifting the safety knob;

2. Fully open the release lever, bringing it to 90° with respect to the support tube;

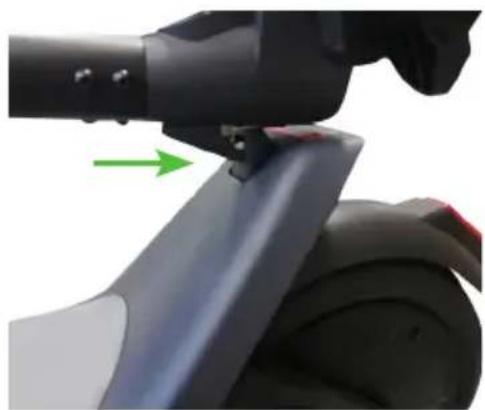

3. Accompany the handlebar tube towards the rear wheel;

4. The handlebar is equipped with a hook: guide it and insert it in the appropriate

slot, located on the rear tail;

5. You can now transport the scooter by gripping the handlebar support tube.36

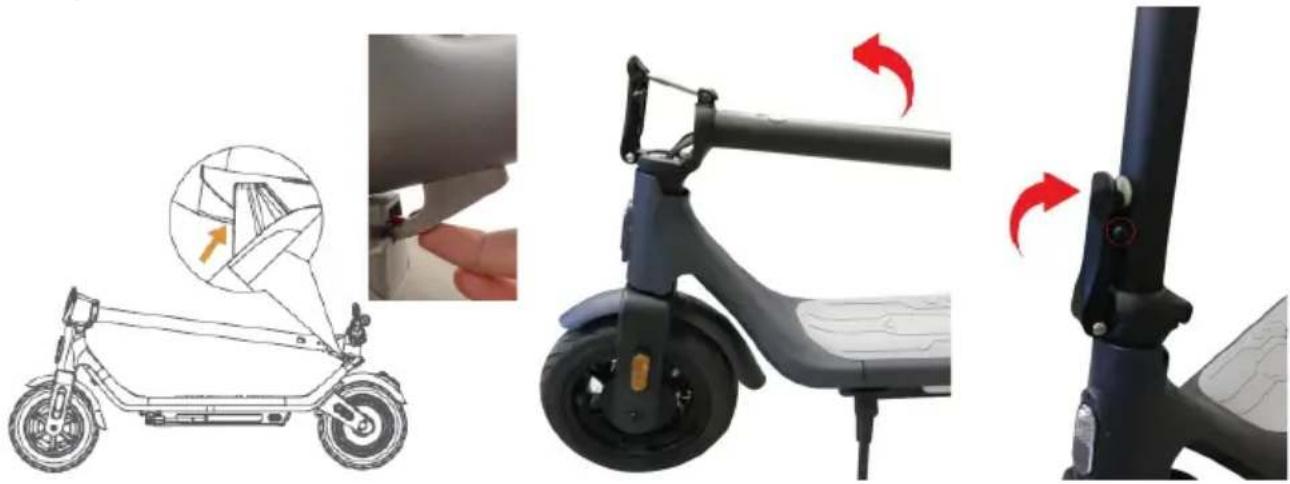

OPEN AND FOLD THE SCOOTER

1. With the scooter closed and the handlebar hooked to the rear tail, release the

handlebar by operating the release lever located on the hook of the handlebar itself;

2. Slightly lift the handlebar and guide it out of the hole by moving the handlebar

towards the output side;

3. Raise the dumbbell to an upright position;

4. Carefully close the lock lever, located on the lower part of the handlebar sup-

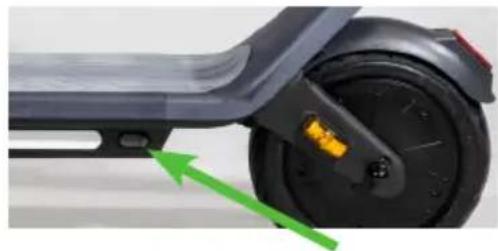

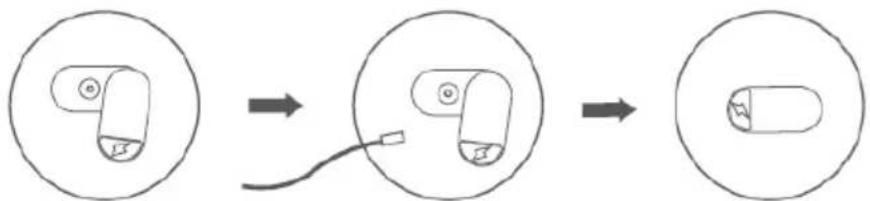

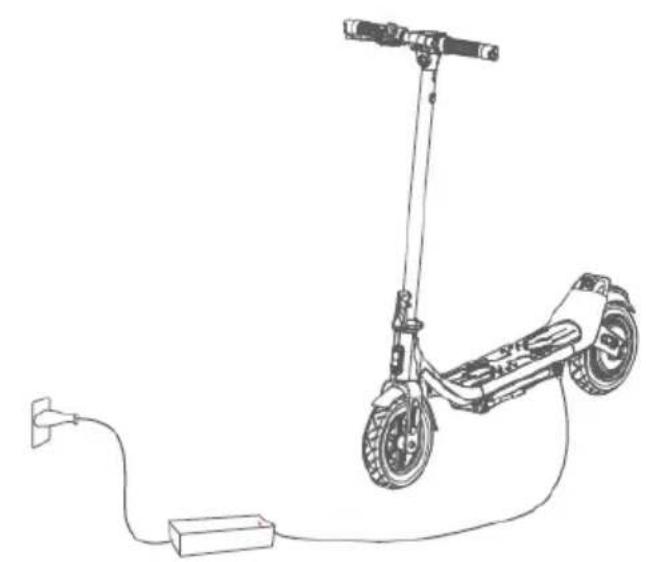

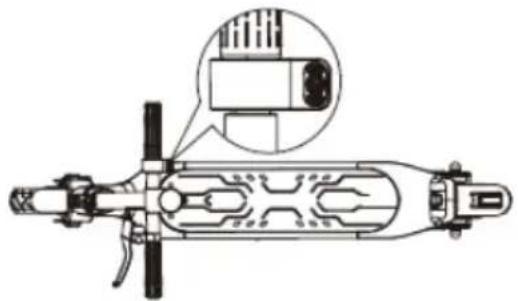

1. Open the protective cap of the charging socket located on the side of the scoo-

ter and connect the charging plug of the charger, paying attention to the inser- tion direction;

2. Connect the charger to the 220V wall socket;

3. The charging process is in progress with red charger LED light. The charging

process is completed when the charger LED turns green: the battery is charged to 100% capacity;

4. Unplug the charger from the wall socket and then the charging socket from the

5. Carefully close the scooter charging socket with the protective cap.

Always charge the battery in a dry and ventilated environment. Never cover the charger during the charging process, otherwise it may be damaged. The charger is for indoor use only.37 AUTONOMYY The maximum distance that can be covered with a single battery charge is approxi- mately 30 km. However, this value must be considered indicative since it can be inuenced by numerous factors. The factors that can most aect battery life include the following:

• Transported weight: other conditions being equal, a greater tran-sported weight will lead to a reduction in the battery autonomy.

• Surface: at and sliding surfaces are less wasteful for the battery compared to uneven terrain, with slopes or that present substantial friction.

• Speed and driving style: a pace with frequent acceleration and bra-king will discharge the battery faster than a regular and uniform pace.

• Correct use and maintenance of the battery: a correct management of the charge and discharge cycles of the battery (see paragraph “How to recharge the battery”) will help to keep the full eciency of the battery longer and delay its natural decay.

• Environmental conditions: the presence of wind or use at low temperatures lead to a reduction in battery life. Open the rubber ap Plug the power adapter into the charging port Fasten the rubber ap after charging

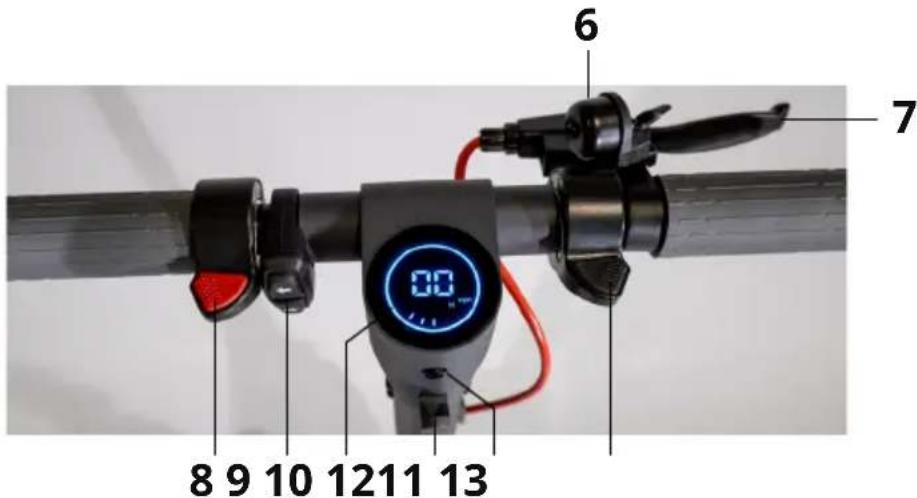

9. Signal lights switch.

12. Press it to turn on, press and hold for

3 seconds to shut down; in power on state, press once to turn on/o the light, and press twice consecutively to switch gears; in power-o state.

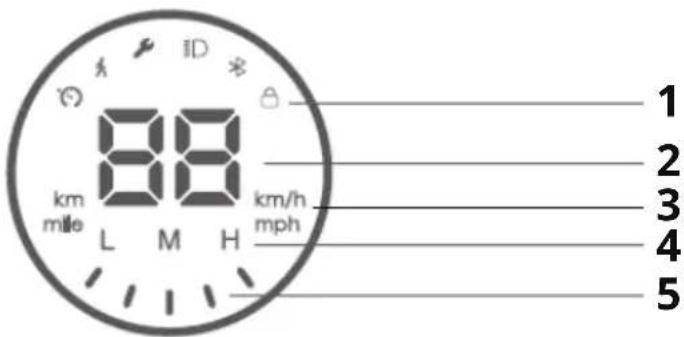

1. Functons mode: Cruise mode,

Pedestrian mode, Fault prompt, Lights, Bluetooth, Lock.

2. Speedometer: Displays the current

speed + the remaining mileage within 6 seconds after power-on.

5. Battery level: displays the remaining

battery power, it displays in red and ashing when the power is about 10%.39 Display AND COMMANDS Turning On and O Press the multifunction button (12) once to turn on the scooter; press and hold it for 3 seconds to turn it o. Select the speed level The scooter has three speed levels. To change the speed level, with the scooter on, quickly press the multifunction but- ton (12) twice until the indicator corresponding to the desired speed level (4) appe- ars on the display: - In LOW mode (6Km/h), the letter “L” will appear on the display; - In MEDIUM mode (20Km/h), the letter “M” will appear on the display; - In HIGH mode (25Km/h), the letter “H” will appear on the display. Note: When LOW (L) mode is selected, the lights and running board will automatical- ly activate and ash to make your scooter more visible to people on cycle/walkways. Turn On the front and rear LED light The scooter is equipped with automatic switching on of the lights via a sensor loca- ted on the display. If you want to activate them manually, press the multifunction button (12) once to switch both LED lights on/o. Note: The front LED is white while the rear LED is solid red. Pull the drum brake lever or depress the electronic brake control to ash the LED taillight. Speed measurement unit Quickly press the multifunction button (12) three times: change the speed unit of measurement, from Km/h to mph and vice versa, is shown on the display (3). Signal lights. The scooter is also equipped with signal lights, which can be easily activated by the control (9) positioned on the handlebar. The left arrow controls the left signal light, and vice versa. Cruise control. The scooter is also equipped with the cruise control function. The function is activated automatically by maintaining a constant speed for approxi- mately 5 seconds. The cruise control keeps the engine power constant (the speed can vary depending on the slope of the ground) even if the accelerator is not pressed. The cruise control function is interrupted by pressing any brake lever or the accelerator.40 app The scooter can be connected and managed for some of its functions via an App called LEQISMART. The App, for Android devices, can be downloaded from the Google Play Store, while, for Iphone devices, it can be downloaded from the Apple Store, or you can scan the following QR codes based on your smartphone: Integrated gyroscope. The scooter integrates, inside, a gyroscope that allows various automatic checks for the safety of the driver: - When a user steps on the platform, based on his weight, the gyroscope transmits a signal to the motor which increases power. - When the gyroscope detects an inclination greater than 45° (probable fall) with the cruise control activated, it will send a signal to stop the engine and prevent it from continuing its run. - When going downhill the engine will always be slightly controlled to avoid excessive speed. Display AND COMMANDS For Android version For iOS version41 Scooter control app Once the application has been downloaded:

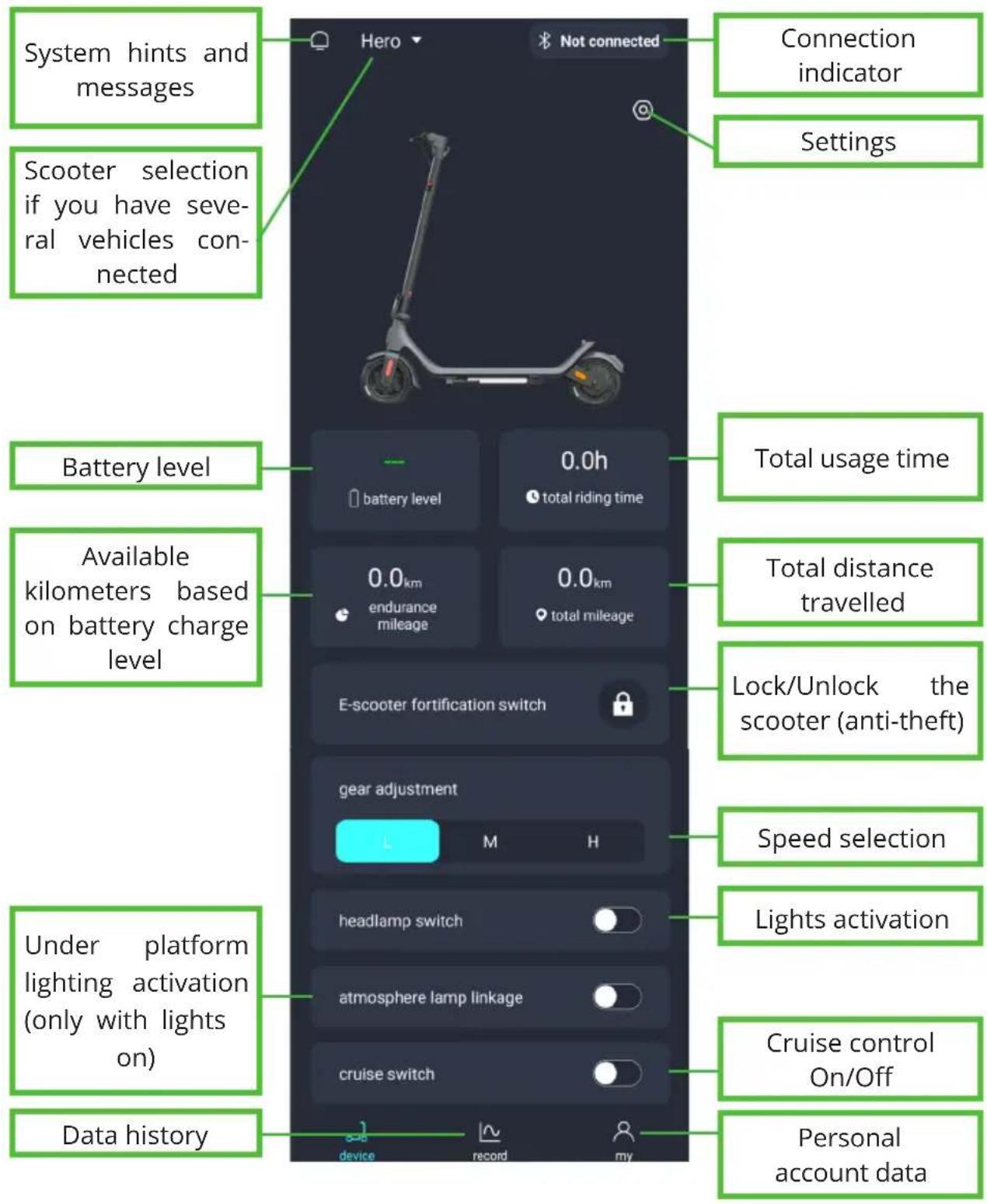

1. Enable geolocation from your phone and activate the Bluetooth function;

2. Switch On the scooter;

3. Open the App and register by creating a personal account, so as not to lose data

if you change your phone;

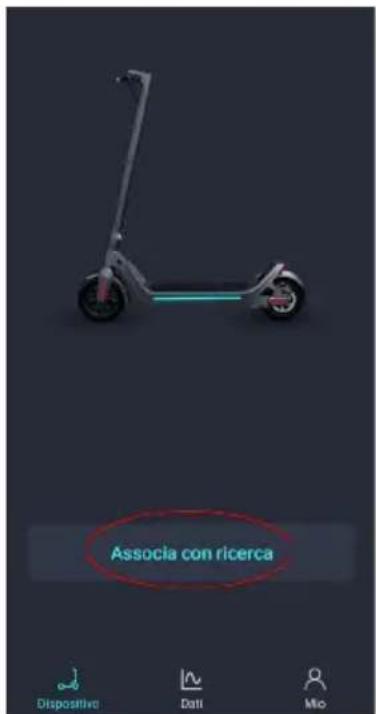

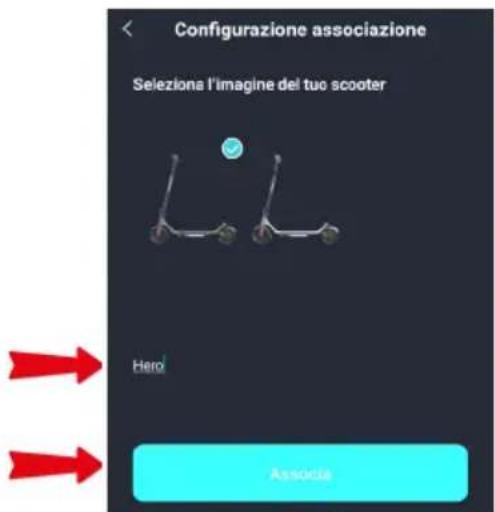

4. Once registered, select “Associate by search”, the application will start a search

for available Bluetooth devices nearby;

5. Choose the scooter code in the list of detected devices, at the bottom of the phone

screen (the scooter name will be HERO);

6. Select the “Binding” command to complete the connection;

7. On the next page, write the name you want to give to the scooter and then select

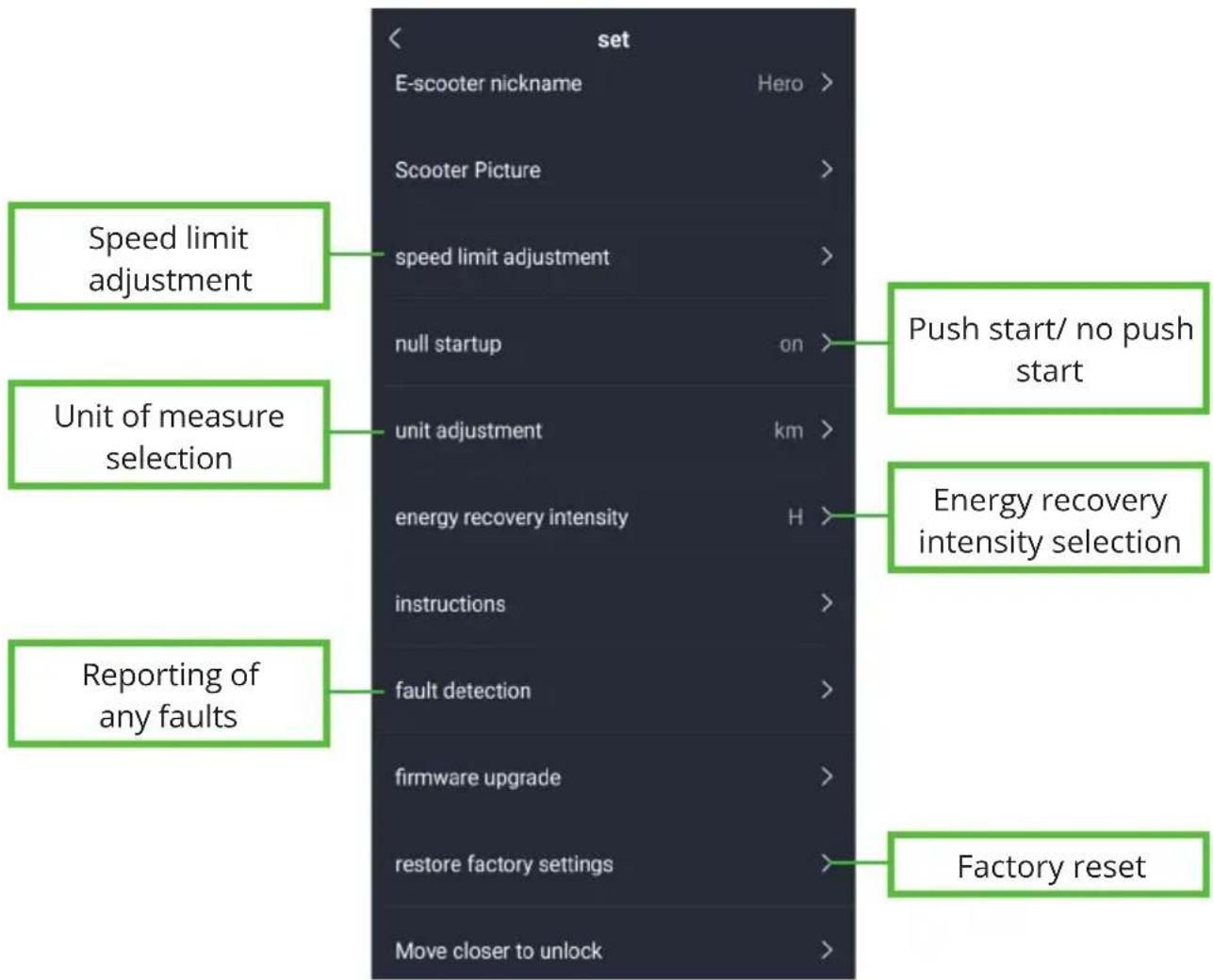

“binding”.42 Scooter control app Once connected to your phone, the main scooter control page will appear. Settings Battery level Total usage time Total distance travelled Available kilometers based on battery charge level System hints and messages Connection indicator Scooter selection if you have seve- ral vehicles con- nected Lock/Unlock the scooter (anti-theft) Personal account data Data history Speed selection Lights activation Cruise control On/O Under platform lighting activation (only with lights on)43 Scooter control app In the “Settings” it is possible to set various parameters, the most relevant are the following: Push start/ no push start Speed limit adjustment Unit of measure selection Energy recovery intensity selection Reporting of any faults Factory reset

Warning: If the scooter has previously been binding with an external device, it can-

not be binding with a second device; you will rst need to delete the binding in the rst device and then carry out an association on a new device.44

HOW TO USE THE SCOOTER45

Steel frame with a maximum capacity of 100Kg (passenger + luggage) Foldable 10“ Vacuum puncture-proof tire Motor power 0,35KW 3 speed levels: 1- L 6km/h, 2- M 20km/h, 3- H 25km/h (usable only in private spaces) 36V 7,8Ah lithium rechargeable battery in about 9 hours Multifunction LED display Front drum brake + rear electronic brake Front, rear and under footboard LED lights Directional turn light Practical side stand Maximum incline: 15% (subject to change based on cycle weight, battery charge level and road conditions) Waterproof: IPX4 Airborne noise: <70dB (A) Weight about 16 Kg Power supply included 100-240V~50/60Hz / Output 42V 1.5A output Bluetooth frequency 2.4GHz Power: 2.4mW TECHNICAL SPECIFICATIONS

HOW TO USE THE SCOOTER

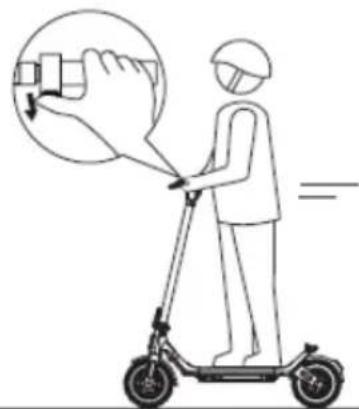

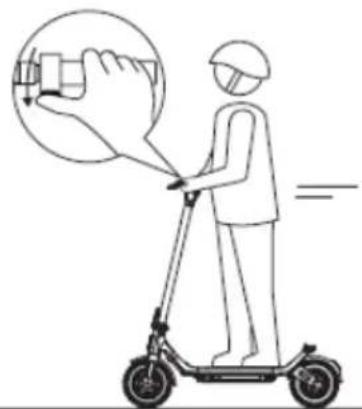

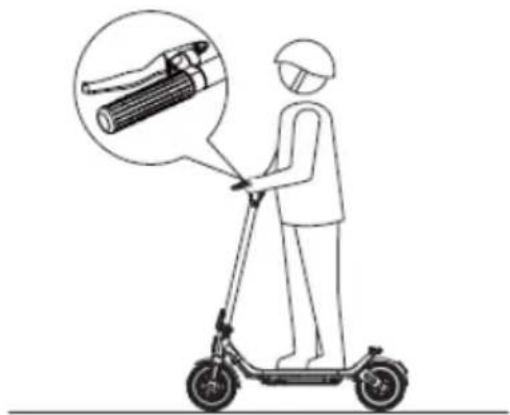

6. To brake, release the accelerator

to activate the engine brake, or, for more sudden braking, use the drum brake lever and the electronic brake lever at the same time.46 Precautions for correct disposal of the product. The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste. The user must take the product to special “separate waste col- lection centres” provided by local government, or deliver it to the retailer against the purchase of a new product. Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative eects on the environment and on health caused by improper handling of waste. Illegal disposal of the product leads to the enforcement of administrative penalties. Information to users ABOUT household appliances The product works with batteries that fall under the Europe- an directive 2013/56/EC and that cannot be disposed of with normal household waste. Please inform yourself about the lo- cal directives regarding the separate col-lection of batteries: a correct disposal allows to avoid negative consequences for the environment and health. TECHNICAL ASSISTANCE Product technical assistance is guaranteed by: Trevi S.p.a. Technical assistance Via Raibano 40, 47853 Coriano (Rimini) Italia Tel.: [phone] | Web: www.emgmobility.it47 warranty

1. The warranty comes into force on the date of the tax document and covers ma-

nufacturing defects and consequent failures that arose during the warranty period.

2. In the event of a device failure, the buyer can ask for assistance

contact the retailer where you purchased the product or: center Trevi S.p.a. Technical Assistance, Via Raibano 40, 47853 Coriano (Rimini) Italy - Tel .: [phone] | Web: www.velociptor.it

3. In order for the warranty to be valid, the buyer must present a valid proof of

purchase of the product for which he intends to request assistance (invoice or sales receipt in which an identication code and product description are expressly indica- ted) , together with this warranty certicate.

4. The external parts of the appliance, components and accessories purchased se-

parately, parts and components which by their nature are subject to wear and tear, decay, and therefore require periodic maintenance and / or replacement (for exam- ple cables) are not covered by the warranty. power supply, power supplies / battery charger, batteries, wheels, cases, etc ...). The guarantee does not cover direct and indirect damages, suered by the user or by third parties, deriving from knocks and falls (even accidental), misuse by the user, use in an unsuitable environment, other components, atmospheric agents, sudden changes in tension, res. The warranty does not cover those marginal aesthetic de- fects that have a negligible eect on the value or functionality of the product. Except as otherwise prescribed in other parts of this certicate, the warranty automatically lapses in the following cases: a) if the serial number of the device is removed, modied or made unrecognizable; b) in the event of tampering, alteration, replacement, repair, attempted repair, di- sassembly (even partial) of the product carried out by unauthorized personnel; c) in case of tampering or other violation of the integrity of the warranty seals placed on the product; d) in the event of use that does not comply with current legislation <applicable to the product covered by the warranty. The recognition of direct and indirect damages of any kind to persons and things deriving directly or indirectly from one or more causes of exclusion mentioned in this paragraph is also excluded.48 warranty

5. The mere authorization to send the product to the service center does not imply

that the defect has been recognized as covered by the warranty with consequent free repair of the product. The product must be shipped in the original packaging, or in another suitable packaging, and in any case inserted in a protective packaging that is suitable for shipment by courier or postal service. Until delivery to the service center, the goods travel at the sender’s risk. The warranty does not cover any dama- ge that may have occurred during transport to the service center. The service center reserves the right to check the validity conditions of the guarantee upon receipt of the product. For requests for warranty assistance which, following verication by authorized service personnel, should prove to be unfounded due to the absence of real defects or due to the absence of defects covered by the guarantee, all costs incurred for the repair will be charged to the customer, the verication and controls on defect-free units covered by warranty. The customer will also be charged for all transportation costs.

6. If parts or components under warranty are replaced, the parts removed and re-

placed will become the property of the service center. In the event that the repair is not physically possible, or is excessively expensive in relation to the value of the product, this can be replaced with a product with equivalent or superior technical characteristics.

7. The manufacturer is not responsible for any damage or loss resulting from the

failure to use a product for repair, or for any damage or loss resulting from the mal- function of the product or some of its parts.

8. The period of validity of the battery warranty (if any) is 6 months from purchase.

9. The period of validity of the guarantee for consumers, that is, those who buy

for purposes unrelated to one’s professional or business activity, it is governed by Legislative Decree 2 February 2002, n.24. - articles 1519-bis and following of the Italian Civil Code - (2 years from delivery under legal conditions). For buyers who purchase with a VAT number for purposes related to their professional activity, the legal guarantees referred to in articles 1490 and following of the Civil Code will apply (1 year from delivery under the conditions of the law).MANUEL DE L’UTILISATEUR Merci d’avoir acheté la trottinette électrique
