USER MANUAL ACD-18KBTU AIWA

INSTRUCTION MANUAL , INSTALLATION, FEATURES

MANUEL D'INSTRUCTION, INSTALLATION, CARACTÉRISTIQUE

• The shape and position of buttons and indicators may vary according to the model, but their function are the same.4 ACD-18KBTU SAFETY PRECAUTIONS

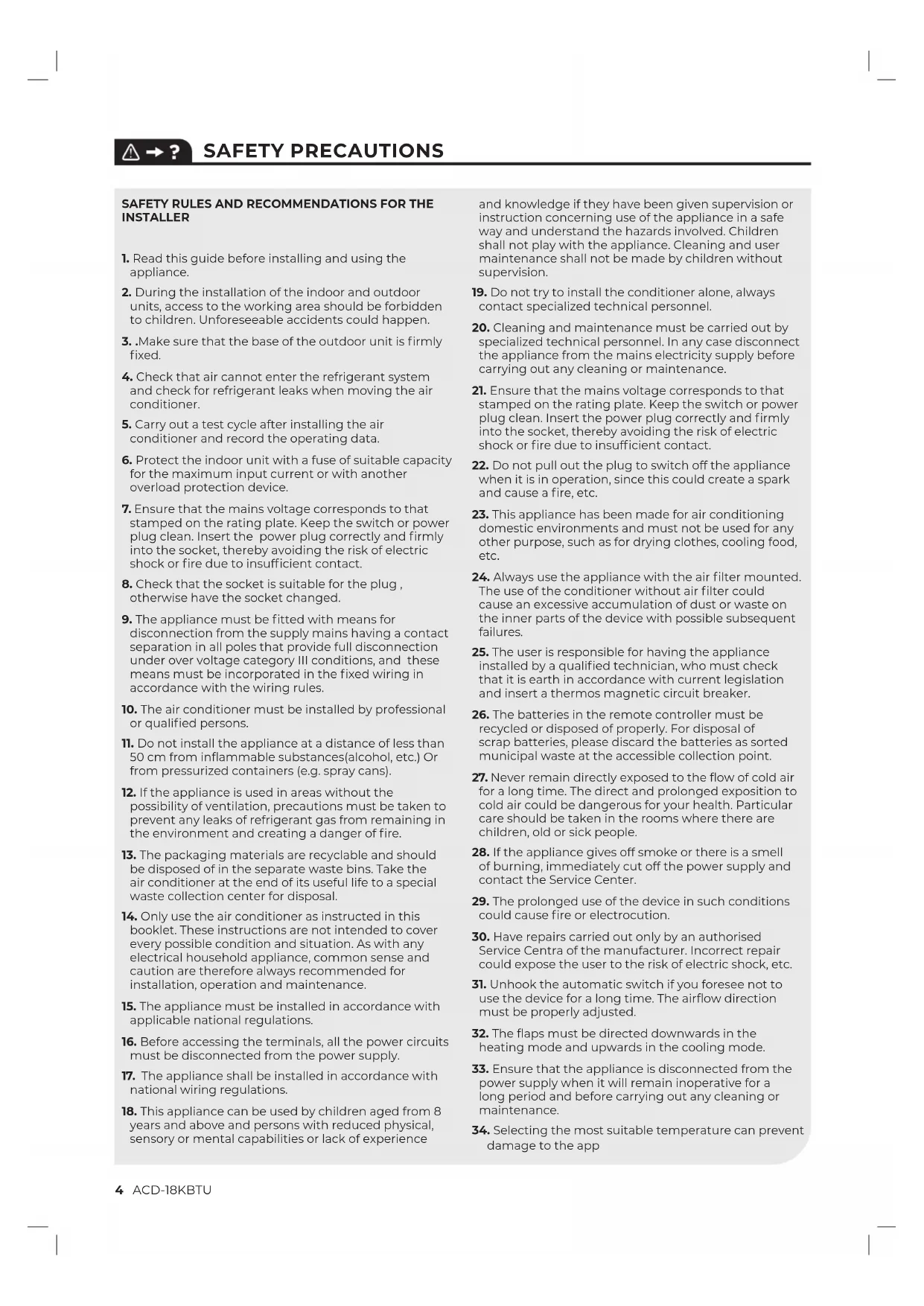

1. Read this guide before installing and using the

2. During the installation of the indoor and outdoor

units, access to the working area should be forbidden to children. Unforeseeable accidents could happen.

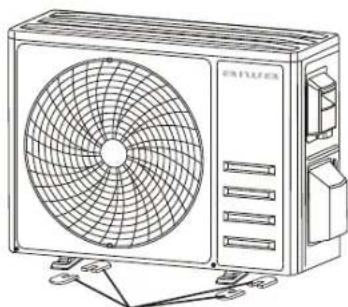

3. .Make sure that the base of the outdoor unit is rmly

4. Check that air cannot enter the refrigerant system

and check for refrigerant leaks when moving the air conditioner.

5. Carry out a test cycle after installing the air

conditioner and record the operating data.

6. Protect the indoor unit with a fuse of suitable capacity

for the maximum input current or with another overload protection device.

7. Ensure that the mains voltage corresponds to that

stamped on the rating plate. Keep the switch or power plug clean. Insert the power plug correctly and rmly into the socket, thereby avoiding the risk of electric shock or re due to insufcient contact.

8. Check that the socket is suitable for the plug ,

otherwise have the socket changed.

9. The appliance must be tted with means for

disconnection from the supply mains having a contact separation in all poles that provide full disconnection under over voltage category III conditions, and these means must be incorporated in the xed wiring in accordance with the wiring rules.

10. The air conditioner must be installed by professional

11. Do not install the appliance at a distance of less than

50 cm from inammable substances(alcohol, etc.) Or from pressurized containers (e.g. spray cans).

12. If the appliance is used in areas without the

possibility of ventilation, precautions must be taken to prevent any leaks of refrigerant gas from remaining in the environment and creating a danger of re.

13. The packaging materials are recyclable and should

be disposed of in the separate waste bins. Take the air conditioner at the end of its useful life to a special waste collection center for disposal.

14. Only use the air conditioner as instructed in this

booklet. These instructions are not intended to cover every possible condition and situation. As with any electrical household appliance, common sense and caution are therefore always recommended for installation, operation and maintenance.

15. The appliance must be installed in accordance with

applicable national regulations.

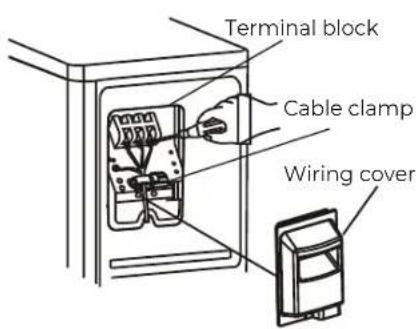

16. Before accessing the terminals, all the power circuits

must be disconnected from the power supply.

17. The appliance shall be installed in accordance with

national wiring regulations.

18. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

19. Do not try to install the conditioner alone, always

contact specialized technical personnel.

20. Cleaning and maintenance must be carried out by

specialized technical personnel. In any case disconnect the appliance from the mains electricity supply before carrying out any cleaning or maintenance.

21. Ensure that the mains voltage corresponds to that

stamped on the rating plate. Keep the switch or power plug clean. Insert the power plug correctly and rmly into the socket, thereby avoiding the risk of electric shock or re due to insufcient contact.

22. Do not pull out the plug to switch off the appliance

when it is in operation, since this could create a spark and cause a re, etc.

23. This appliance has been made for air conditioning

domestic environments and must not be used for any other purpose, such as for drying clothes, cooling food, etc.

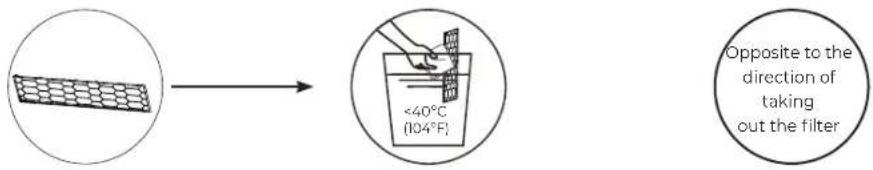

24. Always use the appliance with the air lter mounted.

The use of the conditioner without air lter could cause an excessive accumulation of dust or waste on the inner parts of the device with possible subsequent failures.

25. The user is responsible for having the appliance

installed by a qualied technician, who must check that it is earth in accordance with current legislation and insert a thermos magnetic circuit breaker.

26. The batteries in the remote controller must be

recycled or disposed of properly. For disposal of scrap batteries, please discard the batteries as sorted municipal waste at the accessible collection point.

27. Never remain directly exposed to the ow of cold air

for a long time. The direct and prolonged exposition to cold air could be dangerous for your health. Particular care should be taken in the rooms where there are children, old or sick people.

28. If the appliance gives off smoke or there is a smell

of burning, immediately cut off the power supply and contact the Service Center.

29. The prolonged use of the device in such conditions

could cause re or electrocution.

30. Have repairs carried out only by an authorised

Service Centra of the manufacturer. Incorrect repair could expose the user to the risk of electric shock, etc.

31. Unhook the automatic switch if you foresee not to

use the device for a long time. The airow direction must be properly adjusted.

32. The aps must be directed downwards in the

heating mode and upwards in the cooling mode.

33. Ensure that the appliance is disconnected from the

power supply when it will remain inoperative for a long period and before carrying out any cleaning or maintenance.

34. Selecting the most suitable temperature can prevent

damage to the appACD-18KBTU 5

1. Do not bend, tug or compress the power cord since

this could damage it. Electrical shocks or re are probably due to a damaged power cord. Specialized technical personnel only must replace a damaged power cord.

of the body are wet or damp.

4. Do not obstruct the air inlet or outlet of the indoor or

the outdoor unit. The obstruction of these openings causes a reduction in the operative efciency of the conditioner with possible consequent failures or damages.

5. In no way alter the characteristics of the appliance.

6. Do not install the appliance in environments where

the air could contain gas, oil or sulphur or near sources of heat.

7. This appliance is not intended for use by persons

(including children ) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

8. Do not climb onto or place any heavy or hot objects

on top of the appliance.

9. Do not leave windows or doors open for long when

the air conditioner is operating.

10. Do not direct the airow onto plants or animals.

11. A long direct exposition to the ow of cold air of the

conditioner could have negative effects on plants and animals.

12. Do not put the conditioner in contact with water.

The electrical insulation could be damaged and thus causing electrocution.

13. Do not climb onto or place any objects on the

14. Never insert a stick or similar object into the

appliance. It could cause injury.

15. Children should be supervised to ensure that they

do not play with the appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.6 ACD-18KBTU Refrigerant connecting pipe Indoor Unit Out door Unit Mounting plate Air inlet Front panel Emergency button Air inlet Wiring cover Drainage pipe Connection wiring Valve protective cover Gas valve (Low pressure valve) Liquid valve (High pressure valve) Air outlet Air outlet With the protective cover removed

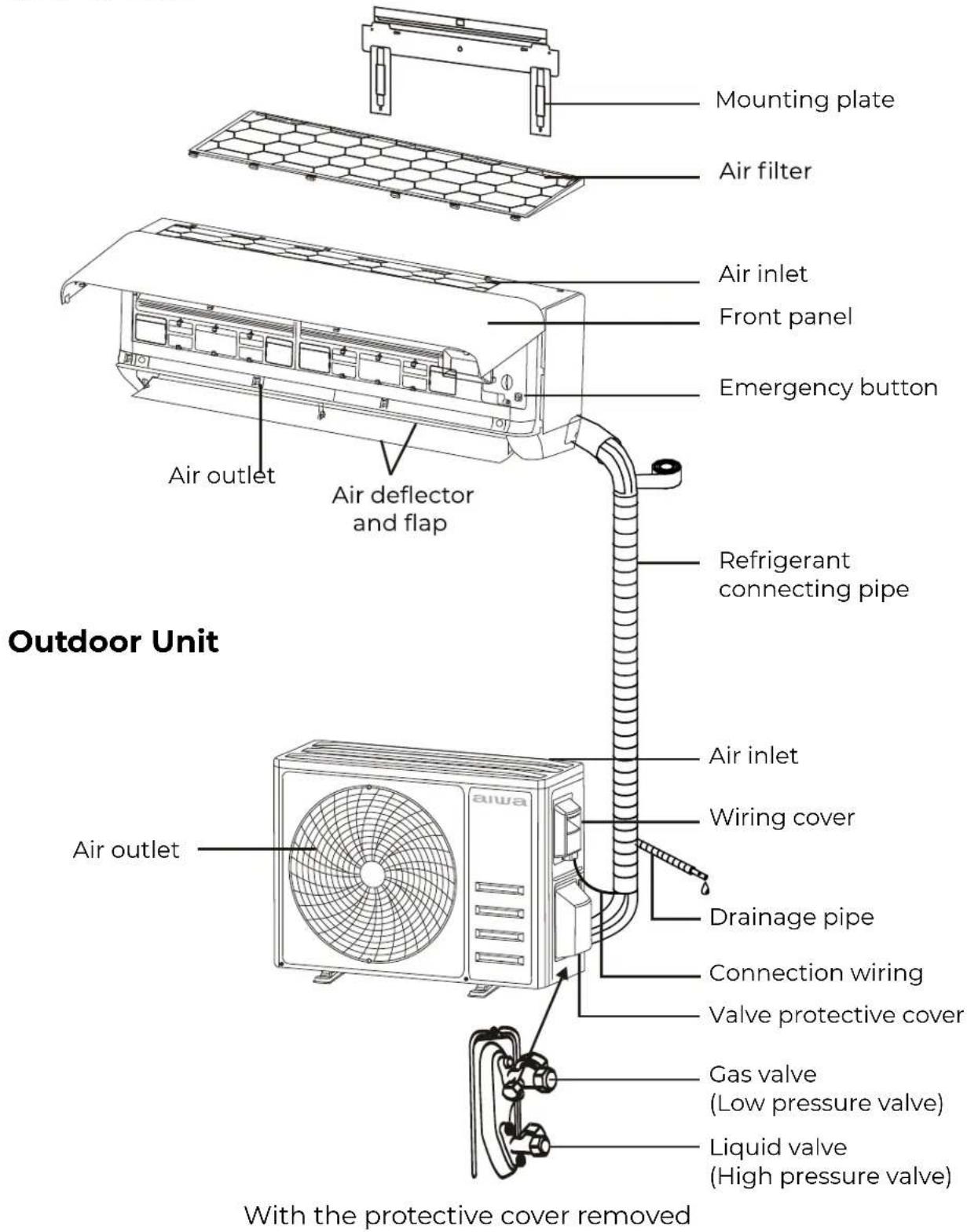

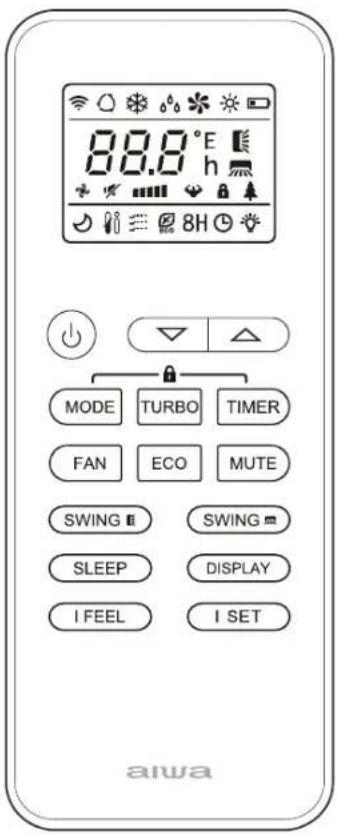

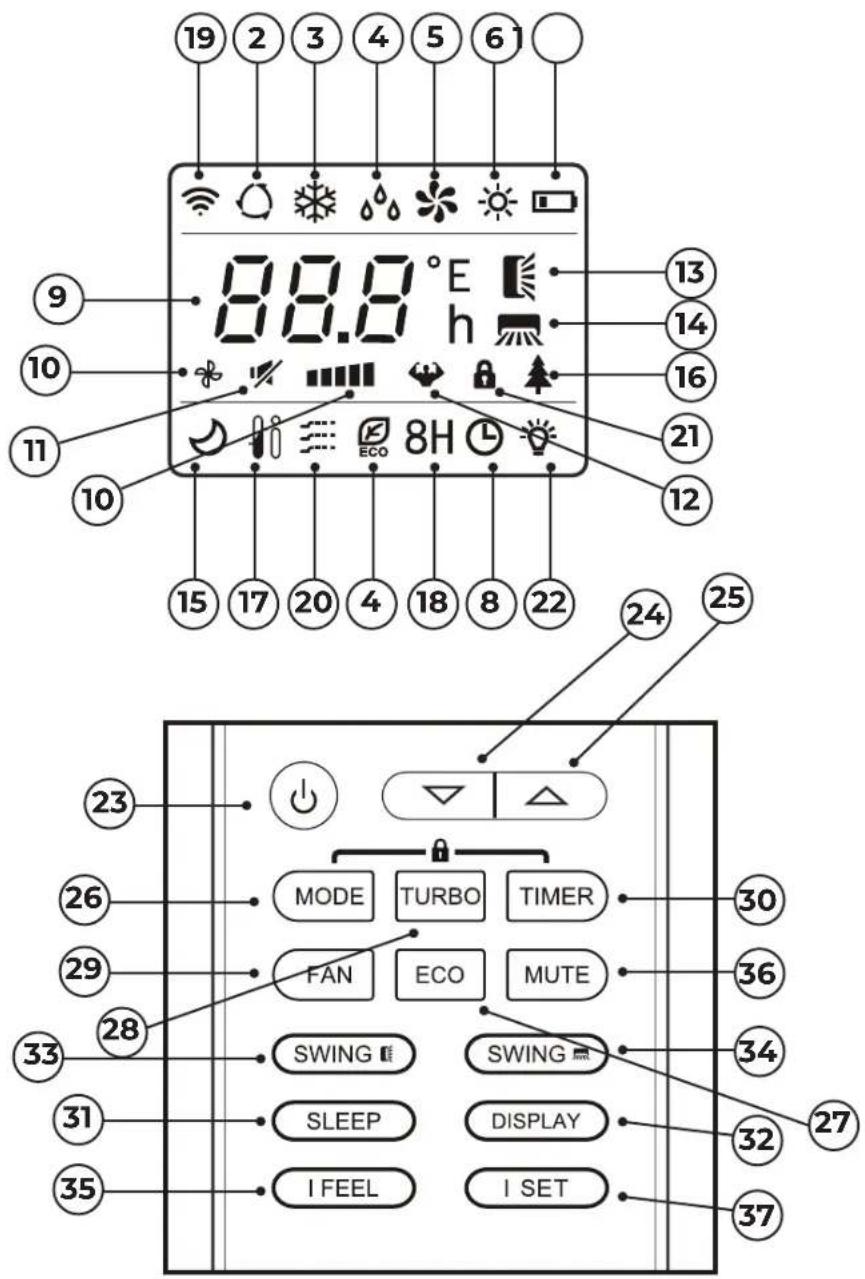

NAME OF PARTSACD-18KBTU 7

1 Indicator for Timer, temperature and Error codes. 2 Lights up during Timer operation. 3 SLEEP mode The shape and position of switches and indicators may be different according to the model, but their function is the same.8 ACD-18KBTU

10) Fan speed: Auto/low/ low-mid/ mid/ mid-high/ high

30) TIMER To set the time for timer on/off.

movement or set the desired up/down air ow direction.

34) SWING To stop or start vertical deectors louver

movement or set the desired left/right air ow direction.

37) I SET To memory the setting temperature, setting

mode and setting fan speed as you need. The display and some functions of the remote control may vary according to the model. The shape and position of buttons and indicators may vary according to the model, but their function is the same. The unit conrms the correct reception of each button with the beep.

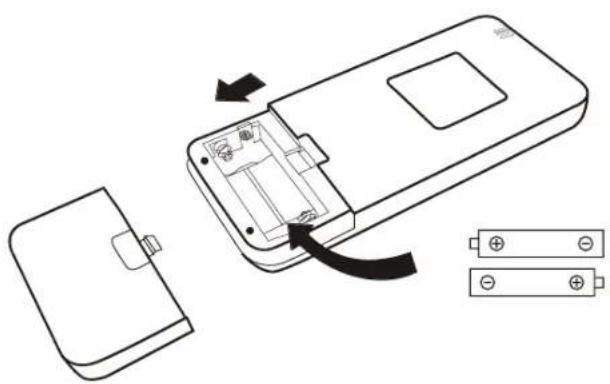

REPLACEMENT OF BATTERIES

Remove the battery cover plate from the rear of the remote control, by sliding it in direction as the arrow. Install the batteries according the direction (+ and -) shown on the Remote Control. Reinstall the battery cover by sliding it into place. Use 2 pieces LRO3 AAA (1.5V) batteries. Do not use rechargeable batteries. Replace the old batteries with new ones of the same type when the display is no longer legible. Do not dispose batteries as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. For some model, each time when insert the batteries in the remote controller for the rst time, you can set the Cooling only or Heating pump control type. As soon as you insert the batteries, turn off the remote controller, and operate as below.

MODE button, until the (

icon ash, to set the Cooling only type.

MODE button, until the (

icon azsh, to set the Heating pump type. Note: If you set the remote control in cooling mode, it will not be possible to activate the heating function in units with a heating pump. If you need to reset, take out the batteries and install again. For some models of the remote controller, you can program the temperature display between ºC and ºF.

1. Press and hold the

TURBO ,button over 5 seconds to get into the change mode;

2. Press and hold the

TURBO until it switch to ºC and ºF.;

3. Then release the pressing and wait for 5

seconds, the function will be selected.z Note:

1. Direct the remote control toward the Air conditioner

2. Check that there are no objects between the remote

control and the Signal receptor in the indoor unit.

3. Never leave the remote control exposed to the rays

4. Keep the remote control at a distance of at least 1m

from the television or other electrical appliances.10 ACD-18KBTU COOLING MODE COOL The cooling function allows the air conditioner to cool the room and reduce Air humidity at the same time. To activate the cooling function (COOL), press the MODE button until the symbol appears on the display. With the button or set a temperature lower than that of the room. FAN MODE (Not FAN button) FAN Fan mode, air ventilation only. To set the FAN mode, press MODE until appears on the display. DRY MODE DRY This function reduces the humidity of the air to make the room more comfortable. To set the DRY mode, Press MODE until appears in the display. An automatic function of pre-setting is activated. AUTO MODE AUTO Automatic mode. To set the AUTO mode, press MODE until appears on the display. In AUTO mode the run mode will be set automatically according to the room temperature. HEATING MODE HEAT The heating function allows the air conditioner to heat the room. To activate the heating function (HEAT), press the MODE button until the symbol appears on the display. With the button or set a temperature higher than that of the room. In HEATING operation, the appliance can automatically activate a defrost cycle, which is essential to clean the frost on the condenser so as to recover its heat exchange function. This procedure usually lasts for 2-10 minutes. During defrosting, indoor unit fan stop operation. After defrosting, it resumes to HEATING mode automaticall FAN SPEED function (FAN button) FAN Change the operating fan speed. Press button FAN to set the running fan speed, it can be set to AUTO/ MUTE/ LOW/ LOW-MID / MID/ MID-HIGH/ HIGH/ TURBO speed circularly. CHILD-LOCK FUNCTION

1. Long press MODE and TIMER button together to

active this function, and do it again to desactivate this function.

2. Under this function, no single button will active.

TIMER function ---- TIMER ON TIMER To automatic switch on the appliance. When the unit is switch-off, you can set the TIMER ON. To set the time of automatic switch-on as below:

TIMER button rst time to set the switch-on, and will appear on the remote display and ashes.

2. Press or to button to set desired Timer-on time.

Each time you press the button, the time increases/ decreases by half an hour between 0 and 10 hour

and by one between 10 and 24 hours.

TIMER button second time to conrm.

4. After Timer-on setting, set the needed mode (Cool/

Heat/ Auto/ Fan/ Dry), by press the MODE button. And set the needed fan speed, by press FAN button. And press or to set the needed operation temperature. CANCEL it by press TIMER button. TIMER function ---- TIMER OFF TIMER To automatic switch off the appliance. When the unit is switch-off, you can set the TIMER ON. To set the time of automatic switch-on as below: When the unit is switch-on, you can set the TIMER OFF.

1. Conrm the appliance is ON.

TIMER button at rst time to set the switch-off.

TIMER button at the second time to conrm. CANCEL it by press TIMER button. Note: All programming should be operated within 5 seconds, otherwise the setting will be cancelled. SWING function SWING SWING

1. Press the button SWING to activate the louver,

1.1 Press to activate the horizontal aps to

swing from up to down, the will appear on the remote display. Press again to stop the swing movement at the current angle.

1.2 Press to active the vertical deectors to

swing from left to right, the will appear on the remote display. Press again to stop the swing movement at the current angle.

If the vertical deectors are positioned manually which placed under the aps, they allow to move the air ow direct to rightward or leftward.

For some inverter heating models, press horizontal SWING and vertical SWING together button at the same time, it will activate the Self-Clean function.ACD-18KBTU 11

This adjustment must be done while the appliance is switched off Never position Flaps manually, the delicate mechanism might seriously damaged! Never put ngers, sticks or other objects into the air inlet or outlet vents. Such accidental contact with live parts might cause unforeseeable damage or injury. TURBO function TURBO To activate turbo function, press the TURBO button, and will appear on the display. Press again to cancel this function. In COOL/ HEAT mode, when you select TURBO feature, the appliance will turn to quick COOL or quick HEAT mode, and operate the highest fan speed to blow strong airow. MUTE function MUTE

MUTE button to active this function, an

will appears on the remote display. Do it again to deactivate this function.

2. When the MUTE function runs, the remote

controller will display the auto fan speed, and the indoor unit will operate at lowest fan speed to be quiet feeling.

3. When press FAN/ TURBO/ SLEEP button, the MUTE

function will be cancel. MUTE function can not be activated under dry mode. SLEEP function SLEEP Pre-setting automatic operating program. Press SLEEP button to activate the SLEEP function, and appears on the display. Press again to cancel this function. After 10 hours running in sleep mode, the air conditioner will change to the previous setting mode. I FEEL function (Optional) I FEEL Press I FEEL button to active the function, the will appear on the remote display. Do it again to deactivate this function. This function enables the remote control to measure the temperature at its current location, and send this signal to the air conditioner to optimize the temperature around you and ensure the comfort. It will automatically deactivate 2 hours later. ECO function ECO In this mode the appliance automatically sets the operation to save energy. Press the ECO button, the appears on the display, and the appliance will run in ECO mode. Press again to cancel it. Note: The ECO function is available in both COOLING and HEATING modes. DISPLAY function DISPLAY Switch ON/OFF the LED display on panel. Press DISPLAY button to switch off the LED display on the panel. Press again to switch on the LED display. GEN function (Optional)

1. Turn on the indoor unit at rst, and long press

MUTE button 3 seconds to active, and do it again to deactivate this function.

2. Under this function, short press MUTE button to

select the General type L3 - L2 - L1 - OF.

3. Select OF and wait 2 seconds to exit it.

• If the indoor unit displays "0A", please use the remote to raise the operating gear of the GEN mode, and the compressor will restart after stopping for 3 minutes. SELF-CLEAN function (Optional) Only optional for some heating pump inverter appliance. To active this function, turn off the indoor unit at rst, then press SWING and SWING button at the same time toward the indoor unit, until hear a beep, and

will appear on the remote controller display and the indoor LED display.

This function helps carry away the accumulated dirt, bacteria, etc from the indoor evaporator.

This function will run about 30 minutes, and it will return to the pre-setting mode. You can press button to cancel this function during the process. You will hear 2 beeps when it's nished or cancelled. It's normal if there is some noise during this function process, as plastic materials expand with heat and contract with cold. We suggest operating this function at the following ambient conditions to avoid certain safety protection features. It's suggested to utilize this function every 3 months. 8ºC HEATING function (Optional)

this function, and 8ºC

46ºF ) will appear on th

function will auto start the heating mode when the room temperature is lower than 8ºC (46ºF), and it will return to standby if the temperature reaches 9ºC (48ºF).

3. If the room temperature is higher than 18ºC

(64ºF), the appliance will cancel this function automatically. Indoor unit Temp < 86ºF (30ºC) Outdoor unit 41ºF (5ºC) < Temp < 86ºF(30ºC)12 ACD-18KBTU Gentle Wind function (Optional)

1. Turn on the indoor unit, and change to COOL mode,

then long press FAN and MUTE button together 3 seconds to active this function, will appear on the display. Do it again to deactivate it.

2. This function will auto close the vertical aps, and

give you the comfortable gentle wind feeling. Health function (Optional)

1. Turn on the indoor unit at rst, and long press

SLEEP and DISPLAY button together 3 seconds to active this function, will appear on the display. Do it again to deactivate it

2. When the HEALTH function is initiated, the Ionizer/

Plasma/ Bipolar Ionizer/ UVC Lights (depending on models) will be energized and running. I SET function (Optional) Remember your favorite setting and run into it by press One button Remember the favorite setting:

1. In each mode (COOLING/ HEATING/ FAN/ DRY),

long press " I SET " button over 3 seconds to remember it;

2. When "AU" ashing appears on the remote

controller display, that means the remote controller remember your favorite setting;

• Press any button to quit, and you can reset it by repeat 1, 2 operation. Run into the favorite setting:

1. In each mode (COOLING/ HEATING/ FAN/ DRY), one

press " I SET " button to active;

2. The appliance will run as your favorite setting and

you will see [AU] ashing on the remote controller;

3. Press it again or other buttons to cancel this

function. Attempt to use the air conditioner under the temperature beyond the specied range may cause the air conditioner protection device to start and the air conditioner may fail to operate. Therefore, try to use the air conditioner in the following temperature conditions. With the power supply connected, restart the air conditioner after shutdown, or switch it to other mode during operation, and the air conditioner protection device will start. The compressor will resume operation after 3 minutes. Heating Cooling Dry Room temperature 0 ºC~30ºC 17ºC ~32ºC Outdoor temperature -20ºC~30ºC -15ºC~53ºC Temperature MODE Inverter air conditioner: OPERATION INSTRUCTIONSCurrent status Operation Respond Enter mode Standby Press the emergency button once It beeps briey once. Cooling mode Standby (Only for heating pump) Press the emergency button twice in 3 seconds It beeps briey twice. Heating mode Running Press the emergency button once It keeps beeping for a while Off mode CONTROL-BOX COVER (open the panel of indoor unit) ACD-18KBTU 13

Characteristics of heating operation (applicable to Heating pump) Preheating: When the heating function is enabled, the indoor unit will take 2~5 minutes for preheating, after that the air conditioner will start heating and blow s warm air. Defrosting: During heating, when the outdoor unit frosted, the air conditioner will enable the automatic defrosting function to improve the heating effect. During defrosting, the indoor and outdoor fans stop running. The air conditioner will resume heating automatically after defrosting nish. Emergency button: Open the panel and nd the emergency button on the electronic control box when the remote controller fails . (Always press the emergency button with insulation material.)

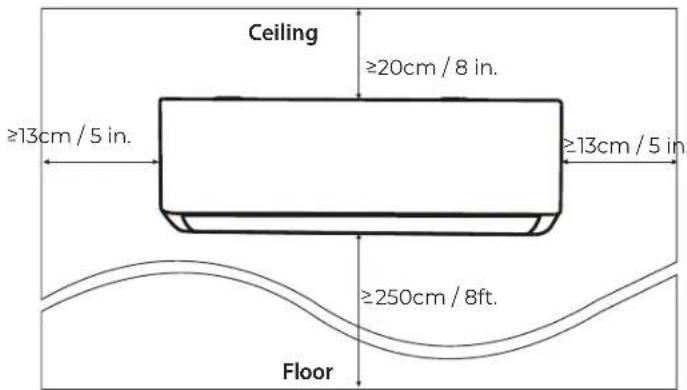

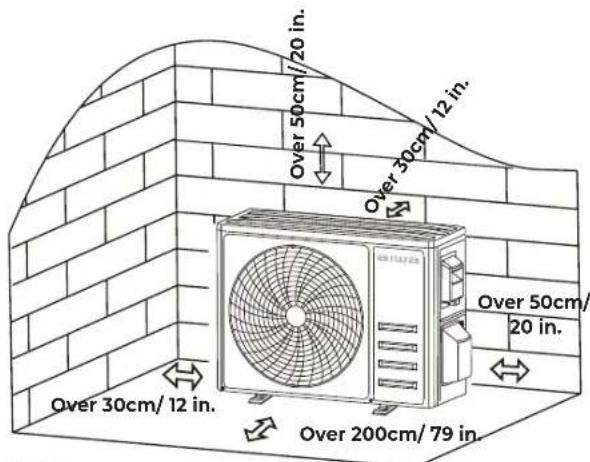

1. Check the information in this manual to nd out the

dimensions of space needed for proper installation of the device, including the minimum distances allowed compared to adjacent structures.

2. Appliance shall be installed, operated and stored in

a room with a oor area larger than 4m2.

3. The installation of pipe-work shall be kept to a

4. The pipe-work shall be protected from physical

damage, and shall not be installed in an unventilated space if the space is smaller than 4m2.

5. The compliance with national gas regulations shall

6. The mechanical connections shall be accessible for

maintenance purposes.

7. Follow the instructions given in this manual for

handling, installing, cleaning, maintaining and disposing of the refrigerant.

8. Make sure ventilation openings clear of obstruction.

9. Notice: The servicing shall be performed only as

recommended by the manufacturer.

10. Warning:The appliance shall be stored in a well-

ventilated area where the room size corresponds t

the room area as specied for operation.

11. Warning: The appliance shall be stored in a room

without continuously operating open ames (for example an operating gas appliance) and ignition sources (for example an operating electric heater).

12. The appliance shall be stored so as to prevent

mechanical damage from occurring.

13. It is appropriate that anyone who is called upon to

work on a refrigerant circuit should hold a valid and

INSTRUCTIONS FOR SERVICING(R32)14 ACD-18KBTU

up-to-date certicate from an assessment authority accredited by the industry and recognizing their competence to handle refrigerants, in accordance with the assessment specication recognized in the industrial sector concerned. Service operations should only be carried out in accordance with the recommendations of the equipment manufacturer. Maintenance and repair operations that require the assistance of other qualied persons must be conducted under the supervision of the person competent for the use of ammable refrigerants.

14. Every working procedure that affects safety means

shall only be carried out by competent persons.

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

• The appliance shall be stored in a room without continuously operating ignition sources (for example: open ames, an operating gas appliance or an operating electric heater).

• Do not pierce or burn.

• Be aware that refrigerants may not contain an odor.

16. Information on servicing:

1) Checks to the area Prior to beginning work on

systems containing ammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

2) Work procedure Work shall be undertaken under

a controlled procedure so as to minimize the risk of a ammable gas or vapor being present while the work is being performed.

3) General work area All maintenance staff and

others working in the local area shall be instructed on the nature of work being carried out. Work in conned spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of ammable material

4) Checking for presence of refrigerant The area

shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially ammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with ammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

5) Presence of re extinguisher If any hot work is

to be conducted on the refrigeration equipment or any associated parts, appropriate re extinguishing equipment shall be available to hand. Have a dry powder or CO 2 re extinguisher adjacent to the charging area.

6) No ignition sources No person carrying out

work in relation to a refrigeration system which involves exposing any pipe work shall use any sources of ignition in such a manner that it may lead to the risk of re or explosion. All possible ignition sources, including cigarette smoking, should be kept sufciently far away from the site of installation, repairing, removing and disposal, during which refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no ammable hazards or ignition risks. No Smoking signs shall be displayed.

7) Ventilated area Ensure that the area is in the open

or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

8) Checks to the refrigeration equipment Where

electrical components are being changed, they shall be t for the purpose and to the correct specication. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using ammable refrigerants: -- The charge size is in accordance with the room size within which the refrigerant containing parts are installed; -- The ventilation machinery and outlets are operating adequately and are not obstructed; -- If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; -- Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected; -- Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded. Caution: Risk of re Operating instructions Read technical manualACD-18KBTU 15

The following checks shall be applied to installations using ammable refrigerants: -- The charge size is in accordance with the room size within which the refrigerant containing parts are installed; -- The ventilation machinery and outlets are operating adequately and are not obstructed; -- If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; -- Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected; -- Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

Checks to electrical devices Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include: -- That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; -- That there no live electrical components and wiring are exposed while charging, recovering or purging the system; -- That there is continuity of earth bonding.

17. Repairs to sealed components

During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.

2) Particular attention shall be paid to the following

to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specication, damage to seals, incorrect tting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of ammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specications. NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

18. Repair to intrinsically safe components

Do not apply any permanent inductive o

capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only type

that can be worked on while live in the presence of a ammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specied by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

20. Detection of ammable refrigerants

Under no circumstances shall potential sources o

ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked ame) shall not be used.

21. Leak detection methods

The following leak detection methods are deemed acceptable for systems containing ammable refrigerants. Electronic leak detectors shall be used to detec

ammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration

(Detection equipment shall be calibrated in a refrigerant-free area). Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is conrmed. Leak detection uids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorin

may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked ames shall be removed/ extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen fre

nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

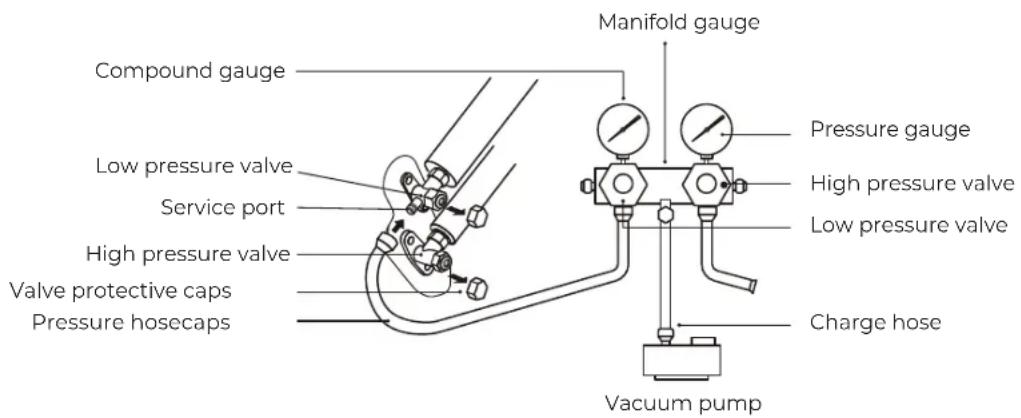

22. Removal and evacuation

When breaking into the refrigerant circuit to mak

repairs or for any other purpose conventional procedures shall be used. However, it is importan

that best practice is followed since inammability is a consideration. The following procedure shall be adhered to: -- Remove refrigerant; -- Purge the circuit with inert gas; -- Evacuate; -- Purge again with inert gas; -- Open the circuit by cutting or brazing.16 ACD-18KBTU The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be ushed with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to ll until the working pressure is achieved, then venting to atmosphere, and nally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the nal OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced. a) Become familiar with the equipment and its operation. b) Isolate system electrically. c) Before attempting the procedure, ensure that:

• mechanical handling equipment is available, if required, for handling refrigerant cylinders;

• all personal protective equipment is available and being used correctly

• the recovery process is supervised at all times by a competent person;

• recovery equipment and cylinders conform to the appropriate standards. d) Pump down refrigerant system, if possible. e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system. f) Make sure that the cylinder is situated on the scales before recovery takes place. g) Start the recovery machine and operate in accordance with manufacturer's instructions. h) Do not overll cylinders. (No more than 80 % volume liquid charge).

i) Do not exceed the maximum working pressure of

the cylinder, even temporarily. j) When the cylinders have been lled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

Equipment shall be labeled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains ammable refrigerant.

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge are available. All cylinders to be used are designated for the recovered refrigerant and labeled for that refrigerant (i.e. Special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure-relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of all appropriate refrigerants including, when applicable, ammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recover cylinder, and the relevant waste transfer note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that ammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.ACD-18KBTU 17

Important Considerations

1. The air conditioner must be installed by professional

personnel and the Installation manual is used onl

for the professional installation personnel! The installation specications should be subject to our after-sale service regulations.

2. When lling the combustible refrigerant, any of

your rude operations may cause serious injury or injuries to human body and objects.

3. A leak test must be done after the installation

4. It is a must to do the safety inspection before

maintaining or repairing an air conditioner using combustible refrigerant in order to ensure that the re risk is reduced to minimum.

5. It is necessary to operate the machine under a

controlled procedure in order to ensure that any risk arising from the combustible gas or vapor during the operation is reduced to minimum.

6. Requirements for the total weight of lled

refrigerant and the area of a room to be equipped with an air conditioner (are shown as in the following Tables GG.1 and GG.2) The maximum charge and the required minimum oor area

)x LFL Where LFL is the lower ammable limit in kg/ m

,R32 LFL is 0.038 kg/ m

For the appliances with a charge amount m

The maximum charge in a room shall be in accordance with the following:

max = 2.5 x (LFL) (5/4) x h

x (A) 1/2 The required minimum oor area Amin to install an appliance with refrigerant charge M (kg) shall be in accordance with following:

min = (M/ (2.5 x (LFL) (5/4) x h

Table GG.1 - Maximum charge (kg) Table GG.2 - Minimum room area (m)

(m) Charge amount (M) (kg) Minimum room area (m

Open Flames Prohibited Ventilation Necessary

Mind Static Electricity Must wear protective clothing

Refrigerant Leak Detector Appropriate Installation Location The left picture is the schematic diagram of a refrigerant leak detector. Please note that:

1. The installation site should be well-ventilated.

2. The sites for installing and maintaining an air

conditioner using Refrigerant R32 should be free from open re or welding, smoking, drying oven or any other heat source higher than 548 which easily produces open re.

3. When installing an air conditioner, it is necessary to

take appropriate anti-static measures such as wear anti-static clothing and/or gloves.

4. It is necessary to choose the site convenient for

installation or maintenance wherein the air inlets and outlets of the indoor and outdoor units should be not surrounded by obstacles or close to any heat source or combustible and/or explosive environment.

5. If the indoor unit suffers refrigerant leak during the

installation, it is necessary to immediately turn off the valve of the outdoor unit and all the personnel should go out until the refrigerant leaks completely for 15 minutes. If the product is damaged, it is a must to carry such damaged product back to the maintenance station and it is prohibited to weld the refrigerant pipe or conduct other operations on the user's site.

6. It is necessary to choose the place where the inlet

and outlet air of the indoor unit is even.

7. It is necessary to avoid the places where there

are other electrical products, power switch plugs and sockets, kitchen cabinet, bed, sofa and other valuables right under the lines on two sides of the indoor unit. Don`t use mobile phone Tool Picture Tool Picture Tool Picture Standard Wrench Pipe Cutter Vacuum Pump Adjustable/ Crescent Wrench Screw drivers (Phillips & Flat blade) Safety Glasses Torque Wrench Manifold and Gauges Work Gloves Hex Keys or Allen Wrenches Level Refrigerant Scale Drill & Drill Bits Flaring tool Micron Gauge Hole Saw Clamp on Amp MeterACD-18KBTU 19

Pipe Length and Additional Refrigerant Inverter Models Capacity (Btu/h) 9K-12K 18K-36K Length of pipe with standard charge 5m/16ft 5m/16ft 5m/16ft 5m/16ft Length of pipe with standard charge (Like: North American, etc.) 7.5m/24ft 7.5m/24ft 7.5m/24ft 7.5m/24ft Maximum distance between indoor and outdoor unit 15m/49ft 15m/49ft 25m/82ft 25m/82ft Additional refrigerant charge 20g/m 15g/m 30g/m 25g/m Max. diff. in level between indoor and outdoor unit 10m/32ft 10m/32ft 10m/32ft 10m/32ft Type of refrigerant R22/R410A R32 R22/R410A R32 ON-OFF Models Capacity (Btu/h) 9K-12K 18K-36K Length of pipe with standard charge 5m/16ft 5m/16ft 5m/16ft 5m/16ft Maximum distance between indoor and outdoor unit 15m/49ft 15m/49ft 15m/49ft 15m/49ft Additional refrigerant charge 20g/m 15g/m 30g/m 25g/m Max. diff. in level between indoor and outdoor unit 5m/16ft 5m/16ft 5m/16ft 5m/16ft Type of refrigerant R22/R410A R32 R22/R410A R32 Torque Parameters PIPE Size Newton meter[N x m] Pound-force foot (Ibf-ft) Kilogram-force meter (kgf-m) 1/4'' ( 6.35) 18 - 20 24.4 - 27.1 2.4 - 2.7 3/8 ''( 9.52) 30 - 35 40.6 - 47.4 4.1 - 4.8 1/2'' ( 12) 45 - 50 61.0 - 67.7 6.2 - 6.9 5/8 ''( 15.88) 60 - 65 81.3 - 88.1 8.2 - 8.9 Dedicated Distribution Device and Wire for Air Conditioner Note: This table is only for reference, the installation shall meet the requirements of local laws and regulations. INVERTER TYPE MODEL capacity (Btu/h) 18k 24k sectional area Power supply cable N 1.5mm

Connection cable N 0.75mm

0.75mm 220 ACD-18KBTU Step 1: Select Installation location

1) Ensure the installation complies with the installation

minimum dimensions (dened below) and meets the minimum and maximum connecting piping length and maximum change in elevation as dened in the System Requirements section.

2) Air inlet and outlet will be clear of obstructions,

ensuring proper airow throughout the room.

3) Condensate can be easily and safely drained.

4) All connections can be easily made to outdoor unit.

5) Indoor unit is out of reach of children.

6) A mounting wall strong enough to withstand four

times the full weight and vibration of the unit.

7) Filter can be easily accessed for cleaning.

8) Leave enough free space to allow access for routine

9) Install at least 10 ft. (3 m) away from the antenna of

TV set or radio. Operation of the air conditioner may interfere with radio or TV reception in areas where reception is weak. An amplier may be required for the affected device.

10) Do not install in a laundry room or by a

swimming pool due to the corrosive environment.

11) For ETL certication area, Caution: Mount with the

lowest moving parts at least 8 ft. (2.4 m) above oor or grade level. Step 2: Install Mounting Plate

1) Take the mounting plate from the back of indoor unit.

2) Ensure to meet the minimum installation dimension

requirements as step 1, according to the size of mounting plate, determine the position and stick the mounting plate close to the wall.

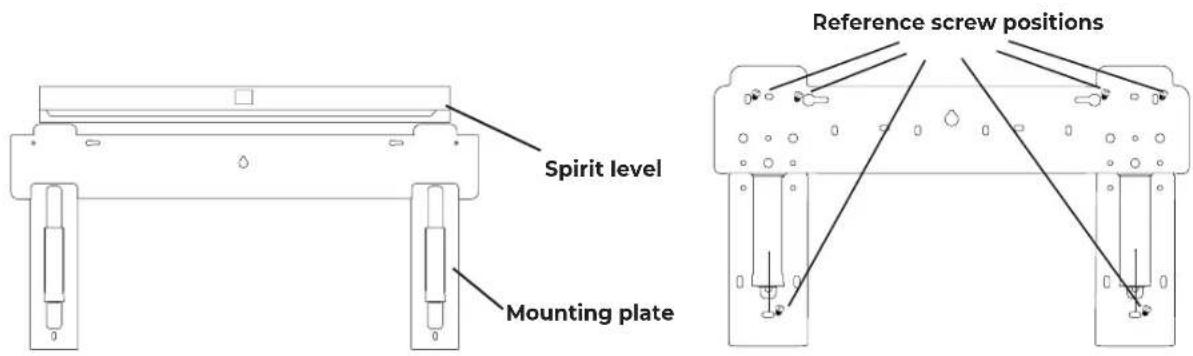

3) Adjust the mounting plate to a horizontal state with

a spirit level, then mark out the screw hole positions on the wall.

4) Put down the mounting plate and drill holes in the

marked positions with drill.

5) Insert expansion rubber plugs into the holes, then

hang the mounting plate and x it with screws. Note: (I) Make sure the mounting plate is rm enough and at against the wall after installation. (II)This gure shown may be different from the actual object, please take the latter as the standard. Ceiling Floor

13cm / 5 in. Reference screw positions Spirit level Mounting plate

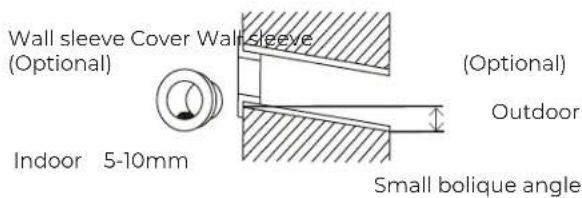

Step 3: Drill Wall Hole A hole in the wall should be drilled for refrigerant piping, the drainage pipe, and connecting cables.

1) Determine the location of wall hole base on the

position of mounting plate.

2) The hole should be have a 70mm diameter at least

and a small oblique angle to facilitate drainage.

3) Drill the wall hole with 70mm core drill and with

small oblique angle lower than the indoor end about 5mm to 10mm.

4) Place the wall sleeve and wall sleeve cover(both are

optional parts) to protect the connection parts. Caution: When drill the wall hole, maker sure to avoid wires, plumbing and other sensitive components. 70 mm Wall sleeve Cover Wall sleeve (Optional) (Optional) Outdoor Indoo r 5-10mm Small bolique angle Step 4: Connecting Refrigerant Pipe

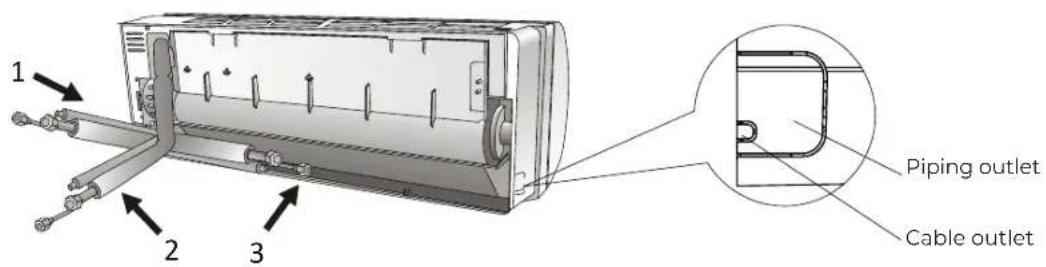

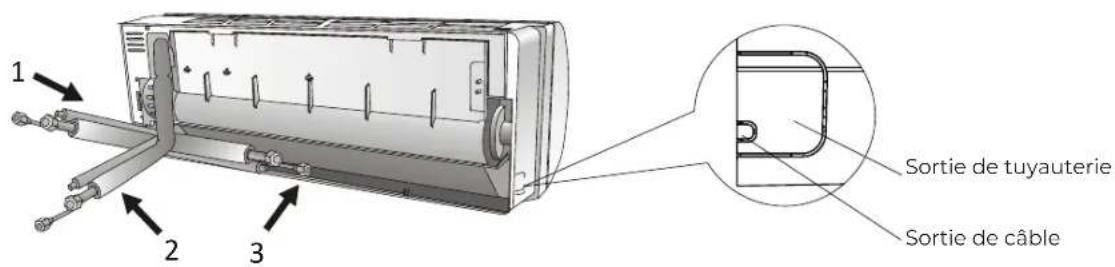

1) According to the wall hole position, select the

appropriate piping mode. There are three optional piping modes for indoo

units as shown in the gure below: In Piping Mode 1 or Piping Mode 3, a notch shoul

be made by using scissors to cut the plastic sheet of piping outlet and cable outlet on the corresponding side of the indoor unit. Note: When cutting off the plastic sheet at the outlet, the cut should be trimmed to smooth.

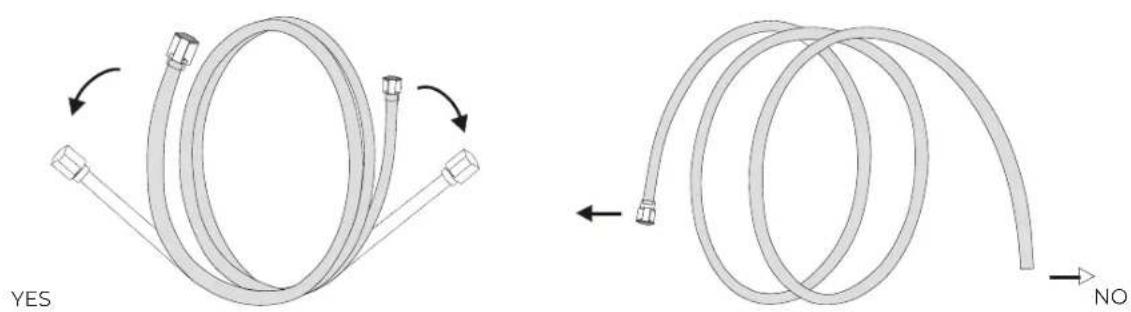

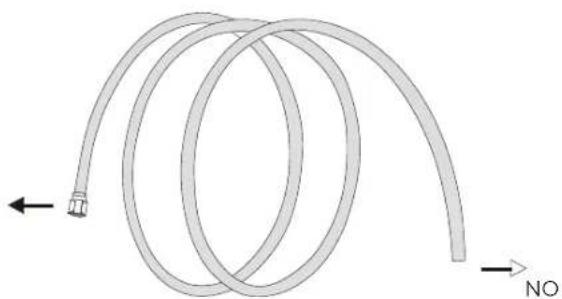

2) Bending the connecting pipes with the port facing up as shown in the gure.

3) Take off the plastic cover in the pipe ports and

take off the protective cover on the end of piping connectors.

4) Check whether there is any sundry on the port of

the connecting pipe and make ensure the port is clean.

5) After align the center, rotate the nut of the

connecting pipe to tighten the nut as tightly as possibleby hand.

6) Use a torque wrench to tighten it according to the

torque values in the torque requirements table; (Refer to the torque requirements table on section INSTALLATION PRECAUTIONS)

7) Wrap the joint with the insulation pipe.

Note: For R32 refrigerant, the connector should be placed outdoors. The connector should be outdoor OutdoorIndoor Step 5: Connect Drainage Hose

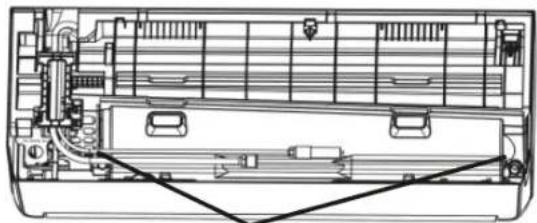

1) Adjust the drainage hose(if applicable)

In some model, both sides of the indoor unit are provided with drainage ports, you can choose one of them to attache the drainage hose. And plug the unused drain port with the rubber attached in one of the ports. Drainage ports

2) Connect the drainage hose to the drainage port,

ensure the joint is rm and the sealing effect is good.

3) Wrap the joint rmly with teon tape to ensure no

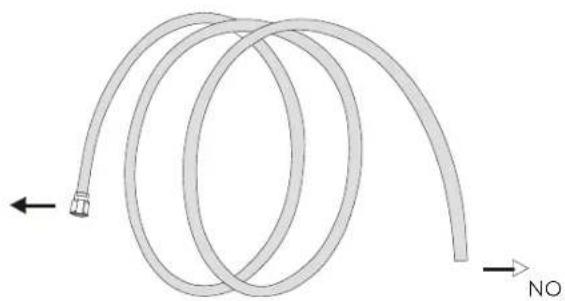

leaks. Note: Make sure there is no twists or dents, and the pipes should be placed obliquelyACD-18KBTU 23

Step 6: Connect Wiring

1) Choose the right cables size determined by the

maximum operating current on the nameplate. (Check the cables size refer to section INSTALLATION PRECAUTIONS)

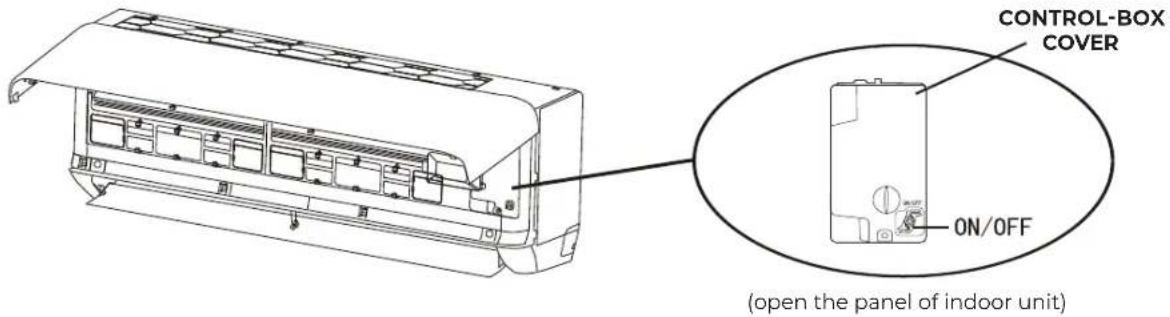

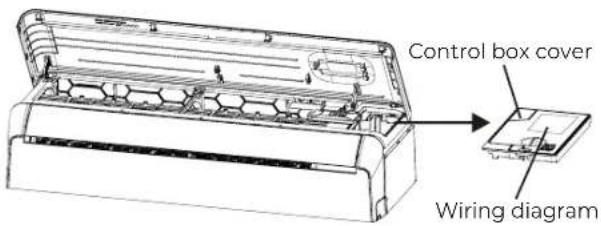

2) Open the front panel of indoor unit.

3) Use a screwdriver, open the electric control box

cover, to reveal the terminal block.

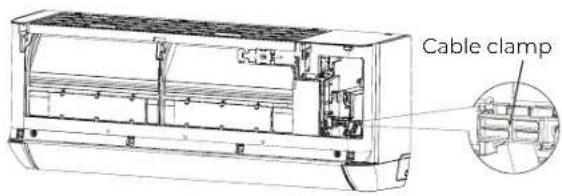

4) Unscrew the cable clamp.

5) Insert one end of the cable into the position of

control box from the back of the right end of the indoor unit.

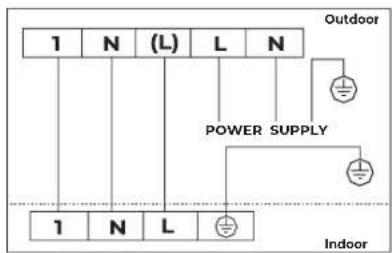

6) Connect the wires to corresponding terminal

according to the wiring diagram on the electric control box cover. And make sure that they are well connected.

7) Screw the cable clamp to fasten the cables.

8) Reinstall the electric control box cover and front

panel. Control box cover Wiring diagram Cable clamp Step 7: Wrap Piping and Cable After the refrigerant pipes, connecting wires and drainage hose are all installed, in order to save space, protect and insulate them, it must be bundle with insulating tape before passing them through the wall hole.

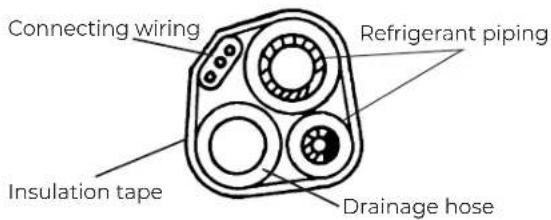

1) Arrange the pipes ,cables and drainagehose well as

the following picture. Note: (I) Make sure the drainage hose is at the bottom. (II) A void crossing and bending of parts.

2) Using the insulating tape wrap the refrigerant

pipes, connecting wires and drainage hose together tightly. Step 8: Mount Indoor Unit

1) Slowly pass the refrigerant pipes, connecting wires

and drainage hose wrapped bundle through the wall hole.

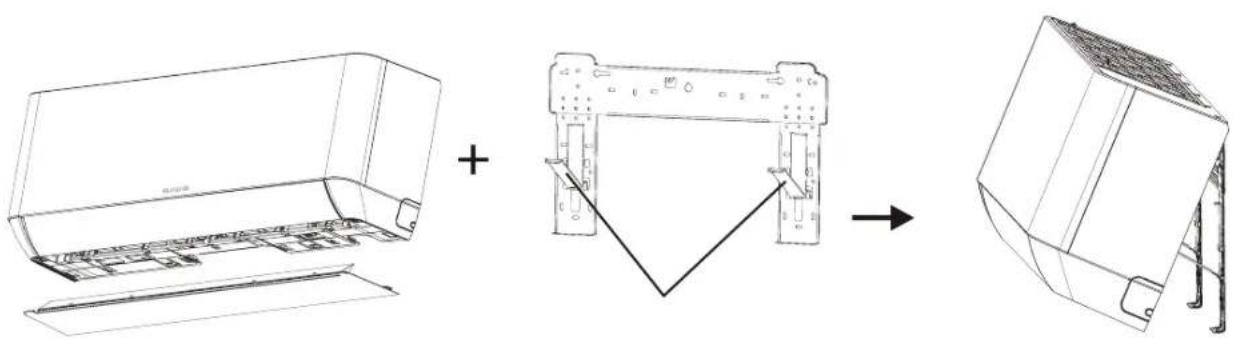

2) Hook the top of indoor unit on the mounting plate.

3) Apply slight pressure to the left and right sides of

the indoor unit, make sure the indoor unit is hooked rmly.

4) Push down the bottom of indoor unit to let the

snaps onto the hooks of the mounting plate, and make sure it is hooked rmly. Connecting wiring Insulation tape Refrigerant piping Drainage hose Sometimes, if the refrigerant pips were already embedded in the wall, or if you want to connecting the pips and wires on the wall, do as below: (I) Gab both ends of the bottom plate, apply a little outward force to take off the bottom plate. (II) Hook the top of the indoor unit on the mounting plate without piping and wiring. (III) Lift the indoor unit opposite the wall, unfold the bracket on the mounting plate, and use this bracket to prop up the indoor unit, there will be a big space for operation. (IV) Do the refrigerant piping, wiring, connect drainage hose, and wrap them as Step 4 to 7. (V) Replace the bracket of mounting plate. (VI)Push down the bottom of indoor unit to let th

snaps onto the bottom hooks of the mounting plate, and make sure it is hooked rmly. (VII)Replace the bottom plate of the indoor unit.24 ACD-18KBTU Take off the bottom plate Unfold the bracket on the mounting plate Step 1: Select Installation Location Select a site that allows for the following:

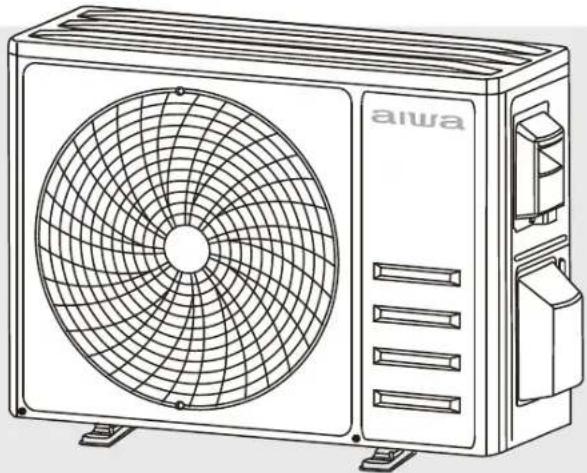

1) Do not install the outdoor unit near sources of heat,

steam or ammable gas.

2) Do not install the unit in too windy or dusty places.

3) Do not install the unit where people often pass.

Select a place where the air discharge and operating sound will not disturb the neighbors.

4) Avoid installing the unit where it will be exposed

to direct sunlight ( other wise use a protection, if necessary, that should not interfere with the air ow).

5) Reserve the spaces as shown in the picture for the

air to circulate freely.

6) Install the outdoor unit in a safe and solid place.

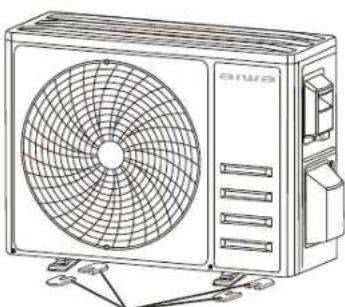

7) If the outdoor unit is subject to vibration, place

rubber blankets onto the feet of the unit. Step 2: Install Drainage Hose

1) This step only for heating pump models.

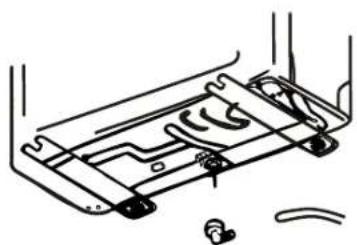

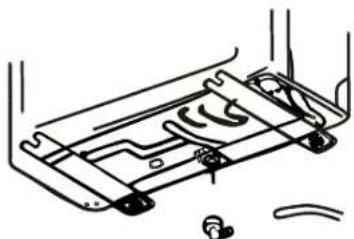

2) Insert the drainage joint to the hole at the bottom

of the outdoor unit.

3) Connect the drainage hose to the joint and make

the connection well enough. Over 50cm/ 20 in. Over 50cm/ 20 in. Over 30cm/ 12 in. Over 30cm/ 12 in. Over 200cm/ 79 in. Step 1 Step 2 Drainage jointDrainage hose Step 3: Fix Outdoor Unit

1) According to the outdoor unit installation

dimensions to mark the installation position for expansion bolts.

2) Drill holes and clean the concrete dust and place

before place the outdoor unit (Optional). This will reduce vibrations and noise.

4) Place the outdoor unit base on the bolts and pre-

5) Use wrench to x the outdoor unit rmly with bolts.

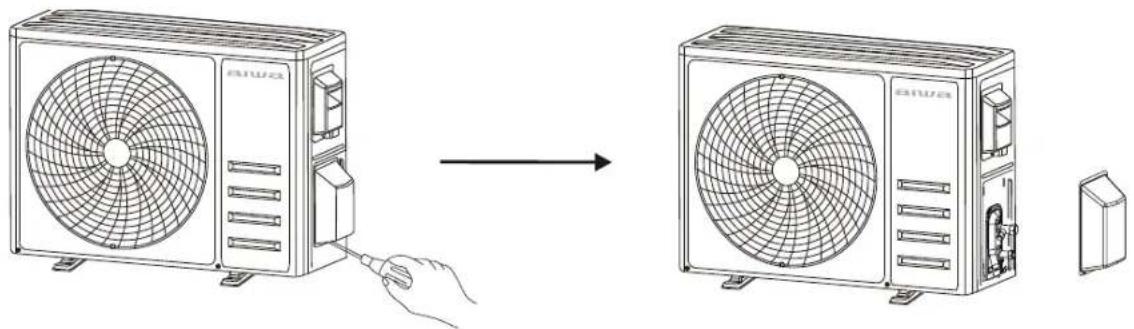

1) Use a phillips screwdriver to unscrew wiring cover,

grasp and press it down gently to take it down

2) Unscrew the cable clamp and take it down.

3) According to the wiring diagram pasted inside

the wiring cover, connect the connecting wires to the corresponding terminals, and ensure all connections are rmly and securely.

4) Reinstall the cable clamp and wiring cover.

Note: When connecting the wires of indoor and outdoor units, the power should be cut off. Step 5: Connecting Refrigerant Pipe

1) Unscrews the valve cover, grasp and press it

down gently to take it down(if the valve cover is applicable).

2) Remove the protective caps from the end of valves.

3) Take off the plastic cover in the pipe ports and

check whether there is any sundry on the port of the connecting pipe and make ensure the port is clean.

4) After align the center, rotate the are nut of the

connecting pipe to tighten the nut as tightly as possible by hand.

5) Use a spanner hold the body of the valve and use a

torque wrench to tighten the are nut according to the torque values in the torque requirements table. (Refer to the torque requirements table on section INSTALLATION PRECAUTIONS) Terminal block Cable clamp Wiring cover Wiring diagram Take down the valve cover Outdoor POWER SUPPLY Indoor Wiring diagram26 ACD-18KBTU Step 6: Vacuum Pumping

1) Use a spanner to take down the protective caps

from the service port, low pressure valve and high pressure valve of the outdoor unit.

2) Connect the pressure hose of manifold gauge to

the service port on the outdoor unit low pressure valve.

3) Connect the charge hose from the manifold gauge

4) Open the low pressure valve of the manifold gauge

and close the high pressure valve.

5) The vacuum time should not be less than 15

minutes, or make sure the compound gauge indicates -0.1 MPa (-76 cmHg)

6) Turn on the vacuum pump to vacuum the system

7) Close the low pressure valve of the manifold gauge

and turn off the vacuum.

8) Hold the pressure for 5 minutes, make sure that

the rebound of compound gauge pointer does not exceed 0.005 MPa.

9) Open the low pressure valve counterclockwise

for 1/4 turn with hexagonal wrench to let a little refrigerant ll in the system, and close the low pressure valve after 5 seconds and quickly remove the pressure hose.

10) Check all indoor and outdoor joints for leakage with

soapy water or leak detector.

11) Fully open the low pressure valve and high pressure

valve of the outdoor unit with hexagonal wrench

12) Reinstall the protective caps of the service port,

low pressure valve and high pressure valve of the outdoor unit.

13) Reinstall the valve cover.

Manifold gauge Compound gauge Low pressure valve Service port High pressure valve Valve protective caps Pressure hosecaps Vacuum pump Pressure gauge High pressure valve Low pressure valve Charge hose Inspections Before Test Run Do the following checks before test run. Description Inspection method Electrical safety inspection

• Check whether the power supply voltage complies with specication.

• Check whether there is any wrong or missing connection between the power lines, signal line and earth wires.

• Check whether the earth resistance and insulation resistance comply with requirements. Installation safety inspection

• Conrm the direction and smoothness of drainage pipe.

• Conrm that the joint of refrigerant pipe is installed completely.

• Conrm the safety of outdoor unit, mounting plate and indoor unit installation.

• Conrm that the valves are fully open.

• Conrm that there are no foreign objects or tools left inside the unit.

• Complete installation of indoor unit air inlet grille and panel.

Description Inspection method Refrigerant leakage detection

• The piping joint, the connector of the two valves of the outdoor unit, the valve spool, the welding port, etc., where leakage may occur.

• Foam detection method: Apply soapy water or foam evenly on the parts where leakage may occur, and observe whether bubbles appear or not, if not, it indicates that the leakage detection result is safe.

• Leak detector method: Use a professional leak detector and read the instruction of operation, detect at the position where leakage may occur.

• The duration of leak detection for each position should last for 3 minutes or more; If the test result shows that there is leakage, the nut should be tightened and tested again until there is no leakage; After the leak detection is completed, wrap the exposed pipe connector of indoor unit with thermal insulation material and wrap with insulation tape. Test Run Instruction

1) Turn on the power supply.

2) Press the ON/OFF button on the remote controller

to turn on the air conditioner.

3) Press the Mode button to switch the mode COOL

and HEAT. In each mode set as below: COOL-Set the lowest temperature HEAT-Set the highest temperature

4) Run about 8 minutes in each mode and check all

functions are properly run and respond the remote controller. Functions check as recommended:

• If the outlet air temperature respond the cool and heat mode

• If the water drains properly from the drainage hose

• If the Louver and deectors(optional) rotate properly

5) Observe the test run state of the air conditioner at

6) After the successfully test run, return the normal

setting and press ON/OFF button on the remot controller to turn off the unit.

7) Inform the user to read this manual carefully before

use, and demonstrate to the user how to use the air conditioner, the necessary knowledge for service and maintenance, and the reminder for storage of accessories. Note: If the ambient temperature is excess the range ref

to section OPERATION INSTRUCTIONS, and it can not run COOL or HEAT mode, lift the front panel and refer to the emergency button operation to run the COOL and HEAT mode. Warning

• When cleaning, you must shut down the machine and cut off the power supply for more than 5 minutes.

• Under no circumstances should the air conditioner be ushed with water.

• Volatile liquid (e.g. thinner or gasoline) will damage the air conditioner, so only use soft dry cloth or wet cloth dipped with neutral detergent to clean the air conditioner.

• Pay attention to cleaning the lter screen regularly to avoid dust covering which will affect the lter screen effect. When the operating environment is dusty, the cleaning frequency should be increased appropriately.

• After removing the lter screen, do not touch the ns of the indoor unit to avoid scratching. Clean the unit Wring it dry Gentle wipe the unit surface Tip: Wipe frequently to keep air conditioner clean and good appearance . <40ºC (104ºF)

MAINTENANCE28 ACD-18KBTU

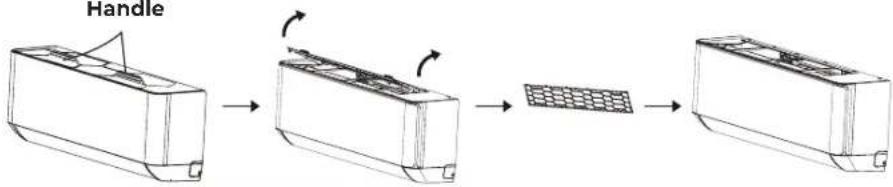

Disassembly and assembly of lter

• Grasp the raised handle on the lter by hand, and then pull the lter out in the direction deviating from the unit, so that the upper edge of the lter is separated from the unit. The lter can be removed by lifting the lter upwards.

• When installing the lter, rst insert the lower end of the lter screen into the corresponding position of the unit, and then squeeze the upper end of the lter into the corresponding buckling position of the unit body. Clean the lter Take out the lter from the unit Tip: When you nd accumulated dust in the lter, please clean the lter in time to ensure the clean, healthy and efcient operation inside the air conditioner. Cleaning of inner air duct

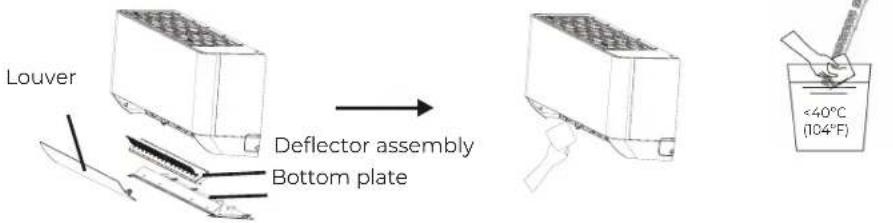

• First, loosen the knob on the middle of louver and bend the louver outwards to take it out.

• Then, grasp both sides of bottom plate push downwards to take down the bottom plate.

• Finally, loosen the buckle of deector assembly with your thumb and take it out.

• Wipe the air duct and fan assembly with a clean and wrung wet rag.

• Clean the removed parts with soapy water and air dry it.

• After cleaning, restore the removed parts in turn. Service and maintenance

• When the air conditioner is not in use for a long time, do the following work: Take out the batteries of the remote controller and disconnect the power supply of the air conditioner.

• When starting to use after long-term shutdown:

1. Clean the unit and lter screen;

2. Check whether there are obstacles at the air inlet and outlet of indoor and outdoor units;

3. Check whether the drain pipe is unobstructed;

Install the batteries of the remote controller and check whether the power is on. Handle Opposite to the direction of taking out the lter Clean the lter with soapy water and air dry it Replace the lter <40ºC (104ºF) Louver Deector assembly Bottom plate <40ºC

MALFUNCTION POSSIBLE CAUSES

The appliance does not operate Power failure/plug pulled out. Damaged indoor/outdoor unit fan motor. Faulty compressor thermomagnetic circuit breaker. Faulty protective device or fuses. Loose connections or plug pulled out. It sometimes stops operating to protect the appliance. Voltage higher or lower than the voltage range. Active TIMER-ON function. Damaged electronic control board. Strange odor Dirty air lter. Noise of running water Back ow of liquid in the refrigerant circulation. A ne mist comes from the air outlet This occurs when the air in the room becomes very cold, for example in the COOLING or DEHUMIDIFYING/DRY modes. A strange noise can be heard This noise is made by the expansion or contraction of the front panel due to variations in temperature and does not indicate a problem. Insufcient airow, eitherhot or cold Unsuitable temperature setting. Obstructed air conditioner intakes and outlets. Dirty air lter. Fan speed set at minimum. Other sources of heat in the room. No refrigerant. The appliance does not respond to commands Remote control is not close enough to indoor unit. The batteries of remote control need to be replaced. Obstacles between remote control and signal receiver in indoor unit. The display is off Active DISPLAY function. Power failure. Switch off the air conditioner immediately and cut off the power supply in the event of: Strange noises during operation. Faulty electronic control board. Faulty fuses or switches. Spraying water or objects inside the appliance. Overheated cables or plugs. Very strong smells coming from the appliance.

In case of error, the display on the indoor unit shown the following error codes: DISPLAY Description of the trouble Indoor room temperature sensor fault Indoor pipe temperature sensor fault Outdoor pipe temperature sensor fault Refrigerant system leakage or fault Malfunction of indoor fan motor Outdoor ambient temperature sensor fault Indoor and outdoor communication fault Outdoor discharge temperature sensor fault Outdoor IPM module fault Outdoor current detect fault Outdoor PCB EEPROM fault Outdoor fan motor fault Outdoor suction temperature sensor fault This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance,the law requires special collection and treatment. DO NOT dispose of this product as household waste or unsorted municipal waste. When disposing of this appliance, you have the following options:

• Dispose of the appliance at designated municipal electronic waste collection facility.

• When buying a new appliance, the retailer will take back the old appliance free of charge.

• The manufacturer will also take back the old appliance free of charge.

• Sell the appliance to certid scrap metal dealers.

• Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad for the environment. Hazardous substances may leak into the ground water and enter the food chain. DISPOSAL GUIDELINE (European)ACD-18KBTU 31

Temperatur kann Schäden an der App verhindern36 ACD-18KBTU Refrigerant connecting pipe Indoor Unit Out door Unit Mounting plate Air inlet Front panel Emergency button Air inlet Wiring cover Drainage pipe Connection wiring Valve protective cover Gas valve (Low pressure valve) Liquid valve (High pressure valve) Air outlet Air outlet With the protective cover removed

,R32 LFL is 0.038 kg/ m

max = 2.5 x (LFL) (5/4) x h

min = (M/ (2.5 x (LFL) (5/4) x h

max = 2.5 x (LFL) (5/4) x h

min = (M/ (2.5 x (LFL) (5/4) x h

0.75mm 280 ACD-18KBTU Step 1: Select Installation location

AVERÍA POSIBLES CAUSAS

Refrigerant connecting pipe Indoor Unit Out door Unit Mounting plate Air inlet Front panel Emergency button Air inlet Wiring cover Drainage pipe Connection wiring Valve protective cover Gas valve (Low pressure valve) Liquid valve (High pressure valve) Air outlet Air outlet With the protective cover removed

• all personal protective equipment is available and being used correctly

max = 2.5 x (LFL) (5/4) x h

min = (M/ (2.5 x (LFL) (5/4) x h

DYSFONCTIONNEMENT CAUSES POSSIBLES

COOL The cooling function allows the air conditioner to cool the room and reduce Air humidity at the same time. To activate the cooling function (COOL), press the MODE button until the symbol appears on the display. With the button or set a temperature lower than that of the room.

The maximum charge in a room shall be in accordance with the following:

max = 2.5 x (LFL) (5/4) x h

x (A) 1/2 The required minimum oor area Amin to install an appliance with refrigerant charge M (kg) shall be in accordance with following:

min = (M/ (2.5 x (LFL) (5/4) x h

to section OPERATION INSTRUCTIONS, and it can not run COOL or HEAT mode, lift the front panel and refer to the emergency button operation to run the COOL and HEAT mode. Avvertimento

Refrigerant connecting pipe Indoor Unit Out door Unit Mounting plate Air inlet Front panel Emergency button Air inlet Wiring cover Drainage pipe Connection wiring Valve protective cover Gas valve (Low pressure valve) Liquid valve (High pressure valve) Air outlet Air outlet With the protective cover removed

22. Removal and evacuation

max = 2.5 x (LFL) (5/4) x h

min = (M/ (2.5 x (LFL) (5/4) x h

3800 W 08.SCOP Average declared: 4.0 W/W 09. Energy Class(Average): A+ 10.Declare capacity(-10ºC): 3600 W

Follow us! aiwaEU www.eu-aiwa.com ©AIWA EUROPE S.L. All Right Reserved. Printed in P.R.C. ED0EDV1
