Brio 300 - Webcam LOGITECH - Free user manual and instructions

Product Type	Full HD Webcam
Brand	Logitech
Model	Brio 300
Video Resolution	Full HD 1080p at 30 fps
Field of View	Field of view (diagonal): 70°
Focus	Fixed Autofocus
Microphone	Integrated noise-canceling microphone
Lighting	RightLight 2 light compensation for low light
Privacy Shutter	Yes, integrated sliding
Indicator Light	Privacy LED indicator
Dimensions (height x width x depth)	65.6 mm x 53.1 mm x 45.0 mm (with mounting clip)
Weight	74.6 g (with clip and cable)
Cable Length	1.5 m (fixed USB-C)
Power	Via USB-C port (bus-powered)
Mounting	Adjustable screen clip, padded foot
Compatibility	Windows, macOS, Chrome OS, USB-A compatible with adapter
Software	Logi Tune for settings and updates
Maintenance	Wipe with a soft, dry cloth, avoid abrasive products
Cleaning	Dust off the lens with a blower or microfiber cloth
Safety	Use the privacy shutter when the camera is not in use
Spare Parts	Not provided by the manufacturer, sealed webcam
Repairability	Repairability index not communicated, professional repair recommended
General Information	2-year limited warranty, support at www.logitech.com/support/Brio300

Frequently Asked Questions - Brio 300 LOGITECH

How to install the Brio 300 webcam?

Place the mounting clip on your screen, adjust the arm at the back, then plug the USB-C cable into your computer. Open the privacy shutter to use the camera.

Does the webcam require a driver?

On most operating systems, the webcam is recognized automatically. For advanced features, install the Logi Tune software available on the Logitech website.

How to use the privacy shutter?

Slide the shutter from left to right (or vice versa) to uncover the lens. When closed, the camera is physically blocked.

Can I adjust the tilt of the webcam?

Yes, the Brio 300 has a front hinge and a foot hinge that allow adjusting the vertical angle and orientation on the screen.

How to clean the webcam lens?

Use a soft, dry microfiber cloth. Avoid liquids or chemicals that could damage the lens coating.

Does the webcam work with a USB hub?

It is recommended to plug the webcam directly into a USB port on the computer to avoid power or bandwidth issues. If a hub is used, make sure it is powered.

What is the maximum video quality?

The Brio 300 offers Full HD 1080p resolution at 30 frames per second, with automatic brightness correction (RightLight 2).

Is the microphone built-in?

Yes, a noise-canceling microphone is built into the webcam for better audio clarity during calls.

How to update the firmware?

Download and install Logi Tune from www.logitech.com/tune. The software will notify you of available updates and install them automatically.

Where to find the complete user manual?

The manual is available for free download on notice-facile.com or on the Logitech website at the support page for the Brio 300 model.

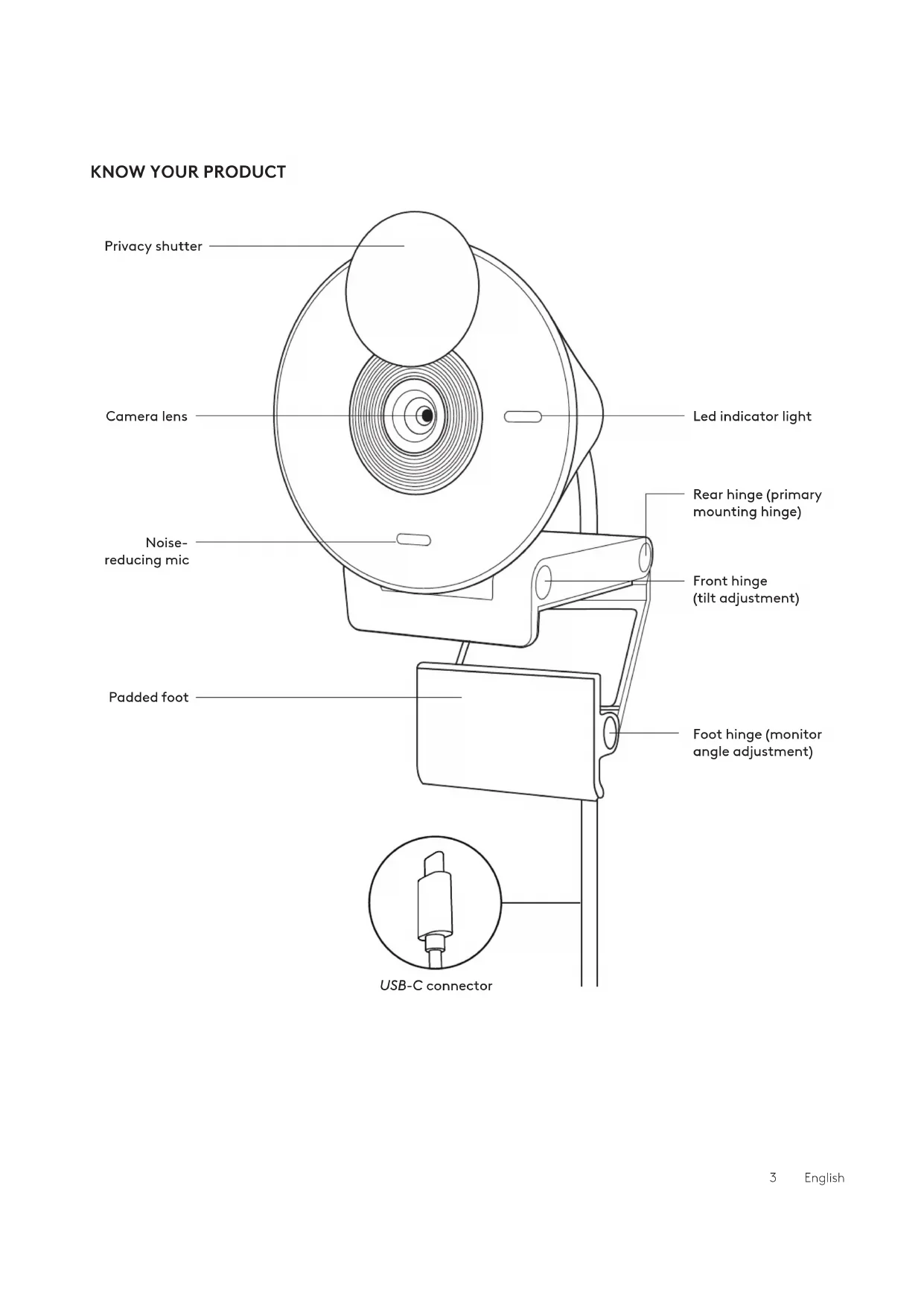

USER MANUAL Brio 300 LOGITECH

Privacy shutter Camera lens LED indicator light Rear hinge (primary mounting hinge) Noise-reducing mic Front hinge (tilt adjustment) Padded foot Foot hinge (monitor angle adjustment) USB-C connector

WHAT'S IN THE BOX

1. Brio 300 with attached USB-C cable
2. User documentation

OPEN THE MOUNT

Open the mounting arm.

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

PLACE ON MONITOR

Place the Brio 300 on top of your monitor and ensure that the front tab of the mount is snug against the front of your screen.

Diagram of a mechanical device with a lever and lever assembly, showing directional arrows (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

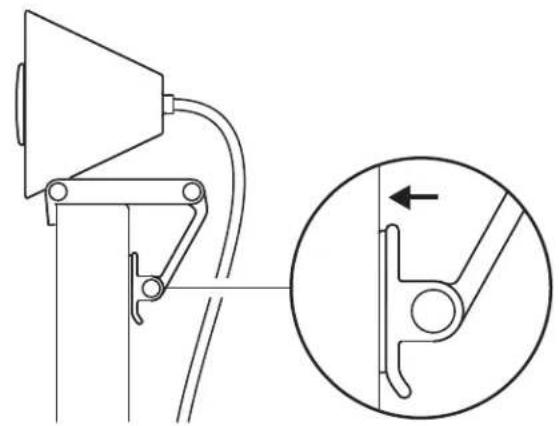

COMPRESS TO FIT MONITOR

Move the mounting arm towards the back of your screen so that it fits the width of the monitor. Please note that you may need to adjust the angle of the "foot hinge" to fit your monitor's shape.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook detail (no text or symbols)

ADJUST THE ANGLE

Adjust the angle of the Brio 300 by tilting it forwards or backwards.

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

PLUG DIRECTLY INTO COMPUTER

Plug the attached USB-C connector into the corresponding port on your computer. If possible, we recommend plugging the Brio 300 directly into your computer and not through a USB hub.

Pure technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

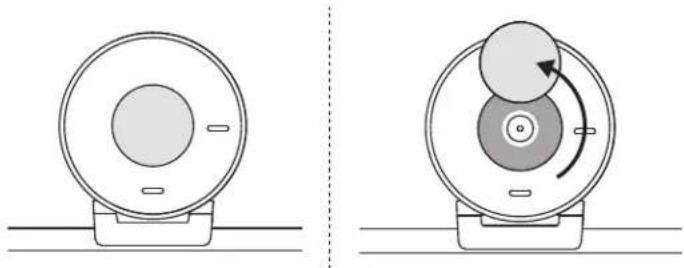

OPEN THE PRIVACY SHUTTER

Open the privacy shutter by gently pushing it from the left or right direction of the device; the cover will snap into its "off" position above the camera.

Two diagrams showing a circular device with internal components and a rotating disk, connected by a dashed line (no text or symbols)

INSTALL TUNE

Logi Tune helps boost your webcam performance with periodic software and firmware updates.

It is recommended to update your webcam and take advantage of the great features of Brio 300.

To do so, download Logi Tune from www.logitech.com/tune

Logi Tune

DIMENSIONS

Webcam:

Height x Width x Depth: 2.58 in (65.63 mm) x 2.09 in (53.1 mm) x 1.78 in (45 mm), incl. mount clip

Product weight:

2.63 oz (74.6 g), incl. mount clip & cable

Attached Cable length:

1.5 m (5 ft)

www.logitech.com/support/Brio300

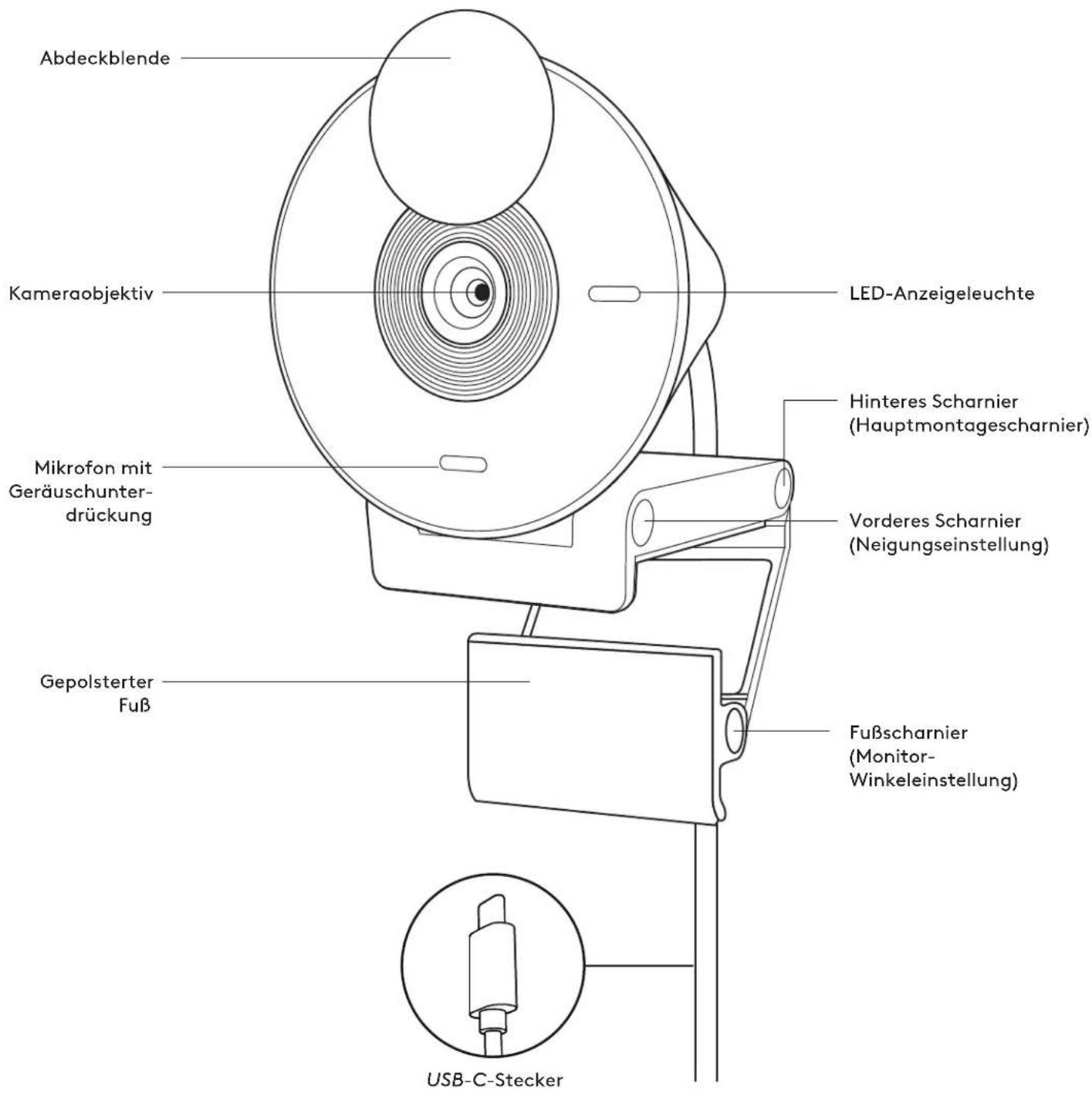

PRODUKT AUF EINEN BLICK

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

AUF DEN MONITOR SETZEN

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

AN DEN MONITOR ANDRÜCKEN

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook mechanism (no text or symbols)

WINKEL ANPASSEN

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

DIREKT AN DEN COMPUTER ANSCHLIESSEN

Pure technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

ÖFFNEN DER EXTERNEN ABDECKBLENDE

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

PLACER SUR L'ÉCRAN

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

AJUSTER À L'ÉCRAN

Technical line drawing of a mechanical assembly with an inset magnified detail showing a hook detail (no text or symbols)

RÉGLER L'ANGLE

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

BRANCHER DIRECTEMENT SUR L'ORDINATEUR

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

OUVRIR LE VOLET DE CONFIDENTIALITÉ

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

POSIZIONA SOPRA IL MONITOR

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

COMPRIMI PER L'ADATTAMENTO AL MONITOR

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook mechanism (no text or symbols)

REGOLA L'ANGOLAZIONE

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

COLLEGA DIRETTAMENTE AL COMPUTER

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

Two diagrams showing a circular device with internal components and a rotating disk, connected by a dashed line (no text or symbols)

INSTALLA LOGI TUNE

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

COLOQUE LA CÁMARA SOBRE EL MONITOR

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

AJUSTE EL ACOPLE AL MONITOR

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook mechanism (no text or symbols)

AJUSTE EL ÁNGULO

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Pure technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Two diagrams showing a circular device with internal components and a rotating disk, connected by a dashed line (no text or symbols)

INSTALE TUNE

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

COLOCAR NO MONITOR

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

COMPRIMIR PARA AJUSTAR AO MONITOR

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook mechanism (no text or symbols)

AJUSTAR O ÂNGULO

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

BEVESTIGING OPENKLAPPEN

Klap de bevestigingsarm open.

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

OP MONITOR PLAATSEN

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook mechanism (no text or symbols)

HOEK AANPASSEN

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Pure technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

LENSKAPJE OPENEN

Two diagrams showing a circular device with internal components and a rotating disk, connected by a dashed line (no text or symbols)

TUNE INSTALLEREN

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

PLATS PÅ SKÄRMEN

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

KOMPRIMERA FÖR ATT PASSA SKÄRMEN

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook mechanism (no text or symbols)

JUSTERA VINKELN

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

ANSLUT DIREKT TILL DATORN

Pure technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

ÖPPNA SEKRETESSKYDDET

Simple line drawing of a circular object mounted on a base, resembling a camera or fan (no text or symbols)

Diagram of a mechanical device with a rotating knob and curved arrow indicating rotation (no text or symbols)

INSTALLERA TUNE

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

PLACER PÅ MONITOREN

Diagram of a mechanical device with lever and guide mechanism (no text or symbols)

Line drawing of a mechanical device with a bell and lever mechanism (no text or symbols)

KOMPRESSER FOR AT PASSE SKÄERMEN

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook mechanism (no text or symbols)

JUSTER VINKLEN

Juster vinklen på Brio 300 ved at vippe den frem eller tilbage.

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

TILSLUT DIREKTE TIL COMPUTEREN

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

ÅBN LUKKER SOM DÆKKER KAMERAETS OBJEKTIV

Simple line drawing of a circular object mounted on a base, resembling a camera or fan (no text or symbols)

Diagram of a mechanical device with a rotating knob and curved arrow indicating rotation (no text or symbols)

INSTALLER TUNE

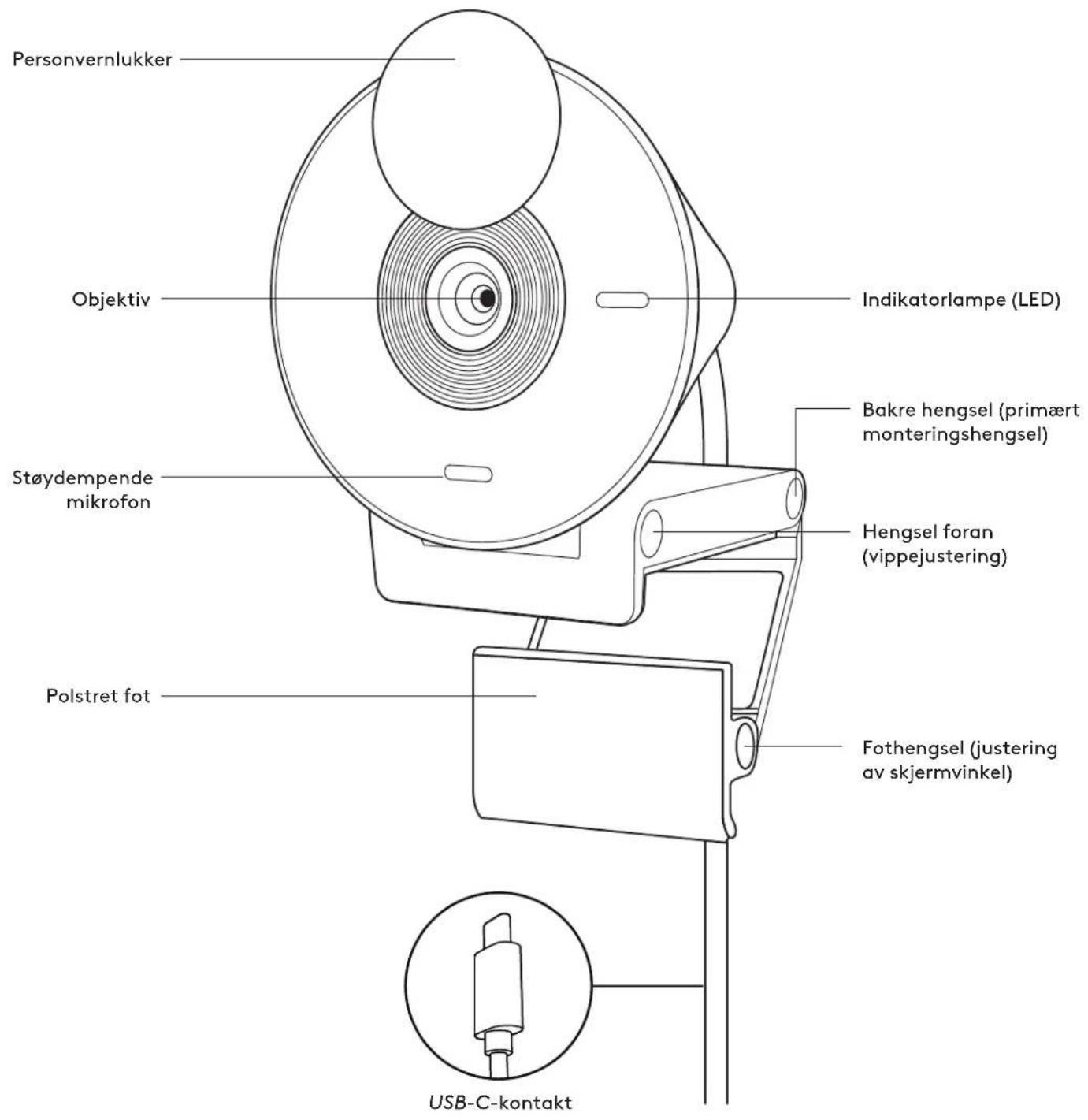

BLI KJENT MED PRODUKTET

Personvernlukker Objektiv Støydempende mikrofon Polstret fot Indikatorlampe (LED) Bakre hengsel (primært monteringshengsel) Hengsel foran (vippejustering) Fothengsel (justering av skjermvinkel) USB-C-kontakt

I ESKEN

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

PLASSERING PÅ SKJERMEN

Diagram of a mechanical device with lever and guide mechanism, showing force application (no text or symbols)

Line drawing of a mechanical device with a triangular component and attached lever (no text or symbols)

PRESS FOR SKJERMTILPASSING

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook detail (no text or symbols)

JUSTERE VINKELEN

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

KOBLE DIREKTE TIL DATAMASKINEN

Simple line drawing of a connector or connector with a curved edge and a rectangular hole, no text or symbols present.

ÅPNE PERSONVERNLUKKEREN

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

ASETA NÄYTTÖÖN

Diagram of a mechanical device with a lever and lever assembly, showing directional arrows (no text or symbols)

Line drawing of a mechanical device with a triangular component and attached lever (no text or symbols)

PURISTA KIINNI NÄYTTÖÖN

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook detail (no text or symbols)

SÄÄDÄ KULMAA

Simple line drawing of a mechanical device with a curved arrow indicating rotation (no text or symbols)

LIITÄ SUORAAN TIETOKONEESEEN

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

AVAA SUOJASULJIN

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with lever and guide mechanism, showing force application (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook detail (no text or symbols)

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook detail (no text or symbols)

РЕГУЛИРОВКА УГЛА

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

ОТКРЫТИЕ ЗАЩИТНОЙ ШТОРКИ

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

UMIEŚĆ NA MONITORZE

Diagram of a mechanical device with lever and guide mechanism, showing force application (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

SKOMPRESUJ, ABY DOPASOWAĆ DO MONITORA

Technical line drawing of a mechanical assembly with an inset magnified detail showing a hook detail (no text or symbols)

DOSTOSUJ KAT

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

OTWÓRZ OSŁONĘ MIGAWKI

Two diagrams showing a circular device with internal components and a rotating disk, connected by a dashed line (no text or symbols)

ZAINSTALUJ TUNE

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

HELYEZZE A MONITORRA

Diagram of a mechanical device with lever and guide mechanism, showing force application (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

NYOMJA ÖSSZE A MONITORRA VALÓ RÖGZÍTÉSHEZ

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook detail (no text or symbols)

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

CSATLAKOZTASSA KÖZVETLENÜL A SZÁMÍTÓGÉPHEZ

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

NYISSA KI A MAGÁNSZFÉRAVÉDŐ FEDELET

Two diagrams showing a circular device with internal components and a rotating disk, connected by a dashed line (no text or symbols)

A TUNE TELEPÍTÉSE

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

UMÍSTĚTE NA MONITOR

Diagram of a mechanical device with lever and guide mechanism, showing force application (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with an inset magnified detail showing a hook detail (no text or symbols)

NASTAVTE ÚHEL

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

PŘIPOJTE PŘÍMO K POČÍTAČI

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

OTEVŘETE KRYTKU OBJEKTIVU

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

UMIESTNITE NA MONITOR

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

STLAČTE NA UPEVNENIE K MONITORU

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook mechanism (no text or symbols)

NASTAVTE UHOL

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

PRIPOJTE PRIAMO K POČÍTAČU

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

OTVORTE KRYTKU OBJEKTÍVU

Two diagrams showing a circular device with internal components and a rotating disk, connected by a dashed line (no text or symbols)

NAINŠTALUJTE TUNE

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with lever and lever assembly, showing directional arrows (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook mechanism (no text or symbols)

РЕГУЛЮВАННЯ КУТА

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Pure technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

MONITORILE ASETAMINE

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

SURUGE MONITORIGA SOBITUMISEKS

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook mechanism (no text or symbols)

KALDENURGA SEADISTAMINE

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

OTSE ARVUTISSE ÜHENDAMINE

Simple line drawing of a connector or connector with a curved edge and a small circular feature, no text or symbols present.

PRIVAATSUSKATTE AVAMINE

Two diagrams showing a circular device with internal components and a rotating disk, connected by a dashed line (no text or symbols)

TUNE'I INSTALLIMINE

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

NOVIETOJIET UZ MONITORA

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

PIESPIEDIET, LAI IERICE CIEŠI PIEGULÉTU MONITORAM

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook detail (no text or symbols)

NOREGULĒJIET LENKI

Simple line drawing of a mechanical device with a curved arrow indicating rotation (no text or symbols)

IESPRAUDIET TIEŠI DATORĀ

Simple line drawing of a connector or connector with a curved edge and a small circular feature, no text or symbols present.

ATVERIET OBJEKTÍVA PÁRSEGU

Two diagrams showing a circular device with internal components and a rotating disk, connected by a dashed line (no text or symbols)

UZSTÄDIET "TUNE"

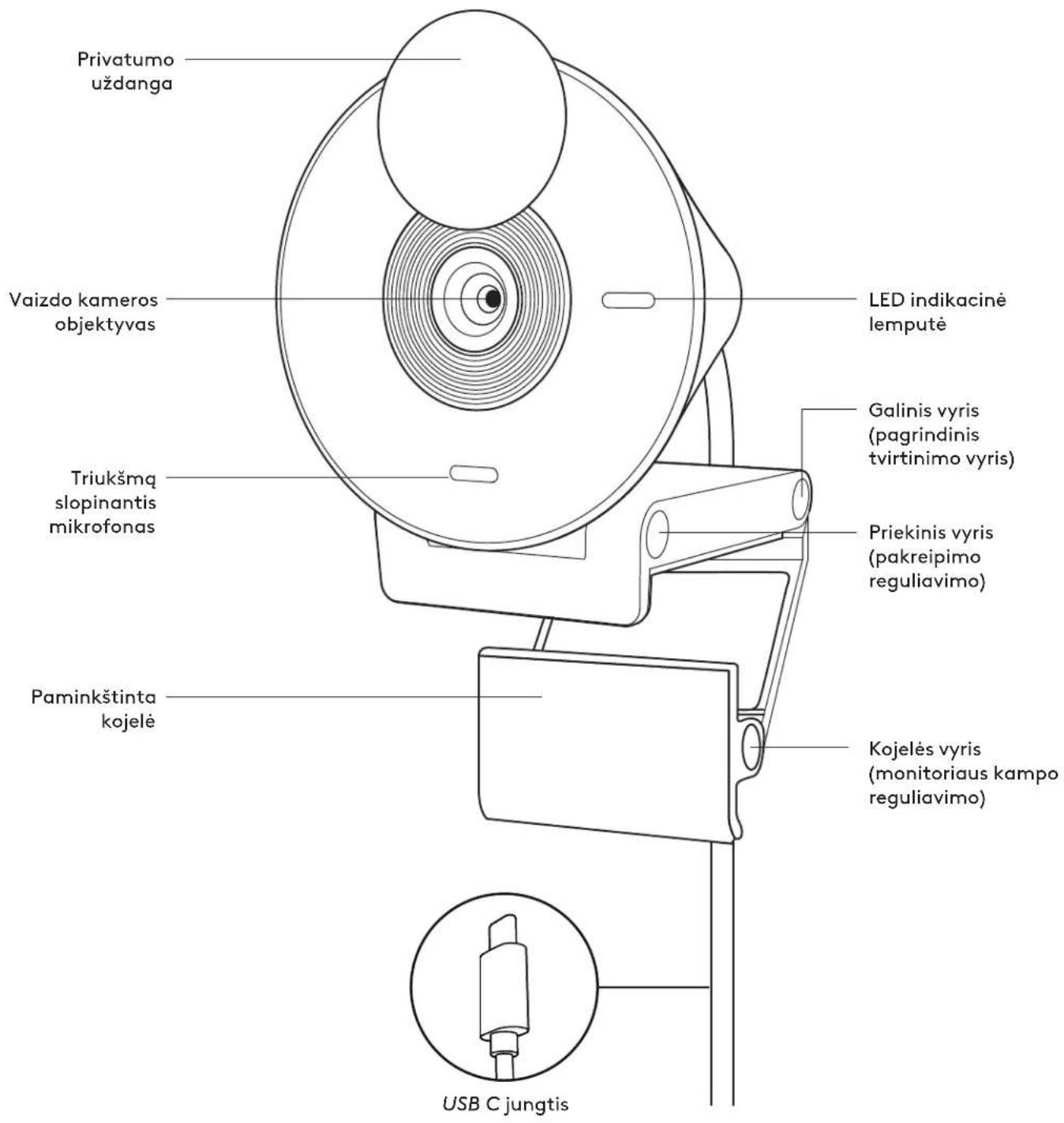

SUSIPAŽINKITE SU SAVO PRODUKTU

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

UŽDĚKITE ANT MONITORIAUS

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

PRISPAUSKITE PRIE MONITORIAUS

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook mechanism (no text or symbols)

REGULIUOKITE KAMPA

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

PRIJUNKITE PRIE KOMPIUTERIO

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

ATIDARYKITE PRIVATUMO UŽDANGA

Two diagrams showing a circular device with internal components and a rotating disk, connected by a dashed line (no text or symbols)

|DIEKITE „TUNE“

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

ПОСТАВЕТЕ МОНИТОРА

Diagram of a mechanical device with lever and guide mechanism, showing force application (no text or symbols)

Line drawing of a mechanical device with a triangular component and attached lever (no text or symbols)

Technical line drawing of a mechanical assembly with an inset magnified detail showing a close-up of a hook component (no text or symbols present)

РЕГУЛИРАНЕ НА ЏГЬЛА

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

Simple line drawing of a circular object mounted on a base, with no text or symbols present.

Diagram of a mechanical device with rotating components and a curved arrow indicating rotation (no text or symbols)

ИНСТАЛИРАЙТЕ TUNE

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

STAVITE NA MONITOR

Stavite Brio 300 na gornji dio monitora i pazite da prednji jezičak nosača tijesno priliježe na prednju stranu zaslona.

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

PRITISNITE ZA PRILAGOĐAVANJE MONITORU

Pomičite krak za montažu prema stražnjoj strani zaslona tako da se prilagodi širini monitora. Napominjemo da ćete možda morati podesiti kut „šarke podnožja“ radi prilagodbe obliku monitora.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook detail (no text or symbols)

PODEŠAVANJE KUTA

Podesite kut Brio 300 njegovim naginjanjem prema naprijed ili prema natrag.

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

UKOPČAJTE IZRAVNO U RAČUNALO

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

OTVORITE ZATVARAČ ZA PRIVATNOST

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

POSTAVITE GA NA MONITOR

Postavite Brio 300 na gornju stranu monitora i pobrinite se da se prednji jezičak nosača priljubi uz prednju stranu ekrana.

Diagram of a mechanical device with lever and guide mechanism, showing force application (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

PRILAGODITE DIMENZIJE MONITORU

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook detail (no text or symbols)

PODESITE UGAO

Podesite ugao kamere Brio 300 naginjanjem unapred ili unazad.

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

PRIKLJUČITE UREĐAJ DIREKTNO NA RAČUNAR

Utaknite priloženi USB-C konektor u odgovarajući port na računaru. Ako je moguće, preporučujemo da Brio 300 direktno priključite na računar, a ne preko USB čvorišta.

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

OTVORITE ŠTITNIK ZA PRIVATNOST

Simple line drawing of a circular object mounted on a base, with no text or symbols present.

Diagram of a mechanical device with a rotating knob and curved arrow indicating rotation (no text or symbols)

INSTALIRAJTE TUNE

Logi Tune poboljšava performanse veb kamere povremenim ažuriranjima softvera i firmvera.

Preporučuje se da preuzimate ažuriranja i iskoristite sjajne funkcije veb kamere Brio 300.

Preuzmite Logi Tune sa www.logitech.com/tune

Logi Tune

DIMENZIJE

Veb kamera:

Visina x širina x dubina: 65,63 mm (2,58 inča) x 53,1 mm (2,09 inča) x 45 mm (1,78 inča), sa stezaljkom za montiranje

Težina proizvoda:

74,6 g (2,63 unce), sa stezaljkom za montiranje i kablom

Dužina priloženog kabla:

1,5 m (5 ft)

www.logitech.com/support/Brio300

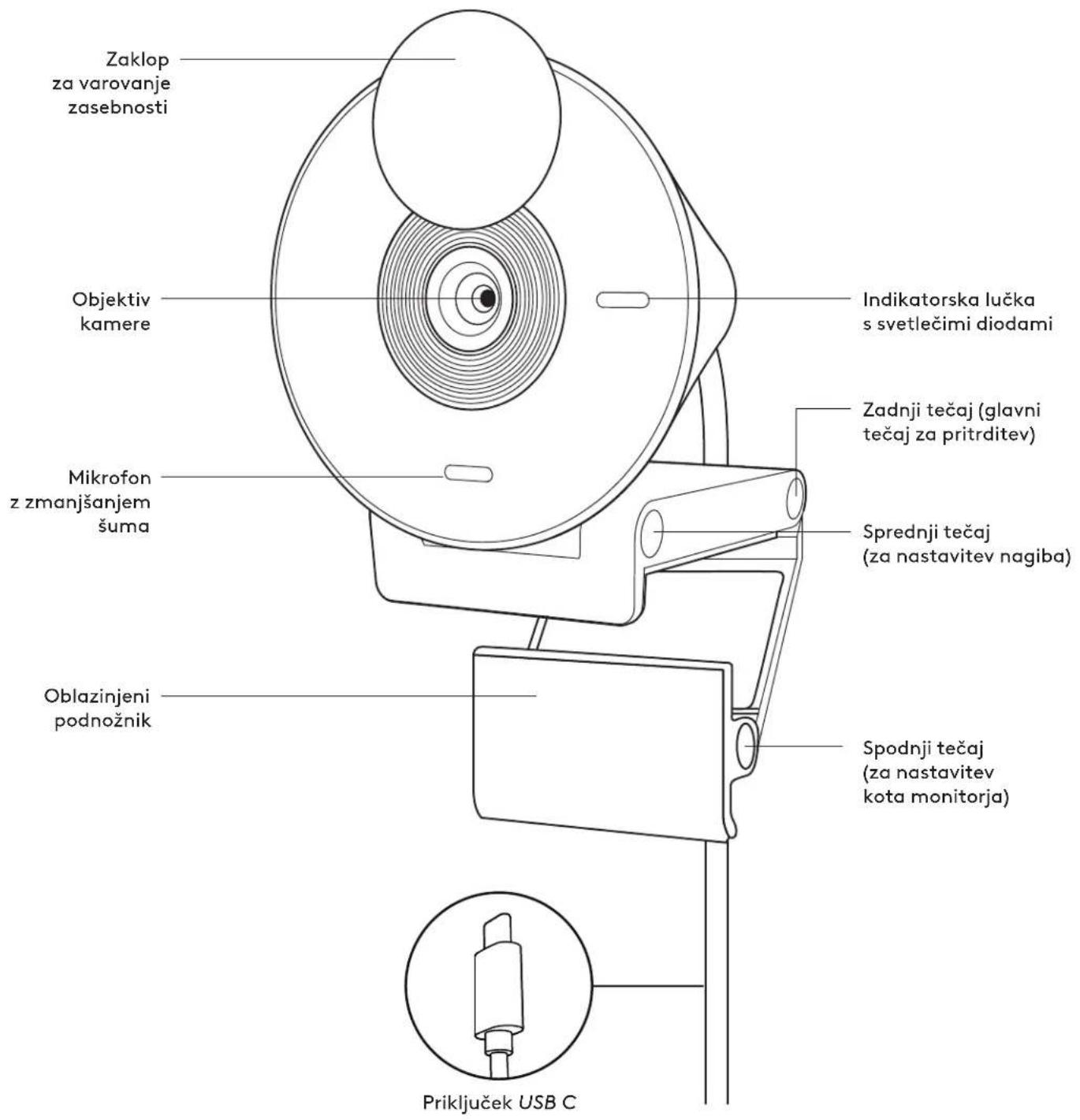

SPOZNAJTE IZDELEK

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

NAMESTITE NA MONITOR

Diagram of a mechanical device with lever and guide mechanism, showing force application (no text or symbols)

Line drawing of a mechanical device with a triangular component and attached lever (no text or symbols)

STISNITE ZA NAMESTITEV NA MONITOR

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook mechanism (no text or symbols)

PRILAGODITE KOT

Prilagodite kot kamere Brio 300 tako, da jo nagnete naprej ali nazaj.

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

PRIKLJUČITE NEPOSREDNO V RAČUNALNIK

Pure technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

ODPRITE ZAKLOP ZA VAROVANJE ZASEBNOSTI

Odprite zaklop za varovanje zasebnosti tako, da ga previdno potisnete z leve na desno stran naprave – pokrov se bo zaskočil v položaj »izklopljeno« nad kamera.

Two diagrams showing a circular device with internal components and a rotating disk, connected by a dashed line (no text or symbols)

NAMESTITE APLIKACIJO TUNE

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

PLASAREA PE MONITOR

Diagram of a mechanical device with lever and guide mechanism, showing force application (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

APĂSAREA PENTRU FIXAREA PE MONITOR

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook detail (no text or symbols)

AJUSTAREA UNGHIULUI

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

CONECTAREA DIRECTĂ LA COMPUTER

Pure technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

DESCHIDEREA OBTURATORULUI PENTRU INTIMITATE

Two diagrams showing a circular device with internal components and a rotating disk, connected by a dashed line (no text or symbols)

INSTALAREA LOGI TUNE

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

MONİTÖRE OTURTACAK ŞEKİLDE SIKİŞTIRIN

Technical line drawing of a mechanical assembly with an inset showing a close-up of a hook detail (no text or symbols)

AÇIYI AYARLAYIN

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

DOĞRUDAN BİLGİSAYARA TAKIN

Simple line drawing of a connector or connector with an arrow pointing to a corner detail (no text or symbols)

GIZLİLİK KAPAĞINI AÇIN

Simple line drawing of a circular object mounted on a base, resembling a camera or fan (no text or symbols)

Diagram of a mechanical device with a rotating knob and curved arrow indicating rotation (no text or symbols)

TUNE İNDİRİN

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

الوضع على الشاشة

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with an inset showing a close-up of a bracket detail (no text or symbols)

ضبط الزAOية

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Simple line drawing of a connector or connector with an arrow pointing to a curved edge (no text or symbols)

Simple line drawing of a circular object mounted on a base, with no text or symbols present.

Diagram of a mechanical device with rotating components and a curved arrow indicating rotation (no text or symbols)

TUNE تثبيت تطبيق

Simple line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols)

תְבָרִי בְּשָׁה

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

תְרָה בַרִי הַל

Technical line drawing of a mechanical assembly with an inset showing a close-up of a bracket detail (no text or symbols)

תְרָה בְּרָה

Simple line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

בַרְשָׁה בַרְשָׁה

Pure technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a circular object mounted on a base, with no text or symbols present.

Diagram of a mechanical device with a rotating knob and circular components (no text or symbols)

TUNE
