USER MANUAL QuickCam Pro for Notebooks LOGITECH

Thank you for purchasing your new Logitech QuickCam Pro for Notebooks, with an autofocus, glass lens system. This guide will help you install and get the best performance from your webcam.

2 Install the Software First

Install the software before plugging in the camera.

Many of your camera's extended features,

including autofocus, will not operate properly

without the complete software installation.

Insert the installation CD into your

CD-ROM/DVD-ROM drive. Your CD

should start automatically. If it does not, follow the steps below:

• Double-click the My computer icon. Alternatively, click Start My comp
• Right-click the CD-ROM/DVD-ROM drive icon, and then click Autopy.

3 Connect Your Camera to Your Computer

Wait until you are prompted by the software before connecting your camera to an available USB port on your computer.

4 Position Your Camera, Microphone, and Speakers

Your camera comes with Logitech RightSound Technology. RightSound Technology cancels echo and significantly reduces background noise. The following steps will ensure the best possible audio performance:

• Position your camera in the middle of your monitor for optimal eye contact.
• Position your camera's microphone no more than 3 feet (1 m) away from you and point it toward you.
• Position your speakers (if used) at least 12 inches (30cm) away from your microphone to reduce feedback, and then angle your speakers away from your microphone.

Tip Do not place objects between you and the microphone.

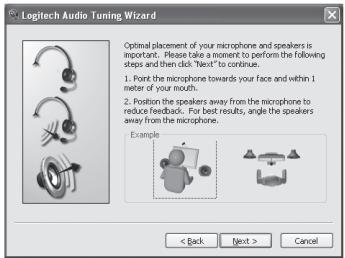

5 The Audio Tuning Wizard

The first time that you start QuickCam, you are guided through the Microphone/Speaker Setup Utility and Audio Tuning Wizard that lets you do the following:

• Select the audio input device (microphone) and audio output device (speakers).
• Enable Acoustic Echo Cancellation (AEC)—recommended.
• Enable background suppression—recommended.
• Specify microphone input volume and speaker output volume.
  Test audio settings.

In situations with loud and irregular background noise, your voice can become distorted when using noise suppression. If this occurs, disable noise suppression in the QuickCam software.

Tip To change your audio settings in the QuickCam software, click the Settings button, and then click the Audio tab.

6 Congratulations

Your camera is now set up and ready to go!

There are many ways to enjoy using your new webcam, including

• Making free video calls to friends and family. (Installation and use of an instant messaging application is required. Click in the QuickCam software to learn more.)
• Taking still photos or recording videos to share or e-mail.
• Adding videos to your E-bay auctions (see www.logitech.com/videosnap).

7 Using the QuickCam Software

To start the Logitech QuickCam software, do either of the following:

• On your desktop, double-click the QuickCam icon.
  -or-
• In the lower-right corner of your desktop in the taskbar, click the QuickCam icon.

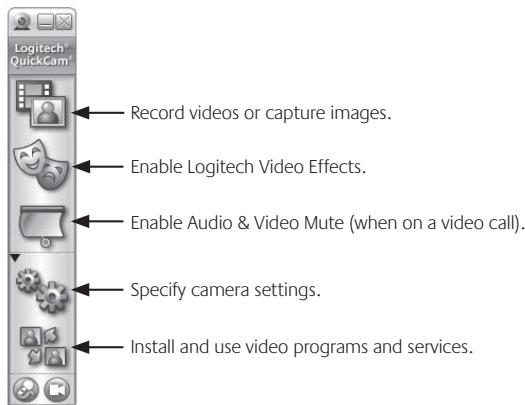

8 QuickCam Software Features

Tip To personalize your video calls with customized Avatar images, Face Accessories, or Fun Filters, click the Video Effects button.

9 Ensure Quality Images

Logitech RightLight 2 ensures that you automatically get the best image quality in harsh, dim, or back lit conditions that usually cast a shadow on your face. When your camera determines that you are experiencing these situations, a dialog box appears asking if you want to turn on Logitech RightLight 2. Click Yes to let your camera automatically adjust frame rates, color, and exposure to produce the best image quality.

To manually adjust these settings, click the Settings button.

10 Using Autofocus

The autofocus system will ensure that images as close as 10 cm to the camera will be put in focus, automatically. If you wish to control the lens focus manually, switch to manual mode in "autofocus" controls on the Settings tab of the QuickCam software.

11 For More Information

Audio Information. Go to http://www.logitech.com/rightsound.

Software Updates. Go to http://www.logitech.com/support.

Additional Help. Launch the software and click the Help button.

To learn more about Logitech products, go to http://www.logitech.com.

UL Testing. Your product is UL tested and should only be used with other UL listed devices.

Compliance. For compliance information, go to http://www.logitech.com/compliance.

Logitech Hardware Product Limited Warranty

Logitech warrants that your Logitech hardware product shall be free from defects in material and workmanship for two (2) years, beginning from the date of purchase. Except where prohibited by applicable law, this warranty is nontransferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights that vary under local laws.

Remedies

Logitech's entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech's option, (1) to repair or replace the hardware, or (2) to refund the price paid, provided that the hardware is returned to the point of purchase, or such other place as Logitech may direct, with a copy of the sales receipt or dated itemized receipt. Shipping and handling charges may apply except where prohibited by applicable law. Logitech may, at its option, use new or refurbished or used parts in good working condition to repair or replace any hardware product. Any replacement hardware product will be warranted for the remainder of the original warranty period, or thirty (30) days, whichever is longer or for any additional period of time that may be applicable in your jurisdiction.

Limits of Warranty

This warranty does not cover problems or damage resulting from (1) accident, abuse, misapplication, or any unauthorized repair, modification or disassembly; (2) improper operation or maintenance, usage not in accordance with product instructions or connection to improper voltage supply; or (3) use of consumables, such as replacement batteries, not supplied by Logitech except where such restriction is prohibited by applicable law.

How to Obtain Warranty Support

Before submitting a warranty claim, we recommend you visit the support section at www.logitech.com for technical assistance. Valid warranty claims are generally processed through the point of purchase during the first thirty (30) days after purchase; however, this period of time may vary depending on where you purchased your product. Please check with Logitech or the retailer where you purchased your product for details. Warranty claims that cannot be processed through the point of purchase and any other product related questions should be addressed directly to Logitech. The addresses and customer service contact information for Logitech can be found in the documentation accompanying your product and on the web at www.logitech.com/contactus.

Limitation of Liability

LOGITCH SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES WHATSOVER, INCLUDING BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE OR DATA (WHETHER DIRECT OR INDIRECT) OR COMMERCIAL LOSS FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON YOUR PRODUCT EVEN IF LOGITCH HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some jurisdictions do not allow the exclusion or limitation of special, indirect, incidental, or consequential damages, so the above limitation or exclusion may not apply to you.

Duration of Implied Warranties

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OR CONDITION OF CHARGANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS HARDWARE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE APPLICABLE LIMITED WARRANTY PERIOD FOR YOUR PRODUCT. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

National Statutory Rights

Consumers have legal rights under applicable national legislation governing the sale of consumer goods. Such rights are not affected by the warranties in this Limited Warranty.

No Other Warranties

No Logitech dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

Logitech Address. Logitech, Inc., 6505 Kaiser Drive, Fremont, California 94555, U.S.A.

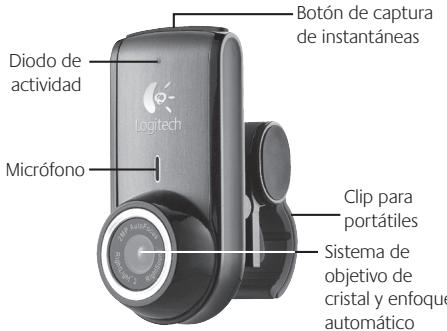

1 Componentes de la-camera

Espanol

http://www.logitech.com/compliance.

© 2007 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.
