USER MANUAL SP18VA METABO

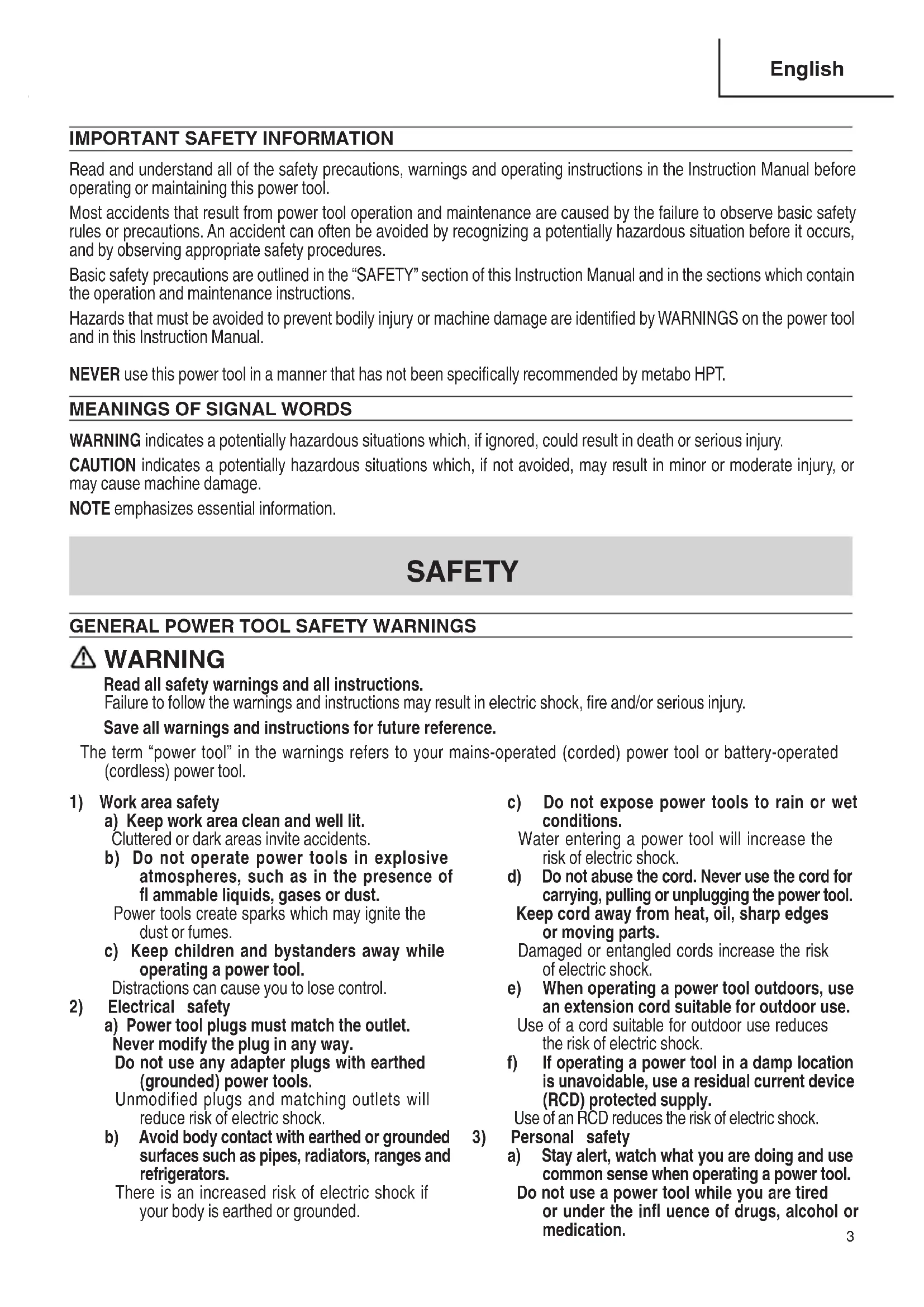

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool. Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identifi ed by WARNINGS on the power tool and in this Instruction Manual. NEVER use this power tool in a manner that has not been specifi cally recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. 000BookSP18VA.indb3000BookSP18VA.indb3 2018/03/2214:09:052018/03/2214:09:05English

A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY WARNINGS COMMON FOR

SANDING OR POLISHING OPERATIONS

a) This power tool is intended to function as a sander or polisher. Read all safety warnings, instructions, illustrations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. b) Operations such as grinding, wire brushing or cutting-off are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury. c) Do not use accessories which are not specifi cally designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation. d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fl y apart. e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled. f) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by fl anges, the arbour hole of accessory must fi t the locating diameter of the fl ange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control. 000BookSP18VA.indb4000BookSP18VA.indb4 2018/03/2214:09:052018/03/2214:09:05English

g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time. h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping fl ying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from work

area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation. j) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory. k) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control. l) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body. m) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. n) Do not operate the power tool near flammable materials. Sparks could ignite these materials.

Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

KICKBACK AND RELATED WARNINGS

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a) Maintain a fi rm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken. b) Never place your hand near the rotating accessory. Accessory may kickback over your hand. c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging. d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

SAFETY WARNINGS SPECIFIC FOR

SANDING OPERATIONS a) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback.

SAFETY WARNINGS SPECIFIC FOR

POLISHING OPERATIONS a) Do not allow any loose portion of the polishing bonnet or its attachment strings to spin freely. Tuck away or trim any loose attachment strings. Loose and spinning attachment strings can entangle your fi ngers or snag on the workpiece. 000BookSP18VA.indb5000BookSP18VA.indb5 2018/03/2214:09:062018/03/2214:09:06English

1. Hold tools by insulated gripping surfaces when

performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator.

2. ALWAYS wear ear plugs when using the tool for

extended periods. Prolonged exposure to high intensity noise can cause hearing loss.

3. NEVER touch moving parts.

NEVER place your hands, fingers or other body parts near the tool’s moving parts.

4. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

Don’t force small tool or attachment to do the job of a heavy-duty tool. Don’t use tool for purpose not intended —for example— don’t use circular saw for cutting tree limbs or logs.

6. NEVER use a power tool for applications other

than those specifi ed. NEVER use a power tool for applications other than those specifi ed in the Instruction Manual.

7. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

8. Keep all screws, bolts and covers tightly in

place. Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

9. Do not use power tools if the plastic housing or

handle is cracked. Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.

10. Blades and accessories must be securely mounted

to the tool. Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

11. Keep motor air vent clean.

The tool’s motor air vent must be kept clean so that air can freely fl ow at all times. Check for dust build-up frequently.

12. Operate power tools at the rated voltage.

Operate the power tool at voltages specified on its nameplate. If using the power tool at a higher voltage than the rated voltage, it will result in abnormally fast motor revolution and may damage the unit and the motor may burn out.

13. NEVER use a tool which is defective or operating

abnormally. If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

14. NEVER leave tool running unattended. Turn

power off . Don’t leave tool until it comes to a complete stop.

15. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

16. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

17. ALWAYS wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

18. Keep away from a revolving sanding disc and wool

19. Pay strict attention to sparks.

21. Never use depressed center wheel as a disc grinder.

22. Do not use this machine near welding machine.

23. Do not operate on direct current.

24. Should the revolving speed suddenly decrease due

to overload, leave the machine from workpiece and turn the switch OFF and then ON again.

25. Do not push the lock pin while the spindle is running.

26. Always hold the body handle and loop handle of

the power tools firmly. Otherwise the counterforce produced may result in inaccurate and even dangerous operation.

27. Secure the workpiece and check that the workpiece

is properly supported. A workpiece clamped with clamping devices or in a vice is held more securely than by hand ; 000BookSP18VA.indb6000BookSP18VA.indb6 2018/03/2214:09:062018/03/2214:09:06English

OPERATION To ensure safer operation of this power tool, metabo HPT has adopted a double insulation design. “Double insulation” means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Therefore, either the symbol “ ” or the words “Double insulation” appear on the power tool or on the nameplate. Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments. To keep the double insulation system effective, follow these precautions:

Only metabo HPT AUTHORIZED SERVICE CENTER should disassemble or assemble this power tool, and only genuine metabo HPT replacement parts should be installed.

Clean the exterior of the power tool only with a soft cloth moistened with soapy water, and dry thoroughly. Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve.

SAVE THESE INSTRUCTIONS

FUNCTIONAL DESCRIPTION SPECIFICATIONS Motor Single-Phase Series Commutator Motor Power Source Single-Phase 120V AC 60Hz Current 11.0 A No-Load Speed 0–3,400/min Rated Speed 3,850/min Sanding Disc Size: external diam. hole diam. 7" (180mm) 7/8" (22 mm) Weight 6.2 lbs (2.8 kg) NOTE The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool. NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual. Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own power tool.

Sanding metal surfaces.

Preliminary sanding of metal surfaces before painting, rust removal, removing old paint before repainting.

Finishing woodwork, correcting projections of timbers from joints or assemblies.

Preliminary sanding of wood surfaces before applying paint.

Polishing or shining painted metal surfaces, such as those of automobiles, trains, elevators, refrigerators, sewing machines, washing machines, metal appliances, etc.

Polishing varnished surfaces of wooden furniture, etc.

Shining synthetic resin or ebonite products.

Ensure that the power source to be utilized conforms to the power source requirements specifi ed on the product nameplate.

Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.

When the work area is far away from the power source, use an extension cord of suffi cient thickness and rated capacity. The extension cord should be kept as short as practicable. WARNING Damaged cord must be replaced or repaired.

4. Check the receptacle

If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs. If such a faulty receptacle is used, it may cause overheating, resulting in a serious hazard.

5. Confi rming condition of the environment:

Confi rm that the work site is placed under appropriate conditions conforming to prescribed precautions. When sanding a thin steel plate, depending upon the state of the workbench, a loud noise will be created due to resounding noise from the steel plate being ground. To eliminate unwanted noise in this instance, place a rubber mat beneath the material to be ground.

6. Confi rming and mounting the wool bonnet and sanding disc

Confi rm that the wool bonnet and sanding disc is mounted under the specifi ed condition and is fi rmly clamped. For details, refer to the item “Assembling and Disassembling the Wool Bonnet and Sanding Disc”.

7. Confi rm the lock pin

Confi rm that the lock pin is disengaged by pushing lock pin two or three times before switching the power tool on.

8. Fixing the loop handle

Fix the loop handle with a bolt and a washer to the gear cover.

9. Keep the Hook and Loop fastener clean

Always keep the Hook and Loop fastener of the backing pad and sponge pad (Magic type) clean. If the Hook and Loop fastener becomes dirty, the sponge pad will separate possibly from the backing pad and fl y off . 000BookSP18VA.indb9000BookSP18VA.indb9 2018/03/2214:09:062018/03/2214:09:06English

Motor speed is increased by increasing pressure on the trigger. Release the trigger to stop. For continuous operation, pull the trigger and then push in the lock button. To stop the motor from the locked position, pull the trigger full, then release it. Motor speed can be varied as desired by rotating the dial: It is increased by turning the dial towards “6”, decreased by turning it towards “1” (Fig. 2). Select the motor speed appropriate for the work being done. The following table gives the motor speeds corresponding to each indication on the dial scale and shows the types of work for which they are suitable. Dial Indication /min Type of works

For polishing For sanding When using the backing pad, use a dial setting of 4 or lower. Otherwise, the sponge pad (Magic type) will separate possibly from the backing pad and fl y off . CAUTION The dial cannot be rotated further than the “6” or “1” on the scale in their respective directions.

For use as a Polisher

1. Curved surface as well as plain one is treated for fi nishing. It is recommended to hold the polisher without pushing

on the material, and make the best of its own weight as the excess pressure on the polishing surface will not only bring unsatisfactory result but also put unnecessary load on the motor.

2. Polishing compound or wax are used corresponding to the state of fi nishing and the maximum polishing eff ect will

be attained when the following method is taken. Polishing with a sander using fi ne sanding disc. Polishing with wool bonnet using compound substance fi nal waxing. First put the compound and wax in small quantity on the surface to be polished, then, give a polish with the wool bonnet.

1. This unit is designed to provide sufficient polishing

(sanding) power with the disc pressed lightly against the sanding/polishing surface: it is equipped with an electronic control circuit to ensure that the motor will not slow down even when loaded. There is therefore no need to press the sanding disc hard against the surface; doing so can overload the motor, subsequently causing the overload cut device to step into operation by cutting the motor’s power supply. If this should happen, cut the power switch and turn it back on to reset the unit: it will resume rotation at the correct motor speed.

2. Rather than applying the entire disc surface to the metal

surface to be ground, use the sander by inclining it approximately 15°~25° to grind with the disc peripheral portion. (Fig. 3).

3. Precaution after use

Do not lay the sander polisher down immediately after use in a place where there are many shavings and much dirt and dust until it has completely stopped revolving. CAUTION Carefully guard against permitting the cord to touch the wool bonnet or sanding disc during operation. If the cord touches them, there is danger that it may become entangled. Dial Fig. 2 Lock Button Switch Trigger Fig. 3 15° – 25° 000BookSP18VA.indb10000BookSP18VA.indb10 2018/03/2214:09:072018/03/2214:09:07English

ASSEMBLING AND DISASSEMBLING THE WOOL BONNET AND SANDING DISC WARNING Be sure to switch power OFF and disconnect the plug from the receptacle to avoid serious trouble.

or use as a Polisher <Using the backing pad (Fig. 4)> (1) Press the lock pin to secure the spindle and tighten the backing pad by rotating the outer circumference. (2) Wrap the sponge pad (magic type) (optional accessory) with the hood of the wool bonnet (optional accessory) and fi rmly secure it by tying a string around it. Be sure the excess string is fi rmly tucked inside the wool bonnet to prevent it from fl ying out while polishing. The unbalanced fitting of the wool bonnet may cause vibration (Fig. 5). (3) Adhere the sponge pad (Magic type) with the wool bonnet attached by pressing it firmly against the backing pad. Align the respective centers when attaching. If not centered, vibration will result. (4) To remove the wool bonnet, follow the above- mentioned procedure in reverse order. Fig. 4 Wool Bonnet Spindle Lock Pin Sponge Pad (Magic type) Backing Pad Hood Fig. 5 Tuck the excess string into Hook and Loop fastener side of the sponge pad (Magic type). 000BookSP18VA.indb11000BookSP18VA.indb11 2018/03/2214:09:072018/03/2214:09:07English

For use as a Sander (Fig. 8) (1) After placing the sanding disc (optional accessory) on the rubber pad (optional accessory), thread the washer nut (optional accessory) onto the spindle. (2) Press the lock pin to secure the spindle and tighten the washer nut with a wrench. (3) To remove the sanding disc, follow the above- mentioned procedure in reverse order. CAUTION

Tighten the backing pad suffi ciently.

Use a wrench to tighten the washer nut suffi ciently.

After releasing the lock pin, check to be sure that it has returned to its normal position. <Using the rubber pad (optional accessory) (Fig. 6)> (1) Insert the washer nut (optional accessory) through the rubber pad (optional accessory) and thread it onto the spindle. (2) Press the lock pin to secure the spindle and tighten the washer nut with a wrench. (3) Wrap the rubber pad with the hood of the wool bonnet (optional accessory) and fi rmly secure it by tying a string around it. Be sure the excess string is fi rmly tucked inside the wool bonnet to prevent it from fl ying out while polishing. The unbalanced fitting of the wool bonnet may cause vibration (Fig. 7). (4) To remove the wool bonnet, follow the above- mentioned procedure in reverse order. Fig. 6 Washer Nut Rubber Pad Wool Bonnet Spindle Lock Pin Tuck the excess string into Fig. 7 Hood Fig. 8 Washer Nut Rubber Pad Sanding Disc Spindle Lock Pin 000BookSP18VA.indb12000BookSP18VA.indb12 2018/03/2214:09:072018/03/2214:09:07English

WARNING Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection.

1. Inspecting the screws

Regularly inspect all screws and ensure that they are properly tightened. Should any of the screws be loosened, retighten them immediately. WARNING Using this electronic sander polisher with loosened screws is extremely dangerous.

2. Inspecting the carbon brushes (Fig. 9)

The motor employs carbon brushes which are consumable parts. Replace the carbon brush with a new one when it becomes worn to its wear limit. Always keep carbon brushes clean and ensure that they slide freely within the brush holders. CAUTION Using this electronic sander polisher with a carbon brush which is worn in excess of the wear limit will damage the motor. NOTE Use metabo HPT carbon brush No. indicated in Fig. 9.

Replacing carbon brushes: Remove the brush caps (Fig. 1) with a slotted screwdriver. The carbon brushes can then be easily removed.

3. Cleaning lock pin section

If the lock pin section becomes dirty, clean it at once.

4. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

5. Service parts list

A: Item No. B: Code No. C: No. Used D: Remarks CAUTION Repair, modifi cation and inspection of metabo HPT Power Tools must be carried out by a metabo HPT Authorized Service Center. This Parts List will be helpful if presented with the tool to the metabo HPT Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. MODIFICATIONS metabo HPT Power Tools are constantly being improved and modified to incorporate the latest technological advancements. Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice. Fig. 9 Wear limit No. of carbon

ACCESSORIES WARNING ALWAYS use Only authorized metabo HPT replacement parts and accessories. Never use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE Accessories are subject to change without any obligation on the part of the metabo HPT. STANDARD ACCESSORIES

Rubber Pad (Code No. 953255)

Wool Bonnet (Code No. 949103)

Sponge Pad (Magic type) (Code No. 959736) NOTE Specifi cations are subject to change without any obligation on the part of the metabo HPT. 000BookSP18VA.indb14000BookSP18VA.indb14 2018/03/2214:09:072018/03/2214:09:0715 Français

504 949434 2 M10 505 949844 2 M10×20 000BookSP18VA.indb41000BookSP18VA.indb41 2018/03/2214:09:122018/03/2214:09:1242 000BookSP18VA.indb42000BookSP18VA.indb42 2018/03/2214:09:122018/03/2214:09:1243 000BookSP18VA.indb43000BookSP18VA.indb43 2018/03/2214:09:122018/03/2214:09:12WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

Lead from lead-based paints,

Crystalline silica from bricks and cement and other masonry products, and

Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to fi lter out microscopic particles.
