| Product type | Cordless straight grinder |
| Brand | Metabo |
| Model | GVB 18 LTX BL 11-7 HT |
| Rated voltage | 18 V (Li-Ion battery) |
| No-load speed (adjustable) | Adjustable via wheel (0 - max. 28,000 rpm) |
| Maximum grinding accessory diameter | 80 mm |
| Maximum polishing accessory diameter | 80 mm |
| Collet chuck (shank diameters) | 3 mm, 6 mm, 8 mm, 1/8", 1/4" |
| Weight (with smallest battery) | Approx. 1.8 kg |
| Power supply | 18 V Li-Ion battery (CAS system) |
| Main functions | Grinding, cutting, sanding, brushing, polishing, milling |
| Spindle lock | Yes, for tool change |
| Anti-restart protection | Yes, electronic |
| Dust filter | Removable, clean regularly |
| Rotatable handle | Yes, 3 positions (270°) |
| Battery charge indicator | On battery (depending on model) |
| Maintenance | Clean dust filter, blow out ventilation slots |
| Spare parts available | Collet chucks, nuts, filters, batteries, chargers, flexible shafts, etc. |
| Repairs | Have it repaired by a qualified electrician or Metabo service center |
| Environment | Do not dispose of with household waste, recycle according to regulations |
Frequently Asked Questions - GVB 18 LTX BL 11-7 HT METABO
How to insert a tool into the collet chuck?
First remove the battery. Lock the spindle using the spindle lock (4). Insert the tool fully into the collet chuck (1) and tighten the nut (2) with a fork wrench (17/19 mm).
How to adjust the rotation speed?
Use the wheel (14) on top of the machine to preselect the desired speed. The speed can be adjusted continuously from 0 to maximum speed.
What types of accessories can I use?
You can use mounted points, cutting wheels, burrs, wire brushes, polishing bodies, etc. The shank diameter must match the collet chuck (3, 6, 8 mm or 1/8", 1/4"). Observe the maximum accessory diameter (80 mm for grinding).
How to maintain the dust filter?
Remove the dust filter (7) by lifting it at the top edges and clean it with compressed air. Then reinstall it. A dirty filter reduces cooling.
What to do if the machine does not start and the electronic indicator flashes?
This may indicate a discharged battery, excessive temperature, or activated anti-restart protection. Turn the machine off and on. If the battery is installed while the machine is switched on, it will not start; remove and reinsert the battery.

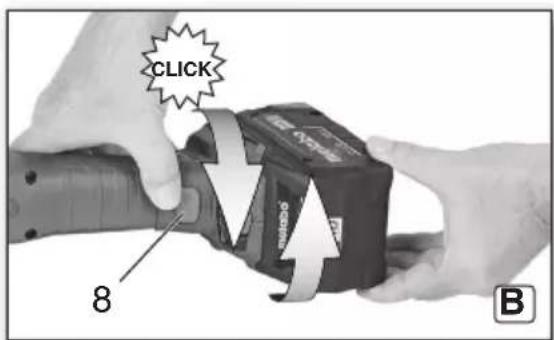

How can I change the battery?
Press the release button (11) on the battery and remove it. To install, slide the battery (12) into the compartment until it clicks. Always hold the machine so that you do not accidentally operate the switch.
What are the important safety instructions?
Always wear safety glasses and hearing protection. Use the machine with both hands. Do not work with a damaged accessory. Hold the machine by insulated surfaces if there is a risk of touching live wires. Refer to the manual for the full list.
How to avoid kickback?
Hold the machine firmly. Work carefully in corners and on sharp edges. Guide the tool in the direction where the cut leaves the material. Do not use toothed saw blades. Clamp the workpiece if necessary.
Can I use the machine with a flexible shaft?
Yes, the machine is designed to drive a suitable Metabo flexible shaft. Use the clamping bracket (ref. 627354000) and the clamping stirrup (ref. 627107000) for secure attachment.
Where can I find spare parts and have my machine repaired?
Spare parts are available through the Metabo catalog or at www.metabo.com. For repairs, contact a Metabo representative. Do not attempt to repair it yourself; have it done by a qualified electrician.
