USER MANUAL M1808DA METABO

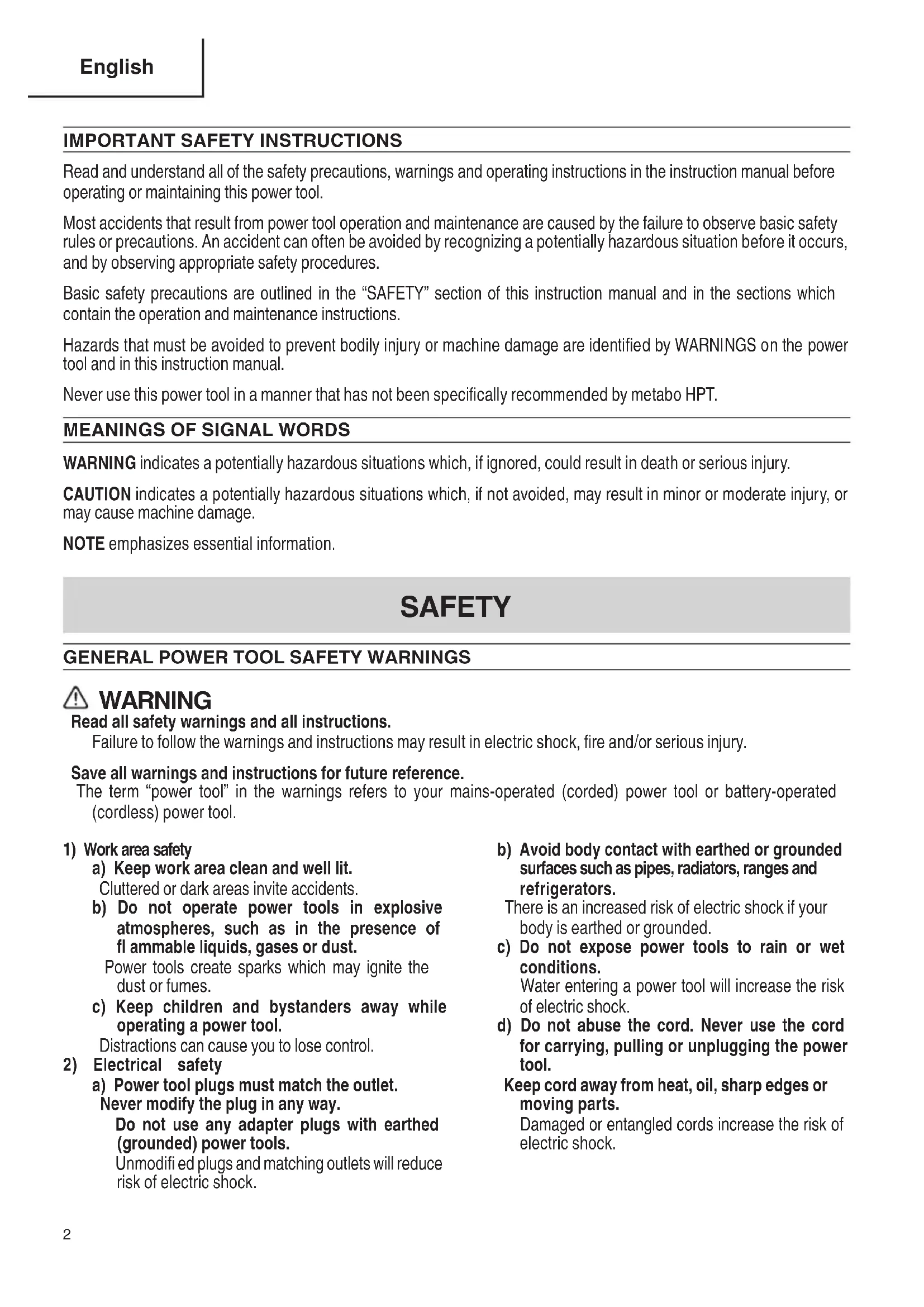

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

Read and understand all of the safety precautions, warnings and operating instructions in the instruction manual before operating or maintaining this power tool. Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the “SAFETY” section of this instruction manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identifi ed by WARNINGS on the power tool and in this instruction manual. Never use this power tool in a manner that has not been specifi cally recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. 00BookM1808DANA.indb200BookM1808DANA.indb2 2020/12/2510:37:342020/12/2510:37:343 English e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re. c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re. 00BookM1808DANA.indb300BookM1808DANA.indb3 2020/12/2510:37:342020/12/2510:37:344 English d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. – WARNING – To reduce the risk of injury, user must read instruction manual.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Hold the power tool by insulated gripping

surfaces only, when performing an operation where the cutting tool may contact hidden wiring. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and could give the operator an electric shock.

2. Use clamps or another practical way to secure

and support the workpiece to a stable platform. Holding the work by your hand or against the body leaves it unstable and may lead to loss of control.

3. Always wear ear protectors when using the tool

for extended periods. Prolonged exposure to high intensity noise can cause hearing loss.

4. Handle the bits very carefully.

5. Check the bit carefully for cracks or damage

before operation. Replace cracked or damaged bit immediately.

6. Avoid cutting nails. Inspect for and remove all

nails from the workpiece before operation.

7. Make sure to securely hold the tool during

operation. Failure to do so can result in accidents or injuries. (Fig. 29)

8. Keep hands away from rotating parts.

9. Make sure the bit is not contacting the workpiece

before the switch is turned on.

10. Before using the tool on an actual workpiece, let

it run for a while. Watch for vibration or wobbling that could indicate improperly installed bit.

11. Be careful of the bit rotating direction and the

12. Do not leave the tool running. Operate the tool

only when hand-held.

13. Always switch off and wait for the bit to come to

a complete stop before removing the tool from workpiece.

14. Do not touch the bit and shaft, collet nut, collet

cone immediately after operation: it may be extremely hot and could burn your skin.

15. After changing the bits or making any

adjustments, make sure the collet chuck and any other adjustment devices are securely tightened. Loose adjustment device can unexpectedly shift, causing loss of control, loose rotating components will be violently thrown.

16. Always wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

17. Defi nitions for symbols used on this tool

18. Because the cordless trimmer operates by battery

power, be aware of the fact that it can begin to operate at any time.

19. Do not use the product if the tool or the battery

terminals (battery mount) are deformed. Installing the battery could cause a short circuit that could result in smoke emission or ignition.

20. Keep the tool’s terminals (battery mount) free of swarf

Prior to use, make sure that swarf and dust have not collected in the area of the terminals.

During use, try to avoid swarf or dust on the tool from falling on the battery.

When suspending operation or after use, do not leave the tool in an area where it may be exposed to falling swarf or dust. Doing so could cause a short circuit that could result in smoke emission or ignition.

21. Use bits of the correct shank diameter suitable for the

22. When operating the tool, do not wear work gloves as

such cloth wear can get caught in the tool.

WARNING Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions: 00BookM1808DANA.indb400BookM1808DANA.indb4 2020/12/2510:37:342020/12/2510:37:345 English

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating

instructions for battery charger Model UC18YSL3.

2. Before using battery charger, read all instructions

and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

3. To reduce risk of injury, charge metabo HPT

rechargeable battery models of the multi volt series and the BSL18 series. Other models of batteries may burst causing personal injury and damage.

4. Use of an attachment not recommended or sold by

the battery charger manufacturer may result in a risk of fi re, electric shock, or injury to persons.

5. To reduce risk of damage to electric plug and cord,

pull by plug when disconnecting battery charger.

6. Make sure cord is located so that it will not be stepped

on, tripped over, or otherwise subjected to damage or stress.

7. An extension cord should not be used unless

absolutely necessary. Use of improper extension cord could result in a risk of fi re and electric shock. If extension cord must be used make sure: a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger: b. That extension cord is properly wired and in good electrical condition; and c. That wire size is large enough for AC ampere rating of battery charger as specifi ed in Table 1. Table 1

AC Input Rating Amperes* AWG Size of Cord Equal to or greater than but less than Length of Cord, Feet (Meter) 25 (7.5) 50 (15) 100 (30) 150 (45)

• If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating–for example: 1,250 watts = 10 amperes 125 volts

8. Do not operate battery charger with damaged cord or

plug-replace them immediately.

9. Do not operate battery charger if it has received a

sharp blow, been dropped, or otherwise damaged in any way; take it to a qualifi ed serviceman.

10. Do not disassemble battery charger; take it to a

qualifi ed serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fi re.

11. To reduce risk of electric shock, unplug charger from

receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

BATTERY CHARGER You must charge the battery before you can use the power tool. Before using the model UC18YSL3 battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual. REMEMBER: USE ONLY metabo HPT BATTERY MODELS OF THE MULTI VOLT SERIES. OTHER MODELS OF BATTERIES MAY BURST AND CAUSE INJURY! Follow these instructions to avoid the risk of injury:

Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.

2. NEVER incinerate the battery, even if it is damaged or

is completely worn out. The battery can explode in a fi re.

4. NEVER insert any objects into the battery charger’s

air vents. Electric shock or damage to the battery charger may result.

5. NEVER charge outdoors. Keep the battery away

from direct sunlight and use only where there is low humidity and good ventilation.

6. NEVER charge when the temperature is below 14°F

(-10°C) or above 104°F (40°C).

7. NEVER connect two battery chargers together.

8. NEVER insert foreign objects into the hole for the

battery or the battery charger.

9. NEVER use a booster transformer when charging.

10. NEVER use DC power to charge.

11. NEVER store the battery or battery charger in places

where the temperature may reach or exceed 104°F (40°C) such as inside metal box or car.

12. NEVER expose the battery or battery charger to rain

13. ALWAYS operate charger on standard household

electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.

14. ALWAYS wait at least 15 minutes between charges to

avoid overheating the charger.

15. ALWAYS disconnect the power cord from its

receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor

stops. In such case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this

case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

3. If the battery is overheated under overload work, the

battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again. Furthermore, please heed the following warning and caution. WARNING In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the

During work make sure that swarf and dust do not fall on the battery. ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery. ○ Do not store an unused battery in a location exposed to swarf and dust. ○ Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a

nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed

4. Do not use the battery in reverse polarity.

5. Do not connect directly to an electrical outlets or car

cigarette lighter sockets.

6. Do not use the battery for a purpose other than those

7. If the battery charging fails to complete even when a

specifi ed recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high temperatures

or high pressure such as into a microwave oven, dryer, or high pressure container.

9. Keep away from fi re immediately when leakage or foul

10. Do not use in a location where strong static electricity

11. If there is battery leakage, foul odor, heat generated,

discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

12. Do not immerse the battery or allow any fl uids to fl ow

inside. Conductive liquid ingress, such as water, can cause damage resulting in fi re or explosion. Store your battery in a cool, dry place, away from combustible and fl ammable items. Corrosive gas atmospheres must be avoided. CAUTION

1. If liquid leaking from the battery gets into your eyes,

do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.

2. If liquid leaks onto your skin or clothes, wash well with

clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you fi nd rust, foul odor, overheating, discolor,

deformation, and/or other irregularities when using the battery for the fi rst time, do not use and return it to your supplier or vendor. 00BookM1808DANA.indb600BookM1808DANA.indb6 2020/12/2510:37:342020/12/2510:37:347 English WARNING If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fi re. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.

Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 3).

REGARDING LITHIUM-ION BATTERY

TRANSPORTATION When transporting a lithium-ion battery, please observe the following precautions. WARNING Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

Lithium-ion batteries that exceed a power output of 100 Wh are considered to be in the freight classifi cation of Dangerous Goods and will require special application procedures.

For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

If the BSL36B18 is installed in the power tool, the power output will exceed 100 Wh and the unit will be classifi ed as Dangerous Goods for freight classifi cation.

PRECAUTIONS When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost. Always make sure to back up any data contained in the USB device prior to use with this product. Please be aware that our company accepts absolutely no responsibility for any data stored in a USB device that is corrupted or lost, nor for any damage that may occur to a connected device.

SAVE THESE INSTRUCTIONS

AND OWNERS OF THIS TOOL! 00BookM1808DANA.indb700BookM1808DANA.indb7 2020/12/2510:37:342020/12/2510:37:348 English FUNCTIONAL DESCRIPTION NOTE The information contained in this instruction manual is designed to assist you in the safe operation and maintenance of the power tool. Never operate, or attempt any maintenance on the tool unless you have fi rst read and understood all safety instructions contained in this manual. Some illustrations in this instruction manual may show details or attachments that diff er from those on your own power tool.

(optional accessories…sold separately)

(optional accessories…sold separately) Ventilation holes Latch Terminals Battery cover Nameplate Cord Guide rail Charge indicator lamp Ventilation holes Body

Model M1808DA Motor DC brushless motor Collet chuck capacity 1/4" (6.35 mm), 3/8" (9.5 mm) No-load speed 10,000–30,000 /min Battery Type Li-ion battery Model BSL1815 / BCL1830C Voltage DC 18 V Weight

(BSL1815 and dust collector attached) NOTE Available bit: Straight bits, Flush trimming bits, Chamfering bits, Round-over bits, Rabbeting bits, Dovetail bits.

Model UC18YSL3 Input power source Single phase: AC 120 V 60 Hz Charging time (At a temperature of 68°F (20°C)) BSL1815: Approx. 15 min BSL1830C: Approx. 30 min Charging voltage DC 14.4 – 18 V Charging current DC 8.0 A Weight 1.3 lbs. (0.6 kg) NOTE: The charging time may vary according to temperature and power source voltage.

Woodworking jobs centered on grooving and beveling. For example, grooving beveling, cutting, copying, engraving, shape cutting, combinations and others.

REMOVAL AND INSTALLATION METHOD

How to install the battery. Align the battery with the groove in head cover and slip it into place. Always insert it all the way until it locks in place with a little click. If not, it may accidentally fall out of the tool, causing injury to you or someone around you (Fig. 5).

How to remove the battery. Withdraw battery from the head cover while pressing the latch (2 pcs) of the battery (Fig. 5). Latch Battery Insert Pull out Head cover Push Fig. 5 00BookM1808DANA.indb900BookM1808DANA.indb9 2020/12/2510:37:352020/12/2510:37:3510 English CHARGING METHOD NOTE Before plugging into the receptacle, make sure the following points.

The power source voltage is stated on the nameplate.

The cord is not damaged. WARNING Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn out.

1. Connect the charger’s power cord to a receptacle.

When the power cord is connected, the charge indicator lamp will blink in red. (At 1-second intervals) WARNING Do not use the electrical cord if damaged. Have it repaired immediately. Table 2 Indications of the charge indicator lamp Charge indicator lamp (RED / BLUE / GREEN / PURPLE) Before charging Blinks (RED) Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) Plugged into power source While charging Blinks (BLUE) Lights for 0.5 seconds. Does not light for 1 second. (off for 1 second) Battery capacity at less than 50% Blinks (BLUE) Lights for 1 second. Does not light for

0.5 seconds. (off for 0.5 seconds)

Battery capacity at less than 80% Lights (BLUE) Lights continuously Battery capacity at more than 80% Charging complete Lights (GREEN) Lights continuously (Continuous buzzer sound: about 6 seconds) Overheat standby Blinks (RED) Lights for 0.3 seconds. Does not light for 0.3 seconds. (off for 0.3 seconds) Battery overheated. Unable to charge. (Charging will commence when battery cools) Charging impossible Flickers (PURPLE) Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds) (Intermittent buzzer sound: about 2 seconds) Malfunction in the battery or the charger

2. Insert the battery to the battery charger.

Firmly Insert the battery into the battery charger as shown in Fig. 6. Charge indicator lamp Guide rail Battery Fig. 6

When inserting a battery in the charger, the charge indicator lamp will blink in blue. When the battery becomes fully recharged, the charge indicator lamp will light up in green. (See Table 2) (1) Charge indicator lamp indication The indications of the charge indicator lamp will be as shown in Table 2, according to the condition of the battery charger or the battery. 00BookM1808DANA.indb1000BookM1808DANA.indb10 2020/12/2510:37:352020/12/2510:37:3511 English (2) Regarding the temperature of the rechargeable battery. The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged. Table 3 Rechargeable batteries Temperatures at which the battery can be recharged BSL1815 / BSL1830C 32°F–122°F (0°C–50°C) (3) Regarding recharging time (At 68°F (20°C)) Table 4 Charging time Charger Battery UC18YSL3 BSL1815 Approx. 15 min BSL1830C Approx. 30 min NOTE The recharging time may vary according to the ambient temperature.

4. Disconnect battery charger from the receptacle.

CAUTION Do not pull the plug out of the receptacle by pulling on the cord. Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

5. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger. NOTE Be sure to pull out the battery from the battery charger after use, and then keep it. Regarding electric discharge in case of new batteries, etc. As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the fi rst and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times. How to make the batteries perform longer (1) Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter. (2) Avoid recharging at high temperatures. A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while. CAUTION

When the battery charger has been continuosly used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the charge indicator lamp of the charger lights for 0.3 seconds, does not light for 0.3 seconds (off for 0.3 seconds). In such a case, fi rst let the battery cool, then start charging.

When the charge indicator lamp fl ickers (at 0.2–second intervals), check for and take out any foreign objects in the charger’s battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

Prior to use, check the connecting USB cable for any defect or damage. Using a defective or damaged USB cable can cause smoke emission or ignition.

When the product is not being used, cover the USB port with the rubber cover. Buildup of dust etc. in the USB port can cause smoke emission or ignition. NOTE

The time required for charging will be longer when a USB device and battery are being simultaneously charged.

There may be an occasional pause during USB recharging. 00BookM1808DANA.indb1100BookM1808DANA.indb11 2020/12/2510:37:362020/12/2510:37:3612 English

When a USB device is not being charged, turn the USB power switch OFF and remove the USB device from the charger. Failure to do so may not only reduce the battery life of a USB device, but may also result in unexpected accidents. (1) Select a charging method Depending on the charge method selected, either the battery is inserted into the charger or the power cord is plugged into an outlet.

Charging a USB device by battery (Fig. 7-a)

Charging a USB device from a electrical outlet (Fig. 7-b)

Charging a USB device and battery from a electrical outlet (Fig. 7-c) abc Fig. 7 (2) Turn the USB power switch ON (Fig. 8) When you turn the USB power switch ON, the USB power indicator lamp will light up. USB power indicator lamp Rubber cover USB port USB cable USB power switch Fig. 8 (3) Connect the USB cable. (Fig. 8) Pull back the rubber cover and fi rmly plug in a commercially available USB cable (appropriate to the device being charged) into the USB port.

When the power cord is not plugged into an outlet and the battery runs out of power, power output will stop and the USB power indicator lamp will shut off .

When the USB power indicator lamp goes out, change the battery or plug the power cord into an electrical outlet. (4) When charging is completed

The USB power indicator lamp will not go out when a USB device has been completely charged. To verify charge status, check the USB device.

Turn the USB power switch OFF and unplug the power cord from the electrical outlet. (Fig. 8)

Remove the battery from the charger and place the rubber cover over the USB port. BEFORE USE WARNING To avoid a serious accident, press the power button located on the switch panel to turn the power OFF, and pull out the battery. Check the work area environment Check the work area to make sure that it is clear of debris and clutter. Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

INSTALLING AND REMOVING BITS

WARNING To avoid a serious accident, press the power button located on the switch panel to turn the power OFF, and pull out the battery. Use the included 23 mm wrench to tighten the collet nut. Use of tools other than the included can result in over or under-tightening which may cause injury.

1. Installation using the lock pin

(1) Remove the base ass'y from the body. (2) Deeply inset the bit into the collet cone hole. (The distance is 15 mm or more from side of collet nut.) (3) With the bit inserted and pressing the lock pin holding the shaft, use the 23 mm wrench to fi rmly tighten the collet nut in a clockwise direction (viewed from under the tool). (Fig. 9) Collet cone hole Loosen Lock pin 23 mm Wrench Collet nut Tighten Bit Push Fig. 9 00BookM1808DANA.indb1200BookM1808DANA.indb12 2020/12/2510:37:362020/12/2510:37:3613 English Collet cone (9.5 mm) Collet nut Collet cone (6.35 mm) Fig. 11

WARNING To avoid a serious accident, press the power button located on the switch panel to turn the power OFF, and pull out the battery.

1. Installation direction of base ass’y

The switch position can be changed according to preference by reversing the installation direction of the base ass’y. (1) Tilt the lock lever towards the remove side, and remove the base ass’y from the body. (Fig. 12-a) (2) Rotate 180 degrees, and place back in the base ass'y, then tilt the lock lever towards the fi x side. (Fig. 12-b) Rack portion Pinion Remove Lock lever Pull out

Fig. 12 (4) Fit the removed base ass'y to the rack provided on the body's outer housing after adjusting the pinion of the base ass'y thereto. Then tilt the lock lever towards the fi x side, and fi x the base ass'y securely. When removing the bits, do so by following the steps for installing bits in reverse order.

2. Install without using the lock pin

(1) Remove the base ass'y from the body. (2) Deeply inset the bit into the collet cone hole. (The distance is 15 mm or more from side of collet nut.) (3) Use a 13 mm Wrench to secure the shaft, and securely tighten the collet nut with the included wrench. (Fig. 10) Tighten 13 mm Wrench Loosen Bit Collet nut 23 mm Wrench Fig. 10 (4) Fit the removed base assembly to the rack provided on the body's outer housing after adjusting the pinion of the base assembly thereto. Then tilt the lock lever towards the fi x side, and fi x the base ass'y securely. When removing the bits, do so by following the steps for installing bits in reverse order. NOTE

Ensure that the collet nut is fi rmly tightened after inserting a bit. The collet cone may become deformed if the collet cone is tightened without a bit set in place.

Ensure that the lock pin is not inserted into the shaft after tightening the collet cone. Failure to do so will result in damage to the lock pin and shaft.

Use only trimmer bits of which the maximum speed, as indicated on the bit, does exceed the maximum speed of the trimmer.

3. Exchanging the collet cone

(1) Securing the shaft, remove the collet nut, and exchange the collet cone. (2) Attach the nut, insert the bit, and tighten the nut. (Fig. 11) 00BookM1808DANA.indb1300BookM1808DANA.indb13 2020/12/2510:37:362020/12/2510:37:3614 English

2. Fix strength adjustment method

If there is a decline in the fi x strength, adjust as follows. Tilt the lock lever towards the fi xed side, and tighten a fi xing nut (two locations) using the socket wrench (8 mm). (Fig. 13-a) Fix it so that upper and lower spaces “A” of the base ass’y are equal. (Fig. 13-b) Fix

Fig. 13 NOTE If the operation load of the lock lever is too heavy, there is too much fi xed strength. As this situation may damage parts, each fi xing nut (two locations) should be loosened to readjust the fi xed strength.

3. Adjusting depth of cut

(1) Place the tool on a fl at wood surface. (2) Tilt the lock lever towards the remove side, and turn knob bolt (A) to lower the unit until the tip of the bit lightly touches the material. In this position, the scale on the upper end can be read. (Fig. 14) (3) Turn knob bolt (A) upwards to adjust the scale to the desired cutting depth according in accordance with the position read.

Remove Lock lever Knob bolt (A) Scale Upper end of base ass’y Fig. 14 NOTE Please limit the cutting depth of a single cut to under 5 mm.

4. Guiding the trimmer

WARNING To avoid a serious accident, press the power button located on the switch panel to turn the power OFF, and pull out the battery. <Template guide> It is handy to process with a template a number of materials in one same shape. (In this case 1/ 4" × 1/4" (6.35 × 6.35 mm) straight bit is usable.) (1) Remove the base ass'y from the main unit. (2) Install the template guide in the recessed part of the base ass’y and secure it with two screws. (Fig. 15) NOTE Tighten the two screws moderately. Optimum tightening torque is 10–15 kg-cm. (3) Install the base ass'y in the main unit. CAUTION When fi t the template guide, the upper part of the template guide must not touch the collet nut. 00BookM1808DANA.indb1400BookM1808DANA.indb14 2020/12/2510:37:372020/12/2510:37:3715 English Stop screw Washer (A) Knob bolt (C) Knob bolt (B) Guide pin Trimmer guide Fig. 18 (4) As shown in Fig. 19, securely attach the bottom of the base ass’y to processed surface of the materials. Feed the trimmer with the guide pin alongside the material. Body feed direction Trimmer guide Fig. 19 <Straight guide>

It is handy when used for linear processing work such as beveling, grooving and the like. (1) Fit the straight guide with knob bolt (B) on the base ass’y and fi x it. (2) Adjust the length “C” from the bit to the surface of straight guide by loosening the wing nut and moving the straight guide as necessary. (Fig. 20) Straight guide Knob bolt (B) Bolt Wing nut Loosen Wing nut Guide holder Knob bolt (B) Washer (A) Tighten Straight guide

Fig. 20 Lock lever Base ass’y Screw Template guide Fig. 15 When using the trimmer along the interior plane of the template, the dimensions of the fi nished product will be less than the dimensions of the template by an amount equal to dimension “B”, the diff erence between the radius of the template guide and the radius of the bit. The reverse is true when using the trimmer along the exterior of the template. (Fig. 16) Bit Template guide Template Base ass’y

Fig. 16 Secure the template to the workpiece. Feed the trimmer in the manner that the template guide moves along the template as shown in Fig. 17. Template Fig. 17 <Trimmer guide> The guide is handy when used in processing of materials such as trimming and beveling of plywood. (1) Fit the trimmer guide on the base ass’y with knob bolt (B). (2) Loosen knob bolt (B) to move the trimmer guide up and down. (3) Loosen knob bolt (C) and turn the stop screw to move the guide pin. (Fig. 18) After moving the guide pin, tighten knob bolt (C) to secure it. 00BookM1808DANA.indb1500BookM1808DANA.indb15 2020/12/2510:37:372020/12/2510:37:3716 English (3) As shown in Fig. 21, securely attach the bottom of the base ass’y to processed surface of the materials. Feed the trimmer while keeping the guide plane on the surface of the materials. Body feed direction Straight guide Fig. 21 NOTE When using the straight guide, be sure to install it on the right side in the feed direction. This will help to keep it fl ush with the side of the workpiece.

By exchanging the straight guide with the guide holder, the tool can be used for circle cutting work. [Processing range (distance from the enter of rotation to the center of the bit)] Minimum: 84 mm Maximum: 182 mm Note that circles measuring 102 to 124 mm and 143 mm to 158 mm cannot be processed. (1) Turn wing nut and remove the bolt and washers (2 pieces). (2) Reverse the top and bottom of the straight guide and attach it to the guide holder. (Fig. 22) Guide holder Bolt Washer Wing nut Wave washer Straight guide Fig. 22 Depending on the radius of the circle to be processed, the holes will vary for the wing nut and bolt. Processing a circle with a radius of 84 to 102 mm Center hole Bolt Washer Wing nut Wave washer Processing a circle with a radius of 124 to 182 mm Center hole Fig. 23 (3) Installation to the tool is the same as that for straight line processing. (4) Align the hole of the straight guide left in the center position of the circle processing, and fi rmly secure with a nail less than 6 mm in diameter which will act as a rotation axis. Rotate the body towards the right. (Fig. 24) Body feed direction Nail (rotation axis) Fig. 24 00BookM1808DANA.indb1600BookM1808DANA.indb16 2020/12/2510:37:382020/12/2510:37:3817 English <Dust Collector Set> Connect the dust collector set cleaner to collect dust. (1) Slot the protrusion on the inside of the dust collector to the positioning hole at the front lower left of the base ass’y, and attach it to cover the front of the base ass’y. (Fig. 25-a) (2) Using the included knob bolt (D) to secure the dust collector hole to the body’s screw hole. (Fig. 25-b) Screw hole Knob bolt (D) Dust collector Positioning hole Protrusion

To avoid a serious accident, press the power button located on the switch panel to turn the power OFF, and pull out the battery.

Wear eye protection when operating this tool.

Keep your hands, face and other body parts away from the bits and any other rotating parts, while operating the tool. CAUTION

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. Therefore, if the tool is overloaded, the motor may stop. However, this is not the trouble but the result of protection function. In this case, release the switch of tool and eliminate the causes of overloading.

Pull out the battery after completing operation.

The unit will operate when the switch button is pressed after pressing the power button. (Fig. 26) See Fig. 27 for specifi cations on button controls. The remaining battery indicator lamp and LED light will always operate together with the power button. If the power is ON and the tool is not operated for approximately 10 seconds, the power will be automatically switched OFF and the remaining battery indicator lamp and LED light will also be switched off . Push Power button Switch button Remaining battery indicator lamp Push LED light Fig. 26 00BookM1808DANA.indb1700BookM1808DANA.indb17 2020/12/2510:37:392020/12/2510:37:3918 English Power button The power is ON Remaining battery indicator lamp LED light No operation for 10 seconds Switch button The power is OFF Motor runs The power is OFF Motor stops Push Push Push Push Push Fig. 27 00BookM1808DANA.indb1800BookM1808DANA.indb18 2020/12/2510:37:392020/12/2510:37:3919 English

Abnormalities and overloads will trigger the overload protector, and stop operation. Remove the load immediately, and turn the power off , then on. The rotation speed should return to normal. It is recommended that the most appropriate guide be used which is suitable to the type of the work in order to carry out the work exactly without failure. (Refer to "Guiding the trimmer".) The workpieces to be processed should be fi rmly fi xed. (1) Keep the bit separated from the workpieces and hold the body fi rmly before switch is turned on. (Fig. 29) Fig. 29 (2) The bit rotates clockwise (arrow direction indicated on the base ass’y). To obtain maximum cutting eff ectiveness, feed the trimmer in conformance with the feed directions shown in Fig. 30. Work piece Rotation of bit Trimmer feed Outer peripheral cutting (Counterclockwise) Inner peripheral cutting (Clockwise) Fig. 30 CAUTION Do not look directly into the light from the LED lamp. Continuous and direct exposure to the light from the LED lamp can injure your eyes.

2. Adjusting the rotation speed

The M1808DA has an electronic control system that allows rotation speed changes. As shown in Fig. 28, dial position “1” is for minimum speed, and position “6” for maximum speed. Dial Fig. 28

3. Cutting Operation

CAUTION When processing the side of a material, make sure that the side to be processed is on the left of the bit in the direction that the material is fed. Placing the side to be processed on the right of the bit goes counter to the bit’s revolution and may cause the motor to stop. Too much load in such cases may result in malfunction. NOTE

Do not press the lock pin while the motor is rotating. Also, do not switch the tool on while pressing the lock pin. Doing so may damage the lock pin and/or shaft as well as result in injury.

Please limit the cutting depth of a single cut to under 5 mm.

When cutting a deep groove, repeat the cut 2 or 3 times. Deep cutting operations can make the tool diffi cult to control and may overload the motor, resulting in malfunction.

Moving the tool forward fast may cause a poor quality of cut, or damage to the bit or motor. Moving the tool forward too slowly may burn and mar the cut. The proper feed rate will depend on the bit size, the kind of workpiece and depth of cut. Before beginning the cut on the actual workpiece, it is advisable to make a sample cut on a piece of scrap lumber. This will show exactly how the cut will look as well as enable you to check dimensions. 00BookM1808DANA.indb1900BookM1808DANA.indb19 2020/12/2510:37:402020/12/2510:37:4020 English

4. LED light warning signals (Fig. 31)

This product features functions that are designed to protect the tool itself as well as the battery. While the switch is pulled, if any of the safeguard functions activate during operation, the LED light will blink as described in Table 5. When any of the safeguard functions are triggered, immediately remove your fi nger from the switch and follow the instructions described under corrective action. Fig. 31 Table 5 Safeguard Function LED Light Display Corrective Action Overload Protection On 0.1 second/off 0.1 second Remove the cause of the overloading. Temperature Protection On 0.5 second/off 0.5 second Allow the tool and battery to thoroughly cool. NOTE On occasion, about two seconds after stopping operation of the tool, the LED light will shut off and the power will switch OFF. This means that either the power is near empty or that the battery is overheated. In such a case, allow the battery to cool and then recharge it for use. 00BookM1808DANA.indb2000BookM1808DANA.indb20 2020/12/2510:37:402020/12/2510:37:4021 English

5. About Remaining Battery Indicator

When the power is ON, the remaining battery indicator lamp lights and the battery remaining power can be checked. (Fig. 32) The Table 6 shows the state of remaining battery indicator lamp and the battery remaining power. Table 6 State of lamp Battery Remaining Power The battery remaining power is enough. The battery remaining power is a half. The battery remaining power is nearly empty. Re-charge the battery soonest possible. No remaining battery charge NOTE

If only one lamp of the remaining battery indicator lamp is blinking, the remaining battery charge is very low. The battery should be recharged as soon as possible.

Do not give a strong shock to the display panel or break it. It may lead to a trouble. Power button Fig. 32 As the remaining battery indicator shows somewhat diff erently depending on ambient temperature and battery characteristics, read it as a reference. OPERATIONAL CAUTIONS Resting the unit after continuous work (1) The power tool is equipped with a temperature protection circuit to protect the motor. Continuous work may cause the temperature of the unit to rise, activating the temperature protection circuit and automatically stopping operation. If this happens, allow the power tool to cool before resuming use. (2) After use for continuous work, rest the unit for 15 minutes or so when replacing the battery. The temperature of the motor, switch, etc., will rise if the work is started again immediately after battery replacement, eventually resulting in burnout. 00BookM1808DANA.indb2100BookM1808DANA.indb21 2020/12/2510:37:402020/12/2510:37:4022 English

MAINTENANCE AND INSPECTION

WARNING Be sure to turn off the switch and pull out the battery before doing any inspection or maintenance.

1. Inspecting the bit

Continued use of a dull or damaged bit will result in reduced cutting effi ciency and may cause overloading of the motor. Replace the bit with a new one as soon as excessive abrasion is noted. CAUTION If a dull bit is used, reactive force is increased during cutting operation. Avoid the use of the dull bit without repair.

2. Inspecting the screws

Regularly inspect all screws and ensure that they are fully tightened. Should any of the screws be loosened, retighten them immediately. WARNING Using this trimmer with loosened screws is extremely dangerous.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

WARNING To prevent dust inhalation or eye irritation, wear protective safety goggles and a dust mask when using an air gun to clean. Use an air gun or other similar tool to remove materials, chips, etc. which have adhered to the body (especially where indicated in Fig. 33), and wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics. (Fig. 33) Air gun Battery sliding grooves Power button Ventilation hole Switch button Rack portion Collet cone and Collet nut Fig. 33

5. Inspection of terminals (tool and battery)

Check to make sure that swarf and dust have not collected on the terminals. On occasion check prior, during and after operation. CAUTION Remove any swarf or dust which may have collected on the terminals. Failure to do so may result in malfunction.

6. Disposal of the exhausted battery

WARNING Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The battery is recyclable. At the end of it’s useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste offi cials for details in your area for recycling options or proper disposal.

Storing in a place below 104°F (40°C) and out of the reach of children. NOTE Storing lithium-ion batteries Make sure the lithium-ion batteries have been fully charged before storing them. Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, signifi cantly reducing battery usage time or rendering the batteries incapable of holding a charge. 00BookM1808DANA.indb2200BookM1808DANA.indb22 2020/12/2510:37:412020/12/2510:37:4123 English However, signifi cantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times. If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

8. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. Important notice on the batteries for the metabo HPT cordless power tools Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modifi ed (such as disassembly and replacement of cells or other internal parts). 00BookM1808DANA.indb2300BookM1808DANA.indb23 2020/12/2510:37:412020/12/2510:37:4124 English TROUBLESHOOTING GUIDE WARNING

To avoid injury from an accidental start, turn the switch OFF and remove the plug from the power source or remove the battery from the main body before making any adjustments.

All electrical or mechanical repairs should be done only by qualifi ed service technicians. Contact metabo HPT Authorized Service Center.

Problem Possible Cause Remedy Tool doesn’t run No remaining battery power Charge the battery. Battery isn’t fully installed. Push the battery in until you hear a click. The power is OFF. Press the power button to switch the power ON. Tool suddenly stopped Tool was overburdened Get rid of the problem causing the overburden. During operation, lighten the applied pressure. Battery or tool overheated Allow the tool and battery to thoroughly cool. No remaining battery power Charge the battery. Doesn’t cut well The bit is worn or missing teeth. Replace with a new bit. The collet chuck is loose. Firmly tighten the collet chuck. Remaining battery indicator lamp is blinking Indicates that the remaining battery charge is very low. Recharge as soon as possible. Remaining battery indicator on the machine doesn’t match to Multi volt battery

Refer to the indicator lamp on the battery. Battery cannot be installed Attempting to install a battery other than that specifi ed for the tool. Please install batteries that are multi volt or BSL18xx series.

• Symptom Possible cause Remedy The charge indicator lamp rapidly fl ickers purple, and battery charging doesn’t begin. The battery is not inserted all the way. Insert the battery fi rmly. There is foreign matter in the battery terminal or where the battery is attached. Remove the foreign matter. The charge indicator lamp blinks red, and battery charging doesn’t begin. The battery is not inserted all the way. Insert the battery fi rmly. The battery is overheated. If left alone, the battery will automatically begin charging if its temperature decreases, but this may reduce battery life. It is recommended that the battery be cooled in a well-ventilated location away from direct sunlight before charging it. 00BookM1808DANA.indb2400BookM1808DANA.indb24 2020/12/2510:37:412020/12/2510:37:4125 English Symptom Possible cause Remedy Battery usage time is short even though the battery is fully charged. The battery’s life is depleted. Replace the battery with a new one. The battery takes a long time to charge. The temperature of the battery, the charger, or the surrounding environment is extremely low. Charge the battery indoors or in another warmer environment. The charger’s vents are blocked, causing its internal components to overheat. Avoid blocking the vents. The cooling fan is not running. Contact a metabo HPT Authorized Service Center for repairs. The USB power lamp has switched off and the USB device has stopped charging. The battery’s capacity has become low. Replace the battery with one that has capacity remaining. Plug the charger’s power plug into an electric socket. USB power lamp does not switch off even though the USB device has fi nished charging. The USB power lamp lights up green to indicate that USB charging is possible. This is not a malfunction. It is unclear what the charging status of a USB device is, or whether its charging is complete. The USB power lamp does not switch off even when charging is complete. Examine the USB device that is charging to confi rm its charging status. Charging of a USB device pauses midway. The charger was plugged into an electrical socket while the USB device was being charged using the battery as the power source. This is not a malfunction. The charger pauses USB charging for about 5 seconds when it is diff erentiating between power sources. A battery was inserted into the charger while the USB device was being charged using a power socket as the power source. Charging of the USB device pauses midway when the battery and the USB device are being charged at the same time. The battery has become fully charged. This is not a malfunction. The charger pauses USB charging for about 5 seconds while it checks whether the battery has successfully completed charging. Charging of the USB device doesn’t start when the battery and the USB device are being charged at the same time. The remaining battery capacity is extremely low. This is not a malfunction. When the battery capacity reaches a certain level, USB charging automatically begins. 00BookM1808DANA.indb2500BookM1808DANA.indb25 2020/12/2510:37:412020/12/2510:37:4126 English ACCESSORIES WARNING ALWAYS use Only authorized metabo HPT replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE: Accessories are subject to change without any obligation on the part of the metabo HPT. STANDARD ACCESSORIES M1808DA (NN) (1) 1/4" Collet cone (Code No. 377118) p. 1
• (2) 3/8" Collet cone (Code No. 377134) p. 1
• (3) Trimmer guide (Code No. 377127) p. 1
• (4) Straight guide (Code No. 377126) p. 1
• (5) Template guide (Code No. 377129) p. 1
• (6) Dust collector set (Code No. 377131) p. 1
• (7) 23 mm Wrench (Code No. 377128) Battery, Battery charger and Battery cover are not contained. OPTIONAL ACCESSORIES sold separately (1) Battery (BSL1815 / 1830C) (2) Battery charger (UC18YSL3) (3) Battery cover (Code No. 329897) 00BookM1808DANA.indb2600BookM1808DANA.indb26 2020/12/2510:37:412020/12/2510:37:4127 Français p. 1

Code No. C99740561 F Printed in China

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,

• Crystalline silica from bricks and cement and other masonry products, and

• Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to fi lter out microscopic particles.
