USER MANUAL 18SB METABO

INSTRUCTION MANUAL AND SAFETY INSTRUCTIONS

SANDING DISC ASSEMBLY AND

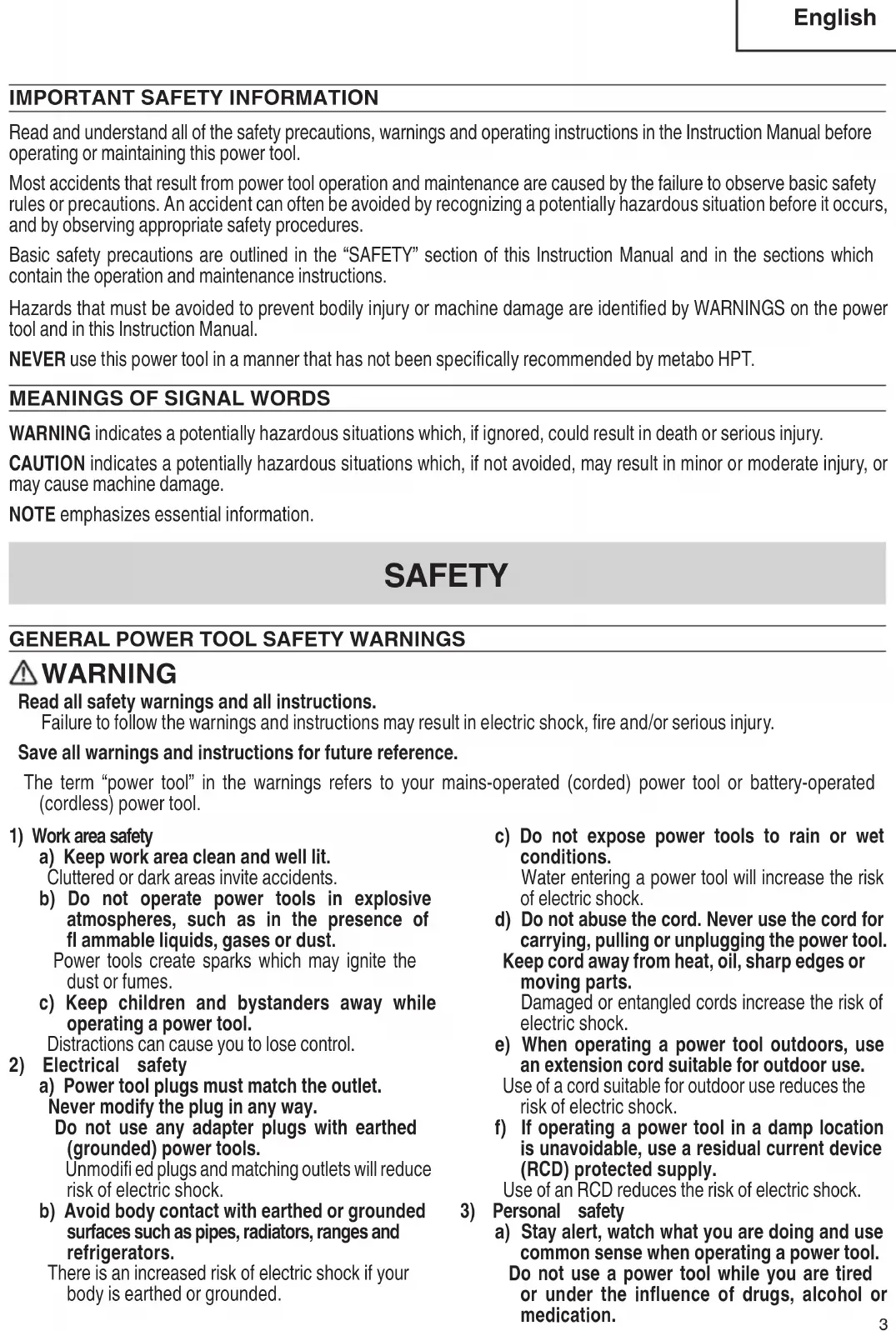

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool. Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identifi ed by WARNINGS on the power tool and in this Instruction Manual. NEVER use this power tool in a manner that has not been specifi cally recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. 00BookS18SB.indb300BookS18SB.indb3 2018/03/2213:57:262018/03/2213:57:264 English A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY WARNINGS COMMON FOR

SANDING OPERATIONS a) This power tool is intended to function as a sander. Read all safety warnings, instructions, illustrations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. b) Operations such as grinding, wire brushing, polishing or cutting-off are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury. c) Do not use accessories which are not specifi cally designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation. d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fl y apart. e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled. f) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by fl anges, the arbour hole of the accessory must fi t the locating diameter of the fl ange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control. 00BookS18SB.indb400BookS18SB.indb4 2018/03/2213:57:262018/03/2213:57:265 English g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time. h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping fl ying debris generated by various operations. The dust mask or respirator must be capable of fi ltrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from work

area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fl y away and cause injury beyond immediate area of operation. j) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory. k) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control. l) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body. m) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. n) Do not operate the power tool near fl ammable materials. Sparks could ignite these materials. o) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

KICKBACK AND RELATED WARNINGS

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a) Maintain a fi rm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken. b) Never place your hand near the rotating accessory. Accessory may kickback over your hand. c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging. d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

SAFETY WARNINGS SPECIFIC FOR

SANDING OPERATIONS a) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback. 00BookS18SB.indb500BookS18SB.indb5 2018/03/2213:57:262018/03/2213:57:266 English

SPECIFIC SAFETY RULES AND SYMBOLS

1. Accessories must be rated for at least the

speed recommended on the tool warning label. Accessories running over rated speed can fl y apart and cause injury.

2. Hold tools by insulated gripping surfaces when

performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator.

3. ALWAYS wear ear protectors when using the tool

for extended periods. Prolonged exposure to high intensity noise can cause hearing loss.

4. NEVER touch moving parts.

NEVER place your hands, fi ngers or other body parts near the tool’s moving parts.

5. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

Don’t force small tool or attachment to do the job of a heavy-duty tool. Don’t use tool for purpose not intended —for example— don’t use circular saw for cutting tree limbs or logs.

7. NEVER use a power tool for applications other

than those specifi ed. NEVER use a power tool for applications other than those specifi ed in the Instruction Manual.

8. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

9. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

10. Do not use power tools if the plastic housing or

handle is cracked. Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.

11. Blades and accessories must be securely

mounted to the tool. Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

12. Keep motor air vent clean.

The tool’s motor air vent must be kept clean so that air can freely fl ow at all times. Check for dust build-up frequently.

13. Operate power tools at the rated voltage.

Operate the power tool at voltages specifi ed on its nameplate. If using the power tool at a higher voltage than the rated voltage, it will result in abnormally fast motor revolution and may damage the unit and the motor may burn out.

14. NEVER use a tool which is defective or operating

abnormally. If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

15. NEVER leave tool running unattended. Turn

power off . Don’t leave tool until it comes to a complete stop.

16. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

17. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

18. ALWAYS wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

19. ALWAYS wear a mask or respirator to protect yourself

from dust or potentially harmful particles generated during the operation.

20. NEVER place hands or body parts near the

accessories attached to the sanding disc during operation.

21. NEVER use accessories which are broken or

deformed or worn away.

22. NEVER use the sanding disc in places where the

sparks generated by the sanding disc can cause explosion, such as where fl ammable materials or gases are present.

23. NEVER push in the lock lever while the spindle is

24. ALWAYS fi rmly grip the body handle and side handle

while operating the sanding disc. 00BookS18SB.indb600BookS18SB.indb6 2018/03/2213:57:262018/03/2213:57:267 English

25. ALWAYS follow the instructions contained in this

manual when replacing the accessories.

26. NEVER leave the revolving tool unattended on the

and attempt to use it as a disc grinder.

28. Secure the workpiece and check that the workpiece

is properly supported. A workpiece clamped with clamping devices or in a vice is held more securely than by hand.

29. Defi nitions for symbols used on this tool

OPERATION To ensure safer operation of this power tool, metabo HPT has adopted a double insulation design. “Double insulation “ means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Either the symbol “ ” or the words “Double insulation” appear on the power tool or on the nameplate. Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments. To keep the double insulation system eff ective, follow these precautions:

Only metabo HPT AUTHORIZED SERVICE CENTER should disassemble or assemble this power tool, and only genuine metabo HPT replacement parts should be installed.

Clean the exterior of the power tool only with a soft cloth moistened with soapy water, and dry thoroughly. Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve.

SAVE THESE INSTRUCTIONS

AND OWNERS OF THIS TOOL! 00BookS18SB.indb700BookS18SB.indb7 2018/03/2213:57:262018/03/2213:57:268 English FUNCTIONAL DESCRIPTION NOTE The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool. Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own power tool.

Fig. 1 Housing Rubber pad Handle Locking button Switch trigger Side handle Sanding disc Air cover Lock lever Brush cap SPECIFICATIONS Motor Single-Phase Series Commutator Motor Power Source Single-Phase 120V AC 60 Hz Current 6.2 A Rated Speed 4,500/min Sanding Disc Size: external diam. Hole diam. 7" (180 mm) 7/8" (22.23 mm) Weight (only main body) 4.4 lbs (2.0 kg) 00BookS18SB.indb800BookS18SB.indb8 2018/03/2213:57:272018/03/2213:57:279 English

Sanding metal surfaces.

Preliminary sanding of metal surfaces before painting, rust removal, removing old paint before repainting.

Finishing woodwork, correcting projections of timbers from joints or assemblies.

Preliminary sanding of wood surfaces before applying paint.

Ensure that the power source to be utilized conforms to the power source requirements specifi ed on the product nameplate.

Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.

When the work area is far away from the power source, use an extension cord of suffi cient thickness and rated capacity. The extension cord should be kept as short as practicable. WARNING Damaged cord must be replaced or repaired.

4. Check the receptacle.

If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs. If such a fautly receptacle is used, it may cause overheating, resulting in a serious hazard.

5. Check your working environment.

Ensure the following before operation;

Grinding thin steel sheet may cause a high booming sound. In this case, place a rubber mat under the workpiece.

Take appropriate noise preventive measures to prevent adverse aff ects on the environment by electrical noise.

Clear the area of children or unauthorized personnel.

6. Check mounting of the sanding disc.

Check that sanding disc is mounted under the specifi ed condition and is fi rmly clamped. For details, refer to the item “SANDING DISC ASSEMBLY AND DISASSEMBLY”.

7. Fixing the side handle.

Screw the side handle into the housing.

8. Check the lock lever.

Make sure that the lock lever is disengaged by pushing the lock lever two or three times before turning on the disc sander (Fig. 4).

9. Installing the air cover

Install the air cover on the air vent on the side where the side handle is attached to divert the cooling air fl ow of the motor during operation as much as possible. Hook tab of the air cover to the air vent and push in the tab when installing. Use a screwdriver etc. to pull as shown in Fig. 2 when removing. Air cover Fig. 2

DISC SANDER OPERATION

1. Hold the disc sander fi rmly by its body hadle and side

handle (Fig. 1). The disc sander produces a counterforce which must be controlled by fi rmly holding onto the disc sander.

This enables the disc sander always to be controlled with the hand gripping the machine for maximum safety during grinding operations. <Intermittent use> Switch ON: Press the switch trigger. Switch OFF: Release the switch trigger. <Continuous use> Switch ON: Press the switch trigger. The switch trigger is locked by pushing on the locking button. Switch OFF: Press and release the switch trigger.

3. Use light grinding pressure.

There is no need to press hard when grinding. Usually the disc sander’s own weight is suffi cient for the surface to be ground. CAUTION Do not press the disc sander forcibly against the surface to be ground. Heavy pressure can damage the surface being ground or damage the disc sander’s motor. 00BookS18SB.indb900BookS18SB.indb9 2018/03/2213:57:272018/03/2213:57:2710 English

4. Use proper grinding angle.

Use the disc sander by lifting 15° to 30°, as shown in Fig. 3. 15° – 30° Fig. 3

5. Adjust operation to desired fi nish.

For a fi ne fi nish, decrease pressure by lifting slightly. Grind slowly and at the appropriate speed.

6. Precaution after use

CAUTION Do not lay the disc sander down immediately after using on a place where there are many shavings, much dirt and dust until it has completely stopped revolving. If the disc sander is laid down with the sanding disc turned downward before it has completely stopped revolving, there is a risk that the material may be damaged and the disc sander may run wild, resulting in injury.

SANDING DISC ASSEMBLY AND

DISASSEMBLY WARNING Never attempt to assemble or disassemble the sanding disc while the disc sander is capable of being turned “ON”. Be sure power switch is in the “OFF” position and the electrical cord has been disconnected from the receptacle.

1. Assembling (Fig. 4)

(1) Turn the disc sander upsidedown so that the spindle is facing upward. (2) Attach rubber pad, sanding disc and washer nut on the spindle, in that order. (3) While pushing the lock lever with one hand, lock the spindle by turning the rubber pad slowly with the other hand. Tighten the washer nut by using the supplied wrench. Fig. 4 Wrench Spindle Washer nut Rubber pad Lock lever Tighten Sanding disc CAUTION

Tighten the washer nut securely and confi rm that the rubber pad and sanding disc does not wobble.

After releasing the lock lever, check to be sure that it has returned to its normal position.

To remove the sanding disc, follow the above- mentioned procedure in reverse order. 00BookS18SB.indb1000BookS18SB.indb10 2018/03/2213:57:272018/03/2213:57:2711 English

MAINTENANCE AND INSPECTION

WARNING Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection.

1. Inspecting the screws

Regularly inspect all screws and ensure that they are fully tightened. Should any of the screws be loosened, retighten them immediately. WARNING Using this disc sander with loosened screws is extremely dangerous.

2. Confi rm that there is no damage in the cord and the

housing, etc. Furthermore, confi rm that there is no abnormality in the activation of the switch.

3. Inspecting the carbon brushes (Fig. 5)

Wear limit 0.24” (6 mm) 0.67” (17 mm) No. of carbon brush The motor employs carbon brushes which are consumable parts. Replace the carbon brush with a new one when it becomes worn to its wear limit. Always keep carbon brushes clean and ensure that they slide freely within the brush holders. CAUTION Using this disc sander with a carbon brush which is worn in excess of the wear limit will damage the motor. NOTE Use metabo HPT carbon brush No. 43 indicated in Fig. 5.

Replacing carbon brushes: Remove the brush caps (Fig. 1) with a slotted screwdriver. The carbon brushes can then be easily removed.

4. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

5. Service parts list

A: Item No. B: Code No. C: No. Used D: Remarks CAUTION Repair, modifi cation and inspection of metabo HPT Power Tools must be carried out by a metabo HPT Authorized Service Center. This Parts List will be helpful if presented with the tool to the metabo HPT Authorized Ser vice Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. MODIFICATIONS metabo HPT Power Tools are constantly being improved and modifi ed to incorporate the latest technological advancements. Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice. 00BookS18SB.indb1100BookS18SB.indb11 2018/03/2213:57:272018/03/2213:57:2712 English ACCESSORIES WARNING ALWAYS use Only authorized metabo HPT replacement parts and accessories. Never use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE Accessories are subject to change without any obligation on the part of the metabo HPT. STANDARD ACCESSORIES

Side handle (Code No. 937089) ...............................1 NOTE Specifi cations are subject to change without any obligation on the part of the metabo HPT. 00BookS18SB.indb1200BookS18SB.indb12 2018/03/2213:57:282018/03/2213:57:2813 Français

00BookS18SB.indb3500BookS18SB.indb35 2018/03/2213:57:322018/03/2213:57:32WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

Lead from lead-based paints,

Crystalline silica from bricks and cement and other masonry products, and

Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to fi lter out microscopic particles.
