| Product type | Cordless drill |
| Brand | Bavaria |
| Model | BCD 12/1 Li |
| Power supply | 12 V DC, Li-Ion battery |
| No-load speed | 0-710 rpm |
| Adjustable torque | 20+1 levels |
| Chuck capacity | 10 mm max. |
| Chuck type | Keyless chuck |
| Weight | 1.0 kg |
| Charger voltage | 230 V ~ 50 Hz |
| Battery charge voltage | 15 V DC |
| Charging current | 0.5 A |
| Charging time | 3-5 hours max. |
| Sound pressure level | 62 dB(A) |
| Sound power level | 73 dB(A) |
| Vibrations (metal drilling) | ≤ 2.5 m/s², K=1.5 m/s² |
| Intended use | Drilling in wood, metal, plastic and screwdriving/unscrewing |
| Direction of rotation | Right/left with lock |
| Included equipment | Drill, battery, charger, adapter, instruction manual, safety instructions |
| Maintenance | Clean with damp cloth and mild soap; avoid water entering interior |
| Wear parts | Chuck, battery pack |
| Warranty | 24 months |
Frequently Asked Questions - BCD 12/1 Li Bavaria
User questions about BCD 12/1 Li Bavaria
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Drill in PDF format for free! Find your manual BCD 12/1 Li - Bavaria and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BCD 12/1 Li by Bavaria.
USER MANUAL BCD 12/1 Li Bavaria
D

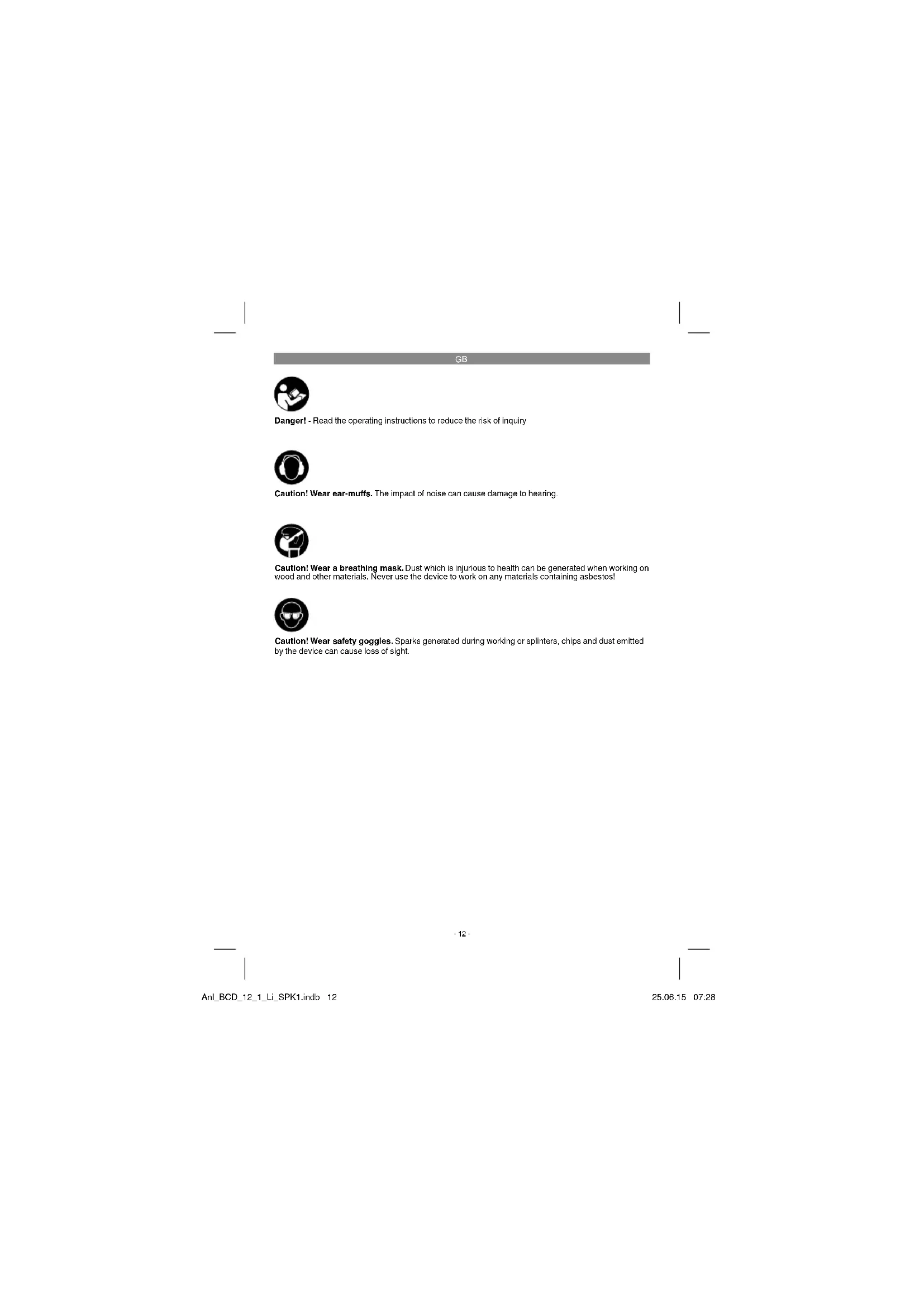

Danger! - Read the operating instructions to reduce the risk of inquiry
Caution! Wear ear-muffs. The impact of noise can cause damage to hearing
Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
-12-
GB
Danger!
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
1. Safety regulations
The corresponding safety information can be found in the enclosed booklet.
Danger!
Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.
Keep all safety regulations and instructions in a safe place for future use.
2. Layout and items supplied
2.1 Layout (Fig. 1)
-
Torque adjustment (setting ring)
-
Quick-change drill chuck
-
Changeover switch
-
On/Off switch
-
Battery
-
Charging unit
-
Charging adapter
-
Pushlock button
2.2 Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.
Danger!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!
• Cordless drill/screwdriver
- Battery
- Charging unit
- Charging adapter
• Original operating instructions
- Safetyinstructions
3. Proper use
The cordless drill/screwdriver is designed for tightening and undoing screws, as well as for drilling in wood, metal and plastic.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
4. Technical data
Motor supply voltage: 12V DC Idling speed: 0-710 min ^1
Torque settings: 20+1
Clockwise/Counter-clockwise:......Yes
Clamping range of drill chuck: ....max. 10 mm
Battery charge voltage: 15 V DC
Battery charge current: 0.5 A
Battery charger supply voltage: ..... 230 V \~ 50Hz
Charging time: max. 3-5 hours
Battery type: Li-Ion
Weight: 1.0 kg
GB
Danger!
Sound and vibration
Sound and vibration values were measured in accordance with EN 60745.
L_pA sound pressure level 62 dB(A)
K_pA uncertainty 3 dB
L_vH sound power level 73 dB(A)
K_m uncertainty 3 dB
Wear ear-muff s.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions) determined in accordance with EN 60745.
Drilling in metal
Vibration emission value a_b ≤ 2.5 m/s^2
K uncertainty = 1.5 m/s ^2
Screwing without hammer action
Vibration emission value a_b ≤ 2.5 m/s^2
K uncertainty = 1.5 m/s²
The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.
The specified vibration value can be used to compare the equipment with other electric power tools.
The specified vibration value can be used for initial assessment of a harmful effect.
Keep the noise emissions and vibrations to a minimum.
• Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
- Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:
- Lung damage if no suitable protective dust mask is used.
- Damage to hearing if no suitable ear protection is used.
- Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.
5. Before starting the equipment
Be sure to read the following information before you put the cordless screwdriver into operation:
- Charge the battery only with the charging unit supplied.
- Only ever use sharp drill bits and screwdriver bits which are suitable for the purpose and in faultless condition.
- Always check for concealed electric cables and gas and water pipes when drilling and screwing in walls.
6. Operation
6.1 Charging the battery (Fig. 2-3)
- Remove the battery pack (5) from the handle (Fig. 2) by pressing the pushlock buttons (8) on the left and right side of the battery pack (5).
- Check that your mains voltage is the same as that marked on the rating plate.
- Plug the battery charger (6) into the power socket and connect the charging cable (a) to the charging adapter (7). The green LED on the charging adapter (7) will begin to blink.
- Plug the battery pack (5) into the charging adapter. The red LED will come on to indicate that the battery pack is being charged.
- When the charging period is completed after approx. 3-5 hours, the red lit LED will go out again and the green LED will begin to shine.
If only the red LED blinks, the battery is defective. Remove the battery. A defective lithium-ion battery pack is not allowed to be used any more.
GB
The temperature of the battery (5) may rise during the charging operation. This is normal.
If the battery pack falls to charge, check for the following:
• Voltage at the power socket
• Good contact at the charging contacts of the charging unit
If the battery pack still fails to charge, send
• the charging unit
• and the battery pack
to our customer service center.
To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power of the cordless equipment drops.
6.2 Torque setting (Fig. 4 / Item 1)
The cordless screwdriver is fitted with a mechanical torque selector.
The torque for a particular screw size is set with the setting ring (1). The torque is dependent on a number of factors:
• On the type and hardness of the material involved
• On the type and length of the screws used
- On the requirements that the screw connection has to satisfy
The grating disengagement of the coupling indicates that the selected torque level has been reached.
Caution! Only ever adjust the setting ring when the equipment is at a standstill.
6.3 Drilling (Fig. 4/Item 1)
For drilling purposes, adjust the setting ring for the torque to the last setting "Drill". In the drill setting the slip coupling is non-functional. The maximum torque is available for drilling.
6.4 Changeover switch (Fig. 5/Item 3)
The slide switch above the On/Off switch is for setting the direction of rotation of the cordless screwdriver and for preventing the cordless screwdriver from being switched on inadvertently. You can select between clockwise and counterclockwise rotation. To avoid causing damage to the gearing, the direction of rotation must only be changed when the screwdriver is at a standstill. When the slide switch is in the middle position, the On/Off switch is blocked.
6.5 On/Off switch (Fig. 5/Item 4)
Infi nitely variable speed control is possible with the On/Off switch. The further you push the switch, the higher the speed of the cordless screwdriver.
6.6 Changing the bit (Fig. 6)
Caution! Set the changeover switch (3) to its center position whenever you carry out any work (for example changing the tool, maintenance work, etc.) on the backbone and drives
work, etc.) on the cordless screwdriver.
• Open the chuck (2).
- The chuck opening (a) must be large enough to hold the tool (drill bit or screwdriver bit).
- Select the suitable tool. Push the tool as far as possible into the chuck opening (a).
- Tighten the chuck (2) and then check that the tool is secure.
6.7 Screwing
It is advisable to use self-centering screws (e.g. Torx, cross recessed head) as these will enable you to work safely and reliably. Always make sure that the bit used is of the same size and shape as the screw. Set the torque to suit the screw size as specified in the instructions.
GB
7. Cleaning, maintenance and ordering of spare parts
Danger!
Always pull out the mains power plug before starting any cleaning work.
7.1 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it. - Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.
7.2 Maintenance
There are no parts inside the equipment which require additional maintenance.
7.3 Ordering replacement parts:
Please quote the following data when ordering replacement parts:
• Type of machine
• Article number of the machine
• Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info
8. Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.
-16-
9. Storage
Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.
GB
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.
This consignment contains lithium-ion batteries.
In accordance with special provision 188 this consignment is not subject to the ADR regulations. Handle with care. Danger of ignition in case of damage to the consignment package. If the consignment package is damaged: Check and if necessary repackage. For further information contact: 0049 1807 10 20 20 66 (fixed network 14 ct/min, mobile phone max. 42 ct/min) Outside Germany charges will apply instead for a regular call to a landline number in Germany.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes
-17-
GB
Service information
We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.
| Category Example | |
| Wear parts* Drill chuck, Battery | |
| Consumables* Bit inserts/drill bits | |
| Missing parts |
* Not necessarily included in the scope of delivery!
In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
GB
Warranty certifi cate
Dear Customer,
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:
- These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
- The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.
- The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.
- The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.
- Please report the defective device on the following internet address to register your guarantee claim: www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device.
Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.
-19-
□90/396/EC_2009/142/EC
□89/686/EC_96/58/EC
X2011/65/EC
X 2006/42/EC
□ Annex IV Notili ed Body: Notili ed Body No.: Reg. No.:
2000/14/EC_2005/88/EC
- Annex V - Annex VI Noise: measured L_n = dB (A) ; guaranteed L_n = dB (A) P = KW; L/∅ = cm Nolifi nd Bpriv
2004/26/EC Emission No.:
Standard references: EN 60745-1; EN 60745-2-1; EN 60745-2-2; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3; EN 60335-1; EN 60335-2-29; EN 62233
Nylol Yang Yerq Product-Management/Westing partner/General-Manager
First CE: 15
Art.-No.:45.125.40 I.-No.:11015
Subject to change without notice
Archive-File/Record: NAPR010700
Documents registrar: Georg Riedel Wiesenweg 22, D-94405 LandauIsar


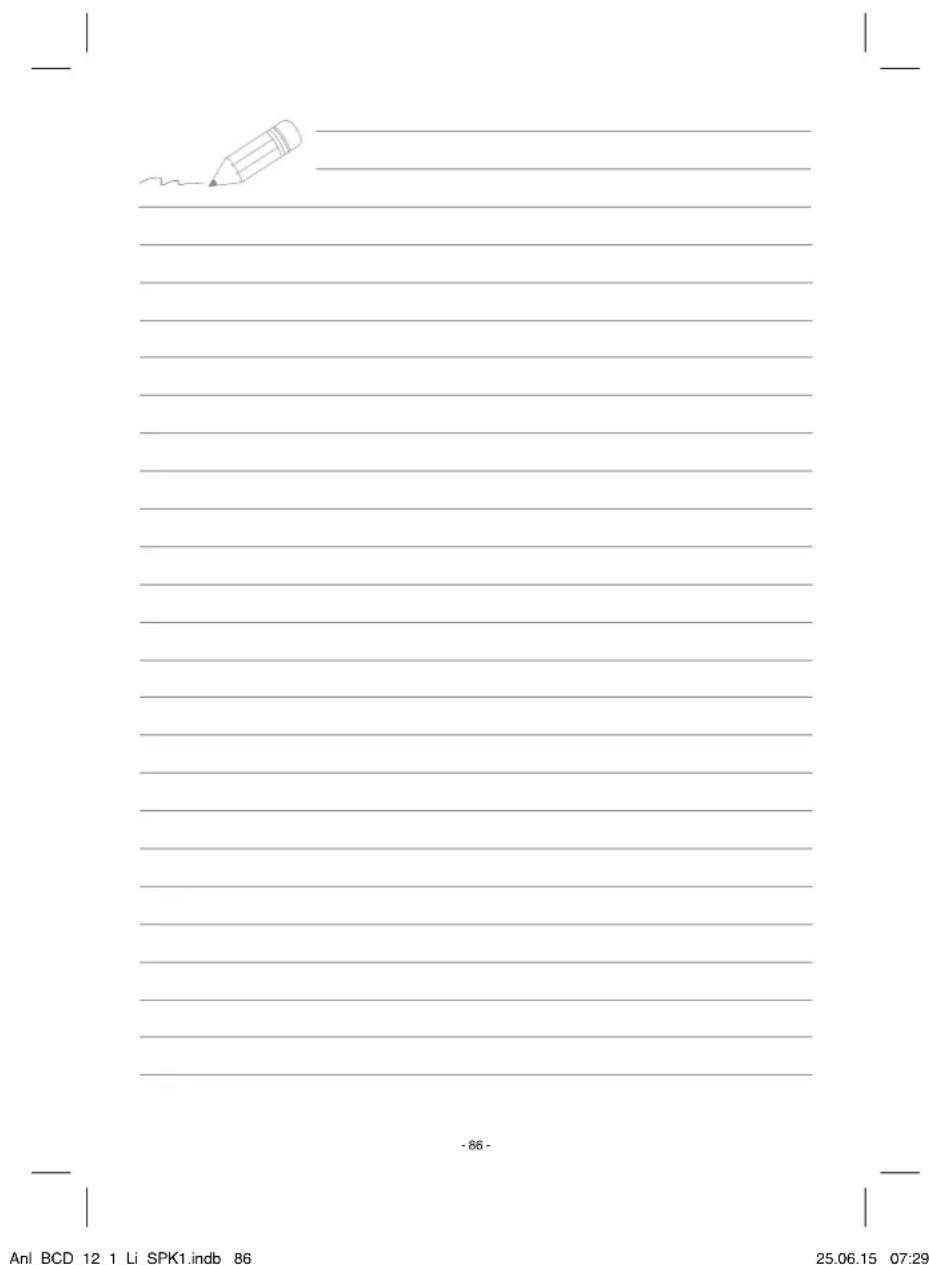

-86 - Anl BCD_12_1_Li_SPK1.indb 86 25.06.15 07:29
