USER MANUAL PCCS340 Porter-Cable

Battery release button

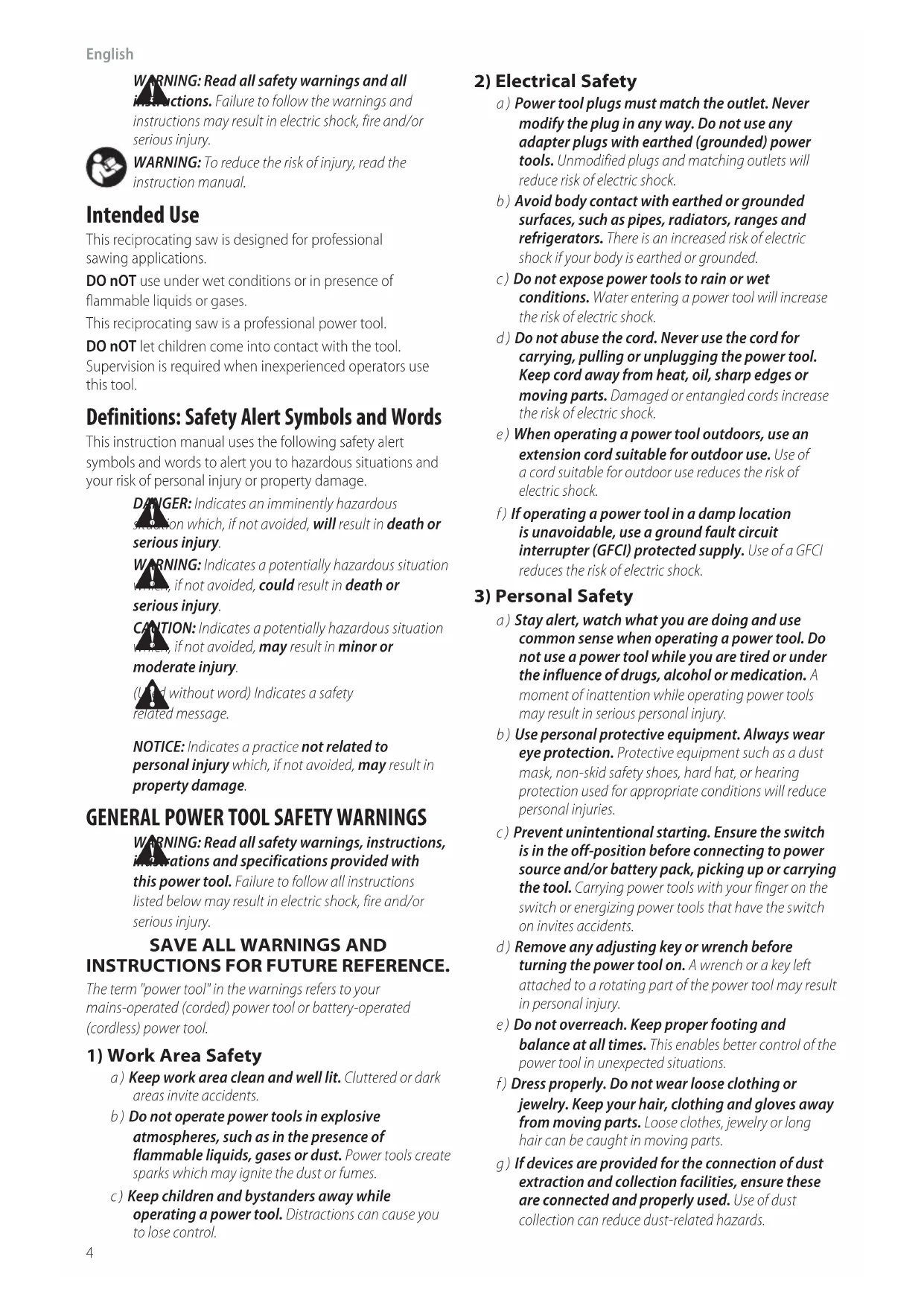

a ) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electricshock. b ) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. c ) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electricshock. d ) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock. e ) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock. f ) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non‑skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off‑position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invitesaccidents. d ) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personalinjury. e ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpectedsituations. f ) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in movingparts. g ) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust‑relatedhazards.

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

SAVE ALL WARNINGS AND

INSTRUCTIONS FOR FUTURE REFERENCE. The term "power tool" in the warnings refers to your mains‑operated (corded) power tool or battery‑operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust orfumes. c ) Keep children and bystanders away while operating a power tool. Distractions can cause you to losecontrol. Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or propertydamage.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety relatedmessage. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage. Intended Use This reciprocating saw is designed for professional sawingapplications. DO nOT use under wet conditions or in presence of flammable liquids orgases. This reciprocating saw is a professional powertool. DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool. English (original instructions)

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

instructionmanual.5 English Additional Safety Instructions for Reciprocating Saws

• Hold the power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire will make exposed metal parts of the power tool “live” and could give the operator an electricshock.

• Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it unstable and may lead to loss ofcontrol.

• Inspect work area for hidden electrical wiring, gas pipes or water pipes before making blind or plunge cuts. Failure to do so may result in electrical shock, fire, explosion, or property damage.

• ALWAYS wear a dust mask. Exposure to dust particles can cause breathing difficulty and possibleinjury.

• Never switch on the tool when the saw blade is jammed in the workpiece or in contact with thematerial.

• Keep hands away from cutting area. Never reach underneath the material for any reason. Hold front of saw by grasping the contoured gripping area. Do not insert fingers or thumb into vicinity of the reciprocating blade and blade clamp. Do not stabilize the saw by gripping theshoe.

• Use extra caution when cutting overhead and pay particular attention to overhead wires which may be hidden from view. Anticipate the path of falling branches and debris ahead oftime. d ) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns. e ) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk ofinjury. f ) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion. g ) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk offire.

a ) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool ismaintained. b ) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized serviceproviders. h ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of asecond.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it wasdesigned. b ) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must berepaired. c ) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power toolaccidentally. d ) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrainedusers. e ) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools. f ) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier tocontrol. g ) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardoussituation. h ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack. b ) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire. c ) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire.English

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage. The label on your tool may include the following symbols. The symbols and their definitions are asfollows: V ......................... volts Hz .......................hertz min ..................... minutes or DC ......direct current ...................... Class I Construction (grounded) …/min ..............per minute BPM .................... beats per minute IPM ..................... impacts per minute OPM .................... oscillations per minute RPM .................... revolutions per minute sfpm ................... surface feet per minute SPM .................... strokes per minute A ......................... amperes W ........................watts Wh ......................watt hours Ah ....................... amp hours or AC ...........alternating current or AC/DC .... alternating or direct current ...................... Class II Construction (double insulated)

do not expose to rain as those dust masks that are specially designed to grease tube cavity out microscopicparticles.

• Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lie on the skin may promote absorption of harmfulchemicals. Direct particles away from face andbody.

• Use the appropriate dust extractor vacuum to remove the vast majority of static and airborne dust. Failure to remove static and airborne dust could contaminate the working environment or pose an increased health risk to the operator and those in closeproximity.

• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control andinjury.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knockedover. Additional Safety Information

WARNING: Never modify the power tool or any part of

it. Damage or personal injury couldresult.

WARNING: ALWAYS use safety glasses. Everyday

eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicalsare:

• lead from lead‑based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically‑treatedlumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well‑ventilated area, and work with approved safety equipment, such

• Do not operate this tool for long periods of time. Vibration caused by the operating action of this tool may cause permanent injury to fingers, hands, and arms. Use gloves to provide extra cushion, take frequent rest periods, and limit daily time ofuse. Switching On and Off

• After switching off, never attempt to stop the saw blade with yourfingers.

• Never put the saw down on a table or work bench unless switched off. The saw blade will keep running briefly after the tool has been switchedoff. When Sawing

• When using saw blades specially designed for cutting wood remove all nails and metal objects from the workpiece before startingwork.

• Wherever possible, use clamps and vices to fasten the workpiecesecurely.

• Do not attempt to saw extremely smallworkpieces.

• Do not lean too far forward. Make sure that you always stand firmly, particularly on scaffolding andladders.

• For cutting curves and pockets, use approvedaccessories. Checking and Changing the Saw Blade

• Only use saw blades conforming to the specifications contained in these operatinginstructions.

• Only sharp saw blades in perfect working condition should be used; cracked or bent saw blades should be discarded and replaced atonce.

• Ensure that the saw blade is secure in the bladeclamp.

SAVE THESE INSTRUCTIONS

READ ALL INSTRUCTIONS7

ENGLISH Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• DO NOT attempt to charge the battery pack with any chargers other than a PORTER‑CABLE charger. The RBRC® Seal Please take your spent battery packs to an authorized PORTER‑CABLE service center or to your local retailer for recycling. In some areas, it is illegal to place spent battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit www.call2recycle.org or call the toll‑free number in the RBRC®Seal. RBRC® is a registered trademark of Call 2Recycle,Inc. run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Storage Recommendations The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged battery pack out of thecharger. Battery Pack Cleaning Instructions Dirt and grease may be removed from the exterior of the battery pack using a cloth or soft non‑metallic brush. Do not use water or any cleaningsolutions. Fuel Gauge Battery Packs Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the approximate level of charge remaining. This does not indicate tool functionality and is subject to variation based on product components, temperature, and end‑userapplication. Transportation

WARNING: Fire hazard. Do not store, carry, or

transport the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, coins, hand tools, etc. When transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Li‑ion battery packs should not be put in checked baggage on airplanes and must be properly protected from short circuits if they are in carry‑onbaggage. Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non‑compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in PORTER‑CABLEchargers.

• DO NOT splash or immerse in water or otherliquids.

• DO NOT allow water or any liquid to enter batterypack.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium‑ion battery packs areburned.

• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion.

• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk offire.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

• Battery liquid may be flammable if exposed to spark orflame.

• Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped,ENGLISH

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

• Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities and ventilation slots.

• Always unplug the charger from the power supply when there is no battery pack in thecavity. Charging a Battery PORTER‑CABLE chargers are designed to charge PORTER‑CABLE battery packs. Charge times are: PCC690L in 40–80 mins., PCC691L in 70–140 mins., PCC692/PCC692L in 40–80 mins., and PCC695L/PCC699L in 180‑360 mins. depending on the pack beingcharged.

1. Plug the charger into an appropriate outlet.

2. Insert and fully seat battery pack. The red charging

light(s) will continuously blink whilecharging.

3. Charging is complete when the red charging light(s)

remain(s) continuously ON. Battery pack can be left in charger or removed.

Only charge batteries in air temperature over 40° F (4.5° C) and below 104° F (+40°C).

4. Charger will not charge a faulty battery pack, which may

be indicated by the charging light(s) staying OFF. Take charger and battery pack to an authorized service center if light(s) stay(s)OFF. NOTE: Refer to label near charging light(s) on charger for blinkpatterns. NOTE: To remove the battery pack, some chargers require the battery pack release button to bepressed. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack may charge at a slower rate than a warm batterypack. The hot/cold pack delay will be indicated by the red light(s) continuing to blink but with the yellow light continuously ON. Once the battery pack has reached an appropriate temperature, the yellow light will turn OFF and the charger will resume the chargingprocedure. Electronic Protection System Li‑Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge. The tool will automatically turn off and the battery pack will need to berecharged. Important Charging Notes

1. Longest life and best performance can be obtained if

the battery pack is charged when the air temperature is between 65°F – 75°F (18° C– 24°C). DO NOT charge PORTER‑CABLE chargers and battery packs are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging PORTER‑CABLE rechargeable battery packs. Charging other types of battery packs may cause them to overheat and burst, resulting in personal injury, property damage, fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Do not allow water or any liquid to entercharger.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the heavier the cord and thus the greater its capacity. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on total length of all extension cords plugged together, and nameplate ampere rating. If in doubt, use the next heaviergauge. Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) Ampere Rating American Wire Gauge More Than Not More Than

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord orplug. Have them replacedimmediately.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.9 English Proper Hand Position (Fig. D)

WARNING: To reduce the risk of serious personal

injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. Proper hand position requires one hand on the main handle

and one hand the hand grip

or one hand on the main handle with the material beingcut properlyclamped. Installing and Removing the Battery Pack (Fig. C)

WARNING: Ensure the tool/appliance is in the off

position before inserting the batterypack. nOTE: For best results, make sure your battery pack is fullycharged.

1. To install the battery pack

into the tool handle, align the battery pack with the rails inside the tool’s handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does notdisengage.

2. To remove the battery pack from the tool, press the

battery release button

and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of thismanual. OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Blade Installation and Removal (Fig. B) To Install a Blade

1. Point tool away frombody.

, rotate open the collar to its full openposition.

fully into blade clampcollar. nOTE: Blade can be installed with the teeth facing up to assist in FlushCutting.

4. Release blade clamp collar and gently tug on the blade

to ensure blade is clampedsecurely. To Remove a Blade (Fig. B)

WARNING: Burn hazard. Do not touch the blade and

blade clamp collar immediately after use. Contact with the blade may result in personalinjury.

to its full openposition.

WARNING: Cut hazard. Blade breakage may occur

if the blade does not extend past the shoe and the thickness of the workpiece during the cut. Increased risk of personal injury, as well as damage to the shoe and workpiece may result.

ASSEMBLY AND ADJUSTMENTS

To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Wall Mounting Some PORTER‑CABLE chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1” (25.4mm) long, with a screw head diameter of 0.28–0.35” (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32” (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. when the battery pack is below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the batterypack.

2. The charger and battery pack may become warm to the

touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulatedtrailer.

3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out thelights; c. If charging problems persist, take the tool, battery pack and charger to your local servicecenter.

4. You may charge a partially used pack whenever you

desire with no adverse effect on the batterypack. Charger Cleaning Instructions

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non‑metallic brush. Do not use water or any cleaningsolutions.

SAVE THESE INSTRUCTIONS FOR

CAUTION: Do not stare into worklight. Serious eye injury couldresult. There is a worklight

located on the end of the tool near the shoe. The worklight is activated when the trigger switch is depressed, and will remain on for a short time after theENGLISH

should extend past the pivoting shoe

and the thickness of the workpiece throughout the cut. Select the blade best suitable for the material to be cut and use the shortest blade suitable for the thickness of thematerial. NOTE: Do not use jigsaw blades with thistool. NOTE: Before cutting any type of material, be sure it is firmly anchored or clamped to preventslipping.

lightly against work to becut.

• Switch on saw motor and allow it to obtain maximum speed before applyingpressure.

• Always hold saw firmly with both hands while cutting as shown in Fig. D. Whenever possible, the pivoting shoe must be held firmly against the material being cut. This will prevent the saw from jumping or vibrating and will minimize bladebreakage. Wood Cutting (Fig. A, B, F)

1. Before cutting any type of wood, be sure the workpiece

is firmly anchored or clamped to preventslipping.

firmly against work tobecut.

3. Switch on saw motor before starting thecut.

4. Always hold saw firmly with both hands while cutting.

Whenever possible, the pivoting shoe must be held firmly against the material being cut. This will prevent the saw from jumping or vibrating and minimize bladebreakage. Variable Speed Trigger Switch (Fig. E) Lock Button and Trigger switch Your saw is equipped with a lock button

To lock the trigger switch, press the lock button as shown in FigureE. Always lock the trigger switch

when carrying or storing the tool to eliminate unintentional starting. To lock the tool, slide lock button to the locked position. When in the locked position, the tool is locked and the trigger switch cannot bepulled. To unlock the trigger switch, press the lock button as shown in FigureE. Pull the trigger switch to turn the motor ON. Releasing the trigger switch turns the motorOFF.

WARNING: This tool has no provision to lock the

switch in the ON position, and should never be locked ON by any othermeans. The variable speed trigger switch will give you added versatility. The further the trigger is depressed the higher the speed of thesaw.

CAUTION: Use of very slow speed is recommended only for beginning a cut. Prolonged use at very slow speed may damage yoursaw. Cleaning

WARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing thisprocedure. MAINTENANCE

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Your PORTER‑CABLE power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning. Metal Cutting (Fig. G)

2. In thin gauge sheet metals it is best to clamp wood to

the underside of the sheet. This will ensure a clean cut without excess vibration or tearing ofmetal.

3. Avoid forcing cutting blade as this reduces blade life and

causes costly bladebreakage. NOTE: You should spread a thin film of oil or other coolant along the line ahead of the saw cut for easier operation and longer blade life. For cutting aluminum, kerosene ispreferred. Plunge Cutting (Fig. A, B, H) Measure the surface area to be cut and mark clearly with a pencil, chalk orscriber.

2. Tip the saw backward until the back edge of the pivoting

shoe is firmly on the worksurface.

3. Switch motor on, permitting blade to attain

4. Grip handle steadily and begin a slow, deliberate upward

swing with the handle of thesaw.

5. The blade will begin to feed into material. Always be sure

blade is completely through material before continuing with plungecut. NOTE: In areas where blade visibility is limited, use the edge of the pivoting shoe as aguide. Project Tips

• Cut only with sharp blades; they cut cleaner, faster and put less strain on the tool whilecutting.

• When cutting, always ensure that the pivoting shoe is resting against the workpiece. This will improve operator control and minimizevibration.

• For longer blade life, use bi‑metal blades or carbide tipped blades. These utilize a carbon steel back welded to high speed steel teeth making the blade more flexible and less prone tobreaking. trigger switch is released. If the trigger switch remains depressed, the worklight will remainon. NOTE: The worklight is for lighting the immediate work surface and is not intended to be used as aflashlight.11 ENGLISH Three Year Limited Warranty For warranty terms, go to https://www.portercable.com/ service-support/warranty-information. To request a written copy of the warranty terms, contact: Customer Service at PORTER‑CABLE, 4825Highway 45North, Jackson, Tennessee 38305or call 1-888-848-5175. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-848-5175 for a freereplacement. PORTER CABLE 4825Highway 45North, Jackson, Tennessee 38305 (888) 848‑5175 • www.portercable.com Register Online Thank you for your purchase. Register your product nowfor:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct.

• Register online at www.portercable.com Repairs The charger and batteries are notserviceable. There are no serviceable parts inside the charger or batterypack.

WARNING: To assure product SAFETY and

RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a PORTER‑CABLE factory service center or a PORTER‑CABLE authorized service center. Always use identical replacementparts. Belt Hook (Fig. I) Optional Accessory (Not Included)

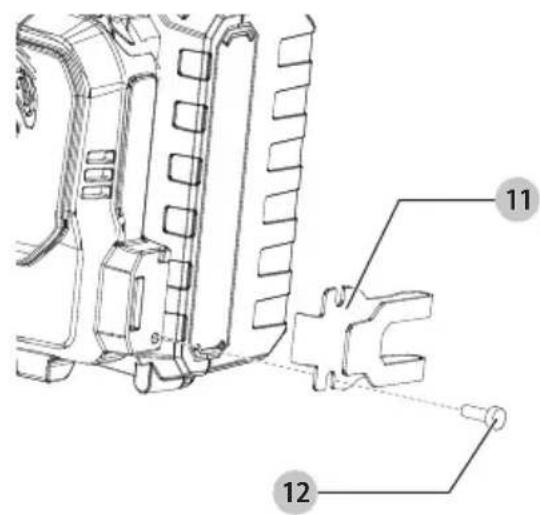

WARNING: To reduce the risk of serious personal

injury, ONLY use the tool’s belt hook to hang the tool from a work belt. DO NOT use the belt hook for tethering or securing the tool to a person or object during use. DO NOT suspend tool overhead or suspend objects from the belthook.

WARNING: To reduce the risk of serious personal

injury, ensure the screw holding the belt hook issecure.

WARNING: Before hanging the tool from a work

belt, ALWAYS remove the blade and ensure that the lock‑off button is in the locked postion to eliminate unintentionalstarting. IMPORTANT: When attaching or replacing the belt hook

, use only the screw

that is provided. Be sure to securely tighten thescrew. The belt hook

can be attached to either side of the tool using only the screw

provided, to accommodate left‑ or right‑ handed users. If the belt hook is not desired at all, it can be removed from thetool. To move the belt hook, remove the screw that holds it in place then reassemble on the opposite side. Be sure to securely tighten thescrew. Accessories

Since accessories, other than those offered

PORTER‑CABLE , have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only PORTER‑CABLE recommended accessories should be used with thisproduct. Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact PORTER‑CABLE call 1-888-848-5175 or visit our website: www.portercable.com

WARNING: Never use solvents or other harsh

chemicals for cleaning the non‑metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid.FRAnçAis

• Maximum initial battery voltage (measured without a workload) is 20volts. Nominal voltage is18.

WARNING: Use of any other battery packs may create a risk of injury andfire.
