Product Type	400GbE Switch Router
Brand	DELL
Model	PowerSwitch Z9664F-ON
Ports	64 ports QSFP56-DD (400GbE) and QSFP28 (100GbE)
Dimensions (W x D x H)	43.8 x 38.1 x 4.4 cm (1U)
Weight	Approximately 10 kg
Power Supply	Dual redundant power supply (AC or DC depending on model)
Maximum optics power consumption	980 W (total front panel)
Airflow	Normal (I/O to PSU) or reverse (PSU to I/O)
Operating System	SmartFabric OS10 (version 10.5.2.1 or later)
Supported optics types	400G QSFP56-DD, 2x100G QSFP28-DD, 100G QSFP28
Critical power thresholds	20 W per port for certain ports; 15 W for others (normal airflow)
Operating Temperature	0 to 40 °C
Operating Humidity	10% to 90% non-condensing
Certifications	CE, FCC, VCCI, etc.
Main Features	400GbE routing and switching, link aggregation, QoS, ACL, VXLAN, EVPN
Maintenance and Cleaning	Use a dry soft cloth; do not use chemicals
Safety	Grounding mandatory; do not block vents
Spare parts and repairability	Hot-swappable optics, fans and power supplies

Frequently Asked Questions - PowerSwitch Z9664F-ON DELL

What types of optics are supported by the Dell PowerSwitch Z9664F-ON?

The switch supports QSFP56-DD 400GbE, QSFP28-DD 200GbE (2x100G), and QSFP28 100GbE optics. Only Dell-qualified optics are recommended.

What is the airflow of the Z9664F-ON?

There are two versions: normal airflow (I/O to PSU) where air flows from the front panel to the power supplies, and reverse airflow (PSU to I/O) for hot aisle data centers.

What is the maximum allowed power per optical port?

In normal airflow, ports 1, 3, 9 and 11 can accept up to 20 W; other ports are limited to 15 W. In reverse airflow, ports 1 to 32 are limited to 12 W and ports 33 to 64 to 15 W.

What if I use a third-party optic?

Dell discourages the use of non-certified optics. Third-party optics may exceed power thresholds and cause overheating. Only Dell optics are tested and supported.

How to monitor optics consumption?

Use the show interface transceiver command in OS10 to display per-port power. Ensure each port stays below the critical threshold indicated in the manual.

Can I mount the Z9664F-ON in a rack?

Yes, the switch is designed for 19-inch rack mounting at 1U height. Use the provided brackets and maintain at least 10 cm ventilation clearance at the front and rear.

What is the minimum OS10 version required?

The Z9664F-ON requires at least version OS10.5.2.1 for high-power optics management.

How to clean the switch?

Disconnect the device, then use a dry soft cloth. Never use liquids or cleaning aerosols. Air filters should be checked periodically.

What are the signs of overheating?

Fans spin faster, alert messages appear in the system log, or the switch restarts. Check internal temperature with the show system environment command.

Where to find the latest list of supported optics?

Contact your Dell representative or visit the Dell support website for the latest optics compatibility matrix.

USER MANUAL PowerSwitch Z9664F-ON DELL

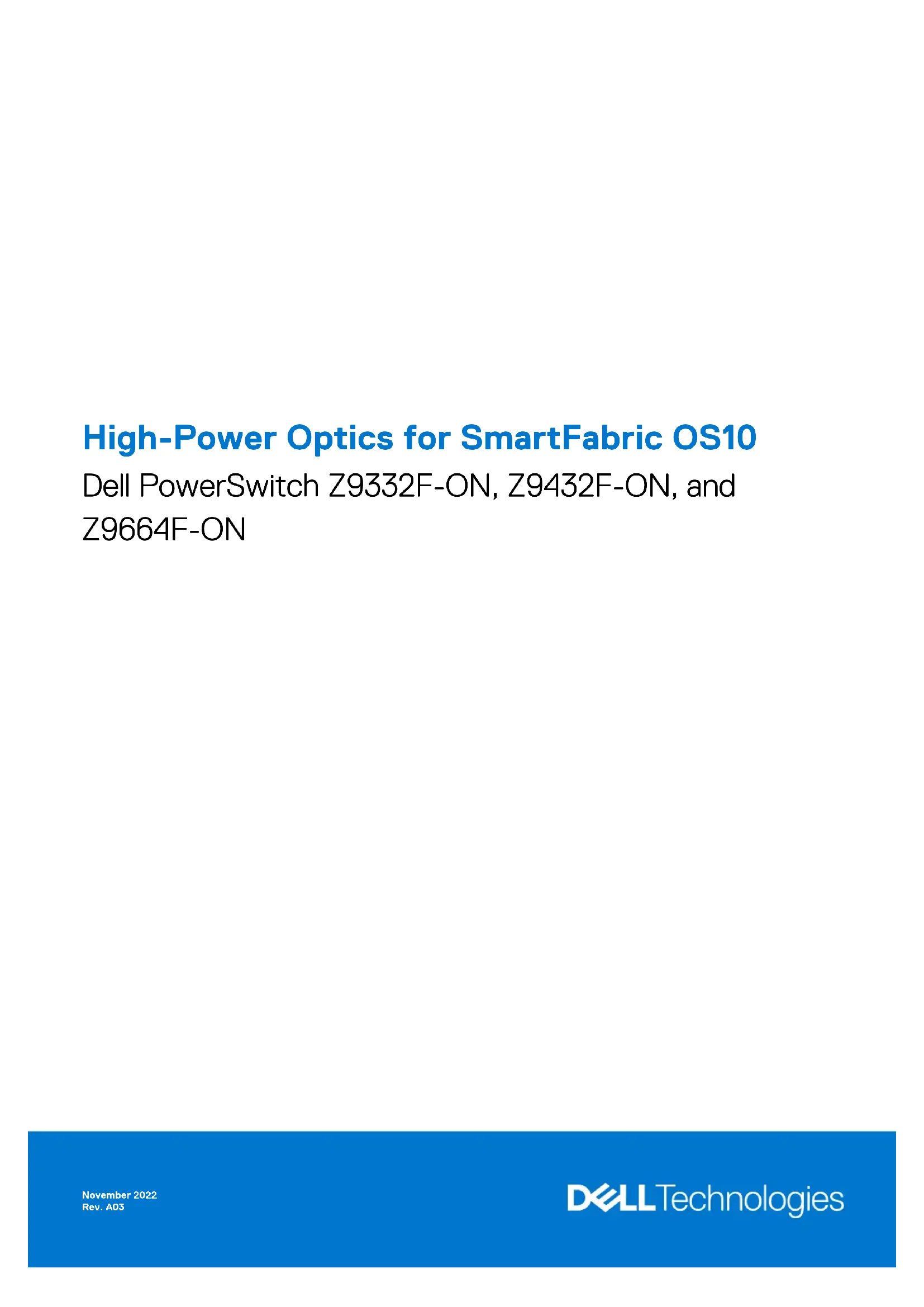

High-Power Optics for SmartFabric OS10

Dell PowerSwitch Z9332F-ON, Z9432F-ON, and Z9664F-ON

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

OS10 High-power optics

The following describes important considerations for PowerSwitch Z9332F-ON, Z9432F-ON, and Z9664F-ON devices running OS10 when using a mix of lower-power and higher-power optics.

Document revision history

Table 1. Revision history

Version Date Change
A03 2022-11 Added information regarding the Z9664F-ON PowerSwitch.Reorganized tables for clarity.
A02 2021-07 Updated Introduction section and table information.
A01 2021-04 Reorganized tables for clarity. Added two NOTES regarding optics warnings.
A00 2020-10 Initial release.

Introduction

Inconsistent environmental conditions in data centers can impact performance, reduce the lifespan of the infrastructure, and increase costs. Data centers use systems that regulate the temperature to keep the infrastructure operating in optimum conditions.

Dell PowerSwitch devices, such as the Z9332F-ON, Z9432F-ON, and Z9664F-ON, use air to dissipate the heat generated by the internal electronics. Each PowerSwitch data center platform can be installed in two types to adjust the airflow direction to the data center cooling systems: normal airflow (I/O-to-PSU), where air flows from the I/O panel to the power supply unit (PSU) modules, and reverse airflow (PSU-to-I/O), where air flows from the PSU modules to the I/O panel.

By design, some optics validated on the Z9332F-ON, Z9432F-ON, and Z9664F-ON function at a high rate of power.

Although these optics are qualified and their power consumption is within the operating range, you must be aware of some limitations when using high-power optics.

First, high-power optics increase the demand for power and can cause a rise in temperatures that requires more cooling.

Second, rack-installed reverse airflow devices increase the amount of warm air that flows over the optics. This warm airflow increases the temperature of the optics and thus, can limit their maximum operating power.

For the Z9332F-ON, the high-power quad small form-factor pluggable-double density media (QSFP56-DD) must not exceed their critical power levels: 14 W per port in normal airflow (I/O-to-PSU) and 12 W per port in reverse airflow (PSU-to-I/O). For the Z9432F-ON and Z9664F-ON, the QSFP56-DD media must not exceed their critical power levels: 20 W for four ports and 15 W for the remaining ports with I/O-to-PSU airflow. For PSU-to-I/O airflow, 12 W for ports 1 to 32, and 15 W for ports 33 to 64. To avoid issues with a rise in temperature when using QSFP56-DD media, you must monitor the power consumption of all optics and ensure their values stay below the critical threshold. This limit keeps the ports within a safe operating range and within total device power specifications.

In addition, you must monitor the overall power that is drawn by all optics.

• The Z9332F-ON has two power banks that feed the optics: Bank A for ports 1 to 16, and Bank B for ports 17 to 32. Each power bank can supply 224 W. Do not exceed the power that each bank delivers to all optics in their group.
• The Z9432F-ON and Z9664F-ON have one DC power bank each. The front panel port power limit is 500 W on the Z9432F-ON and 980 W on the Z9664F-ON.

Dell has made specific supplier selections for solutions that both satisfy stringent quality requirements and provide lower power characteristics.

400 GbE optics incorporate integrated digital signal processors (DSPs). These DSPs can exhibit appreciably different power requirements that are based on the chip, port speed, and signal modulation.

The next section provides the safe operating power limits for high-power optics.

WARNING: Third-party optics may pose a high risk of exceeding thresholds. Dell only evaluates and supports Dell-supplied media.

NOTE: Dell continues to update the supported high-power optics, including the 100 GbE QSFP28 and 400 GbE QSFP56-DD media types.

For an updated list of supported optics, contact your Dell representative.

NOTE: If you insert a 12W optic in a 10W port, a warning message displays and the port operates.

If you insert a 14W optic in a 12W port, a warning message displays but the port does not operate.

List of high-power optics, thresholds, and switch ports

The following tables list the thresholds for the PowerSwitch Z9332F-ON running version OS10.5.2.0 and beyond, and the PowerSwitch Z9432F-ON, and Z9664F-ON running version OS10.5.2.1 and beyond.

NOTE: The CLI does not report the critical threshold. Be sure to monitor max-module-power per the thresholds listed in the following tables.

CAUTION: If your deployment must exceed the critical thresholds, consult your Dell representative immediately for specific guidelines.

Module power and port data

The following tables list the module power rating values and the allowed panel port numbers for switches with Normal or Reverse airflow.

Normal airflow (I/O-to-PSU)

Table 2. Z9332F-ON 400G QSFP56-DD media

Type Model Module	power	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP56-DD-400G-SR4.2		13.5 12 14 All ports (1-32)
Optic QSFP56-DD-400G-SR8		12 12 14 All ports (1-32)
Active optical cable AOC-QSFP56-DD-400G-10m, 15m		12 12 14 All ports (1-32)
Active copper cable	ACC-QSFP56-DD-400G-3m, 5m, 7m	10 12 14 All ports (1-32)
Active copper cable	ACC-QSFP56-DD-4QSFP28-3m, 5m	10 12 14 All ports (1-32)
Optic QSFP56-DD-400G-FR4		10 12 14 All ports (1-32)
Optic QSFP56-DD-400G-EDR4		10 12 14 All ports (1-32)
Optic QSFP56-DD-40	OG-LDR4	10 12 14 All ports (1-32)

Table 3. Z9432F-ON 400G QSFP56-DD media

Type Model Module	power	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP56-DD-400G-SR4.2	13.5 14			•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Optic QSFP56-DD-400G-SR8	12 14			•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Active optical cable AOC-QSFP56-DD-400G-10m, 15m	12 14			•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Active copper cable	ACC-QSFP56-DD-400G- 3m, 5m, 7m	10 14		•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Active copper cable	ACC-QSFP56-DD-4QSFP28-3m, 5m	10 14		•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Optic QSFP56-DD-400G-FR4	10 14			•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Optic QSFP56-DD-400G-EDR4	10 14			•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Optic QSFP56-DD-400G-LDR4	10 14			•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)

Table 4. Z9664F-ON 400G QSFP56-DD media

Type Model Module	power	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP56-DD-400G-SR4.2	13.5 15			●20 (1, 3, 9, 11)●15 (others)	All ports (1-64)
Optic QSFP56-DD-400G-SR8	12 15			●20 (1, 3, 9, 11)●15 (others)	All ports (1-64)
Active optical cable AOC-QSFP56-DD-400G-10m, 15m	12 15			●20 (1, 3, 9, 11)●15 (others)	All ports (1-64)
Active copper cable	ACC-QSFP56-DD-400G-3m, 5m, 7m	10 15		●20 (1, 3, 9, 11)●15 (others)	All ports (1-64)
Active copper cable	ACC-QSFP56-DD-4QSFP28-3m, 5m	10 15		●20 (1, 3, 9, 11)●15 (others)	All ports (1-64)
Optic QSFP56-DD-400G-FR4	10 15			●20 (1, 3, 9, 11)●15 (others)	All ports (1-64)
Optic QSFP56-DD-40DG-EDR4	10 15			20 (1, 3, 9, 11)15 (others)	All ports (1-64)
Optic QSFP56-DD-40DG-LDR4	10 15			20 (1, 3, 9, 11)15 (others)	All ports (1-64)

Table 5. Z9332F-ON 2x100G QSFP28-DD media

Type Model Power module	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP28-	3.5 12 14 All ports (1-32)
Active optical cable AOC-QSFP28-DD-200G-5m, 10m, 15m	3.5 12 14 All ports (1-32)
Active optical cable AOC-QSFP28-DD-2QSFP28-100G-5m, 7m, 15m	3.5 12 14 All ports (1-32)
Active optical cable AOC-QSFP28-DD-8SFP28-25G-7 m, 10m	3.5 12 14 All ports (1-32)

Table 6. Z9432F-ON 2x100G QSFP28-DD media

Type Model Power module		rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP28-	DD-200G-80G-2SR 4	3.5 14		●20 (1, 9, 23, 31)●15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Active optical cable AOC-QSFP28-DD-200G-5m, 10m, 15m		3.5 14		●20 (1, 9, 23, 31)●15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Active optical cable AOC-QSFP28-DD-2QSFP28-100G -5m, 7m, 15m		3.5 14		●20 (1, 9, 23, 31)●15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Active optical cable AOC-QSFP28-DD-8SFP28-25G-7 m, 10m		3.5 14		●20 (1, 9, 23, 31)●15 (2-8, 10-22, 24-30, 32)	All ports (1-32)

Table 7. Z9664F-ON 2x100G QSFP28-DD media

Type Model Power module	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP28-	3.5 15		●20 (1, 3, 9, 11)●15 (others)	All ports (1-64)
Active optical cable AOC-QSFP28-DD-200G-5m, 10m, 15m	3.5 15		●20 (1, 3, 9, 11)●15 (others)	All ports (1-64)
Active optical cable AOC-QSFP28-DD-2QSFP28-100G-5m, 7m, 15m	3.5 15		●20 (1, 3, 9, 11)●15 (others)	All ports (1-64)
Active optical cable AOC-QSFP28-DD-8SFP28-25G-7 m, 10m	3.5 15		•20 (1, 3, 9, 11) •15 (others)	All ports (1-64)

Table 8. Z9332F-ON 100G QSFP28 media

Type Model Module	power	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP28-100G-ER4-LITE	4.5 12 14 All ports (1-32)
Optic QSFP28-100G-FR 4.0 12 14 All ports (1-32)
Optic QSFP28-100G-LR 4.0 12 14 All ports (1-32)
Optic QSFP28-100G-LR4 4.0 12 14 All ports (1-32)
Optic QSFP28-100G-40G-PSM4	3.5 12 14 All ports (1-32)
Optic QSFP28-100G-CWDM4	3.5 12 14 All ports (1-32)
Optic QSFP28-100G-BIDI 3.5 12 14 All ports (1-32)
Optic QSFP28-100G-SWDM4	3.5 12 14 All ports (1-32)
Optic QSFP28-100G-SR4-G2	2.5 12 14 All ports (1-32)
Optic QSFP28-100G-eSR4	3.5 12 14 All ports (1-32)
Active optical cable AOC-Q28-100G-3m,7m,10m,30m	2.5 12 14 All ports (1-32)
Active optical cable AOC-Q28-4S28-25-10m,30m	2.5 12 14 All ports (1-32)

Table 9. Z9432F-ON 100G QSFP28 media

Type Model Module	power	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP28-100G-ER4-LITE	4.5 14			·20 (1, 9, 23, 31) ·15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Optic QSFP28-100G-FR 4.0 14				·20 (1, 9, 23, 31) ·15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Optic QSFP28-100G-LR 4.0 14				·20 (1, 9, 23, 31) ·15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Optic QSFP28-100G-LR4 4.0 14				·20 (1, 9, 23, 31) ·15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Optic QSFP28-100G-40G-PSM4	3.5 14			·20 (1, 9, 23, 31)	All ports (1-32)
				•15 (2-8, 10-22, 24-30, 32)
Optic QSFP28-100G-	CWDM4	3.5 14		•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Optic QSFP28-100G-BIDI 3.5 14				•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Optic QSFP28-100G-	SWDM4	3.5 14		•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Optic QSFP28-100G-	SR4-G2	2.5 14		•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Optic QSFP28-100G-	eSR4	3.5 14		•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Active optical cable AOC-G28-100G-3m, 7m, 10m, 30m	Q28-100G-3m, 7m, 10m, 30m	2.5 14		•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)
Active optical cable AOC-G28-4S28-25-10m, 30m	Q28-4S28-25-10m, 30m	2.5 14		•20 (1, 9, 23, 31) •15 (2-8, 10-22, 24-30, 32)	All ports (1-32)

Table 10. Z9664F-ON 100G QSFP28 media

Type Model Module	power	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP28-100G-ER4-LITE	4.5 15			•20 (1,3,9,11) •15 (others)	All ports (1-64)
Optic QSFP28-100G-FR 4.0 15				•20 (1,3,9,11) •15 (others)	All ports (1-64)
Optic QSFP28-100G-LR 4.0 15				•20 (1,3,9,11) •15 (others)	All ports (1-64)
Optic QSFP28-100G-LR4 4.0 15				•20 (1,3,9,11) •15 (others)	All ports (1-64)
Optic QSFP28-100G-40G-PSM4	3.5 15			•20 (1,3,9,11) •15 (others)	All ports (1-64)
Optic QSFP28-100G-CWDM4	3.5 15			•20 (1,3,9,11) •15 (others)	All ports (1-64)
Optic QSFP28-100G-BIDI 3.5 15				•20 (1,3,9,11) •15 (others)	All ports (1-64)
Optic QSFP28-100G-SWDM4	3.5 15			•20 (1,3,9,11) •15 (others)	All ports (1-64)
Optic QSFP28-100G-SR4-G2	2.5 15			•20 (1,3,9,11) •15 (others)	All ports (1-64)
Optic GSFP28-100G-eSR4		3.5 15		•20 (1, 3, 9, 11) •15 (others)	All ports (1–64)
Active optical cable AOC-Q28-100G-3m, 7m, 10m, 30m		2.5 15		•20 (1, 3, 9, 11) •15 (others)	All ports (1–64)
Active optical cable AOC-Q28-4S28-25-10m, 30m		2.5 15		•20 (1, 3, 9, 11) •15 (others)	All ports (1–64)

Reverse airflow (PSU-to-I/O)

Table 11. Z9332F-ON 400G QSFP56-DD media

Type Model Module	power	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP56-DD-400G-SR4.2		13.5 Not supported Not supported Not supported
Optic QSFP56-DD-400G-SR8		12 Not supported Not supported Not supported
Active optical cable AOC-QSFP56-DD-400G-10m, 15m		12 Not supported Not supported Not supported
Active copper cable	ACC-QSFP56-DD-400G-3m, 5m, 7m	10 5 10 (ports 1, 2, 3, 4,		29, 30, 31, 32)	Ports 1, 2, 3, 4, 29, 30, 31, 32
Active copper cable	ACC-QSFP56-DD-4QSFP28-3m, 5m	10 5 10 (ports 1, 2, 3, 4,		29, 30, 31, 32)	Ports 1, 2, 3, 4, 29, 30, 31, 32
Optic QSFP56-DD-400G-FR4		10 5 10 (ports 1, 2, 3, 4,		29, 30, 31, 32)	Ports 1, 2, 3, 4, 29, 30, 31, 32
Optic QSFP56-DD-400G-EDR4		10 5 10 (ports 1, 2, 3, 4,		29, 30, 31, 32)	Ports 1, 2, 3, 4, 29, 30, 31, 32
Optic QSFP56-DD-400G-LDR4		10 5 10 (ports 1, 2, 3, 4,		29, 30, 31, 32)	Ports 1, 2, 3, 4, 29, 30, 31, 32

Table 12. Z9432F-ON 400G QSFP56-DD media

Type Model Module	power	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP56-DD-400G-SR4.2	13.5 (4x100G port mode with media-fec-option=custom)12.0 (1x400G or 4x100G port mode with media-fec-option=bypass)	10 12			13.5 (All even ports, 2, 4, 6, 8 etc., until 32)112.0 (All ports, 1-32)1NOTE: OS10 disables ports that are based on 13.5 W rated threshold profiles. To operate with
					12.0 W rated modules, consult Dell technical support for a modified profile.
Optic QSFP56-DD-400G-SR8		12 10 12 All ports (1-32)
Active optical cable AOC-QSFP56-DD-400G-10m, 15m		12 10 12 All ports (1-32)
Active copper cable	ACC-QSFP56-DD-400G-3m, 5m, 7m	10 10 12 All ports (1-32)
Active copper cable	ACC-QSFP56-DD-4QSFP28-3m, 5m	10 10 12 All ports (1-32)
Optic QSFP56-DD-400G-FR4		10 10 12 All ports (1-32)
Optic QSFP56-DD-400G-EDR4		10 10 12 All ports (1-32)
Optic QSFP56-DD-400G-LDR4		10 10 12 All ports (1-32)

1-Limited environmental ambience at 40 degree centigrade and sea level for thermal support.

Table 13. Z9664F-ON 400G QSFP56-DD media

Type Model Module	power	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP56-DD-400G-SR4.2	13.5 12			●12 (1-32)●15 (33-64)	Ports 33-64
Optic QSFP56-DD-400G-SR8	12 12			●12 (1-32)●15 (33-64)	All ports (1-64)
Active optical cable AOC-QSFP56-DD-400G-10m, 15m	12 12			●12 (1-32)●15 (33-64)	All ports (1-64)
Active copper cable	ACC-QSFP56-DD-400G-3m, 5m	10 12		●12 (1-32)●15 (33-64)	All ports (1-64)
Active copper cable	ACC-QSFP56-DD-4QSFP28-3m, 5m	10 12		●12 (1-32)●15 (33-64)	All ports (1-64)
Optic QSFP56-DD-400G-FR4	10 12			●12 (1-32)●15 (33-64)	All ports (1-64)
Optic QSFP56-DD-400G-EDR4	10 12			●12 (1-32)●15 (33-64)	All ports (1-64)
Optic QSFP56-DD-400G-LDR4	10 12			●12 (1-32)●15 (33-64)	All ports (1-64)

Table 14. Z9332F-ON 2x100G QSFP28-DD media

Type Model Power module		rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP28-	DD-200G-80G-2SR 4	3.5 5 10 (ports 1, 2, 3, 4,	29, 30, 31, 32)	All ports (1-32)
Active optical cable AOC-QSFP28-DD-200G-5m, 10m, 15m		3.5 5 10 (ports 1, 2, 3, 4,	29, 30, 31, 32)	All ports (1-32)
Active optical cable AOC-QSFP28-DD-2QSFP28-100G-5m, 7m, 15m		3.5 5 10 (ports 1, 2, 3, 4,	29, 30, 31, 32)	All ports (1-32)
Active optical cable AOC-QSFP28-DD-8SFP28-25G-7 m, 10m		3.5 5 10 (ports 1, 2, 3, 4,	29, 30, 31, 32)	All ports (1-32)

Table 15. Z9432F-ON 2x100G QSFP28-DD media

Type Model Power module	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP28-	3.5 10 12 All ports (1-32)
Active optical cable AOC-QSFP28-DD-200G-5m, 10m, 15m	3.5 10 12 All ports (1-32)
Active optical cable AOC-QSFP28-DD-2QSFP28-100G-5m, 7m, 15m	3.5 10 12 All ports (1-32)
Active optical cable AOC-QSFP28-DD-8SFP28-25G-7 m, 10m	3.5 10 12 All ports (1-32)

Table 16. Z9664F-ON 2x100G QSFP28-DD media

Type Model Power module		rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP28-	DD-200G-80G-2SR 4	3.5 12		•12 (1-32) •15 (33-64)	All ports (1-64)
Active optical cable AOC-QSFP28-DD-200G-5m, 10m, 15m		3.5 12		•12 (1-32) •15 (33-64)	All ports (1-64)
Active optical cable AOC-QSFP28-DD-2QSFP28-100G-5m, 7m, 15m		3.5 12		•12 (1-32) •15 (33-64)	All ports (1-64)
Active optical cable AOC-QSFP28-DD-8SFP28-25G-7 m, 10m		3.5 12		•12 (1-32) •15 (33-64)	All ports (1-64)

Table 17. Z9332F-ON 100G QSFP28 media

Type Model Power module		rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP28-100G-ER4-LITE		4.5 5 10 (ports 1, 2, 3, 4, 29, 30, 31, 32)		All ports (1-32)

Table 17. Z9332F-ON 100G QSFP28 media (continued)

Type Model Power module	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP28-100G-FR 4.0 5 10 (ports 1, 2, 3, 4,			29, 30, 31, 32)	All ports (1-32)
Optic QSFP28-100G-LR 4.0 5 10 (ports 1, 2, 3, 4,			29, 30, 31, 32)	All ports (1-32)
Optic QSFP28-100G-LR4 4.0 5 10 (ports 1, 2	3, 4,		29, 30, 31, 32)	All ports (1-32)
Optic QSFP28-100G-40G-PSM4	3.5 5 10 (ports 1, 2, 3, 4,		29, 30, 31, 32)	All ports (1-32)
Optic QSFP28-100G-CWDM4	3.5 5 10 (ports 1, 2, 3, 4,		29, 30, 31, 32)	All ports (1-32)
Optic QSFP28-100G-BIDI 3.5 5 10 (ports 1, 2	3, 4,		29, 30, 31, 32)	All ports (1-32)
Optic QSFP28-100G-SWDM4	3.5 5 10 (ports 1, 2, 3, 4,		29, 30, 31, 32)	All ports (1-32)
Optic QSFP28-100G-SR4-G2	2.5 5 10 (ports 1, 2, 3, 4,		29, 30, 31, 32)	All ports (1-32)
Optic QSFP28-100G-eSR4	3.5 5 10 (ports 1, 2, 3, 4,		29, 30, 31, 32)	All ports (1-32)
Active optical cable AOC-Q28-100G-3m,7m, 10m, 30m	2.5 5 10 (ports 1, 2, 3, 4,		29, 30, 31, 32)	All ports (1-32)
Active optical cable AOC-Q28-4S28-25-10m,30m	2.5 5 10 (ports 1, 2, 3, 4,		29, 30, 31, 32)	All ports (1-32)

Table 18. Z9432F-ON 100G QSFP28 media

Type Model Power module		rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP28-100G-ER4-LITE		4.5 10 12 All ports (1-32)
Optic QSFP28-100G-FR 4.0 10 12 All ports (1-32)
Optic QSFP28-100G-LR 4.0 10 12 All ports (1-32)
Optic QSFP28-100G-LR4 4.0 10 12 All ports (1-32)
Optic QSFP28-100G-40G-PSM4		3.5 10 12 All ports (1-32)
Optic QSFP28-100G-CWDM4		3.5 10 12 All ports (1-32)
Optic QSFP28-100G-BIDI 3.5 10 12 All ports (1-32)
Optic QSFP28-100G-SWDM4		3.5 10 12 All ports (1-32)
Optic QSFP28-100G-SR4-G2		2.5 10 12 All ports (1-32)
Optic QSFP28-100G-eSR4		3.5 10 12 All ports (1-32)
Type Model Power module		rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Active optical cable AOC-Q28-100G-3m, 7m, 10m, 30m		2.5 10 12 All ports (1-32)
Active optical cable AOC-Q28-4S28-25-10m, 30m		2.5 10 12 All ports (1-32)

Table 19. Z9664F-ON 100G QSFP28 media

Type Model Power module	rating (W)	High port threshold (W)	Critical port threshold (W)	Panel port number allowed
Optic QSFP28-100G-ER4-LITE	4.5 12		•12 (1-32) •15 (33-64)	All ports (1-64)
Optic QSFP28-100G-FR 4.0 12			•12 (1-32) •15 (33-64)	All ports (1-64)
Optic QSFP28-100G-LR 4.0 12			•12 (1-32) •15 (33-64)	All ports (1-64)
Optic QSFP28-100G-LR4 4.0 12			•12 (1-32) •15 (33-64)	All ports (1-64)
Optic QSFP28-100G-40G-PSM4	3.5 12		•12 (1-32) •15 (33-64)	All ports (1-64)
Optic QSFP28-100G-CWDM4	3.5 12		•12 (1-32) •15 (33-64)	All ports (1-64)
Optic QSFP28-100G-BIDI 3.5 12			•12 (1-32) •15 (33-64)	All ports (1-64)
Optic QSFP28-100G-SWDM4	3.5 12		•12 (1-32) •15 (33-64)	All ports (1-64)
Optic QSFP28-100G-SR4-G2	2.5 12		•12 (1-32) •15 (33-64)	All ports (1-64)
Optic QSFP28-100G-eSR4	3.5 12		•12 (1-32) •15 (33-64)	All ports (1-64)
Active optical cable AOC-Q28-100G-3m,7m, 10m, 30m	2.5 12		•12 (1-32) •15 (33-64)	All ports (1-64)
Active optical cable AOC-Q28-4S28-25-10m,30m	2.5 12		•12 (1-32) •15 (33-64)	All ports (1-64)
