USER MANUAL WDM120SW Waring Commercial

Line drawing of a Waring industrial blender with control panel and base (no text or symbols)

WDM120SW

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, basic safety precautions should always be taken, including the following:

1. READ ALL INSTRUCTIONS.
2. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
4. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against electrical hazards, do not put the Waring® Commercial Drink Mixer in water or other liquids.
6. Avoid contact with moving parts.
7. Do not operate the Waring® Commercial Drink Mixer or any other electrical equipment with a damaged cord or plug, or after the unit malfunctions or is dropped or damaged in any manner. Return it to the nearest authorized service facility for examination, repair, or adjustment.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Put this instruction manual in a safe place. Do not discard.

SAVE THESE INSTRUCTIONS APPROVED FOR COMMERCIAL USE

GROUNDING INSTRUCTIONS

For your protection, the Waring® Commercial Drink Mixer is equipped with a 3-conductor cord set.

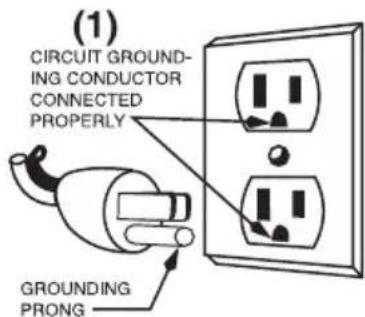

120-volt units are supplied with a molded, 3-prong grounding-type plug, and should be used in combination with a properly connected grounding-type outlet as shown in Figure 1.

If a grounding type outlet is not available, an adapter, shown in Figure 2, may be obtained to enable a 2-slot wall outlet to be used with a 3-prong plug.

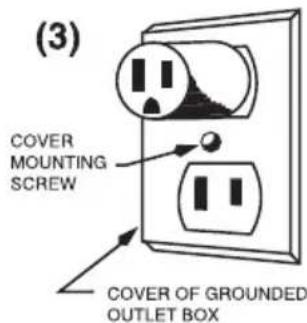

As shown in Figure 3, the adapter must be grounded by attaching its grounding lug under the screw of the outlet cover plate.

CAUTION: Before using an adapter, it must be determined that the outlet cover plate screw is properly grounded. If in doubt, consult a licensed electrician.

Never use an adapter unless you are sure it is properly grounded.

NOTE: Use of an adapter is not permitted in Canada.

(1) CIRCUIT GROUND- ING CONDUCTOR CONNECTED PROPERLY GROUNDING PRONG

(2) ADAPTER GROUNDING LUG

(3) COVER MOUNTING SCREW COVER OF GROUNDED OUTLET BOX

HOW TO USE YOUR WARING® COMMERCIAL DRINK MIXER

Your Waring® Commercial Drink Mixer has its own independent 1 peak HP motor.

The drink mixer can be operated by using the PULSE button. The PULSE button will operate only while pressed and held down.

Keep a firm grip on the cup while using PULSE. Stop mixer when removing cup.

Your Waring® Commercial Drink Mixer is supplied with 1 replacable agitator. To switch agitators, remove the screw located on the bottom of the spindle shaft, turn agitator clockwise to remove. Insert replacement agitator and fasten retaining screw into spindle shaft.

If the motor overheats due to excessive load, unplug the power cord and allow the unit to cool. Reinsert power plug into wall and continue to use.

This unit comes with a built-in stability bar as an extra measure to ensure the stability of the drink mixer when in use.

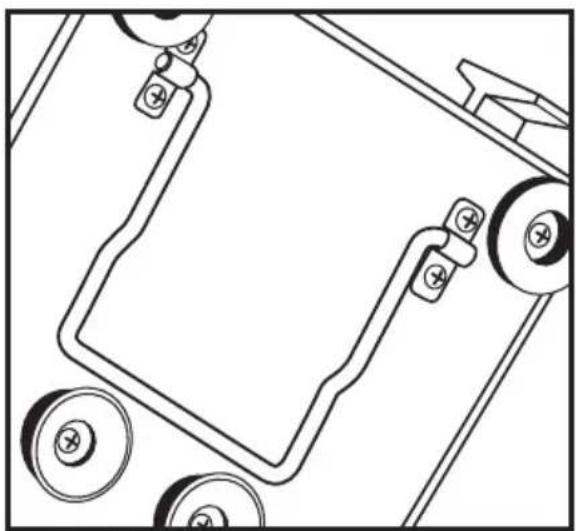

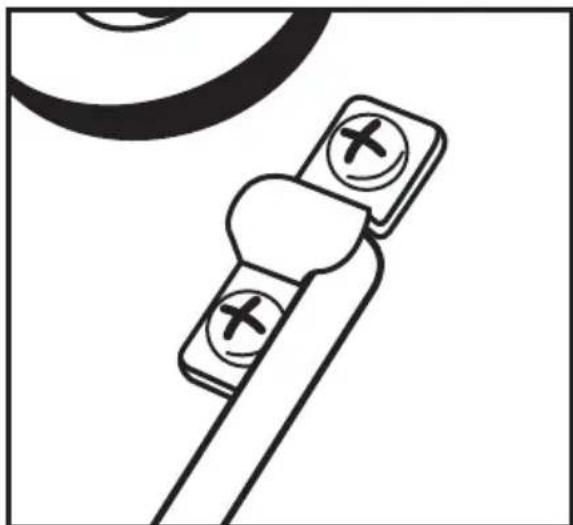

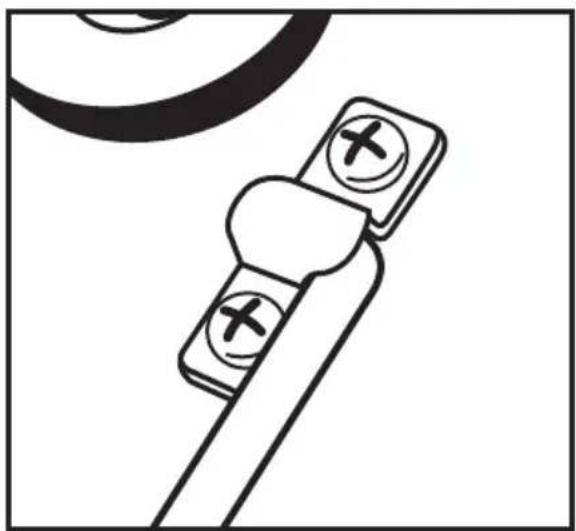

To use: Flip the stability bar shown in Fig. 1 to the outward position. The bar will be locked when it engages into the detent. When storing the unit, rotate the bar inward until seated. (Fig. 1A)

Technical line drawing of a mechanical component with pulleys and a rectangular frame (no text or symbols)

Simple line drawing of a mechanical clamp or connector with two circular components and a handle (no text or symbols)

Figure 1 Figure 1A

CLEANING & SANITIZING INSTRUCTIONS

TO WASH:

UNPLUG MIXER POWER CORD FROM ELECTRICAL OUTLET. DO NOT PUT IN DISHWASHER.

Use only low-foaming detergents formulated for cleaning dishware and cooking utensils. These products can be purchased from restaurant and commercial food-service suppliers. Follow the detergent manufacturer's instructions.

Add 12 ounces of washing solution to mixing cup and place in normal operating position on mixer.

Press PULSE button for a minimum of two (2) minutes.

Empty cup and repeat two-minute run with 12 ounces of water using PULSE button.

Empty cup and repeat two-minute run with 12 ounces of sanitizing solution using PULSE button.

Empty cup. Press PULSE button a few seconds with

empty cup in normal operating position to spin off any excess moisture. Do not rinse cup, spindle or agitator after sanitizing is completed. Allow all parts to air-dry.

TO SANITIZE: Use regular, unscented bleach diluted with water between 50°F and 120°F. Follow the food equipment cleaning instructions on the label to not exceed 200 ppm total available chlorine. The sanitizing dilutions are based on the hypochlorite concentration of the bleach. The dilutions for two commonly available bleach concentrations are:

– Hypochlorite: 5.25% – 3 teaspoons of bleach per gallon of water
– Hypochlorite: 8.25% – 2 teaspoons of bleach per gallon of water
Immerse in or alternately spray item with sanitizing solution and soak for 2 minutes.

Wash, rinse, and sanitize as outlined on page 6 prior to initial use, and whenever mixer will not be used again within a period of one hour to avoid bacteria buildup.

Surfaces of the mixer housing that are outside of the food contact areas may be cleaned as required, using wiping cloths moistened with cleaning solution, rinse water and sanitizing solution.

UNPLUG POWER CORD FROM ELECTRICAL OUTLET BEFORE CLEANING HOUSING. Prevent liquid from running into housing by wringing all excess moisture from wiping cloths before using them.

Washing solutions based on non-sudsing detergents and chlorine-based sanitizing solutions having a minimum chlorine concentration of 100 PPM are recommended.

The following washing, rinsing, and sanitizing solutions, or their equivalents, may be used:

SOLUTION PRODUCT DILUTION IN WATER TEMPERATURE
Washing International Products Corporation LF2100 Liquid Low-Foam Cleaner	1%-2%: 1 14 - 2 34 Ounce/Gallon (lower dilution of 1% for normal cleaning and up to 2% for more stubborn soils)	Room Temperature
Rinsing Plain	Water Warm 95°F (35°C)
Sanitizing	Clorox® Regular Bleach (8.25% Hypochlorite Concentration)	2 Teaspoons/Gallon (Alternately a bleach with 5.25% Hypochlorite Concentration can be used at dilution of 3 Teaspoons/Gallon)

HELPFUL HINTS

1. Always unplug the Waring® Commercial Drink Mixer before disassembling or assembling parts.
2. Be sure to keep all the instructions, parts lists, and service information in a safe and handy place.
3. If using ice, only use crushed ice or small cubes in the Waring® Commercial Drink Mixer.
4. Clean the Waring® Commercial Drink Mixer thoroughly before initial use.
5. Keep mixing cup clean. Wash, rinse and sanitize thoroughly after use.
6. Operate the Waring® Commercial Drink Mixer only when it is fully assembled.

Any other servicing should be performed by an authorized service representative.

LIMITED ONE YEAR WARRANTY

(U.S. and Canada only)

Waring warrants every new Waring® Commercial Drink Mixer to be free from defects in material and workmanship for a period of one year from the date of purchase when used with foodstuffs, nonabrasive liquids (other than detergents) and nonabrasive

Clorox ^® is a registered trademark owned by the Clorox Corporation.

semiliquids, provided it has not been subject to loads in excess of the indicated rating. In addition, the motor in this appliance has a full three-year warranty.

Under this warranty, the Waring Commercial Division will repair or replace any part that, upon our examination, is defective in materials or workmanship, provided the product is delivered prepaid to the Waring Service Center at:

314 Ella T. Grasso Ave., Torrington, CT 06790, or any Factory Approved Service Center.

This warranty does not: a) apply to any product that has become worn, defective, damaged or broken due to use or due to repairs or servicing by other than the Waring Service Center or a Factory Approved Service Center, or due to abuse, misuse, overloading or tampering; or b) cover incidental or consequential damages of any kind.

The one year warranty is applicable only to appliances used in the United States or Canada; this supersedes all other express product warranty or warranty statements. For Waring products sold outside of the U.S. and Canada, the warranty is the responsibility of the local importer or distributor. This warranty may vary according to local regulations.

Warning: This warranty is void if appliance is used on Direct Current (DC).

SERVICE

Should service on this product in USA or Canada be required at any time, call or write to:

Waring Service Center

314 Ella T. Grasso Ave., Torrington, CT 06790

Tel. [phone] • FAX [phone]

or nearest Authorized Service Center

Replacement parts for Waring Out of Warranty repairs are obtainable at the above address.

Note: If your application involves the processing of biologically active materials, any items returned for service must be sterilized before being shipped. Such items must be clearly identified as having been sterilized, both by a tag on the item itself and by a statement in the accompanying correspondence. Waring will not accept delivery of any returns unless they are so identified.

Technical line drawing of a mechanical component with pulleys and wheels (no text or symbols)

Simple line drawing of a mechanical component with two circular holes and a central shaft (no text or symbols)

Fig. 1 Fig. 1A

Waring Service Center 314 Ella T. Grasso Ave., Torrington, CT 06790

Technical line drawing of a mechanical component with pulleys and a rectangular frame (no text or symbols)

Simple line drawing of a mechanical component with two circular holes and a central shaft (no text or symbols)

Fig. 1 Fig. 1A

NETTOYAGE ET DÉSINFECTION

LAVAGE :

DÉBRANCHER L'APPAREIL. NE PAS METTRE AU LAVE-VAISSELLE.

GARANTIE LIMITÉE D'UN AN

Waring Service Center 314 Ella T. Grasso Ave., Torrington, CT 06790
