BB145S - Blender Waring Commercial - Free user manual and instructions

Product Type	Professional Blender (Blender)
Brand	Waring Commercial
Model	BB145S
Supply Voltage	120 V (AC)
Frequency	60 Hz
Number of Speeds	2 (High and Low)
Ice Crushing Function	Yes (use High speed)
Maximum Capacity	Do not exceed the MAX fill line
Blade Material	Stainless Steel
Sealing Gasket	Included (between the container and the blade)
Locking System	Screw-on locking ring (clockwise)
Lid	With removable measuring cap
Grounding	3-wire cord with grounding plug
Motor Protection	Do not immerse the base
Container Cleaning	Non-foaming detergent solution, rinse, bleach disinfection
Maximum Cleaning Temperature	115 °F (46 °C)
Safety Precautions	Very sharp blades, do not touch
Warranty	1 year (material or manufacturing defects)
After-sales Service	Authorized service centers (Waring Commercial Products)
Recommended Use	Cold ingredients only (do not blend hot liquids)

Frequently Asked Questions - BB145S Waring Commercial

How to assemble the container of the BB145S blender?

Place the container upside down, insert the sealing gasket onto the base, then insert the blade over it. Screw the locking ring clockwise to secure the blade. Ensure the gasket is properly in place to prevent leaks.

How to clean and disinfect the blender after use?

Remove the container from the base, rinse, then fill it with a non-foaming detergent solution (max 46 °C). Run at high speed for 2 minutes. Rinse with clean water. Disinfect with a bleach solution (1 tablespoon per 3.75 L of cold water) running for 1 minute. Do not rinse after disinfection, allow to air dry.

Which speed to use for crushing ice?

Always use High speed (HI) to crush ice. Do not exceed the MAX line and do not blend carbonated liquids.

Can I blend hot liquids in this blender?

No, this appliance is not designed to blend hot ingredients or liquids. Use only cold or room temperature foods to avoid injury risk.

What to do if the blender leaks from the bottom?

Check that the sealing gasket is properly installed between the container and the blade. If the gasket is worn or damaged, replace it. Ensure the locking ring is tightly screwed.

How to maintain the blades to extend their lifespan?

Clean the container within 30 minutes after each use. Use a brush to remove residues. Avoid blending oil or peanut butter for more than 5 minutes. Regular cleaning preserves the sharpness of the blades.

What is the warranty of this appliance?

The warranty is 1 year from the purchase date, covering material and manufacturing defects. It is valid in the United States and Canada. For any repair, contact an authorized service center.

Where to find spare parts for the BB145S?

Spare parts such as the sealing gasket, blade, locking ring, lid, and measuring cap are available from the Waring Service Center or authorized service centers. Contact Waring at the address indicated in the manual.

Can I use a plug adapter if the plug does not match?

A temporary adapter for a polarized plug may be used only if the outlet is properly grounded. In Canada, the use of adapters is prohibited. If in doubt, consult an electrician.

How to avoid overflow during blending?

Do not fill the container above the MAX line. If the mixture overflows, immediately stop the appliance and partially empty the contents. Use the appropriate speed and do not operate the blender without the lid.

USER MANUAL BB145S Waring Commercial

Two black blender units, one with a clear glass lid and the other with a black handle (no visible text or symbols)

c UL us NSF®

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

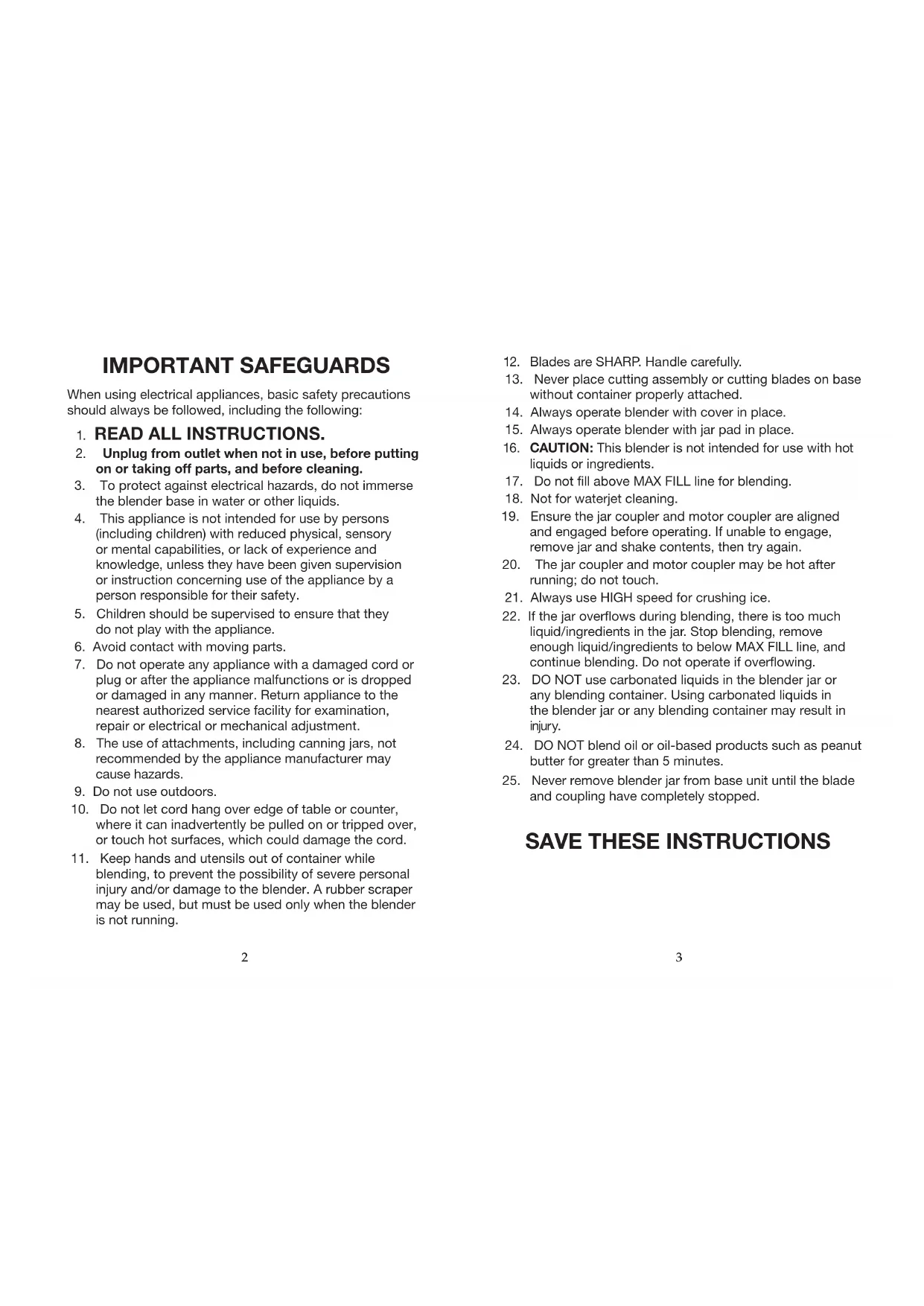

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.
2. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
3. To protect against electrical hazards, do not immerse the blender base in water or other liquids.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
5. Children should be supervised to ensure that they do not play with the appliance.
6. Avoid contact with moving parts.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
8. The use of attachments, including canning jars, not recommended by the appliance manufacturer may cause hazards.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, where it can inadvertently be pulled on or tripped over, or touch hot surfaces, which could damage the cord.

11. Keep hands and utensils out of container while blending, to prevent the possibility of severe personal injury and/or damage to the blender. A rubber scraper may be used, but must be used only when the blender is not running.

12. Blades are SHARP. Handle carefully.

13. Never place cutting assembly or cutting blades on base without container properly attached.
14. Always operate blender with cover in place.
15. Always operate blender with jar pad in place.
16. CAUTION: This blender is not intended for use with hot liquids or ingredients.
17. Do not fill above MAX FILL line for blending.
18. Not for waterjet cleaning.
19. Ensure the jar coupler and motor coupler are aligned and engaged before operating. If unable to engage, remove jar and shake contents, then try again.
20. The jar coupler and motor coupler may be hot after running; do not touch.
21. Always use HIGH speed for crushing ice.
22. If the jar overflows during blending, there is too much liquid/ingredients in the jar. Stop blending, remove enough liquid/ingredients to below MAX FILL line, and continue blending. Do not operate if overflowing.
23. DO NOT use carbonated liquids in the blender jar or any blending container. Using carbonated liquids in the blender jar or any blending container may result in injury.
24. DO NOT blend oil or oil-based products such as peanut butter for greater than 5 minutes.
25. Never remove blender jar from base unit until the blade and coupling have completely stopped.

SAVE THESE INSTRUCTIONS

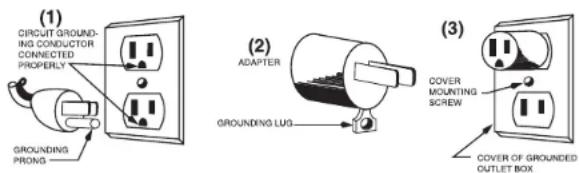

GROUNDING INSTRUCTIONS

• For your protection, Waring® Commercial Blenders are equipped with a 3-conductor cord set.
• 120 volt units are supplied with a molded 3-prong grounding-type plug and should be used in combination with a properly connected grounding-type outlet, as shown in Figure 1.

(1) CIRCUIT GROUND- ING CONDUCTOR CONNECTED PROPERLY (2) ADAPTER GROUNDING LUG (3) COVER MOUNTING SCREW COVER OF GROUNDED OUTLET BOX

If a grounding-type outlet is not available, an adapter, shown in Figure 2, may be obtained to enable a 2-slot wall outlet to be used with a 3-prong plug.

Referring to Figure 3, the adapter must be grounded by attaching its grounding lug under the screw of the outlet cover plate.

CAUTION: Before using an adapter, it must be determined that the outlet cover plate screw is properly grounded. If in doubt, consult a licensed electrician.

Never use an adapter unless you are sure it is properly grounded.

NOTE: Use of an adapter is not permitted in Canada.

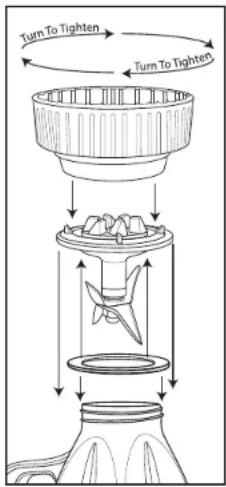

BLENDER JAR ASSEMBLY INSTRUCTIONS

1. When assembling blade assembly to jar, beware of the blades as they are very sharp.
2. Position rubber seal over blade assembly so that it sits in between the flats of the blade assembly and the jar.
3. Insert blade assembly with rubber seal into the bottom hole of the jar.
   NOTE: To avoid leaking while blending, be sure the rubber seal is positioned in between the blade assembly and the jar. HINT: Assembling the jar is easier when the bottom of the jar is facing up.
4. Screw the collar clockwise onto the jar until it tightly secures the blade assembly and seal to the jar.

Turn To Tighten Turn To Tighten

BB145 OPERATION

1. Before starting, make sure that the blender is unplugged.
2. Always be sure container is properly assembled before adding ingredients.
3. Put ingredients into container and cover it. Do not fill above MAX FILL line.
4. With the switch in the OFF position, place container on blender base. Be sure container is fully seated and that drive coupling is properly engaged. Plug blender cord into outlet.
5. This blender has 2 speed settings: HI and LO. Press toggle switch to desired position. To crush ice, always use HI speed setting.

1. When finished blending, set toggle switch to OFF position.
2. Allow motor to come to a complete stop before removing container from blender base. Never place the container on the motor base or remove it from the motor base while motor is running.
3. Always hold container with one hand when starting and while blending. Never operate without jar lid.
4. Wash and dry container after each use. See Cleaning and Sanitizing Instructions.
5. Unplug to turn off all power to blender.

CLEANING AND SANITIZING INSTRUCTIONS

THE CONTAINER MUST BE CLEANED AND DRIED AFTER EACH USE OF THE BLENDER ACCORDING TO THE FOLLOWING INSTRUCTIONS.

FAILURE TO DO SO MAY ALLOW RESIDUE OF PROCESSED MATERIAL TO COLLECT ON THE INTERNAL SEALS OF THE BLADE ASSEMBLY, RENDERING THEM INEFFECTIVE.

• Wash, rinse, sanitize and dry container prior to initial use and whenever it will not be used again within a period of 1 hour.
• Wash and rinse container and blade assembly after each use.
• Clean and sanitize motor base prior to initial use and after each use.
• Washing solutions based on non-sudging detergents and chlorine-based sanitizing solutions having a minimum chlorine concentration of 100 PPM are recommended.

The following washing, rinsing, and sanitizing solutions, or their equivalents, may be used.

SOLUTION PRODUCT DILUTION IN WATER TEMPERATURE

Washing Diversey® Wyandotte 4 Tablespoons Hot 115°F (46°C) Diversol® BX/A or CX/A /Gallon

Rinsing Plain Water Warm 95°F (35°C)

Sanitizing Clorox® 1 Tablespoon/Gallon Cold 50°F–70°F Institutional Bleach (10°C–21°C)

• In repetitive batch-processing applications, frequent cleaning of the container will prolong the life of the blade assembly. In no case should actual running time between cleanings exceed one-half hour.
• Do not use container to store processed foods or beverages.

TO WASH AND RINSE CONTAINER

1. REMOVE CONTAINER FROM MOTOR BASE.

Remove lid. Rinse container interior and lid under running water. Add washing solution to container. Scrub and flush out the container interior and lid to dislodge and remove as much food residue as possible. Empty container.

1. Wipe down exterior of container with a soft cloth or sponge dampened with washing solution. Wash lid and lid insert in fresh washing solution. Fill container one-quarter full with fresh washing solution, cover (with lid only), place on motor base and run on HIGH speed for two (2) minutes. Empty container.

2. Repeat step (2) using clean rinse water in place of washing solution.

IMPORTANT

NOTE: IN ORDER TO MINIMIZE POSSIBILITY OF SCALDING, TEMPERATURE OF WASHING SOLUTION AND RINSE WATER MUST NOT EXCEED 115°F (46°C), AND QUANTITY USED MUST NOT EXCEED ONE-QUARTER CONTAINER FULL.

TO SANITIZE AND DRY CONTAINER

1. Wipe down exterior of container with a soft cloth or sponge dampened with sanitizing solution.
2. Fill container with sanitizing solution, cover, place on motor base, and run on HIGH speed for one (1) minute. Empty container. Dislodge any residual moisture from blade assembly by placing empty container on motor base and running on HIGH speed for two (2) seconds.
3. Sanitize lid and lid insert by immersing in sanitizing solution for two (2) minutes.
4. Do not rinse container, lid, or lid insert after sanitizing is completed. Allow parts to air-dry.

TO CLEAN AND SANITIZE MOTOR BASE

1. UNPLUG POWER CORD. Wipe down exterior surfaces of motor base with soft cloths or sponges dampened with washing solution, rinse water, and sanitizing solution. Prevent liquid from running into motor base by wringing all excess moisture from cloths or sponges before using them.

DO NOT IMMERSE MOTOR BASE IN WASHING SOLUTION, RINSE WATER OR SANITIZING SOLUTION.

1. Allow motor base to air-dry before using.

Authorized Service Centers

For a zip code search of authorized service centers near you, visit waringcommercialproducts.com/support.

Or write to:

Waring Factory Service Center asso Ave.

Torrington, CT 06790 [phone]

Ship blenders for repair to the above address or to an Authorized Service Center. Do not ship to a Waring Sales Office.

NOTE: If your application involves the processing of biologically active material, we request that any items returned for service be sterilized before being shipped. Such items must be clearly identified as having been sterilized, both by a tag on the item itself and by a statement in the accompanying correspondence. Waring will not accept delivery of any return unless it is so identified.

Replacement parts for your out-of-warranty repairs are obtainable at the address below.

LIMITED ONE YEAR WARRANTY

Waring warrants every new Waring ^® Blender to be free from defects in material and workmanship for a period of one year from the date of purchase when used with foodstuffs, nonabrasive liquids (other than detergents) and nonabrasive semi-liquids, providing it has not been subject to loads in excess of the indicated rating.

Under this warranty, Waring will repair or replace any part that, upon our examination, is defective in materials or workmanship, provided the product is delivered prepaid to any Authorized Service Center.

This warranty does not: a) apply to any product that has become worn, defective, damaged or broken due to misuse or due to repairs or servicing by other than the Waring Service Center or an Authorized Service Center, or due to abuse, misuse, overloading or tampering; or b) cover incidental or consequential damages of any kind.

The one year warranty is applicable only to appliances used in the United States or Canada; this supersedes all other express product warranties or warranty statements. For Waring products sold outside of the U.S. and Canada, the warranty is the responsibility of the local importer or distributor. This warranty may vary according to local regulations.

Warning: This warranty is void if appliance is used on Direct Current (DC).

Waring

so Avenue

Torrington,

CT

06790

1-800-4-WARING

www.waring.com

Waring Factory Service Center asso Ave.

• Torrington, CT 06790 [phone]

Waring Factory Service Center sso Ave.

Torrington, CT 06790

Tel. (aux É.-U.): 1-800-269-6640

GARANTIE LIMITÉE D'UN AN
