Archer VR1200v - Router TP-LINK - Free user manual and instructions

Product type	VDSL/ADSL modem router with Wi-Fi
Brand	TP-Link
Model	Archer VR1200v
Category	Router
Dimensions (approx.)	200 x 130 x 35 mm (estimation)
Weight (approx.)	300 g (estimation)
Power supply	12V/1A power adapter
Wi-Fi standards	802.11 b/g/n/ac
Wi-Fi frequencies	2.4 GHz and 5 GHz
LAN ports	4 Ethernet 10/100/1000 Mbps ports
Phone ports	1 RJ-11 port (optional phone)
Main features	High-speed Internet connection, Wi-Fi sharing, parental control, guest Wi-Fi, VPN, firewall
Management	Web interface (http://tplinkmodem.net) and Tether app
Security	WPA/WPA2 encryption, SPI firewall, MAC filtering, parental control
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use liquids.
Safety instructions	Do not expose to water, fire, or high temperatures. Do not disassemble.
Warranty	3 years limited
Repairability	Spare parts not provided by the manufacturer; contact support for repair
Included accessories	Power adapter, phone cable, Ethernet cable, quick installation guide
Operating temperature	0°C to 40°C (estimation)

Frequently Asked Questions - Archer VR1200v TP-LINK

What if the authentication page does not appear?

Check that you entered http://tplinkmodem.net in the address bar. If the computer uses a static IP, switch to automatic IP address assignment. Try another browser or restart the router.

What if the LED status is not correct?

Check the connections (phone jack and power supply). Reset the router by holding down the RESET button. If the problem persists, contact your ISP to check the DSL line.

What if I cannot access the Internet?

Make sure the cables are properly connected. Log in to the web interface and check the VCI/VPI settings, connection type, username, and password provided by your ISP. Reset the router if necessary.

What if I forgot my administration password?

Reset the router to factory settings by holding the RESET button for 10 seconds. Then use admin as the username and password, or create a new password.

How do I restore the router to its default settings?

While the device is powered on, hold the RESET button until all LEDs flash, then release. You can also do this from the web interface under System Administration.

How do I set up the Wi-Fi network?

Log in to the web interface (http://tplinkmodem.net), go to Wireless Settings and modify the SSID (network name) and password. Use the Tether app for simplified setup.

How do I update the router's firmware?

Download the latest firmware from www.tp-link.com. Log in to the web interface, go to System Tools > Firmware Upgrade and select the downloaded file. Do not power off during the update.

How do I contact TP-Link technical support?

Check www.tp-link.com for local contact information. You can also use online chat or email. Have your device serial number and model ready.

How do I use the Tether app?

Download the Tether app from the App Store or Google Play. Connect your mobile to the router's Wi-Fi network, then open the app. Follow the instructions to manage your settings, block devices, or set up parental control.

What if the router overheats?

Place the router in a well-ventilated area away from direct sunlight. Avoid placing it on soft surfaces. If overheating persists, contact technical support.

USER MANUAL Archer VR1200v TP-LINK

Technology Park, Smith Arfield, Manhattan, South Shore, Chicago W.L. (I'm a woodland Green), Joseph Illinois Straße, IL 64720100000 am Levenue, Germany

TP Link UK Limited (ini 2 & 3 Ratings (142-144) Certified Press, 261 EFW

TP-Link Italia Scl. Via Gebetti 2/8 20031 Cemusco sul Navello (Mill

(1) Birk Nelfei, of U.S. McMill, December 15, 3439 ML NeuWegen (2) K. H. (1)

IP-UN:Norder, AB Tortivagen 14, Plan

IP-Link Hellas Ltd. Marabchondromou 77, Marousti 131 24, Grocco MNS Ltd. Link Program Incorporated Ltd. – Awencada Libertade, p°245, 27: 1298-1431/1000, 2016

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2017 TP-Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

tp-link

Quick Installation Guide

Wireless DSL Modem Router

CONTENTS

1 / Deutsch
5 / English
9 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

Hardwareinstallation

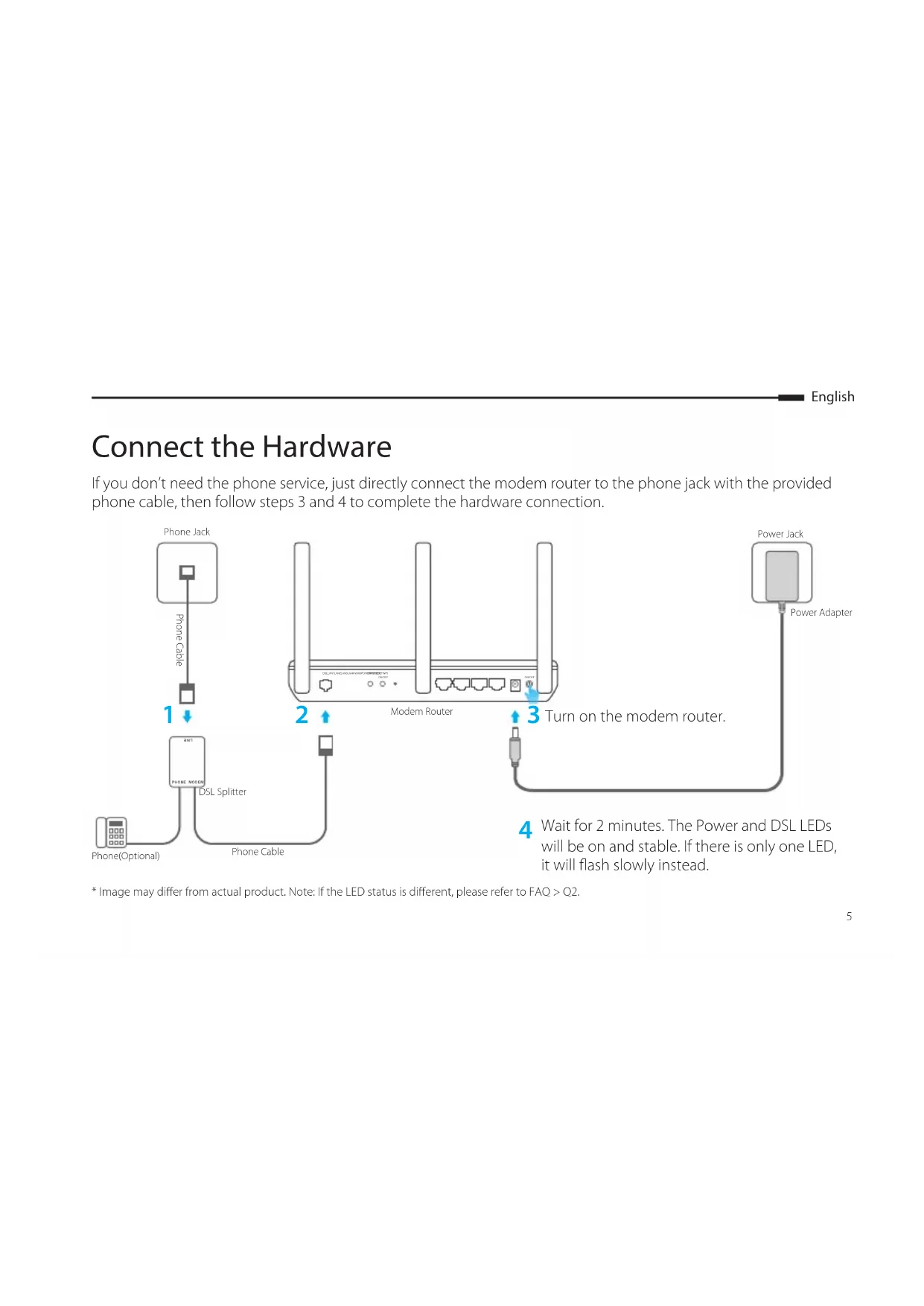

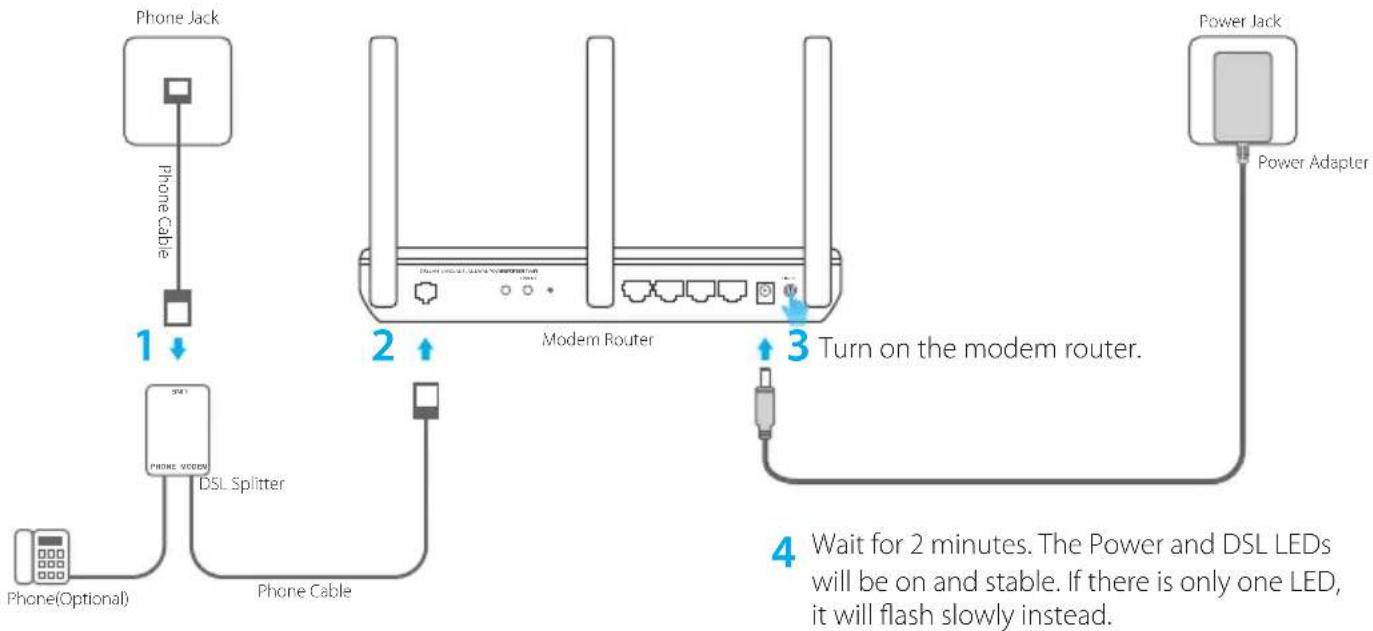

Connect the Hardware

If you don't need the phone service, just directly connect the modem router to the phone jack with the provided phone cable, then follow steps 3 and 4 to complete the hardware connection.

* Image may differ from actual product. Note: If the LED status is different, please refer to FAQ > Q2.

Configure via Web Browser

1 Connecting your computer to the modem router via a wired or wireless connection

Wired

Connect your computer to the LAN (or 1/2/3/4) port using an Ethernet cable.

Wireless

Connect wirelessly by using the SSID (network name) and Wireless Password printed on the product label at the bottom of the modem router.

2 Configuring the modem router via a web browser

A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1. Note: If the login page does not appear, please refer to FAQ > Q1.

B Create a password for future login attempts, or use admin for both username and password for some routers.

C Go to Quick Setup or Quick Start page and follow the step-by-step instructions to complete the initial configuration.

Now you can enjoy your internet. For more advanced settings, refer to the User Guide on TP-Link's official website at www.tp-link.com.

Tether App

The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can block unwelcome devices, set up Parental Controls, configure your wireless settings and more.

Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google Play.

Note: Tether is not supported by some routers. Please check the app description before downloading.

FAQ (Frequently Asked Questions)

Q1. What can I do if the login page does not appear?

A1. If the computer is set to a static or fixed IP address, change the settings to obtain an IP address automatically from the modem router.
A2. Verify http://tplinkmodem.net is correctly entered in the web browser and press Enter.
A3. Use another web browser and try again.
A4. Reboot your modem router and try again.
A5. Disable and enable the active network adapter.

Q2. What can I do if the LED status is not correct?

A1. Check your cables and make sure they are all plugged in correctly, including the telephone lines and power adapter.
A2. Restore your modem router to its factory default settings.
A3. Remove the DSL splitter, directly connect the modem router to the phone jack and then reconfigure the modem router by following the instructions in this Quick Installation Guide.
A4. Contact your ISP to verify if the DSL line is in good status.
A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

English

Q3. What can I do if I cannot access the internet?

A1. Make sure the telephone and Ethernet cables are plugged in correctly.
A2. Try to log in to the web management page of the modem router using the default address at http://tplinkmodem.net. If you can, try the following answers. If you cannot, change your computer to obtain an IP address automatically from the modem router.
A3. Consult your ISP and make sure all the VPI/VCI (or VLAN ID), Connection Type, account username and password are correct. If they are not, replace them with the correct settings and try again.
A4. Restore the modem router to its factory default settings and reconfigure the modem router by following the instructions in this Quick Installation Guide.
A5. Please contact our Technical Support if the problem still exists.

Q4. What can I do if I forget my password?

• Web Management page password:

A. Refer to FAQ > Q5 to reset the router, and then create a password for future login attempts, or use admin for both username and password for some routers.

• Wireless Network password:

A1. The default Wireless Password/PIN is printed on the product label of the modem router.
A2. If the default wireless password has been changed, log in to the web management page of the router to retrieve or reset your wireless password.

Q5. How do I restore the modem router to its factory default settings?

A1. With the modem router powered on, press and hold down the RESET button of the modem router until there is an obvious change of LEDs, and then release the button.
A2. Log in Web Management page of the modem router and go to the system management page to restore the modem router.

Por Wi-Fi

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS

form the date of original retail purchase by the end-user purchaser.

Español

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.
