AF-127454.1 - Deep fryer Emerio - Free user manual and instructions

Brand	Emerio
Model	AF-127454.1
Product type	Air fryer with two independent baskets
Power supply	220-240 V ~ 50-60 Hz, 1700 W
Temperature range	80 °C to 200 °C (adjustable in 5 °C increments)
Timer	1 to 60 minutes (adjustable in 1 minute increments)
Capacity of basket 1 (fries)	500 g (optimal)
Capacity of basket 2 (fries)	300 g (optimal)
Preset menus	Frozen fries, cake, steak, chicken drumsticks, chicken wings, shrimp, roasted sausage, egg tart (with small/large batch settings)
Additional functions	Oil-free cooking, two independent baskets, automatic shut-off, power outage memory (30 min), pause function
Display	Digital screen with temperature and timer for each basket
Basket material	Frying grids with non-stick coating, silicone feet
Care and cleaning	Baskets and grids dishwasher safe; wipe exterior surfaces with a damp cloth; do not immerse the appliance
Safety	Automatic shut-off at end of cooking; overheat detection; hot surface warning; hot steam from air outlet
Warranty	2 years from purchase date (subject to presentation of receipt)
After-sales service	Emerio B.V., Oudeweg 115, 2031 CC Haarlem, Netherlands; phone: [phone]; website: www.emerio.eu/service

Frequently Asked Questions - AF-127454.1 Emerio

How to use the air fryer for the first time?

Remove all packaging, clean the baskets and grids. Heat the appliance empty for 10 minutes at medium power to remove manufacturing residues. Ensure good ventilation.

Can I put oil in the basket?

No, never fill the basket with oil or any other liquid. The air fryer uses hot air to cook food. You can add a small amount of oil directly to the food for extra crispiness.

How to clean the frying grids?

The frying grids are dishwasher safe. You can also wash them with hot water and dish soap using a non-abrasive sponge. Dry them completely before reuse.

What to do if the appliance does not turn on?

Check that the plug is properly inserted into a grounded outlet. Press the start button (∅) to start cooking. If nothing happens, contact after-sales service.

Why are my fries not crispy?

Make sure to use firm potatoes, dry them well before cooking, and do not overfill the basket. Add a little vegetable oil and shake the fries halfway through cooking.

Can I use both baskets at the same time?

Yes, each basket works independently. You can set a different menu for each basket. The total cooking time may be longer if both baskets are used simultaneously.

How to set the temperature and timer manually?

Press the temperature button (thermometer) then + or - to set the temperature. Press the timer button (clock) then + or - to set the time. You can also use the preset menus.

What do error codes E1 and E2 mean?

E1 indicates an NTC sensor problem (open circuit), E2 a short circuit of the NTC. In both cases, stop using the appliance and contact a professional for repair.

The appliance emits white smoke, is this normal?

A slight white smoke may appear when cooking fatty foods (like chicken wings). This is due to oil dripping onto the heating plate. It is not dangerous, but clean the plate after each use.

What is the maximum capacity of the baskets?

For crispy fries, do not exceed 500 g in basket 1 and 300 g in basket 2. For other foods, follow the preset menu guidelines (e.g., 800 g of chicken drumsticks in the large basket).

USER MANUAL AF-127454.1 Emerio

Black and white photo of an air fryer with two side dishes filled with fried food, displayed on a stand (no visible text or symbols)

Abstract black spiral logo design on white background (no text or symbols)

Smart Fryer

(DK)

(NO)

(SE)

(DE)

(EN)

(FR)

(IT)

(ES)

(NL)

CE

Indhold – Innhold – Innehåll – Inhalt – Content – Teneur– Contenuto – Contenido – Inhoud

Brugsanvisning – Danish...... - 2 -

Brukermanual – Norwegian ...... - 10 -

Bruksanvisning – Swedish ...... - 18 -

Instruction manual – English ...... - 36 -

Technical diagram of an air fryer with labeled parts including front, back, and interior views

Looking for spare parts? Have a look at https://spareparts.emerio.eu

Technical diagram of an air fryer with labeled parts including front, back, and internal compartments

17 1 + 3 13 15 4 14 16 2 6 - 11 12 5 10 9 8 7

Meny

Meny		Referansevekt		Standard temperatur	Standard tid	Riste
	Fryste pommes frites	Stor	500 g	200°C	25 min	1-2
		Liten	300 g
[THGS]	Kake	Stor	300 g	150°C	25 min
		Liten	150 g
	Biff	Stor	170 g	200°C	15 min	1-2
		Liten	85 g
	Kyllinglår	Stor	800 g	200°C	30 min	1-2
		Liten	300 g
	Kyllingvinger	Stor	500 g	190°C	22 min	1-2
		Liten	300 g
	Reker	Stor	350 g	190°C	12 min	1-2
		Liten	175 g
	Stekt pølse	Stor	240 g	160°C	15 min	1-2
		Liten	130 g
	Eggeterte	Stor	290 g	170°C	20 min
		Liten	150 g

F∅ R BRUK

Looking for spare parts? Have a look at https://spareparts.emerio.eu

Technical diagram of an air fryer with labeled parts including front panel, back panel, and control panel

1 8 9

Looking for spare parts? Have a look at https://spareparts.emerio.eu

Technical diagram of a toaster oven with labeled parts including air purifier, heater, and control panel

1 8 9

Menü

Menü		Referenzgewicht		Standardtemperatur	Standardzeit	Schütteln
	TK-Pommes Frites	Groß	500 g	200°C	25 min	1-2
		Klein	300 g
	Kuchen	Groß	300 g	150°C	25 min
		Klein	150 g
		Groß	170 g	200°C	15 min	1-2

		Klein	85 g
	Hähnchenkeulen	Groß	800 g	200°C	30 min	1-2
		Klein	300 g
	Hähnchenflügel	Groß	500 g	190°C	22 min	1-2
		Klein	300 g
	Garnelen	Groß	350 g	190°C	12 min	1-2
		Klein	175 g
	Bratwurst	Groß	240 g	160°C	15 min	1-2
		Klein	130 g
	Eiercremetörtchen (Nata)	Groß	290 g	170°C	20 min
		Klein	150 g

VOR DEM GEBRAUCH

Looking for spare parts? Have a look at https://spareparts.emerio.eu

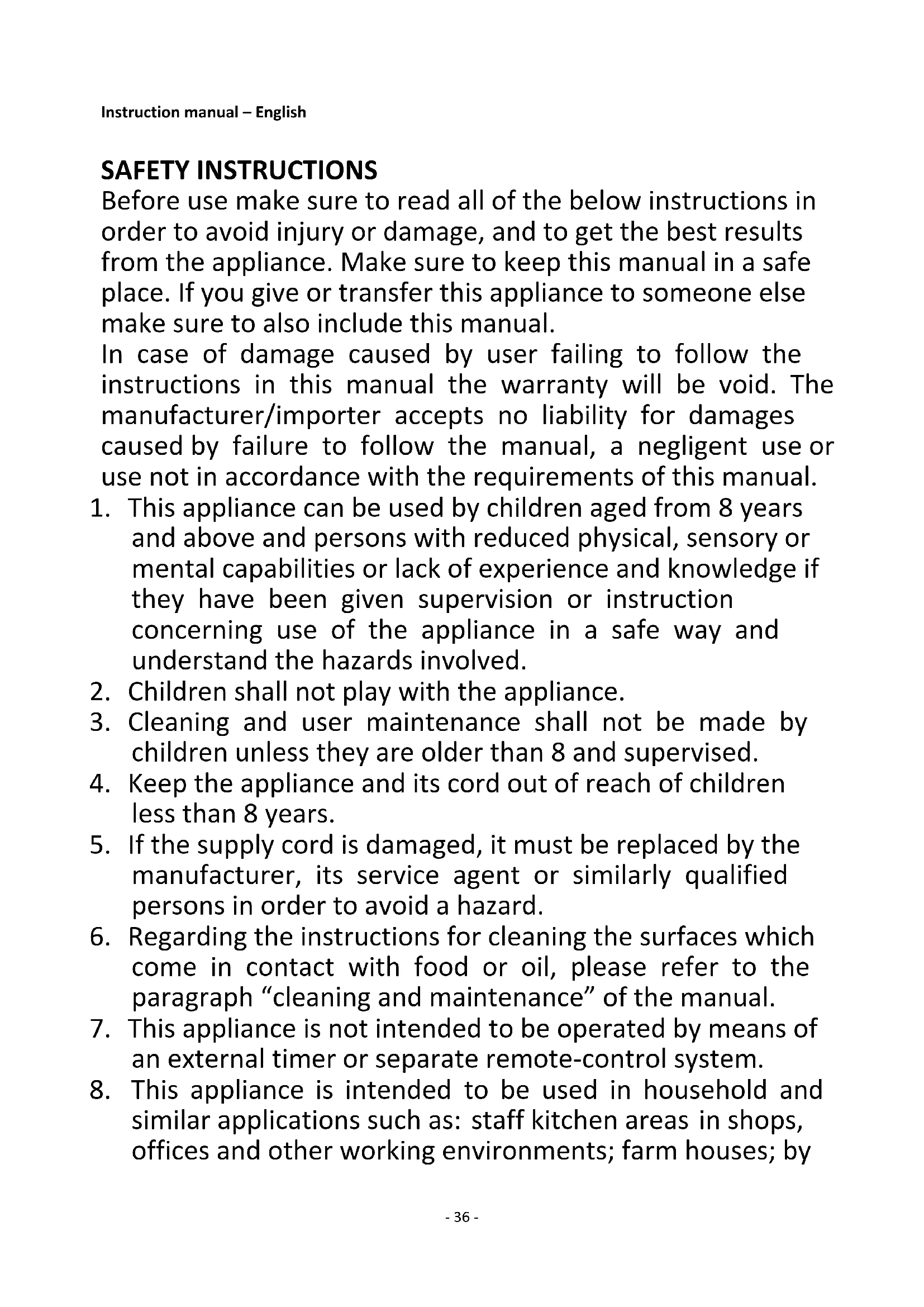

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by

clients in hotels, motels and other residential type environment; bed and breakfast type environments.

1. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

2. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

3. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

4. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

5. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

6. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

7. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

8. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

9. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

10. Never leave the appliance unattended during use.

11. This appliance is not designed for commercial use.

12. Do not use the appliance for other than intended use.

13. Do not wind the cord around the appliance and do not bend it.

14. Place the appliance on a stable, level surface from which it cannot fall off.

15. Please prevent the product to be exposed to excessive dirt and humidity.

16. Clean the product itself with a slightly damp cloth.

17. Do not operate the machine without supervision, if you should leave the workplace, always switch the machine off or remove the plug from socket (pull the plug itself, not the lead).
18. Do not place the appliance against a wall or against other appliance. Leave at least 10cm free space on the back and sides and above the appliance.
19. During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.
20. Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.
21. Make sure before each use of the appliance that the heating element and surroundings are clean and clear from any food remainders in order to ensure a flawless function.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Hot air comes out of the air vent at the back side of the appliance. Be sure to keep sufficient distance to materials, like glass, that are sensitive to heat.
2. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

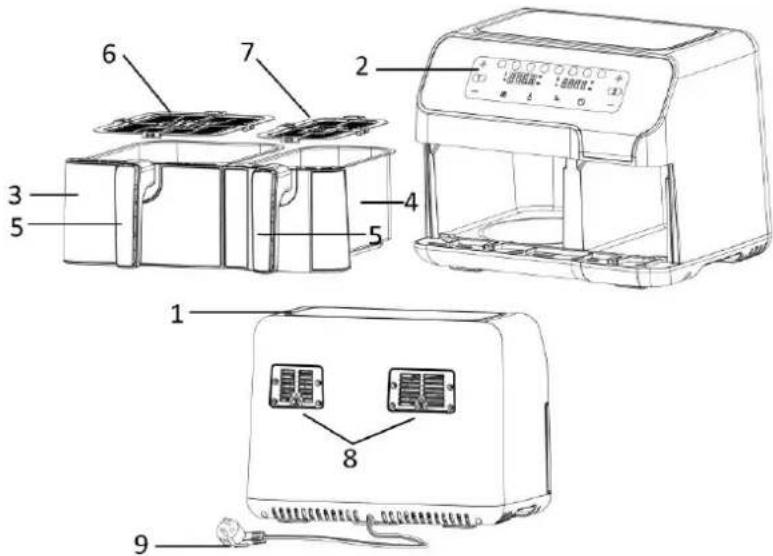

PARTS DESCRIPTION

1. Air inlet
2. Control panel and display
3. Basket 1
4. Basket 2
5. Basket handle
6. Frying grill for basket 1
7. Frying grill for basket 2
8. Air outlet
9. Power cord

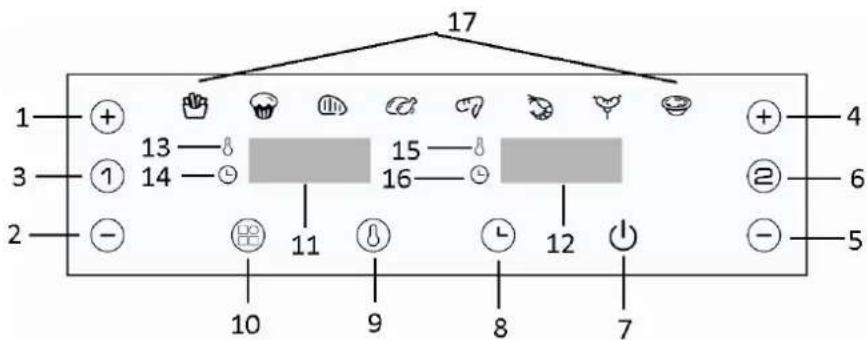

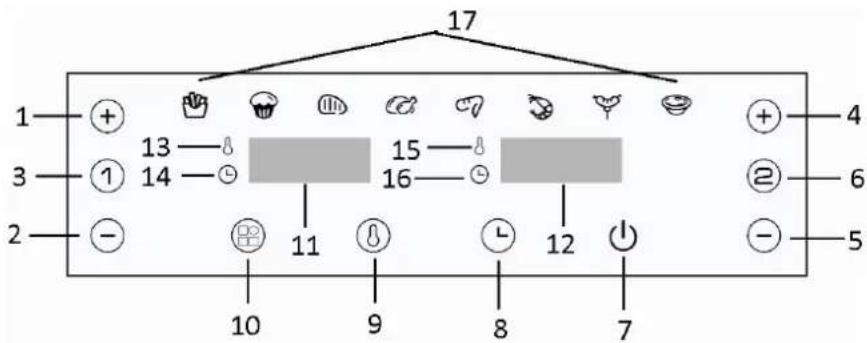

Control penal and display

1. Temperature/ timer increase button for basket 1 (+)
2. Temperature/ timer decrease button for basket 1 (-)
3. Button 1 for basket 1
4. Temperature/ timer increase button for basket 2 (+)
5. Temperature/ timer decrease button for basket 2 (-)
6. Button 2 for basket 2
7. Start/ pause /standby button
8. Timer button
9. Temperature button
10. Menu button
11. Temperature/ timer display for basket 1
12. Temperature/ timer display for basket 2
13. Temperature icon for basket 1
14. Timer icon for basket 1
15. Temperature icon for basket 2
16. Timer icon for basket 2
17. Menu icons

17 1 + 3 13 15 4 1 14 16 2 2 - 11 12 - 5 10 9 8 7

Technical diagram of a toaster oven with labeled parts including front, rear, and internal compartments

Menu

Menu		Reference weight		Default temperature	Default time	Shake
	Frozen French fries	Big	500g	200°C	25min	1-2
		Small	300g
	Cake	Big	300g	150°C	25min
		Small	150g
	Steak	Big	170g	200°C	15min	1-2
		Small	85g
	Drumsticks	Big	800g	200°C	30min	1-2
		Small	300g
	Chicken wings	Big	500g	190°C	22min	1-2
		Small	300g
	Shrimp	Big	350g	190°C	12min	1-2
		Small	175g
	Roast sausage	Big	240g	160°C	15min	1-2
		Small	130g
	Egg tart	Big	290g	170°C	20min
		Small	150g

BEFORE USE

First read all instructions before use and retain the manual for later reference. Only plug this appliance into an earthed socket. Before first use, remove the packing materials. Clean the baskets and frying grills. (See “cleaning and maintenance”) Wipe inside and outside of the appliance with a soft cloth. Make sure that the electrical parts remain dry. This appliance heats food at all directions and most of the ingredients do not need any oil.

Operate the appliance before first use for approximately 10 minutes in order to burn off production residues. Make sure there is good ventilation. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon.

Note: Always use the frying grill with the silicone feet attached. They will help to stabilize the frying grill in the basket during cooking.

USE

1. Place the appliance on a dry, stable and heat-resistant surface.
2. Since the appliance becomes hot during use, make sure that it is not too close to other objects.
3. Pull out the basket from the appliance by the basket handle. Put the frying grill into the basket.
4. Place the ingredients into the basket. Slide the basket into the appliance. Make sure they are placed correctly and closed completely.
   Caution: Do not fill the basket with oil or any other liquid. Do not touch the basket during use or after use in short time as it gets very hot. Only hold the basket by the handle.

5. Connect the power plug to a suitable outlet. The machine is now standby. Press the button " ", button 1 and button 2 will display in the control panel.

6. Press the button 1 to activate basket 1, then press the menu button “💡” to directly choose one of the cooking functions: frozen frech fries, cake, steak, durmsticks, chicken wings, shrimp, roast sausage and egg tart. If you wish to adjust the temperature a little, you can press the button “💡”, and then button “+” or “-” for basket 1 to adjust temperature (5 degrees / press, 80°C-200°C); if you wish to adjust the time, you can press the button “💡”, and then button “+” or “-” for basket 1 to adjust the time (1 minutes / press, 1-60 minutes). You can also long press “+” or “-” for rapid adjustment.

7. Press the button 2 to activate basket 2, then press the menu button “ ” to directly choose the cooking functions among frozen fresh fries, cake, steak, durmsticks, chicken wings, shrimp, roast sausage and egg tart. If you wish to adjust the temperature a little, you can press the button “ ”, and then button “+”

or “-” for basket 2 to adjust temperature (5 degrees / press, 80°C-200°C); if you wish to adjust the time,

you can press the button “+”, and then button “+” or “-” for basket 2 to adjust the time (1 minutes / press, 1-60 minutes). You can also long press “+” or “-” for rapid adjustment.

1. Press the button "⏻"; the appliance (both baskets) will start working. The basket with less working time will finish first.

2. When the cooking process is finished, the appliance will stop working and you will hear a beep sound. During operation, you can press the button "⏻" to pause the programs for both baskets, and press it again to continue the programs.

If you need to pause one of them, press the basket number 1 or 2 firstly, and then press the button "⏻" once, basket 1 or 2 will stop working; press the button again to continue the program.

If no following operation within 3 mins, the paused side will go to standby mode. Press its corresponding basket number to activate it.

Long press the button "💡" will cancel the setting.

1. Pull out the basket from the appliance by the basket handle. Check if the ingredients are ready. If not, simply slide the basket back into the appliance. Select the menu to set the temperature and the timer to a few extra minutes. Then press the button "💡" to run the appliance again. NOTE: You can also pull out the basket to check and shake the ingredients during cooking process.

2. To remove ingredients (e.g. beef, chicken, meat) with original oil and will have excess oil collected on the bottom of the basket during frying, please use tongs to pick ingredients one by one;

To remove ingredients (e.g. chips, vegetable) with no excess oil collected on the bottom of the basket during frying, please pull out the basket, and pour ingredients to tableware.

Note: The basket and the ingredients are hot after frying. Depending on the type of the ingredients in the appliance, steam may escape from the pan.

1. After the cooking is done, the appliance is instantly ready for preparing another batch of ingredients if needed.

Note:

1) Basket 1 and basket 2 can be used separately. According to the ingredients, you can only choose one basket to do your cooking.

2) After basket 1 is started, if you have other ingredients to cook, you can use basket 2. Set the menu or temperature/timer for basket 2, then press the button "💡". The basket 2 will start working.

3) When cooking in both zones, more cooking time will be needed.

4) Power off memory: If the appliance is being used with an accidental power off, the appliance will return to the state before the power failure as long as the power is reapplied within 30min.

FRYING TIPS

1. The optimal amount for crispy fries is 500 grams for basket 1 and 300 grams for basket 2.

2. Add 3 more minutes to the preparation time when the appliance is cold, or you can also let the appliance preheat approx. 4 minutes without any ingredients inside.

3. Some ingredients require shaking halfway through the reparation time. To shake or turn over the ingredients, pull the basket out of the appliance by the handle and shake it or turn over the ingredients by fork (or tongs). Then slide the basket back into the appliance.

4. You can also use the fryer to reheat ingredients. To reheat ingredients, set the temperature to 150^ C for up to 10 minutes.

5. Products with crust of dry breadcrumbs will get crispier by spraying them with a little vegetable oil.

6. Place a baking tin or an oven dish in the appliance if you want to bake a cake or quiche or other fragile ingredients.

7. Do not prepare extremely greasy ingredients such as sausages in the appliance.

CAUTION:

1. Do not immerse the housing in water or rinse it under the tap.
2. Avoid any liquid entering the appliance to prevent from electric shock or short circuit.
3. Keep all ingredients in the basket to prevent any contact with heating elements.
4. Do not cover the air inlet and the outlet when the appliance is working. Leave at least 10cm free space around and above the appliance.
5. Filling the basket with oil may cause a fire hazard!
6. Do not touch the inside of the appliance when it is in operation.
7. Be careful of the hot steam and air when you remove the basket from the appliance.
8. During operation, hot steam is released through the air outlet. Keep your hands and face at a safe distance from the steam and the air outlet.
9. Immediately turn off and unplug the appliance if you see any dark smoke coming out of the appliance, which means the food is overcooked or the appliance broke down.

CLEANING AND MAINTENANCE

1. Before handling or cleaning the appliance, let it cool down for approximately 30 minutes. Clean the appliance on all the inside and outside regularly.
2. Clean the outside and inside of the appliance with a damp cloth and dry with a soft, clean cloth.
3. Never use abrasive cleaners or sponges.
4. Remove the basket to let the appliance cool down more quickly. Clean the baskets and frying grills in hot water with a washing liquid and a non-abrasive sponge. Dry well before use.
5. Clean the heating element inside of the housing (You can see it after pull out the basket) with a cleaning brush to remove any food residues.

Note: Frying grills are dishwasher safe.

TROUBLE SHOOTING

Problem	Possible cause	Solution
The appliance does not work.	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not pressed the button “” to turn on the machine.	Press the button to turn on the appliance.
The ingredients are not fried completely.	The amount of the food in the basket is too high.	Put smaller batches of ingredients in the basket. Smaller batches are fired more evenly.
	The temperature is too low or the time is not enough.	Adjust the temperature to the required temperature or cook extra time.
The ingredients are fried unevenly.	Different types of food may need to be shaken halfway during cooking.	Shake food halfway during the cooking time.
Fried snacks are not crispy	You used a type of snacks which shall be cooked in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crisper result.
White smoke comes out from the appliance.	You are preparing greasy ingredients.	Pay attention that the temperature is well-controlled to be under 180°C, when you fry greasy ingredients in the air fryer.
	The basket still contains grease residues from previous use.	Clean the basket properly after each use.
Fresh fries are fried unevenly.	Haven’t use the right potato type.	Use fresh potatoes and make sure that they stay firm during frying
	Haven’t rinse the potato sticks properly before frying.	Rinse the potato sticks properly to remove starch from the outside of the sticks.
Fresh fries are not crispy	The crispiness of the fries depends on the amount of oil and water in the fries	Make sure the potato sticks have been dried properly before adding the oil.
		Cut the potato sticks smaller for a crispier result
		Add slightly more oil for a crisper result
E1	The NTC is opened.	Contact a professional for repairing
E2	The NTC is short circuit.	Contact a professional for repairing

TECHNICAL DATA

Operating voltage: 220-240V\~ 50-60Hz

Power: 1700W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Customer service:

T: [phone]

www.emerio.eu/service

Kundeninformation:

T: [phone]

www.emerio.eu/service

Klantenservice:

T: [phone]

www.emerio.eu/service

Looking for spare parts? Have a look at https://spareparts.emerio.eu

Attention

1. Attention, surface chaude.

Technical diagram of a food processor with labeled components including air fryer, storage compartments, and control panel

1 8 9

Menu

Looking for spare parts? Have a look at https://spareparts.emerio.eu

Technical diagram of a toaster oven with numbered parts and labeled internal components

Looking for spare parts? Have a look at https://spareparts.emerio.eu

Technical diagram of a toaster oven with labeled parts including front panel, rear panel, and control panel

1 8 9

	Alas de pollo	Grande	500 g	190°C	22 min	1-2
		Pequeña	300 g
	Gambas	Grande	350 g	190°C	12 min	1-2
		Pequeña	175 g
	Salchicha para asar	Grande	240 g	160 °C	15 min	1-2
		Pequeña	130 g
	Tartaleta de huevo	Grande	290 g	170 °C	20 min
		Pequeña	150 g

ANTES DE USAR EL PRODUCTO

Looking for spare parts? Have a look at https://spareparts.emerio.eu

Technical diagram of a toaster oven with labeled parts including front panel, rear panel, and front control panel

1 8 9

17 13 15 16 10 9 8 7 4 2 6 -5

Menu

Menu		Referentiegewicht		Standaard temperatuur	Standaard tijd	Schudden
	Diepvriesfriet	Groot	500g	200°C	25min	1-2
		Klein	300g
	Cake	Groot	300g	150°C	25min
		Klein	150g
	Steak	Groot	170g	200°C	15min	1-2
		Klein	85g
	Kippenbouten	Groot	800g	200°C	30min	1-2
		Klein	300g
	Kippenvleugels	Groot	500g	190°C	22min	1-2
		Klein	300g
	Garnaal	Groot	350g	190°C	12min	1-2
		Klein	175g
	Braadworst	Groot	240g	160°C	15min	1-2
		Klein	130g
	Eierkoek	Groot	290g	170°C	20min
		Klein	150g

VOOR GEBRUIK

Looking for spare parts? Have a look at https://spareparts.emerio.eu
