Product type	Demolition hammer
Brand	HiKOKI
Model	H70SA
Supply voltage (depending on region)	110 V, 220 V, 230 V, 240 V~
Power input	1240 W
Percussion rate at full load	1400 min⁻¹
Weight (with accessories according to EPTA 01/2014)	19.0 kg
Protection class	Class II (double insulation)
Sound pressure level (A-weighted)	79 dB (A)
Sound power level (A-weighted)	99 dB (A)
Vibration emission value (chiselling)	20.5 m/s² (K=1.5 m/s²)
Switch type	Trigger switch with lock
Main applications	Concrete breaking, chiseling, grooving, cutting bars
Standard accessories	Bull point, side handle
Grease maintenance	Replacement every 6 months of use
Brush replacement	When they are worn (near the wear limit)

Frequently Asked Questions - H70SA HiKOKI

How to change the tool (chisel) on the H70SA hammer?

To install a tool, insert the tool shank into the front holder until it clicks. If necessary, lightly tap the tool with a hammer to insert it completely. Use the lock lever to secure the tool in place. To remove, pull the lock lever and remove the tool.

What type of grease to use for lubrication?

Use the specific grease recommended by HiKOKI, available from authorized after-sales service. The hammer is sealed, but the grease must be replaced every 6 months.

What is the required power supply voltage?

The voltage depends on the region: 110 V, 220 V, 230 V or 240 V~. Check the rating plate on the tool before use.

Can I use an extension cord with this hammer?

Yes, use an extension cord suitable for outdoor use if necessary, with sufficient cross-section and as short as possible. It is recommended to use a residual current device (RCD) of 30 mA.

How to replace the carbon brushes?

Unplug the tool. Loosen the cap screws, remove the cap, then remove the brush covers. Replace worn brushes with new ones of the same type. Reinstall the covers and cap, and tighten the screws.

What accessories are included in the packaging?

The packaging contains the main unit, a bull point, and a side handle. Standard accessories may change without notice.

What is the frequency of grease replacement?

Replace the grease every six months after purchase. Use the grease recommended by HiKOKI.

How to check brush wear?

The carbon brushes wear with time. Visually check their length; if they are near the 'wear limit' (about 6 mm), replace them. Some models stop automatically when brushes are worn.

What protective equipment should I wear?

Always wear ear protectors, safety glasses, dust mask, gloves, and safety shoes. Also use a helmet if necessary.

What to do if the tool does not start?

Check that the plug is connected and the switch is in the on position. Also check the carbon brushes, as if they are worn, the motor may not start. If the problem persists, contact an authorized HiKOKI after-sales service.

USER MANUAL H70SA HiKOKI

Technical line drawing of a mechanical tool or power shaver device (no text or symbols present)

Read through carefully and understand these instructions before use. Diese Anleitung vor Benutzung des Werkzeugs sorgfältig durchlesen und verstehen. Lire soigneusement et bien assimiler ces instructions avant usage. Prima dell'uso leggere attentamente e comprendere queste istruzioni. Deze gebruiksaanwijzing s.v.p. voor gebruik zorgvuldig doorlezen. Leer cuidadosamente y comprender estas instrucciones antes del uso.

Handling instructions Bedienungsanleitung Mode d'emploi Istruzioni per l'uso Gebruiksaanwijzing Instrucciones de manejo

1

Technical diagram of a mechanical tool with numbered parts for identification

2

Diagram illustrating a procedure for handling a tool, showing steps 1, 2, and 3 with labeled arrows.

3

Pure technical line drawing of a pipe fitting with no text or symbols

4

I O

5

Technical line drawing of a mechanical tool with a pointed tip and handle, mounted on a base (no text or symbols present)

6

a 86 7mm 17mm b

7

Technical diagram of a mechanical device with numbered components labeled 10 and 11

8

Technical line drawing of a mechanical tool with hands operating it, showing motion and force direction (no text or symbols)

410mm : 944961 W75×410mm : 944964 410mm : 944962 200mm : 944965 250mm : 944966 380mm : 957154

Simple line drawing of a bent pipe or angle (no text or symbols)

6 MM: 872422
3 MM: 943277

999086

(Original instructions)

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodifi ed plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.

A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease.

Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infi rm persons away.

When not in use, tools should be stored out of reach of children and infi rm persons.

DEMOLITION HAMMER SAFETY WARNINGS

Safety instructions for all operations

1. Wear ear protectors.

Exposure to noise can cause hearing loss.

1. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

1. Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.

Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

ADDITIONAL SAFETY WARNINGS

1. Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.
2. Ensure that the power switch is in the OFF position.

If the plug is connected to a receptacle while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.

1. When the work area is removed from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.
2. RCD

The use of a residual current device with a rated residual current of 30mA or less at all times is recommended.

1. Do not touch the bit during or immediately after operation. The bit becomes very hot during operation and could cause serious burns.
2. Before starting to break, chip or drill into a wall, floor or ceiling, thoroughly confi rm that such items as electric cables or conduits are not buried inside.
3. Wear a mask when turning your head upward.
4. Properly set the bit holder.
5. At the start of work, confirm screw tightening.
6. When working at a highly elevated location, pay attention to articles and persons below.
7. Wear protective shoes to protect your feet.

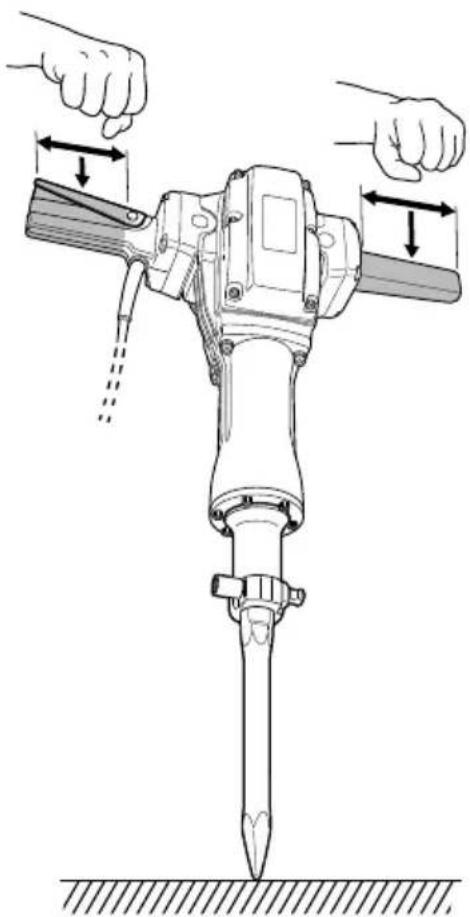

8. Make sure to securely hold the tool as shown in Fig. 8 during operation.

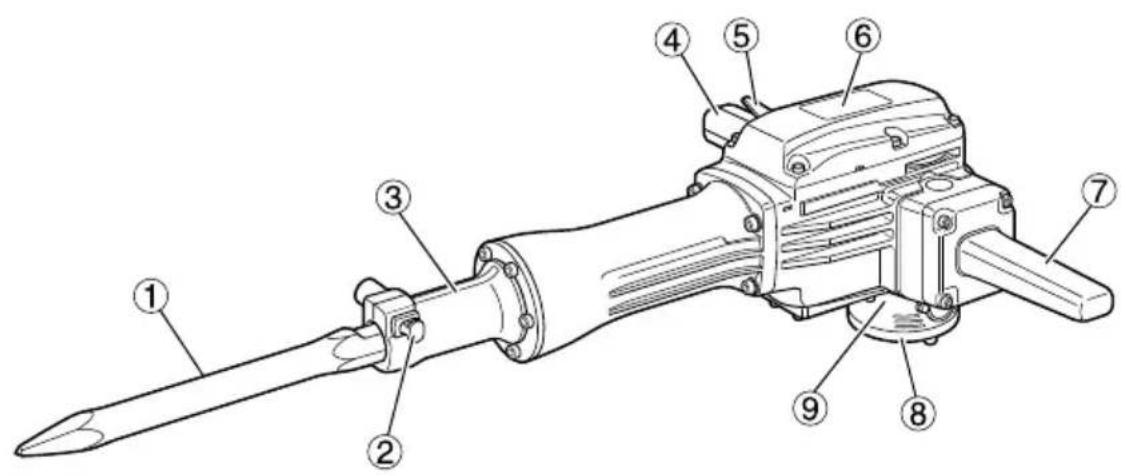

NAMES OF PARTS (Fig.1–Fig.8)

1	Tool shank
2	Stop lever
3	Front cover
4	Handle
5	Trigger switch
6	Nameplate
7	Side handle
8	Tail cover
9	Housing
10	Cap cover
11	Bolt M4

SYMBOLS

WARNING

The following show symbols used for the machine. Be sure that you understand their meaning before use.

	H70SA : Demolition Hammer
	To reduce the risk of injury, user must read instruction manual.
	Only for EU countriesDo not dispose of electric tools together with household waste material!In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.
	Switching ON
	Switching OFF
	Disconnect mains plug from electrical outlet
	Class II tool

STANDARD ACCESSORIES

In addition to the main unit (1 unit), the package contains the accessories listed in the below.

○ Bull Point....1

Standard accessories are subject to change without notice.

APPLICATIONS

Demolishing concrete, chiseling off concrete, grooving, bar cutting.

Application examples:

Installation of piping and wiring, sanitary facility installation, machinery installation, water supply and drainage work, interior jobs, harbor facilities and other civil engineering works.

SPECIFICATIONS

Voltage (by areas)	(110V, 220V, 230V, 240V) ~
Power Input 1240 W*
Full-load Impact Rate 1400 min	-1
Weight(According to EPTA-Procedure 01/2014)	19.0 kg

* Be sure to check the nameplate on this Demolition Hammer as it is subject to change by areas.

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

MOUNTING AND OPERATION

Action Figure Page

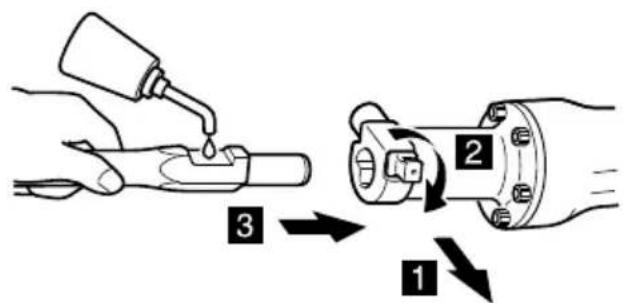

Mounting a tool *1	2, 3 2

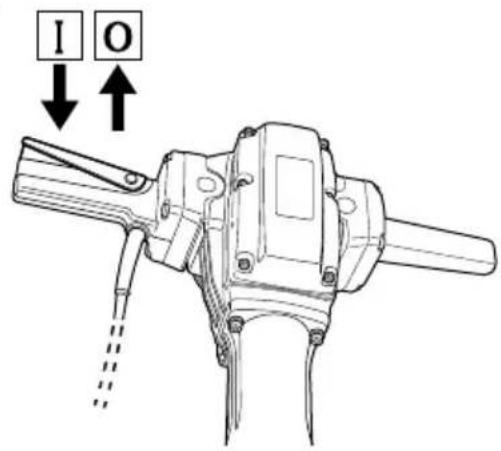

Switch operation 4 3

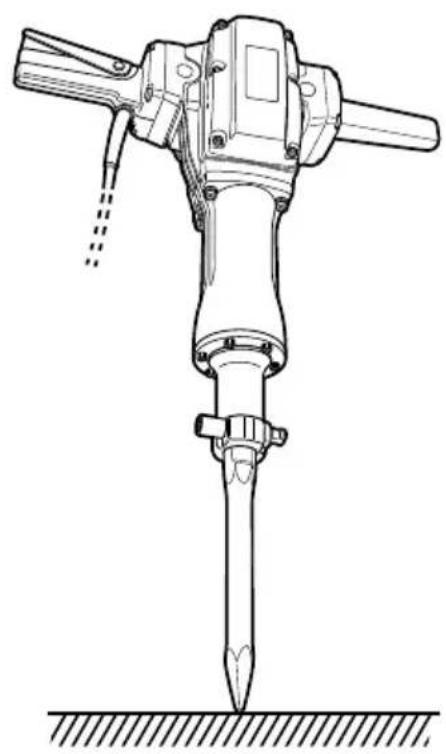

How to use the demolition hammer *2	5	3
Replacing carbon brushes 6, 7 3

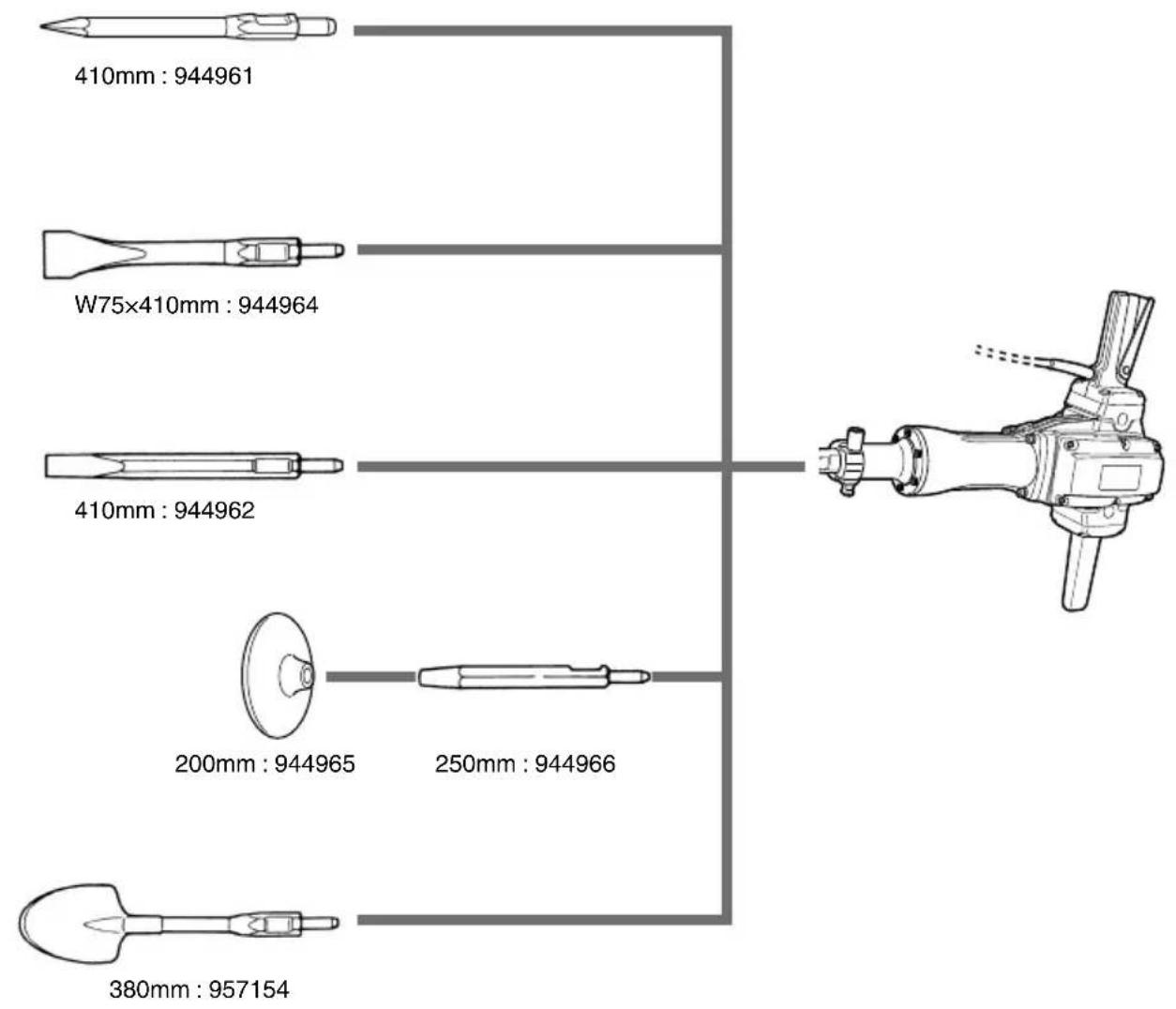

Selecting accessories — 4

*1 If the tool's entire notched portion isn't inserted beyond the front cover's end surface, lightly tap the tool using a hammer or other object to insert it.

*2 Operate this Demolition Hammer by utilizing its empty weight. The performance will not be better even if it is pressed or thrust forcibly against the work surface. Hold this Demolition Hammer with a force just sufficient to counteract the reaction.

GREASE REPLACEMENT

This Demolition Hammer is of full air-tight construction to protect against dust and to prevent lubricant leakage.

Therefore, this Demolition Hammer can be used without lubrication for long periods. Replace the grease as described below.

Grease Replacement Period

After purchase, replace grease after every 6 months of usage. Ask for grease replacement at the nearest authorized Service Center.

MAINTENANCE AND INSPECTION

CAUTION

Be sure to switch OFF and disconnect the attachment plug from the receptacle to avoid a serious accident.

1. Inspecting accessories

Since use of a dull accessory, such as a bull point, a cutter, etc. will degrade efficiency and cause possible motor malfunction, sharpen or replace with a new one as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

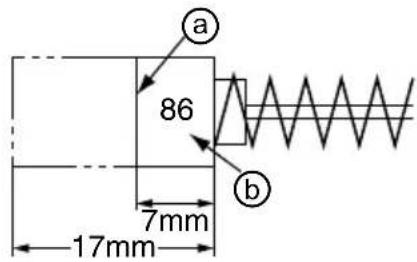

4. Inspecting the carbon brushes (Fig. 6)

The Motor employs carbon brushes which are consumable parts. When they become worn to or near the “wear limit” ⓐ, it results in motor trouble. When an auto-stop carbon brush is equipped, the motor will stop automatically. At that time, replace both carbon brushes with new ones which have the same carbon brush Numbers ⓑ shown in the Fig. 6. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders.

5. Replacing carbon brushes

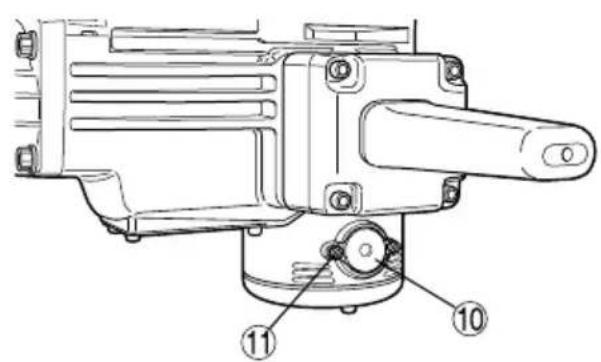

Loosen the screws (Hexagon socket hd. bolt M4×12) of the cap covers, then remove the cap covers (Fig. 7). After removing the brush caps, the carbon brushes can be removed.

After replacing the carbon brushes, tighten the brush caps, then mount the cap covers securely.

6. Replacing supply cord

If the replacement of the supply cord is necessary, it has to be done by HiKOKI Authorized Service Center to avoid a safety hazard.

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

GUARANTEE

We guarantee HiKOKI Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center.

IMPORTANT

Correct connection of the plug

The wires of the main lead are coloured in accordance with the following code:

Blue: — Neutral

Brown: — Live

As the colours of the wires in the main lead of this tool may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire coloured blue must be connected to the terminal marked with the letter N or coloured black. The wire coloured brown must be connected to the terminal marked with the letter L or coloured red. Neither core must be connected to the each terminal.

NOTE:

This requirement is provided according to BRITISH STANDARD 2769: 1984.

Therefore, the letter code and colour code may not be applicable to other markets except The United Kingdom.

Information concerning airborne noise and vibration

The measured values were determined according to EN62841 and declared in accordance with ISO 4871.

Measured A-weighted sound power level: 99 dB (A).

Measured A-weighted sound pressure level: 79 dB (A).

Uncertainty K: 3 dB (A).

Wear hearing protection.

Vibration total values (triax vector sum) determined according to EN62841.

Equivalent chiselling value:

Vibration emission value ah, Cheq = 20.5 m/s2

Uncertainty K = 1.5 m/s²

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.

They may also be used in a preliminary assessment of exposure.

WARNING

The vibration and noise emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used especially what kind of workpiece is processed; and
- Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

NOMS DES PIÈCES (Fig.1–Fig.8)

NOMI DEI COMPONENTI (Fig.1–Fig.8)

VEILIGHEIDSWAARSCHUWINGEN SLOOPHAMER

Siemensring 34, 47877 willich, Germany

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.de

Hikoki Power Tools Netherlands B.V.

Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.nl

Hikoki Power Tools (U.K.) Ltd.

25 Majestic Road, Southampton, SO16 OYT,

United Kingdom

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.uk

Hikoki Power Tools France S.A.S.

Hikoki Power Tools Belgium N.V./S.A.

Koningin Astridlaan 51, B-1780 Wemmel, Belgium

Tel: [phone]

Fax: [phone]

URL http://www.hikoki-powertools.be

Hikoki Power Tools Italia S.p.A

Via Piave 35, 36077, Altavilla Vicentina (VI), Italy

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.it

Hikoki Power Tools Ibérica, S.A.

C/ Puigbarral, 26-28, Pol. Ind. Can Petit, 08227 Terrassa

(Barcelona), Spain

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.es
