USER MANUAL KAC810 KRESS
| 60V 11Ah Backpack CyberPack | EN | P03 |
| 60V 11Ah Rucksack-CyberPack | D | P10 |
| Sac à dos CyberPack 60 V 11 Ah | F | P17 |
| CyberPack Zaino 60V 11Ah | I | P24 |
| CyberPack de mochila 60V 11Ah | ES | P30 |
| Mochila 60 V 11 Ah CyberPack | PT | P36 |
| 60V 11Ah CyberPack-rugzak | NL | P42 |
| 60 V/11 Ah-s CyberPack hátizsák | HU | P48 |
| Rucsac CyberPack 60 V 11 Ah | RO | P54 |
| 60 V 11 Ah Plecak CyberPack | PL | P60 |
| Baterie 60 V 11 Ah Backpack CyberPack | CZ | P67 |
| 60V 11Ah Prenosný nosič CyberPack na chrbát | SK | P73 |
| 60 V 11 Ah Nahrbtnik CyberPack | SL | P79 |
| 60V 11Ah Backpack CyberPack | HR | P85 |
| 60 V 11 Ah CyberPack-rygsæk | DK | P91 |
| 60 V 11 Ah CyberPack-reppumalli | FIN | P97 |
| 60 V 11 Ah ryggsekk-CyberPack | NOR | P103 |
| Ryggsäck för 60V 11Ah CyberPack | SV | P109 |
KAC810
TABLE OF CONTENTS
Introduction....3
Component List....4
Product Safety....5
OperationInstructions....6
How to charge the battery....7
Storage....7
Transport....7
Maintenance and Service....7
Technical Data....8
Environmental Protection....8
Declaration of Conformity....8
INTRODUCTION
Dear Customer,
Thank you for buying this Kress Commercial product. We are dedicated to developing high quality products to meet your commercial landscaping requirements.
The Kress brand is synonymous with premium quality service. Over the years of your product's life, if you have any questions or concerns about your product, please contact your dealer or our Customer Service Team for assistance.
We are confident you will enjoy working with your Kress product for years to come.

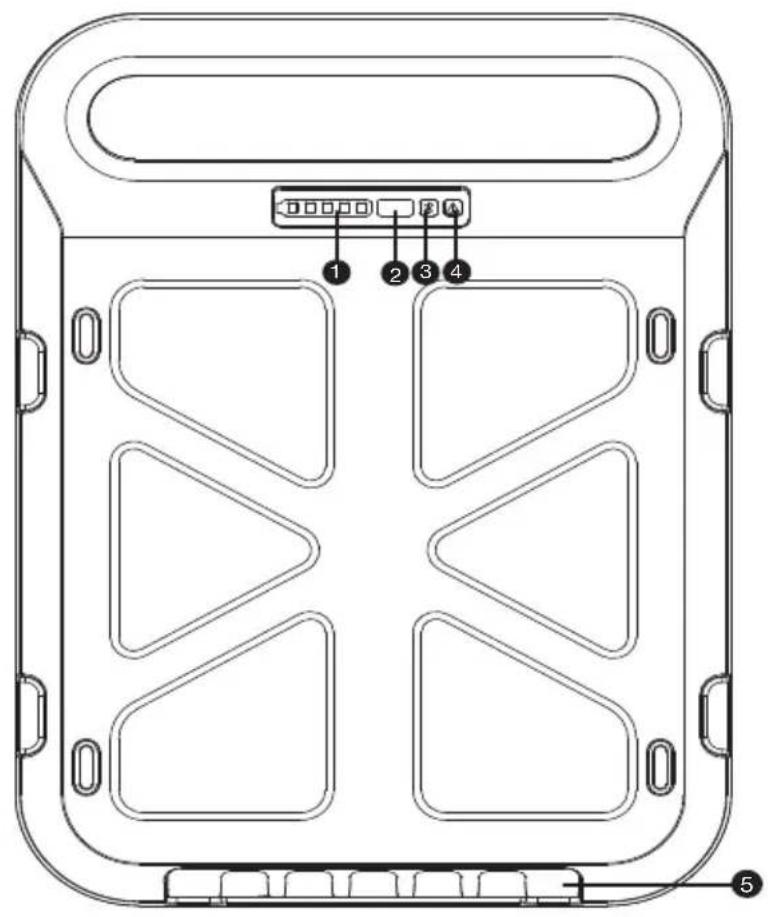

COMPONENT LIST
- BATTERY INDICATOR LIGHT
- POWER TEST BUTTON
- BLUETOOTH INDICATOR LIGHT
- FAULT INDICATOR LIGHT
- DUST FILTER

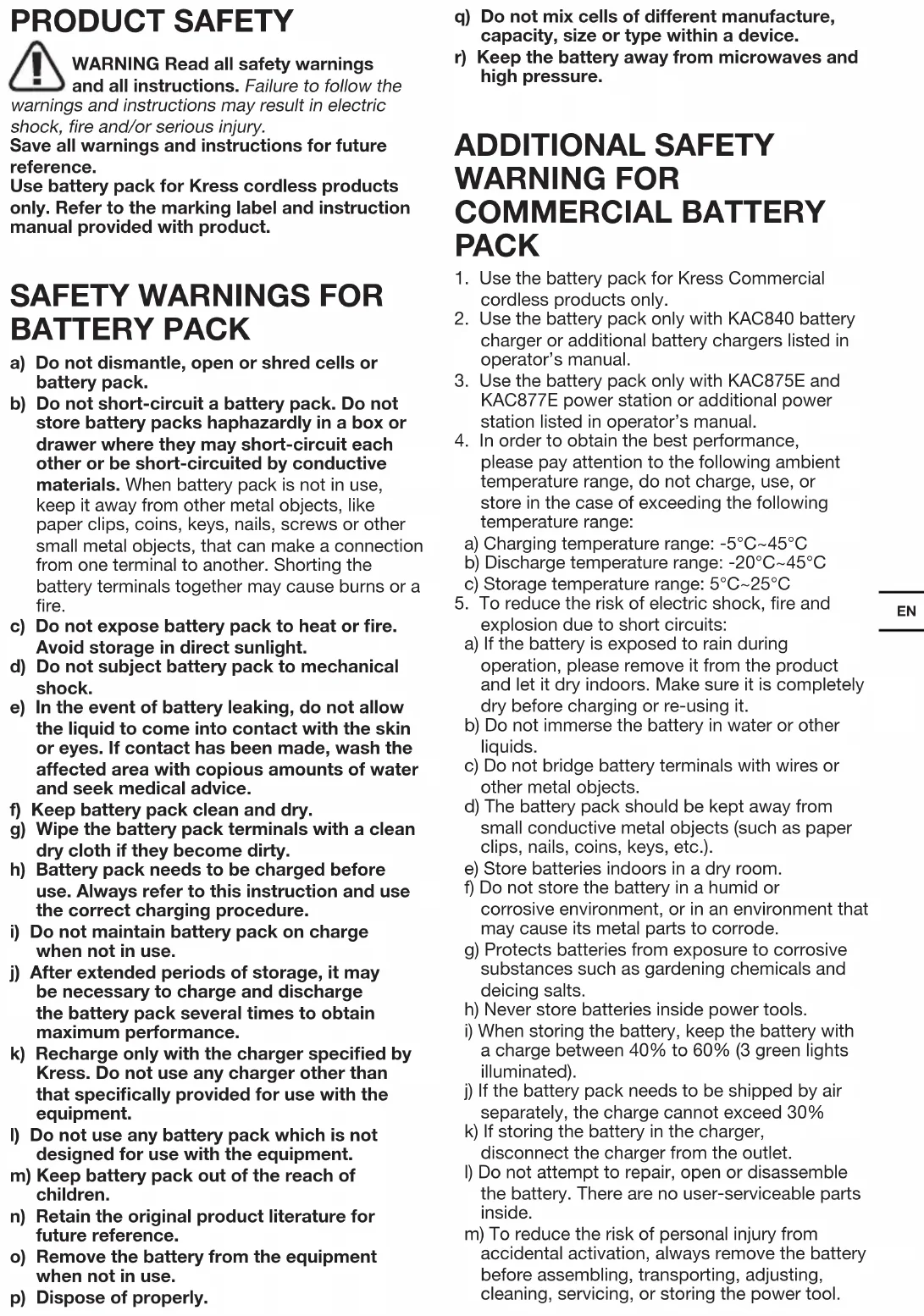

PRODUCT SAFETY
WARNING Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Use battery pack for Kress cordless products only. Refer to the marking label and instruction manual provided with product.
SAFETY WARNINGS FOR BATTERY PACK
a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Keep battery pack clean and dry.
g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
i) Do not maintain battery pack on charge when not in use.
j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
k) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment.
I) Do not use any battery pack which is not designed for use with the equipment.
m) Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Do not mix cells of different manufacture, capacity, size or type within a device.
r) Keep the battery away from microwaves and high pressure.
ADDITIONAL SAFETY WARNING FOR COMMERCIAL BATTERY PACK
- Use the battery pack for Kress Commercial cordless products only.
- Use the battery pack only with KAC840 battery charger or additional battery chargers listed in operator's manual.
- Use the battery pack only with KAC875E and KAC877E power station or additional power station listed in operator's manual.
- In order to obtain the best performance, please pay attention to the following ambient temperature range, do not charge, use, or store in the case of exceeding the following temperature range:
a) Charging temperature range: -5^ 45^
b) Discharge temperature range: -20°C\~45°C
c) Storage temperature range: 5°C\~25°C -
To reduce the risk of electric shock, fire and explosion due to short circuits:
a) If the battery is exposed to rain during operation, please remove it from the product and let it dry indoors. Make sure it is completely dry before charging or re-using it.
b) Do not immerse the battery in water or other liquids.
c) Do not bridge battery terminals with wires or other metal objects.
d) The battery pack should be kept away from small conductive metal objects (such as paper clips, nails, coins, keys, etc.).
e) Store batteries indoors in a dry room.
f) Do not store the battery in a humid or corrosive environment, or in an environment that may cause its metal parts to corrode.
g) Protects batteries from exposure to corrosive substances such as gardening chemicals and deicing salts.
h) Never store batteries inside power tools.
i) When storing the battery, keep the battery with a charge between 40% to 60% (3 green lights illuminated).
j) If the battery pack needs to be shipped by air separately, the charge cannot exceed 30%
k) If storing the battery in the charger, disconnect the charger from the outlet.
I) Do not attempt to repair, open or disassemble the battery. There are no user-serviceable parts inside.
m) To reduce the risk of personal injury from accidental activation, always remove the battery before assembling, transporting, adjusting, cleaning, servicing, or storing the power tool. -
A battery fire is dangerous. To reduce the risk of serious personal injury and property damage in the event of a fire:
a) Evacuate the area. Fires can spread quickly. Keep away from any generated gas and fumes and keep a safe distance.
b) Contact the fire department.
c) While water can be used to extinguish battery fires, it is best to use a multi-purpose dry chemical fire extinguisher.
d) Please consult the fire department for proper disposal of burned batteries.
- Leaking battery fluid can cause skin and eye irritation or chemical burns.
a) Avoid contact with skin and eyes.
b) If liquid gets in eyes: Do not rub. Flush open eyes with water for at least 15 minutes, and seek medical advice.
c) In case of accidental contact, wash the contact area immediately and thoroughly with mild soap and water.
d) Use an inert absorbent such as sand on spilled liquid.
USER MANUAL REQUIREMENTS FOR WIRELESS PRODUCT
a) Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
b) Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
c) NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
SYMBOLS
 | Read the operator's manual |
 | Li-Ion battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. |
Li-Ion | Battery packs can be hazardous for the environment and for human health since they contain hazardous substances. |
 | Environmentally friendly disposal Old electrical appliances must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the communal collecting point via private persons is for free. The owner of old appliances is responsible to bring the appliances to these collecting points or to similar collection points. With this little personal effort, you contribute to recycle valuable raw materials and the treatment of toxic substances. |
 | Do not burn |
 | Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. |
OPERATION INSTRUCTIONS
Recommendations for optimal handling of the battery
Note:
- Your battery pack is partly charged and needs to be fully charged before first use. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your battery in the power tool for the first time.
- A battery pack will slowly lose its charge when kept out of the charger or left in an unplugged charger for a long time. It may need to be recharged before use.
The CyberPack can be used with a backpack, please refer to the backpack manual for details.
When over-discharge, over-charge, over-temperature and low-temperature faults occur while the battery pack is being charged on the charger or used on the machine, the user will receive a fault prompt, and the charger or the machine will stop charging or working.
The Li-Ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.
The battery level can be determined from the battery indicator light by pressing the power test button. Before starting or after use, press the power test button on the battery pack to check the battery capacity.
| Remarks LED light Battery condition | ||
| Five green lights are illuminated. |  | 80% ≤ Power level ≤ 100% |
| Four green lights are illuminated. |  | 60% ≤ Power level < 80% |
| Three green lights are illuminated. |  | 40% ≤ Power level < 60% |
| Two green lights are illuminated. | [06TC] | 20% ≤ Power level < 40% |
| One green light is illuminated. |  | 10% ≤ Power level < 20% |
| One green light is flashing. |  | 0% ≤ Power level < 10% |
You can see the relevant status of the battery through the status of the Bluetooth indicator light and the fault indicator light.
| Remarks Battery | condition |
| Bluetooth indicator light is illuminated. | Bluetooth is connected. |
| Bluetooth indicator light is not illuminated. | Bluetooth is not connected. |
| Fault indicator light is illuminated. | Battery failure, prohibit charging and discharging. |
| Fault indicator light is not illuminated. | It is normal. |
When the battery pack fails, the fault indicator will light up, and you can view the specific fault cause and solution through the APP.
HOW TO CHARGE THE BATTERY
Refer to the instruction manual for charger.
STORAGE
Store the battery only within a ambient temperature range between 5\~25°C. When kept out of the charger or left in an unplugged charger for a long time, the battery still reaches a relatively high level. A significantly reduced working period after charging indicates that the battery is used and must be replaced.
TRANSPORT
The contained Li-Ion batteries are subject to the dangerous goods legislation requirements. The user can transport the batteries by road without additional requirements. Dispatch batteries only when the battery housing is undamaged. Pack up the batteries in such a manner that cannot move around in the packaging.
MAINTENANCE AND SERVICE

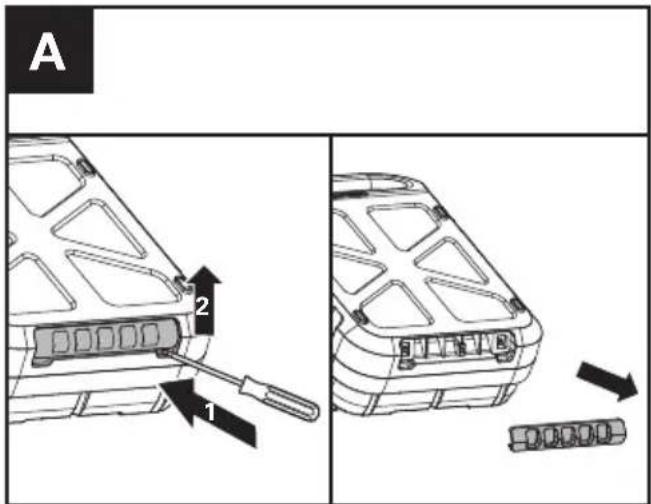

Occasionally clean the venting slots of the battery using a soft, clean and dry brush. When the dust filter on the battery is blocked, it needs to be removed and rinsed with water. After drying, put the dust filter back into the battery. To protect the battery, if the dust filter is damaged, please replace it in time. (See Fig. A)
When the battery is no longer operative, please refer to an authorized after-sales service agent for Kress power tools.
TECHNICAL DATA
| KAC810 | |
| Rated voltage | 60 V — MAX* |
| Battery capacity | 11.0 Ah |
| Recommended Ambient Temperature for Charging | -5~45 °C |
| Optimum Storage Temperature in Use | 5~25 °C |
| Battery Weight | 7.7 kg |
| Degree of protection | IPX5 |
| Frequency bands for Bluetooth | 2400-2483.5 MHz |
| Maximum Transmitted Power for Bluetooth | 8 dBm |
* Voltage measured without workload. Initial battery voltage reaches maximum of 60 volts. Nominal voltage is 54 volts.
ENVIRONMENTAL PROTECTION
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your
local authorities or retailer for recycling advice.
DECLARATION OF CONFORMITY
We,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
Declare that the product,
Description Battery pack
Type KAC810
Function Provide energy for power tools, garden tools and similar products
Complies with the following Directives:
2006/66/EC & 2013/56/EU, 2014/53/EU, 2011/65/
EU & (EU) 2015/863
Standards conform to,
EN 62133-2,
EN 300328,
EN 301489-1/-17,
EN 50663
The person authorized to compile the technical file,
Name Marcel Filz
Address Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
2022/12/06
Allen Ding
Deputy Chief Engineer Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
DECLARATION OF CONFORMITY
We,
Positec (UK & Ireland) Ltd
PO Box 6242, Newbury, RG14 9LT, UK
Declare that the product,
Description Battery pack
Type KAC810
Function Provide energy for power tools, garden tools and similar products
Complies with the following Regulations:
The Batteries and Accumulators (Placing on the Market) Regulations 2008 (as amended) and the Waste Batteries and Accumulators Regulations 2009 (as amended)
Radio Equipment Regulations 2017
The Restriction of the Use of Certain Hazardous
Substances in Electrical and Electronic
Equipment Regulations 2012
Standards conform to,
BS EN 62133-2,
BS EN 300328,
BS EN 301489-1/-17,
BS EN 50663
The person authorized to compile the technical file,
Name Jim Kirkwood
Address Positec (UK & Ireland) Ltd,
PO Box 6242, Newbury, RG14 9LT, UK
2022/12/06
Allen Ding
Deputy Chief Engineer Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
INHALTSVERZEICHNIS
Einführung....10
Komponenten....11
KOMPONENTEN
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
SOMMAIRE
Introduction....17
LISTE DES COMPOSANTS
- VOYANT DE BATTERIE
- BOUTON DE TEST D'ALIMENTATION
- VOYANT BLUETOOTH
- VOYANT DE PANNE
- FILTRE À POUSSIÈRE
SÉCURITÉ DU PRODUIT
DÉCLARATION DE CONFORMITÉ
Nous,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
INDICE
Introduzione....24
Elencocomponenti....25
ELENCO COMPONENTI
2022/12/06 Allen Ding Vice capo ingegnere, testing e certificazione Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China
ÍNDICE
Introducción....30
Lista de componentes....31
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
ÍNDICE
Introdução....36
Lista de componentes....37
MANUTENCAO E SERVICO
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
INHOUDSOPGAVE
Inleiding....42
ONDERDELENLIJST
- BATTERIJ-INDICATIELAMPJES
- POWER TEST BUTTON
- BLUETOOTH-INDICATIELAMPJE
- STORINGSINDICATIELAMPJE
- STOFFILTER
PRODUCTVEILIGHEID
VEILIGHEIDSWAARSCHUWING VOOR COMMERCIËLE ACCU'S
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
TARTALOMJEGYZÉK
Bevezető....48
LISTĂ DE COMPONENTE
- BUTON INDICATOR BATERIE
- BUTON DE PORNIRE
- INDICATOR LUMINOS BLUETOOTH
- INDICATOR LUMINOS DEFECTIUNE
- FILTRU DE PRAF
SECURITATEA PRODUSULUI
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
SPIS TREŚCI
Wprowadzenie....60
LISTA KOMPONENTÓW
- LAMPKA WSKAŻNIKA AKUMULATORA
- PRZYCISK TESTU ZASILANIA
- LAMPKA WSKAŻNIKA BLUETOOTH
- LAMPKA WSKAŻNIKA USTERKI
- FILTR PRZECIWPYŁOWY
BEZPIECZEŃSTWO PRODUKTU
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
OBSAH
Úvod....67
SEZNAM KOMPONENTÜ
-
INDIKÁTOR BATERIE
-
TLAČÍTKO PROZKOUŠENÍ NABITÍ
- INDIKÁTOR BLUETOOTH
- INDIKÁTOR BLUETOOTH
- PRACHOVÝ FILTR
BEZPEČNOST VÝROBKU
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
OBSAH
Úvod....73
ZOZNAM SÚČASTÍ
- KONTROLKA NABITIA BATÉRIE
- TLAČIDLO TESTU NAPÁJANIA
- KONTROLKA BLUETOOTH
- KONTROLKA PORUCHY
- PRACHOVÝ FILTER
BEZPEČNOST VÝROBKU
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
KAZALO VSEBINE
Uvod....79
Sestavni deli....80
Varnost izdelka....81
Navodila za uporabo....82
Polnjenje akumulatorja....83
Shranjevanje....83
Transport....83
SESTAVNI DELI
- INDIKATORSKA LUČKA BATERIJE
- GUMB ZA PREIZKUS NAPAJANJA
- INDIKATORSKA LUČKA BLUETOOTH
- INDIKATORSKA LUČKA ZA NAPAKO
- FILTER ZA PRAH
VARNOST IZDELKA
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
SADRŽAJ
Uvod....85
Popis komponenti....86
Sigurnostproizvoda....87
Upute za upotrebu....88
Punjenje baterije....89
Skladištenje....89
Transport....89
Održavanje i servisiranje....89
Tehnički podaci....90
Zaštita okoliša....90
Deklaracija usklađenosti....90
UVOD
Poštovani,
POPIS KOMPONENTI
- SVJETLO INDIKATORA BATERIJE
- GUMB ZA TEST NAPAJANJA
- SVJETLO INDIKATORA BLUETOOTHA
- SVJETLO INDIKATORA GREŠKE
- FILTAR ZA PRAŠINU
SIGURNOST PROIZVODA
UPOZORENJE: Treba pročitati sve napomene o sigurnosti i upute. Ako se
ne bi poštivale napomene o sigurnosti i upute to bi moglo uzrokovati strujni udar, požar i/ili teške ozljede.
Pažljivo pročitajte upute za siguran rad stroja.
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
INDHOLDSFORTEGNELSE
Introduktion....91
Lista de componentes....92
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
SISÄLLYSLUETTELO
Johdanto....97
Komponenttiluettelo....98
KOMPONENTTILUETTELO
- AKUN MERKKIVALO
- VIRRAN TESTAUSPAINIKE
- BLUETOOTHIN MERKKIVALO
- VIAN MERKKIVALO
- PÖLYSUODATIN
TUOTETURVALLISUUS
Standards conform to,
EN 62133-2,
EN 300328,
EN 301489-1/-17,
EN 50663
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
INNHOLDFORTEGNELSE
Introduksjon....103
Komponentliste....104
Produktsikkerhet....105
Driftsinstrukser....106
KOMPONENTLISTE
- BATTERIINDIKATORLYS
- STR∅MTESTKNAPP
- BLUETOOTH-INDIKATORLYS
- FEILINDIKATORLYS
- ST∅VFILTER
PRODUKTSIKKERHET
SERVICE OG VEDLIKEHOLD
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
INNEHÅLLSFÖRTECKNING
Introduktion....109
Komponenter....110
Produktsäkerhet....111
Bruksanvisning....112
Så laddar du batteriet....113
Förvaring....113
Transport....113
KOMPONENTER
- BATTERIETS INDIKATORLAMPA
- KNAPPEN FÖR STRÖMTEST
- INDIKATORLAMPA TILL BLUETOOTH
- INDIKATORLAMPA VID FUNKTIONSSTÖRNING
- DAMMFILTER
PRODUKTSÄKERHET
WARNING! LÄS ALLA INSTRUKTIONER.
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Copyright © 2023, Positec. All Rights Reserved.
AR01686701
