USER MANUAL GAK 750 B Güde

Do you have any technical questions? Claim? Do you need spare parts or instructions for operation? We are ready to help you quickly and without unnecessary bureaucracy at our site www.guede.com in the part Service. Please help us in helping you. In order to identify your machine in case of a claim we need its serial number, product number and year of production. All the data mentioned can be found at the type plate. Please write them down bellow to have them always handy: Serial number: Product number: Year of production: Phone.: [phone] / 700-360 Fax: [phone] E-Mail: [e-mail] Unit Professional care of trees and wood species done from the ground. With a pole 2.8 m long, considerable heights may be reached. Very small weight and user-friendly outfit provide conditions of safe and easy work. Included is a strand. Branded cutting assembly of premium quality. Driving mechanism with a stable metal pinion. Total length with the cutting assembly is 2.8 m. Quality electronic ignition secures high performance and good starting characteristics. With integrated fuel pump, starting is easy and free of any troubles even after prolonged periods of breaks and downtimes. Scope of Delivery

7. Chain protection cover

8. Inner hexagon screw

9. Inner hexagon screw

Warranty Warranty claims according to the warranty certificate attached. General Safety Instructions The instruction manual should be read in full prior to the initial use. In case of any doubts regarding connection and operation of the unit, turn to the manufacturer (servicing department). TO GUARANTEE A HIGH DEGREE OF SAFETY, THE INSTRUCTIONS BELOW SHOULD BE OBSERVED: CAUTION!

• Before getting down to work with the pruner, a flat and non-skid workplace providing for sufficient room and freedom of movement

• Observe any of the instructions contained herein before you start working with the pruner and in the course of the work.

• Do not operate the tool if you are tired or under effect of alcohol or drugs.

• Save these instructions. .

• When not in use, the unit should be stored indoors in a dry place – out of reach of children.

• Any relevant regulations of accident prevention and other generally recognised safety technical rules should be observed.

• Keep notebooks of professional association (VBG 7j).

• Use of other than genuine tools and accessories may result in a risk of accident. .

• Upon completion of a repair or maintenance, any protection and safety devices should be re-installed immediately.

• Any damaged or defective protection devices should be replaced immediately. .

• The persons working with the pruner should not be diverted to lack the concentration.

• Clean the chips and cluttered parts of branched away from the working site. .

• Do not use the pole pruner in windy weather or in a storm. The pruner is intended for wood cutting only. Do not use it for other purposes. Do not use it to cut objects other than wooden. Emergency Procedures Give first aid appropriate to the injury and call a qualified medical help as fast as possible. Protect the injured against more harm and put him/her in a resting position. Unit Marking Meaning of Symbols Symbols shown below are used in this manual and on the unit: Product Safety:

Product conforming to respective EU standards Bans:

General Prohibition (in combination with another pictograph) No fire, no unprotected light, no smoking Do not touch Do not Reach in Equipment Do not use the machine in wet weatherWanings :

Warning/caution Beware of hazardous volrage Beware of combustion promoting substances Risk of stumble Beware of health hazardous gases Do not Reach in Equipment

The machine should be used outside confined spaces only Mind the risk of cutting Keep safety distance Commands/Instructions:

Read instruction manual before use Environment Protection:

Dispose of the waste in an environment-aware manner. Cardboard packaging material may be delivered to a salvage point for recycling. Defective electric and electronic devices or those to be disposed of should be delivered to a salvage point for recycling. Packaging:

Protect from rain Packaging placing direction – up Fragile! Technical Data:

Bar length Capacity 2-stroke engine Tank capacity Weight Noise level Use in Compliance with Determination The engine pole pruner is exclusively designed for pruning and treatment of other wood species from the ground. The manufacturer shall not be held liable for any damages if the generally valid regulations and provisions contained herein are not observed. Residual Hazard and Preventive Action Mechanical Residual Hazards Threat Description Preventive Action Residual Hazard Bacjkash Turning the bar may result in backlash in the extension tube. Work at sufficient speed and do not turn the bar.Noise Risk Gefährdung Beschreibung Schutzmaßnahme(n) Restgefahr Hearing disorder Hearing may be damaged in result of prolonged work with the unit . Wear ear protectors Exposure to material and other substances hazards Gefährdung Beschreibung Schutzmaßnahme(n) Restgefahr Contact, inbreath Breathing in may be extremely dangerous or even fatal to health. Use the unit outdoors only Work up the wind . Fire or explosion The unit works on an easily inflammable mixture of fuel that may catch fire at refuelling e.g. Do not replenish the fuel near an open fire. Do not smoke .

Failure to Observe Human-Factor Principles Gefährdung Beschreibung Schutzmaßnahme(n) Restgefahr Negligence in the use of personal protection equipment Negligence in the use of personal protection equipment may result in severe injuries. Use all kinds of personal protection equipment. Human behaviour/human error Focus on your job Cannot be excluded completely Other risks Gefährdung Beschreibung Schutzmaßnahme(n) Restgefahr Slipping, stubbing or falling Other persons may be exposed to danger in result of somebody’s slipping or stubbing Keep other persons as a reasonable distance away from the working area.

Disposal The instructions for disposal are expressed in the pictographs on the unit or the packaging. For description of individual meaning see chapter “Unit Marking”. Operator Requirements The operator is required to read the instruction manual carefully before using the unit. Qualification No special qualification is required except for detailed briefing by a specialist. Minimum Age The unit shall be operated by persons above 16 years of age. Operation by juvenile operators is an exception, if it is as a part of professional training under supervision of a teacher with an aim to obtain skills. Training The unit operation requires an adequate briefing. No special training is required. Technical Data

• Empty the fuel and the oil tanks. .

• Remove and clean the guide bar and the chain.

• Clean the bar and the chain by dipping in kerosene solvent or fine soap solution.

• Dry the guide bar and the chain. .

• Put the chain in a tank filled with oil to prevent corrosion.

• Apply a thin oil layer on the guide bar.

• Wipe the pruner interiors with soft cloth wetted with fine soap solution.

• Store the pruner at an elevated locked place out of the reach of children.

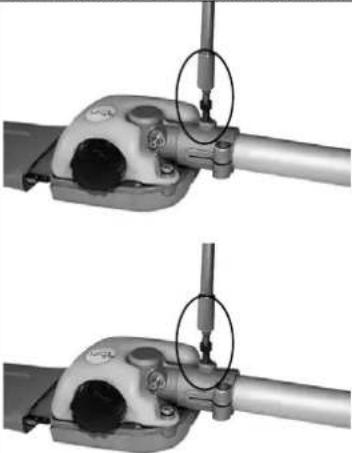

• Store the pruner in a plastic bag at a dry place or put the cover included on the guide bar. Assembly and Initial Putting in Operation Assembly Group 1 Parts of Delivery Fig. 4 Fig. 1 – Pos. 1 Fig. 1 – Pos. 6

Assembly Group 2 Assembly Groups Required Parts of Delivery

Assembly Group 5 Assembly Groups Required Parts of Delivery

• Pour the 2-stroke fuel in the respective hole (1). Beware of spills. (Risk of ignition).

• Move from the place of replenishment at a distance of 3 meters at least. Never start the unit in confined or poorly ventilated spaces. Filling: Mix leadless petrol with branded oil for two-stroke air-cooled engines at a ratio of 1:40.1

• Remove oil tank cover (1).

• Pour biologically degradable chain oil in the oil tank (2). Application of naturally degradable grain grease of rape of sunflower oil on guide rail and chain is recommended.

• Replace the oil tank cover (1) and tighten it well. That will prevent oil leakage from the tank.

• Wipe any excess oil off. Empty the oil tank after every use (2) for the oil not to pour off. Take care for the fuel and the oil not to soak in the soil. Safety Instructions for First Putting in Operation Before putting the engine pole pruner in operation, check whether it is in safe serviceable condition. Never start the unit if in doubt. Observe the following steps in particular:

• Correct installation of separate parts

• Ease of all the switches run.

• Safe positioning of the spark plug socket. If the socket is slack, the spark may put the fuel-air mixture on fire. .

• Never use the pruner if the saw or handle are damaged, poorly adjusted or not safely assembled, when the starter is not working. The chain should stop if the starter is on. Defective starters should be replaced at one only authorised servicing centre.

• Do not use the pruner in a windy or stormy weather.

• Beware of falling branches. Inspect the tree before pruning. Make space for falling branches and watch out for the direction of fall.

• Do not use the pruner for cutting sprouts or shrubs.

• Do not work in the vicinity of flammable liquids or gases.

• Defective chain should be replaced immediately.

• Keep your tools clean and sharp, your work will be better and safer. People around should be kept at a safe distance. Operation

• Shift the switch (1) towards the handle. At cold start, the choke switch (5) has to be pushed upwards.

• Press the fuel pump (4) ca 8-10 times to fill the fuel system. (2-3 times at a normal operation).

• Put your hand on the handle and release the cut-out. Push the start button in and press the lock button (2). Keepit pressed and let the engine button go. The set-up is not ready (2).

• Hold the saw with one hand on the clasp (4). Pull the launching cable (6), until the engine runs. CAUTION! Do not pull the cable too far! Watch out the running chain.

• When the engine is running, shift the choke switch downwards again (5). Give full throttle 2-3 times and start working.

• After switching the machine off put the switch to (1) „STOP“ (in the direction of edge)Fig. 10

• Lubricate the drive shaft in the extension tube by pressing the lubricating pin (1).

• Fill the oil tank (2) with the indicated chain oil (see Chapter 5). Chain Tension Set Up

WARNING: Always pay attention to the chain tension. A slackened chain will increase the risk of backlash. If

slackened, the chain could spring out of the guide, could cause injury to the operator and get damaged. A slackened chain wears out very quickly and the sprocket wheel and the guide bar wears out

• Prior to the chain tension set up make sure that the guide bar nut (1) is tightened by hand only.

• Turn the setting screw (2) clockwise until the chain fits but may be moved with ease. The chain should fit evenly at every point of the bar but should not be too tense or clasped.Fig. 12

• The chain should move freely. If it does not, release it by turning the setting screw (2) anticlockwise.

• Once the chain is tensioned correctly, tighten the guide bar nut. If it is not tight, the guide bar will move and slacken the chain tension. This would increase a risk of backlash that may cause damage to the unit. Notice: A new chain tends to extend. Check the new chain after initial minutes of operation. Le the chain cool down and reset the chain tension.

Bar and Chain Replacement

• Remove the chain bar nut (1) and take the cover off

• Remove the bar (3) from the guide.

• Now, the bar or the chain may be exchanged.

• Conduct the chain round the bar and insert it in the guide. .Fig. 17

• Mind the chain run direction.

• Replace the cover and screw it down (1).

• Provide for the chain tension as appropriate Operation Safety Precautions Avoid the backlash. The backlash may cause severe injuries. Do not use the unit if standing on a ladder or another unstable support or if your footing is not firm. Call a specialist to assist if the circumstances require a use of heavier units.

Remember what are the conditions of your work. The unit produces toxic fumes as soon as the engine is running. These exhaust gases may be odourless and invisible. Therefore, never operate the pruner in confined or poorly ventilated spaces. Make sure to have good lighting. Take care in wet weather, on snow, ice, slope, rough ground and provide for safe footing.

• Do not use the unit until you have read the operating instructions.

• Observe all the directions contained herein.

• Your behaviour to other persons must be responsible.

Caution: Beware of falling branches.Abb. 20 Step by Step Instructions 1. Prepare the engine pole pruner for operation taking steps described in Chapter 5 “First Putting in Operation” and start according to Chapter 6, Operation.

2. Wear the right clothing and anti-skid footwear

3. Hold the pruner at due spots of grasp with both the hands

Hold the pruner safely. The thumbs and fingers should embrace the pruner pole.

Mind proper footing, distribute the weight evenly in both the feet.

4. At the beginning, place the moving chain on the wood or a branch. Hold the

pruner at a place strongly to avoid jerks or skids (to the sides). Work with the chain moving at the full speed if possible.

5. Conduct the pruner with a light pressure. Do not force on it not to overload the

engine. The pruner performance is better and safer at the highest speed possible. .

6. Remove the pruner from the cut slit when the engine is running at full. Push

the button to switch the machine off. Mind that the unit has to be still completely and only then it may be put off.

Faults – Causes – Troubleshooting CAUTION: ALWAYS CHECK POWER FUSES FIRST! Fault Cause Troubleshooting The pruner runs but is not cutting The chain is fitted in reverse on the guide bar Refer to the assembly of guide bar and chain The pruner will cut only if the speed is high, result is only chips with several larger parts. The chain is blunt Refer to the saw chain sharpening No oil is supplied to chain

1. Replenish oil tank.

2. Use the right oil, oil tank filling.

1. Tighten the chain see Chain Tension set-up (see

2. see Guide Bar and Chain Installation

1. Oil content in the fuel too high. 1. Use 1:25 mixture .

Oil leaking from the unit

1. Oil tank cover not closed sufficiently 1. Tighten the oil tank cover. Notice: empty the oil

tank when the saw is out of useChecks and Maintenance Notice: Observe the saw maintenance instructions. Any maintenance not included herein should be done by an authorised servicing workshop. Saw exteriors cleaning Keep the saw exteriors clean. Use a soft cloth wetted in fine soap solution and wipe off the saw exteriors.

• The chain cutting edges are sharp. Wear protective gloves any time when handling the chain.

• Saw exteriors cleaning

• Do not dip the saw in liquids.

• Do not use any detergents containing ammonia, chlorine or flour emery

Checks and Maintenance Safety Instructions The unit may be a reliable tool only if maintained and cared for on a regular basis. Insufficient maintenance and care may cause unexpected accidents and injuries. Uneven wear is the cause if guide bar problems most frequently. They may be due to inappropriate sharpness of the chain cutting elements and poor adjustment of the depth limiters . If the bar is worn unevenly, the bar rail will get wider. The saw will chatter then and the rivets get loosen The saw cutting will not be straight. The chain bar should be replaced. The bar should be checked before the saw is sharpened. A worn or defective bar is not safe and damages the chain and makes cutting difficult.

• Remove the guide bar from the unit.

• From time to time, clean the guide bar slit from the sawdust. Use a wire or a filling knife for it .

• After repeated grinding with a file, the chain should be sharpened at a servicing centre or on a sharpening machine to secure even sharpening.

Cutting edges are sharp. Wear protective gloves when handling the chain.

The chain should be kept sharpened. The cutting job will be faster and safer then. A blunt chain will cause unnecessary wear of the sprocket wheel, guide bar , chain and motor. The chain is blunt if it is necessary to force it against the wood and cutting then results in sawdust and several larger chips. Tip: Use some of the saw chain sharpeners by Güde. GS 650 saw chains sharpener Rugged universal sharpener of all common chains to be fitted. Skala high-efficiency motor, , 2 x 35°, sharpening angle may be easily adjusted by manual wheel, guide bar and adjustable stop. Chain fixing by retaining screws. Easy sharpening of cutting elements by force applied on the motor casing. EAN 40 15671 94090 2 Article-Nr. 94090Profi 2500 saw chain sharpener Professional chain sharpener , suitable for any common types of saws, High-efficiency motor, no change of clamping chain, Both teeth positions may be sharpened by a swivelling jig and grinding head, lighting of the worked part included (230 Volt, 15 Watt, E14). All settings easily controlled, basic body of aluminium casting without twists, grinding head enabling easy turns at grinding and automatic reverse setting of the head. Included 1 disk 145 x 22,3 x 3,2mm, 1 disk 145 x 22,3 x 4,7 mm, with an oil-stone and grinding gauge. . EAN: 40 15671 94131 2 Article-Nr. 94131 Manual sharpening with file

• Use a file guide for filing at 30°.

• Adjust the chain for it to be tensioned properly Fasten the guide bar in the vice with care. Notice: Never fasten the chain.

• Insert a 4-mm round file (connected to a file guide) in the slit between the top plate and the depth limiter on the chain. The file guide should rest on both the top plate and the depth limiter (Notice: File in the centre of the guide bar.)

• Hold the file guide straight. Make sure that the 30° mark on the file guide runs in a parallel with the guide bar centre line. That will guarantee that the cutting element are filed at an angle of 30°. File the element in inside-outside direction until it is sharp. File in one direction only . Notice: Two or three strokes of the file should be sufficient to sharpen the cutting element .

• When the cutting element is sharpened, push the chain forward and proceed with a following element. File all the cutting elements on one side of the chain. Repeat the procedure on the other side. Cutting elements depth limiters filing The depth limiter clearance will decrease if the cutting elements are sharpened. The cutting elements depth limiters should be readjusted following every second or third sharpening .

• Fit the depth gauge (0.635 mm) firmly on two cutting elements tips.

• Make sure that the limiter slides into the depth gauge slit

• Use a medium sized flat file. File the depth gauge and the depth limiter straight .

• Remove the depth gauge. Using a flat file, dress the cutting element depth limiter corner . Saw chain replacement Replace the chain any time when the cutting elements are too worn after repeated sharpening or break of the chain is imminent. Only use the replacement chain mentioned herein. The sprocket wheel has to be replaced as well when the chain is being replaced. Proper drive of the chain will be provided then.. Notice: The chain and sprocket wheel are shown in chapter Chain and Bar Replacement. Check and Maintenance Schedule Time Interval Description Other Details After every use

• Clean sawdust thoroughly from the unit As needed

• Sharpen the chain As needed

• Replenish oil After every 3
